• 1,5 Maße und Gewichte Länge x Breite x Höhe mm 911 x 96 x 212 Gewicht (ohne Akkupack) kg 2,4 Safety instructions p. 17
• Intended use p. 24
• Environmental protection p. 25
• Accessories and spare parts p. 25
• Scope of delivery p. 25
• Symbols on the device p. 25
• Description of the device p. 25
• Initial startup p. 25
• Basic operation p. 25
• Switch on the device p. 26
• Removing blockages p. 26
• Removing the battery pack p. 26
• Finishing operation p. 26
• Transport p. 26
• Storage p. 26
• Care and service p. 26
• Troubleshooting guide p. 27
• Warranty p. 27
• Technical data p. 27
• Vibration value p. 27
• EU Declaration of Conformity Chairman of the Board of ManagementDirector Regulatory Affairs & Certification H. Jenner S. Reiser18 English the general safety regulations and accident prevention guide- lines applicable by law. Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dan- gerous situation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dan- gerous situation that may lead to minor injuries. ATTENTION ● Indication of a potentially dan- gerous situation that may lead to damage to property. General Power Tool Safety Instructions 몇 WARNING ● Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seri- ous injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area safety a Keep work area clean and well lit. Cluttered or dark work areas invite accidents. b Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liq- uids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and by- standers away while oper- ating a power tool. Distractions can cause you to lose control. 2 Electrical safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapt- er plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. b Avoid body contact with earthed or grounded sur- faces such as pipes, radia- tors, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock.English 19 d Do not abuse the cord. Never use the cord for car- rying, pulling or unplug- ging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock. e When operating a power tool outdoors, use an ex- tension cord suitable for outdoor use. Use of a cord suitable for outdoor use re- duces the risk of electric shock. f If operating a power tool in a damp location is una- voidable, use a residual current device (RCD) pro- tected supply. Use of an RCD reduces the risk of electric shock. 3 Personal safety a Stay alert, watch what you are doing and use com- mon sense when operat- ing a power tool. Do not use a power tool while you are tired or under the influ- ence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in se- rious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropri- ate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off-posi- tion before connecting to power source and/or bat- tery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the pow- er tool may result in personal injury. e Do not overreach. Keep proper footing and bal- ance at all times. This ena- bles better control of the power tool in unexpected sit- uations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust ex-20 English traction and collection fa- cilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related haz- ards. 4 Power tool use and care a Do not force the power tool. Use the correct pow- er tool for your applica- tion. The correct power tool will do the job better and saf- er at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, chang- ing accessories, or storing power tools. Such preven- tive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained us- ers. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s op- eration. If damaged, have the power tool repaired before use. Many accidents are caused by poorly main- tained power tools. f Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, acces- sories and tool bits etc. in accordance with these in- structions, taking into ac- count the working conditions and the work to be performed. Use of the power tool for operations dif- ferent from those intended could result in a hazardous situation. 5 Battery tool use and care a Recharge only with the chargers specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b Use power tools only with specifically designated battery packs. Use of anyEnglish 21 other battery packs may cre- ate a risk of injury and fire. c When the battery pack is not in use, keep it away from other metallic ob- jects, like paperclips, coins, keys, nails, screws or other small metallic ob- jects that can make a con- nection from one terminal to another. Shorting the bat- tery terminals together may cause burns or a fire. d Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. 6 Service a Have your power tool ser- viced by a qualified repair person using only identi- cal replacement parts. This will ensure that the safety of the power tool is maintained. Safety instructions for lopping shears The device has a fixed length of p. 27

DANGER ● Severe injuries through a lack of concentration when working. Do not use the device when under the influence of drugs, alcohol, or medication, or when you are tired. 몇 WARNING ● The device is not intended for use by children, persons with restricted physical, sensory or mental abilities or persons unfamiliar with these in- structions. The age of the opera- tor may be limited by local restrictions. ● Do not use the de- vice if there is a danger of light- ning. ● Risk of electric shock. Do not work with the device within 10 m of overhead lines. ● En- sure that all protective devices and handles are correctly fitted, securely fastened and in good condition. ● Ensure a firm foot- ing, a clean workplace and plan a retreat path from falling branches before using the de- vice. ● Always hold the device with both hands. Hold the front handle with one hand. With the other hand hold the rear handle, operate the unlocking button and the power switch. ● Wear long, heavy trousers, clothing with long arms and non-slip boots when working with the de- vice. Do not work barefoot. Do not wear sandals or short trou- sers. Avoid wearing loose cloth- ing or clothing with cords and straps. ●  Risk of kickback due to loss of balance. Avoid an abnor- mal posture, keep a stable, safe footing and maintain your bal- ance. ● Replace any worn or22 English damaged parts before operating the device. ● Risk of injury. Do not make any modifications to the device. Do not use the de- vice to drive attachments or de- vices not recommended by the manufacturer of the device. ● Use the device only in daylight or under good artificial lighting. ● You must not use the device if the cutting mechanism does not work properly. ● To protect against falling branches, do not stand under the branch or twig that is being cut. ● Do not hold the lopping shears at an angle greater than 60 ° to the ground surface. ● Clippings and other material can get stuck between the jaw and blade. Keep the de- vice clean of clippings and other material. ● Risk of injury due to long, uninterrupted use of the device. Take regular breaks while working with the device. ● Make sure that the device is correctly positioned before start- ing it. ● Switch the device off, re- move the battery pack and make sure that all moving parts have stopped moving: Before cleaning the device or removing a blockage. When leaving the device unat- tended. Before mounting or removing attachments. Before checking, maintaining or working on the device. 몇 CAUTION ● Wear especially safety glasses and hearing pro- tection. ATTENTION ● Only store the device indoors. Additional safety instructions 몇 WARNING ● Serious injuries due to negligence through famil- iarity with the device due to fre- quent use. ● Keep the work area clear of bystanders, children and animals while cutting. ● Risk of injury if a branch under tension snaps back when cutting. ● A sharp cutting edge reduces the risk of injury and increases the cutting performance. Keep the cutting edge sharp and clean, follow the instructions for oiling and replacement of accessory parts. ● Check the device for damage before each use and af- ter any impacts. Damaged parts must be repaired or replaced by the authorised Customer Ser- vice department. ● Immediately stop the device and check for damage or identify the cause of the vibration if the device has been dropped, hit or vibrates ab- normally. Have damage re- paired by the authorised Customer Service or replace the device. ● Danger of injury and damage to the device if unquali- fied personnel carry out mainte- nance and care work. Service and maintenance work on thisEnglish 23 device requires special protec- tive measures and knowledge and may only be carried out by suitably qualified and specially trained specialist personnel. ● Risk of injury due to operating error. Keep these operating in- structions, read them regularly, and use them for instructing oth- er people how to use the device. Provide these operating instruc- tions with the device when you lend or transfer the device. 몇 CAUTION ● Slippery handles and gripping surfaces prevent safe operation and control of the device in unexpected situations. Keep handles and gripping sur- faces dry, clean, and free from oil and grease. ● Before starting work, the operator must check that all safety devices are at- tached correctly and are fully functional. Safe servicing and care 몇 WARNING ● Turn off the mo- tor, make sure all moving parts have fully stopped and remove the battery pack before inspect- ing, cleaning, or servicing the device. ● Service and mainte- nance work on this device re- quire special care and knowledge and may only be per- formed by appropriately quali- fied personnel. Take the device to an authorized Customer Ser- vice department for mainte- nance. ● Ensure that the device is in a safe condition by regularly checking that all bolts, nuts and screws are screwed tight. 몇 CAUTION ● Only use acces- sories and spare parts and at- tachments that are approved by the manufacturer. Only original spare parts, original accessories and original attachments ensure fault-free and safe operation of the device. ● Injuries and dam- age to the device when chemi- cals damage, soften or destroy plastic parts. Avoid contact of plastic parts with brake fluid, petrol, petroleum-based prod- ucts, rust remover, etc. ATTENTION ● Clean the prod- uct with a soft, dry cloth each time after use. ● Do not use sol- vents to clean the plastic parts, as they attack the materials used on the device. Remove im- purities such as dust, oil and lu- bricants using a clean cloth. Note ● You may only perform the adjustments and repairs de- scribed in these operating in- structions. Contact your authorised Customer Service department for other repairs. ● In order to ensure a long and reliable service life of the device, you should carry out the mainte- nance measures described in the operating instructions on a regular basis.24 English Safe transport and storage 몇 WARNING ● Switch the de- vice off, allow it to cool down and remove the battery pack before storage or transportation. 몇 CAUTION ● Risk of injury and damage to the device. Se- cure the device against move- ment or falling down during transport. ATTENTION ● Remove all for- eign bodies from the device be- fore storage or transportation. ● Clean the product with a soft, dry cloth each time after use. ● Store the device in a dry, well ventilated location out of the reach of children. Keep the de- vice away from corrosive sub- stances such as garden chemicals. ● Do not store the device outdoors. Residual risks 몇 WARNING ● Certain residual risks remain present, even when the device is operated in the pre- scribed manner. The following dangers can be present when using the device: Vibration can cause injuries. Use the correct tools for the job, use the handles provided and restrict the working time and hazard exposure time. Severe injuries through con- tact with the cutting tools. Keep cutting tools away from hands and feet. Fit the blade guard when not using the de- vice, also during short work breaks. Injuries caused by hurled ob- jects, e.g. B. wood chips and splinters. Risk reduction 몇 CAUTION ● Using the device for longer pe- riods can cause poor circula- tion in the hands due to vibrations. A general period of use cannot be set, because this depends on several influ- encing factors: Personal tendency to suffer from poor circulation (fre- quently cold fingers, tingling sensation in the fingers) Low ambient temperature. Wear warm gloves to protect your hands. Holding the device too tightly hindering blood circulation. Continuous operation is more harmful than operation inter- rupted by work breaks. You should see a doctor if us- ing the device regularly and for lengthy periods of time, and in the event of repeated occur- rences of symptoms such as tingling in the fingers or cold fingers. Intended use DANGER Improper use Danger of death from incision injuries Only use the device for its proper use. The lopping shears are only intended for private use.English 25 The device is intended for outdoor use only. For safety reasons, always hold the device firmly with both hands. The device is intended for cutting and pruning small branches and twigs (for maximum branch thickness- es see Technical data). The user stands securely on the ground. Any other use, e.g. cutting objects that are not made of wood, is prohibited. The user shall be liable for hazards arising as a result of improper use. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your deal- er. Symbols on the device Description of the device The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging). See graphics page for illustrations Illustration A 1 Trigger 2 Trigger lockout button 3 Handle housing 4 Type plate 5 Battery pack unlocking button 6 Cutting blade 7 Hook 8 Blade guard 9 *Quick Charger Battery Power 18V 10 *Battery Pack Battery Power 18V

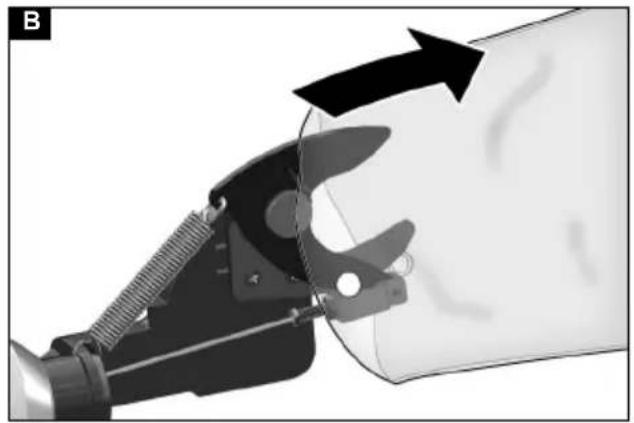

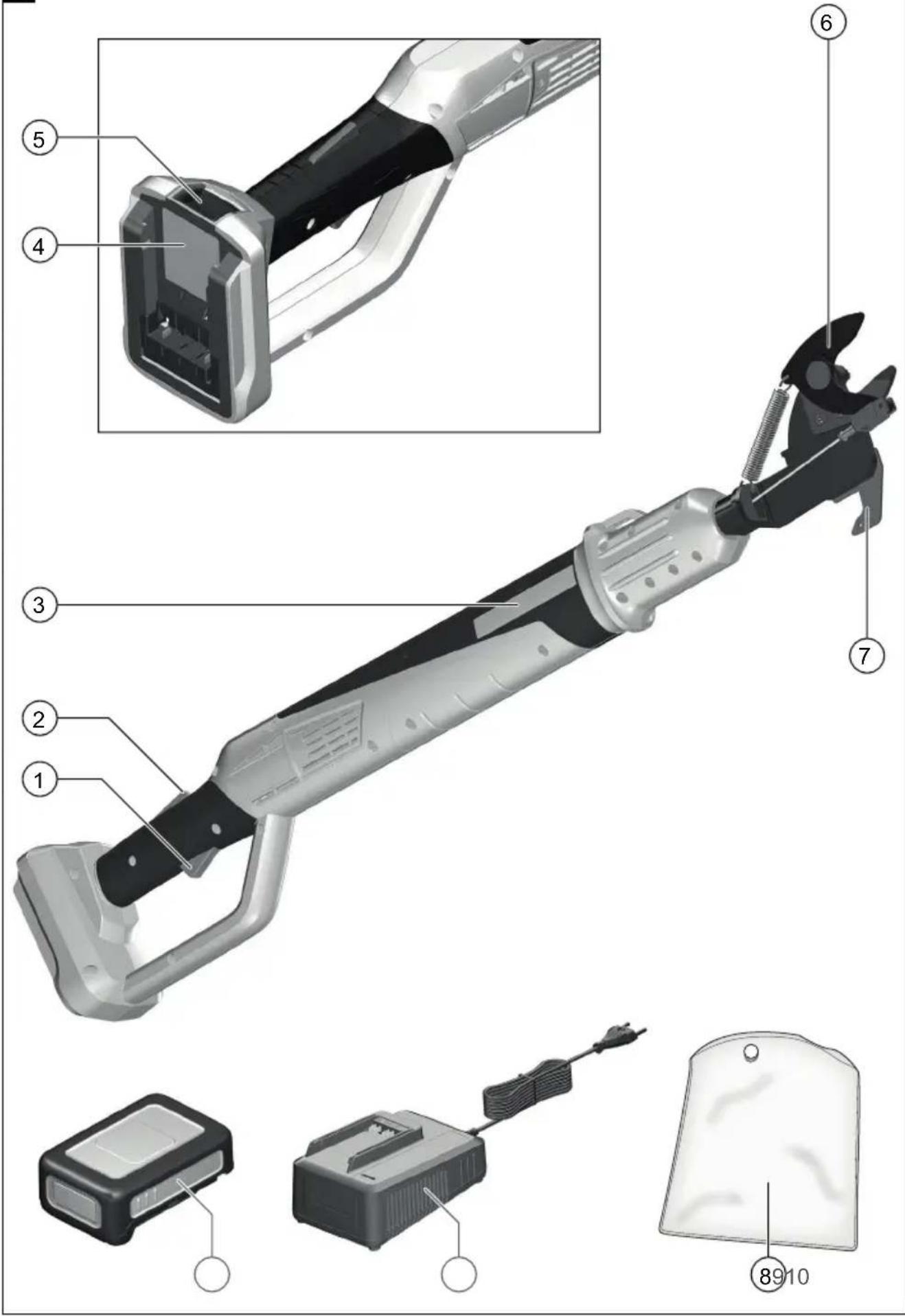

• Not included in the scope of delivery Rechargeable battery pack The device can be operated with a 18 V Kärcher Bat- tery Power battery pack. Initial startup Removing the blade guard

1. Mount the hook using a suitable Phillips screwdriver.

Illustration C Installing the battery pack

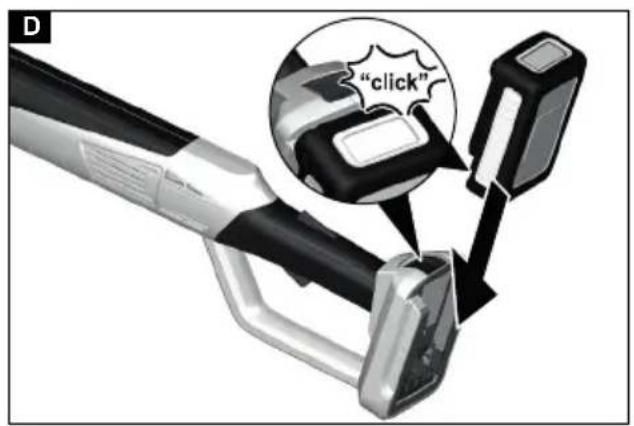

1. Push the battery pack into the mounting in the de-

vice until it audibly latches into place. Illustration D Basic operation

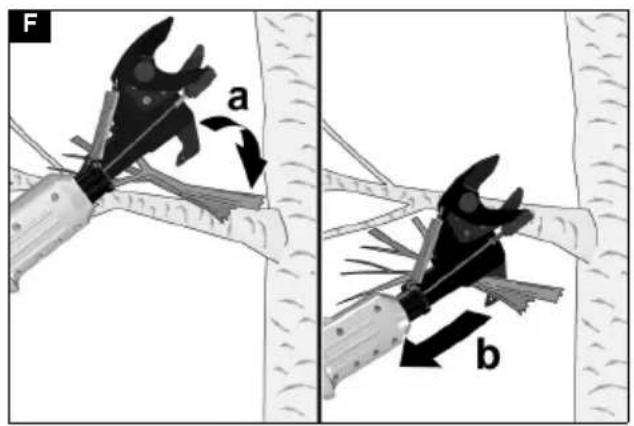

1. Check the tree and the branches to see if any dam-

age such as rot is present or if the branches are un- der tension.

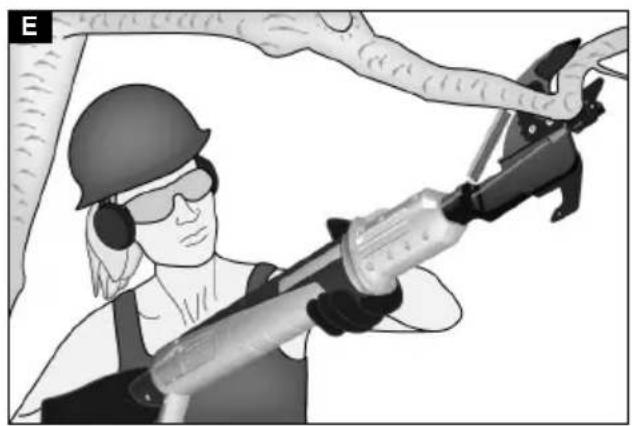

2. Hold the device firmly with both hands.

Illustration F General warning symbol Read the operating instructions and all safety instructions before operating the device for the first time. Wear non-slip, sturdy gloves when work- ing with the device. Wear non-slip safety shoes when work- ing with the device. Always wear suitable eye protection and hearing protection when working with the device. Do not subject the device to rain or moist conditions. Electrical hazard. Keep a minimum dis- tance of 10 m away from overhead lines when working with the device. Danger due to flung objects. Keep spec- tators, especially children and pets, at least 15 m away from the work area. Keep your hands away from the blades. 10m26 English Switch on the device

2. Press the trigger.

The device starts up.

3. Release the trigger.

The device stops. Removing blockages Wood chips or bark can lead to blockage of the cutting blades. 몇 WARNING Removing blockages Incision injuries from the sharp blade or sharp-edged objects Wear protective gloves when checking for blockages or removing blockages.

1. Press the trigger 3 - 4 times.

If the blockage cannot be removed, proceed as follows:

2. Remove the battery pack (see Chapter Removing

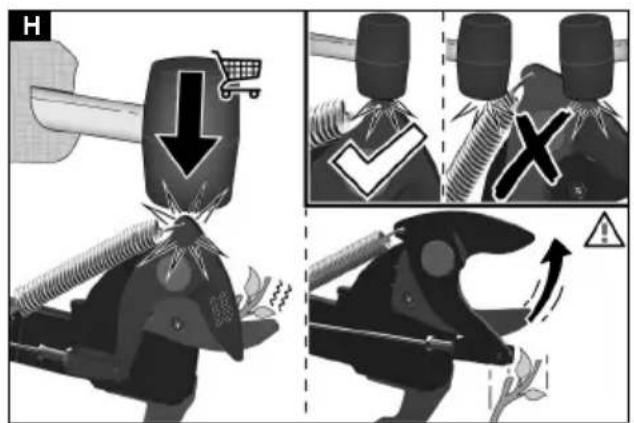

3. Gently tap the cutting blade with a piece of wood or

a rubber mallet until the blockage is released. Keep your hands away from the cutting blades as the blades suddenly open after removing the blockage. Illustration H

4. Check that the blades are free to move, if necessary

clean foreign bodies from the blades using a brush.

5. Mount the battery pack (see Chapter Installing the

6. Before further cutting, press the trigger to fully open

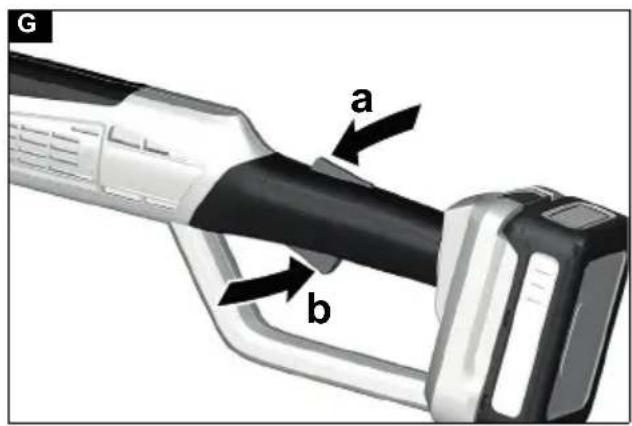

the blades. Illustration G Removing the battery pack Note During longer work breaks, remove the battery pack from the device and secure it against unauthorised use.

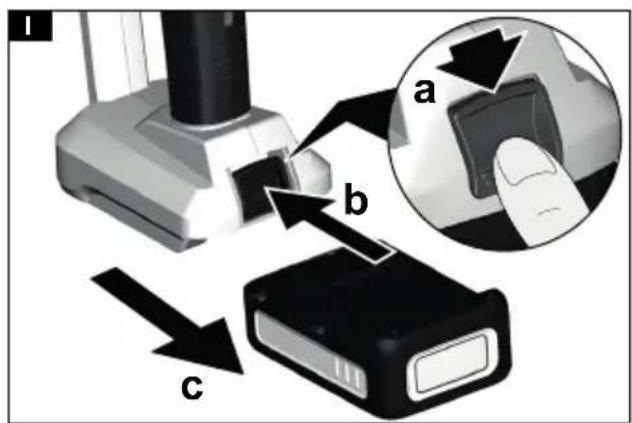

1. Pull the battery pack unlocking button in the direc-

tion of the battery pack. Illustration I

2. Press the battery pack unlocking button to unlock

3. Remove the battery pack from the device.

1. Remove the battery pack from the device (see

Chapter Removing the battery pack).

2. Clean the device (see Chapter Cleaning the de-

vice). Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transporta- tion. 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery pack from the device before trans- port. Transport the device only with the blade guard fitted. Secure the device against slipping and tipping over when transporting in vehicles. Storage Clean the device before storing (see Chapter Cleaning the device). 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery pack from the device before stor- age. Store the device only with the blade guard fitted.

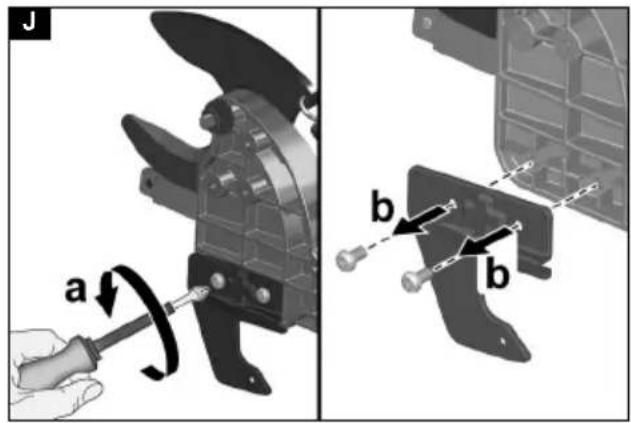

1. Remove the hook with a suitable Phillips screwdriv-

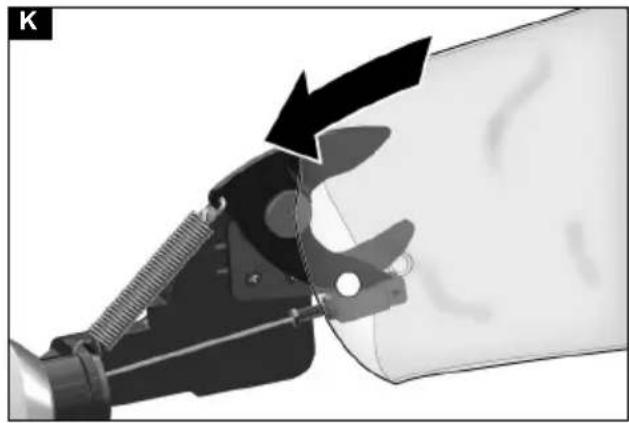

3. Store the device in a dry, well ventilated location.

Keep away from corrosive substances such as gar- den chemicals and defrosting salt. Do not store the device outdoors. Care and service 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery from the device before all work on the device. 몇 CAUTION Sharp cutting blade Incision injuries Wear protective gloves when working on the cutting blade. Cleaning the device ATTENTION Improper cleaning Damage to the handle housing Do not use solvents to clean the handle housing. Use clean cloths to remove contaminants such as dust, oil or lubricants. ATTENTION Contact with chemicals Damage to plastic parts Do not leave the plastic parts with chemicals such as B Brake fluid, gasoline, petroleum-based products or rust remover in contact.

1. Remove the battery pack (see Chapter Removing

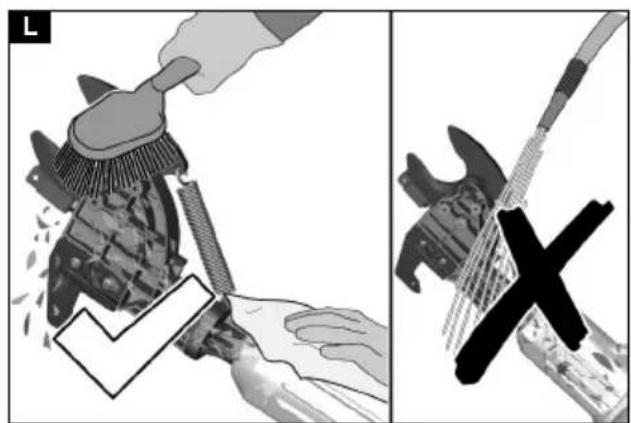

2. Use a brush to remove any dirt and debris from the

cutting blade. Illustration L

3. Clean the handle housing with a soft, dry cloth.

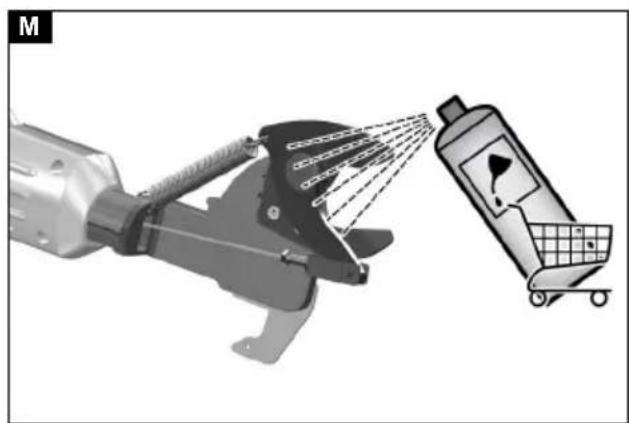

Oiling the cutting blade In order to maintain the cutting blade quality, the cutting blade sections should be oiled after each use. Note Using thin machine oil or spray oil will yield very good results.

1. Place the device on a flat surface.

2. Apply the oil to the cutting blade.

Illustration M Before start-up Before each startup, the following maintenance activi- ties must be carried out:English 27 Check the device for damage. Check all pins, nuts and screws for tightness. Check the sharpness of the cutting blade. Replace blunt cutting blade. Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. As the battery pack ages, even if it is looked after, its ca- pacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect. Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Technical data Subject to technical modifications. Vibration value 몇 WARNING The specified vibration value was measured using a standard test procedure and may be used to compare devices. The specified vibration value may be used in a provi- sional assessment of the load. Depending on the way the device is used, the vibration emission can deviate from the specified overall value during the current use of the device. Device with a hand-arm vibration value > 2.5 m/s² (see chapter Technical Data in the operating instructions) 몇 CAUTION ● Uninterrupted use of the device for several hours can lead to numbness. ● Wear warm gloves to protect your hands. ● Take regular breaks from work. EU Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Battery-powered lopping shears Type: 1.444-020.0 Currently applicable EU Directives 2006/42/EC (+2009/127/EC) 2011/65/EU 2014/30/EU Harmonised standards used EN 55014-1: 2017 EN 55014-2: 2015 Fault Cause Rectification The device does not start

Battery pack is empty Charge the battery pack. Battery pack is defective. Replace the battery pack. Battery pack is not inserted correctly. Push the battery pack into the mounting until it latches into place. The device stops during operation Cutting blade blocked by clippings. Remove the clippings. The battery has overheated Stop working and allow the battery to cool down to normal battery temperature. Motor has overheated Stop working and allow the motor to cool down. Device performance data Working voltage of the battery V 18 Softwood cut material diameter (max.) mm 32 Hardwood cut material diameter (max.) mm 28 Duration of cutting cycle / pause s 10 / 7 Determined values in acc. with EN 60745-1 Sound pressure level L

dB(A) 3,0 Sound power level L
