USER MANUAL HT 65036 Bp Kärcher

• Schnittlänge mm 638 Gewicht (ohne Akkupack) kg 4,5 HT 650/ 36 Bp General notes p. 11
• Hazard levels p. 11
• Safety instructions p. 12
• Intended use p. 13
• Environmental protection p. 13
• Accessories and spare parts p. 14
• Scope of delivery p. 14
• Safety devices p. 14
• Symbols on the device p. 14
• Protective clothing p. 14

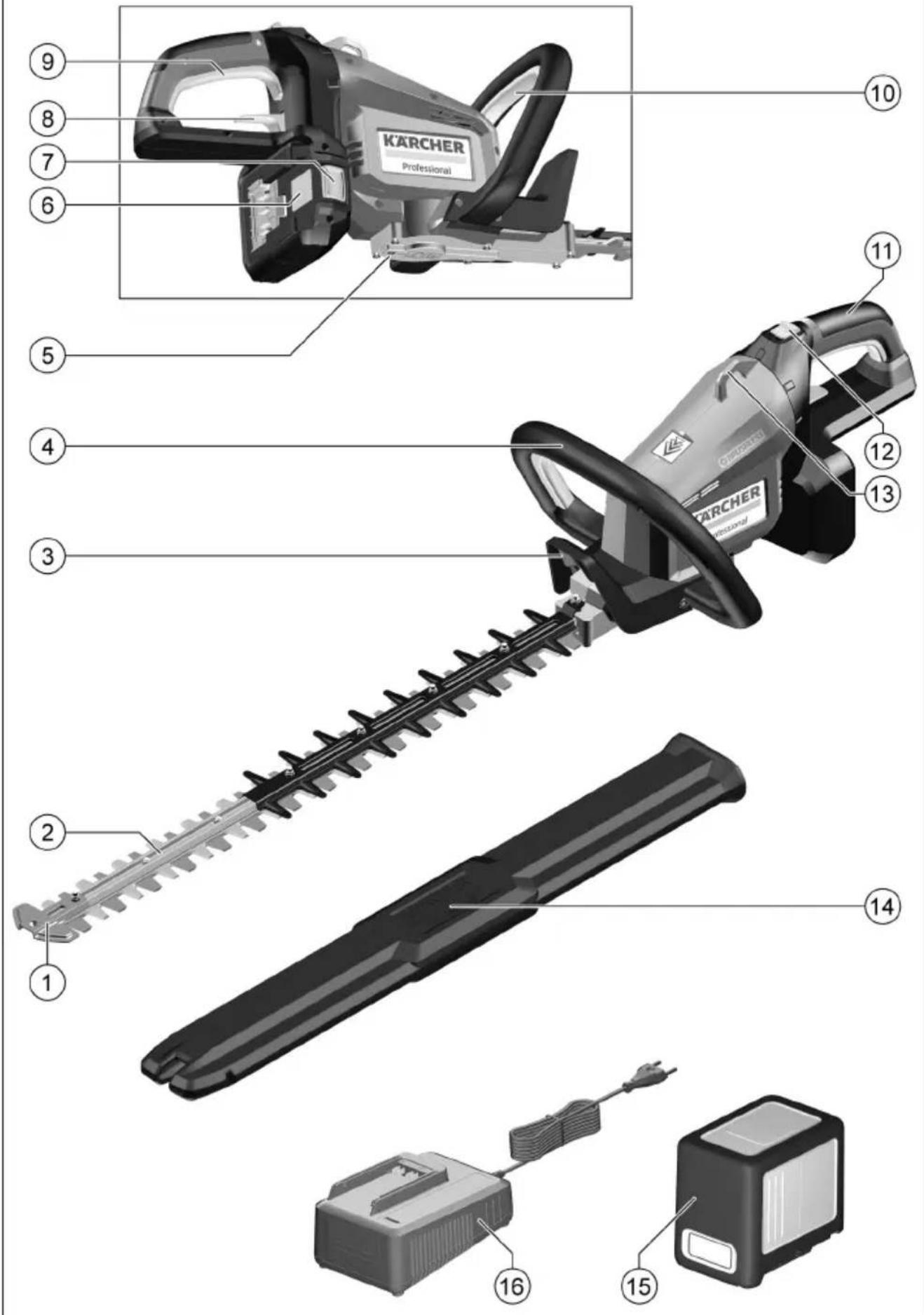

• Description of the device p. 14
• Initial startup p. 15
• Operation p. 15
• Transport p. 15
• Storage p. 15
• Care and service p. 15
• Troubleshooting guide p. 16
• Warranty p. 16
• Technical data p. 16
• Vibration value p. 17
• Declaration of Conformity English ATTENTION ● Indication of a potentially dangerous situation that may lead to damage to property. Safety instructions You must adhere to special safety measures and rules of conduct when working with hedge trim- mers, otherwise a danger of injury exists. In addition to the safety instructions, the country-specif- ic safety and training regulations must also be ob- served, e.g. from authorities, trade associations or social insurance funds. Local regulations may limit the times during which hedge trimmers can be used (time of day or season). Observe the local regulations. General Power Tool Safety Instructions 몇 WARNING ● Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future ref- erence. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area safety a Keep work area clean and well lit. Cluttered or dark areas invite accidents. b Do not operate power tools in explosive at- mospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while op- erating a power tool. Distractions can cause you to lose control. 2 Electrical safety a Power tool plugs must match the outlet. Nev- er modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. b Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet con- ditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduc- es the risk of electric shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or med- ication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate condi- tions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of t he power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such pre- ventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to oper- ate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many acci- dents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the pow- er tool for operations different from those intend- ed could result in a hazardous situation. 5 Battery tool use and care a Recharge only with the charger specified by the manufacturer. A charger that is suitable forEnglish 13 one type of battery pack may create a risk of fire when used with another battery pack. b Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. c When battery pack is not in use, keep it away from other metal objects, like paperclips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery termi- nals together may cause burns or a fire. d Under abusive conditions, liquid may be ejected from the battery; avoid contact. If con- tact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medi- cal help. Liquid ejected from the battery may cause irritation or burns. 6 Service a Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Safety instructions for hedge trimmers ● Keep all parts your body away from the cutting blade. Do not attempt to remove cut material or to hold the material being cut while the blade is running. Only remove trapped cut material when the device is switched off. A moment of careless- ness when using the hedge trimmer can cause seri- ous injuries. ● Carry the hedge trimmer by the handle with the blade at a standstill. When transporting or stor- ing the hedge trimmer, always fit the protective cover. Handling the device with care reduces the risk of injury from the blade. ● Hold power tools only by the insulated handles because the cutting blade may come into con- tact with hidden power cables. If the cutting blade comes into contact with a live cable, metal parts of the device may become charged with voltage and p. 1712

use electric shock. ● Keep away from lines and cables in your work area during operation. Lines and cables may be caught by the cutting blade during operation and severed. General safety instructions 몇 WARNING ● Children and minors must not use the device. ● The device is not intended for use by persons with re- stricted physical, sensory or mental abilities or those lacking in experience and / or lacking in knowledge. ● Keep children and other persons out of the work area while you are using the device. ● You must only use the device if you are in a physical condition that allows you to be able to respond to any reaction effects that may occur (kickback, being pulled in or recoil), and to lessen these effect

hrough physical strength. Take regular breaks to pre- vent exhaustion. 몇 CAUTION ● You are responsible for the safe use of the device, in particular with respect to your own health as well as that of other persons. ● You must not operate the device when you are under the influence of medication or drugs which restrict your reactive capacity. Only work with the device when you are well rested and are in good health. ● Using the device for longer periods can cause poor circulation in the hands due to vibrations. A general period of use cannot be set, because this depends on several influencing factors: ● Personal tendency to suffer from poor circulation (frequently cold fingers, tingling sensation in the fin- gers) ● Low ambient temperature. Wear warm gloves to protect your hands. ● Holding the device too tightly hindering blood circu- lation. ● Continuous operation is more harmful than opera- tion interrupted by work breaks. You should see a doctor if using the device regularly and for lengthy periods of time, and in the event of re- peated occurrences of symptoms such as tingling in the fingers or cold fingers. ● Increased risk of accident in bad weather conditions. Only use the device when safe working is guaran- teed. ● Do not use the device if the blade sections are dam- aged or bent. ● Do not use the device if it vibrates unusually or makes unusual noises. ● Do not use the device on ladders or unstable surfac- es. ● Check the device for damage before use and make sure that the screws on the blade are firmly tightened. ● Risk of injury from exposed blades. Use the hedge trimmer only with the blade guard fitted. Intended use DANGER Improper use Danger of death from incision injuries Only use the device for its proper use. ● The hedge trimmer is suitable for commercial use. ● The hedge trimmer is intended for outdoor use. ● For safety reasons, always hold the hedge trimmer firmly with both hands. ● The hedge trimmer is only suitable for cutting plants, e.g. hedges and bushes. ● Do not use the hedge trimmer in a wet environment or in the rain. ● Use the hedge trimmer only in a well lit environment. ● Modifications and changes to the device that are not authorised by the manufacturer are prohibited for safety reasons. Any other use, e.g. cutting grass, trees or branches, is impermissible. The user is liable for all hazards resulting from impermissible use. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish.14 English Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your deal- er. Safety devices 몇 CAUTION Missing or modified safety devices Safety devices are provided for your own protection. Never modify or bypass safety devices. Unlocking button The trigger lockout button on the rear handle ensures two-handed operation. The lockout button blocks the trigger and thus prevents the hedge trimmer from start- ing up in an uncontrolled manner. Blade guard The blade guard is an important component of the safe- ty devices of the hedge trimmer. A damaged blade guard must not be used and must be replaced immedi- ately. Symbols on the device Protective clothing DANGER Risk of fatal injury from cut injuries. Wear suitable pro- tective clothing when working with the device. Observe the local regulations for accident prevention. Protective gloves Wear suitable protective gloves with cutting protection when working with the device. Head protection Wear a suitable hard hat when working with the device. Wear suitable hearing protection when working with the device. Wear suitable safety goggles or a helmet visor for pro- tection against flying splinters. Protective helmets with hearing protection and a safety visor are available in specialist shops. Description of the device The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging). See graphics page for illustrations Illustration A 1 Suspension eyelet 2 Blade 3 Hand guard 4 Handle, front 5 Screw for transmission grease filling hole 6 Type plate 7 Battery pack unlocking button 8 Unlocking switch for adjusting the cutting angle 9 Rear handle trigger 10 Front handle trigger 11 Handle, rear 12 Speed switch 13 Eyelet for hanging the carrying rack (optional) 14 Blade guard 15 *Battery Pack Battery Power+ 36V 16 *Quick Charger Battery Power+ 36V

• optional General warning symbol Read the operating instructions and all safety instructions before operating the device for the first time. Always wear suitable eye protection and hearing protection when working with the device. Risk of injury. Do not touch the sharp cut- ting tools. Wear non-slip, sturdy gloves when work- ing with the device. Danger due to flung objects. Keep spec- tators, especially children and pets, at least 15 m away from the work area. Do not subject the device to rain or moist conditions. Always hold the device with both hands. The guaranteed sound pressure level specified on the label is 98.English 15 Rechargeable battery pack The device can be operated with a 36 V Kärcher Bat- tery Power+ battery pack. Initial startup 몇 WARNING Uncontrolled startup Risk of fatal injury from incision injuries Remove the battery from the device for all preparatory work. Inserting the battery pack ATTENTION Dirty contacts Damage to the device and battery Check the battery mount and the contacts for soiling and clean them as necessary before inserting the bat- tery. Note Use only fully charged batteries. Illustration B

1. Push the battery into the mounting in the device until

it audibly latches into place. Use the carrying rack (option) A carrying rack can be used to make working with the device easier.

1. Attach the hook of the carrying rack into the eyelet

on the device. Illustration C Operation New users should be instructed by an experienced person and practice handling and techniques be- fore carrying out any work. Basic operation

1. Check the cutting material for foreign bodies, such

as paper, films or wires, and remove them as neces- sary.

2. Remove the blade guard.

3. Hold the hedge trimmer firmly with both hands.

Switch on the device

2. Press the trigger.

The device starts up.

3. Release the trigger.

The device stops. Speed control The device is equipped with a speed control.

1. Set the desired knife speed with the speed switch.

Illustration E Working techniques Note Use a snapping line to achieve an even cut.

1. Switch on the device and move it towards the cutting

2. Cut leaves and thin branches with an oscillating

movement. Illustration F

3. For thicker branches, use a sawing movement, but

do not stab into the plant.

4. Cut bushes and hedges from the bottom upwards.

5. When cutting tips, make a large swinging movement

and tilt the blade slightly in the process.

6. Hold the blade horizontally to cut lower-lying plants

such as groundcovers. Turning the handle The rear handle can be turned to work more comfortably on vertical surfaces.

1. Pull the handle unlocking button to the top.

2. Turn the handle into the desired position until it au-

dibly latches into place. Removing the battery 몇 WARNING Uncontrolled startup Risk of injury Remove the battery pack from the device during work breaks and before carrying out any service or care work. Illustration H

1. Pull the unlocking button towards the battery.

2. Press the unlocking button inward to unlock the bat-

3. Remove the battery from the device.

Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transporta- tion. 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery pack from the device before stor- age. Store the hedge trimmer only with the blade guard fitted. Secure the device against movement or falling down during transport. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery pack from the device before stor- age. Store the hedge trimmer only with the blade guard fitted. The device may only be stored indoors. The device can be hung in storage with the help of a suspension eyelet. The blade guard has a recess at this point. Illustration I Care and service 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery from the device before all work on the device.16 English 몇 CAUTION Risk of injury from sharp blades Wear safety goggles and protective gloves when work- ing on the device. Cleaning the device ATTENTION Incorrect cleaning Damage to the device Clean the device with a damp cloth. Do not use solvent-based cleaning agents. Do not immerse the device in water. Do not clean the device with a hose or high-pressure water jet. Illustration J

1. Allow the device to cool down.

2. Remove plant residue and dirt from the blade and

motor casing with a brush.

3. Clean the ventilation slits on the device with a brush.

Checking the blade screw connection 몇 CAUTION Loose screw connections Incision injuries through uncontrolled blade movements Check the screw connection of the blade regularly to en- sure it is firmly fastened. Illustration K

1. Check that all screws/nuts are tight.

2. Tighten any loose screws/nuts.

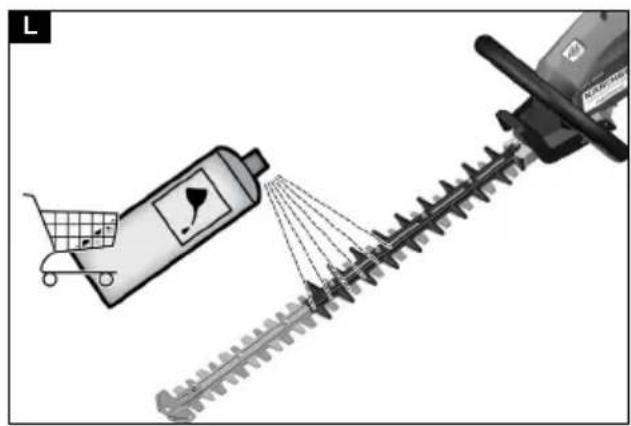

Oiling the blade sections In order to maintain the blade quality, the blade sections should be oiled after each use. Note Using thin machine oil or spray oil will yield very good results. Illustration L

1. Place the device on a flat surface.

2. Apply oil to the top of the blade sections.

Sharpening the blade sections Note Remove as little material as possible during sharpening and maintain the original angle of the blade tooth in the process. 몇 CAUTION Sharp blade Incision injuries Wear suitable protective gloves when sharpening the blade sections.

1. Clamp the blade in a vice.

2. Sharpen the exposed side of the blade teeth with a

3. Carefully push the blade further by hand so that the

unsharpened blade teeth are accessible.

4. Sharpen the exposed side of all blade teeth with a

file. Lubrication Note Observe the lubrication interval specified on the device to increase the service life of the device and to prevent premature defects.

1. Remove the Phillips head screw.

2. Press the transmission grease into the opening with

4. Tighten the Phillips head screw.

Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. As the battery pack ages, even if it is looked after, its ca- pacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect. Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Technical data Fault Cause Rectification The device does not start

Battery pack is not inserted correctly. Push the battery pack into the mounting until it latches into place. Battery pack is empty Charge the battery pack. Battery pack is defective. Replace the battery pack. The device stops during operation Blade blocked with cutting material. Remove cutting material from the blade. The battery has overheated Stop working and allow the battery to cool down to normal battery temperature. Motor has overheated Stop working and allow the motor to cool down. HT 650/ 36 Bp Device performance data Working voltage of the battery V 36 Idling speed (setting high) /min 3200 Idling speed (setting low) /min 2800 Cut material diameter (max.) mm 33English 17 Subject to technical modifications. Vibration value 몇 WARNING The specified vibration value was measured using a standard test procedure and may be used to compare devices. The specified vibration value may be used in a provi- sional assessment of the load. Depending on the way the device is used, the vibration emission can deviate from the specified overall value during the current use of the device. Device with a hand-arm vibration value > 2.5 m/s² (see chapter Technical Data in the operating instructions) 몇 CAUTION ● Uninterrupted use of the device for several hours can lead to numbness. ● Wear warm gloves to protect your hands. ● Take regular breaks from work. Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Hedge trimmer Type: HT 650/36 Bp Currently applicable EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU 2000/14/EC (+2005/88/EC) Harmonised standards used EN 60745-1:2009+A11:2010 EN 60745-2-15:2009+A1:2010 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015 EN IEC 63000: 2018 Conformity evaluation procedure used 2000/14/EC: Annex V Sound power level dB(A) Measured: 95.8 Guaranteed: 98 The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reis

Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: [phone] Fax: [phone] Winnenden, 2019/04/01 We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construc- tion as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. Product: Hedge trimmer Type: HT 650/36 Bp Currently applicable UK Regulations S.I. 2008/1597 (as amended) S.I. 2016/1091 (as amended) S.I. 2012/3032 (as amended) S.I. 2001/1701 (as amended) Designated standards used EN 60745-1:2009+A11:2010 EN 60745-2-15:2009+A1:2010 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015 EN IEC 63000: 2018 Applied conformity assessment procedure S.I. 2001/1701 (as amended): Schedule 8 Sound power level dB(A) Measured: 95.8 Guaranteed: 98 The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reis

Dimensions and weights Length x width x height mm 1130 x 270 x
