USER MANUAL Victory RF 8x42 ZEISS

Icon of a book with a wrench and bookmark symbol, no text or symbols present

ZEISS Victory RF

8x42 | 10x42 | 8x54 | 10x54

Gebrauchsanleitung

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Line drawing of a binocular device with labeled parts (17), no readable text or symbols beyond labels

Fig. 5

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 13

Instructions for use

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

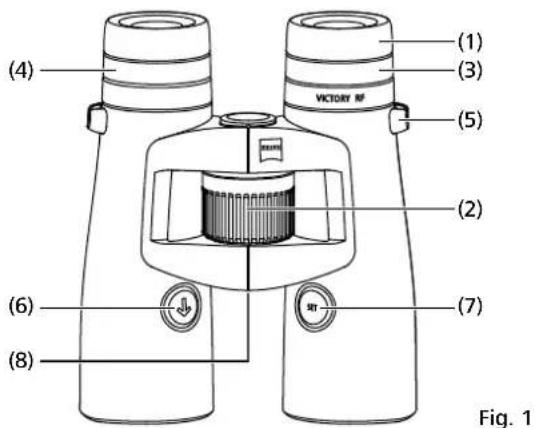

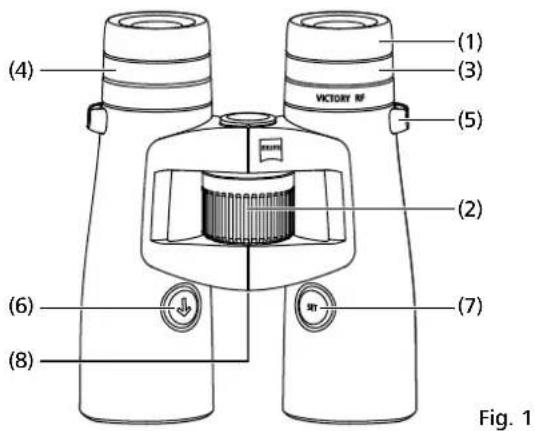

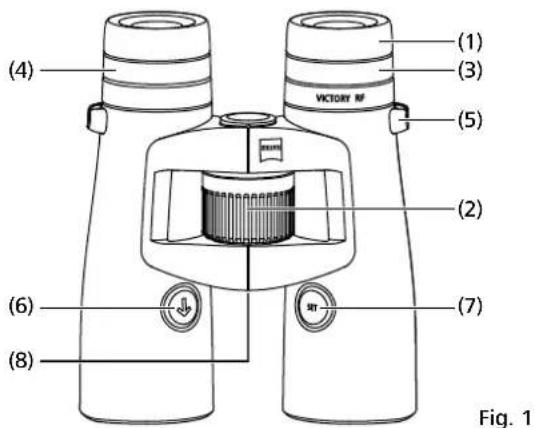

IDENTIFICATION OF THE COMPONENTS

1 Eye cup
2 Central focusing
3 Diopter compensation
4 Diopter compensation for display
5 Eyelet for fixing the carrying strap
6 Range finder button
7 Set button
8 Battery cover/battery compartment

INSTRUCTIONS FOR USE

Congratulations on the purchase of your new binoculars with integrated laser range finder.

ZEISS products are famous for outstanding optical performance, precision engineering and a long service life.

Please observe the following instructions for use in order to obtain the best from your binoculars and to ensure that they remain your constant companion for many years to come.

INFORMATION FOR YOUR SAFETY

Environmental influences

■ Caution: Do not use the binoculars to look at the sun or at laser light sources. This could result in serious injury to the eyes and in considerable damage to the product.
■ Caution: Never leave the binoculars in the sun for extended periods of time without the protective lens cap. The objective lens and eyepiece can function as a burning glass and damage the interior components.

Danger of swallowing

Caution: Do not leave the batteries and removable exterior parts within reach of children (danger of swallowing).

Further information and safety instructions be found in the QuickGuide provided. This guide can also be found at the Download Center on our website.

Battery disposal

Batteries do not belong in household rubbish!

Please use a recycling facility in your area to dispose of used batteries. Please only recycle discharged batteries.

As a rule, batteries are discharged if the device being run

■ shuts off and signals "Battery empty".

■ no longer functions properly after extended use of the batteries. To prevent short circuits, cover the battery contacts with an adhesive strip.

Caution: Use only battery types recommended by the manufacturer. Handle used batteries in accordance with the manufacturer's instructions. Under no circumstances should batteries be thrown into a fire, heated up, recharged, taken apart or broken open.

Germany: As a consumer, you have a legal obligation to return used batteries. You can hand in your batteries for free to wherever the batteries were purchased or to the public collection points in your city or community.

You will find these symbols on batteries that contain harmful substances: Pb = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

Li = Battery contains lithium

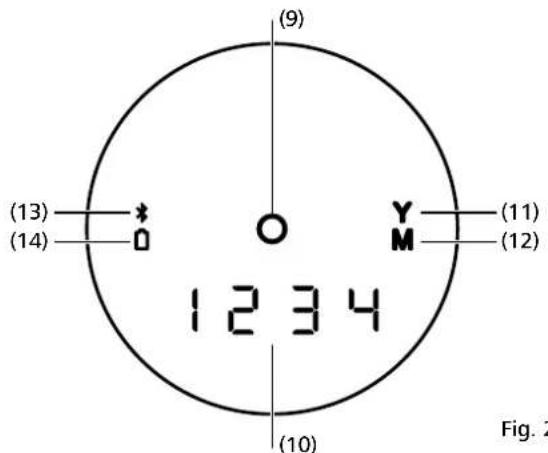

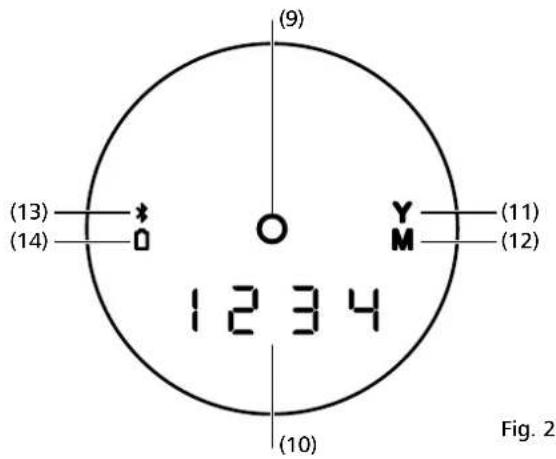

9 LED sighting mark
10 4-figure LED display
11 Unit yard display
12 Unit meter display
13 Bluetooth display
14 Battery display
15 Carrying strap
16 Eyepiece cap
17 Protective lens caps

User information for the disposal of electrical and electronic equipment (private households)

This symbol on products and/or accompanying documents indicates that used electrical and electronic products are not to be mixed with ordinary household waste. Take these products to the appropriate collection point for proper handling, recovery and recycling, where they will be taken back for free. In some states, it may also be possible to hand in these products to your local dealer when purchasing a corresponding new product. The proper disposal of this product serves to protect the

environment and prevents possible harmful effects on human beings and their surroundings, which may arise as a result of incorrect handling of waste. More detailed information on your nearest collection point is available from your local authority. According to state law, fines may be issued for the incorrect disposal of this type of waste.

For business customers within the European Union

To dispose of electrical and electronic equipment, please contact your dealer or supplier, who will be able to provide you with more information.

Information on disposal in other countries outside of the European Union

This symbol is applicable only in the European Union. Please contact your local authority or your dealer if you wish to dispose of this product and enquire about how to dispose of it.

CE Labelled in accordance with the statutory guidelines 2014/53/EU and 2011/65/EU.

SCOPE OF SUPPLY

ZEISS Victory ^® RF binoculars:

	Product Order number		Scope of supply
Victory RF 8x42	52 45 48		ZEISS Victory RFProtective lens capsEyepiece capCarrying strapBag with strapCR2 batteryLens cleaning clothQuick Guide Part 1 & 2
Victory RF 10x42	52 45 49
Victory RF 8x54	52 56 48
Victory RF 10x54	52 56 49

TECHNICAL DATA		8x42	10x42	8x54	10x54
Magnification		8 10 8 10
Effective lens diameter mm		42 42 54 54
Exit pupil diameter mm		5.3 4.2 6.8 5.4
Twilight factor		18.3 20.5 20.8 23.2
Field of view	m/1000m (ft/1000yds)	135 (405)	115 (345)	120 (360)	110 (330)
Subjective angle of view	°	62 66 55 63
Close-up setting limit	m (ft)	2.5 (8.2)		3.5 (11.5)
Diopter adjustment range	dpt	+/- 3		+/- 3
Eye relief	mm	17 (0.7)		14 (0.6)
Pupil Distance	mm	53.5 - 76		58.5 - 76
Lens type		FL		FL
Prism system		Abbe-König		Abbe-König
Coating		T*/LotuTec *		T*/LotuTec *
Nitrogen filling		√		√
Waterproof	mbar	400		400
Operating temperature	°C (°F)	-25 / +63 (-13 / +145)		-25 / +63 (-13 / +145)
Length	mm (in)	166 (6.5)	166 (6.5)	195 (7.7)	195 (7.7)
Width with an eye spacing of 65 mm	mm (in)	121 (4.8)	121 (4.8)	136 (5.4)	136 (5.4)
Weight	g (oz)	895 (31.6)	915 (32.3)	1,095 (38.6)	1,115 (39.3)
Measuring range2	m (yds)	15 - 2,300 (16 - 2,500)		15 - 2,300 (16 - 2,500)
Measuring precision	mrad	± 1 - 600 / ± 0.5 % > 600		± 1 - 600 / ± 0.5 % > 600
Measuring lime	Sek. (sec.)	< 0.3		< 0.3
Laser shaft length	nm	905		905
Laser beam divergence	mrad	1.6 x 0.5		1.6 x 0.5
Battery		1 x 3V / CR2		1 x 3V / CR2
Battery life at +20°C		>2,500x		>2,500x

Subject to changes in design and scope of supply due to technical improvements.
^1 Battery is subject to a lower temperature limit.
Product also functions under -10 °C / 14 °F.
^2 The range is influenced by the size and the degree of reflection of the object as well as by the weather and sun beams.

Diagram of binoculars with a battery and labeled parts (8), no readable text or symbols present.

Fig. 3

PREPARATION

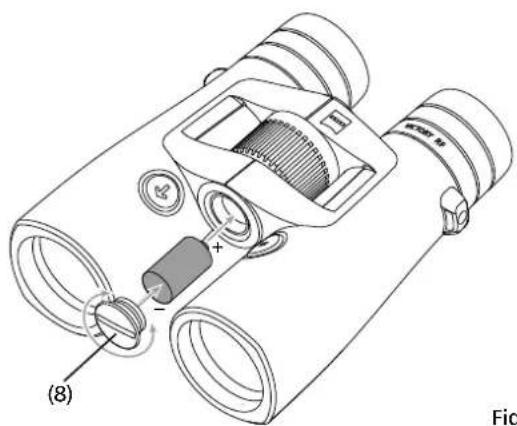

Inserting/Removing the battery

The laser range finder is powered by a type CR 2 lithium battery.

To insert and replace the battery, unscrew the battery cover (Fig. 3/8) – using a coin or similar – by turning anticlockwise. Insert the battery with the positive end forward (according to the symbol in the battery compartment).

Then screw the battery cover back on by turning clockwise.

At 20 °C, a new battery will last for over 2,500 measurements.

Depending on the conditions of use, however, low temperatures or frequent use of the scan mode for example may result in the battery life being considerably shorter. Low battery is indicated by the appearance of the battery symbol on the display. If the equipment will be unused for a long period, remove the battery in order to prevent damage by leakage from the battery. Use only high quality brand batteries.

Fig. 4

Fig. 5

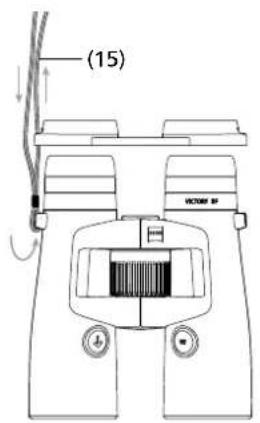

Attaching the carrying strap and the protective caps

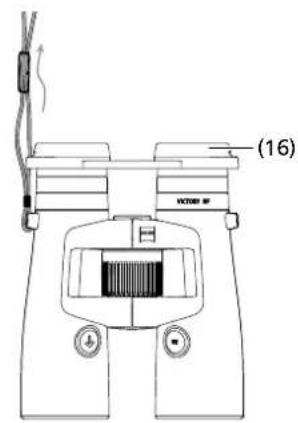

The carrying strap (Fig. 4/15) and the eyepiece cap (Fig. 4/16) are attached as shown in the illustrations.

Note: Feed the carrying strap only once through the eyelet on the eyepiece cap. Depending on personal taste, use the carrying strap to connect the eyepiece cap either on both sides or on one side only. The eyepiece cap is held onto the eye cups by a catch.

Before using the binoculars, remove the eyepiece cap with the index finger. After observation, replace the eyepiece cap in order to protect the eyepieces.

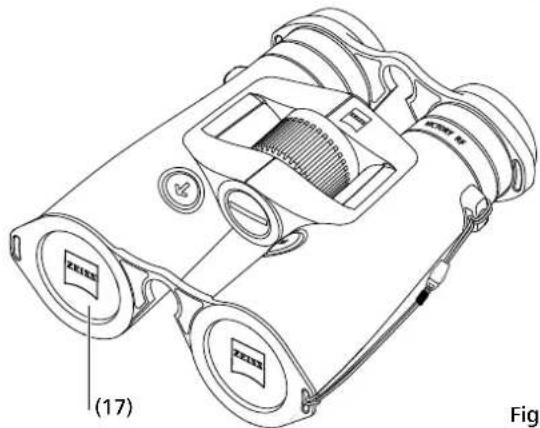

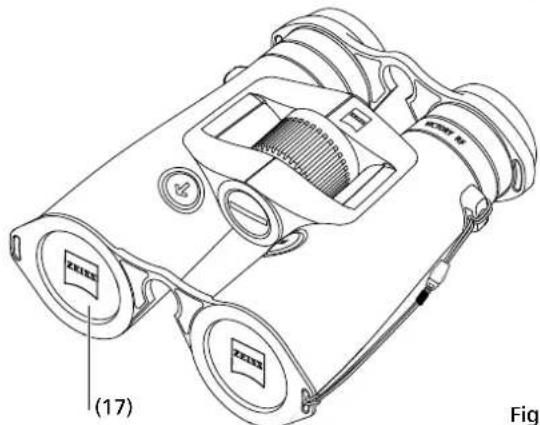

The protective lens covers (Fig. 5/17) are fitted on the binoculars as shown.

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Observation with and without glasses

When observing without glasses, use the equipment with the eye cup extended. To do this, turn the eye cup (Fig. 6/1) upwards and to the left (anticlockwise) until it locks in the highest position.

The eye cup can be locked in four positions – in the upper and lower plus in two intermediate positions. This adjustment option allows variation of the distance from the eye to the exit pupil and thus individual adjustment for each user.

When observing with glasses, turn the eye cup downwards and to the right (clockwise) until it locks in the lowest position (Fig. 6).

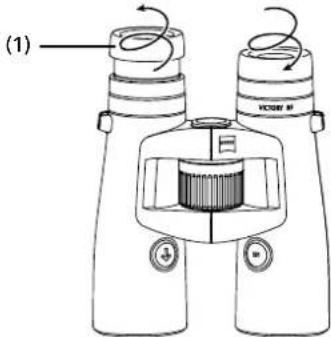

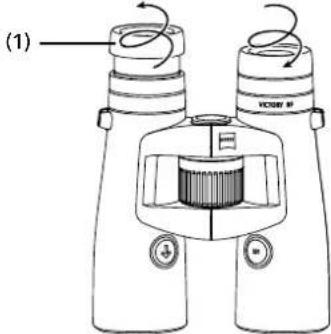

Cleaning and replacing the eyecups

To replace the eyecups or for cleaning, they can be completely screwed off of the binoculars. Turn the eyecups out as shown in Fig. 6 to the top click stop position and turn one more thread in the same direction until the eyecup is completely screwed out.

After cleaning, or replacing the eyecup, turn it to the right (clockwise) completely on the eyepiece. Using a slight jerk to the right the thread of the eyepiece clicks into the lowest setting. Finally, you can again set your desired distance between the eye and eyepiece using the click stops.

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

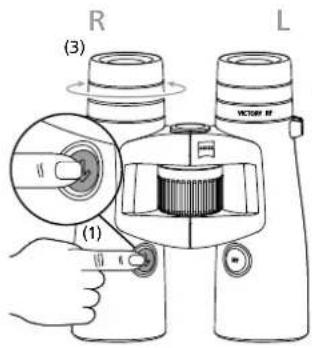

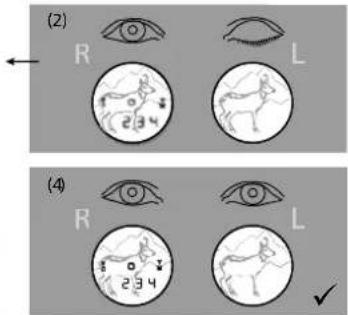

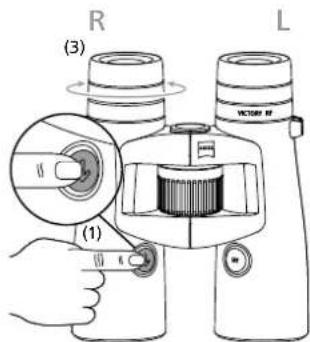

Focusing the aiming mark and diopter compensation

Use the range finder button (Fig. 1/6) to switch on the aiming mark (Fig. 2/9) and hold down the button. Focus the aiming mark and the display by turning the right hand diopter compensation (Fig. 1/4) to the left or the right. Then carefully use the central focusing (Fig. 1/2) for sharp focusing of the image in the right hand binocular tube.

Next, use the left hand diopter compensation (Fig. 1/3) for sharp focusing on the same object of the image in the left hand binocular tube. The values that are set can be read from the "+" or "-" scale on the back of the binoculars.

Menu settings in the rangefinder

Press the SET button for approx. two seconds to load the menu of your ZEISS Victory RF. You can then switch between the individual menu options by pressing the SET button once for each option.

Table 1

Menu 1 Brightness Press SET button for 2 seconds
Menu 2 Ballistics settings	Press SET button for 2 seconds+ press the SET button once
Menu 3 Display settings	Press SET button for 2 seconds+ press the SET button twice
Menu 4 Unit of measure	Press SET button for 2 seconds+ press the SET button three times
Menu 5 Measuring mode	Press SET button for 2 seconds+ press the SET button four times
Menu 6 Key layout	Press SET button for 2 seconds+ press the SET button five times
Menu 7 Turn off	Press SET button for 2 seconds+ press the SET button six times

Brightness

The brightness settings are located in menu 1 (press the SET button for 2 seconds). The ZEISS Victory RF has 11 brightness curves. By pressing the range finding button, you can select one of the 11 different brightness curves (curve 1 ≜ darkest setting possibility; curve 11 ≜ lightest setting possibility).

In addition to this, your ZEISS Victory RF also has automatic brightness adjustment for each of the selected brightness curves.

Simply release the range finding button (Fig. 1/6) when it reaches the appropriate setting for you. The brightness curve displayed most recently will then be saved. To check, you can always display the saved settings in the menu.

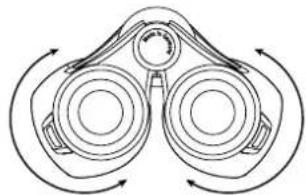

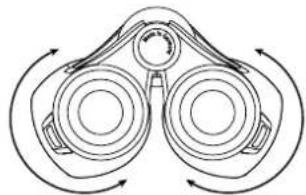

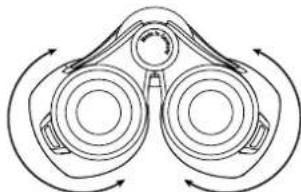

Adjusting the interpupillary distance

By folding the halves of the binoculars about the central axis, the eye relief can be adjusted such that a circular image is formed when observing with both eyes (Fig. 7).

Note: Depending on the set of the interpupillary distance, the aiming mark and display may be slightly angled.

Ballistics Settings (BIS II)

You can select the appropriate ballistics curve in menu 2 (press the SET button for 2 seconds + press the SET button once). As standard, you can choose between nine different ballistics curves, which cover almost all calibres. The ballistics curves are numbered consecutively in your ZEISS Victory RF and are labelled bA 1 - bA 9. Choose the most appropriate bullet trajectory dependant on the calibre, bullet type and bullet weight used. Knowledge of the ballistic data (bullet drop) for the load used is a prerequisite for selecting the corresponding bullet trajectory. In table 1 (below), on the basis of the bullet drop of the load, select the row with the value that corresponds most precisely. By pressing the range finding button

(Fig. 1/6), you can simply select the appropriate ballistics curve for you. By releasing the button, the ballistics curve is saved. To check, you can always display the saved settings in the menu.

In addition to the 9 default curves, you can upload up to 9 additional personalised ballistics curves to your ZEISS Victory RF. In your ZEISS Victory RF, the curves are labelled bAu 1 – bAu 9.

(More information can be found in the „Settings with the ZEISS Hunting App" section).

Simply release the range finding button (Fig. 1/6) on the appropriate setting for you. The ballistics curve displayed most recently is then saved. To check, you can always display the saved settings in the menu.

Caution: Please note that the ballistic information system BIS II is not to be used as a replacement for the hunter's assessment of the situation, but rather to support and increase hunting safety. We recommend shooting exercises from different ranges, which can be used to check the correct match of the specifications with the actual points of impact.

Table 2
Compensation for the bullet drop with ASV+ at distance, in meters and yards

Curve	(Distance) m / yard	100	150	200	250	300	325	350	375	400	425	450	475	500	525	550	575	600
1	Corr. cm / m	0	-1,5	-4,0	-10,0	-21,0	-29,3	-35,0	-45,0	-56,0	-68,0	-81,0	-95,0	-110,0	-131,3	-148,5	-172,5	-198,0
	Corr. Inches / Yards		-0,5	-1,4	-3,6	-7,6	-10,5	-12,6	-16,2	-20,2	-24,5	-29,2	-34,2	-39,6	-47,3	-53,5	-62,1	-71,3
2	Corr. cm / m	0	-1,5	-4,0	-12,5	-24,0	-32,5	-42,0	-52,5	-64,0	-76,5	-90,0	-109,3	-130,0	-152,3	-176,0	-201,3	-234,0
	Corr. Inches / Yards		-0,5	-1,4	-4,5	-8,6	-11,7	-15,1	-18,9	-23,0	-27,5	-32,4	-39,3	-46,8	-54,8	-63,4	-72,5	-84,2
3	Corr. cm / m	0	-1,5	-8,0	-17,5	-30,0	-39,0	-49,0	-60,0	-72,0	-85,0	-99,0	-118,8	-135,0	-152,3	-176,0	-195,5	-222,0
	Corr. Inches / Yards		-0,5	-2,9	-6,3	-10,8	-14,0	-17,6	-21,6	-25,9	-30,6	-35,6	-42,8	-48,6	-54,8	-63,4	-70,4	-79,9
4	Corr. cm / m	0	-3,0	-10,0	-20,0	-36,0	-45,5	-59,5	-71,3	-84,0
	Corr. Inches / Yards		-1,1	-3,6	-7,2	-13,0	-16,4	-21,4	-25,7	-30,2
5	Corr. cm / m	0	-3,0	-10,0	-22,5	-39,0	-52,0	-63,0	-78,8	-96,0
	Corr. Inches / Yards		-1,1	-3,6	-8,1	-14,0	-18,7	-22,7	-28,4	-34,6
6	Corr. cm / m	0	-4,5	-12,0	-27,5	-48,0	-58,5	-73,5	-90,0	-108,0
	Corr. Inches / Yards		-1,6	-4,3	-9,9	-17,3	-21,1	-26,5	-32,4	-38,9
7	Corr. cm / m	0	-4,5	-14,0	-30,0	-51,0	-65,0	-80,5	-97,5	-120,0
	Corr. Inches / Yards		-1,6	-5,0	-10,8	-18,4	-23,4	-29,0	-35,1	-43,2
8	Corr. cm / m	0	-4,5	-16,0	-32,5	-57,0	-74,8	-91,0	-108,8	-132,0
	Corr. Inches / Yards		-1,6	-5,8	-11,7	-20,5	-26,9	-32,8	-39,2	-47,5
9	Corr. cm / m	0	-6,0	-18,0	-37,5	-66,0	-87,8	-105,0	-127,5	-156,0
	Corr. Inches / Yards		-2,2	-6,5	-13,5	-23,8	-31,6	-37,8	-45,9	-56,2

Display Settings

You can select the appropriate display settings in menu 3 (press the SET button for 2 seconds + press the SET button twice).

As standard, you can choose between seven different display settings. The display settings are numbered consecutively in your ZEISS Victory RF and are labelled dl 1 - dl 7.

Table 3
Display in your ZEISS Victory RF Function

dl 1	Distance
dl 2	Distance & angle
dl 3	Distance & equivalent horizontal distance
dl 4	Distance & holdover in cm/in
dl 5	Distance & holdover in MOA
dl 6	Distance & holdover in MIL
dl 7	Distance & number of clicks

In addition to the 7 standard settings, you can 3 more personalised display settings to your ZEISS Victory RF. On your ZEISS Victory RF, the curves are labelled dlu 1 – dlu3.

(Further information can be found in the „Settings with the ZEISS Hunting App“ section).

Simply release the range finding button (Fig. 1/6) on the appropriate setting for you. The display setting last show will then be saved. To check, you can always display the saved settings in the menu.

Unit

Choose the appropriate unit in Menu 4 (press the SET button for 2 seconds + press the SET button three times).

The distance can be shown in either meters or yards. You can change the settings with the range finding button (Fig. 1/6). On your ZEISS Victory RF, the units have the indicators unitM (for meters) and unitY (for yards). To check, you can always display the saved settings in the menu.

Fig. 9

Measuring Mode

You can select the appropriate measuring mode for you in menu 5 (press the SET button for 2 seconds + press the SET button four times). You can select whether you are shown the best measurement (tA b) or the furthest measurement (tA L). You can change the settings with the range finding button (Fig. 1/6).

Fig. 9 Illustrates the options. The animal in the background is, in this case, the furthest measured point (tA L). Since a higher proportion of the measuring points encounter the tree in the foreground, this point is equivalent to the best measurement (tA b).

To check, you can always display the saved settings in the menu.

Key Assignment

You can select the most appropriate key assignment for you in menu 6 (press SET button for 2 seconds + press the SET button five times). By pressing the range finding button (Fig. 1/6), you can choose between the standard setting („5__°” is shown on your ZEISS Victory RF) and the reverse setting („°__5” is shown on your ZEISS Victory RF). As standard, your ZEISS Victory RF is configured for right-handed users. In this setting, the measuring button is operated with the right hand and the SET button is operated with the left hand. In the reverse setting, you measure with your left hand and the SET button is in your right hand. To check, you can always display the saved settings in the menu.

Turn off

You can turn off your ZEISS Victory RF menu by pressing the range finding button in menu 7 (press SET button for 2 seconds + press the SET button six times). There are two other ways to shut down your ZEISS Victory RF. Either hold the SET button down for 2 seconds or don't press either of the buttons for around 10 seconds.

Adjustment with the ZEISS Hunting APP

With the ZEISS Hunting App, you have the option of carrying out all the adjustments mentioned above with your smartphone, in a simple and user-friendly way. You also have the option of making two further, personalised adjustments. Firstly, you can enter your own ballistics profile, created in the ZEISS Hunting App, and you can also set up to three different displays in the display settings.

Fig. 10

Fig. 11

Fig. 12

Fig. 13

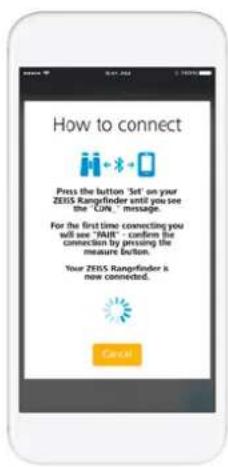

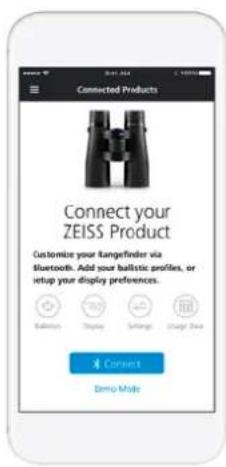

ESTABLISHING A CONNECTION BETWEEN THE ZEISS HUNTING APP AND ZEISS VICTORY RF

Initial Connection

When you first want to connect your ZEISS Victory RF, „Connect Your ZEISS Product“ will appear on the screen in the Connected Products section (Fig. 10). By clicking the Connect Button once, your ZEISS Hunting App begins connection set-up. As described in Fig. 11, you must then hold the SET button down for only 10 seconds.

Then, the word „CON_“ appears on your ZEISS Victory RF. After you release the SET button, the word „PAIR“ appears on the display and you confirm this by pressing the measuring button once. Now your ZEISS Victory RF is connected with your ZEISS Hunting App as shown in

Fig. 12. You only need to confirm the „PAIR“ for your first connection.

Repeated Connection

After you have initially connected your ZEISS Victory RF with your ZEISS Hunting App, the Start screen changes the Connected Product Section, as shown in Fig. 13. Above the (+) button on the bottom right, you can connect ZEISS Victory RF with your ZEISS Hunting App again. Furthermore, by simply clicking on the stored ZEISS Victory RF you can make adjustments on your device (Fig. 14) and then sync these.

Fig. 14

Fig. 15

Fig. 16

Fig. 17

MAKING ADJUSTMENTS

Ballistics Settings

In the ballistics settings (Fig. 15) in your ZEISS Hunting App, as well as selecting the nine standard profiles, you also have the option of adding up to nine more personalised profiles and subsequently syncing with your ZEISS Victory RF. To add a personalised profile, click on the button "Add Profile" in the ballistics menu. Then you can select all previously created ballistics profiles (you can create these in the "Ballistics" section of the Toolbox) (Fig. 16).

You also have the option of setting one of your profiles as a „favourite“. The favourite is the setting that is active on your ZEISS Victory RF and is indicated by a blue star.

In the ZEISS Hunting App display settings (Fig. 17), as well as the choice of the seven standard profiles, you have the option of adding up to three more personal profiles and subsequently syncing them with your ZEISS Victory RF. To add a personal profile, click on the button "Add Configuration" in the ballistics menu. Unlike the standard profiles (Fig. 18), you can combine up to three display modes in your personal profiles. Here, the distance is always set as the first display mode. You also have the option to save one of your configurations as a "favourite". The favourite is the setting that is active on your ZEISS Victory RF and is indicated with a blue star.

Fig. 18 Fig. 19 Fig. 20

Device Settings

In the device settings, you have the option carry out all the adjustments shown in Fig. 19 in the user-friendly ZEISS Hunting App. Precise information about the individual adjustment options can be found in the preceding section.

Measurement Data

In the "measurement data" field (Fig. 20), you have the option of selecting the measured distances from your ZEISS Victory RF. As well as the individual measurements, the average of all the measurements is shown, as well as the average of a specific time period, defined by you. It should be noted that only the last 100 measurements from ZEISS Victory RF are transferred. However, the average values are based on all measurements carried out in the defined time period.

Measuring the Distance

By pressing the range finding button (Fig. 1/6), the target mark is switched on (Fig. 3/9). The object to be measured is targeted with the target mark. The measurement is started by releasing the range finding button (Fig. 1/6). After a maximum of approx. 1 second, the measured distance is shown on the display for approx. 3 seconds (Fig. 3/10). If no measurement can take place, because the range is exceeded or the reflection of the object is not sufficient, 4 lines are shown

“____”. A new measurement is possible right away. After displaying the result, the range finder shuts off automatically.

Scan Operation

You can still measure with your ZEISS Victory RF in continuous operation (scan operation). For this, hold the range finding button (Fig. 1/6) down for longer than approx. 3 seconds. The device subsequently switches to scan operation and continually performs measurements. Continuous operation is ended as soon as you release the measuring button. You will see this on the distance indicator, which issues new measurement values approx, every 1.5 seconds. Scan operation is helpful when calculating small or moving targets.

Accuracy of Range Finding

The accuracy of the range finder can be up to +/- 1 meter/yard. The maximum range in accordance with the technical data is reached in optimal environmental conditions.

The following environmental factors affect the range:

Table 4:

	Range is further when there is	Range is shorter when there is
Atmospheric conditions Clear view Mist, fog
Brightness Low brightness High brightness (sun)
Colour of the object White object colour Black object colour
Angle to the object 90° (perpendicular) angle Acute angle
Object structure	Homogenous structure(sign, wall)	Inhomogeneous structure (bush, tree)

CARE AND MAINTENANCE

The binoculars feature the ZEISS LotuTec ^® coating. The effective protective coating for the lens surfaces noticeably reduces contamination of the lenses through a special smooth surface and the strong beading effect connected with it. All types of contamination adhere less and can be quickly and easily removed, smear-free. The LotuTec coating is also durable and abrasion resistant.

Please do not wipe coarse particles (e.g. sand) from the lenses. Blow them off the lens, or use a soft brush! Over time, fingerprints can corrode the lens surface. Breathing on the lens and polishing with a clean optical cleansing cloth is the easiest method of cleaning the lens surface. Dry storage and keeping the outer lens surfaces well ventilated, especially in the tropics, helps to prevent a possible mould film forming on the optics. Your ZEISS Victory RF binoculars require no further special care.

The product should be cleaned with a dry cloth; liquids and cleaning products should be avoided. Clean the product when it is turned off. Never attempt to repair or tamper with the product yourself. Dismantling can cause damage to the product, which is not covered in the guarantee.

In the event of a repair issue, please contact our customer services team. Our customer service team is available from Monday to Friday from 8:00 am until 6:00 pm (CET) should you have any questions.

Tel.: [phone]

Fax: [phone]

[e-mail]

Replacement parts for ZEISS Victory RF

Should you require spare parts for your binoculars, e. g. a protective cover, please contact your specialist retailer or our after-sales service. You can find the after-sales addresses for your country at: www.zeiss.com/sports-optics/service-points

Accessories for ZEISS Victory RF\*

www.zeiss.com/sports-optics/binoculars-accessories

* Accessories are not included in the scope of supply!

ZEISS is a byword for reliability and a high level of quality. Therefore, quite independently of the seller's warranty obligations to the customer, we the manufacturer offer a ten year guarantee on this ZEISS product.

The scope of the guarantee can be seen by accessing the following link: www.zeiss.com/sports-optics/premium-warranty-conditions

For US, please follow this link:

www.zeiss.com/sports-optics/us-warranty-conditions

Register your product at: www.zeiss.com/sports-optics/registration

Subject to changes in design and scope of supply due to technical improvements. No liability for mistakes and printing errors.

Carl Zeiss Sports Optics GmbH

ZEISS Group

Gloelstraße 3 - 5

35576 Wetzlar

Germany

www.zeiss.com/sports-optics

ZEISS Victory RF

8x42 | 10x42 | 8x54 | 10x54

Mode d'emploi

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

DÉSIGNATION DES COMPOSANTS

Bonnettes

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 15

Fig. 16

Fig. 17

EXÉCUTION DE RÉGLAGES

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

Technical line drawing of a binoculars with labeled components (no text or symbols beyond labels)

Fig. 3

PREPARAZIONE

Technical line drawing of a binocular device with labeled parts (17), no readable text or symbols beyond labels

Fig. 5

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 13

COME CREARE IL COLLEGAMENTO TRA L'APP DA CACCIA ZEISS E ZEISS VICTORY RF

Primo collegamento

www.zeiss.com/sports-optics/premium-warranty-conditions

www.zeiss.it/sports-optics

ZEISS Victory RF

8x42 | 10x42 | 8x54 | 10x54

Modo de empleo

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

Technical line drawing of binoculars with a battery and labeled component (8), no readable text or symbols beyond labels

Fig. 3

PREPARACIÓN

Fig. 4

Technical line drawing of a binocular device with labeled parts (17), no readable text or symbols beyond labels

Fig. 5

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 13

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

AANDUIDING VAN DE COMPONENTEN

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

KOPPELING TUSSEN ZEISS HUNTING APP EN ZEISS VICTORY RF TOT STAND BRENGEN

Fig. 14

Fig. 15

Fig. 16

Fig. 17

INSTELLEN UITVOEREN

Fig. 18 Fig. 19 Fig. 20

Apparaatinstellingen

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

BETECKNING PÅ KOMPONENTERNA

1 Ögonmussla

Technical line drawing of a binoculars with labeled components (no text or symbols present)

Fig. 3

FÖRBEREDELSER

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a pair of binoculars (no text or symbols)

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

ETABLERA UPPKOPPLING MELLAN ZEISS HUNTING APP OCH ZEISS VICTORY RF

Första uppkoppling

Fig. 14

Fig. 15

Fig. 16

Fig. 17

ATT GÖRA INSTÄLLNINGAR

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

RAKENNEOSIEN NIMET

1 Silmäkuppi

Technical line drawing of a binoculars with labeled components (no text or symbols present)

Fig. 3

VALMISTELU

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

YHTEYDEN LUOMINEN HUNTING APP SOVELLUKSEN JA ZEISS VICTORY RF:N VÄLILLE

Fig. 14

Fig. 15

Fig. 16

Fig. 17

ASETUSTEN TEKEMINEN

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

OZNAČENÍ DÍLŮ

Technical line drawing of a binoculars with labeled components (no text or symbols beyond labels)

Fig. 3

PŘÍPRAVA

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

PROPOJENÍ ZEISS HUNTING APP S ZEISS VICTORY RF

První propojení

Fig. 14

Fig. 15

Fig. 16

Fig. 17

PROVEDENÍ NASTAVENÍ

Nastavení balistiky

Nastavení prístroje

www.zeiss.com/sports-optics/premium-warranty-conditions

Zaregistrujte si výrobek: www.zeiss.com/sports-optics/registration

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

NAZWY CZEŚCI SKŁADOWYCH

Technical line drawing of a binoculars with labeled components (no text or symbols beyond labels)

Fig. 3

PRZYGOTOWANIE

Technical line drawing of a binocular device with labeled parts (17), no readable text or symbols beyond labels

Fig. 5

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

POŁĄCZENIE APLIKACJI ZEISS HUNTING APP Z ZEISS VICTORY RF

Pierwsze połączenie

Fig. 14

Fig. 15

Fig. 16

Fig. 17

WYKONANIE USTAWIEN

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

AZ ALKATRÉSZEK ELNEVEZÉSE

Szemkagyló

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

Technical line drawing of a binoculars with labeled components (no text or symbols present)

Fig. 3

ELÖKÉSZÍTÉS

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

KAPCSOLAT LÉTREHOZÁSA A ZEISS HUNTING APP ÉS A ZEISS VICTORY RF KÖZÖTT

Fig. 14

Fig. 15

Fig. 16

Fig. 17

BEÁLLÍTÁSOK VÉGZÉSE

Fig. 18 Fig. 19 Fig. 20

Készülékbeállítások

www.zeiss.com/sports-optics/service-points

TARTOZÉKOK A ZEISS Victory RF-HEZ\*

www.zeiss.com/sports-optics/binoculars-accessories

www.zeiss.com/sports-optics/premium-warranty-conditions

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

НАИМЕНОВАНИЕ ДЕТАЛЕЙ

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Fig. 4

Fig. 5

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with visible eye outlines (no text or symbols)

Fig. 6

Fig. 8

Two circular diagrams showing a goat inside and an arrow pointing outward, no text or symbols present.

Simple line drawing of a goat inside a circle with mountain background (no text or symbols)

Line drawing of a pair of binoculars (no text or symbols)

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Fig. 15

Fig. 16

Fig. 17

ВЫПОЛНЕНИЕ НАСТРОЕК

www.zeiss.com/sports-optics/service-points

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

各部の名称

Technical line drawing of a binocular device with labeled parts (17), no readable text or symbols beyond labels

Fig. 5

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with eyes drawn (no text or symbols)

Fig. 6

Fig. 8

メガネと双眼鏡の使用

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

Fig. 10

Fig. 11

Fig. 12

Fig. 13

ZEISS ハンティング アプリと

Fig. 14

Fig. 15

Fig. 16

Fig. 17

設定の実施

パリスティックの設定

Fig. 19

Fig. 20

装置の設定

This product may be covered by one or more of the following United States patents: US6542302, US6816310, US6906862

For further United States patents which may cover this product see our website.

Patents: www.zeiss.com/sports-optics/us/patents

部件名称

Line drawing of a pair of Xeless binoculars with labeled parts, no text or symbols present

Fig. 5

装上挂绳和护罩

Simple line drawing of two eyes with no text or symbols

Simple line drawing of a pair of eyeglasses with one eye and the other on the other face (no text or symbols)

Fig. 6

Fig. 8

戴或不戴眼镜观察

Two circular diagrams showing a deer silhouette within each, with arrows indicating direction (no text or symbols)

Simple line drawing of a deer inside a circle with mountain background (no text or symbols)

Line drawing of a binoculars with no text or symbols

Diagram of binoculars with directional arrows indicating rotational motion (no text or labels)

Fig. 7

目标标记调焦和屈光补偿

用距离测量按钮（图1/6）打开目标标记

Fig. 10

Fig. 11

Fig. 12

Fig. 13

连接蔡司狩猎应用程序

和蔡司 VICTORY RF

首次连接

Fig. 14

Fig. 15

Fig. 16

Fig. 17

进行设置

弹道设置

Fig. 19

Fig. 20

设备设置

www.zeiss.com/sports-optics/service-points

ZEISS Victory RF 配件\*

www.zeiss.com.cn/sports-optics/binoculars-accessories

* 配件不包含在供货范围之内！

www.zeiss.com/sports-optics/premium-warranty-conditions

请在以下网页注册您的产品：www.zeiss.com.cn/product-registration
