USER MANUAL MS805AA Vonroc

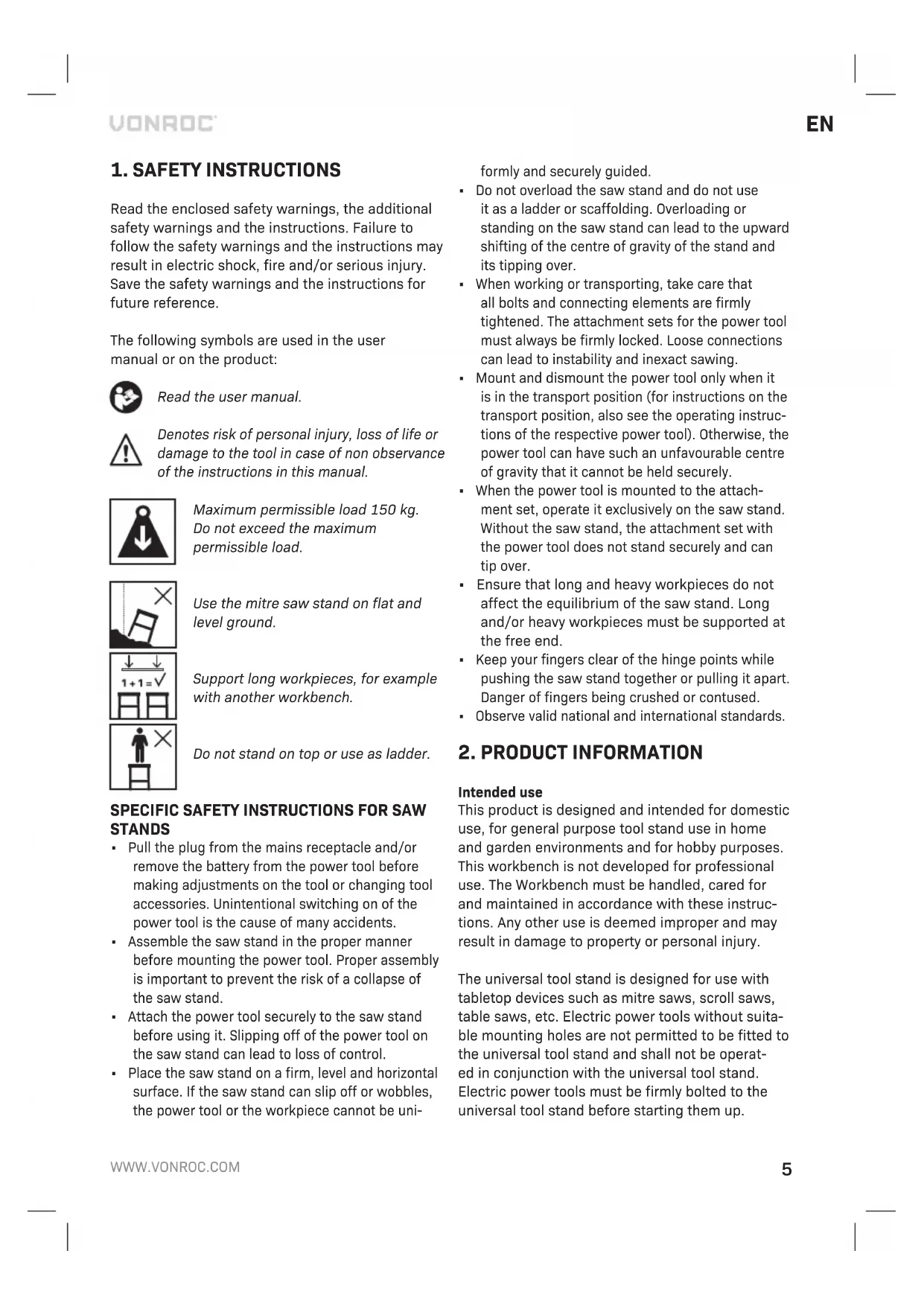

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non observance of the instructions in this manual.

Maximum permissible load 150kg Do not exceed the maximum permissible load.

Use the litre saw stand on flat and level ground.

Support long workpieces, for example with another workbench.

Do not stand on top or use as ladder.

SPECIFIC SAFETY INSTRUCTIONS FOR SAW STANDS

• Pull the plug from the mains receptacle and/or remove the battery from the power tool before making adjustments on the tool or changing tool accessories. Unintentional switching on of the power tool is the cause of many accidents.
• Assemble the saw stand in the proper manner before mounting the power tool. Proper assembly is important to prevent the risk of a collapse of the saw stand.
• Attach the power tool securely to the saw stand before using it. Slipping off of the power tool on the saw stand can lead to loss of control.
• Place the saw stand on a firm, level and horizontal surface. If the saw stand can slip off or wobbles, the power tool or the workpiece cannot be uni

formly and securely guided.

• Do not overload the saw stand and do not use it as a ladder or scaffolding. Overloading or standing on the saw stand can lead to the upward shifting of the centre of gravity of the stand and its tipping over.
• When working or transporting, take care that all bolts and connecting elements are firmly tightened. The attachment sets for the power tool must always be firmly locked. Loose connections can lead to instability and inexact sawing.
• Mount and dismount the power tool only when it is in the transport position (for instructions on the transport position, also see the operating instructions of the respective power tool). Otherwise, the power tool can have such an unfavourable centre of gravity that it cannot be held securely.
• When the power tool is mounted to the attachment set, operate it exclusively on the saw stand. Without the saw stand, the attachment set with the power tool does not stand securely and can tip over.
• Ensure that long and heavy workpieces do not affect the equilibrium of the saw stand. Long and/or heavy workpieces must be supported at the free end.
• Keep your fingers clear of the hinge points while pushing the saw stand together or pulling it apart. Danger of fingers being crushed or contused.
• Observe valid national and international standards.

2.PRODUCT INFORMATION

Intended use

This product is designed and intended for domestic use, for general purpose tool stand use in home and garden environments and for hobby purposes. This workbench is not developed for professional use. The Workbench must be handled, cared for and maintained in accordance with these instructions. Any other use is deemed improper and may result in damage to property or personal injury.

The universal tool stand is designed for use with tabletop devices such as litre saws, scroll saws, table saws, etc. Electric power tools without suitable mounting holes are not permitted to be fitted to the universal tool stand and shall not be operated in conjunction with the universal tool stand. Electric power tools must be firmly bolted to the universal tool stand before starting them up.

The universal tool stand is also designed as a workpiece support when working with metre saws, scroll saws, circular table saws, and other similar electric power tools. The maximum workpiece length is 3m. Additional workpiece supports may have to be used (e.g. a roller trestle) in order to prevent longer workpieces tilting. Attention: Ensure that the workpiece support is secure and not tilted!

TECHNICAL SPECIFICATIONS

Model No. MS805AA
Max. permissible load 150kg
Opened dimensions	L: 935-1945mm W: 640mm H: 825-935mm
Closed dimensions	L: 984mm W: 415mm H: 224mm
Weight 9.9 kg

DESCRIPTION

The numbers in the following text refer to the pictures on pages 2-4.

1. Roller
2. Workpiece support
3. Workpiece support knob
4. Extension arm
5. End stop
6. Extension arm knob
7. Mitre saw mounting bar
8. Carrying handle
9. Frame
   10.Pinslot
   11.Spring-loaded pin
   12.Leg
   13.Foot
10. Mounting bar lever
11. Mitre saw mounting hardware (bolts, washers, spring washers, nuts)

3. ASSEMBLY

Study each figure and identify the components required with reference to the contents table above.

Unfolding The Stand (fig. A)

1. Lay the litre saw stand on the floor with the folded legs (12) facing upwards.
2. Depress the spring-loaded pin (11) and unfold the two upper legs (12) until the spring-loaded pin (11) clicks into the pin slot (10).
3. Repeat the same procedure for the other two legs.
4. Lift the stand and flip it into the upright position.
5. Check that the stand is stable and all of the leg locking pins have engaged properly.

Folding The Stand

One pair of legs on the stand must fold firstly for the stand to fold flat. The legs have not folded into place if the spring-loaded pins (11) do not pop into place. The legs should not swing about when the stand is picked up if the legs have locked into position.

1. Turn the metre saw stand upside down on the floor with the legs (12) sticking up.
2. Depress the spring-loaded pin (11) on the lower pair of legs and fold them in.
3. Repeat the same procedure on the other pair of legs.

Attaching The Extension Arms (Fig. B)

1. Slide the extension arm (4) into the frame (9) until the desired length is reached.
2. Now insert a extension arm knob (6) into the corresponding hole on the frame turn it clockwise to secure the extension arm (4) in place, as shown on figure B.
3. Insert a workpiece support (2) into the collar on the extension arm (4). The side with the end stop (5) should be facing inwards towards the centre of the stand.
4. Insert a workpiece support knob (3) into the extension arm (4) and turn it clockwise to tighten the workpiece support (2) into place.
5. Repeat the same procedure with the opposite extension arm.

Attaching the litre saw mounting bars (Fig. C)

Only use a litre saw that has four fixing holes (one in each corner of the base) on this stand. If the litre saw does not meet this requirement, do not use it with this stand as the litre saw cannot be properly secured. Failure to follow this direction may result in damage to property and/or personal injury.

1. Press the mounting bar lever (14) and hook the opposite end of the mounting bar (7) onto the frame (9) of the stand, as shown on figure C.
2. Lower the mounting bars (7) onto the frame and release them to lock the mounting bar into place.
3. Repeat the same procedure with the other mounting bar.

Attaching A Mitre Saw (Fig. D, E)

During operation and before starting a new job, ensure that all screws and nuts are tightened correctly and securely.

1. Adjust the mounting bars (7) to roughly the width of the litre saw base.
2. Place the litre saw on the mounting bars (7) and line up the holes in the litre saw base with the slots on the mounting bars (7).
3. Feed a bolt through the bottom of the mounting bar (7) then through the base of the metre saw.
4. Slide a washer and then a spring washer onto the bolt and fasten it with a nut.
5. Repeat steps 3 and 4 for the other four holes on the litre saw base.

Attaching other types of machines that do not fit the standard mounting bars

Do not mount a table saw on this miter saw stand. Aggressive feeding of sheet materials into the table saw could cause the stand to tip over.

To mount different machine types (that do not fit onto the litre saw mounting bars), VONROC offers MS807AA universal machine supports. To mount these universal machine supports:

1. Connect the universal machine supports to the mounting bars (7) and secure them with 4 hexagonal screws, 4 washers, 4 spring washers and 4 hexagonal nuts as supplied with the MS807AA universal machine supports.
2. Place your tabletop machine onto the universal machine supports.
3. Fasten the tabletop machine with 4 hexagonal screws, 4 washers, 4 spring washers and 4 hexagonal nuts as supplied with the Mitre saw stand.
4. Tighten the screws after assembly.
5. Fasten the mounting bars (7) with the mounted tabletop machine on the litre saw stand, as described in 'Attaching A Mitre Saw'

Visit www.vonroc.com or contact Vonroc customer service to acquire the MS807AA universal machine supports.

4. OPERATION

Do not use the litre saw stand until it is completely assembled and you have read and understood this entire manual and the manual of the tool being used with this litre saw stand.

Do not use the litre saw stand for scaffolding or as a ladder. Make sure to securely tighten all fasteners before use. Maximum capacity is 150kg . Power tools on the litre saw stand should not exceed a combined overall height of 150cm from the floor.

Adjusting The Extension Arms (Fig. B, F)

1. Turn the extension arm knob (6) on the frame counter-clockwise to loosen it.
2. Pull the extension arm (4) out to the desired length. Note: The maximum extension length is indicated on the extension arm (4). Do not extend further than the maximum length.
3. Turn the extension arm knob (6) clockwise to tighten it and secure the extension arm into place.

Adjusting The Roller Height (Fig. F, G)

1. Turn the workpiece support knob (3) on the collar of the extension arm (4) counter-clockwise to loosen it.
2. Raise or lower the roller (1) to the desired height.
3. Turn the workpiece support knob (3) clockwise to tighten it and secure the roller (1) into place.

Using The end stop (Fig. B, F)

The litre saw stand features end stops (5) which allow repetitive cuts to be made quickly and accurately.

1. Adjust the height of the workpiece support (2) so that the lip of the end stop (5) is in line with the work surface of the metre saw.
2. Adjust the extension arms (4) to the desired cutting length.
3. Place the end of the workpiece against the end stop (5) and commence the cut.

Transportation (Fig. F)

Make sure the extension arms have been put into to the most compact position (refer to 'Adjusting The Extension Arms'). Now fold the stand as described in 'Folding the stand'. Use the carrying handle (8) placed in the centre of the frame (9).

5. MAINTENANCE

The litre saw stand is designed to function faultlessly for a long period and with a minimum of maintenance. Extend its lifespan by regularly cleaning the machine and treating it correctly.

Cleaning

Regularly clean the litre saw stand, preferably after each use. Clean with a suitable proprietary house- hold cleaner and a soft dry cloth. Do not submerge your litre saw stand in water or any liquid for any reason. Do not use solvents (petrol, alcohol, ammonia, etc.) as they will damage the plastic parts.

Maintenance

Never use a damaged or broken clamping metre saw stand. Temporary repairs are not permitted. Check the plastic feet of the metre saw stand before and after use of the metre saw stand. Do not use the metre saw stand without the plastic feet or when the plastic feet are worn. Always maintain a visual control of the metre saw stand before and after use of the metre saw stand.

Repairs and maintenance shall be carried out by a competent person with suitable replacement parts. Unapproved third party spares are not recommended and will void your warranty.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
  Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
  Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face thereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
