USER MANUAL HD 720 G Classic Kärcher

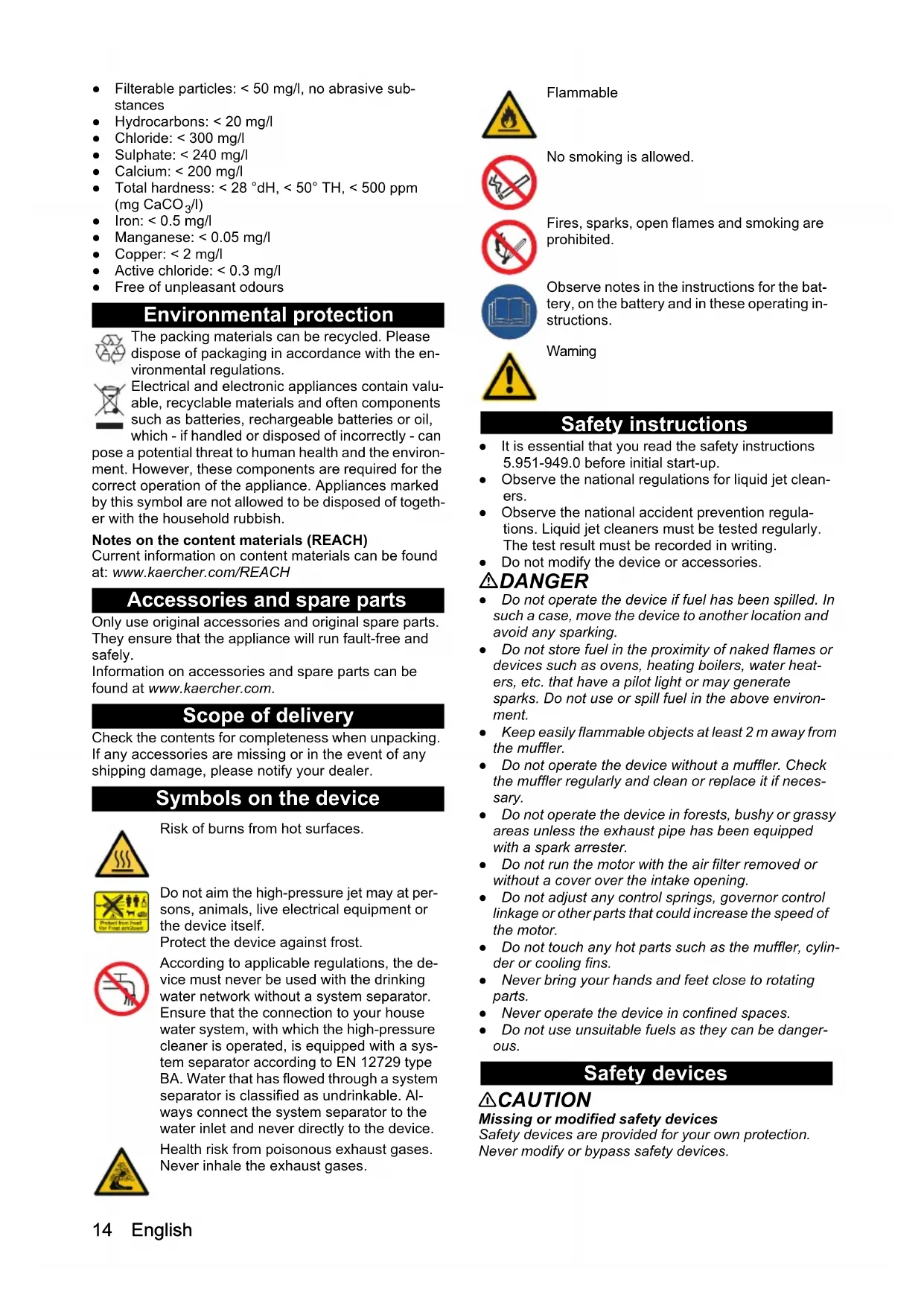

/l) ● Iron: < 0.5 mg/l ● Manganese: < 0.05 mg/l ● Copper: < 2 mg/l ● Active chloride: < 0.3 mg/l ● Free of unpleasant odours Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer. Symbols on the device Safety instructions ● It is essential that you read the safety instructions 5.951-949.0 before initial start-up. ● Observe the national regulations for liquid jet clean- ers. ● Observe the national accident prevention regula- tions. Liquid jet cleaners must be tested regularly. The test result must be recorded in writing. ● Do not modify the device or accessories. DANGER ● Do not operate the device if fuel has been spilled. In such a case, move the device to another location and avoid any sparking. ● Do not store fuel in the proximity of naked flames or devices such as ovens, heating boilers, water heat- ers, etc. that have a pilot light or may generate sparks. Do not use or spill fuel in the above environ- ment. ● Keep easily flammable objects at least 2 m away from the muffler. ● Do not operate the device without a muffler. Check the muffler regularly and clean or replace it if neces- sary. ● Do not operate the device in forests, bushy or grassy areas unless the exhaust pipe has been equipped with a spark arrester. ● Do not run the motor with the air filter removed or without a cover over the intake opening. ● Do not adjust any control springs, governor control linkage or other parts that could increase the speed of the motor. ● Do not touch any hot parts such as the muffler, cylin- der or cooling fins. ● Never bring your hands and feet close to rotating parts. ● Never operate the device in confined spaces. ● Do not use unsuitable fuels as they can be danger- ous. Safety devices 몇 CAUTION Missing or modified safety devices Safety devices are provided for your own protection. Never modify or bypass safety devices. Risk of burns from hot surfaces. Do not aim the high-pressure jet may at per- sons, animals, live electrical equipment or the device itself. Protect the device against frost. According to applicable regulations, the de- vice must never be used with the drinking water network without a system separator. Ensure that the connection to your house water system, with which the high-pressure cleaner is operated, is equipped with a sys- tem separator according to EN 12729 type BA. Water that has flowed through a system separator is classified as undrinkable. Al- ways connect the system separator to the water inlet and never directly to the device. Health risk from poisonous exhaust gases. Never inhale the exhaust gases. Flammable No smoking is allowed. Fires, sparks, open flames and smoking are prohibited. Observe notes in the instructions for the bat- tery, on the battery and in these operating in- structions. WarningEnglish 15 Safety lever The safety lever on the high-pressure gun prevents the device from being switched on inadvertently. Overflow valve If the high-pressure gun is closed, the overflow valve opens and the entire water volume will flow back to the pump suction side. The overflow valve is set by the manufacturer and sealed. Setting shall only be carried out by Customer Service. Safety valve The safety valve opens if the pressure relief valve is faulty. The safety valve is set and sealed at the factory. The ad- justment is made by Customer Service. Thermostat valve on the pump The thermostat valve opens when the maximum per- missible water temperature is exceeded and discharges the hot water outdoors. Device description Illustration A 1 Fuel tank 2 Starter rope (device for manual start) 3 Fuel valve 4 Push handle 5 High-pressure gun storage clip 6 Oil level indicator 7 Oil fill screw (pump) 8 Oil drain screw (pump) 9 Oil dip (engine) 10 Engine switch 11 High-pressure connection 12 Water connection with filter 13 Hose holder 14 Nozzle screws 15 High-pressure nozzle 16 Spray lance 17 High-pressure gun 18 Lever for high-pressure gun 19 Safety lever 20 High-pressure hose Colour coding ● Control elements for the cleaning process are yel- low. ● Control elements for maintenance and servicing are light grey. Initial start-up DANGER Risk of injury! Device, tubes, high-pressure hose and connections must be in faultless condition. Otherwise, the device must not be used. Unpacking

1. Check the contents of the package when unpacking.

2. Notify the dealer immediately in the case of shipping

damage. Checking the oil level in the high-pressure pump

1. Place the device on a flat and level surface.

2. Check the high-pressure pump oil level at the oil lev-

el indicator. The oil level must be in the middle of the oil level in- dicator.

3. Top up the oil if necessary. For oil type, see Chapter

Technical data. Starting up the engine

1. Before initial start-up of the engine, read the original

instructions for the engine and observe the safety in- structions. Check the engine oil level

1. Check the oil level in the engine.

Do not start up the device if the oil level is low.

2. Top up the oil if necessary. For oil type see Chapter

Technical data. Topping up with fuel DANGER Unsuitable fuel Risk of explosion Only fill with petrol. Unleaded petrol (86 RON) can be used.

1. Open the fuel tank cap.

2. Fill the fuel tank with fuel.

3. Close the cap of the fuel tank.

4. Wipe up any spilled fuel.

Installing water filter Note Please follow the direction of the mark on the water filter (except HD 6/15). Illustration C 1 Union joint 2 Water filter 3 Arrow

1. Attach the water filter, the arrow must point to the

2. Fasten the union joint on the pump.

Installing the pushing handle and wheels Illustration B

1. Put the push handle on the base frame.

2. Secure the push handle with the screws and nuts.

3. Push the wheels onto the axle.

4. Push the fastener onto the axle and tighten the

screws.16 English Installing the accessories

1. Connect the spray lance to the high-pressure gun.

2. Install the nozzle with the nozzle screw at the spray

3. Screw the high-pressure hose to the high-pressure

4. Fasten the high-pressure hose to the high-pressure

connection. Water connection Connection to a water line 몇 WARNING Health risk from return flow of contaminated water into the drinking water network. Observe the regulations of your water supply company.

1. Check the feed pressure, input temperature and in-

put amount of the water supply. See Chapter Tech- nical data for the requirements.

2. Connect the system separator and water connection

of the device with a hose (minimum length 7.5 m, minimum diameter 3/4”). The supply hose is not included in the scope of de- livery.

2. Remove the high-pressure nozzle.

3. Start the engine according to the original instruc-

tions for the engine.

4. Allow the device to run until the escaping water is

free of air bubbles.

5. Switch off the device.

6. Fit the high-pressure nozzle.

Operation DANGER Risk of explosion! Flammable liquids or gases can ignite or cause an ex- plosion. Do not spray flammable liquids. Do not operate this de- vice in hazardous areas (e.g. filling stations). 몇 CAUTION Environmental damage. Clean engines at places with a suitable oil separator on- ly. Turning on the Device

1. Open the water supply.

2. Start the engine with the high-pressure gun actuated

according to the operating instructions of the engine manufacturer. ATTENTION Risk of damage Do not pull the starter rope when the engine is running. Note The high-pressure nozzle can be removed to facilitate the start-up process. ● Press the lever on the high-pressure gun as long as necessary until the engine starts. Replacing the nozzle DANGER Risk of injury! Switch the device off prior to replacing nozzle and do not activate hand spray gun until the device is pressure- less. 1 Secure the high-pressure gun. To do so, push the safety lever towards the front. 2 Unscrew nozzle screws and remove the nozzle. 3 Put on a new nozzle. 4 Screw on the nozzle screws and tighten them by hand. Interrupting operation

1. Close the high-pressure gun to interrupt operation.

2. Open the high-pressure gun to continue operation

3. In case of extended interruptions (several minutes),

switch off the engine.

4. Activate the high-pressure gun until the device is

that it doesn’t open accidentally. Note When the lever of the high-pressure gun is released, the engine continues to run at zero speed. The water thus circulates within the pump and gets heated.When the cylinder head at the pump has reached the maximum permissible temperature (65 °C), the therm-valve opens. Hot water is drained. Cold water will follow and cool the pump. Finishing operation After operating the water using saline water (sea water), open the high-pressure gun and rinse the device for at least 2 - 3 minutes using tap water.

1. Set the engine switch to “OFF” and close the fuel

2. Shut off the water supply.

3. Activate the high-pressure gun until the device is

4. Press the safety lever of the high-pressure gun to

secure the lever of the pistol against being released accidentally.

5. Remove the water inlet hose from the device.

Transportation 몇 CAUTION Risk of injury, risk of damage Be aware of the weight of the device during transport.

1. Place the spray lance with the high-pressure gun on

2. Coil up the high-pressure hose and hang it over the

3. Push the push handle down, and pull / push the de-

4. When transporting the device in vehicles, secure the

device against shifting and tipping over. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. Store the device indoors only.English 17 Frost protection ATTENTION Frost destroys the device if it is not completely drained of water. Store the device in a frost-free location. If frost-free storage is not possible:

1. Drain excess water.

2. Pump commonly available anti-freeze through the

3. Allow the device to run for a maximum of 1 minute

until the pump and lines are empty. Note Use commonly available, Glycol-based vehicle anti- freeze. Observe the handling instructions of the anti- freeze manufacturer. Care and service ATTENTION Danger due to device inadvertently starting up Risk of injury Switch off the engine switch and remove the spark plug connector prior to all work on the device. 몇 CAUTION Hot surfaces Risk of injury Allow the device to cool down prior to all work. Note Observe the information on care and service in the orig- inal instructions for the motor. Safety inspection/maintenance contract You can agree on regular safety inspections or close a maintenance contract with your dealer. Please seek ad- vice on this. Maintenance intervals Each time before use Check the high-pressure hose for damage. Immediately replace a damaged high-pressure hose. Check the device for leaks. 3 drops of water per minute are permissible. Contact Customer Service in the case of more serious leaks. Weekly

1. Check the oil level of the engine and pump. Contact

Customer Service if the oil is milky (water mixing with the oil).

2. Clean the water filter, see Chapter Cleaning the wa-

ter filter. After the first 50 operating hours Replace the oil in the high-pressure pump. After 100 operating hours 1 Replace the oil in the engine. 2 Carry out maintenance tasks on the engine accord- ing to the specifications provided in the operating in- structions of the engine. Every 500 operating hours, at least once annually Have the device maintained by Customer Service. Maintenance work Cleaning the water filter

1. Shut off the water inlet.

2. Unscrew the filter cup.

Illustration D 1 Water filter 2 Filter insert 3 Filter chamber

3. Pull the filter insert downwards and off.

4. Clean the filter insert and filter cup.

5. Re-install the filter insert.

6. Screw on the filter cup again and tighten.

Replacing the oil in the high-pressure pump For the oil type and filling quantity, see Chapter Techni- cal data.

1. Provide a catch pan for at least 1 litre of oil.

2. Unscrew the oil drain plug.

3. Drain the oil into the catch pan.

4. Screw in the oil drain plug.

5. Slowly fill with new oil until the middle of the oil level

indicator is reached. Air bubbles must be able to es- cape. Troubleshooting guide DANGER Risk of injury if the device is left running in an unattended state. Switch off the engine and remove the spark plug connector before performing any work on the device. Risk of burns! Do not touch hot mufflers, cylinders or radiator ribs. In case of any malfunctions not mentioned in this chapter, contact the authorised Customer Service when in doubt or when you have been explicitly advised to do so. Fault Remedy Device does not start Follow operating instructions of the motor manufacturer! Contact Customer Service if necessary. Device does not reach required pressure Check operating speed of the motor. Check the size of the nozzle and compare with the required size specified in the chap- ter Technical data. Vent the device, see Chapter Venting the device. Clean the water filter. Check the water supply volume and compare with the required volume specified in the chapter Technical data. Clean all inlet pipes to the pump. Contact Customer Service if necessary.18 English Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible mal- functions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised cus- tomer service site. (See overleaf for the address) Technical data Pump leaking Up to 3 drops of water per minute are permissible. In case of more serious leaks, have the device checked by Customer Service. Pump knocking Clean the water filter. Check the water supply line for leaks. Vent the device, see Chapter Venting the device Contact Customer Service if necessary. Fault Remedy HD 6/15 G Classic HD 7/20 G Classic HD 8/23 G Classic HD 9/25 G Classic Internal combustion engine Engine type G200FA G210FA G300FA G390FA Maximum power kW (HP) 4.1 / (5.5) 4.4 / (5.9) 6.8 / (9.1) 8.5 / (11.4) Fuel consumption (max.) l/h 0.91 2.24 2.04 4.22 Engine speed 1/min 3500 3500 3500 3500 Fuel tank capacity l 3.0 3.0 5.5 6.5 Fuel type unleaded vehicle petrol (86 ROZ) E10 Fuel suitability Yes Yes Yes Yes Oil type 15W40 10W30 15W40 10W30 15W40 10W30 15W40 10W30 Oil volume l 0.6 0.6 0.95 1.1 High-pressure pump Maximum operating pressure MPa (bar) 20 (200) 25 (250) 28 (280) 30 (300) Operating pressure MPa (bar) 15 (150) 20 (200) 23 (230) 25 (250) Flow rate l/h (l/min) 600 (10.00) 700 (11.67) 800 (13.30) 900 (15.00) Nozzle size 036 035 038 043 Pump oil type 15W40 10W30 15W40 10W30 15W40 10W30 15W40 10W30 Oil quantity of a high-pressure pump l 0.25 0.25 0.39 0.39 Opening temperature thermal valve °C 60 ± 5 60 ± 5 60 ± 5 60 ± 5 Water connection Feed pressure (max.) MPa (bar) 1 (10) 1 (10) 1 (10) 1 (10) Feed pressure (min.) MPa (bar) 0.1 (1) 0.1 (1) 0.1 (1) 0.1 (1) Input temperature (max.) °C 60 60 60 60 Input amount (min.) l/h (l/min) 780 (13) 900 (15) 1040 (17) 1170 (20) Minimum water supply hose length m 7.5 7.5 7.5 7.5 Minimum water supply hose diameter in 3/4 3/4 3/4 3/4 Device performance data Degree of protection IPX5 IPX5 IPX5 IPX5 High-pressure gun recoil force N 29 39 48 57 Dimensions and weights Weight (without accessories) kg 38.7 40.0 44.2 49.7 Length x width x height mm 878x538x702 878x538x702 878x538x702 878x538x702 Determined values in acc. with EN 60335-2-79English 19 Subject to technical modifications. EU Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: High-pressure cleaner Type: 1.187-xxx Currently applicable EU Directives 2000/14/EC 2006/42/EC (+2009/127/EC) 2014/30/EU 2009/125/EC + 2009/1781 Harmonised standards used EN 60335-1 EN 60335-2-79 EN 55012: 2007 + A1: 2009 EN 55014-2:2015 EN 62233: 2008 Applied conformity evaluation method 2000/14/EG: Annex V Sound power level dB(A) HD 6/15 G Classic Measured: 106 Guaranteed: 108 HD 7/20 G Classic Measured: 104 Guaranteed: 106 HD 8/23 G Classic Measured: 106 Guaranteed: 108 HD 9/25 G Classic Measured: 108 Guaranteed: 110 The undersigned act on behalf and under the power of attorney of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2021/03/01 High-pressure gun hand-arm vibration value m/s

Sound pressure level L

Emissions according to the measurement procedure of EU regulation 2016/1628 Euro V Motor g/kWh 880.45 880.45 817.85 817.85 HD 6/15 G Classic HD 7/20 G Classic HD 8/23 G Classic HD 9/25 G Classic Chairman of the Board of ManagementDirector Regulatory Affairs & CertificationH. JennerS. Reiser Declaration of Conformity We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations,both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. Product: High-pressure cleaner Type: 1.187-xxx Currently applicable UK Regulations S.I. 2001/1701 (as amended) S.I. 2008/1597 (as amended) S.I. 2016/1091 (as amended) 2009/125/EC + 2009/1781 Designated standards used EN 60335-1 EN 60335-2-79 EN 55012: 2007 + A1: 2009 EN 55014-2: 2015 EN 62233: 2008 National standards used
