USER MANUAL Spirit Pure HAMA

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

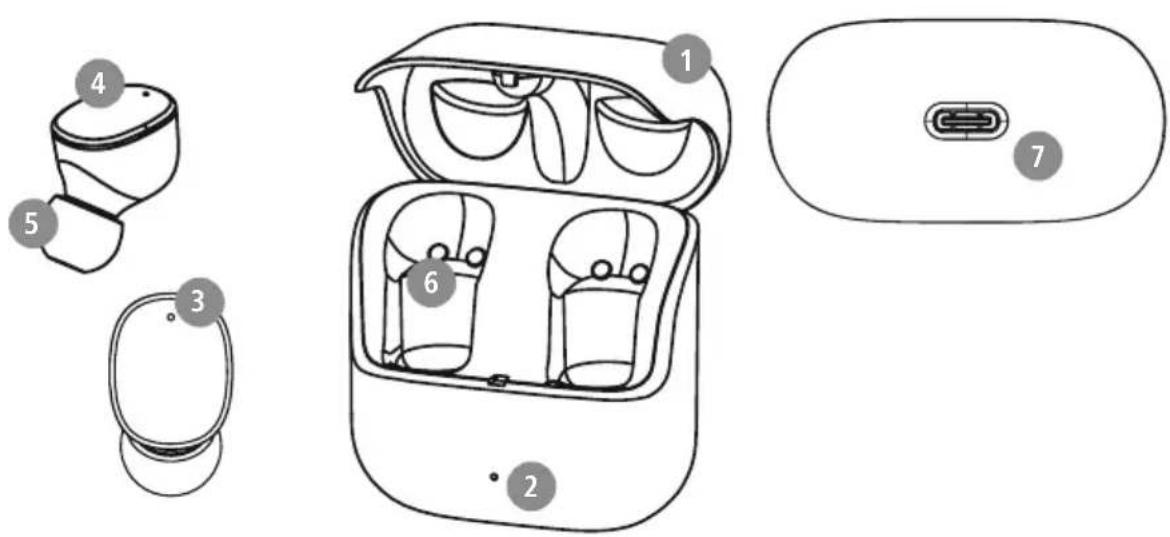

Controls and displays

1. Charging box
2. Charging box status LED
3. Earphones status LED
4. Multi-function touch sensor
5. Silicone ear pads
6. Charging contacts
7. USB-C connection

Diagram showing exploded view of wireless earbuds with numbered labels indicating components

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

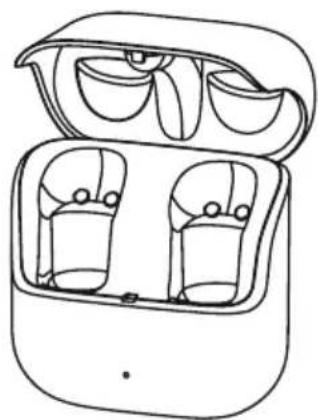

2. Package contents

1 x "Spirit Pure" True Wireless Bluetooth earphones
1 x charging box
1 x USB-C charging cable
3 pairs of ear pads in various sizes (S/M/L)
1 x quick guide
1 x warning and safety instructions

Line drawing of an open wireless earbuds with two cups, no text or symbols present

3. Safety instructions

• The product is intended for private, non-commercial use only

- Use the product only for the intended purpose.

- Children should be supervised to ensure that they do not play with the product

- Do not use the product in areas in which electronic products are not permitted

- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts

- Do not open the device or continue to operate it, it becomes damaged

- Do not bend or crush the cable.

- Do not drop the product and do not expose it to any major shocks

- D dispose of packaging material immediately in accordance with the locally applicable regulations

- Do not modify the product in any way. Doing so voids the warranty

- Protect the product from dirt, moisture and overheating and use it in dry environments .only

- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight

- Only use the article under moderate climatic conditions.

- A s with all electrical products, this device should be kept out of the reach of children

- Do not operate the product outside the power limits specified in the technical data

- Do not use the product in a damp environment and avoid splashing water

- While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.

- The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations

- Do not incinerate the battery or the product.

- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries

- Do not use the product during the charging process!

Warning - rechargeable battery

• Only use suitable charging devices or USB connections to charge the product.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high if altitudes).
• Charge regularly (at least quarterly) during periods of prolonged storage.

Warning - magnets

• This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, as the pacemaker's proper function could be affected.
• Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted.

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
- To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
• Always keep the volume at a sensible level. Loud volumes, even over short periods, can cause hearing loss.
• Using this product limits your perception

of ambient noise. You should therefore not drive or operate machinery while using them.

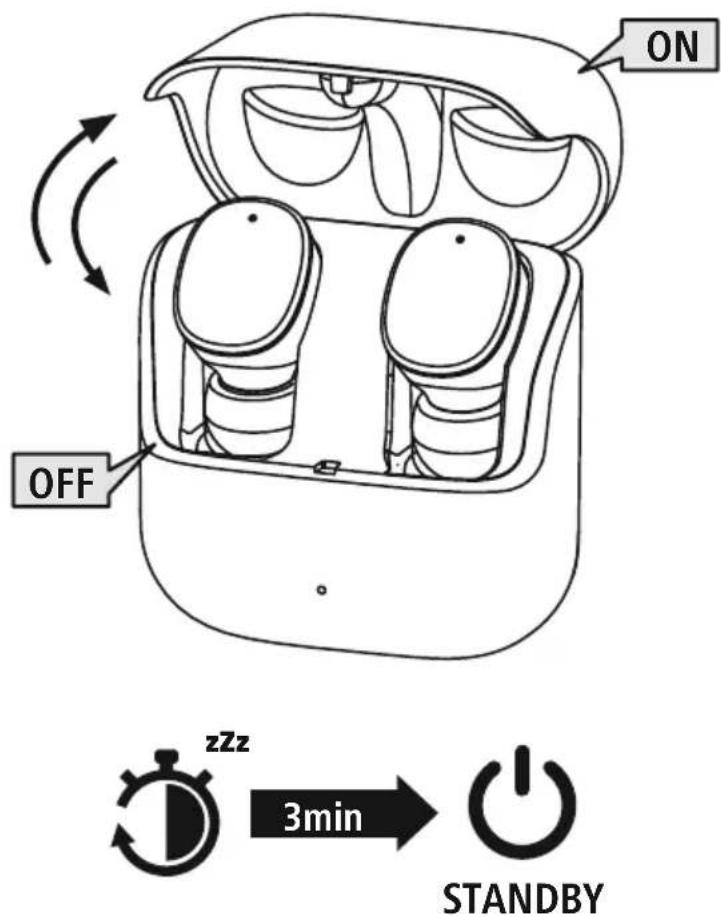

4. Switching on/off

When you open the charging box, the earphones switch on automatically and start the pairing process.

To switch them off, simply place the earphones back in charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide. Then close the charging box.

ON OFF zzz 3min STANDBY

Note - Automatic switch-off of the product

The product is equipped with an automatic switch-off mechanism. If there is no connection to your device within 3 minutes, it switches itself off automatically.

5. Charging

Fully charge the earphones and the charging box once before using them for the first time.

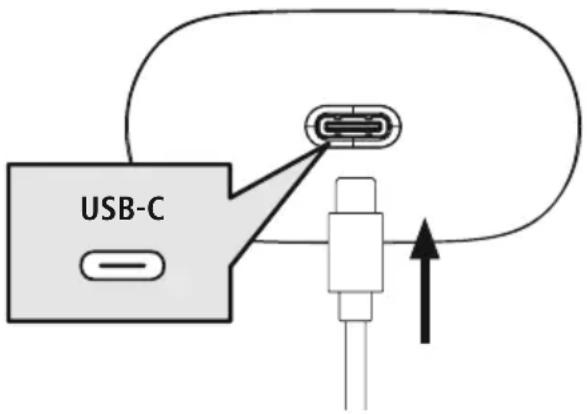

1 Insert the earphones, close the charging box and connect it

Place the earphones in the charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide. Then close the charging box.

Connect the USB-C charging cable included to the charging socket (7) on the charging box.

Connect the free plug on the USB-C charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

USB-C

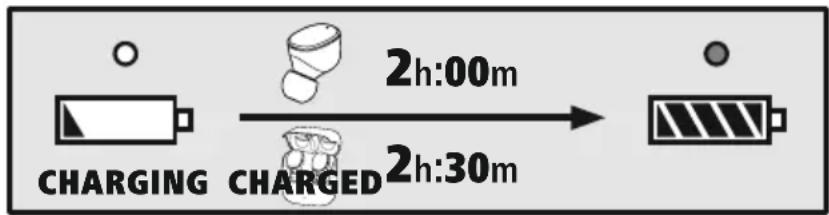

2 Charging procedure for the charging box and earphones

The status LED on the charging box (2) lights up white during the charging process. After the charging box is fully charged, the LED on the charging box lights up solid white.

The earphones are only charged when the charging box is closed.

It can take up to 2 hours (earphones) or up to 2.5 hours (charging box) until the batteries are fully charged.

CHARGING CHARGED 2h:00m 2h:30m

3 Battery capacity

Charging box

When battery levels are low, the status LED (2) on the charging box flashes white.

Earphones

When the battery level is low, you will hear a signal tone once every minute and the status LED (3) on the earphones flashes white.

The actual battery life will vary depending on how you use the device, the settings and the ambient temperatures (rechargeable batteries have a limited life).

Note

If you have not used the product for a few months, it can take up to 15 - 30 minutes until the status LED (2) lights up red during the charging process.

6. Bluetooth® pairing

Note - Pairing

• Make sure that your Bluetooth capable device is switched on and that Bluetooth activated.
• For more information, please refer to the operating instructions of your device.

The earphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

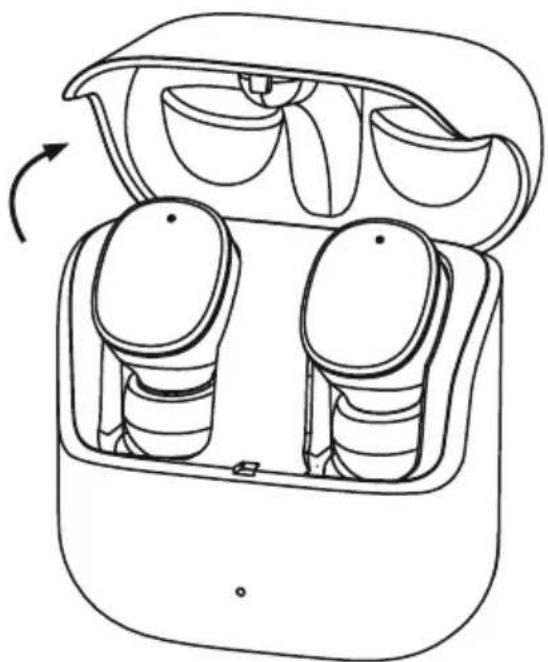

Ensure that the earphones are switched on.

Line drawing of an open electronic device with four compartments and a rotating arrow indicating rotation (no text or symbols)

1 Check the status of the status LED (3)

If the status LEDs (3) on the earphones flash alternately: the earphones are searching for a Bluetooth connection.

If the status LEDs (3) are flashing and then go out: the earphones are already paired with a Bluetooth device.

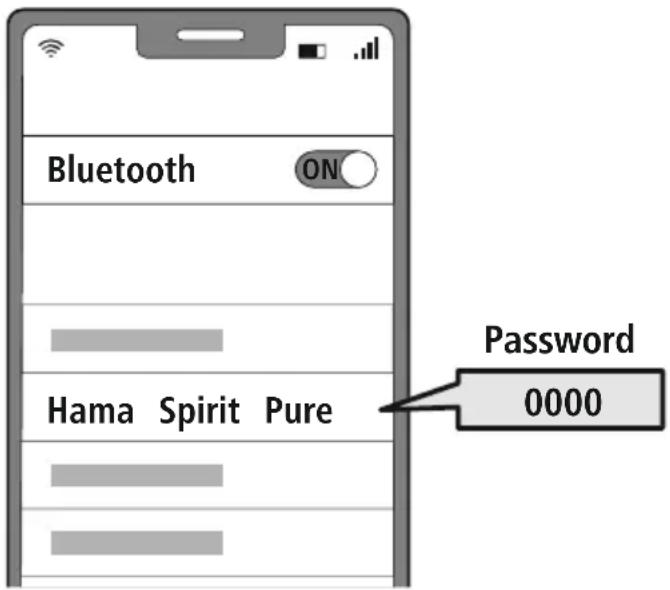

2 Search using your device for the earphones (only required on the first connection)

Open the Bluetooth® settings on your device and wait until the list of found Bluetooth® devices shows Hama Spirit Pure.

Select Hama Spirit Pure and wait until the earphones are shown as connected in your device's Bluetooth® settings. You will hear a brief signal tone.

Bluetooth ON Password 0000 Hama Spirit Pure

Note - Bluetooth@password

Some devices require a password in order to connect to another Bluetooth device.

- If your device requests a password to connect to the earphones, enter 0000.

7. Controls

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• For more information, please refer to the operating instructions of your device.

7.1 Voice assistant function

Siri/Google

Tap the multi-function touch sensor (4) on the right earphone once to initiate communication with Siri or the Google Assistant.

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

- The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.

- The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your device.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Tap the multi-function touch sensor (4) on the left or right earphone twice to accept an incoming call. You will hear a brief signal tone.

3 Reject a call

To reject an incoming call, tap the multi-function touch sensor (4) on the left or right earphone three times. You will hear a brief signal tone.

4 End a call

During the call, tap the multi-function touch sensor (4) on the left or right earphone twice to end the call. You will hear a brief signal tone.

5 Last number redial

You can redial the last number you called via the voice assistant function (7.1).

7.3 Audio playback

1 Start playback on your device.
2 Play / Pause

2x

Tap the multi-function touch sensor (4) on the left or right earphone twice to start or stop audio playback.

3 Next track

3x R

Tap the multi-function touch sensor (4) on the right earphone three times to skip to the next track.

4 Previous track

L 3x

Tap the multi-function touch sensor (4) on the left earphone three times to skip to the previous track.

7.4 Volume control

The volume is controlled by the voice assistant function (7.1). Alternatively, you can also control the volume via your device.

1. Technical data

Bluetooth® earphones
Bluetooth technology Bluetooth® v5.0
Profiles supported A2DPV1.3, AVRCP 1.6, HFP V1.7, SPP V1.2
Frequency for Bluetooth transmissions	2402 – 2480 MHz
Range < 10 m
Rechargeable battery
Battery type 3.7 V Li polymer
Min. capacity Earphones / charging box	45mAh / 480mAh
Power consumption max. 5 V	330mA ---
Earphones charging time ~ 2 h
Charging box charging time	~ 2.5 h
Standby * ~ 70 h
Music time (charging box) *	~ 5 h (25 h)
Talk time (charging box)* ~	3.5 h (17.5 h)
Weight of earphones	approx. 4 g per earphone
Weight of charging tray incl. earphones	approx. 44g

* Once fully charged

9. Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

12. Recycling information

Note on environmental protection:

After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies:

Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as

batteries to the designated public collection points or to the point of sale at the end of their service lives. Detailed information on this topic is defined in the national laws of the respective country. This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution to protecting our environment.

13. Declaration of Conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184108, 00184109] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

www.hama.com->00184108, 00184109-> Downloads.

Frequency band(s) 2402 - 2480 MHz

Maximum radio-frequency power transmitted 3.28 dBm
