USER MANUAL Bee 5 Bugaboo

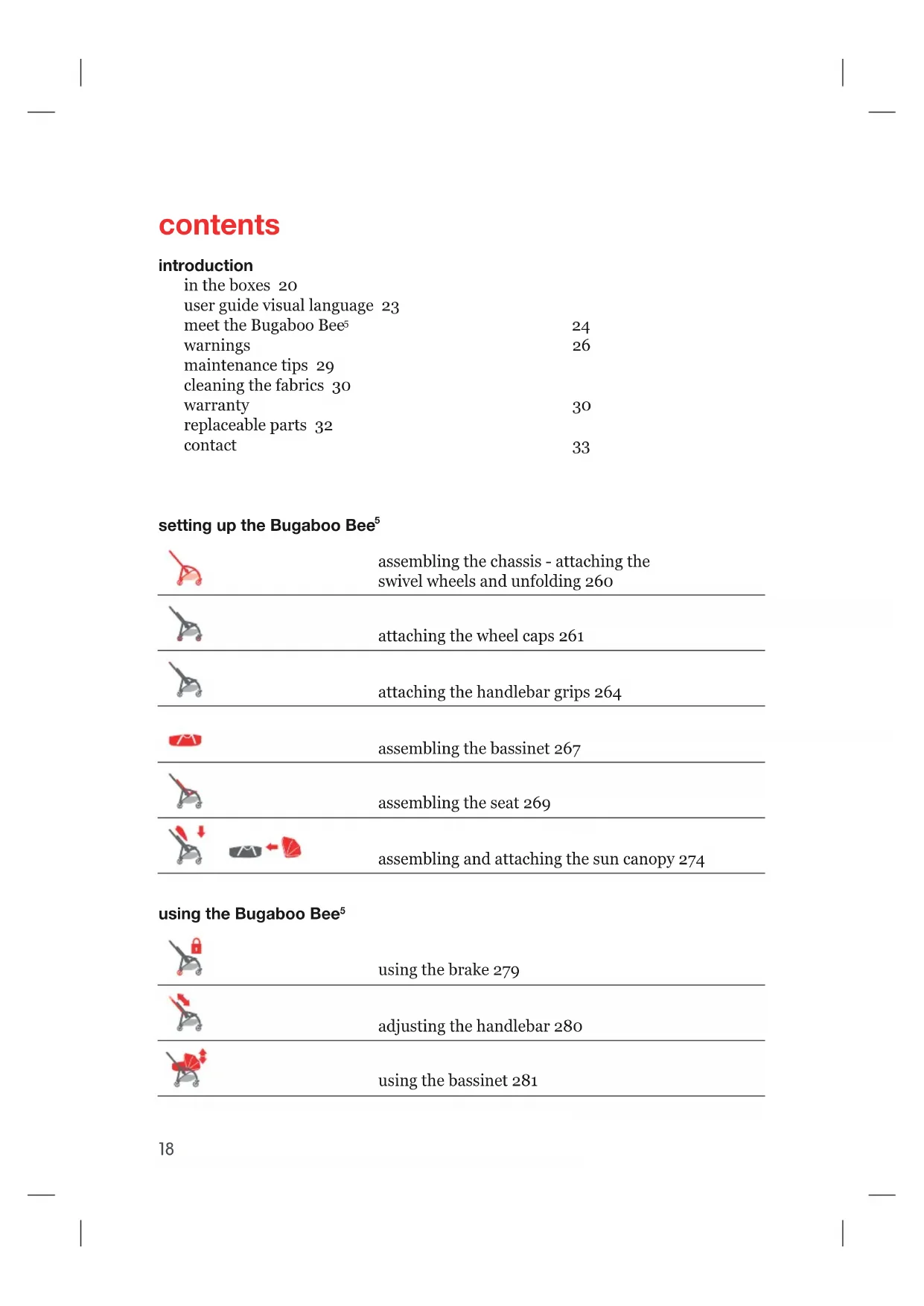

warnings 26 maintenance tips 29 cleaning the fabrics 30 warranty 30 replaceable parts 32 contact 33 setting up the Bugaboo Bee

assembling the chassis - attaching the swivel wheels and unfolding 260 attaching the wheel caps 261 attaching the handlebar grips 264 assembling the bassinet 267 assembling the seat 269 assembling and attaching the sun canopy 274 using the Bugaboo Bee

using the brake 279 adjusting the handlebar 280 using the bassinet 281 18using the sun canopy 283 using the seat 288 using the harness 295 one piece folding with seat facing the world 297 one piece folding with seat facing the parent 299 using the wrist strap 301 locking/unlocking the swivel wheels 302 removing the wheels 304 removing the under seat basket 306 removing the seat fabric 308 removing the handlebar grips 311 removing the wheel caps 314 using the rain cover 315

TRin the boxes Take a minute to check the contents of your packages. If something is missing, please contact your retailer. chassis sun canopy seat swivel wheels

• The canopy is sold separately.

• The seat fabric is sold separately. sun canopy wires & clamps seat fabric rain cover

• The bassinet wall and apron are sold separately.

• The wheel caps are sold separately.

• The bassinet base and adapters are sold separately.

• The handlebars grips are sold separately. bassinet base adapters

EN22user guide visual language In this user guide we make use of a visual language. Below you can find the meaning of all visuals used. visual check OK visual check wrong audible click movement in the indicated direction instructions continue on next page

repeat action on similar part(s) Some instructions require special attention for ensuring the safe use of the Bugaboo Bee

. When you see this symbol in the instructional part of the user guide, please refer to the warnings in the "WARNINGS" chapter.

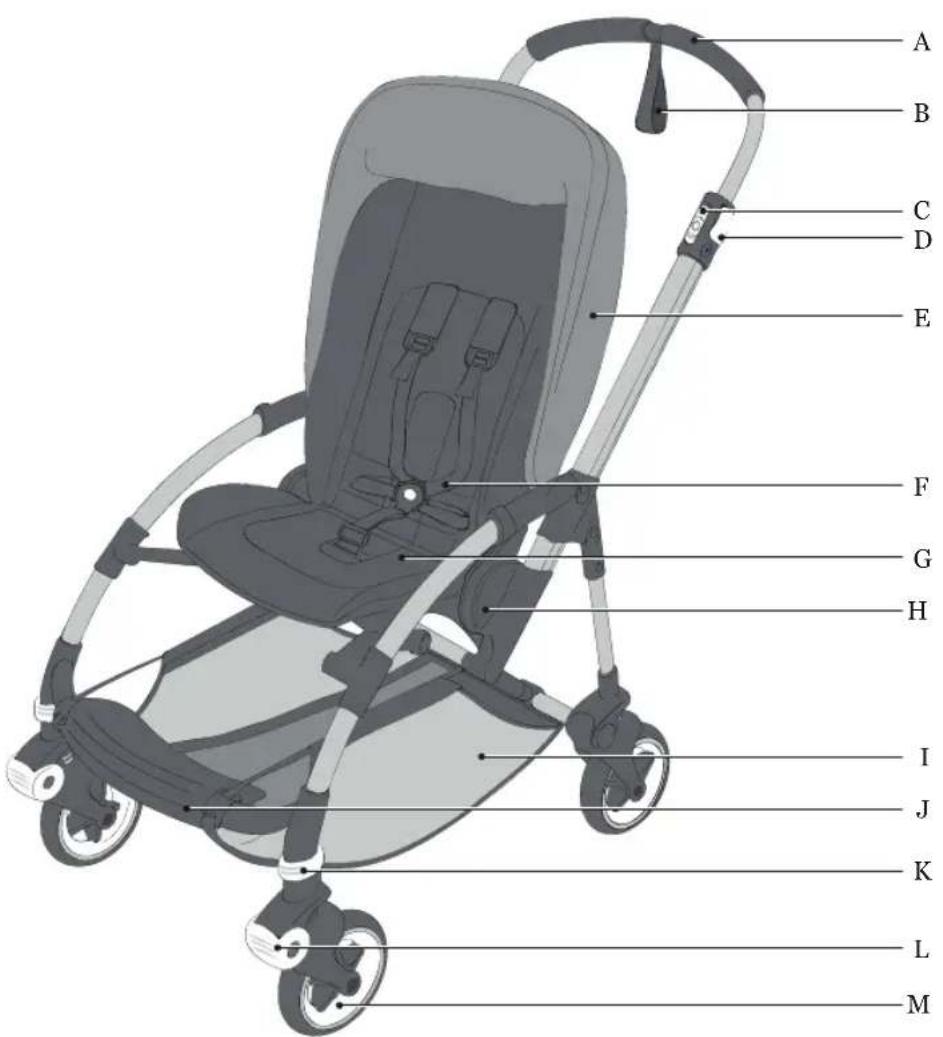

TRmeet the bugaboo bee

All the white parts of your Bugaboo Bee

are functional. They’re the parts that allow you to adapt and change your Bugaboo Bee

J. footrest K. wheel lock L. knee cap M. swivel wheels

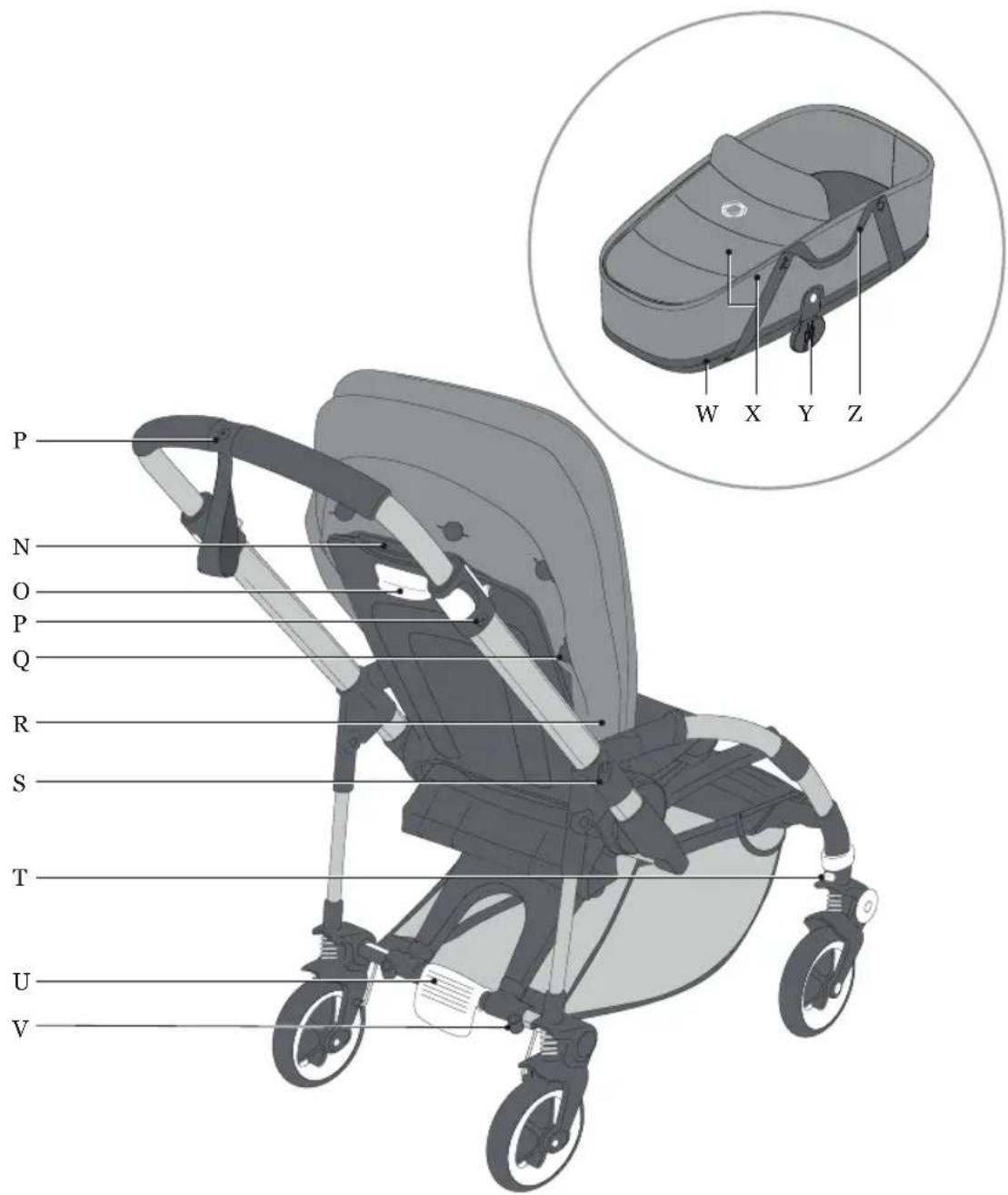

A. handlebar grips B. wrist strap C. folding lock D. handlebar adjustment clip E. sun canopy F. harness G. seat 24N. extendable backrest handle O. backrest adjustment lock P. integrated attachment point (cupholder) Q. sun canopy buttons R. sun canopy clamp holder S. integrated attachment point (parasol) T. swivel wheel release button U. brake

V. integrated attachment point

(comfort wheel board) W. bassinet base

1. IMPORTANT - Read the instructions carefully before use and keep for

2. Failure to follow these warnings and the instructions could result in

serious injury or death.

3. NEVER leave child unattended.

4. Ensure that all the locking devices are engaged before use.

5. Do not use if any part of the product is broken, torn or missing.

6. Only use accessories and replacement parts supplied or recommended

by the manufacturer/distributor.

7. To avoid injury ensure that your child is kept away when unfolding and

folding this product.

8. Do not let your child play with this product.

9. Always use the restraint system.

10. Check that the bassinet/carrycot or seat unit or car seat attachment

devices are correctly engaged before use.

11. The handles and the bottom of the bassinet/carrycot should be

inspected regularly for signs of damage and wear.

12. This product is not suitable for running or skating.

13. Always use the safety features of your Bugaboo Bee

, including locking devices, brake, the harness (when child is in the seat) and the wrist strap attached to the handlebar. Check and maintain all safety features frequently.

14. Do not place bags or luggage on the handlebar and/or on the back of the

backrest and/or on the sides of the stroller as the stroller may become unstable.

15. Use the wrist strap to stop the stroller rolling away.

16. The car seat does not replace a cot or a bed. Should you child need to

sleep, then it should be placed in a suitable bassinet/carrycot, cot or bed.

17. For any child unable to maintain an unaided sitting position the

backrest should only be used in the fully reclined position.

18. Do not use the sun canopy in the extended position in combination with

the rain cover. Suffocation hazard.

19. The parking device shall be engaged when placing and removing the

20. Do not take your stroller on the escalator.

2621. It is possible that on floors such as synthetic laminates, parquet, linoleum and carpet (organic surface floors), rubber black tires may leave permanent marks. Should you have a floor as mentioned above we recommend to be careful with indoor usage.

22. Do not place the bassinet/carrycot near an open fire or other source

23. Do not use the adapters sold with Bugaboo Cup holder, Bugaboo

parasol or a Bugaboo comfort wheeled board on the Bugaboo Bee

Always attach the accessory directly to the stroller using the stroller integrated attachment points.

25. Handlebar grips must be attached and locked correctly before use.

26. Seat fabric must be installed over the seat foam before use.

27. Always make sure that the wheel caps are attached correctly before

28. The head of the child in the bassinet/carrycot should never be lower

than the body of the child.

II. RECOMMENDED WEIGHTS AND HEIGHT

29. Maximum weight for the child in the bassinet/carrycot is 9 kg (20lbs).

is suitable for children from 0 to 36 months.

31. Maximum allowed weight for the child in the seat when installed

facing parents is 15 kg.

32. Maximum weight for the child in the seat when installed facing world

is 17 kg (37.5 lbs).

33. Maximum weight of the under seat basket is 4 kg (8.8 lbs).

34. Use only manufacturer recommended weights in the under seat

basket otherwise the stroller may become unstable.

35. Any load attached to the handlebar and/or on the back of the backrest

and/or on the sides of the stroller will affect the stability of the stroller.

36. This vehicle is intended for use by only one child.

III. USING THE BASSINET/CARRYCOT ON THE CHASSIS

37. The bassinet/carrycot is not intended for use by children older than 6

months or children who can sit unaided.

38. WARNING: The bassinet/carrycot is only suitable for a child who

cannot sit up unaided.

39. Never add a mattress, sheet, pillow, comforter or padding. Use only

the pad and sheet provided by Bugaboo.

TR© Copyright 2016 Bugaboo International BV. The information contained herein is subject to change without notice. Bugaboo International BV shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide. Our most recent user guides can be requested at our service departments or at www.bugaboo.com. BUGABOO, BUGABOO CAMELEON, BUGABOO BEE, BUGABOO DONKEY, BUGABOO BUFFALO, RUNNER and the Bugaboo logos are registered trademarks. The Bugaboo® strollers are patented and design protected.

40. The carrying handles should be left out of the bassinet/carrycot during

41. Always use the harness.

42. Always use the crotch strap in combination with the waist belt.

43. Avoid serious injury from falling or sliding out. Always use the harness.

seat unit is suitable for children from 0 to 36 months. Use the most reclined position of the seat for new born babies.

46. WARNING: Only use on a firm, horizontal level and dry surface. Never

use on soft surfaces.

47. Suffocation Hazard: Infant carrier can roll over on soft surfaces and

suffocate child. NEVER place carrier on beds, sofas, or other soft surfaces.

48. WARNING: Do not let other children play unattended near the bassinet/

49. Do not use the bassinet/carrycot off the chassis once your child can sit

50. WARNING: Do not leave flexible carrying handles inside the bassinet/

51. WARNING: Do not use if any part of the bassinet/carrycot or seat is

broken, torn or missing.

52. SUFFOCATION HAZARD:

Infants can suffocate: - In gaps between an extra pad and the side of the bassinet. - On soft bedding. NEVER add a mattress, pillow, comforter, or padding. Use ONLY the pad provided by manufacturer. Some instructions require special attention for ensuring the safe use of the Bugaboo Bee

. When you see this symbol in the instructional part of the user guide, please refer to the warnings in the "WARNINGS" chapter. 28important information

• Check the safety of the Bugaboo Bee

before each use. Ensure that the seat fabric, the brake and the safety belts are all working properly, the handlebar is locked and that the seat is fitted correctly to the chassis.

• Check to see if the Bugaboo Bee

is damaged. You should ensure that any damaged or worn parts are repaired immediately.

• To ensure completely safety for your child do not use the Bugaboo Bee

until any damaged or worn parts have been repaired or replaced.

seat unit (no. 500250) and Bugaboo Bee

bassinet base (no. 500129BB01) should only be used with the Bugaboo Bee

parts or components with any non-approved pushchair, other device or any other Bugaboo product.

• Do not use the Bugaboo Bee

near open flames or other sources of heat. Avoid exposing the Bugaboo Bee

is not resistant to salt water.

• Avoid Velcro contact to the Bugaboo Bee

fabrics. maintenance tips These tips will help you take care of your Bugaboo Bee

and ensure a smooth ride.

• Periodically remove the swivel wheels and brush off any dirt or sand. Use a brush and water to clean dirt off the wheels. Do not submerge the wheel bearings in water.

• Use a soft brush to clean sand and dirt off the chassis. Take care to brush dirt away from rotating or sliding parts.

• Clean the chassis with a soft towel and lukewarm water and wipe off any remaining water with a dry cloth.

• Use a sponge, warm water and liquid soap to gently rub off any dirt on the handlebar foam. Wipe clean any soap residue left on the handlebar.

• Store your Bugaboo Bee

and its accessories in a dry place and leave them unfolded when wet to prevent mould. For more tips on how to maintain your Bugaboo Bee

, visit bugaboo.com.

TRcleaning the fabrics The Bugaboo Bee

seat fabric and sun canopy are detachable and machine washable. The Bugaboo Bee

harness can be cleaned with a damp cloth. The Bugaboo Bee

bassinet/carrycot fabrics are recommended to wash by hand. When washing, don’t forget:

• always wash separately Always check the fabric label before washing. The aerated inlay of the mattress can be washed at 30˚C. The aerated inlay is placed on top of the thicker foam mattress and can be taken off by removing the mattress cover. After washing, ensure that all mattress parts are replaced in their original positions, with the aerated inlay placed on top of the foam mattress. Do not use the mattress without the aerated inlay. The Bugaboo Bee

under seat basket can be washed at 30˚C. manufacturer’s warranty (for Europe only) As the manufacturer, Bugaboo International BV, which has its principal place of business in Amsterdam (hereinafter: “Bugaboo”), supplies the Bugaboo stroller (hereinafter: “product”) under warranty, subject to the following conditions:

1. The manufacturer’s warranty period is 24 months, from the date of purchase as

indicated on the sales receipt. The remaining guarantee for the original product will apply for a replacement part or product or a repaired product.

2. This manufacturer’s warranty applies only in the region (USA and Canada or

Europe or Russia or Australia and New Zealand or Asia) in which the product was purchased. Bugaboo guarantees that the product will be in compliance only with the statutory provisions and/or government regulations that apply in the region in which the product was sold. Bugaboo reserves the right to apply a divergent manufacturer’s guarantee for those specific regions.

3. The manufacturer’s warranty provides a right to repair unless Bugaboo is of the

opinion that replacement or return of the product is necessary. Bugaboo will bear the expense and risk of transport from and to the retailer (hereinafter: “the retailer”) where you purchased the product, provided the repair is covered by manufacturer’s warranty.

304. Bugaboo reserves the right to stop manufacturing a particular model, colour,

fabric or accessory, and therefore it will replace a part with a similar product, colour or fabric during the manufacturer’s warranty period.

5. To claim under this manufacturer’s warranty you must provide Bugaboo with

the following: - a copy of the dated receipt of purchase, - a clear description of the complaint and - the defective product and/or photographs of the defective part or product.

6. The manufacturer’s warranty is not transferable and may therefore only be

invoked by the first owner.

7. The manufacturer’s warranty does not affect any statutory rights you may have,

for example the right to hold the retailer accountable for defects. what is covered by the manufacturer’s guarantee? The manufacturer’s guarantee applies in respect of the product and covers the following: - all manufacturing defects in the chassis, frame and the wheels; - all manufacturing defects in the adapters (frame and car seat adapters); - zippers; - all parts of the harness of your Bugaboo stroller; - seams in the covering; - Velcro

; and - colourfastness. the manufacturer’s warranty will void in the following circumstances: - If you have made or arranged for modifications or repairs to be made without first having received written permission from Bugaboo or the retailer. - Defects resulting from neglect or an accident and/or from any use or maintenance other than that indicated in the user guide. - If the serial number has been damaged or removed. - Damage to the product caused by normal wear and tear. - Incorrect mounting or installation of third-party parts that are incompatible with the product. - Inadvertent or unintentional damage, abnormal use or insufficient care. - Improper storage / product care. - Damage to push bars or upholstery due to normal daily use of the product. - Holes or tears in the tires.

TR- Damage due to improper use or due to failure to follow user guide. - Damage due to repairs carried out by unauthorized persons or due to improper disassembly of the product. - Transport damage (during air transport or other modes of transport): carefully inspect your Bugaboo product after it was shipped by the airline (or other carrier) and in case of any damage immediately file a claim with the carrier. - Customer dissatisfaction with the product in terms of fit, weight, functionality, colour or design. important The manufacturer’s warranty period for this product is 24 months from the purchase date indicated on the sales receipt. Save the sales receipt in a safe place and make a copy of it. It is even easier if you register your product at bugaboo. com and/or by using the warranty card enclosed. If you submit a claim under this manufacturer’s warranty you must first contact your retailer. If your retailer is unable to repair the defect or if Bugaboo was your retailer you can contact Bugaboo by sending an e-mail to service@bugaboo.com or dial +31 (0)20 718 95 31. For complaints that arise outside the manufacturer’s warranty period you must also contact your seller or you can contact one of our service centres. You can find an up- to-date list of service centres at bugaboo.com. Bugaboo reserves the right to amend these manufacturer’s warranty provisions. You can find the most up-to-date manufacturer’s warranty provisions on our website: www.bugaboo.com. replaceable parts We pride ourselves on creating products based on high quality and standards. That’s why only genuine Bugaboo parts or parts which have been approved by Bugaboo should ever be used in conjunction with the Bugaboo stroller. If you need to replace a part of your Bugaboo stroller, please contact your retailer, or visit bugaboo.com for an extensive list of retailers near you. 32contact Before you start using your Bugaboo Bee

, make sure you fill out the product registration form on line at bugaboo.com. We are always interested in your feedback and would like to hear your comments on the Bugaboo Bee

or any other Bugaboo product. Please send us an email at service@bugaboo.com, (North American residents, please use service.us@bugaboo. com) or visit our website at bugaboo.com/register to create your personal account and sign up to participate in Bugaboo consumer research and receive the Bugaboo online newsletter.

The Bugaboo Bee5 complies with:

• EN 1888 (2012), EN 12790 (2009) and EN 1466 (2004) and A1 (2007) and is certified by TÜV Süd to bear the TÜV and GS markings.

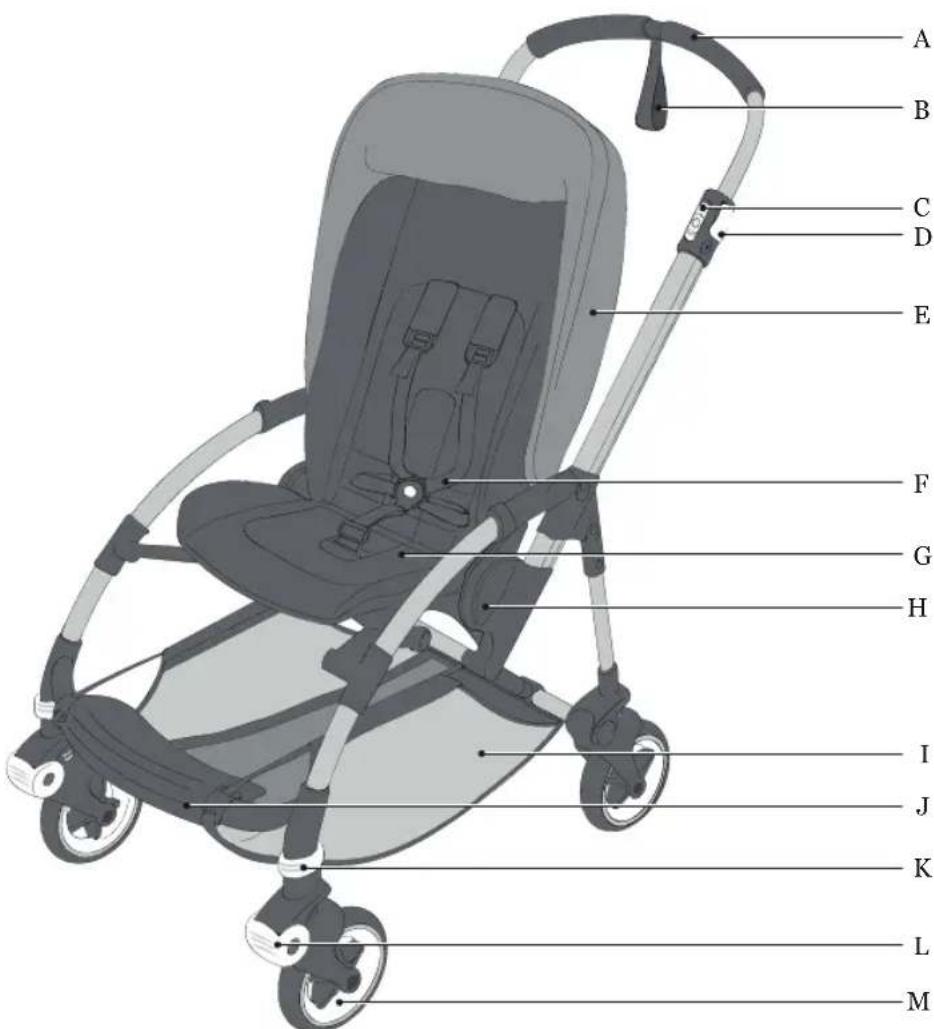

All the white parts of your Bugaboo Bee

are functional. They’re the parts that allow you to adapt and change your Bugaboo Bee

• Kontroller at Bugaboo Bee

Y. adaptere Z. liftens stropper

• Kontrollér, at Bugaboo Bee

-mallissa. Always attach the accessory directly to the stroller using the stroller integrated attachment points.

• EN 1888 (2012), EN 12790 (2009) and EN 1466 (2004) and A1 (2007) and is certified by TÜV Süd to bear the TÜV and GS markings.

• ASTM F833:11 (latest version), ASTM F2194:13 (latest version) and ASTM 2050:12 (latest version) and is certified by the Juvenile Products Manufacturing Association (JPMA). 206důležitá informace

The Bugaboo Bee5 complies with:

• EN 1888 (2012), EN 12790 (2009) and EN 1466 (2004) and A1 (2007) and is certified by TÜV Süd to bear the TÜV and GS markings.
