USER MANUAL SGH 2000 B2 SILVERCREST

1.1 Intended use   6

1.2 Scope of delivery   6

2. Safety indications for room heating appliances   8

2.1 General safety indications   9

2.2 Additional safety indications   10

4.3 Switching the appliance off   13

5. Protective devices for the appliance   14

5.1 Overheating protection   14

5.2 Overturning protection    14

6. Maintenance, cleaning and storage   14

Congratulations on purchasing your new appliance. You have decided in favour of a high-quality pro- duct. The operating instructions are part of this pro- duct. They contain important information regarding the safety, use and disposal. Familiarise yourself with all the operating and safety indications prior to using the product. Only use the product as de- scribed and for the specified areas of use. If you pass the product on to third parties, hand out all the documents too.

This appliance is only determined for heating clo- sed, dry, rooms during the transitory period. It can be used as supplementary heating or a temporary heating option in well-insulated rooms with a size of up to approx. 20 m

. The appliance can exclu- sively be used as a floor-mounted appliance. The appliance is not intended for use in rooms in which special conditions prevail, e.g. a corrosive or explo- sive atmosphere (dust, steam or gas). Do not use this appliance outdoors. Every further use or change to the appliance is viewed as not in accordance with its intended use and involves considerable accident risks. We assume no liability for damages arising from improper use. The appliance is only intended for private and not for commercial use.

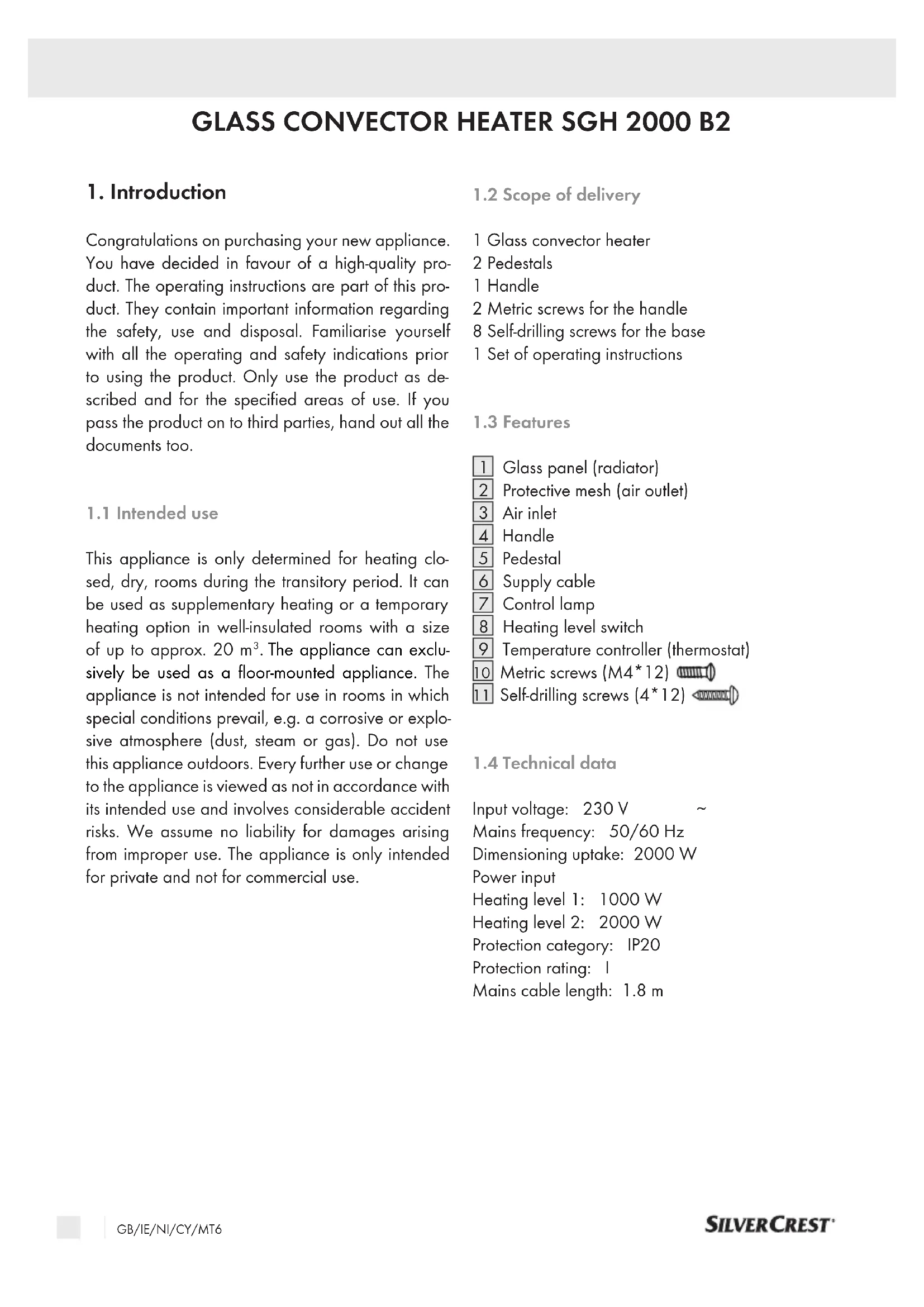

GLASS CONVECTOR HEATER SGH 2000 B2

1.2 Scope of delivery

1 Glass convector heater 2 Pedestals 1 Handle 2 Metric screws for the handle 8 Self-drilling screws for the base 1 Set of operating instructions

1 Glass panel (radiator) 2 Protective mesh (air outlet) 3 Air inlet 4 Handle 5 Pedestal 6 Supply cable 7 Control lamp 8 Heating level switch 9 Temperature controller (thermostat) 10 Metric screws (M4*12) 11 Self-drilling screws (4*12)

Mains frequency: 50/60 Hz Dimensioning uptake: 2000 W Power input Heating level 1: 1000 W Heating level 2: 2000 W Protection category: IP20 Protection rating: I Mains cable length: 1.8 mGB/IE/NI/CY/MT 7 Type of heat output/room temperature control (select one) single stage heat output and no room temperature control [no] Two or more manual stages, no room temperature control [no] with mechanic thermostat room temperature control [yes] with electronic room temperature control [no] electronic room temperature control plus day timer [no] electronic room temperature control plus week timer [no] Other control options (multiple selections possible) room temperature control, with presence detection [no] room temperature control, with open window detection [no] with distance control option [no] with adaptive start control [no] with working time limitation [no] with black bulb sensor [no] ROWI Germany GmbH Werner-von-Siemens-Str. 27 76694 Forst GERMANY Information requirements for electric local space heaters Model identifier(s): SGH 2000 B2 Item Symbol Value Unit Heat output Nominal heat output P nom

Minimum heat output (indicative)

Maximum continuous heat output

Auxiliary electricity consumption At nominal heat output el max

N/A kW Item Unit Type of heat input, for electric storage local space heaters only (select one) manual heat charge control, with integrated thermostat [no] manual heat charge control with room and/ or outdoor temperature feedback [no] electronic heat charge control with room and/ or outdoor temperature feedback [no] fan assisted heat output [no]GB/IE/NI/CY/MT8

2. Safety indications for room heating appliances

Read all the safety indications and instructions. Failure to adhere to the safety indications and instructions may cause serious injuries and/or property damages. Please keep all the safety indications and instructions for future use. WARNING! Do not Cover! To avoid the heater overheating, it must not be covered. The heater may not be placed directly beneath a wall mains socket. The heater may not be used if the glass panel is damaged. Do not use this heater in the direct vicinity of a bathtub, a shower or a swimming pool. If the supply cable for this appliance is damaged, it must be re- placed by the manufacturer or his customer service or a similarly qualified person in order to avoid any dangers. ATTENTION: In order to avoid danger due to undeliberate resetting of the protection temperature limiter, the appliance may neither be supplied via an external switching device such as a timer nor connec

ted to an electric circuit which is switched on and off regularly by a

vice. Do not operate a dropped unit. Do not use the product if you notice any visible damage. The heater must be placed on a firm, flat and horizontal floor.GB/IE/NI/CY/MT 9

2.1 General safety indications

To reduce the danger of fire, keep textiles, curtains and other combustible materials at least 1 cm away from the air outlet.

WARNING: The heater may not be used in small rooms where

people live who are not able to leave the room independently unless constant monitoring is guaranteed. No measures need be taken by the user to set the product to 50 or 60 Hz. The product adjusts automatically to 50 or 60 Hz. This appliance can be used by children of 8 years and more as well as by persons with reduced physical, sensory or mental abilities or lacking experience and knowledge, if they are supervised or are in

structed in the safe use of the appliance and understand the ensuing danger

Children may not play with the appliance. The cleaning and maintenance of the appliance by the user may not be carried out by children not under supervision. Children of less than 3 must be kept away unless they are constantly monitored. Children between 3 and 8 may only switch the appliance on and off if they are under supervision or have been instructed in the safe use of the appliance and have understood the resulting dangers, with the prerequisite that the appliance is placed or installed in its normal operating position. Children between 3 and 8 my not plug the plug into the mains socket, control the appliance, clean it and/or not carry out user maintenance.GB/IE/NI/CY/MT10 Warning against hot surfaces! ATTENTION: Some parts of the product may become extremely hot and cause scalding. Special care is required if children and vulnerable persons are present.

2.2 Additional safety indications

Danger to life due to electrical current! Danger to life in case of contact with live cables or components! The appliance is only suitable for indoor operation! Before connecting the appliance, compare the connection data on the name plate (voltage and frequency) with the data from your electricity grid. Ensure that the data tallies so that no damages to the appliance are incurred. Check the appliance for external visible damages prior to use. Do not commission an appliance which is damaged or has been dropped. Never open the appliance’s casing. If live connections are touched and/or the electrical and mechanical setup changed, the risk of electric shock exists! Ensure that the supply cable is not laid over hot surfaces and/or sharp edges. Pay attention that the supply cable is neither bent nor jammed.GB/IE/NI/CY/MT 11 Only have the appliance repaired by authorised specialist com- panies or customer service. Inappropriate repairs may result in considerable danger for the user. Moreover, the guarantee rights become null and void. Protect the appliance against damp and the penetration of liquids. Only remove the supply cable from the mains socket from the mains plug. Do not operate the appliance in the vicinity of open flames. Only operate the appliance with a fully unrolled supply cable. Ne- ver wind the supply cable around the appliance. Ensure that the supply cable does not come into contact with hot surfaces. Lay the supply cable so that it is not possible to stumble over it.GB/IE/NI/CY/MT12

3. Before commissioning

Remove all packaging material and transport safety devices from the appliance.

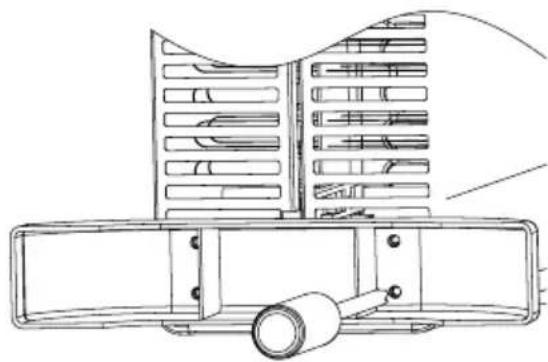

3.1 Assembling the pedestals

Place the appliance with its reverse side on a stable table. The lower edge of the casing must protrude a little over the edge of the table. Place a pedestal

at the edge of the bottom of the casing. Four boreholes on the casing fit four holes in the pedestal

precisely. Screw the pedestal

on hand-tight with 4 of the screws

provided. Do not strip the thread on the short screws

Note: There are several boreholes in the bottom of the casing. Observe the respective matching bore- holes for the respective pedestals. See the following illustration: Repeat the process with the second pedestal

Ensure that the pedestals

are straight and secure on the casing. Place the appliance on the pedestals

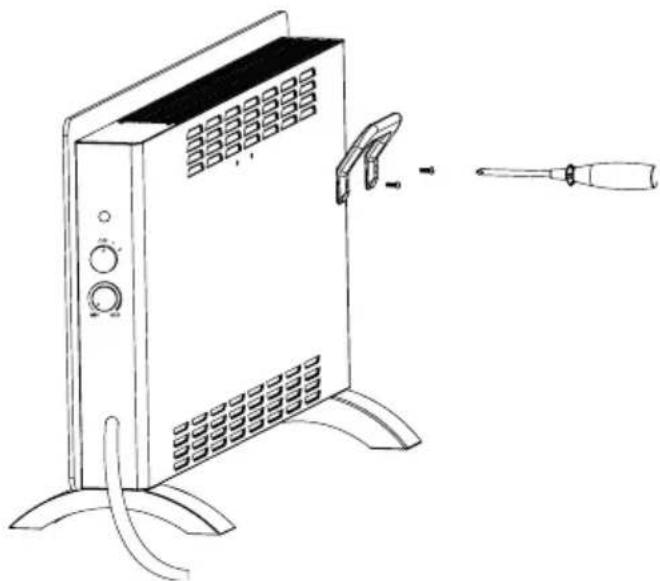

Two boreholes for the attachment of the handle

are located on the reverse side of the glass panel convector heater at the top. Place the handle

on the boreholes. Obser- ve here that the ends with the boreholes in the handle point downwards. Screw the handle

hand-tight with the two long screws

provided. Do not strip the thread on the screws

3.3 Setting up the appliance

For safe, fault-free operation of the appliance, its location must meet the following prerequisites: The base must be firm, flat and level. Minimum clearance from the casing of 50 cm at the side, 100 cm at the top, 50 cm at the back and 50 cm at the front must be adhered to. Do not place the appliance in a hot, wet or very wet surroundings or in the vicinity of combusti- ble material. The mains socket must be easily accessible, enabling easy removal of the supply cable

if necessary. Temperature range: 0 to +40 °C Humidity (no condensation): 5–75 % Note: During initial use, slight odours may arise in the short-term.GB/IE/NI/CY/MT 13

4.1 Switching the appliance on

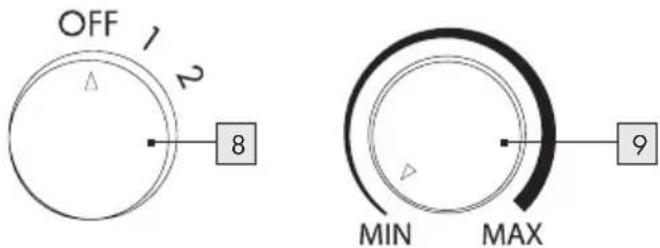

Ensure that the heating level switch

is set to “OFF”. Then, connect the glass panel convector heater to an earthed socket protected by an FI circuit breaker. Then, switch the appliance on by rotating the temperature controller

clockwise until it clicks audibly and move the heating level switch

to the desired position. The red control lamp

is lit. Here, the following applies: OFF Off position The appliance does not provide any heating power.

Heating level 1: The appliance has a heat output of 1000 W.

Heating level 2: The appliance has a heat output of 2000 W. MIN. position Lowest temperature setting MAX. position Highest temperature setting

4.2 Setting the temperature controller

to set the desired heat output. Rotate the temperature controller

clockwise up to the limit stop. If the desired temperature has been reached, rotate the temperature controller

back so far anticlockwise until you hear a clear click. The control lamp

goes off. An integrated thermostat now automatically switches the heating function on/off. Note: The red control lamp

is lit during operation.

4.3 Switching the appliance off

Set the heating level switch

to the position "OFF". Set the infinitely variable temperature controller

to the position "MIN". The control lamp

goes off. Remove the mains plug from the mains socket. Before covering or putting the appliance away, wait until it has cooled down!

5. Protective devices for

This appliance is equipped with overheating protec- tion. If the appliance becomes too hot, the heating element is automatically switched off. To switch the appliance off, set the heating level switch

to the position "OFF" and the temperature controller

to the position "MIN". Remove the mains plug from the mains socket. Let the appliance cool down for at least 10 minutes. Check the air inlets

and rectify the cause of overheating before recom- missioning the appliance. ATTENTION! There’s normally a reason for overheating! It can mean fire danger! Check whether the appliance can give off its heat sufficiently: Is the appliance covered or is it too close to a wall or a further obstacle? If possible, rectify the problem or revert to the service hotline (see chapter “Service”). Even if you cannot find a cause, but overheating protection is triggered again, you must switch the appliance off and revert to the service hot- line (see chapter “Service”).

5.2 Overturning protection

This appliance is equipped with overturning pro- tection. If the appliance is subjected to significant inclination during operation, it is automatically switched off. The appliance works exclusively in an upright position.

6. Maintenance, cleaning and

storage Always unplug the mains cable when the appli- ance is not in use, prior to each cleaning or in case of operational faults! Only clean the appliance when switched off and cold. Ensure when cleaning that no moisture ingresses into the appliance in order to avoid irreparable damages to the appliance. Clean the casing with a slightly damp cloth and a mild flushing fluid. Do not use aggressive and/or abrasive cleaning agents under any cir- cumstances whatsoever. Remove dust deposits on the air inlets and out- lets with a vacuum cleaner. Store the appliance in a dry surroundings.GB/IE/NI/CY/MT 15

9. ROWI Germany GmbH Warranty

Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your pro- duct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accor- dance with strict quality guidelines and inspected meticulously prior to delivery.

The packaging consists of environmental- ly friendly materials which you can dis- pose of via local recycling points. The Triman logo is valid in France only. This product is subject to the Euro- pean Directive 2012/19/EU. Do not dispose of the product in household was- te, but via municipal collection points for material recycling! Further information on how to dispose of the discarded device can be obtained from your local authori- ty or city council. Observe the markings on the packaging materials when separating the waste, they are marked with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics/20–22: Paper and cardbo

ard/80–98: Composite materials.

This product meets the requirements of the valid European and national regulati- ons.GB/IE/NI/CY/MT16 The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries or those made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintai- ned. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper hand- ling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: Please have the till receipt and the item number (IAN 392285_2201) available as proof of purchase. You will find the item number on the type plate on the product, on the front page of the instruc- tions (bottom left), or as a sticker on the rear or bottom of the appliance. If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. You can return a defective product to us free of charge to the service address that will be provi- ded to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. At www.lidl-service.com you can download this manual as well as many other manuals, product videos and installation software. This QR code will take you directly to the Lidl service page (www.lidl- service.com) and allow you to open your operating instructions simply by entering the article number (IAN 392285_2201).

Should you incur any problems when operating your ROWI Germany product, please do the following: Making contact You can reach the ROWI Germany service team under: ROWI Germany GmbH Werner-von-Siemens-Str. 27 D-76694 Forst GERMANY Lidl-services@rowi-group.com Service hotline: +800 7694 7694 (free from landlines) IAN 392285_2201 Most problems can already be resolved by compe- tent, technical advice from our service team.DE/AT/CH 17
