Product type	Electric towel warmer
Brand	SilverCrest
Model	SHH 150 A1
Power supply	220-240 V ~ 50 Hz
Rated power	150 W
Protection type	IP22
Protection class	I
Dimensions (wall mount)	530 x 930 x 100 mm
Dimensions (with feet)	530 x 975 x 355 mm
Usage	Indoor, for heating and drying towels and clothing
Installation	Wall-mounted or freestanding with aluminum feet
Control	ON/OFF switch
Indicator light	Red light when appliance is on
Package contents	Heater, 4 trim caps, 4 wall brackets, 2 aluminum feet, 4 floor protectors, 8 anchors, 12 screws, instruction manual
Warranty	3 years
Maintenance and cleaning	Unplug, let cool, wipe with a slightly damp soft cloth
Safety	Protection against hot surfaces, automatic shut-off not mentioned, do not cover
Minimum recommended height	Lowest bar at least 60 cm from floor
Weight (estimated)	Approx. 5 kg (not specified)
Reparability	Repairs by authorized professional; original spare parts
Article number (IAN)	322642_1901

Frequently Asked Questions - SHH 150 A1 SILVERCREST

How to install the SilverCrest SHH 150 A1 heater on the wall?

Fix the wall brackets to the wall by drilling 6 mm diameter holes 28 mm deep. Insert the anchors, screw the lower brackets, then place the heater and fix the upper brackets with the provided screws (M4 x 30 mm). Ensure the switch is not accessible from a bathtub or shower.

Can I use the heater without mounting it on the wall?

Yes, the heater can be placed on the floor using the included aluminum support feet. Attach the trim caps, place the floor protectors on the feet, then screw the feet under the appliance with M3.5 x 12 mm screws.

What is the power and electricity consumption?

The rated power is 150 W under a voltage of 220-240 V and a frequency of 50 Hz. This is a low-consumption heater suitable for drying towels.

How to clean the heater?

Before cleaning, unplug the appliance and let it cool completely. Use a slightly damp soft cloth to wipe the exterior. Never use detergents or liquids as they could damage the unit.

Can the heater be used in a bathroom?

Yes, it is designed for indoor use and has IP22 protection against water drops. However, it should not be installed directly above a bathtub or shower, and the switch must not be reachable by a person in water.

What if the heater does not heat?

Check that the mains socket is working and that the switch is in the ON position (the red light should come on). Ensure the power cord is not damaged. If the problem persists, contact the ROWI Electronics after-sales service.

What is the minimum installation height for child safety?

To avoid burns, the lowest heating bar should be installed at least 60 cm from the floor. Children should not be able to reach the lower bar.

Can I use an extension cord or power strip?

No, the use of extension cords or power strips is not recommended for safety reasons. Plug the heater directly into a properly secured wall outlet.

How to get spare parts or repairs?

Repairs must be carried out by an authorized specialist appointed by the manufacturer and only original spare parts should be used. Contact the ROWI Electronics GmbH after-sales service at the address given in the instructions.

Is the heater covered by warranty?

Yes, the warranty is 3 years from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear or damage due to misuse.

USER MANUAL SHH 150 A1 SILVERCREST

Operation and Safety Instructions

NL

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

[e-mail]

Service-Hotline: [phone]

Key to the pictograms

Introduction

Intended use 16
Equipment 16
Delivery 16
Technical Data 17

Safety instructions

Safety instructions for household appliances 17
Specific safety instructions for mounted towel dryers 17
Supplementary safety instructions

Installation

Installing the aluminium stands.. 19
Wall mounting. 19

Before start-up 20

Start-up Page 20

Maintenance and cleaning

ROWI Electronics GmbH warranty

Service 22

Disposal 22

Key to the pictograms:
	Read the operating instructions!		The packaging is made of environ-mentally friendly materials!
	Pay attention to warning and safety information!		Do not dispose of the product in household waste, but via municipal recycling points.
	Warning - Danger from hot surfaces!		Observe the marking of the pack-aging materials for waste separation

ELECTRIC TOWEL WARMER SHH 150 A1

Introduction

Congratulations on the purchase of your new device. You have opted for a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Familiarise yourself with all operating and safety instructions before you use the product. Use the product only as described and only for the specified areas of use. When passing on the product, please do not forget to hand over all the necessary documents to the new user.

Intendeduse

This electric towel warmer is designed to heat and dry towels and garments without a clothes hanger - for indoor use only. Other uses or modifications to the product shall constitute improper use and may result in risks such as death, personal injury and damage. The manufacturer accepts no liability for any damages resulting from improper use. This product is not intended for commercial use.

Equipment

1 Decorative caps
2Wall brackets
on/off switch
4Mains connection cable incl. plug
Aluminum stands
Surface protector
Dowel
Phillips screws M3.5 x 12 mm for mounting the aluminium stands
9 Phillips screws M4 x 30 mm for mounting the wall brackets

Delivery

1 Electric towel warmer
4 Decorative caps
4 Wall brackets
2 Aluminum stands
4 Surface protectors
8 Dowels
4 Phillips screws for mounting the aluminium stands
8 Phillips screws for mounting the wall brackets
1 Instruction manual

Technical Data

Power supply: 220-240 V 50Hz

Rated power consumption: 150 W

Dimensions:

Wall towel rail: 530 × 930 × 100 ~mm

Standing towel rail: 530 × 975 × 355 ~mm

$$ (W \times H \times D) $$

Protection rating: IP22

Protection class:

- Safety instructions

Please read all safety instructions and instructions carefully.

Failure to observe the safety instructions and instructions may result in serious injuries and/or damage to property.

STORE ALL SAFETY INSTRUCTIONS AND OTHER INSTRUCTIONS FOR FUTURE USE!

WARNING! Risk of fatal injury from electric current!

Contact with live cables or components may result in fatal injuries!

• Safety instructions for household appliances
  This device may be used by children 8 years of age and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they have been supervised or instructed with regard to the safe use of the device and have fully understood the hazards associated with its use. Children must not be allowed to play with the device.

Cleaning and user maintenance must not be carried out by children without supervision.

If the device's power cord becomes damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to prevent any possible hazards.
The device is only intended for indoor use.

- Specific safety instructions for mounted towel dryers

WorNGing

very young children at risk, it is recommended to install this appliance in such a way that the lowest heated bar is at least 600~mm above ground level.

"The lowest heated bar" is to be understood as "the top of the lowest bar that children can grab".

The towel dryer must also be installed in a way that prevents anyone in the bath or shower from being able to touch the switch.

Supplementary safety instructions

• Do not use the device if the power cord or plug is damaged. Before you continue to use the device, ensure that a new mains connection cable is installed by an authorised specialist.
• Do not open the device housing under any circumstances. If live connections are touched and/or the electrical and mechanical structure is modified, this may result in an electric shock!
  Before connecting the device, check the electrical connection

data on the nameplate (voltage and frequency) with the electrical specifications of your electrical network. It is important to ensure that the specifications match to avoid causing any damage to the device.

• Do not use extension cords or a power strip.
  Make sure that the power cord is undamaged and is not routed over hot surfaces and/or sharp edges.
  Take care to ensure that the power cord is not bent, twisted or wedged.
• Repairs to electrical devices may only be carried out by qualified personnel who have been trained by the manufacturer. Unauthorised repairs can lead to considerable hazards for the user.

WARNING! FIRE HAZARDS!

Never use the unit close to or below curtains or other combustible materials.

• Do not allow flammable materials to come into contact with the device.
• To avoid possible risks to children, the unit must be installed with the underside at least 60cm above ground level.
• Install the electric towel warmer so that the on/off switch cannot be reached by a person using the bathtub or shower.
  Inspect the device for any visible damage before use. Do not operate a device that has been damaged or fallen.
  If the device's power cord becomes damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to prevent any possible hazards.
  This device is not equipped with a unit for controlling the room

temperature. The heater must not be used in small rooms inhabited by persons who cannot leave the room independently, unless continuous monitoring is guaranteed.

HOT SURFACES WARNING!

Some parts of the product may become very hot and can cause burns. Special care should be taken when children and vulnerable persons are present.
Only allow repairs on the device to be carried out by our customer service or authorised specialist companies. Unauthorised repairs can lead to considerable hazards for the user. Furthermore, unauthorised repairs also invalidate the warranty.
Defective components may only be replaced with genuine spare parts. Only genuine parts guarantee that safety requirements are met.
Protect the device from moisture and liquid penetration.
Only disconnect the power cord from the socket at the mains plug, not with the cable.
Do not operate the device in the vicinity of naked flames.
Do not install the device directly under or above a wall power outlet.
In case of any malfunctions or thunderstorms, remove the plug from the socket.
Never use the device near a bathtub, shower or swimming pool.
Only use the device with the power cord fully unrolled. Never wrap the power cord around the device. Take care to ensure that the power cord does not come into contact with hot surfaces. Route the cable so that it is not possible to trip over it.

Installation

Notice: The electric towel warmer can be operated both as a freestanding device and as a wall-mounted device.

- Installing the aluminium stands

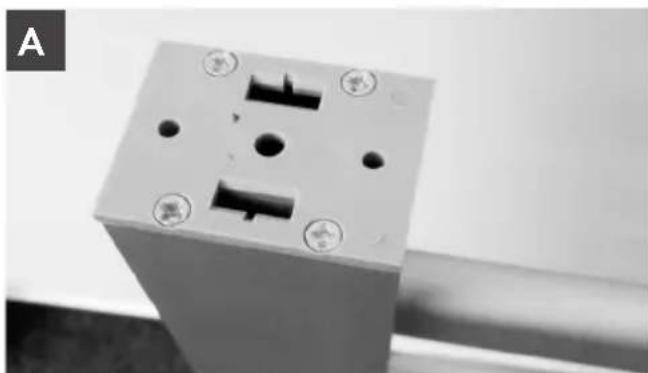

• Attach the decorative caps 1 to the corresponding openings on the top of the device. (See fig.A) Attach the surface protectors 6 to the ends of the aluminium stands 5.

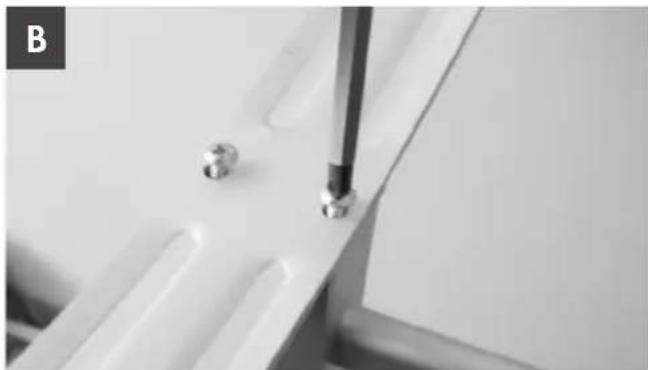

Now assemble the aluminium stands 5, using the four M3.5 x 12 mm Phillips screws 8 provided to attach the aluminium stands. (See fig.B)

- Wall mounting

ATTENTION! RISK OF DEATH, PERSONAL INJURY AND DAMAGE TO PROPERTY!

Read your drill's operating and safety instructions carefully.

WARNING! RISK OF FATAL INJURY!

Take care to avoid hitting electricity, gas or water pipes when drilling into the wall. If necessary, check with a cable detector before drilling into a wall.

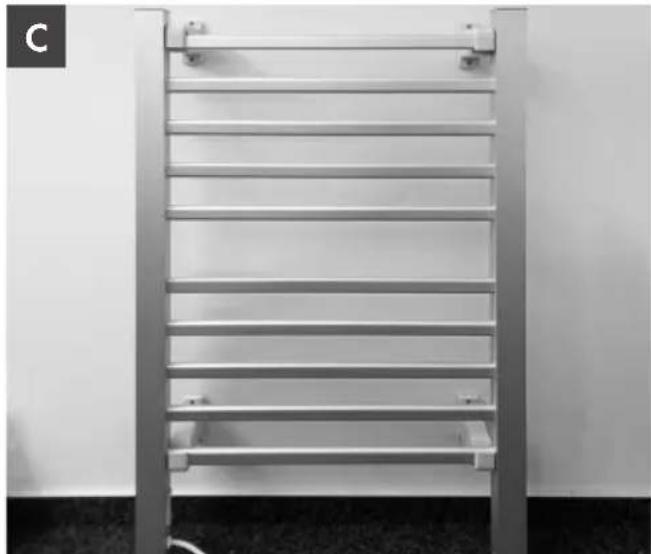

Place the wall brackets 2 on the product in your desired position. Figure C shows an example of how to position the wall brackets.

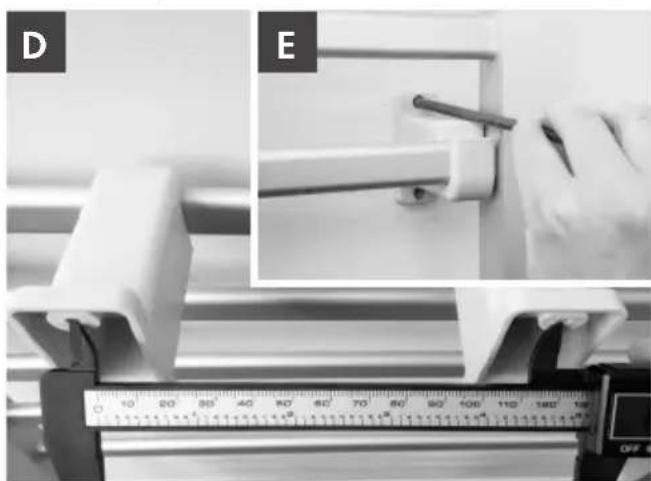

Now measure the distance between the holes found on the four wall brackets 2. (See Fig. D) These are the measurements for distances between the holes to be drilled. Alternatively, you can place the electric towel warmer in the desired position on the wall and mark the locations of the holes to be drilled directly on the wall through the holes in the wall brackets 2. (See Fig. E)

Please note the dimensions of the eight enclosed screws 9 before drilling. Drill the holes (6mm, 28mm length) in the wall where you would like to mount the electric towel warmer.

After the drill holes have been cleaned of any dirt, insert the dowels into the drill holes.

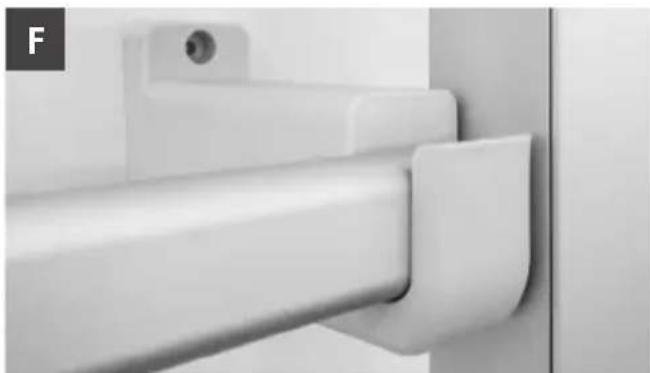

Please take care to mount the wall bracke as shown in the illustration (See Fig. F)

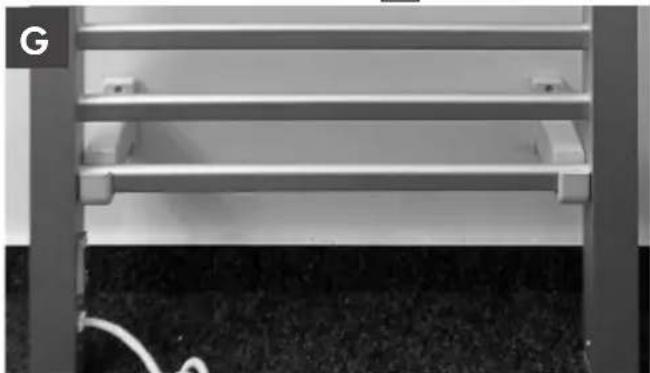

Now secure the lower two wall brackets 2 with the supplied M4 x 30 mm Phillips screws 9 for attaching the wall brackets 2.

Now place the electric towel rail in the newly attached wall brackets 2. (See Fig. G)

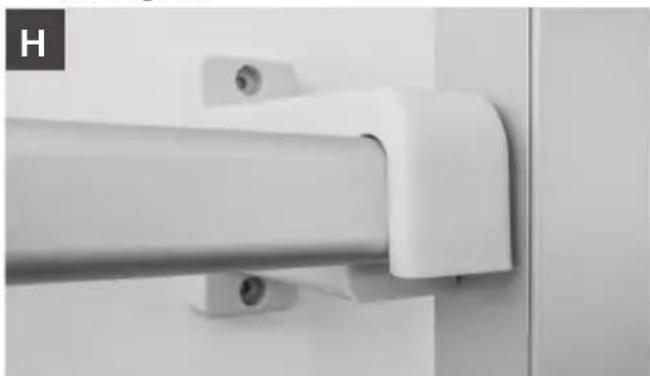

Now position the upper two wall brackets on the product and screw them to the wall as well. Please take care to mount the wall brackets 2 as shown in the illustration. (See Fig. H)

Notice: Ensure that the M4 x 30 mm Phillips screws for attaching the wall brackets are tightened and that the electric towel rail cannot fall down. This could lead to property damage and/or personal injury.

Before start-up

Before the first start-up, check that the mains voltage corresponds to the voltage indicated on the device.
Please take care that the mains cable does not become a tripping hazard. Always route the power cable away from the rear of the unit.

Start-up

Insert the mains plug into a suitably fused socket.
Turn the electric towel warmer on by setting the On/Off switch 3 to ON. The red control lamp indicates when the unit is switched on.
Never hang towels and clothing in an overlapping manner to prevent the device from overheating.
After use, turn the unit off using the on/off switch 3 by setting the On/Off switch 3 to OFF The red control lamp will go out. Now pull the plug out of the socket.

- Maintenance and cleaning

CAUTION! DANGER OF ELECTRIC SHOCK! Before cleaning, unplug the device from the wall outlet and allow it to cool down completely.
The device should only be cleaned externally using a soft, slightly damp cloth. Do not use any liquids or cleaning agents under any circumstances as they may damage the device.

ROWI Electronics GmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 322642_1901) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

NOTICE: At www.lidl-service.com you can download this manual as well as many other manuals, product videos and software. This QR code will take you directly to the Lidl service page (www.lidl-service.com) and allow you to open your operating instructions simply by entering the article number (IAN 322642_1901).

Service

If any problems arise while using your ROWI Electronics product, please proceed as follows:

Contact

You can contact the ROWI Electronics Service Team at:

ROWI Electronics GmbH

Augartenstr. 3
76698 Ubstadt-Weiher, Germany
[e-mail]
Service-Hotline: [phone]
(free of charge from a German landline)

IAN322642_1901

Most problems can be fixed with competent technical advice from our service team.

Disposal

The packaging is made of environmentally friendly materials that can be disposed of at local recycling facilities.

Do not dispose of the product with the normal household waste, but via municipal recycling points! Please contact your municipal or city administration to find out options for the disposal of the used product.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
