USER MANUAL STHL 2000 A1 SILVERCREST

TOWER FAN HEATER STHL 2000 A1 TURM-HEIZLÜFTER STHL 2000 A1 RADIATEUR SOUFFLANT TOUR STHL 2000 A1

IEGBNICYMT

TOWER FAN HEATER

Operating and Safety Instructions

This product is only suitable for well insulated spaces or occasional use.

BEFRCH

RADIATEUR SOUFFLANT TOUR

Before reading, fold out the page with the images and familiarise yourself with all the features of the device.

DE AT CH

GB/IE/NI/CY/MT Operation and Safety Instructions Page 5

1.1 Intended use
1.2 Scope of delivery
1.3 Features 7
1.4 Technical data 7

2. Safety indications

2.1 General safety indications Safety of electrical appliances for home use
2.2 Specific safety indications Special requirements for room heating appliances

2.3 Additional safety indications Page 11
2.4 Information about batteries 12

3. Before commissioning (Tower fan heater without remote control)...... Page 14

3.1 Setting up the appliance Page 14

4. Commissioning (Tower fan heater without remote control) Page 14

4.1 Standby mode
4.2 Fan mode
4.3 Heating level setting (heating mode) Page 14
4.4 Switching the appliance off 14
4.5 Oscillation function 15
4.6 Temperature setting 15
4.7 Timer setting

5. Before commissioning the tower fan heater with remote control ....... Page 15

5.1 Remote control: Inserting/changing the battery Page 15

1. Commissioning (Tower fan heater with remote control) Page 16

6.1 Standby mode 16
6.2 Fan mode 16
6.3 Heating level setting (heating mode) Page 16
6.4 Switching the appliance off 16
6.5 Oscillation function 16
6.6 Temperature setting 17
6.7 Timer setting

1. Protective devices for the appliance

7.1 Overheating protection Page 17
7.2 Tip-over protection 17

1. Maintenance, cleaning and storage
2. Disposal
3. EU conformity
4. Guarantee from ROWI Germany GmbH
5. Service

TOWER FAN HEATER STHL 2000 A1

1. Introduction

Congratulations on purchasing your new appliance. You have decided in favour of a high-quality product. The operating instructions are part of this product. They contain important information regarding the safety, use and disposal. Familiarise yourself with all the operating and safety indications prior to using the product. Only use the product as described and for the specified areas of use. If you pass the product on to third parties, hand out all the documents too.

1.1 Intended use

This product is only suitable for well-insulated rooms or occasional use. The appliance is not intended for use in rooms in which special conditions prevail, e.g. a corrosive or explosive atmosphere (dust or gas). Do not use this appliance outdoors. Every further use or change to the appliance is viewed as not in accordance with its intended use and involves considerable accident risks. We assume no liability for damages arising from improper use. The heater blower is only determined for use as supplementary heating and exclusively for private use.

1.2 Scope of delivery

1 Tower fan heater STHL 2000 A1
1 Remote control (including coin cell)
1 Set of operating instructions

1.3 Features

Tower fan heater

1 Display
2 Temperature key
3 Timer key
4 Oscillation key
5 On/off key
6 On and off switch

Remote control

7 On/off key
8 Temperature key
9 Plus key
[10] Minus key
11 Timer key
12 Oscillation key
13 Heating level key
14 Battery compartment
[15] Lock
16 Coin cell (battery)

1.4 Technical data

Tower fan heater STHL 2000 A1

Input voltage: 220-240 V \~ (alternating current)

Mains frequency: 50-60 Hz

Rated power: 2000 W

Heating level 1: 1200 W

Heating level 2: 2000 W

Protection rating: II

Temperature selection range: 15^ - 40^

Timer: 24 hours

Mains cable length: 1.8m

Remote control (only for use with Tower fan heater STHL 2000 A1)

Battery supply: 3 V (direct current)

CR2025

Lithium : Lithium battery

Information requirements for electric local space heaters

Model identifier(s):STHL2000A1

Item Symbol Value Unit

Heat output

Nominal heat output P	nom	2.0 kW
Minimum heat output (indicative)	Pmin	1.2 kW
Maximum continuous heat output	Pmax,c	2.0 kW

Auxiliary electricity consumption

At nominal heat output el max	0.000 kW
At minimum heat output el min	0.000 kW
In standby mode el SB	0.000 kW

Item Unit

Type of heat input, for electric storage local space heaters only (select one)

manual heat charge control, with integrated thermostat [no]

manual heat charge control with room and/ or outdoor temperature feedback [no]

electronic heat charge control with room and/or outdoor temperature feedback [no]

fan assisted heat output [no]

Type of heat output/room temperature control (select one)

single stage heat output and no room temperature control [no]

Two or more manual stages, no room temperature control [no]

with mechanical thermostat room temperature control [no]

with electronic room temperature control [yes]

electronic room temperature control plus day timer [no]

electronic room temperature control plus week timer [no]

Other control options (multiple selections possible)

room temperature control, with presence detection [no]

room temperature control, with open window detection [no]

with distance control option [no]

with adaptive start control [no]

with working time limitation [yes]

with black bulb sensor [no]

ROWI Germany GmbH
Werner-von-Siemens-Str. 27
76694 Forst
GERMANY

2. Safety indications

Read all the safety indications and instructions.

Failure to adhere to the safety indications and instructions may cause serious injuries and/or property damages.

Please keep all the safety indications and instructions for future use.

2.1 General safety indications

Safety of electrical appliances for home use

• This appliance can be used by children of 8 years and more as well as by persons with reduced physical, sensory or mental abilities or lacking experience and knowledge, if they are supervised or are instructed in the safe use of the appliance and understand the ensuing dangers. Children may not play with the appliance. The cleaning and maintenance of the appliance by the user may not be carried out by children not under supervision.
• No measures need be taken by the user to set the product to 50 or 60Hz or 220 or 240V . The product adjusts automatically to the correct frequency or voltage.
  If the supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer service or a similarly qualified person in order to avoid any dangers.

2.2 Specific safety indications

Special requirements for room heating appliances

WARNING! Do not cover!

To avoid the heater overheating, it must not be covered.

The heater may not be placed directly beneath a wall mains socket.
- Do not use this heater in the direct vicinity of a bathtub, a shower or a swimming pool.
- Do not commission an appliance which has been dropped.
- Do not use if visible signs of damages can be seen on the heater.
The heater must be placed on a firm, flat and level base.
WARNING! The heater may not be used in small rooms where people live who are not able to leave the room independently unless constant monitoring is guaranteed.
WARNING! Fire danger! To reduce the danger of fire, keep textiles, curtains and other combustible materials at least 1 m away from the air outlet.
Children of less than 3 must be kept away unless they are constantly monitored.
- Children between 3 and 8 may only switch the appliance on and off if they are under supervision or have been instructed in the safe use of the appliance and have understood the resulting dangers, with the prerequisite that the appliance is placed or installed in its normal operating position. Children between 3 and 8 may not plug the plug into the mains socket, control the appliance, clean it and/or not carry out user maintenance.

Warning against hot surfaces!

ATTENTION: Some parts of the product may become extremely hot and cause burns. Special care is required if children and vulnerable persons are present.

2.3 Additional safety indications

The appliance is only suitable for indoor operation.

Danger to life due to electrical current!

Danger to life in case of contact with live cables or components!

• Before connecting the appliance, compare the connection data on the name plate (voltage and frequency) with the data from your electricity grid. Ensure that the data tallies so that no damages to the appliance are incurred.
• Never open the appliance's casing. If live connections are touched and/or the electrical and mechanical setup changed, the risk of electric shock exists!
• Ensure that the supply cable is not laid over hot surfaces and/or sharp edges.
  Pay attention that the supply cable is neither bent nor jammed.
• Only have the appliance repaired by authorised specialist companies or customer service. Inappropriate repairs may result in considerable danger for the user. Moreover, the guarantee rights become null and void.
• Protect the appliance against damp and the penetration of liquids. The appliance must not be sprayed.
• Only remove the supply cable from the mains socket from the mains plug.
• Do not operate the appliance in the vicinity of open flames.

• Only operate the appliance with a fully unrolled supply cable.

• Never wind the supply cable around the appliance. Ensure that the supply cable does not come into contact with hot surfaces.

• Lay the supply cable so that it is not possible to stumble over it.

2.4 Information about batteries

Keep out of the reach of children.

If swallowed, they may cause injuries and lead to the perforation of soft tissue and ensuing death. Severe burns may be incurred within 2 hours of intake. Consult a physician immediately.

Incorrect handling of batteries may cause fire, explosions, the leakage of hazardous substances or further hazardous situations!
- Do not fling the batteries into a fire and do not subject them to high temperatures.
- Neither open, deform nor short-circuit batteries as this may cause the chemicals they contain to escape.
- Do not try to recharge batteries. Only batteries marked as "rechargeable" may be recharged. There is danger of explosion!
- Always remove rechargeable batteries from the appliance for recharging.
- Test the batteries regularly. Chemicals which leak may cause long-term damages to the appliance. Be particularly careful when handling damaged or leaking batteries.
- Danger of chemical burn! Wear protective gloves.
Chemicals which leak from a battery may cause skin irritations.
In case of skin contact, rinse with ample water. If the chemicals have come into contact with the eyes, always rinse them with water, do not rub them and consult a physician immediately.
- Neither use different battery nor rechargeable battery types nor mix old and new batteries.
- Always insert batteries with the correct polarity, because otherwise the danger of bursting exists.

• Remove the batteries from the appliance if you do not wish to use it for a longer period or wish to store it.
• Insert the batteries using the correct polarity.
• Do not allow children to replace the batteries without adult supervision.
  Always select the correct size and battery type for the intended use. The information provided with the appliance for supporting the correct battery selection should be kept as a reference.
• Clean the battery contacts and also the equipment's contacts before installing the battery.
• Remove used batteries without delay and dispose of them in an environmentally responsible manner.
• Do not dismantle batteries.
  If the battery compartment cover doesn't close properly, do not use the remote control any longer and keep it out of the reach of children.
• Avoid extreme conditions and temperatures which can influence batteries / rechargeable batteries, e.g. placing them on radiators / direct insolation.

3. Before commissioning (Tower fan heater without remote control)

• Remove all packaging material and transport safety devices from the appliance. Check whether the packing contents are complete and undamaged.

3.1 Setting up the appliance

For safe, fault-free operation of the appliance, its location must meet the following prerequisites:
The base must be firm, flat and level.
Minimum clearance from the casing of 90~cm at the side, 90~cm at the top, 90~cm at the back and 1m at the front must be adhered to.
- Do not place the appliance in a hot, wet or very wet surroundings or in the vicinity of combustible material.
The mains socket must be easily accessible, enabling easy removal of the supply cable if necessary.
Temperature range: 0 to +40 °C
Humidity (no condensation): 5-75%

4. Commissioning (Tower fan heater without remote control)

Note:For initial use or if not used for a longer period, slight odours may arise in the short-term.

4.1 Standby mode

• Connect the Tower heater blower to an earthed, secured wall mains socket. To supply the appliance with electricity, put the on/off switch 6 to position "1". The appliance is then in standby mode and the display 1 shows the room temperature.

4.2 Fan mode

Press the on/off key 5 once in standby mode. The appliance is then in fan mode.

4.3 Heating level setting (heating mode)

Press the on/off key 5 once in fan mode. The appliance is then in heating level 1. The tower heater blower has a heat output of 1200W . The on/off key 5 is lit in blue.
Press the on/off key 5 again to change the appliance to heating level 2. The tower heater blower has a heat output of 2000 W. The on/off key 5 is lit in red.

4.4 Switching the appliance off

If the appliance is in heating level 2, press the on/off key. The fan runs for a further 60 seconds before going off (a countdown is shown on the display). The appliance returns to standby mode. The display shows the room temperature.

Press 1x: Fan mode

Press 2x: Heating level 1 (1200 W)

Press 3x: Heating level 2 (2000 W)

Press 4x: Switch off (standby)

To disconnect the tower heater blower from the electricity, put the on/off switch 6 to position "O".

4.5 Oscillation function

To switch the oscillation of the appliance on or off, press the oscillation key 4.

If successfully activated, the oscillation key icon 4 is lit.
The oscillation function has the effect that the air blown off is distributed from the left to the right.

4.6 Temperature setting

Press the on/off key 5 once in standby mode twice or three times.

Press the temperature key 2 to enter temperature setting mode.
Press the temperature key 2 repeatedly to reach the temperature you desire (between 15 and 40^
After setting the desired temperature, wait 3 seconds. The specification is assumed automatically.
If the temperature has been successfully set, the temperature key icon 2 is lit.
The integrated thermostat now automatically switches the heating function on/off.

ATTENTION! When setting the temperature, it must be observed that the appliance does not heat if the desired temperature is lower than room temperature or equivalent to it. To heat, the temperature set must be at least 1^ higher than room temperature. This is displayed automatically when you switch the remote controller on.

4.7 Timer setting

The timer is used to switch the tower heater blower off automatically. A switching off time can be selected in hour steps with the timer. The tower heater blower then switches off automatically.

In fan or heating mode, press the timer key 3 repeatedly until you reach the desired number of hours.

Repeated pressing of the timer key 3 sets the timer to an hourly step:

$$ \begin{array}{l} 0 0 - 0 1 - 0 2 - 0 3 - 0 4 - 0 5 - 0 6 - 0 7 - 0 8 \ - 0 9 - 1 0 - 1 1 - 1 2 - 1 3 - 1 4 - 1 5 - 1 6 - 1 7 - \ 1 8 - 1 9 - 2 0 - 2 1 - 2 2 - 2 3 - 2 4 \end{array} $$

If timer setting has been successful, the timer key icon 3 is lit.

Example: Press the timer key 3 until "0" can be seen on the display, if the appliance should automatically switch off after 4 hours. Wait for 3 seconds. The specification is assumed automatically. The appliance will be switched off automatically in 4 hours.

If you wish to ensure that the timer specification has been accepted, press the timer key 3 once. "04" or your specification is shown on the display.

NOTE: If you set the on/off switch 6 to "O" position or if the tower heater blower is disconnected from the electricity supply, the timer and temperature you have programmed are deleted.

5. Before commissioning tower fan heater with remote control

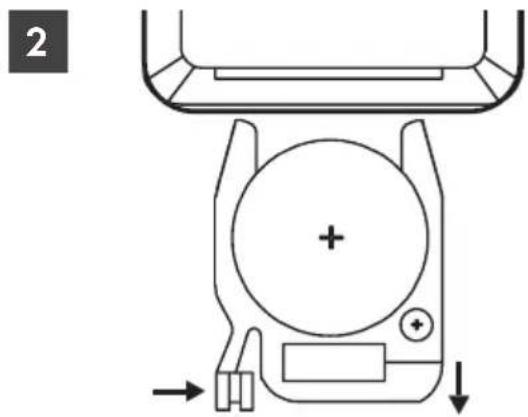

5.1 Remote control: Inserting/changing the battery

When supplied, a lithium coin cell 16 is included with the remote control. In order to enable operation of the remote control, remove the plastic tape which protrudes out of the battery compartment 14 (see Image 1).

If the battery in the remote control has to be replaced, insert a new 3 volt lithium coin cell. Pay attention to the lithium coin cell type (CR2025) here.

Press the lock 15 on the remote controller battery compartment 14 to the centre. Then, pull the battery compartment 14 out (see Image 2).

Remove the used battery 16
Insert a new type CR2025 3 volt lithium coin cell using the correct polarity.
- Slide the battery compartment 14 back into the remote controller until the lock 15 clicks into position.

6. Commissioning (Tower fan heater with remote control)

6.1 Standby mode

Connect the Tower heater blower to an earthed, secured wall mains socket. To supply the appliance with electricity, put the on/off switch 6 to position "I". The appliance is then in standby mode and the display 1 shows the room temperature.

6.2 Fan mode

Press the on/off key once in standby mode. The appliance is then in fan mode.

6.3 Heating level setting (heating mode)

Press the heating level key 13 once in fan mode. The appliance is then in heating level 1. The tower heater blower has a heat output of 1200 W. The on/off key 5 is lit in blue.

Press the heating level key to change the appliance to heating level 2. The tower heater blower has a heat output of 2000 W. The on/off key is lit in red.

6.4 Switching the appliance off

Press the on/off key once to switch the appliance off. The fan runs for a further 60 seconds before going off (a countdown is shown on the display). The appliance returns to standby mode. The display shows the room temperature.
To disconnect the towerheater blower from the electricity, put the on/off switch 6 to position "O".

6.5 Oscillation function

To switch the oscillation of the appliance on or off, press the oscillation key 12.

If successfully activated, the oscillation key icon 4 is lit.
The oscillation function has the effect that the air blown off is distributed from the left to the right.

6.6 Temperature setting

Press the temperature key to enter temperature setting mode.
Press the plus key repeatedly to increase the temperature you desire. Press the minus key repeatedly to reduce the temperature you desire. You can select a temperature between 15 and 40^

After setting the desired temperature, wait 3 seconds. The specification is assumed automatically.
If the temperature has been successfully set, the temperature key icon 2 is lit.
The integrated thermostat now automatically switches the heating function on/off.

ATTENTION! When setting the temperature, it must be observed that the appliance does not heat if the desired temperature is lower than room temperature or equivalent to it. To heat, the temperature set must be at least 1^ higher than room temperature. This is displayed automatically when you switch the remote controller on.

6.7 Timer setting

The timer is used to switch the tower heater blower off automatically. A switching off time can be selected in hour steps with the timer. The tower heater blower then switches off automatically.

In fan or heating mode, press the timer key [1] to set the timer.

ss the plus key repeatedly or the minus to set the switching off time you desire

After setting the switching off time, wait 3 seconds. The specification is assumed automatically.

The timer can be set to an hourly step:

$$ \begin{array}{l} 0 0 - 0 1 - 0 2 - 0 3 - 0 4 - 0 5 - 0 6 - 0 7 - 0 8 \ - 0 9 - 1 0 - 1 1 - 1 2 - 1 3 - 1 4 - 1 5 - 1 6 - 1 7 - \ 1 8 - 1 9 - 2 0 - 2 1 - 2 2 - 2 3 - 2 4 \end{array} $$

If timer setting has been successful, the timer key icon 3 is lit.

If you wish to ensure that the timer specification has been accepted, press the timer key 11 once. Your specification is shown on the display.

NOTE: If you set the on/off switch 6 to "O" position or if the tower heater blower is disconnected from the electricity supply, the timer and temperature you have programmed are deleted.

7. Protective devices for the appliance

7.1 Overheating protection

This appliance is equipped with overheating protection. If the appliance becomes too hot, the heating element is automatically switched off. To switch the appliance off, set the on/off switch 6 to "O" and unplug the mains plug from the mains socket. Let the appliance cool down for at least 10 minutes.

ATTENTION! There's normally a reason for overheating! It can mean fire danger! Check whether the appliance can give off its heat sufficiently: Is the appliance covered or is it too close to an obstacle? If possible, rectify the problem. Even if you cannot find a cause, but overheating protection is triggered again, you must switch the appliance off and revert to the service hotline (see chapter "Service").

7.2 Tip-over protection

This appliance is equipped with overturning protection. If the appliance is accidentally knocked over or subjected to significant inclination during operation, it is automatically switched off. The appliance works exclusively in an upright position.

8. Maintenance, cleaning and storage

Always unplug the mains cable when the appliance is not in use, prior to each cleaning or in case of operational faults!
Only clean the appliance when switched off and cold.
- Ensure when cleaning that no moisture ingresses into the appliance in order to avoid irreparable damages to the appliance.
Clean the casing with a slightly damp cloth and a mild flushing fluid. Do not use aggressive and/or abrasive cleaning agents under any circumstances whatsoever.
- Remove dust deposits on the protective mesh and on the ventilation louvres with a vacuum cleaner.

9. Disposal

The packaging consists of environmentally friendly materials which you can dispose of via local recycling points.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

This product is subject to the European Directive 2012/19/EU. Do not dispose of the product with domestic waste, but via local collecting points for material recycling! You can ask your municipal administration or city administration regarding the options for disposing of the used appliance.

Batteries must be recycled in accordance with Directive 2006/66/EC and may not be disposed of with domestic waste. Each consumer is legally obliged to return all batteries/rechargeable batteries to a collection point in his municipality/district or to the trade. This duty serves to

ensure that batteries/rechargeable batteries can be directed to environmentally friendly disposal. Only return batteries/rechargeable batteries which are not charged Batteries must be removed from the appliance prior to disposal.

Observe the markings on the packaging materials when separating the waste, they are marked with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.

10. EU conformity

The tower heater blower meets the requirements of the valid European and national regulations.

11. Guarantee from ROWI Germany GmbH

Dear customer, we grant you 3 years' guarantee from the date of purchase for this appliance. In case of any faults with this product, you are entitled to make use of your legal rights vis-à-vis the seller of the product. These legislative rights are not restricted by our guarantee defined below.

Guarantee conditions

The period of guarantee begins with the date of purchase. Please keep the original receipt in a safe place. It is required as proof of purchase.

If a material or manufacturing fault occurs within three years of the purchase date of this product, we will - at our discretion - either repair it free of charge, replace it or reimburse you the purchase price. This guarantee assumes that the faulty appliance and the proof of purchase (receipt) are presented within the three-year-period and a brief written description is provided as to the fault which exists and when it occurs.

If the fault is covered by our guarantee, you will receive the repaired product or a new product back. No new guarantee period begins with the repair or replacement of the product.

Guarantee period and statutory claims for defects

The guarantee period is not extended by the warranty. This also applies to replaced and repaired parts. Any damages and faults which exist when purchased must be notified without delay after unpacking. Repairs required after the period of guarantee are subject to payment.

Scope of the guarantee

The appliance was produced with due care in accordance with strict quality guidelines and diligently examined prior to delivery.

The guarantee service is applicable for material or manufacturing errors. This guarantee neither extends to product parts subject to normal wear and tear which can therefore be viewed as wear and tear parts nor to damages to fragile parts, e.g. switches, rechargeable batteries or parts consisting of glass.

This guarantee becomes null and void if the product has been damaged, not used or serviced correctly. For correct use of the product, all the instructions listed in the operating instructions must be adhered to precisely. Designated use and actions against which the operating instructions warn or against which warnings are given must absolutely be avoided.

The product is only intended for private and not for commercial use. In case of abusive and incorrect treatment, use of force and in case of intervention which has not been made by our authorised service subsidiary, the guarantee becomes null and void.

Processing in guarantee cases

In order to ensure fast processing of your concern, please observe the following information:

Please keep the receipt and article number (IAN 367685_2101) on hand as a proof of purchase for all inquiries.

You can find the article number on the name plate on the product, the front page of your instructions (on the bottom left-hand side) or on the sticker on the reverse or underneath the product.
Should you incur functional or other faults, please first contact the service department named below by phone or via E-mail.
You can then send a product recorded as being faulty together with the proof of purchase (receipt) and the information as to what fault exists post-paid to the service address we provide you with.

You can download this and several further manuals, product videos and installation software from www.lidl-service.com You can access the Lidl service page (www.lidl-service.com) directly with this QR code and open your operating instructions by entering the article number (IAN 367685_2101).

12. Service

Should you incur any problems when operating your ROWI Germany product, please do the following:

Making contact

You can reach the ROWI Germany service team under:

ROWI Germany GmbH
Werner-von-Siemens-Str. 27
D-76694 Forst
GERMANY
[e-mail]
Service hotline: [phone] (free from landlines)

IAN367685_2101

Most problems can already be resolved by competent, technical advice from our service team.

1. Einleitung . 23

option controle a distance [non]

7.1 Protection anti-surchauffe

WAARSCHUWING! Niet afdekken!

4.7 Indstilling at timer

6.7 Indstilling at timer

ID No.:STHL2000A1-072021-LB08-04
