USER MANUAL PHSA 12 B1 PARKSIDE

Cordless Hedge Trimmer

Translation of the original instructions

NL BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

General Description. 21

Scopeofdelivery 21

Function Description 21

Overview 21

Technical Data. 21

Chargingtime 22

Notes on Safety 23

Symbols 23

General safety instructions for

power tools 23

Special Safety Directions for

the device 26

Operating 27

Switching On and Off 28

Checking the battery charge level .... 28

Working with the Hedge Trimmer.....28

Cutting Techniques 28

Cleaning and Maintenance. 29

Cleaning 29

Maintenance 29

Storage. 30

Wallbracket 30

Waste Disposal and Environmental

Protection 30

Spare Parts/Accessories 31

Guarantee 32

Repair Service. 33

Service-Center.33

Importer 33

Trouble Shooting 34

Translation of the original EC

declaration of conformity 194

Exploded Drawing 205

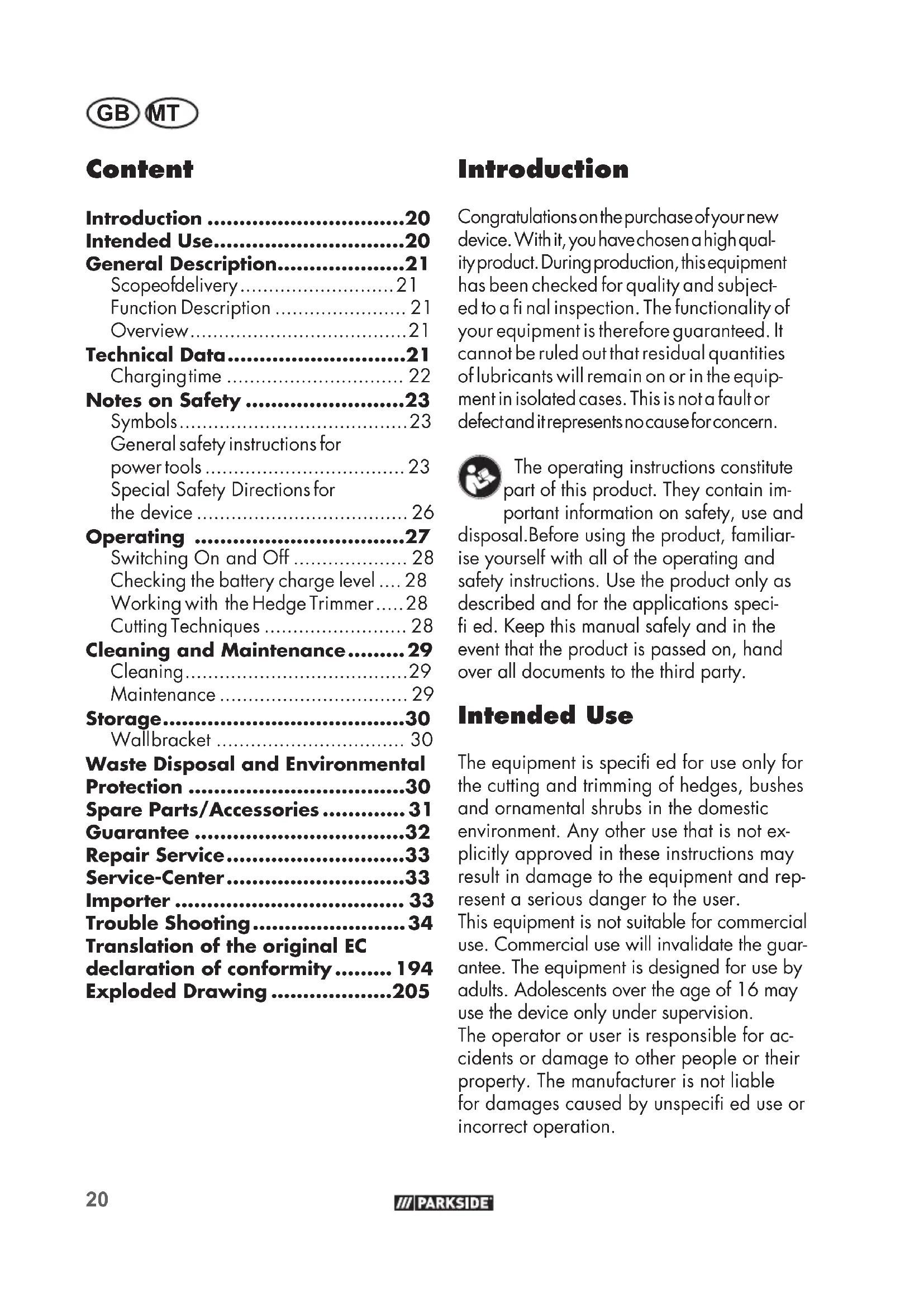

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.Before using the product, familiarise yourself with all of the operating and safety instructions.Use the product only as described and for the applications specifi ed.Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The equipment is specified for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision.

The operator or user is responsible for accidents or damage to other people or their property. The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the machine. Damages caused by cutting with blunt blades are not covered by the guarantee.

The device is part of the Parkside X 12 V TEAM series and can be operated using Parkside X 12 V TEAM series batteries. The batteries may only be charged using chargers from the Parkside X 12 V TEAM series.

General Description

See the front fold-out page for illustrations.

Scope of delivery

Carefully unpack the trimmer and check that it is complete. Dispose of the packaging material correctly.

• Cordless hedge trimmer
• Blade guard
• Instruction Manual

The rechargeable battery and charger are not included in delivery.

Function Description

The cordless hedge trimmer features a high-quality knife made from special laser-cut steel. When trimming, the cutting teeth move to and fro in a linear shearing motion. The strike guard at the tip of the knife prevents unpleasant kickback reactions when hitting walls, fences, etc.

Operators are protected by the appliance's two-hand safety switch and quick-stop

brake function. The hand protection guards your hands against twigs and branches. Read the sections below to learn more about each operating element's function.

Overview

1 Safety knife bar

2 Hand protection
3 Safety switch
4 Front handle
5 Ventilation slots
6 Battery charge indicator
7 Rear handle
8 On/Off switch
9 Battery
10 Blade guard

11 Suspension system

Technical Data

Cordless

Hedge Trimmer.........PHSA 12 B1

Motor voltage U. 12V

Idling speed _o 1200 rpm

Runtime (2Ah battery) max. 30 min*

Cutting length 350 mm

Length of knife appr. 410 mm

Max. cutting capacity 15 mm

Weight (with blade guard, without battery charger) 1.71 kg

Sound pressure level

(L_pA) 74.3 dB(A), K_pA = 3 dB

Sound power level (L_WA)

guaranteed 90 dB(A)

measured..... 86.6 dB(A); K_WA = 3.3 dB

Vibration (q_b)

Rear handle.....3.635 m/s², K=1.5 m/s²

Front handle....4.426 m/s², K=1.5 m/s²

• The effective service life of a fully charged battery (2 Ah) when idle.

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

vibration emission value may differ during actual use of the

power tool from the stated value We recommend that you operate this ap- depending on the manner in whichpliance with the following batteries only: the power tool is used. PAPK 12 A1, PAPK 12 A2, PAPK 12 B1.

Try to keep the exposure to vibrations as low as possible. Examples with the following chargers: PLGK 12 A1, of measures to reduce vibration PLGK 12 A2.

exposure are the wearing of gloves

when using the tool and limiting then up-to-date list of battery compatibility working hours. For this purpose all can be found at: www.lidl.de/akku parts of the operating cycle have to

be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

Charging time

The device is part of the Parkside X 12 V TEAM series and can be operated with batteries of the Parkside X 12 V TEAM series.

Batteries of the Parkside X 12 V TEAM series may only be charged using chargers of the Parkside X 12 V TEAM series.

Charging time (min)	PAPK 12 A1 PAPK 12 A3	PAPK 12 A2	PAPK 12 B1 PAPK 12 B2 PAPK 12 B3	PAPK 12 D1
PLGK 12 A1 60	0 60 120 150
PLGK 12 A2 60	0 60 120 150
PLGK 12 B2 30	0 45 60 80
PDSLG 12 A1	60 45 60 80

Notes on Safety

This section details the basic safety instructions for working with the appliance.

Symbols

Symbols on the Equipment

The device is part of the Parkside X 12 V TEAM series

Caution!

Read through the instruction manual carefully.

Wear goggles.

Wear ear protection.

Wear safety gloves. Cutting hazard.

Caution! Risk of injury from moving blades.

Do not use the hedge trimmer in the rain or on wet hedges.

Remove the battery prior to servicing the appliance.

Information of the acoustic power level L_WA in dB.

Electrical appliances must not be disposed of with the domestic waste.

Graphical symbol on the packaging

Recycling symbol: Corrugated cardboard

Dispose of products and packaging in an environmentally friendly manner

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols with information on preventing damage.

Help symbols with information on improving tool handling.

Wear safety shoes.

Wear eye and ear protection.

General safety instructions for power tools

WARNING! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operation of the power tool in a damp environment is un

voidable, please use a residual current circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and

clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement

parts. This will ensure that the safety of the power tool is maintained.

Special Safety Directions for the device

1) SPECIAL SAFETY DIRECTIONS FOR HEDGE TRIMMERS

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the blade guard. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

• Hold the power tool only on the insulated handle surfaces, as the cutting blade may come into contact with concealed power cables. Contact between the cutting blade and a live cable may render metallic components live and result in an electric shock.

• Before the work, search the hedge for concealed objects, e.g. cable etc. In this way you avoid damage to the appliance

• Hold the hedge trimmer correctly, e.g. with both hands on the handles, if there are two handles. Loss of control of the equipment may result in injuries.

• Wear suitable clothing and

work clothes when working with the equipment. Do not hold the equipment by the cutting blade or lift it on the cutting blade. Contact with the cutting blade can cause injuries.

• Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

2) FURTHER SAFETY DIRECTIONS

For your personal safety: Wear suitable work clothes such as boots with non-slip soles, sturdy long trousers, gloves and goggles.

Do not wear long fl owing clothing or jewellery, as this may be caught by moving parts. Do not use this tool while walking barefooted or while wearing open sandals.

The appliance is designed for trimming hedges. Do not use to cut twigs, hard wood or other objects. This could damage the appliance.

• Do not attempt to release a blocked/jammed blade safety bar before turning off the power and removing the battery. There is a risk of injury.

• When operating the appliance, always hold it well with both hands and at some distance away from your body. This enables better control of the power tool in unexpected situations.

• Do not use the tool in the vicinity of flammable liquids or gasses. Fire- and explosion risk exist in the event of a short circuit.

The blades have to be checked for wear in regular intervals

and re-sharpened. Blunt blades will overload the machine. Resulting damages are not covered by warranty.

• Do not attempt to repair the tool yourself, unless you are schooled in this fi eld. All works, which are not described in this manual, may only be performed by our Service-Centre. Many accidents are caused by poorly maintained equipment.

3) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

• Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

• Do not use non-rechargeable batteries. This could damage the appliance.

4) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic fi eld which, under certain circumstances, may impair the functionality of active or passive medical

implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 12 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Operating

Wear suitable clothing and work gloves when working with the equipment. Wear eye and ear protection. Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment. Reduce the risk of injuries and accidents by wearing personal protection equipment and ensuring that the unit is fully functional.

Note noise protection and local specifications.

B

Switching On and Off

Ensure that you are standing in a firm position with both hands gripping the hedge trimmer away from the body. Ensure that the trimmer is in contact with no other objects before switching on.

Removing the blade guard:

1. Pull the blade guard (10) off the safety cutter bar (1).

Turning on:

1. Check that the battery (9) is in (Observe the separate operating instructions for the rechargeable battery and charger).
2. Press the safety switch (3) at the front handle (4).
3. Press the On/Off switch (8). The hedge trimmer will run at top speed.

Turning off:

1. Release the safety switch (3) or the On/Off switch s (8).

Checking the battery charge level

The battery charge indicator (A6) signalises the state of charge of the battery (A9) while the device is operating.

3 LEDs are on (red-yellow-green):

Battery charged

2 LEDs are on (red-yellow):

Battery partially charged

1 LED is on (red):

Battery needs to be charged

Only charge the battery (9) when the red LED on the charge level indicator is on.

Working with the Hedge Trimmer

During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.

• If the blades become jammed with solid objects, turn the device off immediately and remove the rechargeable battery. Only then should you remove the object.
• Avoid overstraining the equipment during work.

Cutting Techniques

• Cut thick branches beforehand using a branch clippers.
• The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.
  In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.
  In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
  In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.

Cutting Shaped Hedges:

It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natu

ral plant growth and allows the hedge to

thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

• Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
  Cut the top edge, according to taste, in a fl at shape, roof shape or rounded shape
• Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.

Care of Free-Growing Hedges:

Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.

Cleaning and Maintenance

Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.

Turn off the appliance and, before doing any servicing, remove the battery.

Wear gloves when handling the safety knife bar. This will protect you against cuts.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

• Keep clean the ventilation slots ( A 5), motor housing and handles of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.
  Always keep the equipment clean. After using the equipment, it is imperative to:

• Clean the blade (with an oily cloth);

• Oil the blade shaft with an oil can or spray.

Maintenance

• Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts. Check that the screws in the safety knife bar (A 1) are tight.
• Check covers and safety devices (see A) for damages and correct installation. Replace as necessary.
• You can smoothen minor nudges in the cutting teeth yourself using a knife grinder to sharpen the cutting edges. The trimmer will only cut well if the teeth are sharp.
• Blunt, bent or damaged knife bars to be replaced.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

Storage

• Keep the device in the blade guard (A 10) supplied, dry and out of reach of children.

Wall bracket

You can hang the device up vertically on the suspension system (11). Only hang the device up when the blade guard is on.

Note that when hanging the device, oil may drip from the safety cutter bar.

1. Using a dowel, place one screw at the desired position on a wall. The screw head can have a diameter of 8 - 10 mm.

2 Leave the screw head protruding at a distance of approx. 10mm from the wall.

3 Place the device with the round opening on the suspension system (11) on the screw. This hangs it on the suspension system.

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock.

Waste Disposal and Environmental Protection

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Electric units do not belong with domestic waste.

Defective units returned to us will be disposed of for free.

• Throw the cut grass on the compost. Do not throw it in the normal household waste.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see "Service-Center" Page 33).

Position Position Description Order No.
instruction exploded
manual drawing

A 14-6,44,20 Safety knife bar 13700710

A 237,43 Hand protection 91105338

A 1042 Blade guard 91105337

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. knives, gear wheel) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identifi cation number (IAN 385639_2107) ready as proof of purchase for all enquiries.

• Please find the item number on the rating plate.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specific caution of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs,

please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£0.10/Min.)

E-Mail: [e-mail]

IAN 385639_2107

Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 385639_2107

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Problem Possible cause Corrective action
Appliance won't start	Battery (9) discharged	Recharge battery (see „Charger and rechargeable battery operating instructions“)
	Battery (9) not inserted	Insert battery (see „Charger and rechargeable battery operating instructions“)
	Safety switch (3) not pressed properly	Turn on (see "Operation")
	On/Off switch (8) defective Send	in to Service Centre for repair
Intermittent operation	Internal loose contact	Send in to Service Centre for repair
	On/Off switch (8) defective
Knife bar becomes hot	Knife bar (1) is blunt	Have the Knife bar sharpened or replaced (Service Centre)
	Knife bar (1) is notched	Have the Knife bar checked or replaced (Service Centre)
	Too much friction due to lack of lubrication	Oil the knife bar (1)
Bad trim	Too much friction due to missing lubrication	Lubricate knife bar (1)
	Knife bar (1) dirty Clean knife bar
	Knife bar (1) blunt	Grind or have knife bar replaced (Service Centre)
	Bad cutting technique See ("Working with the hedge trimmer")
	Battery (9) not fully charged	Charge battery (see "Charging")

Sommaire

Introduction 35

Technique parametry. 86

Doba nabijeni 87

Enmadeat reducere vibrationsbe

AsideroTRSero 3,635 m/s2

Asidero delantero 4,426 m/s²

$$ K = 1, 5 \mathrm {m} / \mathrm {s} ^ {2} $$

Asegúrese antes de cada uso de la aparato está en conditiones de funciona. El commutador de activación/ desactivación y el commutador de seguridad noSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEQ SEOEO SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ

Pooblasceni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

Translation of the original EC declaration of conformity
We hereby confi rm that the Cordless Hedge Trimmer model PHSA 12 B1 Serial number 000001 - 202000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1:2009/A11:2010 • EN 60745-2-15:2009/A1:2010 EN 55014-1:2017/A11:2020 • EN 55014-2:2015 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 EN IEC 63000:2018
We confi rm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: guaranteed: 90 dB(A) measured: 86,6 dB(A) Compliance evaluation process carried out in accordance with Appendix V / 2000/14/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großbostheim, GERMANY 30.12.2021	Christian Frank Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
