Product Type	Cordless Hedge Trimmer
Brand	Parkside
Model	PHSA 20Li A1
Motor Voltage	20 V (DC)
No-load Speed	1 300 min⁻¹ - 2 600 min⁻¹
Cutting Length	Approx. 520 mm
Blade Length	Approx. 540 mm
Tooth Spacing	15 mm (20 mm gap)
Max. Branch Diameter	12 mm
Weight	2.3 kg
Sound Pressure Level (L_PA)	75.1 dB(A) (K=3 dB)
Guaranteed Sound Power Level	90 dB(A)
Vibration (Rear Handle)	1.28 m/s² (K=1.5 m/s²)
Vibration (Front Handle)	1.72 m/s² (K=1.5 m/s²)
Runtime (4 Ah battery)	Max. 45 min
Charging Time (depending on battery)	20 to 210 min
Charging Temperature Range	4 °C to 40 °C
Operating Temperature Range	-20 °C to 50 °C
Storage Temperature Range	0 °C to 45 °C
Safety Devices	Two-hand safety switch, quick stop brake, hand guard, blade guard
Maintenance	Clean blades after each use, regular lubrication, sharpening if necessary
Warranty	3 years

Frequently Asked Questions - PHSA 20Li A1 PARKSIDE

How to install the battery on the hedge trimmer?

Insert the battery (9) along the guide (14) until it clicks into place with a click. To remove, press the release button (13) and pull out the battery.

How to turn the device on and off?

To turn on, first press the safety switch (4) on the front handle, then press the On/Off switch (7). To turn off, release both switches.

What to do if the device does not start?

Check that the battery is charged and properly inserted. Make sure the safety switch is pressed. If the problem persists, contact customer service.

How to adjust the rear handle?

Push the release button (15) backwards, turn the handle (8) to the desired position (-90°, 0° or 90°), then release the button to lock it.

How to clean and lubricate the blades?

After each use, clean the blade with a cloth soaked in oil and lubricate the blade bars with an oil can or spray. Wear gloves during the operation.

How to store the hedge trimmer?

Place the supplied blade guard (11), store the device in a dry place between 0°C and 45°C, out of reach of children. Use the wall mounting device (16) for vertical storage.

Which chargers and batteries are compatible?

The device is part of the Parkside X 20 V Team series. Use batteries PAP 20 A1, A3, B1, B3 and chargers PLG 20 A1, A3, C1, C3, PDSLG 20 A1.

How to get spare parts?

Order original parts from www.grizzlytools.shop. Essential parts are available during the warranty period. For any questions, contact the Service Center.

What are the essential safety precautions?

Always wear gloves, goggles and hearing protection. Hold the device with both hands, keep children away, and do not use it in the rain. Remove the battery before any maintenance.

How to sharpen the blades?

Use an oil stone to sharpen dull teeth. If the blades are bent or damaged, have them replaced by customer service.

USER MANUAL PHSA 20Li A1 PARKSIDE

Cordless Hedge Trimmer 20V

Translation of the original instructions

NL BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

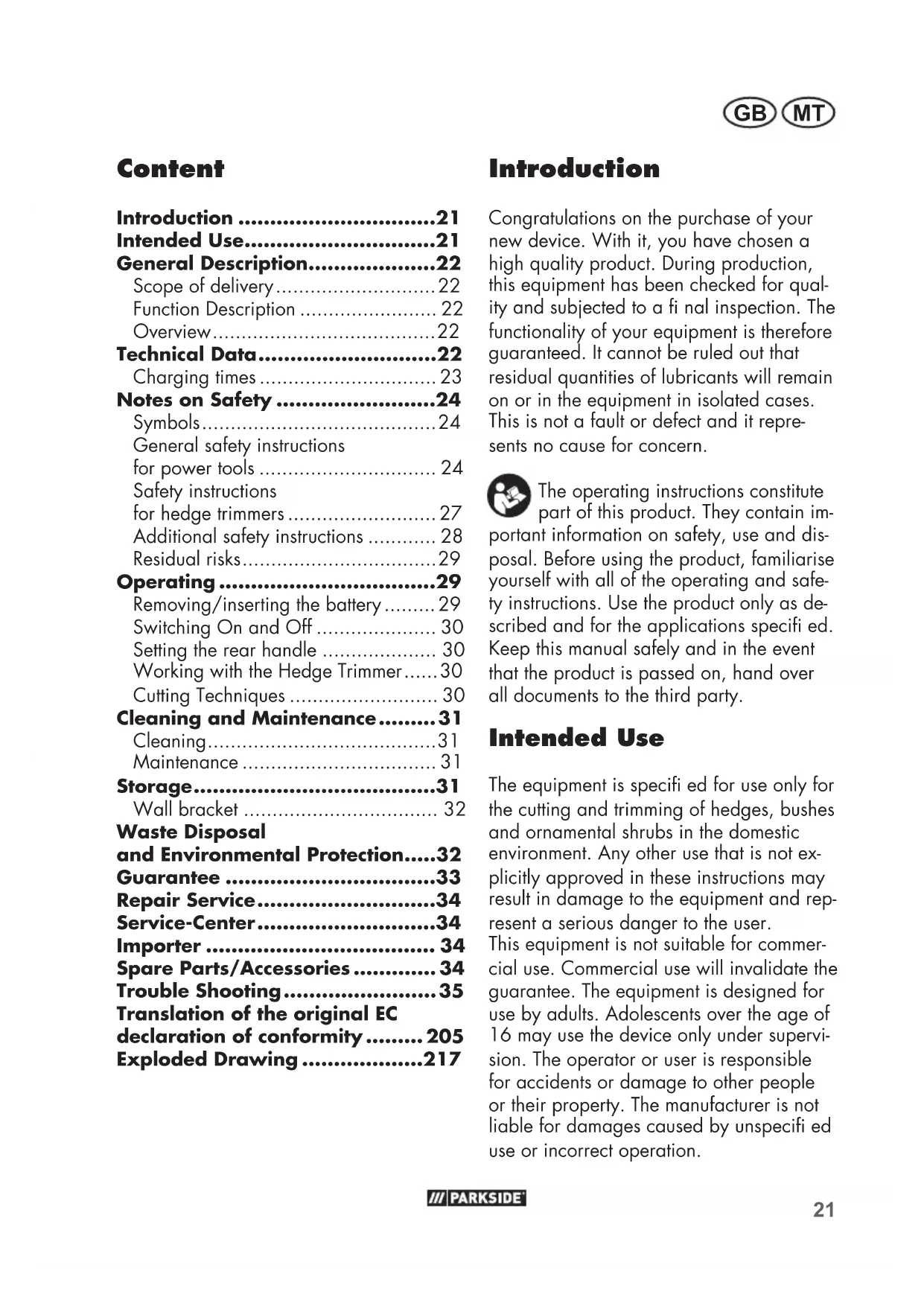

GB / MT Translation of the original instructions Page

General Description. 22

Scope of delivery 22

Function Description 22

Overview. 22

Technical Data. 22

Charging times 23

Notes on Safety 24

Symbols 24

General safety instructions

for power tools 24

Safety instructions

for hedge trimmers 27

Additional safety instructions 28

Residual risks. 29

Operating 29

Removing/inserting the battery. 29

Switching On and Off 30

Setting the rear handle 30

Working with the Hedge Trimmer.....30

Cutting Techniques 30

Cleaning and Maintenance. 31

Cleaning. 31

Maintenance 31

Storage. 31

Wall bracket 32

Waste Disposal

and Environmental Protection.....32

Guarantee 33

Repair Service. 34

Service-Center.34

Importer 34

Spare Parts/Accessories 34

Trouble Shooting 35

Translation of the original EC

declaration of conformity 205

Exploded Drawing 217

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain im- t information on safety, use and dis. Before using the product, familiarise self with all of the operating and safecructions. Use the product only as deed and for the applications specifi ed.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The equipment is specified for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. The operator or user is responsible for accidents or damage to other people or their property. The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

GBMT

The device is part of the Parkside X 20 V Team series. The device must be used with batteries from the Parkside X 20 V Team series.

Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the machine. Damages caused by cutting with blunt blades are not covered by the guarantee.

General Description

See the front fold-out page for illustrations.

Scope of delivery

Carefully unpack the trimmer and check that it is complete. Dispose of the packaging material correctly.

• Cordless hedge trimmer
• Blade guard
• Instruction Manual

The rechargeable battery and charger are not included in delivery.

Function Description

The cordless hedge trimmer features a high-quality knife made from special laser-cut steel. When trimming, the cutting teeth move to and fro in a linear shearing motion. The strike guard at the tip of the knife prevents unpleasant kickback reactions when hitting walls, fences, etc. Operators are protected by the appliance's two-hand safety switch and quick-stop brake function. The hand protection guards your

hands against twigs and branches. Read the sections below to learn more about each operating element's function.

Overview

1 Strike guard

2 Safety knife bar
3 Hand protection
4 Safety switch
5 Front handle
6 Ventilation slots
7 On/Off switch
8 Rear handle

9 Battery

10 Charger

11 Blade guard
12 Suspension

B 13 Battery release buttons

14 Guide track
15 Release button on rear handle

D 16 Suspension device on the underside of the device

Technical Data

Cordless

Hedge Trimmer ....PHSA 20-Li A1

Motor voltage U. 20 V = (DC)

ldling speed n. 1300 rpm

ldling stroke rate. max. 2600 rpm

Runtime (Rechargeable

battery, 4 Ah) max. 45 min*

Cutting length appr. 520 mm

Length of knife appr. 540 mm

Max. cutting capacity appr. 15 mm

Blade tooth spacing. 20 mm

Max. branch diameter/

cutting thickness. 12 mm

Weight 2.3 kg

Sound pressure level

(L_pA) 75.1 dB(A), K_pA = 3 dB

Sound power level (L_WA) guaranteed 90 dB(A) measured .87 dB(A); K_WA = 2.53dB Vibration (q_n) Rear handle.1.28 m/s², K=1.5 m/s² Front handle.1.72 m/s², K=1.5 m/s² Temperature max.50°C Charging process.4-40°C Operation -20-50°C Storage.0-45°C

• The actual runtime under load of a fully charged battery depends on how you work and on the load put on the trimmer during operation.

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another.

The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

Warning: The vibration and noise emissions may deviate from the spe

cifi ed values during actual use of the power tool, depending on how the power tool is being used and, in particular, what kind of material is being worked on.

Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual vibration load under the real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the power tool is turned off, and those during which it is turned on but running without a load).

Charging times

The device is part of the Parkside X 20 V TEAM series and can be operated using Parkside X 20 V TEAM series batteries. Batteries of the Parkside X 20 V TEAM series may only be charged using chargers of the Parkside X 20 V TEAM series.

We recommend that you operate this appliance with the following batteries only: PAP 20 A1, PAP 20 A3, PAP 20 B1, PAP 20 B3.

We recommend charging these batteries with the following chargers: PLG 20 A1,PLG 20 A3,PLG 20 C1, PLG 20 C3,PDSLG 20A1. An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Charging times (min.)	PAP 20 A1 PAP 20 B1	PAP 20 A2	PAP 20 A3 PAP 20 B3	Smart PAPS 204 A1	Smart PAPS 208 A1
PLG 20 A1	60 90	20 120 210
PLG 20 A4
PLG 20 C1
PLG 20 A2 45 60	80	80	165
PLG 20 A3	35 45	60	50	120
PLG 20 C3
PDSLG 20 A1	35	45	60	50	120
Smart PLGS 2012 A1	35 40	40	40	50

Notes on Safety

This section details the basic safety instructions for working with the appliance.

Symbols

Symbols on the Equipment

This device is part of the Parkside X 20 V TEAM series.

Caution!

Read through the instruction manual carefully.

Wear goggles.

Wear ear protection.

Wear safety gloves. Cutting hazard.

Caution! Risk of injury from moving blades.

Do not use the hedge trimmer in the rain or on wet hedges.

Remove the battery prior to servicing the appliance.

Information of the acoustic power level L_WA in dB.

Electrical appliances must not be disposed of with the domestic waste.

Graphical symbol on the blade guard:

Press the blade guard together to remove it.

Symbols in the manual

Warning symbols with information on damage and injury prevention

Hazard symbol with information on the prevention of personal injury caused by electric shock

Instruction symbols with information on preventing damage

Help symbols with information on improving tool handling

Wear safety shoes.

Wear eye and ear protection.

General safety instructions for power tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord

suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a RCD (Residual Current Device) protected supply with a rated leakage current of not more than 30mA . Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper

GBMT

footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device's settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.
5) CAREFUL HANDLING AND USE OF BATTERY DEVICES
a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

e) Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.

f) Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130^ can cause an explosion.

g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Attention! Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 20 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Safety instructions for hedge trimmers

a) Keep all body parts away from the blade. Do not attempt to remove clippings or to hold onto material to be cut when the blades are running. The blades continue to move after turning off the switch. A moment of inattention when using the trimmer can result in serious injuries.

b) Hold the hedge trimmer by the handgrip when the blade is at a standstill and make sure you do not press the switch. Carrying the hedge trimmer correctly reduces the risk of inadvertent operation and being injured by the blade as a result.

c) Always place the protective cover onto the blades while transporting or storing the hedge trimmer. Careful handling of the hedge trimmer reduces the risk of injury from the blade.

d) Ensure that all switches are turned off and the battery is

removed or switched off before removing jammed clippings or maintaining the machine. Unexpected operation of the hedge trimmer when removing jammed material can lead to serious injuries.

e) Hold the hedge trimmer only by the insulated gripping surfaces as the cutting blades may come into contact with hidden wiring. The blades coming into contact with a live wire can also cause a charge in metal parts of the appliance and result in an electric shock.
f) Keep all mains cables and lines away from the cutting range. Cables and lines may be concealed in hedges and bushes and be inadvertently cut by the blade.
g) Do not use the hedge trimmer in bad weather, especially if there is a danger of a storm. This reduces the risk of being struck by lightning.

Additional safety instructions

• The user is advised to search hedges and bushes for hidden objects, such as wire fences and hidden lines, before working.
• Hold the hedge trimmer correctly, e.g. with both hands on the handles, if there are two handles. Loss of control of the equipment may result in injuries.
• Wear suitable clothing and work clothes when working with the equipment. Do not hold the equipment by the cutting blade or lift it on the cutting blade. Contact with the cutting blade can cause injuries.

For your personal safety:
or suitable work clothes such as boots with non-slip soles, sturdy long trousers, gloves and goggles. Do not wear long fl owing clothing or jewellery, as this may be caught by moving parts. Do not use this tool while walking barefooted or while wearing open sandals.

• The appliance is designed for trimming hedges. Do not use to cut twigs, hard wood or other objects. This could damage the appliance.
• Do not attempt to release a blocked/jammed blade safety bar before turning off the power and removing the battery. There is a risk of injury.
• When operating the appliance, always hold it well with both hands and at some distance away from your body. This enables better control of the power tool in unexpected situations.
• Do not use the tool in the vicinity of flammable liquids or gasses. Fire- and explosion risk exist in the event of a short circuit.
• The blades have to be checked for wear in regular intervals and re-sharpened. Blunt blades will overload the machine. Resulting damages are not covered by warranty.
• Do not attempt to repair the tool yourself, unless you are schooled in this fi eld. All works, which are not described in this manual, may only be performed by our Service-Centre. Many accidents are caused by poorly maintained equipment.
• Do not use any accessories that are not recommended by PARK

SIDE. This can result in electric shock or fire.

• The hedge trimmer is intended for work during which the operator stands on the ground and not on a ladder or other unstable surface.
• Do not wear several belt holders and/or several shoulder straps at the same time.
  The user is advised to ensure before use of the hedge trimmer that the locking mechanism(s) of all moving parts, where present, is/are in the locking position.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Operating

Wear suitable clothing and work gloves when working with the equipment. Wear eye and ear protection. Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment. Reduce the risk of injuries and accidents by wearing personal protection equipment and ensuring that the unit is fully functional.

Note noise protection and local specifications.

Removing/inserting the battery

1. To remove the battery from the device, press the release button (13) on the battery (9) and pull the battery out.
2. To insert the battery (9), place it on the guide track (14) and push it back into the appliance. It will audibly snap in.

Do not insert the battery until the appliance is fully assembled. Risk of injury!

Switching On and Off

Ensure that you are standing in a firm position with both hands gripping the hedge trimmer away from the body. Ensure that the trimmer is in contact with no other objects before switching on.

Removing the blade guard:

1. Press the blade points marked it.

11) at the and remove

Turning on:

1. Check that the battery (9) is in (see "Removing/inserting the battery").
2. Press the safety switch (4) at the front handle (5).
3. Press the On/Off switch (7). The hedge trimmer will run at top speed.

Turning off:

1. Release the safety switch (4) or the On/Off switch s (7).

Setting the rear handle

When the device is switched off, the rear handle (8) can be placed into three different positions (-90^, 0^ and 90^) .

1. Slide the release button (15) backwards.
2. Rotate the rear handle (8) into the desired position.
3. Let go of the release button (15). The rear handle (8) will latch into position.

Working with the Hedge Trimmer

During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.

• If the blades become jammed with solid objects, turn the device off immediately and remove the rechargeable battery. Only then should you remove the object.
• Avoid overstraining the equipment during work.

Cutting Techniques

• Cut thick branches beforehand using a branch clippers.
• The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.
  In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.
• In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
  In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.

Cutting Shaped Hedges:

It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant

growth and allows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

• Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which

may result in some areas having sparse growth or holes.

• Cut the top edge, according to taste, in a flat shape, roof shape or rounded shape
• Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.

Care of Free-Growing Hedges:

Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.

Cleaning and Maintenance

Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.

Turn off the appliance and, before doing any servicing, remove the battery.

Wear gloves when handling the safety knife bar. This will protect you against cuts.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.
  Always keep the equipment clean. After using the equipment, it is imperative to: Clean the blade (with an oily cloth);
• Oil the blade shaft with an oil can or spray.

Maintenance

• Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts. Check that the screws in the safety knife bar (2) are tight.
• Check covers and safety devices (see A) for damages and correct installation. Replace as necessary.
• You can smoothen minor nudges in the cutting teeth yourself using a knife grinder to sharpen the cutting edges. The trimmer will only cut well if the teeth are sharp.
• Blunt, bent or damaged knife bars to be replaced.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

Storage

Keep the device in the blade guard (A 11) supplied, dry and out of reach of children.

• The storage temperature for the rechargeable battery and the device is between 0^ and 45^ . Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

D Wall bracket

Suspension device on the underside of the device (16)

• Using dowels, place one screw at the desired position on a wall.
• The screw head can have a diameter of 8 - 10 mm.
• Leave the screw head protruding at a distance of approx. 10mm from the wall.
• You can place the device onto the screw using the openings on the blade and pull the device down until it stops.

Suspension device on the blade guard (12)

• Using dowels, place two screws 17mm apart at the desired position on a wall.
• The screw head can have a diameter of 5 - 7mm .
• Leave the screw heads protruding at a distance of approx. 10mm from the wall.
• You can place the device onto the two screws using the openings on the blade and pull the device down until it stops

The retention inside the blade guard prevents oil from dripping down onto the safety cutter bar and soiling the floor or wall. Residual oil collects in the blade guard and can be poured out into a residual oil container.

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion.

Damage to a water pipe can lead to property damage and electric shock.

Waste Disposal and Environmental Protection

Remove the rechargeable battery before disposing of the device.

The device, accessories and packaging should be properly recycled.

Instruction on how to dispose of the rechargeable battery can be found in the separate instruction manual for your battery and charger.

Machines do not belong with domestic waste.

• Throw the cut grass on the compost. Do not throw it in the normal household waste.

Directive 2012/19/EU on waste electrical and electronic equipment: Used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.

Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.

We will dispose of any defective devices that you send to us free of charge.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Take the device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and efficiently recycled. Please contact our service centre for more information.

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. knives, battery and gear wheel) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identifi-cation number (IAN 410570_2110) ready as proof of purchase for all enquiries.

• Please find the item number on the rating plate.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid

acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.:[phone] E-Mail: [e-mail] IAN 410570_2110

MT Service Malta Tel.:[phone] E-Mail:[e-mail] IAN 410570_2110

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 34).

Position Position Description Order No.
instruction exploded
manual drawing

A 2 41 Safety knife bar 91104529
A 3 40 Hand protection 91104528
A 4+5 30, 33-39 Safety switch + Front handle
A 11 42 Blade guard
	91104530

Trouble Shooting

Problem Possible cause Corrective action
Appliance won't start	Battery (9) discharged	Recharge battery (Observe the separate operating instructions for the rechargeable battery and charger)
	Battery (9) not inserted	Insert battery (Observe the separate operating instructions for the recharge-able battery and charger)
	Safety switch (4) not pressed properly	Turn on (see "Operation")
	On/Off switch (7) defective	Send in to Service Centre for repair
Intermittent operation	Internal loose contact	Send in to Service Centre for repair
	On/Off switch (7) defective
Knife bar becomes hot	Knife bar (2) is blunt	Have the Knife bar sharpened or replaced (Service Centre)
	Knife bar (2) is notched	Have the Knife bar checked or replaced (Service Centre)
	Too much friction due to lack of lubrication	Oil the knife bar (2)
Bad trim	Too much friction due to missing lubrication	Lubricate knife bar (2)
	Knife bar (2) dirty Clean knife bar
	Knife bar (2) blunt	Grind or have knife bar replaced (Service Centre)
	Bad cutting technique See ("Working with the hedge trimmer")

Sommaire

Introduction 36

Garantie - France. 49

Technique parametry. 90

Doby nabijeni 91

L_pA 75,1dB(A);K=3dB

Strihani zivych plot

Zive ploty se odporucujesteirhat do tvaru lichobeznika, aby se zabrano lovypadani listu vespodni casti plotu. Toto opovidaprirozenemu rustu rost

lin a pro zivy plot vytvarí optimálni podminky. Zastrihuji se jenom nové Jednorocni

Pooblasceni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

Translation of the original EC declaration of conformity
We hereby confi rm that the Cordless Hedge Trimmer model PHSA 20-Li A1 Serial number 000001 - 162000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2000/14/EC & 2005/88/EC • 2014/30/EU 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN 62841-4-2:2019 EN 55014-1:2017/A11:2020 • EN 55014-2:2015 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 EN IEC 63000:2018
We confi rm the following in accordance with the 2000/14/EC & 2005/88/EC emis-sions guideline: Sound power level: guaranteed: 90 dB(A) measured: 87 dB(A) Compliance evaluation process carried out in accordance with Appendix V / 2000/14/EC & 2005/88/EC
This declaration of conformity is issued under the sole responsibility of the manufac-turer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großbostheim GERMANY 30.04.2022	Christian Frank Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
