USER MANUAL Mithos Avant Plus TAURUS

Many thanks for choosing to purchase a TAURUS brand product. Thanks its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured

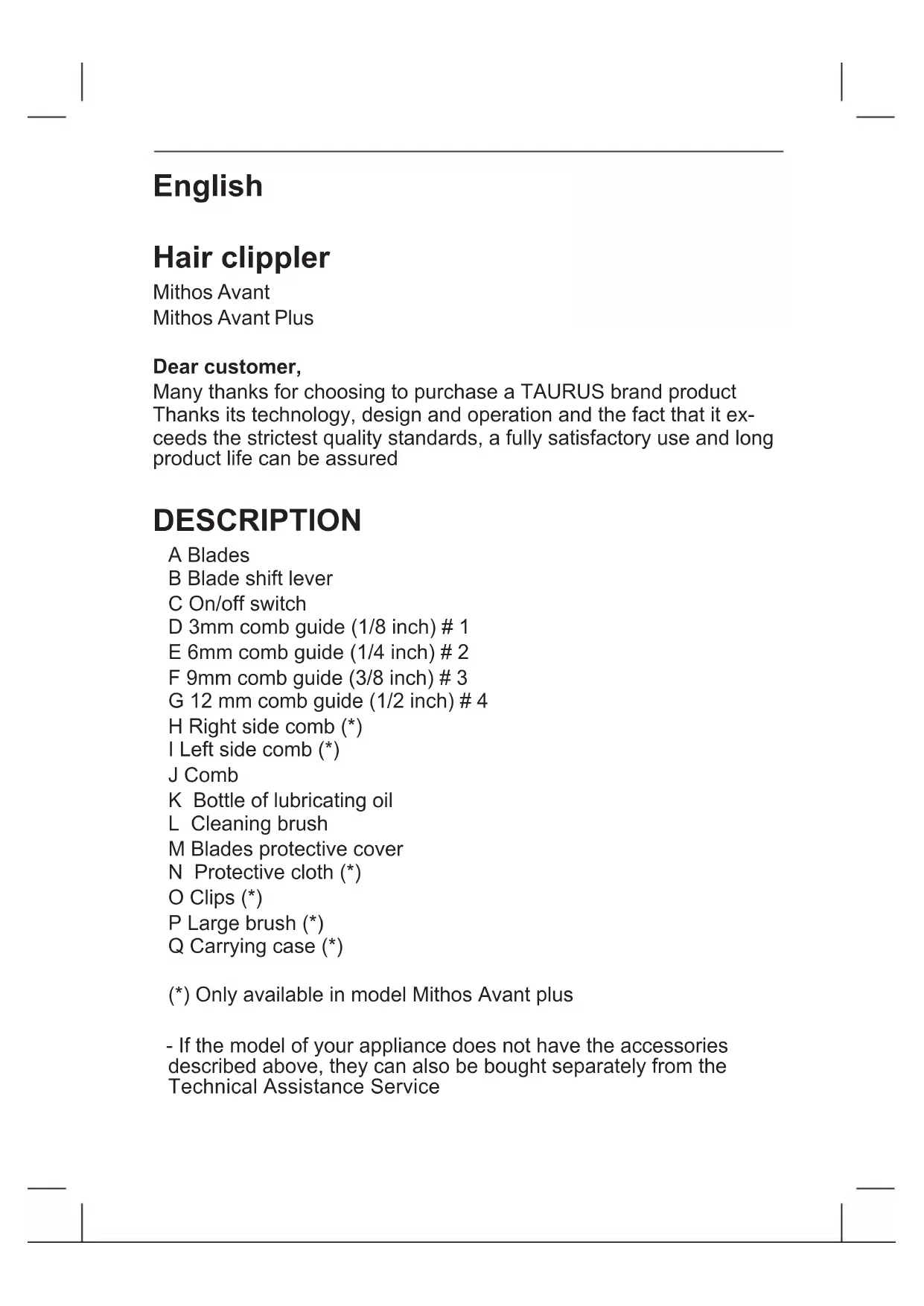

DESCRIPTION

A Blades
B Blade shift lever
C On/off switch
D 3mm comb guide (1/8 inch) # 1
E 6mm comb guide (1/4 inch) # 2
F 9mm comb guide (3/8 inch) # 3
G 12 mm comb guide (1/2 inch) # 4
H Right side comb (^)
I Left side comb (^)
J Comb
K Bottle of lubricating oil
L Cleaning brush
M Blades protective cover
N Protective cloth (^)
O Clips (^)
P Large brush ()
Q Carrying case ()

(*) Only available in model Mithos Avant plus

• If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident

SAFETY ADVICE AND WARNINGS

• This appliance can be used by children aged from 3 years under supervision

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance

• Cleaning and user maintenance shall not be made by children without supervision
• WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water

This symbols means that product, must not be used near water

• If the connection to the mains has been damaged, it must be replaced, take the

appliance to an Authorized Technical Support Service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard

• Ensure that voltage indicated on the rating label matches the mains voltage before plugging in the appliance
• Connect the appliance to a socket that can supply a minimum of 10 amperes
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance
• Check the state of power cord. Damaged or tangled cables increase the risk of electric shock
• Do not touch the plug with wet hands
• Do not use the appliance if the cable or plug is damaged
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs or if it has a leak.
• Do not leave the appliance out in rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock
• CAUTION: Maintain the appliance dry.
• Do not use the appliance with damp hands or feet, or when bare-footed.
• Do not touch any of the appliance's moving parts while it is operating.

USE AND CARE:

• Do not use the appliance if its accessories are not properly fitted or are defective. Replace them immediately.
• Do not use the appliance on wet hair.
• Do not use the appliance if on/off switch doesn't works
• If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only

for a short while, as proximity to water involves a risk, even if the appliance is disconnected.

• Disconnect the appliance from the mains when not in use, before undertaking any cleaning task; make any adjustment or accessory change.

• This appliance is for household use only, not professional or industrial use.

• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

• Never rest the appliance into a surface while in use.

• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

• Keep children and bystanders away when using this appliance.

• Do not use the appliance with pets or animals

SERVICE:

• The appliance has been oiled in origin, In order to maintain the appliance in good operation conditions we suggest greasing the blades every time you clean it by putting a few drops of oil on the ends of the blade, and finally switching on the appliance during a few seconds.

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories

• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and avoid.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all the product's packaging has been removed

INSERTION OF A COMB GUIDE: (FIG 1)

• To attach the comb guide, pick up by its two tips and press against the blades of the appliance until is firmly fixes

• To extract the comb guide, just pull out.

USE:

• Unroll the cable completely before plugging it in.

• Remove the protective cover (Fig.1)

• Connect the appliance to the mains.

• Make sure that the blades are correctly aligned.
• Turn the appliance on, by using the on/off switch

HOW TO CUT THE HAIR:

• Situate the person whose hair you are going to cut so that the top of their head is at your eye level. Place a protective towel or cloth around their neck.
• To obtain best results is better to use the appliance on dry hair, as it is much easier to control the hair and the results
• Comb hair well before cutting. Make sure that there are no tangles or knots.
• Hold the appliance in calm and relaxed manner in order to ensure maximum control of the cut and uniform result. Proceed to use short cuts gradually going around the head.
• Leave the hair a little longer than desired length as it can always be altered later.
• While working adapt the comb/comb guide to the desired result
• At regular intervals, stop cutting in order to comb the hair and check the results so far.

STEP 1 - NAPE:

• Attach the comb guide size 3 / 6 ~mm
• Hold the appliance with the razor facing downwards and begin to cut the hair from the base of the neck.
• Make some upward movements, raising the appliance gradually and away from the head, cutting the hair gradually until the height of the ears (Fig.2)

STEP 2 - BACK OF HEAD:

• Attach comb guide size 9 / 12mm and continue with the back of the head (Fig.3)

STEP 3 - SIDE OF HEAD:

• Attach a new shorter guide, size 3 / 6mm to trim the sideburns.
• Attach the longest comb guide size 9 / 12 mm again and continue until you reach the top of the head.

STEP 4 - TOP OF HEAD:

• Using comb guide size 9 / 12mm , pass the appliance from the back to the front, against the growth of the hair (Fig.4). In some cases it's necessary to go over what you have done a second time from front to back.

• The comb guide size 3 / 6 ~mm is for when you want to achieve a

more precise cut.

• Use comb guides size 12mm to leave hair at a longer length. Hold the hair up with the comb or the comb and your fingers and cut.
• Always work form back to the front reducing the length between your fingers or the comb and the head gradually.

• Finally use the appliance without attaching any comb guides to the blades to cut the hair around the base of the neck, the sides of the neck and the ears.
• To make sideburns straight, turn the appliance over to use the upper blades (Fig.5). Move the appliance adapting it the physiognomy of the head. To achieve more precise results use a shaver

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off switch
• Unplug the appliance from the mains
• Clean the appliance
• Put on the protective cover.

CLEANING:

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance
• Never submerge the appliance in water or any other liquid or place it under running water.
• Clean the blades and the comb guide with the cleaning brush. Remove the hairs from the blades and from inside the appliance with the brush. It is important to clean off remaining hairs after each use.
• NEVER disassemble the blades from the appliance to clean.

ANOMALIES AND REPAIR:

• Take the appliance to an authorized technical support service if product is damaged or other problems ariseDo not attempt to disassemble or repair the appliance yourself as this may be dangerous.

• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/ EC on the ecodesign requirements for energy-related products.
