Spiro - Beard trimmer TAURUS - Free user manual and instructions

Product type	Beard trimmer
Brand	Taurus
Model	Spiro
Power supply	Rechargeable battery + mains charger
Charger voltage	100-240 V
Charging time	6 hours (first charge: 8 hours)
Cordless use	Yes, on battery
Corded use	Yes, plugged into mains
Suction system	Yes, with removable tank
Guide comb	Adjustable with measurement selector
Blades	Stainless steel
Maintenance	Cleaning brush and lubricating oil included
Tank emptying	Yes, easy to empty
Intended use	Domestic use only
Safety	Do not use near water, do not immerse
Included accessories	Guide comb, brush, oil, charger
Warranty	According to applicable legislation
Recycling	Compliant with WEEE directive

Frequently Asked Questions - Spiro TAURUS

How to charge the battery for the first time?

Before first use, fully charge the battery for approximately 8 hours. Use the supplied charger and plug it into the mains. The indicator light turns on during charging and turns off once the battery is full.

Can I use the device while charging?

Yes, the device can be used plugged into the mains via the charger, even if the battery is charging. However, it is recommended not to exceed 60 minutes of continuous use.

How to clean the blades?

Unplug the device and remove the guide comb. Use the cleaning brush to remove hair from the blades. Never disassemble the blades or rinse them under water. After cleaning, apply a few drops of lubricating oil to the blades.

What is the suction tank for?

The suction tank (E) collects cut hair for easy cleaning. It must be emptied regularly by pressing the side tab and emptying it with the brush.

How to adjust the cutting length?

Use the measurement selector (I) located at the back of the device. Press it with your thumb and slide it up or down to choose the desired length. The integrated guide comb follows the adjustment.

What to do if the device does not turn on?

Check that the battery is charged or plug the device into the mains. If the problem persists, contact an authorized technical support service. Do not attempt to repair the device yourself.

Is it possible to replace the battery?

Yes, at the end of its life, the battery can be removed and replaced. Follow the instructions in the manual to open the housing and cut the cables. Have the replacement done by a professional if necessary.

How to remove the guide comb?

Press the measurement selector (I) and slide it all the way up. The comb then detaches. To put it back, align it with the rails and push until it clicks.

Is the device waterproof?

No, the device is not waterproof. It must not be used near water (bathtub, shower) and must never be immersed or rinsed under running water.

What oil to use for lubrication?

Use the lubricating oil supplied with the device (J). If you need to buy some, choose a special oil for trimmer blades. Apply a few drops after each cleaning while running for a few seconds.

USER MANUAL Spiro TAURUS

Diagram of a handheld device with two arrows pointing to its top panel (no text or symbols present)

Español

Barbero perfilador

Spiro

Many thanks for choosing to purchase a TAURUSbrand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident

SAFETY ADVICE AND WARNINGS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

is symbol means that product, must not be used near water.

is symbol means that product is not suitable for cleaning under an open water tap.

• Only use the appliance with the specific electric connector provided.
• Only connect the appliance to a safety extra low voltage corresponding to the marking on the appliance.
• Only connect the appliance to a safety extra low voltage corresponding to the marking on the appliance.
• The battery must be removed from the appliance before it is scrapped.
• The appliance must be disconnected from the supply mains when removing the battery.
• The battery is to be disposed of safely.
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorized technical support

service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional or industrial use.

- Ensure that the voltage indicated on the charger rating label matches the mains voltage before plugging in the charger.

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The charger's plug must fit correctly into the mains socket. Do not alter the plug. Do not use plug adaptors.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the battery charger.

- Do not wrap the power cord around the appliance.

- Do not clip or crease the power cord.

- Check the state of power cord. Damaged or tangled cables increases the risk of electric shock.

- Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

- Do not touch the plug with wet hands.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs or if it has a leak.

- Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may accuse irritation or burns.

- Do not touch any of the appliance's moving parts while it is operating.

USE AND CARE:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if its

accessories are not properly fitted.

- Do not use the appliance if its accessories attached to it are defective. Replace them immediately.

- Do not use the appliance if on/off switch not works.

- If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.

- Disconnect the battery charger from the mains when not in use, before undertaking any cleaning task make any adjustment or accessory change.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Never rest the appliance into a surface while in use.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Pay special attention when assembling and removing the accessories, as the blades are sharp. Be careful and avoid direct contact with the blades' cutting edges.

- Do not use the appliance for more than 60 minutes at any one time.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Keep children and bystanders away when using this appliance.

- Do not use the appliance with pets or animals.

- Do not open the battery/ies under any circumstances whatsoever.

- Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery/ies.

- Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

SERVICE:

- The appliance has been oiled in origin, In order to maintain the appliance in good operation conditions we suggest greasing the blades every time you clean it by putting a few drops of oil on the ends of the blade, and finally switching on the appliance during a few seconds.

- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and avoid.

DESCRIPTION

A Body
B On/off switch
C Blades
D Suction Inled
E Deposit
F Air filter
G Charging indicador Led
H Comb guide
I Mesurement selector
J Lubricating Oil
K Brush
L Comb
M Charger

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

CHARGING THE BATTERY:

• Caution: a new battery is not fully charged and must therefore be charged before the appliance is used for the first time.
• Charge the battery at an atmospheric temperature of between 4 and 40°C.
• Connect the charger to the jack using the socket on the appliance. The socket is located at the lower/back part of the appliance.
• Plug the charger (M) into the mains.
• The pilot light (G) will come on to indicated that the charger is charging the battery.
• Approximately 6 hours are needed for a complete charger of the battery. Never attempt to overcharge the battery (although it is recommended that the first charge of the battery be of 8 hours in duration).
• When the battery is charged disconnect the charger from the mains supply.

BATTERY'S CHARGE LEVEL:

• The load indicator (G) will turn off the color when the appliance id completely charged.
• NB: For a long battery life, it is advisable to charge the battery, only when it has run out completely.

INSTRUCTIONS

FOR USE

BEFORE USE:

• Make sure that all products' packaging has been removed.
• Before using this product for the first time, it is important to make a full charge of batteries.

COMB GUIDE:

• The product comes with the built-in comb.
• To change the cutting level, press the measuring switch (I) on the back of the product and move upwards until you reach the desired cutting position. (Fig 1).
• To remove the guide comb, press the measuring switch (I) with your thumb and move it upwards.

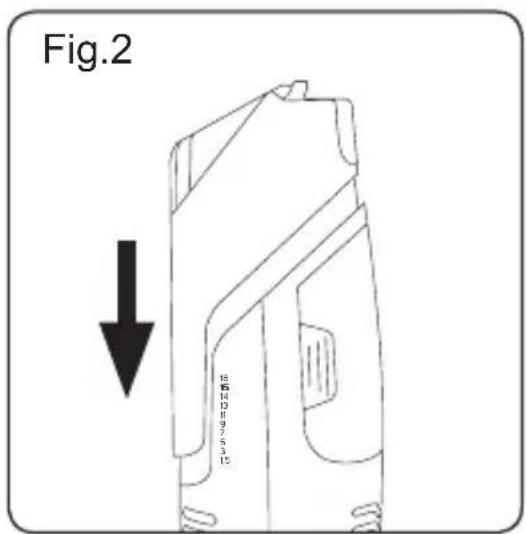

• To insert the guide comb (H), place it following the guides. (Fig. 2).

USE:

• The appliance can be used directly connected to the mains or by using his batteries.
• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Make sure that the blades are correctly aligned.
• Turn the appliance on, by using the on/off switch.
• Select the desired cutting height using the comb height selector (I). Press it and adjust the height according to the desired cutting length.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance using the on/off switch
• Unplug the appliance from the mains.

CLEANING:

- Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task.

- Dismantle the appliance following these steps:

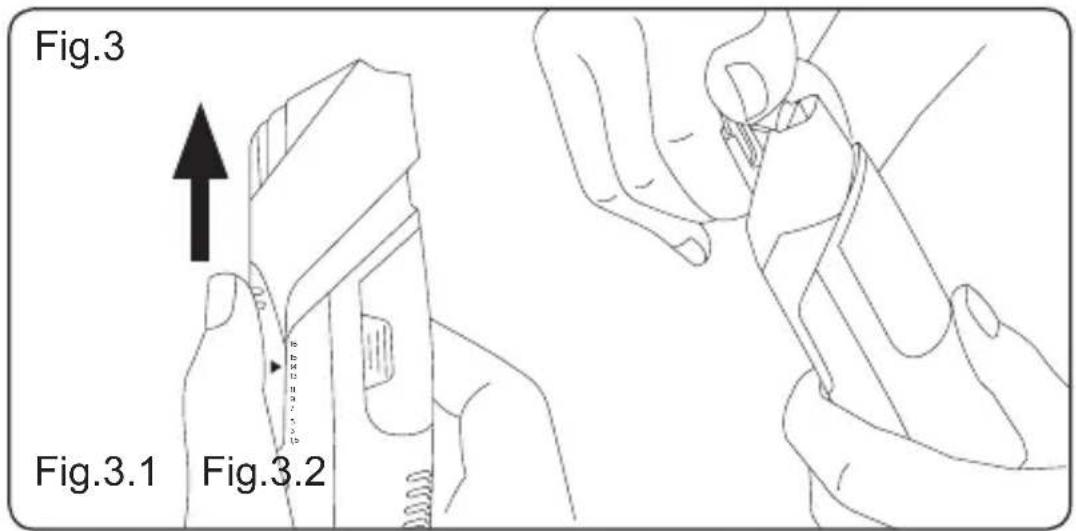

- Remove the guide comb, by pressing the measuring switch (I) with your thumb and move it upwards.

(Fig.3.1).

- Take the device with one hand and use your thumb to press the leaves while holding the plastic part with your index finger until the blades are removed. (Fig.3.2).

- Use the cleaning brush (K) to remove the hair from inside the appliance and the blades.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

- During the cleaning process, take special care with the blades, as they are very sharp.

- If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.

- Clean the blades and the comb guide with the cleaning brush. Remove the hairs from the blades and from inside the appliance with the brush. It is

important to clean off remaining hairs after each use.

- NEVER disassemble the blades from the appliance for clean it.

EMPTYING THE SUCTION DEPOSIT:

- Unplug the battery charger from the mains when it is not in use, before carrying out any cleaning, adjustment or accessory change operation.

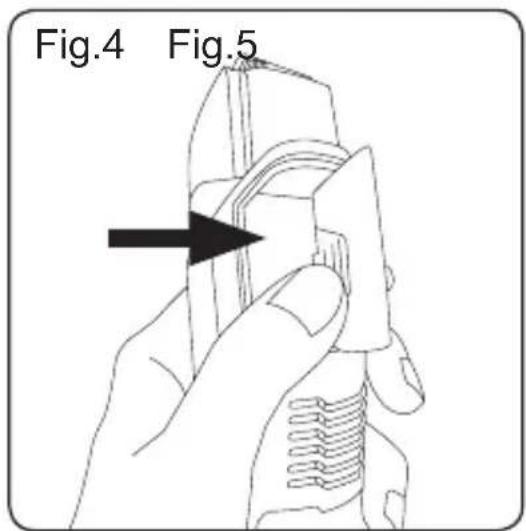

- To empty the suction deposit (E). Press the tab on the left side of the deposit. (Fig 4)

- Remove the hair with the brush until it is clean.

- Close again

ANOMALIES AND REPAIR:

- Take the appliance to an authorized technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABIL- ITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorized waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This symbol means that product may include a battery or batteries; user must to remove them before disposing of the product. Remember that batteries must be disposed of in duly authorized containers. Do not dispose of them in fire.

HOW TO REMOVE THE BAT- TERIES FROM THE INTERIOR OF THE DEVICE:

- CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

- CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.

- To remove the batteries, once the life of the appliance, proceed as follows:

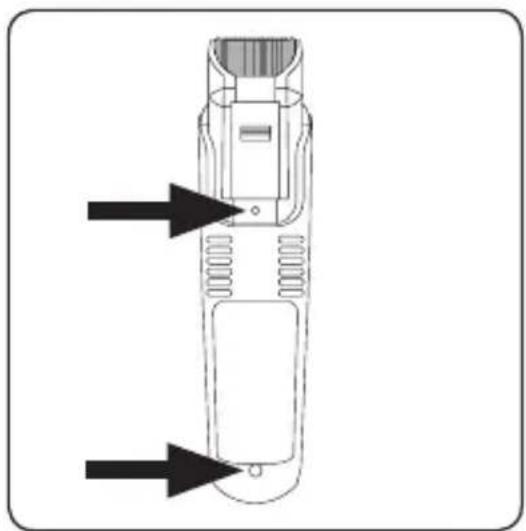

- Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws. (Fig.5).

- Identify the battery wires and cut their (Red and Black). To avoid risks of a short circuit with a possible residual battery load, first cut the Red wire and protect it by using insulating tape, then proceed to cut the Black wire proceeding in the same way.

- Safely remove the battery from its housing.
