Hestia HC2000P - Beard trimmer TAURUS - Free user manual and instructions

Product type	Beard and hair trimmer
Brand	Taurus
Model	Hestia HC2000P
Power supply	Mains (cable) and rechargeable battery
Charger	Mains adapter included
Charging time	3 to 4 hours
Estimated battery life	60 minutes (continuous use)
Cutting lengths	3 mm, 6 mm, 10 mm, 13 mm (combs included)
Included accessories	4 guide combs, lubricating oil, trimmer, charger, cleaning brush
Use	Dry hair only
Cleaning	Brush and damp cloth; do not immerse
Blades	Stainless steel (estimated)
Estimated weight	200 g
Estimated dimensions	18 x 5 x 4 cm
Thermal safety	Overheat protection device
Warranty	Complies with applicable legislation
After-sales service	http://taurus-home.com/

Frequently Asked Questions - Hestia HC2000P TAURUS

How to charge the battery for the first time?

A new battery is not fully charged. Plug the charger into the device and the mains. The full charging time is 3 to 4 hours. The screen shows 100% when charging is complete.

Can I use the device while charging it?

Yes, the device can operate plugged into the mains or on battery. Unroll the cable completely before using it.

How to install and remove a guide comb?

To install, hold the comb by both ends and press it against the blades until it clicks. To remove, simply pull it off.

What is the procedure for cutting hair with the trimmer?

Work on dry, combed hair. Start with the nape with a short comb (3/6 mm), then the back of the head with a long comb (10/13 mm), the sides, and finally the top. Finish without a guard for detailing.

How to clean the trimmer after use?

Turn off and unplug the device. Use the provided brush to remove hairs from the blades and interior. Never disassemble the blades for cleaning. Clean the exterior with a damp cloth and mild detergent.

Should I lubricate the blades?

Yes, after each cleaning, put a few drops of lubricating oil on the ends of the blades and run the device for a few seconds.

What to do if the device suddenly stops?

This may be due to thermal safety. Unplug the device, wait about 15 minutes, then plug it back in. If it still does not work, contact an authorized technical service.

Can I use the trimmer on wet hair?

No, the device should only be used on dry hair to ensure a uniform result and avoid any risk.

What accessories are included with the Hestia HC2000P model?

The pack contains 4 guide combs (3, 6, 10, and 13 mm), lubricating oil, a trimmer, a battery charger, and a cleaning brush.

Where can I find after-sales service or warranty?

The warranty complies with the legislation. For technical service, visit the website http://taurus-home.com/ to find an authorized center.

USER MANUAL Hestia HC2000P TAURUS

Black Hestia taurus hair curler with digital display (no text or symbols on body)

EN. Instructions for use

FR. Mode d'emploi

Line drawing of a portable electric plug connected to a coiled cable (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating rotation (no text or symbols)

Fig.1 Fig.2

Line drawing of a mechanical device with an upward arrow indicating force or direction (no text or symbols)

Line drawing of a person's head and neck with a hand using a tool to trim the hair (no text or symbols)

Fig.3 Fig.4

Line drawing of a person touching their head with a finger pointing upward (no text or symbols)

Line drawing of a person's head with a hand holding a spray can above the head, showing a motion indicator (no text or symbols)

Fig.5 Fig.6

Line drawing of a human head in profile showing ear anatomy with a finger placement (no text or symbols)

(Original instructions)

HC2000P · HESTIA

Hair Clipper

DESCRIPTION

A. Blades
B. Cutting length control lever
C. On / Off Switch
D. Guide comb 3 mm
E. Guide comb 6 mm
F. Guide comb 10 mm
G. Peine guía 13 mm
H. Oil
I. Brush
J. Battery charger

USE AND CARE

Fully extend the appliance's power cable before each use.

Do not use the appliance if its accessories are not properly fitted.

Do not use the appliance if its accessories attached to it are defective. Replace them immediately.

Do not use the appliance on wet hair.

Do not use the appliance if on/off switch doesn't work.

If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.

Disconnect the battery charger from the mains when not in use, before undertaking any cleaning task make any adjustment or accessory change.

Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

Never rest the appliance into a surface while in use.

Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

Pay special attention when assembling and removing the accessories, as the blades are sharp. Be careful and avoid direct contact with the blades' cutting edges.

Do not use the appliance for more than 60 minutes at any one time. When using 60 minute cycles allow a resting period of at least 10 minute

between each cycle. Under no circumstances should the appliance be operated for more time than necessary.

Never leave the appliance unattended while in use.

Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Keep children and bystanders away when using this appliance.

Do not use the appliance with pets or animals.

Do not open the battery/ies under any circumstances whatsoever.

Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery/ies.

Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

The appliance has been oiled in origin. In order to maintain the appliance in good operation conditions we suggest greasing the blades every time you clean it by putting a few drops of oil on the ends of the blade, and finally switching on the appliance during a few seconds.

CHARGING THE BATTERY

Caution: a new battery is not fully charged and must therefore be charged before the appliance is used for the first time.

Charge the battery at an atmospheric temperature of between 4 and 40°C.

Connect the charger to the jack using the socket on the appliance. The socket is located at the lower part of the appliance.

Plug the charger into the mains.

The display will show the \% of battery charged. Approximately 3 to 4 hours are needed for a complete charger of the battery. Never attempt to overcharge the battery

When the battery is charged disconnect the charger from the mains supply.

HOW TO CHECK THE BATTERY'S CHARGE LEVEL

The display will show the \% of battery charged. It will show 100, when the appliance id completely charged.

NB: For a long battery life, it is advisable to charge the battery, only when it has run out completely.

INSTRUCTIONS FOR USE

BEFORE USE

Make sure that all products' packaging has been removed.

Before using this product for the first time, it is important to make a full charge of batteries.

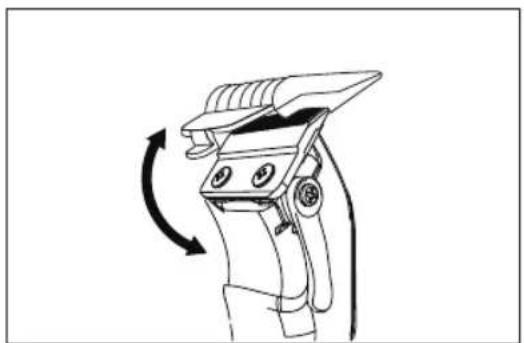

INSERTION OF A COMB GUIDE (Fig.1)

To attach the comb guide, pick up by its two tips and press against the blades of the appliance until is firmly fixes

To extract the comb guide, just pull out.

USE

The appliance can be used directly connected to the mains or by using his batteries.

Extend the cable completely before plugging it in.

Connect the appliance to the mains.

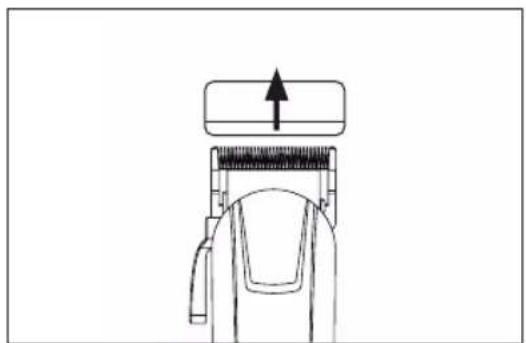

Remove the protective cover (Fig.2)

Insert the comb guide you need

Make sure that the blades are correctly aligned.

Turn the appliance on, by using the on/off switch.

HOW TO CUT THE HAIR

Situate the person whose hair you are going to cut so that the top of their head is at your eye level. Place a protective towel or cloth around their neck.

To obtain best results is better to use the appliance on dry hair, as it is much easier to control the hair and the results.

Comb hair well before cutting. Make sure that there are no tangles or knots.

Hold the appliance in calm and relaxed manner in order to ensure maximum control of the cut and uniform result. Proceed to use short cuts gradually going around the head.

Leave the hair a little longer than desired length as it can always be altered later.

While working adapt the comb/comb guide to the desired result.

At regular intervals, stop cutting in order to comb the hair and check the results so far.

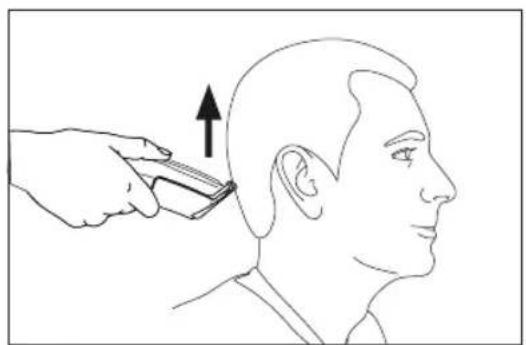

Step 1 – Nape:

Attach the comb guide size 3 / 6 mm.

Hold the appliance with the razor facing downwards and begin to cut the hair from the base of the neck.

Make some upward movements, raising the appliance gradually and away from the head, cutting the hair gradually until the height of the ears (Fig.3).

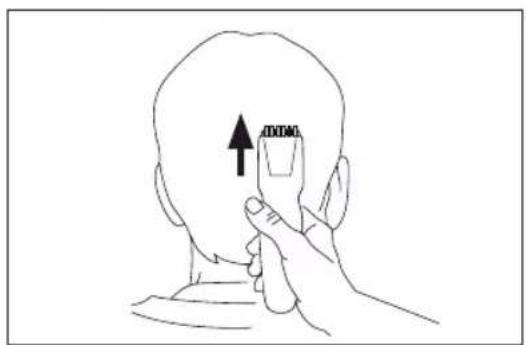

Step 2 – Back of head:

Attach comb guide size 10/13 mm and continue with the back of the head (Fig.4).

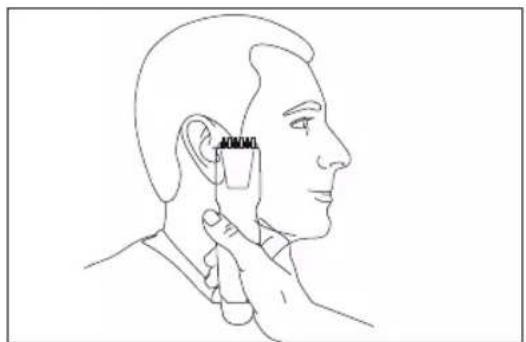

Step 3 – Side of head:

Attach a new shorter guide, size 3 / 6 mm to trim the sideburns.

Attach the longest comb guide size 10/13 mm again and continue until you reach the top of the head.

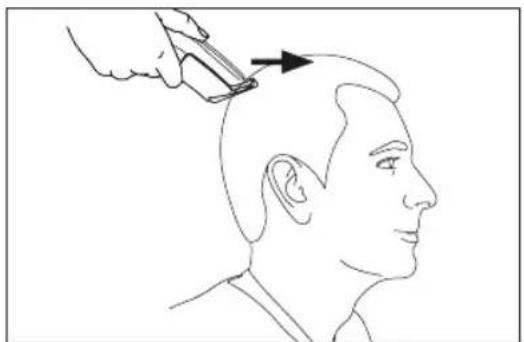

Step 4 – Top of head:

Using comb guide size 10/13 m, pass the appliance from the back to the front, against the growth of the hair (Fig.5). In some cases, it's necessary to go over what you have done a second time from front to back.

The comb guide size 3 / 6 mm is for when you want to achieve a more precise cut.

Use comb guides size 10/13 mm to leave hair at a longer length. Hold the hair up with the comb or the comb and your fingers and cut.

Always work form back to the front reducing the length between your fingers or the comb and the head gradually.

Step 5 – Final touch:

Finally use the appliance without attaching any comb guides to the blades to cut the hair around the base of the neck, the sides of the neck and the ears.

To make sideburns straight, turn the appliance over to use the upper blades (Fig.6). Move the appliance adapting it the physiognomy of the head. To achieve more precise results, use a shaver.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

Turn the appliance off, using the on/off switch.

Unplug the appliance from the mains.

Clean the appliance.

Put on the protective cover.

SAFETY THERMAL PROTECTOR

The appliance has a safety device, which protects the appliance from overheating.

If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorized technical assistance.

CLEANING

Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task.

Clean the equipment with a damp cloth with a

few drops of washing-up liquid and then dry.

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

Never submerge the appliance in water or any other liquid or place it under running water.

During the cleaning process, take special care with the blades, as they are very sharp.

If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.

Clean the blades and the comb guide with the cleaning brush. Remove the hairs from the blades and from inside the appliance with the brush. It is important to clean off remaining hairs after each use.

NEVER disassemble the blades from the appliance for clean it.

INTRODUCEREA UNUI GHIDAJ PENTRU PIEPTENE (Fig. 1)

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
