USER MANUAL HC0150 TAURUS

Line drawing of a hairbrush with textured grip and side buttons (no text or symbols)

Line drawing of a hand holding a tool, with arrows indicating movement or force direction (no text or symbols)

Illustration of a hand holding a hairpin with an upward arrow, pointing to the ear area (no text or symbols present)

Line drawing of a person using a handheld medical or dental tool on their ear (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Español

Cortapelos

HC-0150

Many thanks for choosing to purchase a TAURUS brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

- This appliance can be used by children aged from 3 years under supervision.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

is symbol means that product, must not be used near water.

This symbol means that product is not suitable for cleaning under an open water tap.

- Only use the appliance with the specific electric connector provided.

- Only use the appliance with the specific electric connector provided.

- Only connect the appliance to a safety extra low voltage corresponding to the marking on the appliance.

- The battery must be removed from the appliance before it is scrapped.

- The appliance must be disconnected from the supply mains when removing the battery.

- The battery is to be disposed of safely.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional or industrial use.

- For the prurposes of recharging the battery, only use the detachable supply unit provided with this appliance.

- Instructions are also available on website www-taurus-home.com

- Ensure that the voltage indicated on the charger rating label matches the mains voltage before plugging in the charger.

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The charger's plug must fit correctly into the mains socket. Do not alter the plug. Do not use plug adaptors.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the battery charger.

- Do not wrap the power cord around the appliance.

- Do not clip or crease the power cord.

- Check the state of power cord. Damaged or tangled cables increase the risk of electric shock.

- Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

- Do not touch the plug with wet hands.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect

the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs or if it has a leak.

- Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may accuse irritation or burns.

- The appliance is not suitable for outdoor use.

- Do not leave the appliance out in rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

- CAUTION: Maintain the appliance dry.

- Do not use the appliance with damp hands or feet, or when bare-footed.

- Do not touch any of the appliance's moving parts while it is operating.

USE AND CARE:

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance on wet hair.

- Do not use the appliance if on/off switch doesn't work.

- Disconnect the battery charger from the mains when not in use, and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Never rest the appliance into a surface while in use.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Do not use the appliance with pets or animals.

- Do not open the battery/ies under any circumstances whatsoever.

- Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery/ies.

- Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

SERVICE:

- The appliance has been oiled in origin, in order to maintain the appliance in good operation conditions we suggest greasing the blades every time you clean it by putting a few drops of oil on the ends of the blade, and finally switching on the appliance during a few seconds.

- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and avoid.

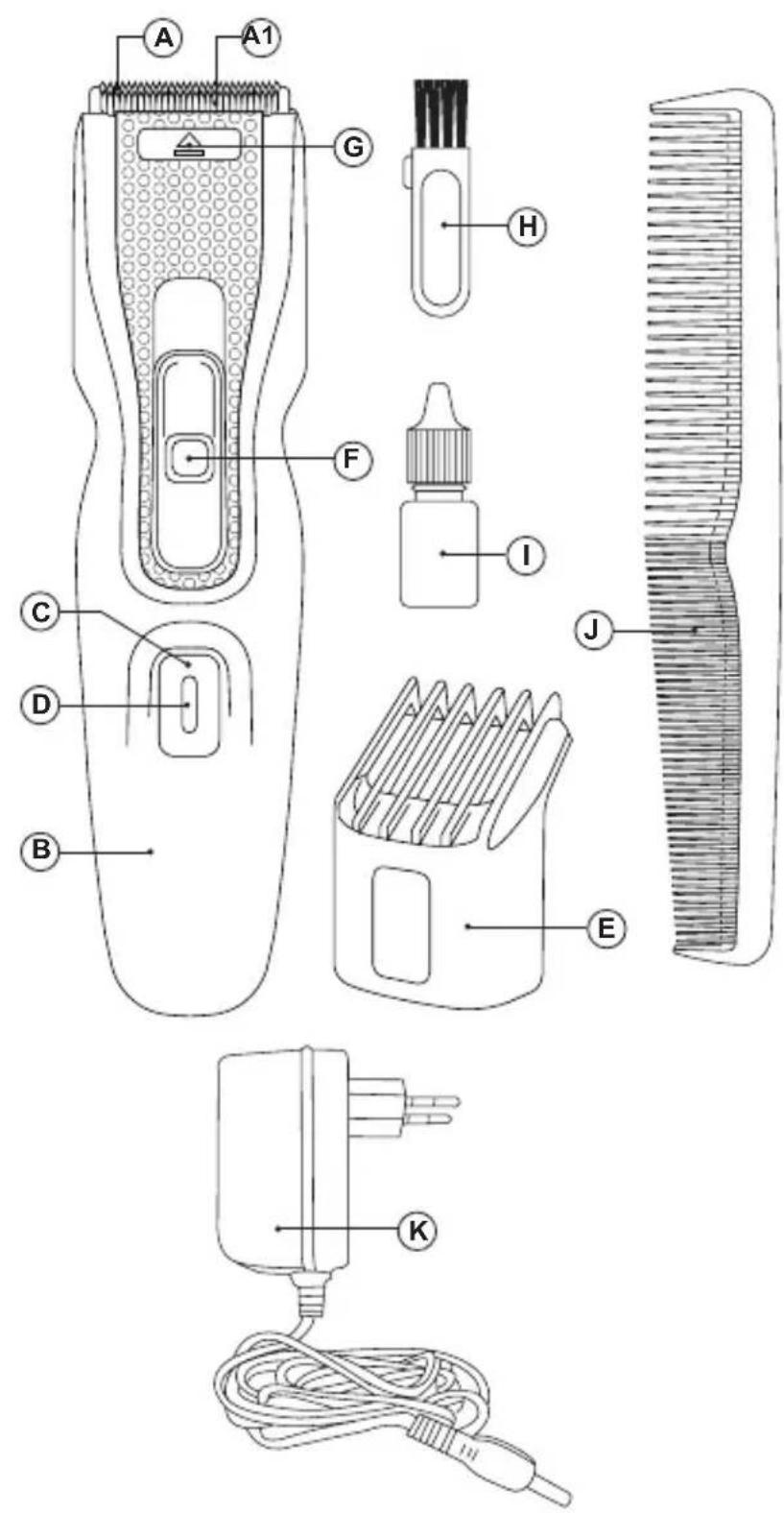

DESCRIPTION

A Blades.

A.1 Inner pivoting Blade.

B Appliance body.

C On/off switch.

D Pilot light.

E Comb guide size (3-18).

F Comb height selector.

G Blade release button.

H Cleaning brush.

I Lubricating oil.

J Comb.

K Battery charger.

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

CHARGING THE BATTERY:

- Caution: a new battery is not fully charged and must therefore be charged before the appliance is used for the first time.

- Charge the battery at an atmospheric temperature of between 4 and 40°C.

- Connect the charger to the jack using the socket on the appliance. The socket is located at the lower/back part of the appliance.

- Plug the charger (K) into the mains.

- The pilot light (D) will light red during charging, once it is 100% charged, the light will turn off.

- Approximately 8 hours are needed for a complete charger of the battery. Never attempt to overcharge the battery (although it is recommended that the first charge of the battery be of 16 hours in duration).

- When the battery is charged disconnect the charger from the mains supply.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

- Before using this product for the first time, it is important to make a full charge of batteries.

- This appliance has not been designed to work connected to the mains, only to batteries.

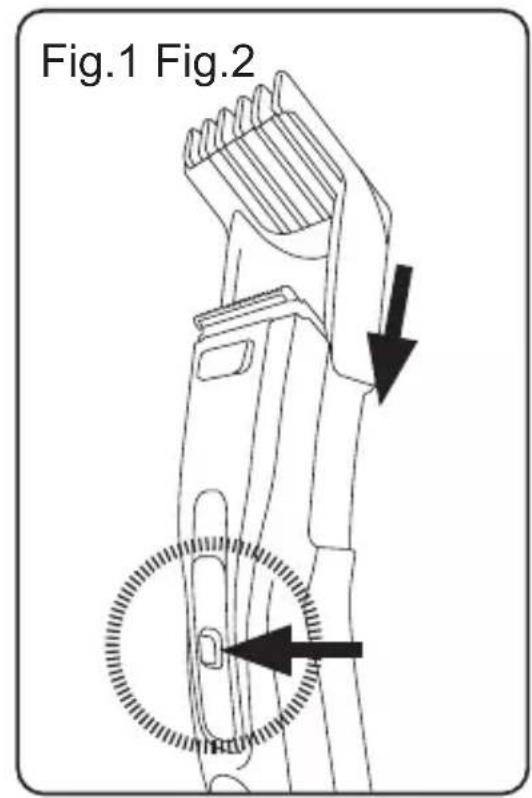

INSERTION OF A COMB GUIDE:

- Take the guide comb and insert it into the guides (Fig.1).

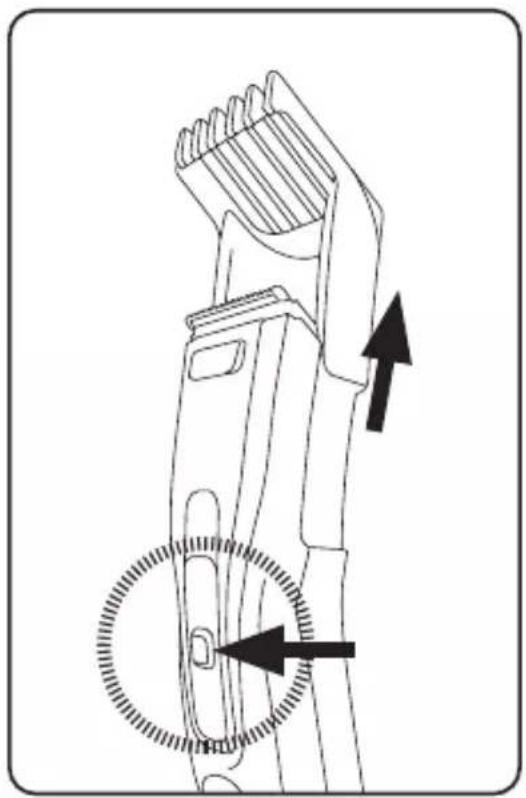

- To remove the guide comb, hold the comb measurement selector low, and then pull the comb upwards. (Fig 2.)

USE:

- Make sure that the blades are correctly aligned.

- Turn the appliance on, by using the on/off button.

- Select the desired cutting height using the comb height selector (F). Press it and adjust the height according to the desired cutting length.

HOW TO CUT THE HAIR:

- Situate the person whose hair you are going to cut so that the top of their head is at your eye level. Place a protective towel or cloth around their neck.

- To obtain best results is better to use the appliance on dry hair, as it is much easier to control the hair and the results.

- Comb hair well before cutting. Make sure that there are no tangles or knots.

- Hold the appliance in calm and relaxed manner in order to ensure maximum control of the cut and uniform result. Proceed to use short cuts gradually going around the head.

- Leave the hair a little longer than desired length as it can always be altered later.

- While working adapt the comb/comb guide to the desired result.

- At regular intervals, stop cutting in order to comb the hair and check the results so far.

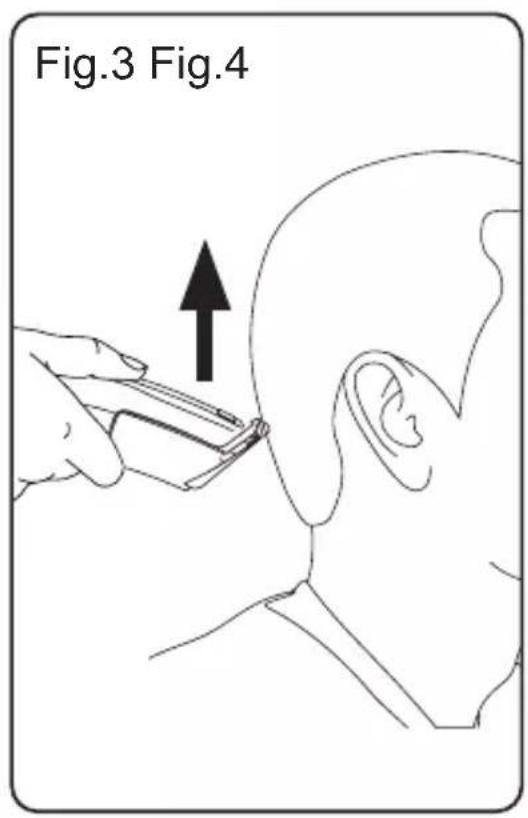

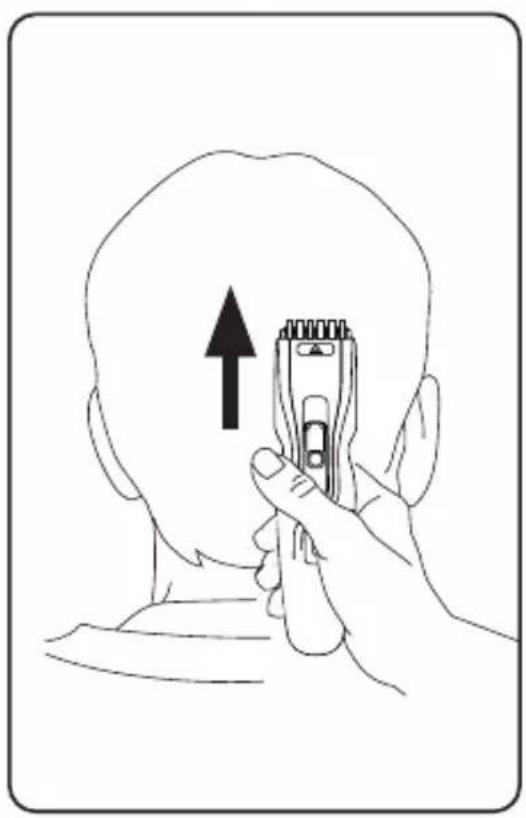

STEP 1 – NAPE:

- Attach the comb guide size 3 / 6 mm.

- Hold the appliance with the razor facing downwards and begin to cut the hair from the base of the neck.

- Make some upward movements, raising the appliance gradually and away from the head, cutting the hair gradually until the height of the ears (Fig.3).

STEP 2 – BACK OF HEAD:

- Attach comb guide size 9 / 12/ 15 /18 mm and continue with the back of the head (Fig.4).

STEP 3 – SIDE OF HEAD:

- Attach the longest comb guide size 9 / 12 / 15 / 18 mm again and continue until you reach the top of the head.

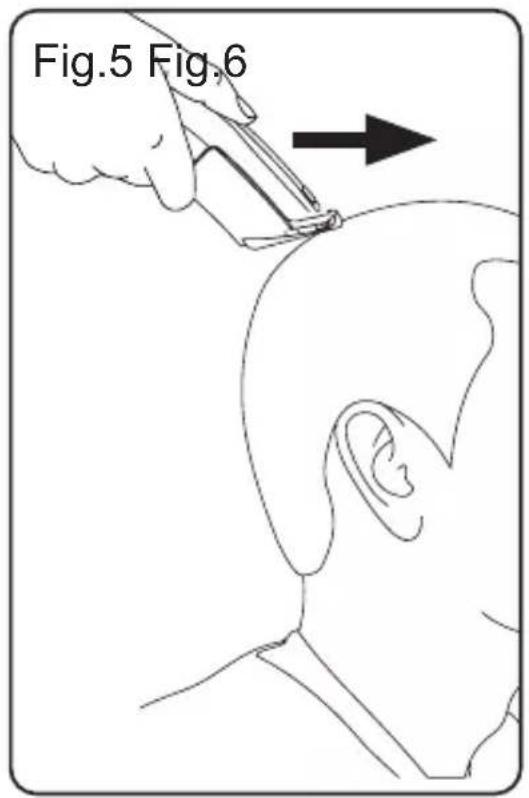

STEP 4 – TOP OF HEAD:

- Using comb guide size adjusted to desired height, pass the appliance from the back to the front, against the growth of the hair (Fig.5). In some cases, it's necessary to go over what you have done a second time from front to back.

- The comb guide size 3 / 6 mm is for when you want to achieve a more precise cut.

- Use comb guides size 9 / 12 / 15 / 18 mm to leave hair at a longer length. Hold the hair up with the comb or the comb and your fingers and cut.

- Always work form back to the front reducing the length between your fingers or the comb and the head gradually.

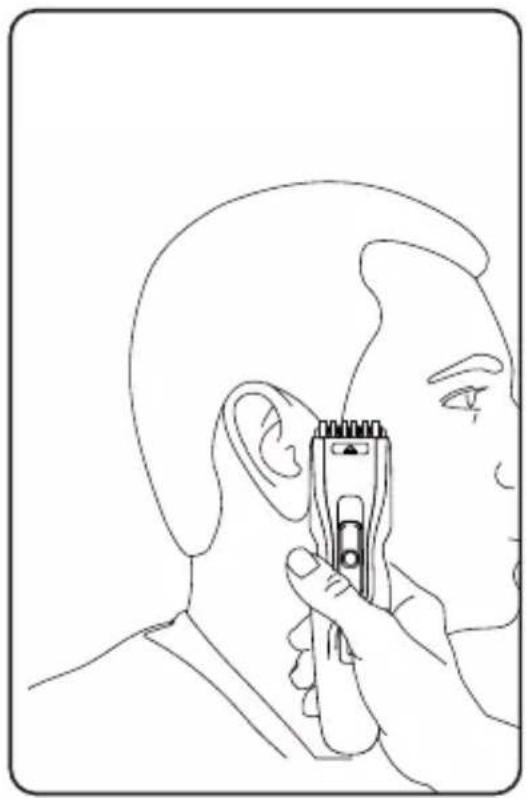

STEP 5 – FINAL TOUCH:

- Finally use the appliance without attaching any comb guides to the blades to cut the hair around the base of the neck, the sides of the neck and the ears.

- To make sideburns straight, turn the appliance over to use the upper blades (Fig.6). Move the appliance adapting it the physiognomy of the head. To achieve more precise results, use a shaver.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

- Turn the appliance off using the on/off button.

- Unplug the appliance from the mains.

- Clean the appliance.

CLEANING:

• Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.

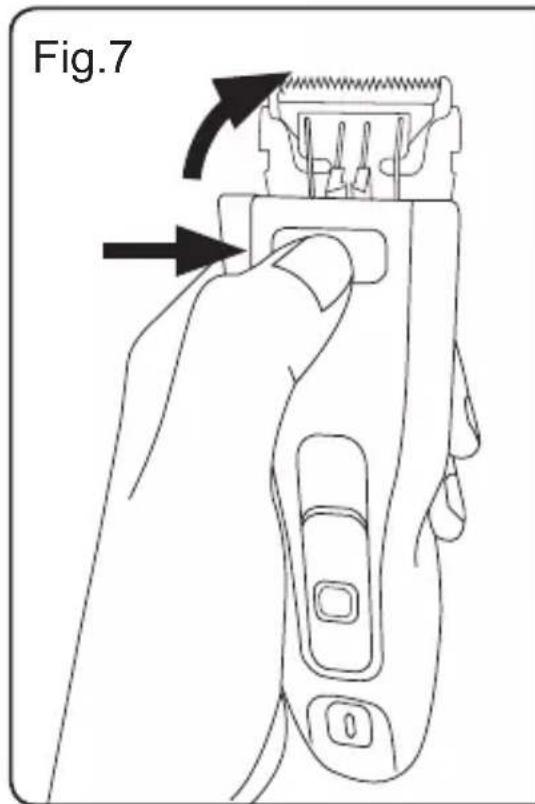

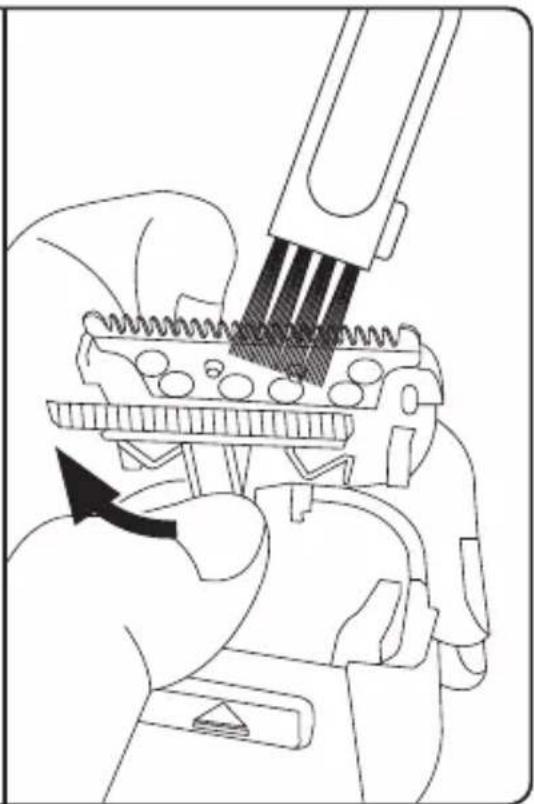

• To clean the blades, press button G, proceed to clean them using the brush. For a deeper cleaning, press the inner pivoting blade. (Fig.7).
• It is important to clean the hair after each use.
• Do not immerse the blades under the water.
• Once the appliance has been cleaned, add a drop of lubricating oil to the blades and keep the appliance on for a few seconds.

ANOMALIES AND REPAIR:

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

WARRANTY AND TECHNICAL ASSISTANCE

• This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.
• You can find the closest one by accessing the following web link: http://taurus-home.com.
• You can also request related information, by contacting us (see the last page of the manual
• manual and its updates at http://taurus-home.com.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

HC-0150

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This symbol means that product may include a battery or batteries; user must to remove them before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in fire.

This symbol means that appliance has a detectable supply unit.

This symbol means that it is important to read the operating actions.

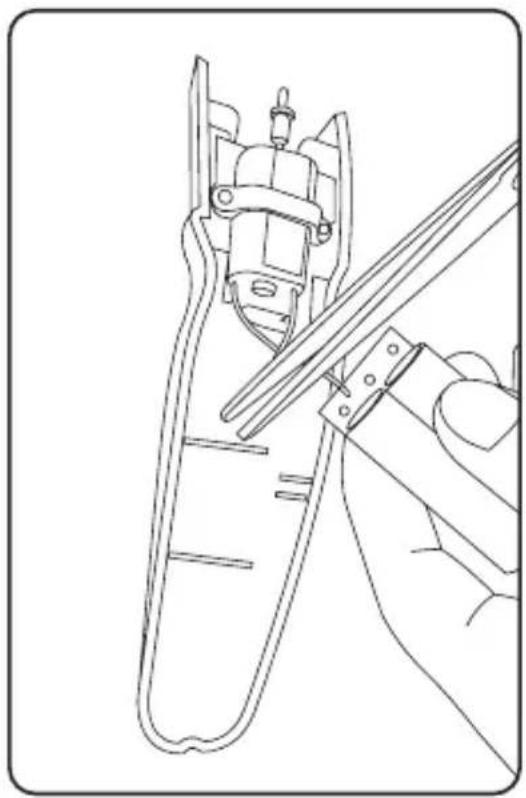

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

- CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

- CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.

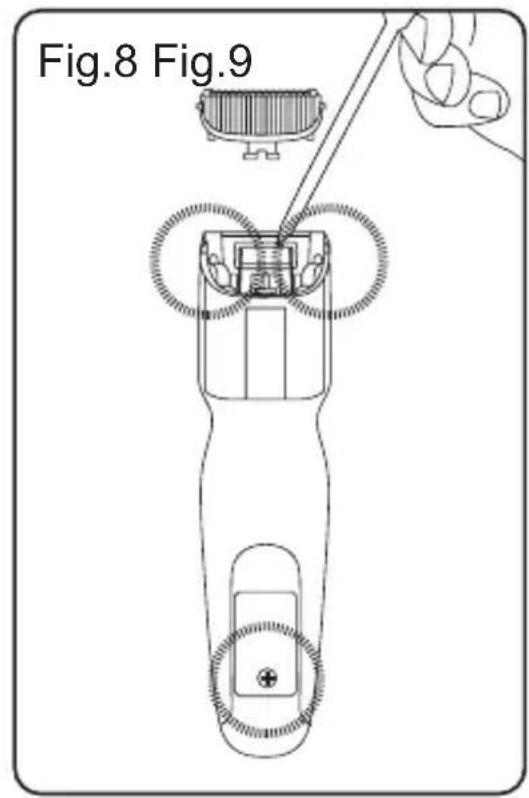

- To remove the batteries, once the life of the appliance, proceed as follows:

- Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws (Fig.8).

- Identify the battery wires and cut their (Red and Black). To avoid risks of a short circuit with a possible residual battery load, first cut the Red wire and protect it by using insulating tape, then proceed to cut the Black wire proceeding in the same way. (Fig.9).

- Safely remove the battery from its housing.

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

- The following information is regarding to energy labelling and ecodesign:

Trademark and address Electrodomésticos Taurus, S.L. Avda. Barcelona, s/n, 25790 Oliana, Lleida, Spain
Model HC-0150
Input Voltage 100-240 V
Input AC frequency 50/60 Hz
Output voltage 3,0 V
Output current 1,0 A
Output power 3,0 W
Average Active Efficiency 70,53 %
Efficiency at low load (10%) N/A
No-load power consumption 0,066 W

To establish compliance with the ecodesign requirements and for calculation of energy labelling parameters the appliance the European standard EN 50563 is used as reference.
