Hades - Beard trimmer TAURUS - Free user manual and instructions

Brand	Taurus
Model	Hades
Product type	Beard trimmer
Power supply	Rechargeable battery (mains charger included)
Charging time	Approximately 8 hours (first charge: 16 hours recommended)
Runtime	Not specified
Cutting length	1 to 8 mm (adjustable with wheel)
Blade material	Steel
Included accessories	Guide comb 1–8 mm, cleaning brush, lubricating oil, charger
Charge indicator	LED indicator (D)
Use	Cordless, on dry hair only
Cleaning	Brush the blades and comb; blades washable under running water (dry before reassembling)
Maintenance	Oil the blades after each cleaning
Safety	Do not use near water; do not immerse; unplug before cleaning
Warranty	According to applicable legislation; Taurus approved service
Certifications	EU directives: Low Voltage, EMC, RoHS, ecodesign
Manual pages	140 pages (multilingual)

Frequently Asked Questions - Hades TAURUS

How to charge the Taurus Hades trimmer for the first time?

Plug the charger into the device and into the mains. The indicator light turns on. Full charging takes about 8 hours, but for the first use, let it charge for 16 hours to optimize the battery.

How to adjust the cutting length?

Use the comb length selector (F) to choose a length between 1 and 8 mm. The guide comb must be engaged for an even cut.

Can I use the trimmer in the shower or on wet hair?

No. The device must not be used near water or on wet hair. It is intended for dry use only for safety reasons.

How to clean the blades?

Unplug the device, remove the comb and push the blades upward. Use the supplied brush to remove hairs. The blades can be rinsed under running water, but dry them completely before reassembling.

Should I oil the blades?

Yes, after each cleaning, pour a few drops of lubricating oil (supplied) on the blade ends, then run the device for a few seconds to distribute the oil evenly.

What to do if the device stops working?

First check the battery charge. If the problem persists, do not attempt to repair it yourself. Contact an approved Taurus technical service (list at taurus-home.com).

Can I use a charger other than the one supplied?

No. Use exclusively the charger supplied with the device. An unsuitable charger may damage the battery or pose a fire risk.

How to remove the battery at the end of its life?

Unplug the device and ensure the battery is completely discharged. Open the housing with a screwdriver, first cut the red wire then the black wire, insulate the ends with insulating tape and remove the battery. Dispose of it in a WEEE container.

Does the guide comb stay in place well?

Yes, it snaps into place by inserting the head into the rails until it clicks. To remove it, set the selector to maximum length and pull.

Where to find the complete manual?

You can download the manual for free in PDF format at notice-facile.com or on the Taurus website: http://taurus-home.com/. The manual has 140 pages and is available in several languages.

USER MANUAL Hades TAURUS

Line drawing of a hairbrush with adjustment knob and control buttons (no text or symbols)

Illustration of a hand holding a device with a magnified view showing internal components and a downward arrow (no text or symbols)

Line drawing of a person holding a device with an arrow indicating motion (no text or symbols)

Español

Barbero perfilador

Hades

Estimado cliente,

Many thanks for choosing to purchase a TAURUS brand product Thanks its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured

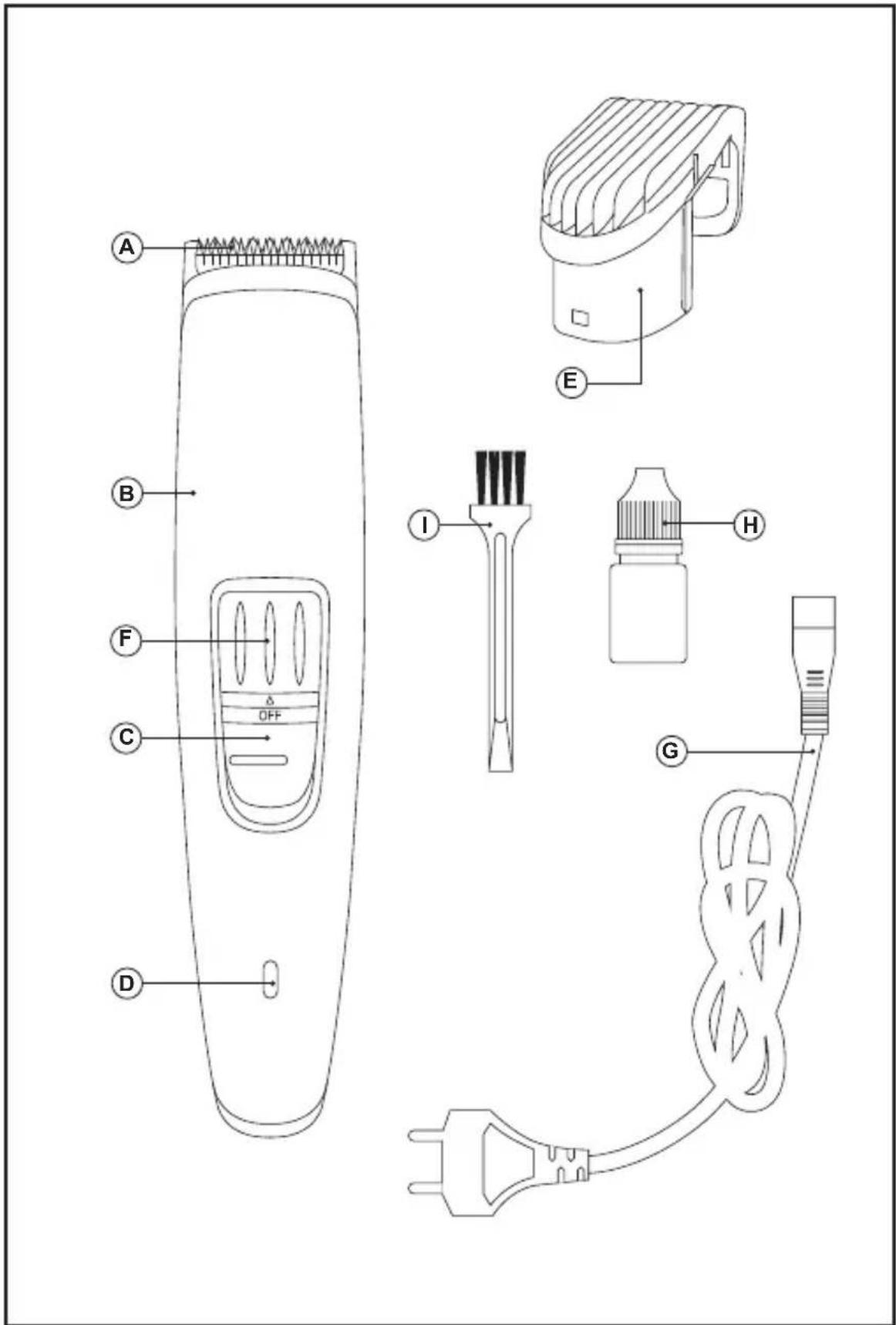

Description

A Blades/ head
B Appliance Body
C On/off switch
D Pilot light
E Guide comb measurements (1-8mm)
F Comb height selector
G Battery charger
H Lubricating oil
I Cleaning Brush

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident

Safety advice and warnings

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance
• Cleaning and user maintenance shall not be made by children without supervision
• WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water

This symbols means that product ,must not be used near water

This symbol means that product is not suitable for cleaning under an open water tap

- WARNING: Keep the appliance dry

- Only use the appliance with the specific electric connector provided

- Only connect the appliance to a safety extra low voltage corresponding to the marking on the appliance.

- The battery must be removed from the

appliance before it is scrapped

- The appliance must be disconnected from the supply mains when removing the battery

- The battery is to be disposed of safely

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an Authorized Technical Support Service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard

• Ensure that the voltage indicated on the charger rating label matches the mains voltage before plugging in the charger
• Connect the appliance to a socket that can supply a minimum of 10 amperes
• The charger's plug must fit correctly into the mains socket. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the battery charger.
• Do not wrap the power cord around the appliance
• Do not clip or crease the power cord
• Do not allow the power cord to come into contact with the appliance's hot surfaces
• Check the state of power cord. Damaged or tangled cables increases the risk of electric shock
• Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• Do not touch the plug with wet hands
• Do not use the appliance if the cable or plug is damaged
• If any of the appliance casings breaks, immediately disconnect the

appliance from the mains to prevent the possibility of an electric shock

• Do not use the appliance if it has fallen on the floor, if there are visible signs or if it has a leak.
• Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may accuse irritation or burns
• Keep the working area clean and well it. Cluttered and dark areas invite accidents
• Do not store or use the appliance outdoors.
• Do not leave the appliance out in rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock
• Do not use the appliance with damp hands or feet, or when bare-footed
• Do not touch any of the appliance's moving parts while it is operating

Use and care:

• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if its accessories attached to it are defective. Replace them immediately
• Do not use the appliance on wet hair.
• Do not use the appliance if on/off switch doesn't works
• Disconnect the battery charger from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional or industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Never rest the appliance into a surface while in use.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken

parts or anomalies that may prevent the appliance from operating correctly.

• Never leave the appliance unattended while in use.
• Keep children and bystanders away when using this appliance.
• Do not use the appliance with pets or animals
• Do not open the battery under any circumstances whatsoever
• Recharge the battery only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery
• Use the device only with the battery for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

Service:

• The appliance has been oiled in origin, In order to maintain the appliance in good operation conditions we suggest greasing the blades every time you clean it by putting a few drops of oil on the ends of the blade, and finally switching on the appliance during a few seconds.
• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and avoid.

Charging the battery:

• Caution: a new battery is not fully charged and must therefore be charged before the appliance is used for the first time.
• Charge the battery at an atmospheric temperature of between 4 and 40°C
• Connect the charger (G) to the jack using the socket on the appliance. The socket is located at the lower/back part of the appliance

• Plug the charger (G) into the mains.

• The pilot light (D) will come on to indicated that the charger is charging the battery

• Approximately 8 hours are needed for a complete charger of the battery. Never attempt to overcharge the battery (although it is recommended that the first charge of the battery be of 16 hours in duration).
• When the battery is charged disconnect the charger from the mains supply.
• NB: Do not use the appliance while it is connected to the charger.

Instructions for use:

Before use:

• Make sure that all the product's packaging has been removed
• Before use this product for the first

Insertion of a comb guide:

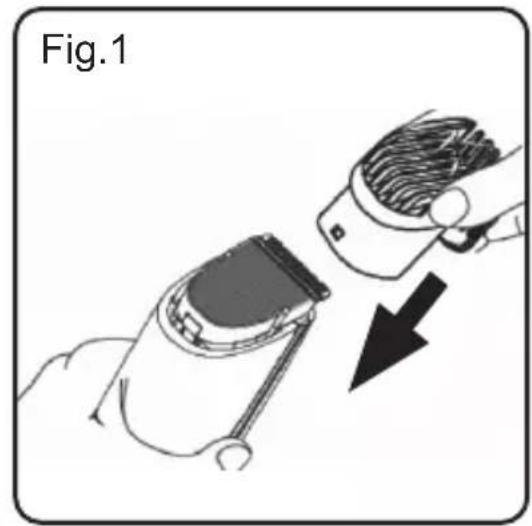

• Hold the guide comb by the two sides, insert the head into the guides and slide downward until it is coupled (Fig. 1)
• Use the comb size selector (F) to adjust the height of the cut.
• To extract the comb guide, adjust to the maximum height and pull out.

Use:

• Turn the appliance on, by using the on/off switch
• Select the desired cutting height using the comb height selector (F)

To trim:

• Attach the comb guide E to the appliance by pressing until it fits into its position with the teeth facing downwards.
• Cut the hair moving the appliance in the opposite direction of the natural growth of the hair.
• Always ensure that teeth of the comb guide are pointing in the direction in which the appliance is moving.

Once you have finished using the appliance:

• Turn the appliance off using the on/off switch.
• Clean the appliance

Cleaning:

• Disconnect the charger from the mains and allow it to cool before undertaking any cleaning task.
• Dismantle the appliance following these steps:

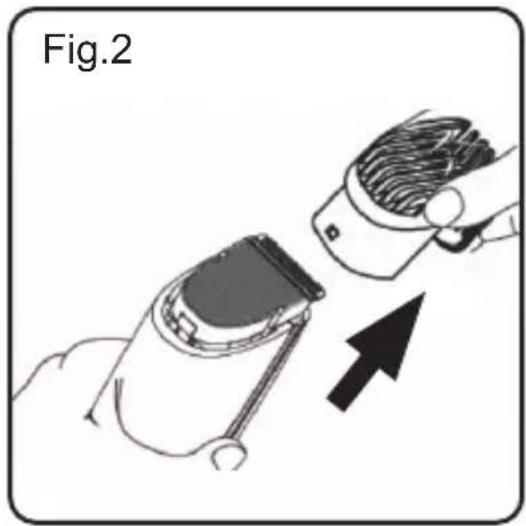

• Take off the position comb (fig 2).

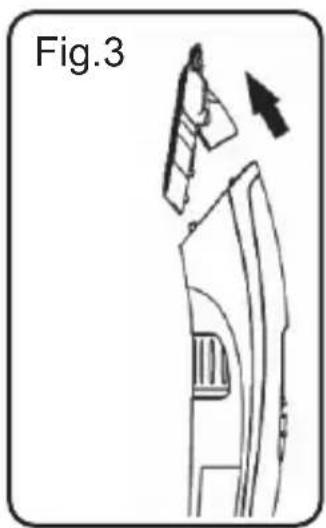

• Hold the main body, place your thumb against the blades and then push them away from the main body (fig 3).

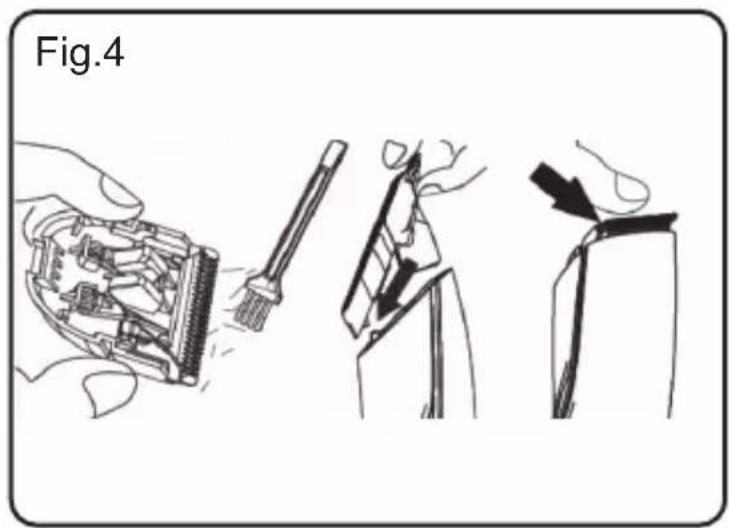

• Use the cleaning brush (I) to remove the hair from inside the appliance and the blades. (fig 4)
• Take the blade back in place after cleaning. (fig 4)
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.
• Clean the blades and the comb guide with the cleaning brush. Remove the hairs from the blades and from inside the appliance with the brush. It is important to clean off remaining hairs after each use.
• The blades can be washed under the tap. Make sure that the blade is completely dry before put it again on bear trimmer.

Anomalies and repair:

- Take the appliance to an authorized technical support service if product is damaged or other problems arise- Do not attempt to disassemble or repair the appliance yourself as this may be

dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This symbol means that product may include a battery or batteries; user must to remove them before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in

fire.

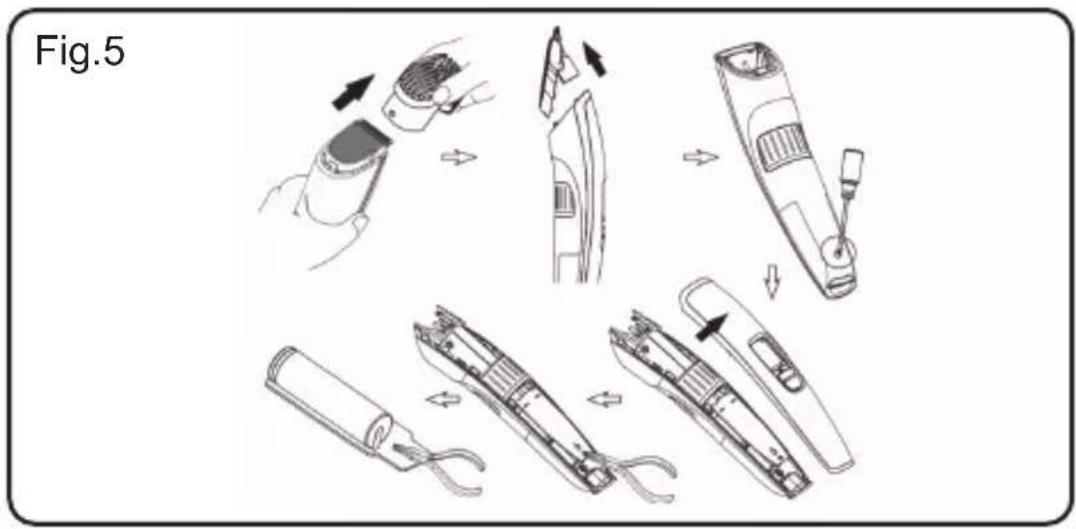

How to remove the batteries from the interior of the device:

CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.

To remove the batteries, once the life of the appliance, proceed as follows:

- Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws (Fig 5)

- Identify the battery wires and cut their (Red and Black). To avoid risks of a short circuit with a possible residual battery load, first cut the Red wire and protect it by using insulating tape, then proceed to cut the Black wire proceeding in the same way. - Safely remove the battery from its housing.

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Français

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
