SGH4HVX31E - Dishwasher BOSCH - Free user manual and instructions

Brand	Bosch
Model	SGH4HVX31E
Product type	Built-in dishwasher
Dimensions (height x width x depth)	86 cm x 60 cm x 55 cm (approximate)
Weight	Approximately 50 kg
Power supply	230 V, 10 A, 50 Hz
Capacity	13 place settings
Energy class	A+ (estimated)
Water consumption	10 L per cycle (estimated)
Noise level	44 dB(A) (estimated)
Main functions	Delayed start, half load, intensive drying, Vario drawer, EmotionLight, TimeLight
Interior lighting	EmotionLight (floor projector) and TimeLight (remaining time projection)
Washing system	Rotating spray arms, triple-layer filter
Baskets	Adjustable upper basket with cup shelf and steaming inserts, lower basket with Vario drawer
Maintenance and cleaning	Regular cleaning of filters and spray arms, periodic descaling
Safety	Automatic shut-off, child safety, leak protection
Spare parts and repairability	Original parts available: worktop, door, hinges, seals, lights, filters, pump, spray arms, etc.
Repairability index	8.5/10 (estimated)

Frequently Asked Questions - SGH4HVX31E BOSCH

How do I clean the dishwasher filters?

Remove the lower basket, turn the coarse filter counterclockwise and take out the filter system. Disassemble the microfilter, clean it under running water and reassemble everything by aligning the arrows.

What to do if the spray arms don't rotate?

Check that they are not blocked by debris. Unscrew the upper arm and remove it, then unclip the lower arm. Clean them under water and reassemble by snapping them in correctly.

How do I replace the lower door seal?

Unplug the appliance, remove the front panel, the plinth and the control panel. Then remove the clips from the seal, unhook the overflow channel, then remove the old seal. Install the new seal by clipping it on and reassembling everything.

Can I install a different worktop?

Yes, the worktop is removable. Unscrew the rear screws, push the locking levers, then slide the worktop backwards to remove it. Assembly is done in reverse order.

How do I change the EmotionLight?

Unplug the appliance and remove the worktop or side panel. Unclip the tab at the back, remove the socket from the top, disconnect the cable. Install the new socket into the tub frame and snap the tab in.

The dishwasher displays an error code, what should I do?

Refer to the complete manual for the meaning of the codes. Common errors involve water intake or draining. Check the filters, spray arms and hoses. If the problem persists, contact customer service.

How do I adjust the Vario drawer?

To disassemble it, bend the handle tabs, remove it, then push the side plastic inserts outward. Unclip the guide pins and remove the metal frame. Assembly is done in reverse order.

What type of detergent to use?

Use dishwasher detergent in powder, gel or tablet form. Follow the dosages indicated on the packaging. For all-in-one tablets, activate the corresponding option on the control panel.

How to maintain the door seals?

Clean the seals regularly with a damp cloth to prevent mold. If the seal is damaged, replace it following the instructions in the manual.

Where can I find spare parts for my model SGH4HVX31E?

You can order Bosch original parts from customer service or authorized websites. The references are given in the manual, for example: tablet guide [00614935], cup shelf [00618565].

USER MANUAL SGH4HVX31E BOSCH

4.2 Mounting the system from the chimney. 9

4.2.1 Mounting the flue pipe for 86-cm models 9 4.2.2 Mounting the fixing bracket for the chimney 9 4.2.3 Mounting the vapor generator insert 10

4.3 Replacing the varioDrawer drawer 11

4.3.1 Removing the varioDrawer drawer 11 4.3.2 Mounting the varioDrawer drawer 12

4.4 Replacing the spray arms 13

4.4.1 Removing the spray arm 13 4.4.2 Mounting the spray arm 13

4.5 Replacing the filters 14

4.5.1 Removing the filter 14 4.5.2 Mounting the filters 14

4.6 Mounting the spray head for tablets 15

4.7 Replacing the power cable 16

4.7.1 Disconnecting the power cable 16 4.7.2 Connecting the power cable 16

4.8 Replacing the detergent dispenser cap 17

4.8.1 Removing the detergent dispenser cap 17 4.8.2 Placing the spring 17 4.8.3 Mounting the detergent dispenser cap 17

4.9 Replacing the drain pump cover 18

4.9.1 Removing the drain pump cover 18 4.9.2 Mounting the drain pump cover 18

4.10 Replacing the door leaf, page 19

4.10.1 Removing the door leaf, page 19 4.10.2 Installing the door leaf, page 20

4.11 Replacing the upper door, page 21

4.11.1 Removing the upper door, page 21 4.11.2 Installing the upper door, page 21

4.12 Replacing the control panel, page 23

4.12.1 Removing the control panel, page 23 4.12.2 Installing the control panel, page 23

4.13 Fixing the spring-loaded door, page 24 4.14 Replacing the bottom panel, page 26

4.14.1 Removing the bottom panel, page 26 4.14.2 Installing the bottom panel, page 26

4.15 Replacing the main contact plate, page 27

4.15.1 Removing the main contact plate, page 27 4.15.2 Installing the main contact plate, page 27

4.16 Replacing the fuse, page 28

4.16.1 Removing the fuse, page 28 4.16.2 Installing the fuse, page 29

4.17 Replacing the inner door, page 31

4.17.1 Removing the inner door, page 31 4.17.2 Installing the inner door, page 31

4.18 Replacing the door handle, page 32

4.18.1 Removing the door hinges 32 4.18.2 Mounting the door hinges 32

4.19 Replacing the door seal (bottom) 34

4.19.1 Removing the door seal... 34 4.19.2 Mounting the door seal 35

4.20 Replacing the door seal (top) 36

4.20.1 Removing the door seal 36 4.20.2 Mounting the door seal... 36

Repair tips - DIY machine

4.21 Replacing the EmotionLight 37

4.21.1 Removing the EmotionLight 37 4.21.2 Mounting the EmotionLight 37

4.22 Replacing the TimeLight 40

4.22.1 Removing the TimeLight 40 4.22.2 Mounting the TimeLight 40

4.23 Replacing the gap illumination (lighting of the gap). 41

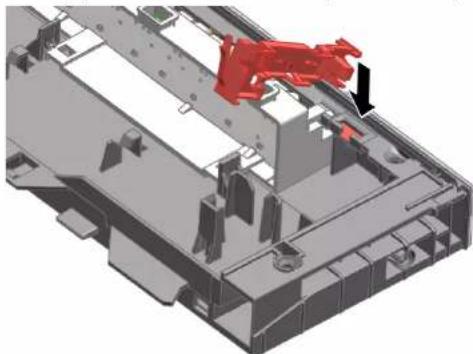

4.23.1 Removing the gap illumination 41 4.23.2 Mounting the gap illumination 42

About this document

1.1 Important information

1.1.1 Key

The repair and maintenance of the device should be carried out in accordance with the regulations for environmentally sound design of devices (OT03.2021).

The information about the spare parts is given in the relevant section, including the repair and maintenance parts.

If you have any questions, please contact our customer service department. We are not responsible for damages if the repair instructions have not been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger levels

You are warned by the symbol of a warning triangle. The signal word indicates the severity of the danger.

Ниво на predecessorнechе 3начене
ОПАСHОCT	Есnasbaанeto на predecessorнechею сбоб楚дени有很大 do сMbrt по серноши Нараловaning.
ПРЕДУПЕЖДЕНЕ	Есnasbaанeto на predecessorнechею сбоб楚дени有很大 do сMbrt по серноши Нараловaning.
ВИМATEЛНО	Есnasbaанeto на predecessorнechею сбob楚дени有很大 do сMbrt по серноши Нараловaning.
ВИМАHINEI	Есnasbaанeto на predecessorнechею сбob楚дени有很大 do сMbrt по сьпес委书记ни有很大 do.

Table 1: Danger levels

1.2.2 Danger symbols

The danger symbols are symbols that provide information about the type of hazard.

In this document, the following danger symbols are used:

Симboл за опасост 3начени	Овци поедуридатello сбобчине
	Опасост от[eilektprucecco наржени
	Риск ot[eckллозия
	Опасost от[nорязвени

About this document

4.2 Installation of the system by the customer

Requirement:

The appropriate customer service has been informed by the customer.

4.2.1 Installation of the base of the device for the 86-cm model

Special tools:

Guide pin [00614935] Cup retainer [00618565]

1. Insert the guide pin diagonally into the front part of the housing. 2. Center and press the guide pin into place.

4.2.2 Mounting the cup retainer

Special tools:

Guide pin [00614935] Cup retainer [00618565]

When the cup retainer can be removed. Before removing, the cup must be assembled with the guide pin and high cups, so we recommend leaving the retainer attached. If the upper cups have an additional plastic insert, it must be removed first.

1. Remove the plastic insert.

2. Press the retainer into place.

3. Attach the retainer.

Repair

1. Insert the item for removal

4.2.3 Mounting the generator block

Special tools:

Guide pin [00614935] Cup retainer [00618565]

Close the door of the refrigerator carefully until it clicks into place.

Repair

4.3 Replacing the varioDrawer drawer

1. Pull the drawer out fully.

4.3.1 Removing the varioDrawer drawer

2. Lift the drawer up and out.

1. Press the side parts inward and pull the drawer out of the frame.

Mount the drawer back in.

Repair

4.4 Replacing the door racks

4.4.1 Removing the door rack

1. Lift the door rack (1) and pull it towards you to remove it (2).

1. Pull the door rack upwards to remove it.

4.4.2 Installing the door rack

1. Place the door rack in position. The door rack clicks into place.
2. Place the filter back in place and secure it properly.

Repair

4.5 Replacing the filter

4.5.1 Removing the filter

1. Turn the filter counterclockwise to remove it from the filter housing (1) and pull it out of the filter system (2).

Make sure there is no debris in the cartridge.

2. Pull out the old filter to discard it.

4.5.2 Installing the filter

1. Insert the new filter into the filter system.

Make sure the locking tabs on the filter are aligned with the slots in the housing.

1. Place the filter system back and turn the filter clockwise in the direction of the arrow.

Make sure the markings align with the arrows.

Repair

4.6 Installing the spray head for tablets

1. Remove the old nozzle. 2. Place the spray head for tablets on the top (1) and tighten it by hand (2).

The base plate is installed.

4.10.2 Mounting the side panels

1. Place the side panels in the recess of the base (1).

Fig. 2: Mounting the side panels

2. Press the side panels onto the recess (2). 3. Secure the side panels with the screws (3).

Repair

4.11 Replacing the outlet valve

Warning:

The device is disconnected from the power supply. The device is disconnected from the water supply.

4.11.1 Removing the outlet valve

Simply unscrew the screws, as shown in the figure.

1. Open the valve. 2. Unscrew the four screws.

3.

Close the valve, holding the opposite side.

Unscrew the five screws.

4.11.2 Adjusting the outer door

Cables that have been routed are not secured! They must be secured.

Place the cables and fix them with the cable ties.

Repair

Removal:

The insulating jacket is correctly positioned on the inner side and the outer door. The outer door is hinged.

1. Close the inner door, without slamming it.

1. Press the outer door upwards against the control panel (1).

1. Press the outer door towards the inner door (2).

4.

Secure the door by tightening the hinge side.

Open the doors and secure with the screws (metal 4 x 11 mm screws).

5. Secure the outer door with the screws (metal 4 x 11 mm screws).

Repair

4.12 Control panel

If the operating module is defective, the control panel must be replaced.

Removal:

Remove the protective cover. Remove it from the power supply. The rear door is closed. The rear door is closed (optional/integrated).

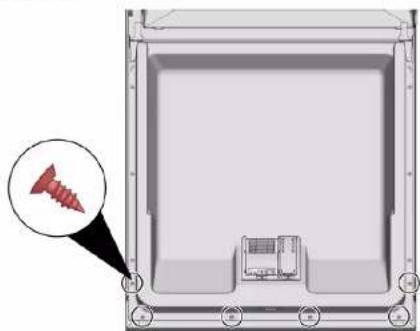

4.12.1 Removing the control panel

1. Disconnect the electrical connections from the control panel, the sensor for the door lock (1, 2).

2. Disconnect the grounding cable (3) (optional). 3. Open the rear door. 4. Secure the control panel to prevent it from falling (support it).

5. Remove the six screws.

6. Remove the control panel.

4.12.2 Installing the control panel

Use screws 4x16 mm.

Install in reverse order.

Repair

4.14.2 Installing the bottom panel

1. Place the cover. 2. Attach the bottom panel to the opening (1) and press it down until it clicks into place (2).

4.15 Replacing the main contact

The main contact is located in the lower part.

Warning:

Disconnect the appliance from the power supply. Disconnect the appliance from the mains. The main plug (if applicable) is disconnected. The main switch is disconnected. The main switch is disconnected (if integrated). The main plug is disconnected (if applicable).→26

4.15.1 Removing the main contact

1. Remove the two screws (1).

2. Release the clamping elements (2).

1. Carefully pull the main contact forward (1).

4.

Depending on the series/model, the device may be secured with additional screws.

Release the device from the holder or the screws on the rear side (if applicable) (2).

4.15.2 Installing the main contact

Install the main contact in reverse order.

4.16 Drain hose connection for condensate

The drain hose is located at the bottom rear of the appliance.

Requirements:

The appliance is excluded from the warranty. The appliance is excluded from the power supply network. The furniture panel is glued (once). The height is glued. The bottom panel is glued (once, see 26). The door hinge is glued (see 27).

4.16.1 Connecting the drain hose

Residual water

When the appliance is tilted, residual water may leak out. Stop the water before tilting the appliance.

1. Release the door catch mechanism (1,2).

4.20.2 Installing the door seal

The pre-assembled door seal must be cut to the correct length. It is 1750 mm for appliances with a height of 81 cm and 1850 mm for appliances with a height of 86 cm.

1. Prepare the door seal. 2. Determine the correct position for installing the seal profile.

1. The seal must be level with the seal groove.

4

The seal must not be stretched or compressed. The seal is cut diagonally at the ends and then glued to the height of the container edge.

Insert the seal into the groove and align it properly along the door. The seal must be able to be removed from the container.

The device is installed on the door:

Repair

4.21 Replacing the EmotionLight

The EmotionLight is located in the upper front part of the water heater.

Removal:

Disconnect the device from the power supply. Disconnect the device from the water supply. The screws are freely accessible. The working light is switched on (once). The display light is switched on (once).→19

4.21.1 Removing the EmotionLight

1. Remove the cover of the fastener from the rear (1).

1. Press the latch upwards (2).
2. Select the plug from the connector (the red one from the front side of the device).

4. Disconnect the electrical connection from the power supply module.

1. Remove the EmotionLight from the device.

4.21.2 Installing the EmotionLight

1. Place the bracket on the frame of the water heater (1).

Repair

2.3 Install the cable on the actuator (2).

3

WARNING!

Incorrect installation!

Route the cable in the area of the door panel.

Install the cable in the area of the door panel (between

the panel and the water tank or the spray arm) so that it

cannot be damaged by moving parts.

Install the cable on the smooth side.

Repair

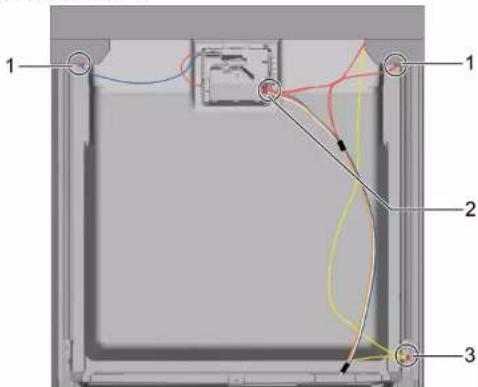

Fig. 3: Cable routing

4. Switch on the appliance.

4.23 Length of the light bar (product lighting)

Requirement:

The device is disconnected from the power supply. The device is disconnected from the mains. The door is open. The control panel is removed.

4.23.1 Removing the Gap illumination

1.1. Remove the cover of the device (1).

2. Disconnect the electrical connection from the operating module (2).

2.1. Remove the hook from the rear of the device (1).

2. Disconnect the dampening unit (2).

Repair

3.1. Remove the hook from the device (1).

1. Pull the printed circuit board with the holder and remove it from the frame and the operating module (2).

4.23.2 Installing the Gap illumination

1. Place the holder with the printed circuit board in the frame of the operating module.

2. Insert the connector and tighten the screw.

1. Install the dampening unit, tighten it, and tighten the screw.

4. Connect the wires to the operating module.

Fig.2: Integrated consumer unit

1. Insert the side panel into the consumer unit (2).
2. Secure the side panel with screws (3).

Repair

4.11 Replacing the outer door

Requirement:

4.23 Replacing Gap Illumination

Requirement:

4.22.1 Removing timeLight 163 4.22.2 Installing timeLight 163

4.23 Replacing Gap illumination 164

4.23.1 Removing Gap illumination 164 4.23.2 Installing Gap illumination 165

4.21.2 Installing emotionLight

1. Hold the rinse tank frame (1).

Repair

1. Activate the locking hook (2).

3.

BEMERKI

Incorrect installation!

4.22 Replacing the timeLight

4.22.1 Removing the timeLight

4.22.2 Installing the timeLight

4.23 Replacing the Gap illumination

Presetting:

4.23.2 Installing the Gap illumination

1. Insert the circuit board holder into the frame of the operating module.

2.1 General Safety instructions 212 2.1.1 All domestic appliances 212

Tools and aids. 213

Repair 214

4.1 Replacing worktop 214

4.1.1 Removing worktop 214 4.1.2 Installing worktop 214

4.2 Installing basket system 215

4.2.1 Installing a tab slide for the 86 cm model 215 4.2.2 Installing cup support clip 215 4.2.3 Installing steamer insert 216

4.3 Replacing varioDrawer 217

4.3.1 Removing varioDrawer 217 4.3.2 Installing varioDrawer 218

4.4 Replacing spray arms 219

4.4.1 Removing spray arm 219 4.4.2 Installing spray arm 219

4.5 Replacing filters 220

4.5.1 Removing filter 220 4.5.2 Installing filters 220

4.6 Installing baking sheet spray head 221

4.7 Replacing power cord 222

4.7.1 Unplugging power cord 222 4.7.2 Plugging in power cord 222

4.8 Replacing detergent cover 223

4.8.1 Removing detergent cover 223 4.8.2 Inserting spring 223 4.8.3 Installing detergent cover 223

4.9 Replacing wastewater pump cover 224

4.9.1 Removing wastewater pump cover 224 4.9.2 Installing wastewater pump cover 224

4.10 Replacing side panel 225

4.10.1 Removing side panel 225 4.10.2 Installing side panel 226

4.11 Replacing outer door 227

4.12 Replacing control panel 229

4.12.1 Removing control panel 229 4.12.2 Installing control panel 229

4.19 Replacing (lower) door seal 240

4.19.1 Removing the door seal 240 4.19.2 Installing the door seal 241

4.20 Replacing (upper) door seal 242

4.20.1 Removing door seal 242 4.20.2 Installing door seal 242

Repair hints - Dishwasher

4.21 Replacing EmotionLight 243

4.21.1 Removing EmotionLight 243 4.21.2 Installing EmotionLight 243

4.22 Replacing TimeLight 246

4.22.1 Removing TimeLight 246 4.22.2 Installing TimeLight 246

4.23 Replacing Gap illumination 247

4.23.1 Removing Gap illumination 247 4.23.2 Installing Gap illumination 248

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumers in repairing appliances themselves in accordance with the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts, including warnings and risks.

If you have any questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations that give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardized appearance and a standardized structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
i	Identification of a special tip (text and/or graphic)
j	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Table 3: General symbols

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Insulated Screw- driver Torx T15 with bore hole [15000626]	Blade length 125 mm, for screws with safety pin
Slotted screwdriver	Blade 10 mm x 1.6 mm x 200 mm
Needle nose pliers [00340871]	Length: 200 mm, straight

4.1 Replacing worktop

Prerequisite:

Appliance is disconnected from the power supply. Appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).
2. Press both catch levers under the worktop upwards (2).

1. Lift the worktop slightly at the front (3).
2. Push worktop away towards the rear (4).
3. Remove worktop.

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

1. Push worktop forwards (2).
2. Press the front of the worktop downwards until both catch levers click audibly into place (3).
3. Screw in the two screws again (4) (optional).

Repair

4.2 Installing basket system

Prerequisite:

The relevant basket has been removed from the appliance.

4.2.1 Installing a tab slide for the 86 cm model

Required tools:

Tab guide [00614935] Cup support clip [00618565]

1. Insert the tab slide diagonally at the front of the basket.
2. Center and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools:

Tab guide [00614935] Cup support clip [00618565]

When washing cups, the cup support clip can be folded up. The additional angle reduces the collection of water on the bottom of cups. In the case of tall glasses, we recommend leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be removed.

1. Remove the plastic insert.

1. Click the cup support clip into place.

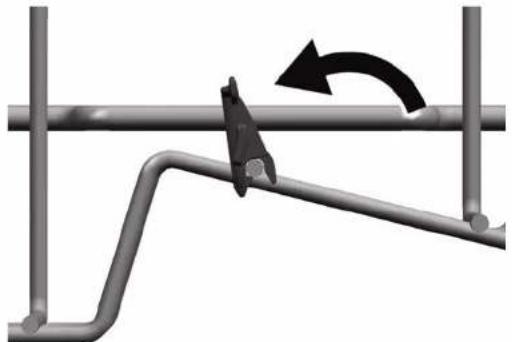

1. Fold up the clip.

Repair

1. Position the items to be washed.

4.2.3 Installing steamer insert Required tools:

Tab guide [00614935] Cup support clip [00618565]

• Wedge the steamer insert with the end pieces under the basket system.

Repair

4.3 Replacing varioDrawer

4.3.1 Removing varioDrawer

1. Bend the handle flaps inwards.

1. Remove the handle upwards.
2. Press plastic side inserts outwards and press them upwards out of the frame.

1. Carefully bend the guide tabs outwards.

1. Pull the folding spines out of the tabs.
2. Press metal frame at the front out of the holders.

1. Push metal frame back out of the guide.

4.3.2 Installing varioDrawer

Install in reverse order.

Repair

4.4 Replacing spray arms

4.4.1 Removing spray arm

1. Unscrew the upper spray arm (1) and pull down to remove (2).

1. Pull down the lower spray arm to remove.

4.4.2 Installing spray arm

1. Insert the lower spray arm. The spray arm clicks into position.
2. Insert the upper spray arm and screw it firmly in place.

Repair

4.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Check that no foreign objects fall into the sump.

1. Pull down the micro filter to remove.

4.5.2 Installing filters

1. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position.
2. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

Repair

4.6 Installing baking sheet spray head

1. Remove top basket.
2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

The baking sheet spray head clicks into position.

Repair

4.7 Replacing power cord

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible.

4.7.1 Unplugging power cord

• Move the plug of the power cord carefully up and down and pull it out of the mains socket.

4.7.2 Plugging in power cord

Notice

Overheating of main connection!

Risk of fire

Firmly insert the power cord until it clicks.

• Insert the plug of the power cord into the mains socket until the plug clicks audibly into place.

Repair

4.8 Replacing detergent cover

A small screwdriver can be used as a levering tool.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Door has been opened. Detergent cover has been opened.

4.8.1 Removing detergent cover

1. Slide the detergent cover in 5 mm
2. Lever the detergent cover on the lower side out of the guide rails and take the detergent cover on the upper side out of the guide rails.
3. Remove the spring.

4.8.2 Inserting spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

1. Insert the short end of the spring into the mounting hole of the detergent cover (2).
2. Press cover into the dispenser device (3).

4.8.3 Installing detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide rails on one side. Applying gentle force, press the opposite side into the guide rails.
2. Check the function of the detergent cover.

Repair

4.9 Replacing wastewater pump cover

Prerequisite:

Basket has been removed. Filters have been removed. → Page 220

4.9.1 Removing wastewater pump cover

1. Scoop out any water. Use a sponge if necessary.
2. Prise off the pump cover using a spoon and grip it by the crosspiece.

1. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

Insert the pump cover (1) and press down (2).

The pump cover clicks into position.

Repair

4.10 Replacing side panel

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible. For free-standing appliances: The worktop has been removed. See page 214.

4.10.1 Removing side panel

1. Remove the screws from the side panel (1).

Fig. 1: Fully integrated

1. Tilt the side panel slightly outwards at the top (2).
2. Lower the side panel and pull it out of the base trough (3).

Repair

4.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Fig. 2: Fully integrated

1. Press the side panel onto the appliance (2).
2. Secure the side panel with screws (3).

Repair

4.11 Replacing outer door

Prerequisite:

The appliance is disconnected from power supply. The appliance is disconnected from water supply.

Only remove the screws described in the following steps.

1. Open the door.
2. Remove four screws.

3

Secure the door by holding it on one side.

Remove two screws.

Insulating fleece has been correctly positioned and fixed on the inside of the outer door. Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.
2. Push the outer door upwards underneath the control panel (1).

1. Press the outer door against the inner door and hold (2).

4.

Secure the door by holding it on one side.

Open the door and secure it with two screws (4 x 11 mm metal screws).

1. Secure the outer door with four screws (4 x 11 mm metal screws).

Repair

4.12 Replacing control panel

If an operating module is defective, the entire control panel must be replaced.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid sensor (1, 2).

1. Disconnect the earth cable (3) (optional).
2. Open the appliance door.
3. Secure the control panel to prevent it from falling down (hold on to it).
4. Remove six screws.

1. Remove the control panel.

4.12.2 Installing control panel

Use screws 4 × 16 mm .

Install in reverse order.

Repair

1. Remove cord guide cover out.

2.1. Open door slightly (1).

1. Fix in the groove of the base trough (2).
2. Slowly close the door (3).

The cord system attaches itself automatically to the door hinge.

Repair

3.1. Slightly close the door (4).

1. Move the groove to the back and release the door hinge (5).
2. Open the door (6).

1. Repeat the process on the other side of the appliance.

Repair

4.14 Replacing the toe panel

The feet are identical and can be swapped over.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.14.1 Removing the toe panel

1.

Incorrect removal. If the toe panel is loosened at the side and removed, the two brackets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

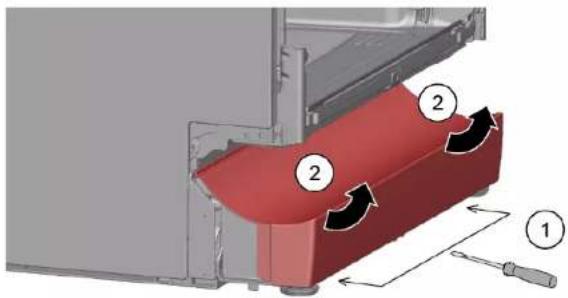

1. Reach into the guides (1) with a screwdriver and release the catch by pushing downwards.

1. Lift the panel off.
2. Remove the feet forwards (1).

4.14.2 Installing toe panel

1. Insert the feet.
2. Attach the toe panel at the top (1) and press it down until it audibly clicks into place (2).

Repair

4.15 Replacing base socket plate

The base socket plate is located in the lower area at the front.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The furniture panel (optional) has been removed. The outer door has been removed. The outer door has been removed (fully integrated/integrated). The toe panel has been removed (optional). See page 232.

4.15.1 Removing base socket plate

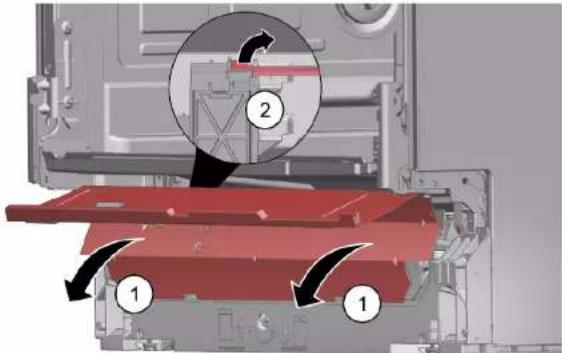

1. Remove two screws (1).

1. Disengage catch elements (2).
2. Tilt the base socket plate carefully forwards (1).

4.

Depending on the model series, the plug to the EmotionLight is still secured to the base.

Unlock the plug on the catch tappet and pull to the rear (optional) (2).

4.15.2 Installing base socket plate

Install the base socket plate in reverse order.

Repair

4.16 Replacing overflow conduit

The overflow conduit is located in the front lower area of the appliance.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel has been removed (optional). Outer door has been removed. Toe panel has been removed (optional). → Page 232 Base socket plate has been removed. → Page 233

4.16.1 Removing overflow channel

Residual water

• When the drainage hose is removed, residual water may run out. Catch water or remove from the base pan with suction syringe.
• Lever out of the catch mechanism at the top (1, 2).

1. Release catch element at top.

3.1. Insert screwdriver below metal brake (1).

1. Gently release metal clip (2).

Repair

1. Lift overflow conduit off.

4.16.2 Installing overflow conduit

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

1. Place overflow conduit (1).
2. Move overflow conduit into seal (2).
3. Press overflow conduit in guide of seal (3).
4. Insert overflow conduit concisely (4).
5. Clip in overflow conduit (5).

Repair

1. Check installation left and right. 3. Check firm seat.

1. Clip in metal clip on left and right side.

Repair

4.17 Replacing inner door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.17.1 Removing inner door

1. Remove screws (1).
2. Remove inner door upwards (2).

1. Secure door hinge with screws.
2. Place inner door on door hinge.
3. Secure inner door with screws.

4.17.2 Installing inner door

1. Flap door seal to front.
2. Move inner door behind door seal.
3. Close inner door.
4. Flap door seal upwards.

Side parts show upwards.

1. Move door hinge upwards.

Repair

4.18 Replacing door hinge

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Side panel has been removed. (See page 225) Outer door has been removed. Inner door has been removed. Control panel has been removed. (See page 229) Door springs have been fixed. (See page 230) Toe panel has been removed. (See page 232) Base socket plate has been removed. (See page 233) Overflow channel has been removed. (See page 234)

1. Release catch hook with a screwdriver (1).
2. Pull door hinge forwards (2).

1. Release ground connection on door hinge.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repairs.

Electric parts should be repaired by a qualified electrician. After the repair, have a safety test according to VDE 0701 or country-specific regulations performed.

Repair

1. Place hinge on appliance (1)
2. Move hinge downwards (2) till it is latched to the appliance.

2.

A missing ground connection can lead to mains potential on door.

Establish ground connection.

Repair

4.19 Replacing (lower) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Base socket plate has been removed. → Page 233 Toe panel has been removed (optional). → Page 232 Door springs have been removed. Control panel has been removed. Cable harness holder on bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

1. Detach the overflow channel.

1. Lift the overflow gutter off.

Repair

1. Remove the lower door seal from the inner door.

4.19.2 Installing the door seal

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

1. Insert the door seal with the sealing flap in the inner door.
2. Secure the door seal with two retaining clips.

Repair

4.20 Replacing (upper) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.20.1 Removing door seal

Remove door seal from inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare appropriate door seal.
2. Ensure correct installation position of sealing profile.

1. White dot must be on level with sealing bed strip.

4

Sealing must not be wavy or stretched at corners. Seal is cut off diagonally at ends and tapers away into bottom of container at front.

Position end of seal straight to front underneath inner door. Seal should lie against side of container as far as possible.

Correctly installed door seal:

Repair

4.21 Replacing EmotionLight

The EmotionLight is situated in the upper front exterior area of the rinsing tank.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Worktop has been removed (optional). The right-hand side panel has been removed (optional).

4.21.1 Removing EmotionLight

1. Detach catch hook at the rear (1).

1. Remove the holder upwards (2).
2. Pull plug out of connector (bottom right at front of appliance).
3. Remove electrical connection from the power module.

1. Remove EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Repair

1. Engage the catch hook (2).

3

Install the cable on the right lower side.

Repair

Fig. 3: Flat cable

1. Insert the plug.

Repair

4.22 Replacing TimeLight

Replace the TimeLight only as a complete part.

The TimeLight module is fixed to the rear of the base socket plate.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The toe panel has been removed. (See page 232) The base socket plate has been removed and turned. (See page 233)

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

1. Pull the TimeLight module upwards out of the guide (2).

4.22.2 Installing TimeLight

1. Bend the catch elements (1) back again.

1. Push the TimeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door is disassembled. Operation panel has been removed.

4.23.1 Removing Gap illumination

1. Detach catch (1).
2. Remove electrical connection from the operation module (2).

2.1. Detach catch hook at rear (1).

1. Remove light fibre (2).

Repair

3.1. Detach catch hook (1).

1. Lift up PCB with holder and remove it from operation module frame (2).

4.23.2 Installing Gap illumination

1. Insert PCB holder to operation module frame.

1. Tighten it with a "click" sound.

1. Install light fibre and tighten it with a "click" sound.

1. Connect wire to operation module.

1 About this document 251

1.1 Important information 251 1.1.1 Purpose 251 1.2 Explanation of symbols 251 1.2.1 Safety devices 251 1.2.2 Hazard symbols 251 1.2.3 Structure of warnings 252 1.2.4 General symbols 252

Safety 253

2.1 General safety instructions 253 2.1.1 All household appliances 253

Table 1: Safety devices

1.2.2 Hazard symbols

Hazard symbols are symbolic representations that indicate the nature of the hazard. The following hazard symbols are used in this document.

1.1 Important information 333

4.2.3 To connect the device to the power supply, use the following:

Connect the power cable [00614935] and the grounding cable [00618565] - to connect the device to the power supply, connect the cables to the terminals of the system.

CONNECTION

4.3 Replacing the battery drawer

The chapter describes the procedure for replacing the battery drawer.

CONNECTION

4.7 Replacing the flow meter

Regulations:

The device is not protected against overpressure. The device is not protected against overpressure. The pressure on the devices is free.

4.7.1 Removing the flow meter

Move the flow meter to the front or back and remove it from the pipe.

4.7.2 Connecting the flow meter

CAUTION!

4.23.2 Mounting the illumination bar

4.17.1 Remove an interior door 731 4.17.2 Install the interior door 731

4.18 Replace the door hinge 732

4.18.1 Remove the door hinge 732 4.18.2 Install the door hinge 732

4.19 Replace the door seal (lower) 734

DANGER

Risk of electric shock due to live parts!

4.17.1 Remove the interior door

4.17.2 Install the interior door

4.23.1 Remove the Gap Illumination

1. Release the catch (1).
2. Disconnect the electrical connection of the operating module (2).

2.1. Unhook the rear catch (1). 2. Remove the optical fiber (2).

Repair

3.1. Unhook the locking hook (1).

4.23 Replacing Gap illumination 823

4.23.1 Removing Gap illumination 823 4.23.2 Installing Gap illumination 824

About this document

4.23 Replacing Gap illumination

Requirement:

4.23 Replacing Gap illumination

Prerequisite:

The device is disconnected from the power supply. The device is disconnected from the water supply. The outer door has been removed. The control panel has been removed.

4.23.1 Removing Gap illumination

1. Release the latch (1).
2. Disconnect the electrical connection from the control module (2).

2.1. Unhook the locking hook at the rear (1).

1. Remove the louse fiber (2).

Repair

3.1. Loosen the hook (1).

4.23.2 Mount Gap illumination

1. Insert the circuit board into the frame of the operating module.

Special auxiliary equipment:

Tab Guide [00614935] Spare part [00618565]
