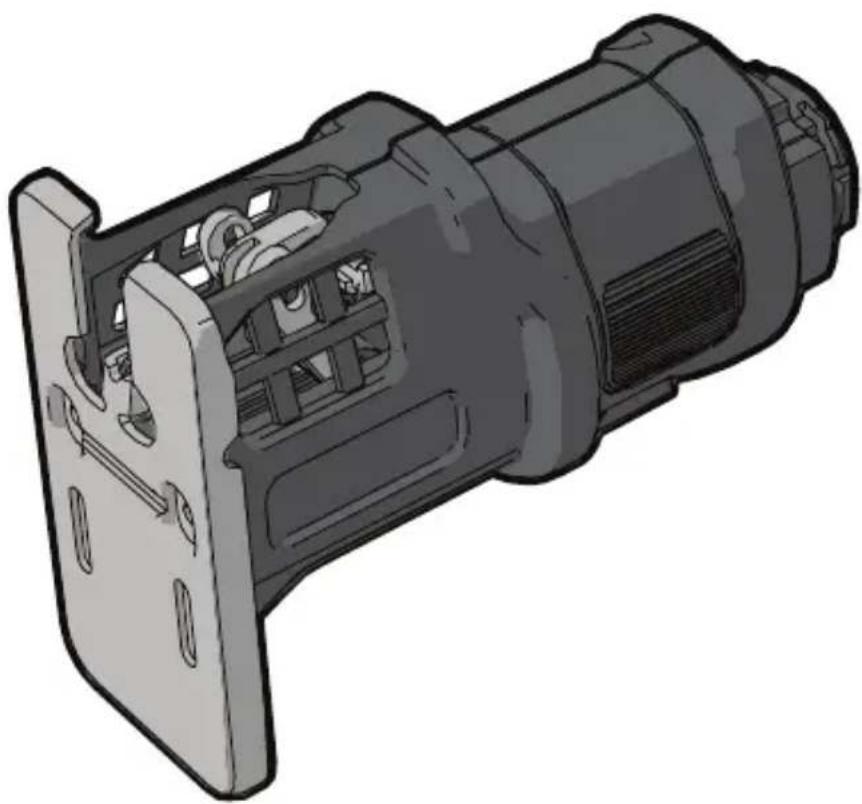


BLACK & DECKER MTJS1 - 2


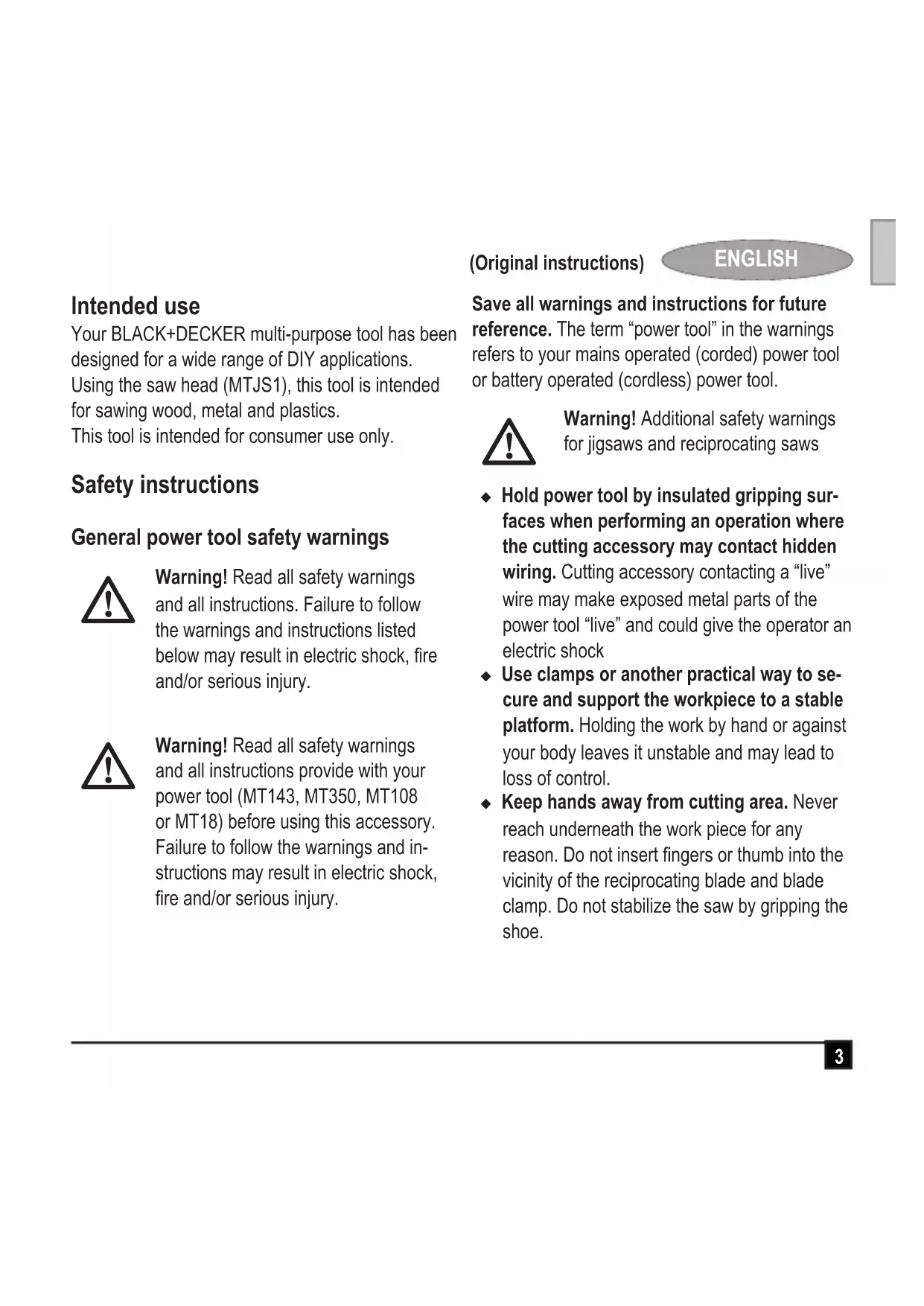

Intended use

Your BLACK+DECKER multi-purpose tool has been designed for a wide range of DIY applications. Using the saw head (MTJS1), this tool is intended for sawing wood, metal and plastics. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

BLACK & DECKER MTJS1 - General power tool safety warnings - 1

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

BLACK & DECKER MTJS1 - General power tool safety warnings - 2

Warning! Read all safety warnings and all instructions provide with your power tool (MT143, MT350, MT108 or MT18) before using this accessory. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

(Original instructions)

BLACK & DECKER MTJS1 - (Original instructions) - 1

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

BLACK & DECKER MTJS1 - (Original instructions) - 2

Warning! Additional safety warnings for jigsaws and reciprocating saws

Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock
Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
Keep hands away from cutting area. Never reach underneath the work piece for any reason. Do not insert fingers or thumb into the vicinity of the reciprocating blade and blade clamp. Do not stabilize the saw by gripping the shoe.

ENGLISH

(Original instructions)

Keep blades sharp. Dull or damaged blades may cause the saw to swerve or stall under pressure. Always use the appropriate type of saw blade for the workpiece material and type of cut.
When cutting pipe or conduit, make sure that they are free from water, electrical wiring, etc.
Do not touch the workpiece or the blade immediately after operating the tool. They can become very hot.
Be aware of hidden hazards, before cutting into walls, floors or ceilings, check for the location of wiring and pipes.
The blade will continue to move after releasing the switch. Always switch the tool off and wait for the saw blade to come to a complete standstill before putting the tool down.

BLACK & DECKER MTJS1 - (Original instructions) - 1

Warning! Contact with, or inhalation of dusts arising from cutting applications may endanger the health of the operator and possible bystanders. Wear a dust mask specifically designed for protection against dust and fumes and ensure that persons within or entering the work area are also protected.

- The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

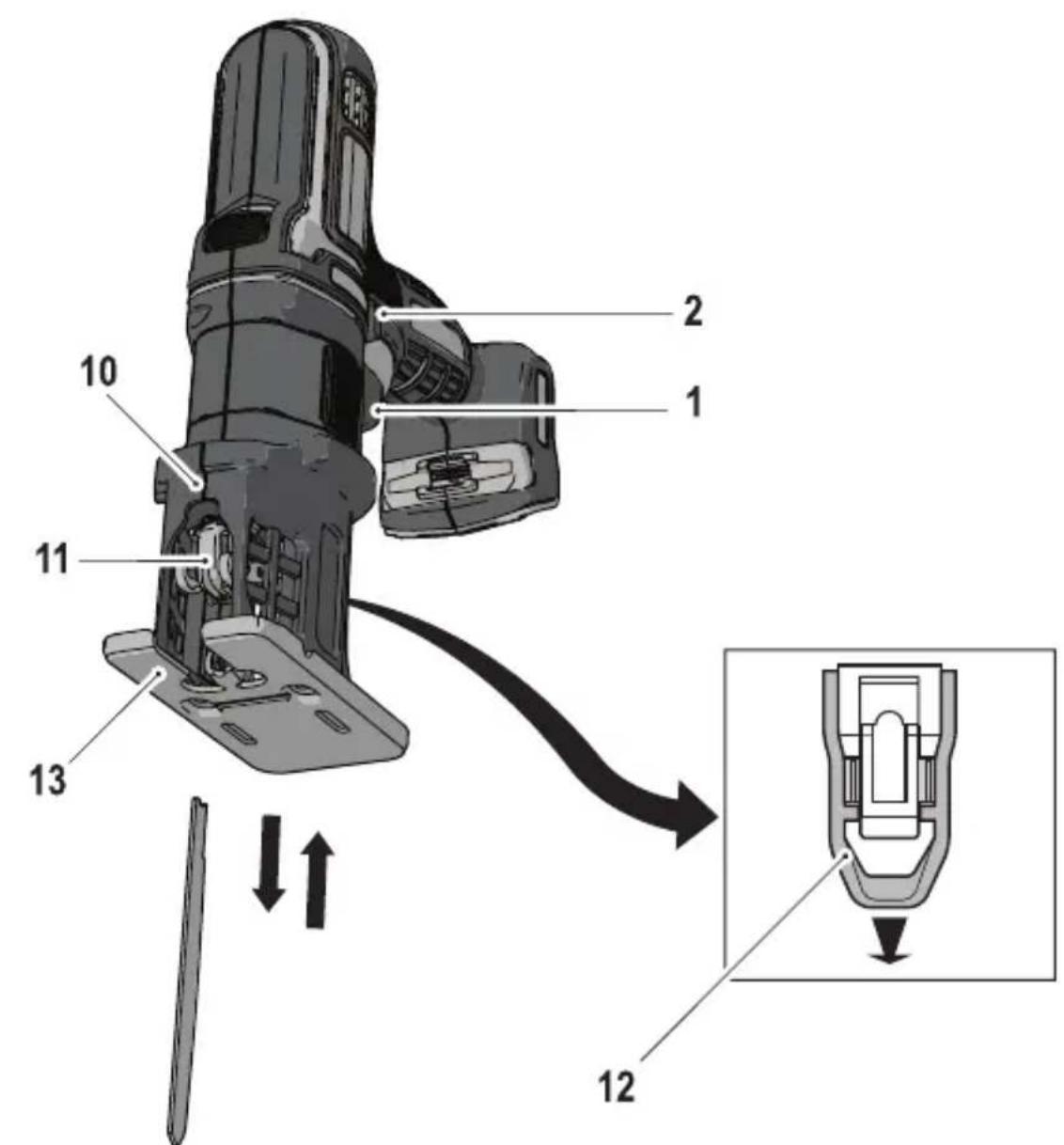

Features (fig. A)

Tool shown is MT143. Other tools are available for use with this tool head.

This tool includes some or all of the following features.

Jigsaw head
Blade clamp
Blade clamp lever
Shoe

Assembly

Warning! Before assembly, remove the battery from the tool.

Fitting and removing a saw blade (fig. A)

◆ Lock the tool by setting the forward/reverse slider (2) to the centre position.
◆ To fit a saw blade, press the blade clamp lever (12) down (located at the rear of the jigsaw head) and hold it in this position.

(Original instructions)

ENGLISH

Insert the saw blade into the blade clamp (11) as shown. Make sure that the teeth are pointing to the front.
◆ Release the lever.
◆ To remove the saw blade, press the blade clamp lever (12) down and pull the saw blade from the holder.

Use

Warning! Let the tool work at its own pace. Do not overload.

Sawing

Note: Ensure the forward reverse slider (2) is not in the locked position.

◆ To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the switch.
◆ To switch the tool off, release the variable speed switch.

Hints for optimum use

Sawing

◆ Always use the appropriate type of saw blade for the workpiece material and type of cut.
◆ If necessary, drill a hole near the starting point of the cut.

- Switch the tool on and slowly feed the saw blade into the workpiece at the desired starting point.

When cutting sheet metal:

Clamp a piece of plywood or soft wood to the back of the workpiece and saw through the combination in order to obtain a clear cut.
Do not force the saw blade into the workpiece. Note that cutting sheet metal will normally take more time than sawing thicker wooden workpieces.
◆ Spread a thin film of oil along the cutting line before sawing.
To cut, switch the tool on and move it down until the saw blade is exactly over the point of entry. Lower the rear of the shoe towards the workpiece, maintaining a firm pivoting pressure on the saw shoe. With the shoe flat on the workpiece, feed the blade into the workpiece.

When cutting laminates:

Cut thin laminates with the back surface facing up, as splintering is most likely to occur on the side of the workpiece facing the saw shoe.
For clean cuts, clamp a piece of plywood or hardboard to both sides of the laminate and cut through the resulting sandwich.

ENGLISH

(Original instructions)

Accessories

The performance of your tool depends on the accessory used. BLACK+DECKER and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

Technical data

		MTJS1(14.4V) (H1)	MTJS1(Max) (H1)
No-load speed min	-1	2500 2700
Weight	kg 1.3	1.5
Max. depth of cut
Wood mm		45 45
Steel mm		5	5
Aluminium mm		10 10

Level of sound pressure according to EN 60745:

Sound pressure (LpA) 82.2 dB(A), uncertainty (K) 3 dB(A)

Sound power (LWA) 93.2 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Cutting boards ( a_h,B ) 5.6 m/s ^2 , uncertainty (K) 1.5 m/s ^2

Cutting sheet metal ( a_h,M ) 6.7 m/s ^2 , uncertainty (K) 1.5 m/s ^2

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
- The product has been subjected to misuse or neglect;
◆ The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk

EC declaration of conformity MACHINERY DIRECTIVE

BLACK & DECKER MTJS1 - EC declaration of conformity MACHINERY DIRECTIVE - 1

MTJS1

Black & Decker declares that these products described under "technical data" are in compliance with:

2006/42/EC, EN60745-1, EN60745-2-1, EN60745-2-11

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

BLACK & DECKER MTJS1 - EC declaration of conformity MACHINERY DIRECTIVE - 2

R. Laverick

Engineering Manager
