USER MANUAL S3_OT504DC Vonroc

MULTI TOOL OT504DC / S_OT504DC S2_OT504DC / S3_OT504DC

Declaration of conformity 105 WEEE Directive 106WWW.VONROC.COM

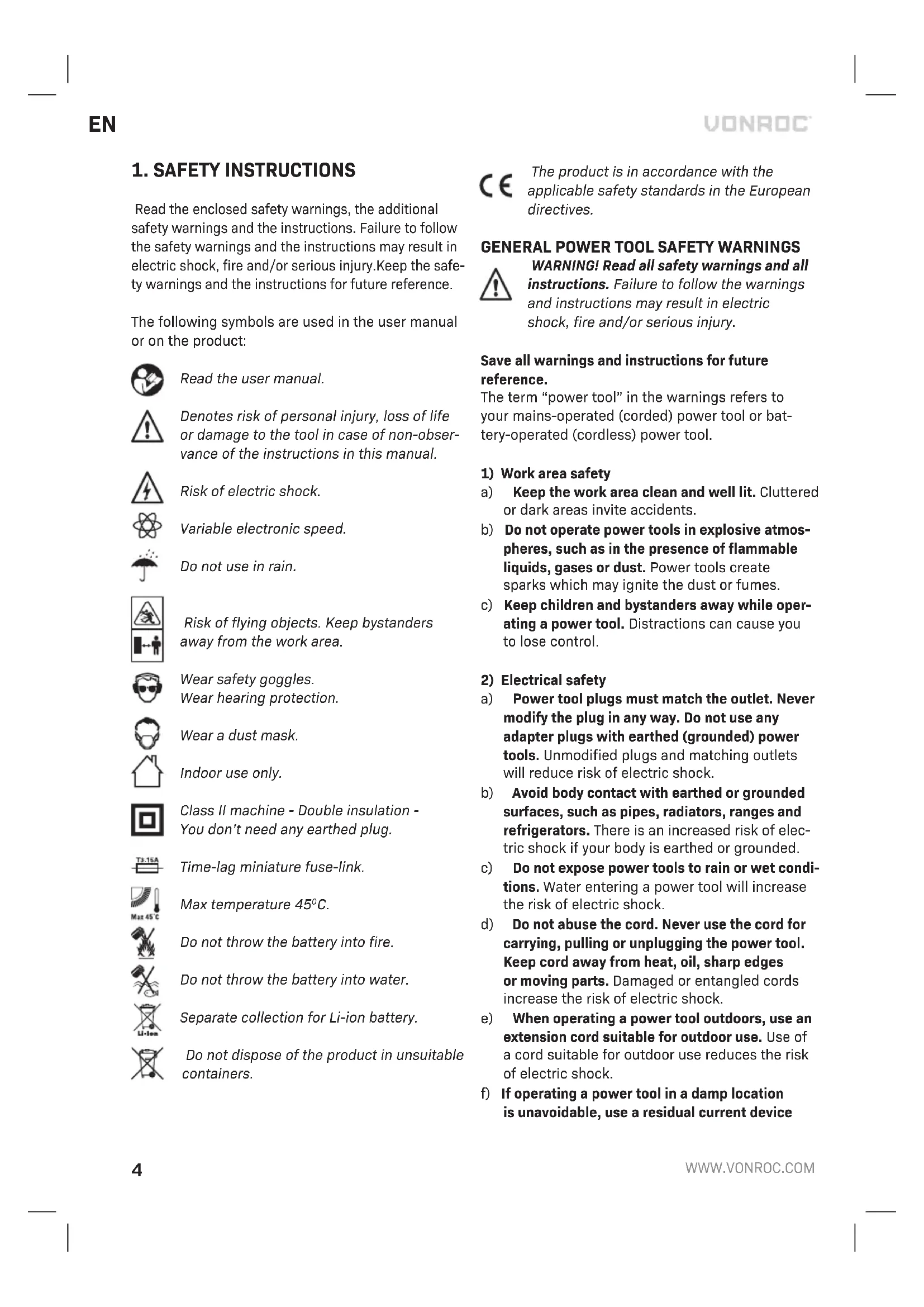

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.Keep the safe- ty warnings and the instructions for future reference. The following symbols are used in the user manual or on the product: Read the user manual. Denotes risk of personal injury, loss of life or damage to the tool in case of non-obser- vance of the instructions in this manual. Risk of electric shock. Variable electronic speed. Do not use in rain. Risk of flying objects. Keep bystanders away from the work area. Wear safety goggles. Wear hearing protection. Wear a dust mask. Indoor use only. Class II machine - Double insulation - You don’t need any earthed plug. Time-lag miniature fuse-link. Max temperature 45

Do not throw the battery into fire. Do not throw the battery into water. Separate collection for Li-ion battery. Do not dispose of the product in unsuitable containers. The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or bat- tery-operated (cordless) power tool.

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while oper- ating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current deviceEN

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medi- cation. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related haz- ards.

Do not let familiarity gained from frequent use of tools allow you to become complacent and ig- nore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many acci- dents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intend- ed could result in a hazardous situation.

Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically design- ated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one termi- nal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact6

accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.

Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

ADDITIONAL SAFETY WARNINGS FOR

MULTITOOLS Contact with or inhalation of dust coming free during use (e.g. lead-painted surfaces, wood and metal) can endanger your health and the health of bystanders. Always wear appropriate protective equipment, such as a dust mask. Always use proper dust extraction during use.

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.

• Do not work metal with a magnesium content of more than 80%.

• Be very careful when working painted surfaces.

• Do not use accessories which are not specif- ically designed and recommended by the manu- facturer. Risk of personal injury.

• Inspect the machine and the accessories before each use. Do not use accessories which are bent, cracked, or otherwise damaged. If the machine or one of the accessories is dropped, inspect the machine or the accessory for dam- age. If necessary, replace the accessory.

• Only use accessories that are recommended by the manufacturer.

• Only use accessories that are suitable for the application.

• Only use accessories with the correct dimen- sions.

• Do not use accessories that require liquid cool- ants. Risk of electric shock.

Make sure that the accessories are properly mounted. Do not use adapters or other aids to mount accessories with another spindle diameter.

• Make sure that the maximum speed for the accessory is larger than or the same as the maximum speed of the machine. Refer to the rating plate on the machine.

• Let the machine run at no load in a safe area after mounting the accessories. If the machine vibrates strongly, immediately switch off the machine, remove the mains plug from the mains, and try to solve the problem.

• Make sure that the workpiece is properly sup- ported or fixed.

• Wear safety goggles. Wear hearing protection. Wear a dust mask. If necessary, use other protective means, such as safety gloves, safety shoes, etc. Risk of personal injury.

• Keep bystanders away from the work area. Make sure that all persons in the work area wear protective equipment. Risk of personal injury.

• Keep the mains cable away from the rotating accessory. If the mains cable touches the rotat- ing accessory, your hands or arms may come in contact with the accessory. Risk of personal injury.

• Hold the machine by the insulated gripping surfaces where the accessory may contact hid- den wiring or the mains cable. If the accessory contacts a ‘live’ wire, the exposed metal parts of the machine can also become ‘live’. Risk of electric shock.

• Do not use the machine while carrying it at your side. Risk of personal injury.

• Do not use the machine near flammable materi- als. Risk of fire.

• Beware that the accessory continues to rotate for a short period after switching off the ma- chine. Do not attempt to bring the accessory to a standstill yourself.EN

• Never put the machine down on a table or a workbench before it has been switched off.

• Regularly clean the ventilation slots. Risk of electric shock.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short- circuiting. b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion. c) In case of damage and improper use of the bat- tery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.

The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use Charge only CD828AA and CD829AA type rechargea- ble Battery packs with the charger. Other types of bat- teries may burst causing personal injury and damage. a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of expe- rience and knowledge, unless they have been given supervision or instruction. b) Children being supervised not to play with the appliance. c) Do not recharging non-rechargeable batteries! d) During charging, batteries must be placed in the well ventilated area! ELECTRICAL SAFETY Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.

• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm

. If you use a ex- tension cable reel, always fully unroll the cable.

2. MACHINE INFORMATION

Intended use Your multitool has been designed for light sanding, sawing and scraping applications. TECHNICAL SPECIFICATIONS This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set. Model No. OT504DC

OT504DC S2_ OT504DC S3_ OT504DCBatteries included - CD828AA 2 x CD828AACD829AAChargers included - CD802AAVoltage 20V No load speed 7000-19000 /minWeight 0.96 kgSound pressure LPA

Uncertainty (K) 1.5 m/s Model No. CD828AABattery Type Lithium-IonVoltage 20V Capacity 2.0 AhWeight 0.4 kgModel No. CD829AABattery Type Lithium-IonVoltage 20V Capacity 4.0 AhWeight 0.658 kg8

Model No. CD802AACharger input 220-240V, 50Hz 0.4ACharger output 21V 2.5ACharging time 2Ah battery 60 minutesCharging time 4Ah battery 120 minutesRecommended batteries CD828AA, CD829AAWeight 0.36 kg Wear hearing protection. Only use the following batteries of the VONROC POWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool. CD828AA 20V, 2Ah Lithium-Ion CD829AA 20V, 4Ah Lithium-Ion The following charger of the can be used to charge these batteries. CD802AA Quick charger The batteries of the VONROC POWER 20V battery platform are interchangeable with all the VONROC POWER 20V battery platform tools. Vibration level The vibration emission level stated in this instruc- tion manual has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned; - using the tool for different applications, or with different or poorly maintainted accessories, may significantly increase the exposure level - the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level. Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns. DESCRIPTION The numbers in the text refer to the diagrams on page 2-3.

2. Mounting point for accessories

13. Speed adjustment wheel

Before any work on the power tool, remove the battery. The battery must be charged before first use. Inserting the battery into the machine (Fig. C) Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

1. Insert the battery (5) into the base of the

machine as shown in Fig. D.

2. Push the battery further forward until it clicks

into place. Removing the battery from the machine (Fig. D)

1. Push the battery unlock button (6).

2. Pull the battery out of the machine like shown

in Fig. D. Checking the battery charging status (Fig. E)

• To check the battery charge status, push the button (9) on battery shortly.

The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.

When the lights are not burning it means the bat- tery is empty and must be charged immediately. Charging the battery with the charger (Fig.E)

1. Take the battery (5) from the machine.

2. Turn the battery (5) to upside down position and

slide it onto the charger (11) as shown in Fig. D.

3. Push the battery until it is fully pushed into the slot.

4. Plug the charger plug into an electrical outlet and

wait for a while. The LED indicators on the charger (12) will lighten up and show the charger status.EN

The charger has 2 LED indicators (12) which indi- cate the status of the charging process: Red LED Status Green LED status Charger status Off Off No power Off On Standby mode: - No battery is inserted or, - Battery inserted but charging has finished On Off Battery charging in progress

• Fully charging the 2Ah battery may take up to 60 minutes.

• Fully charging the 4Ah battery may take up to 120 minutes. After the battery is fully charged remove the charg- er plug from the outlet and remove the battery from the charger. When the machine is not being used over a longer period of time it is best to store the battery in charged condition. Removing and mounting accessories (Fig. B, C) Worn or damaged accessories must be replaced immediately. Only use sharp and undamaged accessories.

• Release the quick change lever (4) and slide the accessory forward to remove from the holder.

• Slide the accessory in the holder and fasten the quick change lever (4). The sanding pad and the sanding paper must be used for sanding applications Mounting the dust extraction (Fig. C) The dust extraction piece can be used to connect the machine to a vacuum cleaner when sanding. Dust will be extracted and your work area stays cleaner. The dust extraction adapter can only be used in combination with the sanding pad (8). To install the dust extraction adapter:

1. If not done yet, remove the accessories from

2. Assemble the dust extraction adapter (7) like

3. Mount the dust extraction adapter (7) by tighte-

4. Assemble the sanding pad like instructed in

5. Connect a vacuum cleaner to the adapter.

Switching on and off (Fig. A)

• To switch on the machine, slide the on/off switch (1) to the front.

• To switch off the machine, slide the on/off switch (1) to the rear. Setting the speed (Fig. A) The speed adjustment wheel is used for setting the speed. The speed adjustment wheel can be set to 6 positions. The ideal speed depends on the applica- tion and on the material to be worked. Do not set the speed during use.

• Turn the speed adjustment wheel (13) to the required position. Hints for optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.

• Draw a line to define the direction in which to guide the accessory.

• Firmly hold the machine by the grip.

• Switch on the machine.

• Wait until the machine has reached full speed.

• Place the accessory on the workpiece.

• Slowly move the machine along the pre-drawn line, firmly pressing the accessory against the workpiece.

• Do not apply too much pressure on the machine. Let the machine do the work.

• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.10

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine. Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth mois- tened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components. WARRANTY VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly. The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

• Normal wear and tear;

• The tool has been abused, misused or improperly maintained;

• Non-original spare parts have been used. This constitutes the sole warranty made by compa- ny either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the im- plied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts. The product and the user manual are subject to change. Specifications can be changed without further notice.

DECLARATION OF CONFORMITY
