Product type	Air quality measuring device (CO2, temperature, humidity)
Brand	Hama
Model	Safe 00186434
Dimensions (H x W x D)	7.5 x 7.5 x 3.5 cm
Weight	Approximately 150 g
Power supply	Built-in 850 mAh battery or mains 5 V / 1 A (via micro-USB)
Battery life	180 to 210 minutes (after full charge)
Charging time	Approximately 2 hours
Display type	Digital LCD screen with white backlight
CO2 measurement range	400 to 5000 ppm
CO2 accuracy	±50 ppm ± 5%
Temperature display	Yes (switchable °C / °F)
Humidity display	Yes
Air quality indicator	CO2 indicator: green (good), yellow (normal), red (poor)
Audible and visual alarm	Yes, above 1001 ppm (flashing and beeping)
Functions	Max/min values, reset, calibration, °C/°F switching
Calibration	Recommended outdoors, about 20 minutes (long press + and Power)
Intended use	Domestic only, not for professional or medical use
Maintenance and cleaning	Slightly damp lint-free cloth, no harsh detergent
Safety	Do not cover openings, keep out of reach of children, avoid moisture and shocks
Spare parts and repairability	Built-in battery not replaceable. No user repair.
Package contents	1 device, 1 micro-USB cable, 1 user manual
Warranty	Legal warranty, exclusion in case of misuse

Frequently Asked Questions - Safe 00186434 HAMA

How to turn the device on and off?

Press the Power (A) button for about 3 seconds to turn on the device. To turn it off, press and hold the same button again.

What do the colors of the CO2 indicator mean?

The CO2 (5) indicator shows air quality: green (GOOD) from 401 to 700 ppm, yellow (NORMAL) from 701 to 1000 ppm, red (POOR) from 1001 to 5000 ppm. Above 1001 ppm, an audible and visual alarm is triggered.

How to interpret CO2 values?

CO2 values in ppm (parts per million) indicate carbon dioxide concentration. According to the AQI (Air Quality Index): 0-450 ppm (good), 451-1000 (moderate), 1001-1500 (unhealthy for sensitive groups), 1501-2000 (unhealthy), 2001-3000 (very unhealthy), 3001-5000 (hazardous). Above 1000 ppm, it is recommended to ventilate.

How to recalibrate the device?

To recalibrate, simultaneously press the + (B) and Power (A) buttons for about 3 seconds. Perform calibration outdoors (ambient CO2 ~400-450 ppm) for about 20 minutes, without a nearby CO2 source.

What is the battery life and how to charge it?

The built-in 850 mAh battery provides 180 to 210 minutes of battery life after a full charge of about 2 hours. Use the supplied micro-USB cable and a minimum USB 5V 1A charger. You can charge the device when on or off.

Can the device be used continuously on mains power?

Yes, the device can operate continuously when plugged into mains via the micro-USB cable and a suitable charger (5V 1A min.). The battery charges simultaneously.

What to do if the device displays abnormal values?

Check that the ventilation openings are not blocked. Perform a recalibration outdoors. Avoid the presence of perfumes, paints, smoke, alcohol, or chemical substances nearby, as they can distort measurements.

Can the device detect COVID-19?

The device does not directly detect viruses. However, a high CO2 concentration can indicate a lack of ventilation, increasing the risk of viral aerosols. It is recommended to ventilate regularly.

How to clean the device?

Unplug the device before cleaning. Use a slightly damp lint-free cloth (no harsh detergent). Make sure no liquid enters the interior.

Is the device suitable for professional use?

No, this device is intended for domestic use only. It does not have the required precision for professional or medical applications, and should not be used for workplace safety or certifications.

USER MANUAL Safe 00186434 HAMA

OperatingInstructions

Bedienungsanleitung

Moded'emploi

Instruccionesdeuso

Gebruiksaanwijzing

Istruzioniperl'uso

Instrukcjaobsługi

Használatiútmutató

Manualdeutilizare

Návodk p oužití

Návodnapoužitie

Manualdeinstruções

Bruksanvisning

GB

Operatinginstruction

1. Controlsanddisplays

A. Powerbutton: On/Offbutton

B.+button

C.M button

D. Charging connection

E. Ventilationopenings- n evercover

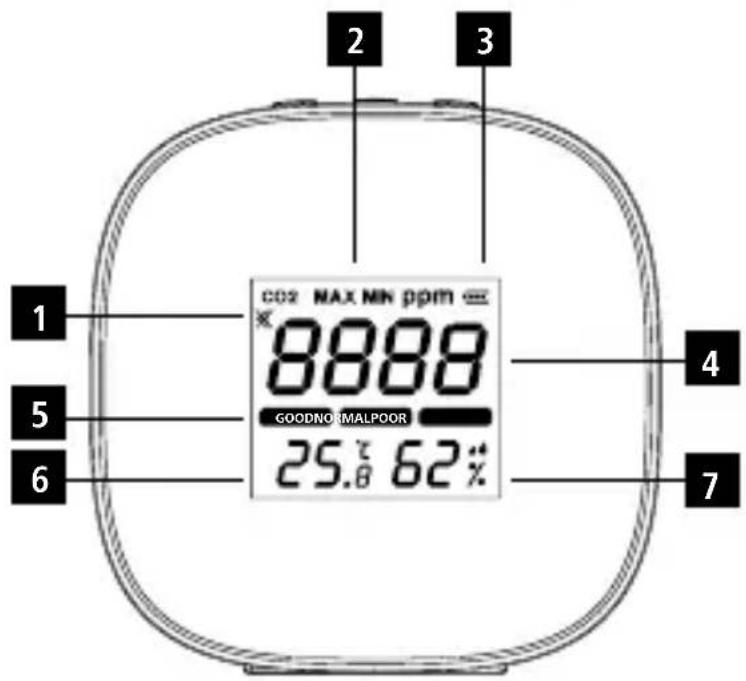

1. Loudspeakeron/ off

2.Max/Mindisplay

1. Batterychargelevel

2. CO 2 measured value: carbondioxide concentration in ppm (parts per million = 1 m illionth = 1 p pm = 1 0 ^6 - e quivalent to 0.001‰). The Federal Environment Agency recommends letting fresh hair into a room from outside if a value of 1,000 ppm CO 2 is exceeded.

5.CO _2 traffic light: GOOD - NORMAL - POOR

1. Temperature m easuredvalue

2. Ambienthumidity measured value

2. Explanationofwarningsymbolsandnotes

Warning

This symbolised to indicate safety instructions ortodraw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

3.Packagecontents

• 1 a irqualitymeasuringdevice
- 1 micro-USBconnectioncable*

- Theseoperatinginstructions *forchargingorcontinuousoperation,anexternal USBpowersupplyunit5Vmin.1Aisrequired.

4. Safetyinstructions

• T heproductisintendedforprivate,non-commercialuseonly.
  • U setheproductonlyfortheintendedpurpose.
• Protect the product from dirt, moisture and overheating and use it in dry room only.
• Do not usethe product in the immediate vicinity of heaters, other heatsources or indirect sunlight.
• A s w ithallelectricalproducts,thisdevices should bekeptoutofthereachofchildren.
• D on otoperatetheproductoutsidethepower limitsspecifiedinthetechnicaldata.
• D o n otusetheproductinareasinwhich electronicproductsare n otpermitted.
• Do not use the product in a damp environment and avoids splashing water.
• Do not place the product near interference fields, metalframes, computers, TVs, etc. Electronic devices and windowframes can negatively affect the product's functionality.
• D o n otdroptheproductanddonotexposeitto anymajorshocks.
• Do not modify the product in any way. Doing so voidsthwarranty.
• Keep the packaging material out of thereach of childrenduetotherisk of suffocation.

• D isposeofpackagingmaterialimmediately inaccordancewiththelocallyapplicable regulations.

• Route all cables so that there is no risk of tripping.

• Donotbendorcrushthecable.
• Onlyusethearticleundermoderateclimatic conditions.
  • The battery is integrated and cannot be removed.
• Donotopenthedeviceorcontinuetooperateit ifitbecomesdamaged.
• Donotattempttoserviceorrepairtheproduct yourself. L eaveanyandallserviceworkto qualifiedexperts.
• Donotincineratethebatteryortheproduct.
• Donottamperwithordamage/heat/disassemble thebatteries/rechargeablebatteries.
• Theproductandthemeasurementsitdisplaysare intendedforuseinthehome,offernoabsolute accuracyanddonotsatisfytherequirements neededand/orprescribedinprofessional applications.
• Thisproductanditsmeasuredvaluesmaynotbe usedforprofessionalapplicationsortoinform thepublic.

5. Gettingstarted

The product can be used both in battery and mains operation. For battery operation, fully charge the product once before first use.

5.1 Batteryoperation

Warning – rechargeable battery

• OnlyusesuitablechargingdevicesorUSB connectionstochargetheproduct.
• DonotusedefectivechargersorUSBports anddonotattempttorepairthem.

Warning – rechargeable battery

• Donotoverchargetheproductorallowthe batterytocompletelydischarge.
• Avoidstoring, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).
• Chargeregularly(atleastquarterly)during periodsofprolongedstorage.

5.2 Mainsoperation

Connect the supplied micro-USB charging cable to themicro-USB port(D) on the product. Connect the free plug on themicro-USB charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB chargery you are using.

• Thebatteryindicator(3)indicatesthecharge levelbymeansofthebars.
• Whenfullycharged, the charging process can be determined. Disconnect the product from themains.

Note- c hargingprocess

• A completechargingcycletakesabout 2 hours.
  • The product's battery can be charged both when it is switched on and off.
• Whenfullycharged, themaximumoperating timeisapprox. 180to210minutes.

5.3 Switchingon/off

• Removetheprotectivefilmfromthedisplay.
• PressandholdPOWER(A)forapproximately3 secondstoswitchtheproduction.
• With each switch-on, a countdown of 180 seconds begins. This is the required to pre-heat the internal CO _2 sensor. The display(4) counts backwards from 180.

Itisnormalforthedevicetoheatupwhilecharging andduringoperationsincetheCO 2 sensorisheated inordertobeabletoworkaccurately. If t hereis aninadequatecirculationofair, t hedevice'sown warmingcancausethetemperature d isplaytodiffer. Theventilationopeningmustneverbecoveredup. Thiswouldleadtooverheating/ d estructionofthe deviceandtoincorrectCO 2 measurements.

1. Airqualityguidelines(AQI)

CO_2 ppm	0 - 450	451 - 1000	1001 - 1500	1501 - 2000	2001 - 3000	3001 - 5000
AQI010203040506
	Good	Moderate	Unhealthy forsensitive people	Unhealthy	Very unhealthy	Endangering health

InadditiontothedigitaldisplayoftheCO 2 concentration(4), the device also has a CO 2 traffic light(5). It offers a visual quick check. From 400 to 700 ppm, GOOD lights up green; from 701 to 1000 ppm, NORMAL lights up yellow; from 1001 to 5000 ppm, POOR lights up red. Above 1001 \~ 2,000 ppm, the alarm symbol starts to flash and a repeated alarm sound is heard twice in succession which becomes more intensive when the limit of 2,000 ppm is exceeded. The alarm symbol and the ppm indicator flash. This can be switched on and off using the POWERbutton(A). Check viathesymbol(1) in the display.

Specifically by providing the value for the CO 2 concentration in the air(4), concentrations can be drawn about aerosols with viruses (e.g. Covid 19) present in the air. Although these are not directly detectable, increased CO 2 pollution is at the same time a measure of virus-contaminated air. This can be remedied by regular airing. Permanently inhaling bad and stale air can cause tiredness, headaches, eye irritation, etc. The ability to perform and concentrate decreases noticeably as a result.

7.Functionsofthe+ andM buttons

• Pressthe+ button(B)tocheckthemax/minmeasuredvalues.Holdingthe+ button(B)forlongerpermanentlydeletesallofthe measurementsmadesofar.
• PressingtheM buttonallowsthetemperature displaytobetoggledbetweenCelsiusand Fahrenheit.

8. Recalibration of the product

• Press and hold the + (B) and POWER (A) buttons simultaneously for approximately 3 seconds to recall the product. Always carry out this calibration at the commissioning stage and after prolonged period so non-use.
• Calibrations should be carried out outdoors for around 20 minutes, as CO _2 level there a reusually around 400-450 ppm.
• Please ensure that there is no CO_2 source in the immediate vicinity. A void direct sunlight and rain.
• CO _2 is detected after calibration. Pleasetryto avoid perfumes, paints, air fresheners, cigarette smoke, alcohol, chemicals substances and soon while carrying out measurement since these can lead to incorrect measuring results.

9. Careandmaintenance

Note

Disconnect the device from them before cleaning and during prolonged period so of non-use.

• Only clean this product with a slightly damp, lint-freeclothanddonotuseaggressivecleaning agents.
• Ensure that no water is able to enter the product.

10.WarrantyDisclaimer

Themeasuringdevicemustnotbeusedasa warningdevicefordangerouslyhighconcentrations (e.g.industrialsafetymonitoring).Itisnotsuitable formedicalinstitutions,certificationortest measurements. Themeasuringdeviceisprimarily usedfortestingpurposesandfororientationin privatehouseholds.Noliabilityisacceptedfor possibledamageincaseofmalfunction. ItisnotpossibletotransferdataviatheUSBcable.

HamaGmbH& C o KGassumesnoliabilityand providesnowarrantyfordamageresultingfrom improperinstallation/mounting,improperuseof theproductorfromfailure t o o bservetheoperating instructionsand/orsafetynotes.

11.Technicaldata

Display mode	LCD digital display with white background illumination
DevidedimensionsH:7.5cm;W:7.5cm;D:3.5cm
MeasurementerrorCO	_2 accuracy+/-50ppm+5%
CO _2 displayrange400toapprox.5000ppm
Operatingvoltage5 V m in.1A
Batterycapacity850mAh
ChargingtimeApprox.2 h o u r s
StandbyTimeApprox.180- 2 10minutes

12. Recycling information

Noteonenvironmentalprotection:

Following the implementation of European Directive 2012/19/EU and 2006/66/EU into the nationallegalsystems, the following applies:

electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteriestothedesignated public collection points to the point of sale at the end of their

service lives. Detailed information on this topic is defined in the national laws of the respective

country. This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to the regulations. By recycling, reusing thematerials or other forms of utilising gold devices/batteries, you are making an important contribution to protecting our environment.
