Escort HP 7120 - Talkie Walkie PNI - Free user manual and instructions

Product Type	Multi-standard CB two-way radio
Brand	PNI
Model	Escort HP 7120
Dimensions (L x H x D)	110 x 120 x 28 mm
Weight	385 g
Power Supply	13.8 V DC (12-13.8 V), 2 A max
Frequency Band	26.965 – 27.405 MHz (CB band)
Transmit Power	4 W (AM/FM according to standard)
Modulation	AM and FM (selectable)
Channels	40 channels (according to standard, up to 80 for dE)
CB Standards	EU, CE, UK, PL, I, I2, dE, In (selectable)
Main Features	Channel scan, manual squelch (SQ) and automatic squelch (ASQ), RF gain, emergency channel 9/19, lock, volume and squelch adjustment from microphone
Display	LCD screen with channel, mode, RX/TX, scan, ASQ, RF gain and signal strength indicators
Connectors	Microphone jack (front), 3.5 mm external speaker jack (rear), SO-239 antenna connector (rear), power cable with fuse
Included Antenna	PNI Extra 48: magnetic base CB antenna, 440 mm whip, gain >5 dBi, SWR <1.2:1, impedance 50 Ω, max power 150 W
Operating Temperature	-26°C to +60°C
RX Sensitivity	0.25 μV (12 dB SINAD)
Audio Power	1 W into 8 Ω
Fuse	2 A 250 V type F (in power cable)
Safety	Do not transmit without antenna; check SWR before use; do not expose to moisture or extreme temperatures; use a stabilized 13.8 V power supply
Maintenance	Clean with a soft dry cloth; do not use solvents; no user-serviceable parts
Repairability	Contact an authorized PNI service center for repairs

Frequently Asked Questions - Escort HP 7120 PNI

How to change channel on the PNI Escort HP 7120?

Use the up/down keys [5] on the front panel or the up/down keys on the microphone to scroll through channels. The selected channel is displayed on the screen.

How to adjust manual squelch (SQ)?

Press the [2] key briefly (SQ/ASQ). The current squelch level appears. Use the up/down keys to select from 0.1 (minimum) to 2.8 (maximum) or OF to disable.

How to activate automatic squelch (ASQ)?

Press and hold the [2] key to activate ASQ. The AQ icon appears. Use the up/down keys to set the level from A.1 to A.9. Press and hold [2] to deactivate.

How to use emergency channels 9 and 19?

Press the [4] key briefly to switch to channel 09. Press again to switch to channel 19. A third press returns to the normal channel.

How to change the CB standard?

Turn off the radio. Hold down the [7] key while turning the radio back on. Use the up/down keys to select the desired standard (EU, CE, UK, etc.). Turn off and on again to confirm.

How to perform a factory reset?

Turn off the radio. Hold down the [2] key while turning the radio back on. The 'rt' icon appears. All settings are reset.

Can I transmit without an antenna connected?

No, never transmit without an antenna connected. This can permanently damage the radio's power amplifier. Check the SWR before transmitting; an SWR above 2 can also cause damage.

How to connect an external speaker?

Connect an external speaker (8 Ω) to the 3.5 mm mono jack on the back of the radio. The internal speaker is automatically disconnected.

What power supply to use for fixed use?

Use a stabilized power supply capable of providing at least 2 A at 12-13.8 V DC. Connect the red wire to positive (+) and the black wire to negative (-). Do not use an unregulated battery charger.

How to install the included antenna (PNI Extra 48)?

Attach the antenna to the magnetic base and place it at the center of the vehicle's metal roof. Connect the cable to the ANT connector on the radio. Check the SWR before use; it should be below 1.2:1. The antenna is delivered pre-tuned.

USER MANUAL Escort HP 7120 PNI

Please read the following precautions to prevent fire, personal injury or the radio destruction.
Do not attempt to adjust the radio while driving; is dangerous.
This radio is designed for power supply at 13.8V DC. Do not use a 24V battery to power the radio.
Do not place the station on an excessively dusty, damp or unstable surface.
Do not connect the antenna during transmission, risk of burning or electric shock.
Please keep distance from devices that cause interference (such as TV, generator, etc.)
People who use pacemakers are advised to keep distance from the antenna during transmission and especially not to touch it.
Do not connect metal objects to the internal electrical side; danger of electric shock.
Avoid exposing the radio to temperatures below -30^ and above +60^ , the temperature on a vehicle may sometimes exceed 80^ , which can cause irreparable damage to electric devices. Do not expose the radio to sunlight.
Do not place anything on the radio, it will prevent it from cooling down.
Check to see if you have enough charged battery to avoid rapid discharge.
It is important to stop the radio before starting the engine, to avoid damage caused by high starting voltage.
You must use a 2A 250V fuse type F. Under no circumstances use a higher value.
If an abnormal odor or smoke is detected as coming from the radio, switch off the appliance immediately.
Do not transmit for a long time, the radio may warm up.
Keep the station away from children.

OTHER WARNING:

Before connecting or using this product, please read these operating instructions carefully. Keep this manual for future reference.

Before using the radio, please connect the antenna, then check the SWR before transmitting. A too high SWR can cause demage to the CB final output transistors, which is not covered by the warranty.

The radio does not include components that can be repaired by the user. Please contact an authorized service center.

To prevent the risk of fire, use only a suitable power supply.

PNI Escort HP 7120 can be operated as a mobile station in a car or with a suitable DC power supply as a base station. This device complies with the latest European CB standards. Due to its selectable CB standards it can be used throughout Europe. Please select only a CB standard that is allowed in the country of use.

FEATURES

• Multi-standard device
• Up/Down keys on the microphone
• Channel Scan
  LCD display
  Digital Automatic Squelch, adjustable
  RF Gain
  Emergency channel 9/19
• Socket for external loudspeaker

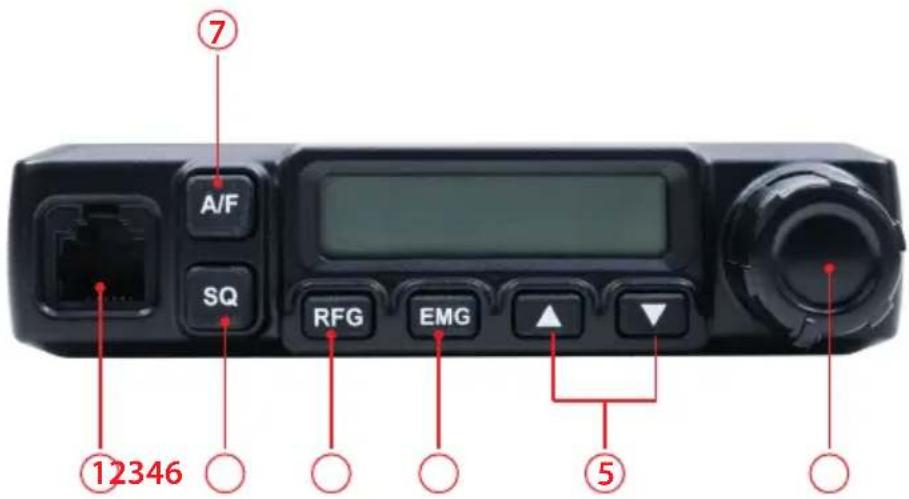

DESCRIPTIONS AND COMMANDS

Nr.	Key Shortly press	Long press
1	Microphone jack --
2	SQ/ASQ	Activating and controlling squelch manually	Activate/deactivate ASQ
3	RF	Gain Activate/deactivate RF Gain -
4	EMG	Switch continually amongst ch9/ch19/channel in use	Activate/deactivate key lock function
5	Up/down keys	Channel change, squelch level change	-
6	On/off key Volume control	-	-
7	A/F	AM/FM selection	Enable SCAN function

DISPLAY

1 - Selected channel
2 - AM/FM mode
3 - RX/TX: reception (RX) and transmission (TX) indicator
4 - SC: SCAN function activated
5 - AQ: automatic squelch activated
6 - R: RF GAIN activated
7 - Received signal strenght indicator and transmission power signal

BACK PANEL

3 2

EXT SP

ANT

1

1 - Power supply cable
2 - External speaker
3 - Antenna connector

INSTALLATION

Check the radio and all accessories before installing.

Power the radio with the cigarette lighter plug included in the package. The radio must be powered at a voltage between 12 - 13.8V. The fuse mounted on the power cord protects the radio against damage caused by technical defects or wrong polarity. If the fuse is blown, first eliminate the cause and then replace it using the F3A 250V type.

Check the connections correctly before starting the radio. Make sure there is no risk of shortcircuit.

Operation with AC Adapter

Operate your radio only at a stabilized radio power supply, which is capable to provide at least 2A at 12 -13.8V DC. Unregulated power supplies or battery chargers are unsuitable and can cause damage. Connect the red lead to the positive (+) terminal of the power supply, the black wire to the negative (-) terminal of the power supply.

ANTENNA CONNECTION

Connect the CB antenna to the ANT socket on the back of your radio. The antenna must be tuned to the CB radio band. For this use a SWR meter. For a good radio range, the SWR should not exceed a value of 2. A high SWR also points to defects in antenna, cable, or a short circuit in the antenna line. Never transmit without connected antenna!.

Note: The radio antenna is to be mounted from other antennas and interference sources as much as possible. CB antennas must be mounted usually in the vehicle highest part on a metal surfaces. A sufficiently large metal surface is essential for the function of the antenna. For installation on a fiberglass cabs or plastic wind deflectors, special ground less antennas can be used.

OPERATION

• Power On/Off the radio: Turn the radio on by turning the knob [6] clockwise. The current standard, then the selected channel, will appear on the screen for one second. Turn knob [6] anti-clockwise to stop the radio.

Note: The radio is preset from the factory on Channel 22, the CE standard.

Volume control: Continue to turn the knob [6] clockwise to adjust the volume to the desired level.
- Channel selection: Press the keys [5] on the radio or the up/down keys on the microphone to change the channel number.
- Squelch level control: Press the [2] key briefly. The current squelch level will appear on the screen. Use the up/down keys to select the desired SQ level (from 0.1 to 2.8) or OF to disable the function.

0.F = Squelch off
0.1 = Lowest Squelch level
2.8 = Highest Squelch level

Note: Higher SQ level require a stronger signal to open the speaker and hear the spo-kesman.

• ASQ control: Long press the [2] key to activate the ASQ function. The "AQ" icon and the current ASQ level will appear on the screen. Use the up/down keys to select the desired ASQ level (from A.1 to A.9). Press the [2] key long to deactivate the ASQ function.

A. 1 = lowest level

A. 9 = highest level

Notes:

Higher DS level require a stronger signal to open the speaker and hear the spokesman.

For automated Squelch, we recommend level A.2 (or A.3 for louder areas).

• Modulation type: Briefly press the [7] key to change between AM and FM. The selected modulation will appear on the screen.

Note: Before modifying the modulation, check the selected standard.

• RF Gain control: Press the [3] key briefly. The "R" icon will appear on the screen and the current RF gain level will blink. Use the up/down keys to change the level (06, 12, 18, 24, 30, 36, 42, 48, 54).

Note: We recommend RFG function disabled (or level 06 for louder areas).

• Emergency channel: Press the [4] key briefly. The channel number 09 blinks on the screen. Press again, the channel number will blink 19 on the screen. Press the third time to return to the normal channel.
  Key Lock: Press long the [4] key. The "LC" icon will appear on the screen. Key lock function is active. Press the [4] key again, OF will appear on the screen. The key lock function is disabled.
• Scan function: Press long the [7] key to start channel scanning. The "SC" icon appears on

the screen. Use the up/down keys to change the direction of the scan. Press the [7] key or the PTT key on the microphone again to deactivate the scan function.

CHANGING THE CB-STANDARD

To change the standard you are using the CB radio in, do the following:

• Press and hold the [7] - A/F key while turning on the radio
• Press the up/down keys to select the desired standard
• Close and restart the radio. Immediately after turning on, the current standard will be displayed for a second.

An external speaker (8 Ohm) can be connected to the 3.5mm mono socket on the back of the radio. The built-in speaker automatically turns off when a plug is inserted into this jack.

RESTORE FACTORY DEFAULT

• Press the [2] - SQ key while turning on the radio.
• The "rt" icon will appear on the screen
• All settings and functions will be reset

SPECIFICATION

Frequency 26.965-27.405 MHz
Dimensions 110 X 120 X 28 mm
Weight 385 g
Power supply 13.8V
Current consumption 2 A max
Operating temperature -26°C ~ +60°C
Frequency error ±300HZ
TX power 4 Watt
Spurious transmissions < 4 nW (-54 dBm)
Adjacent channel power < 20 μW
FM deviation 1.7KHZ-2.0KHZ
AM modulation index 80%-90%
RX Sensitivity better than	0.25uv@12db
Image rejection 70 dB
Adjacent channel rejection	60 dB
Audio output	1 Watt 8 Ohm
Frequency response	300-3000 Hz

PNI EXTRA 48 is a small CB radio antenna suitable for both cars and trucks, compatible with all CB radio on the market. It is very easy to install with the help of the magnetic base in the package.

INSTALLATION INSTRUCTIONS

Fix the antenna on the magnetic base and position it in the middle of the car dome. Connect the antenna to a CB radio.

Note: The antenna is tuned from the factory.

TECHNICAL SPECIFICATIONS

Frequency 26 - 28Mhz	Whip length 440 mm
Gain >5dbi Cable RG1	74, L=4000 mm
S.W.R. <1.2:1 Polarization Vertical
Power Max. 150W Material Fiber glass
Impedance	50 Ohm	Magnetic support 103 x 66 x 40 mm

CNEUJHIN PEPDUNPEKDEHNA

Molj, npooyTe cIeHNITE npedna3Hm MepKn, 3a da npedotbpatnte noxap, Tepeha NobpeDa IIN yHnOxKaBaHe Ha cTaHcYra.
He ce onntbaite da perynpate ctaunra,dokaTo zoopnape,TOBa e onacno.
Ta3n cTahcnae npedHa3NaueHa 3a 3axpaHbHe np1 13.8V DC. He n3noJ3BaIte 24V 6aTepeJ3a 3axpaHbHe Ha cTahcnaeTa.
He noctabraye cTaHcna Ta Bbpxy npeKaJeHo HnpaSeHa, BlaxHa nn HectaBnHa NOBbpxHOCT.
He cBbP3BaIe aHTeHaTa no BpeMe Ha npedabaHe, onaCHOCT OT n3rapAHe nn TOKOB yIap.
Mon, na3eTe dinCTaHcnaTa OT yctpoiCtBa, KOnTO npuHnRaT cmUeHn (kato TeIeBn3Op, rehepatop n dp.)
Ha Te3n, KonTo n3NoJI3BaT neiCMeiKbpr, ce npenopbYBa da cTOr Ha pa3cToHne OT aHTeHaTa IIO BpeMe Ha npedabaHe i Han-Beue Da He JDOKocBaT.
He doxbnkaBaTe MeTaHn IpeMMeTn KbM BbTpEshHaTa eIeKtpuecka CtpaHa; onaCHOCT OT TOKOB ynap.
I36yBaIte n3naHeto Ha cTaHcYra Ta Ha TemnepaTpyn noi -30 ^ C nHa + 60° C, a TemnepaTypata Ha npEBO3HOTo cpeCTBO NOHkORA MoKe Da HaADBuaBa 80 °C, KoEt OMe Ja npuHH HeNoopabMm UeTI npn npOdbJnxTeJIHO n3naRaHe. He n3naarTe npOdbJnxTeJIHO CTaHcYra Ta Ha CJIbHueBa CBetIIHa.
He nocTabraIte Hnso Bbpxy ypeDa, TOBa ue npedotBpaTn OxnaJdaHTo My.
YBepete ce, ye imate doctaTbUHO 3apeHa 6aTePnA, 3a da n36erHete 6bp3OTo pa3peXdaHe.
Baxho e da cnpete ctaHnraTa npeDn da cTaptnaTe DnirataTne, 3a da n36erHeTe NOBpeDn, npuHHENOT BnCOKOTO CTAPTOBO HnpeXeHne.
Korato cmehrte npedna3nte, Tp6Ba da n3noJ3Bate npedna3nteTn 2A 250V F. Pn HnkaBn o6ToTeJICTBa He n3NoJ3BaIte No-BnCoka cToHocT.
Ako ce otkpne HeobuaHa Mnpn3Ma nn dHm OT cTaHcnaTa, cnpete ypeDa Behdara
He npedabaite c rojma cnna nbnro BpeMe, ctaHcna Ta Moke da 3arpee.
I Na3eTe cTaHcNJaTa OT Deca.

ДУГИ ПЕДУПЕЖDEHЯ:

Ipei Da CbpxKeTe IIN N3NOJ3BaTe TO3N IpOdyKT, IpOyeTeTe BHNMaTeJHO TOBa pBKOBOdCTBO 3a ekCnloatauia. CbXpaHraBaIe ToBa pBKOBOdCTBO 3a 6bDeu n cnpaBKn.

Ipei Da n3no3BaTe paHnOTo, CbpxKeTe aHTeHaTa, cNei TOBa npOBepTe SWR npEi npedabaHeTo. IpeKaJIeHO BnCOKnT KCB MoKe Da npuHnN NOBpeDa Ha TpaH3nCTOpnte Ha kpaHnna H3XoD CB, KoEtO He ce NOKpNa oT rapaHcuiyTa.

Papno To He BkHouBa KOMNoHENTn, KOTo MOraT da 6bDat nonpaBeHn OT noTppeBnteIa. MoJra, CBpKTe Ce C OTOpuHaPcepBn3eH ueHTbp.

3a da npedeotbpaTne pncka ot noxap, n3noJ3BaIte camo noJxoJIO 3axpaHbaHe.

PNI Escort HP6500 Moxe da ce n3noI3Ba KaTo MObIHa CtaHcN B aBTOMoBnI nn KaTO 6a3OBA CTaHcN, aKO I Ocnrypnte NODXODAIO 3axpaHbAne. YCTPOINCTBOTO OTROBApra Ha Hau-HOBNTe EBponeckn cTaNdaptn. BnaorDapeHne Ha n3bnpaemte npabina, HP 7120 Escort PNI moxe da ce n3noI3Ba BVzraEbpona.

MOnIa, n36peTe HopMaTa, pa3peSeHa B DbpxKaBaTa, B KOrTO Ce HAmnPate.

OCHOBHn XAPAKTEPNCTUKN

• Myntn-CTaHdapTHO yctpOuCTBO
• KnaBn 3a npomHa Ha KaHaJa Harope/HaOJy Bbpx MyKpOoHa
• CkaHnpaHe Ha KaHaJIu
  LCDekpaH
• ABTomatnUHO n peRyInpyeMo 7ymOnoDTnCKaHe
• RF ycnBaeHe
• Аварийни кадан 9/19
  Bpb3ka C BbHweH BnCOKOrOBOpnteI

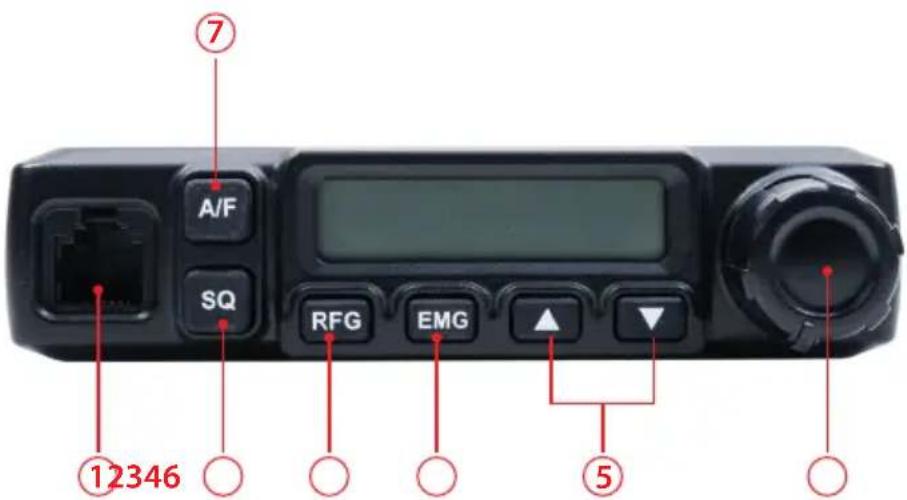

ONICAHNE HA KJIABUNI N ΦYHKUNI

TEXHnueCKN CNEUΦnKAuIN

Чебъта 26.965-27.405 MHz
Размeperи 110 X 120 X 28 mm
Терло 385 g
Зхранвашио наразожения 13.8V
ПOTравлие 2 A max
РавOTна Temпература -26°C ~ +60°C
Грешика чебъта ±300HZ
Мошно на predecessorане 4 Watt
Грешино predecessorанe < 4 nW (-54 dBm)
Сида на санала в сбсядстvo < 20 μW
FM OTКлонения 1.7KHZ-2.0KHZ
AM мodyUILационен иndекс 80%-90%
RX чьвоствITEелност	0.25uv@12db
ОтXBьрлени на ИЗобразжения	70 dB
ОтXBьрлени на сьсяден канал	60 dB
Аydino Изхов	1 Watt 8 Ohm
Отrogор чебъта	300-3000 Hz

PNI EXTRA 48 e MaIka CB paIIO aHTeHa, NOxOJaKa KaKTo 3a JeKn, Taka n 3a ToBapHn ABTomo6nI, CbBMeCTMa c BcNcK CB paIIO Ha na3apa. MoHTnpa ce MHOrO JecHO c NOMoTtHa MaHHTHaTa OCHOBA B ONaKObKaTa.

HHTPYKUIN 3A INHCTJALAUIN

ФИКСИРаTe aHTeHATA Bbpxy MaHnTHaT a OCHOBa IЯ NOCTaBete B cpeIa T ha KynOJa Ha ABTOMO6IIa.

CbpxKeTe aHTeHaTa KbM CB paAno.

3a6eJekka: AhmeHama e Hacmpoeha fa6puuHo.

TEXHnueCKN CNEUΦnKAuIN

Чебъ�а 26 - 28MhzД	Блжн ha Камшикa	440 mm
Пechалба >5dbi Kaбел	RG174, L=4000 mm
S.W.R. <1.2:1 Поляп	Заця Вертукален
Мошност Мax. 150W	Матерnam Фибров ст	БКЛО
Импedingс	50 Ohm	Маг nutha onopa	103 x 66 x 40 mm

WECHSEL DES CB-STANDARDS

VEILIGHEIDSWAARSCHUWINGEN

INSTALLATIE INSTRUCTIES

INSTALLATIE INSTRUCTIES

1. GND (braid)
2. MIC (white)
3. NC
4. NC
5. TX, UP, DOWN (yellow)
6. NC

EN: EU Simplified Declaration of Conformity

SC ONLINESHOP SRL declares that CB Radio PNI Escort HP 7120 complies with the Directive RED 2014/53/UE. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/6782/download/certifications

BG: OnpocTeHa deKnapaun 3a cBoTBcTCTBne Ha EC

SC ONLINESHOP SRL deknapupa, ye CB PaDnO PNI Escort HP 7120 cna3Ba DnpeKtBbTa RED 2014/53/UE. TkCT Ha EC deKnapaunra 3a cbOTBeTcTBne e DocTbNeHa CneHNr INTePHeT aDpec: https://www.mypni.eu/products/6782/download/certifications

https://www.mypni.eu/products/6782/download/certifications
