USER MANUAL Geo³ Joolz

One stroller, one tree

instruction manual

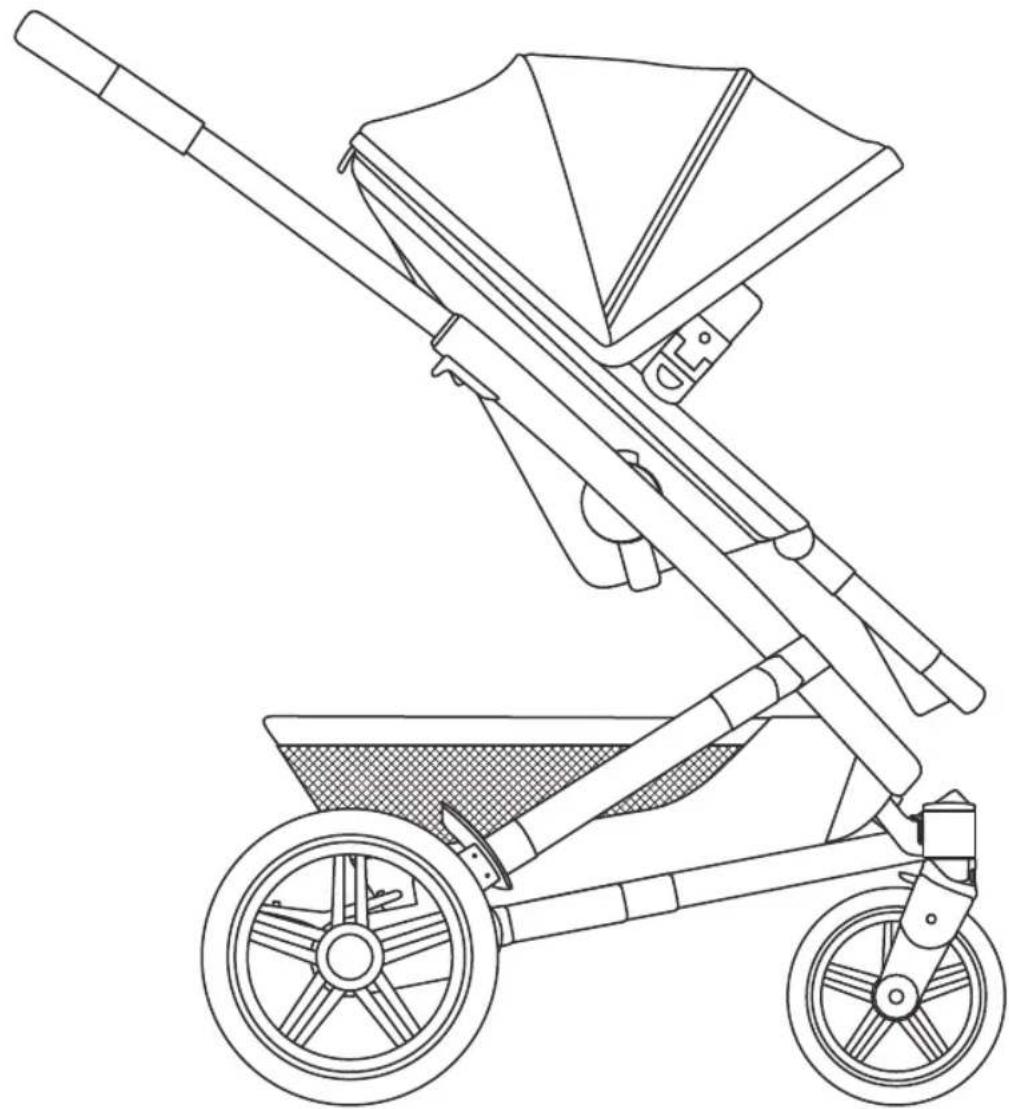

Line drawing of a two-wheeled baby stroller with handlebars and wheels (no text or symbols)

designed in The Netherlands

joolz.com

Brand of:

Milk Design BV

Joolz HQ

Distelweg 89

1031 HD Amsterdam

The Netherlands

[e-mail]

[phone]

Joolz USA Inc.

PO Box 4530

New York

NY 10163-4530

[e-mail]

[phone]

joolz.com

facebook.com/myJoolz

Lifetime warranty

One stroller, one tree

en instruction manual

IMPORTANT: Read carefully and keep for future reference.

what's in the box? 7

assembling the seat II

how to use the cot 13

how to use the seat 15

how to use the restraint system 17

Wie nutze ich den Sicherheitsgurt - comment utiliser le système de sécurité

how to use the buckle 17

how to use the brake 18

how to use the swivel lock 18

how to fold with the cot 20

how to fold with the seat 22

45-75 cm/17.7-29.5 in

I handlebar Schiebegriff - guidon
2 cot frame
3 cot fabric Wannenbekleidung - habillage de la nacelle
4 chassis Gestell - châssis

5basketfabric

6 cot cover Wannenabdeckung - tablier de la nacelle
7 sun hood
8 cot release button
9 swivel lock

67-100 cm/26.4-39.4 in

10 seat recline button
II seat fabric Abnehmbare Sitzbekleidung - habillage amovible du hamac
12 brake Bremse - frein
13 rear wheels Hinterräder - roues arrière
14 rotatable bumper bar Sicherheitsbügel - arceau de maintien rotatif
15 restraint system Rückhaltesystem - système de sécurité
16 front wheels Schwenkräder - roues avant

10

JOOLZ

what's in the box?

Technical line drawing of a mechanical device with lever and base (no text or symbols)

Ix chassis + Ix basket
Gestell + Korb - châssis + panier

lx rotatable bumper bar
Sicherheitsbügel

Line drawing of a mechanical lever or support structure (no text or symbols)

Line drawing of a baby crib with a triangular canopy and handle (no text or symbols)

instruction manual Joolz Geo ^3

11

Stylized black-and-white cartoon figure holding a smiling face, no text or symbols present

One stroller, one tree

Every Joolz on the street is a tree in one of our Birth Forests in Asia, Africa, Europe or South America. When you buy a stroller or buggy your tree joins hundreds of thousands of others in helping to make the world just a little bit greener.

Stylized black-and-white globe icon with a smiling face (no text or symbols)

Lifetime warranty

With smart design, premium materials, and rigorous testing our strollers are made and guaranteed to last a lifetime. So you'll enjoy your stroller for as long as your family needs it. Afterwards other families can use it, which means less strollers are thrown away. It's a win-win.

Make sure to register your warranty within 6 months of purchase on joolz.com.

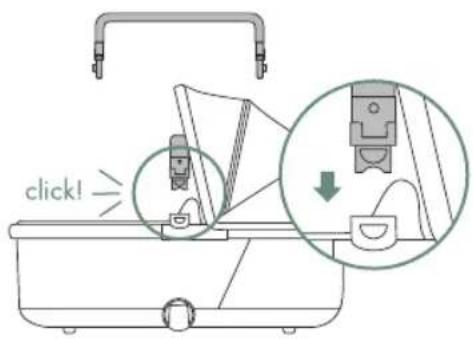

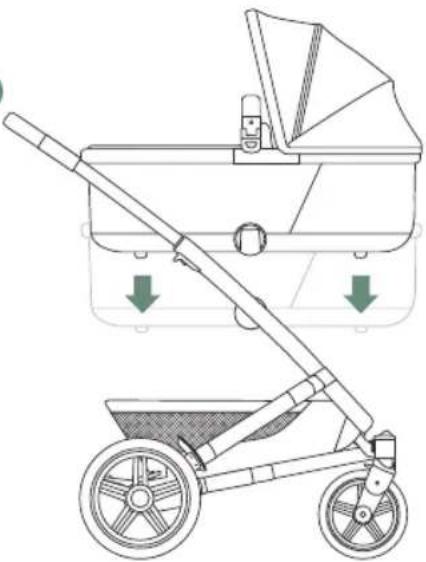

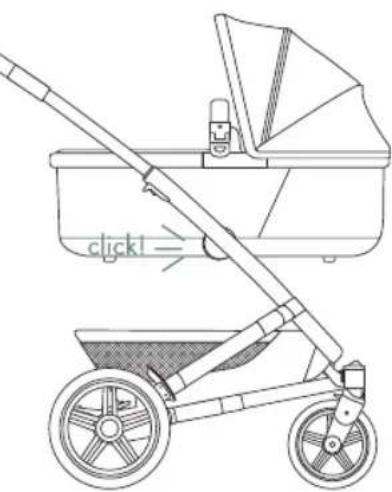

get me ready

Line drawing of a two-wheeled stroller with wheels and handle (no text or symbols)

WARNING: to avoid injury ensure that your child/children are safe from moving parts when unfolding, folding and adjusting this product.

Line drawing of a boat with fins and hull (no text or symbols)

7

Diagram of a hand pressing down on a rectangular object with two arrows indicating left and right motion (no text or symbols)

Diagram of a bathtub with arrows indicating airflow or movement, no text or symbols present

Line drawing of a kitchen sink with a handle and side panel (no text or symbols)

8

9

click!

Simple line drawing of a rounded rectangular object with two downward arrows indicating direction (no text or symbols)

Line drawing of a portable kitchen sink with a handle and side panel (no text or symbols)

10

Line drawing of a baby stroller with directional arrows indicating parts of the basket (no text or symbols)

11

Line drawing of a two-wheeled baby stroller with a baby in the background (no text or symbols)

14
JOOLZ

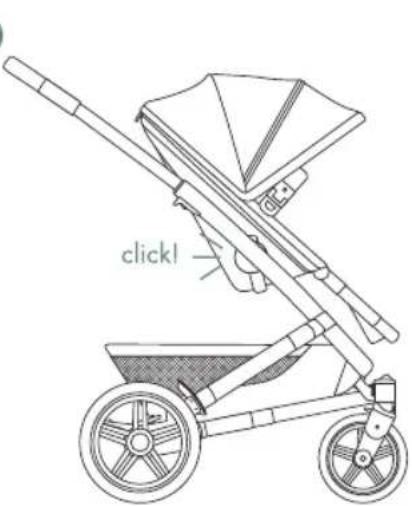

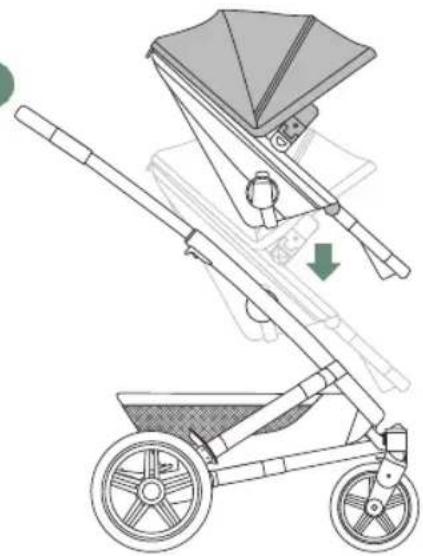

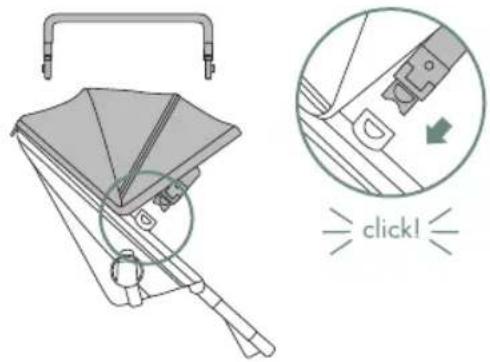

assembling the seat

Circular diagram showing a hand holding a tool with a green arrow and label 'x2' (no text or symbols beyond the label)

Diagram of a folding stand with a handle and lever, showing a downward arrow (no text or symbols)

3

4

Illustration of a baby stroller with a person inside, showing mechanical components and a green arrow indicating motion (no text or symbols)

5

click!

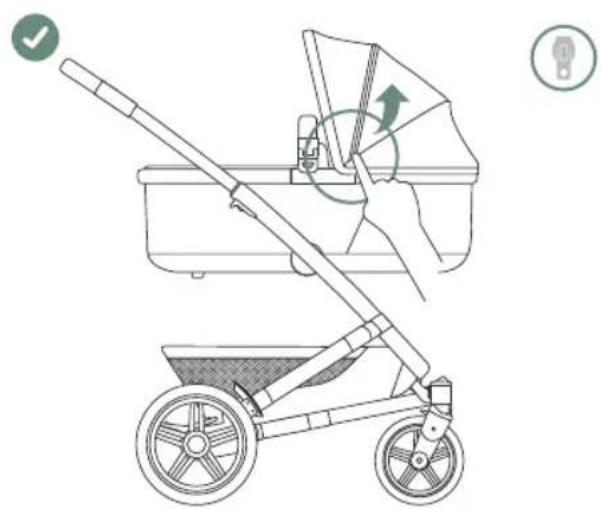

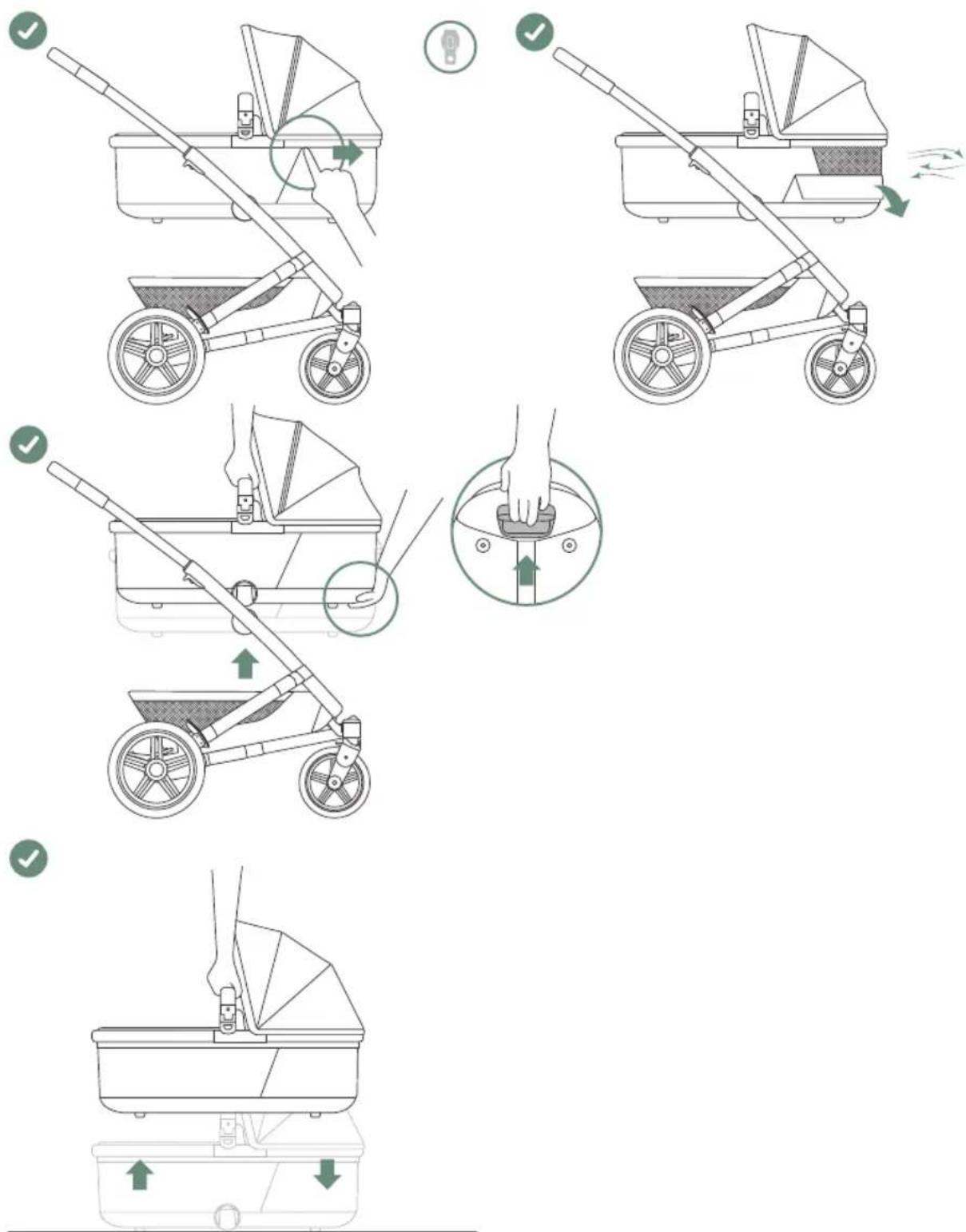

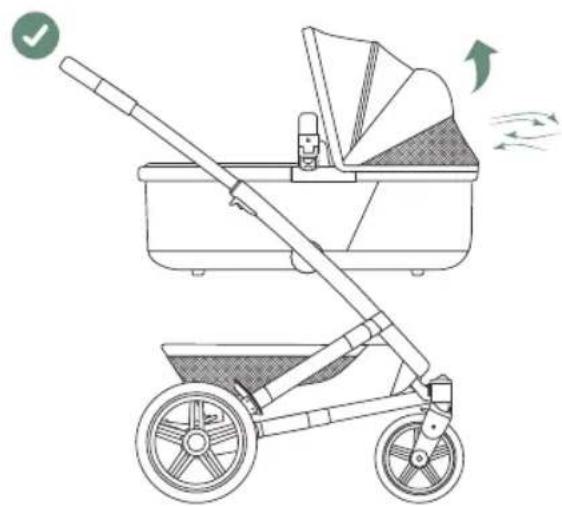

how to use

how to use the cot 15

how to use the seat 17

how to use the restraint system 19

Wie nutze ich den Sicherheitsgurt - comment utiliser le système de sécurité

how to use the buckle 19

how to use the brake 20

how to use the swivel lock 20

Diagram showing a hand cleaning a baby stroller with magnified views highlighting the component's detail.

Illustration of a baby stroller with handrails and wheels, showing motion arrows (no text or symbols)

Diagram showing a baby stroller with a hand operating the basket, indicating a directional change or adjustment.

Illustration of a baby stroller with a green checkmark indicating the correct direction (no text or symbols present)

Line drawing of a baby stroller with hand holding case, showing body positioning and adjustment (no text or symbols)

Illustration of a baby stroller with a baby in the background and directional arrows indicating motion (no text or symbols)

instruction manual Joolz Geo ^3

18

JOOLZ

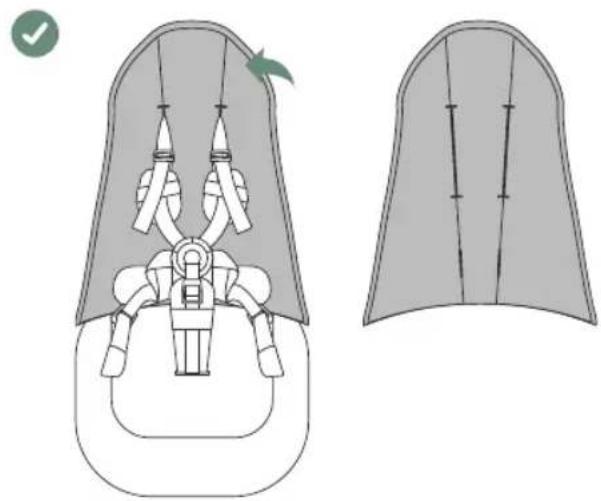

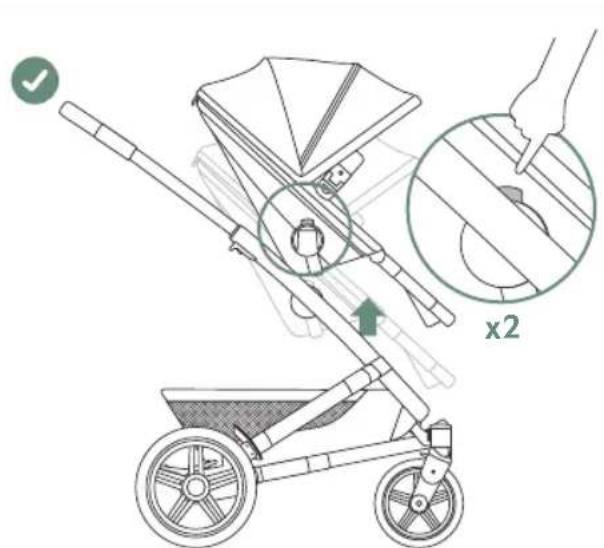

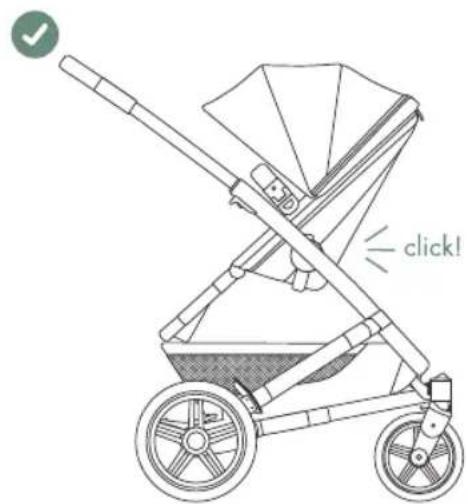

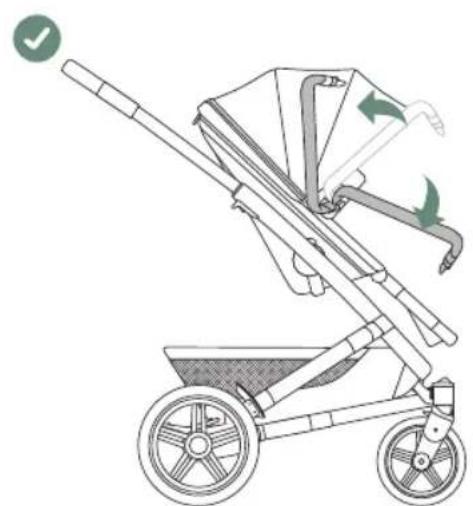

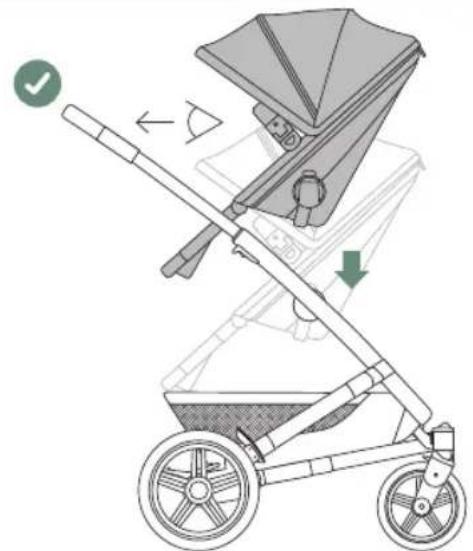

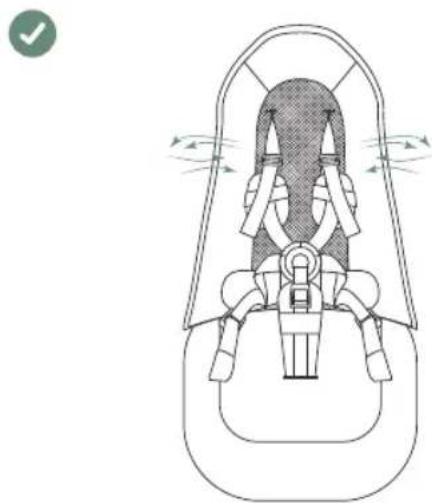

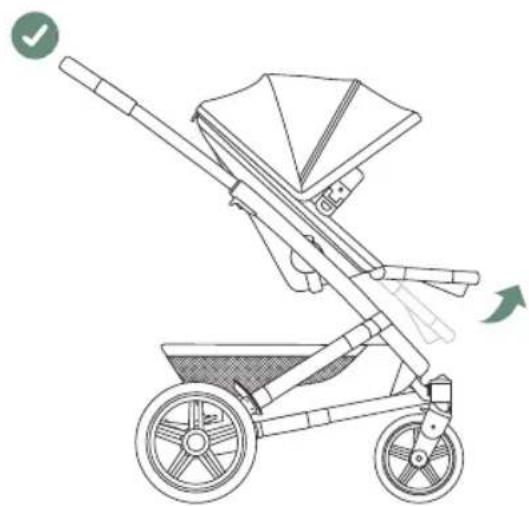

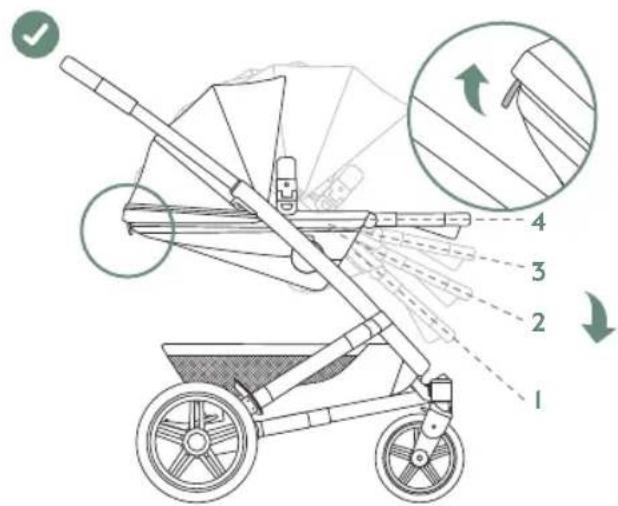

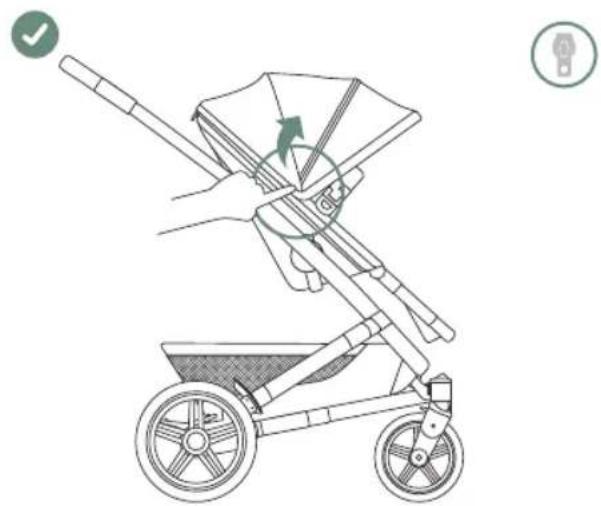

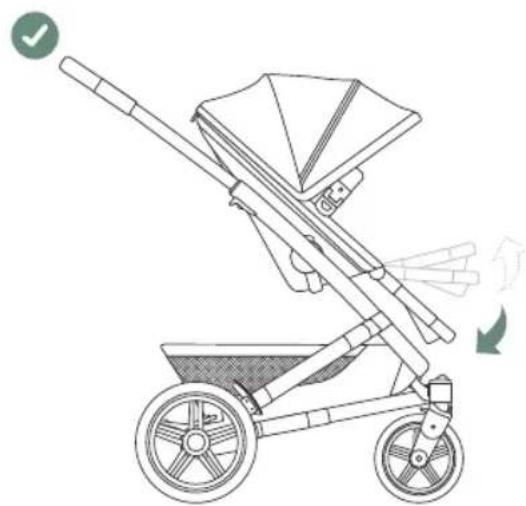

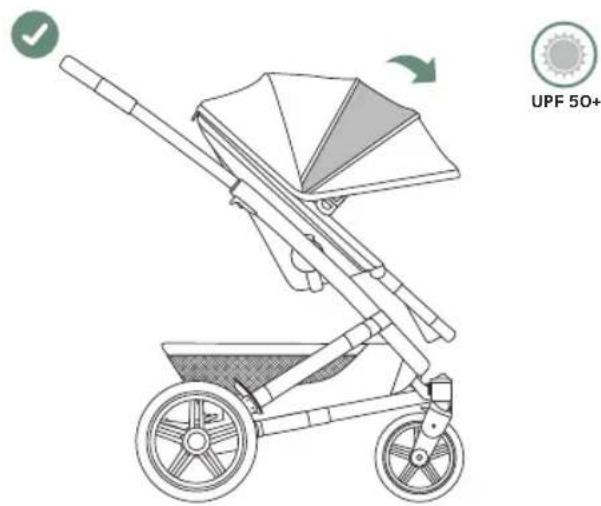

how to use the seat

Diagram illustrating a hand operating a tool on a two-wheeled cart, with magnified detail showing the handle and adjustment.

Line drawing of a baby stroller with decorative elements and directional arrows (no text or symbols)

Illustration of a hand using a wheelbarrow to lift a cart, with a green arrow indicating motion (no text or symbols)

UPF 50+

Line drawing of a baby stroller with a canopy and wheels, no text or symbols present

Line drawing of a baby stroller with a canopy and wheels, showing no text or symbols

instruction manual Joolz Geo ^3

Technical diagram of a stroller with labeled parts and cross-sectional view, showing hand positioning and adjustment annotations.

Illustration of a baby stroller with directional arrows indicating movement or change (no text or symbols present)

click!

Technical diagram of a stroller with labeled parts and directional arrows indicating assembly or cleaning steps

Diagram showing two views of a mechanical component with internal parts and a green checkmark indicating a detail (no text or symbols present)

Diagram of a car seatbelt with seatbelt and seatbelt, showing airflow direction (no text or symbols)

20

JOOLZ

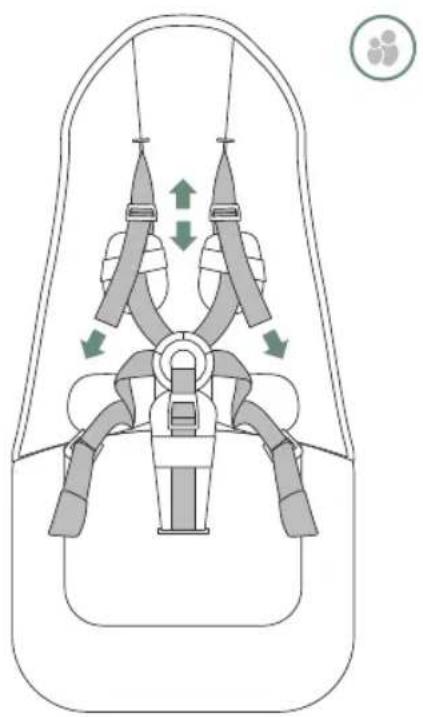

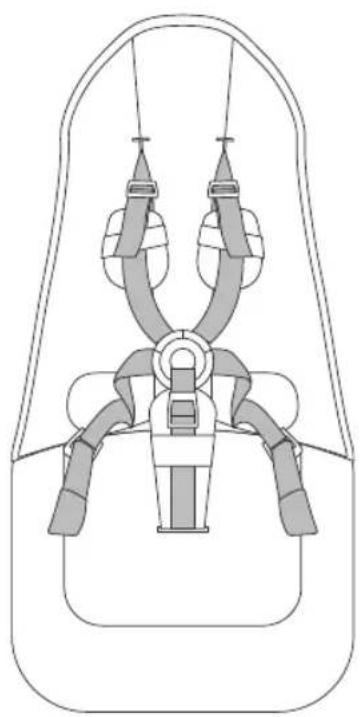

how to use the restraint system

Wie nutze ich den Sicherheitsgurt - comment utiliser le système de sécurité

Line drawing of a car seatbelt device with straps and seat (no text or symbols)

Diagram of a car seatbelt device with green directional arrows indicating movement or force (no text or symbols)

how to use the buckle

Pure mechanical cross-section diagram without any text, numbers, or symbols

instruction manual Joolz Geo ^3

how to use the brake

click! ✓ 6 8 /1\ click!

WARNING: always apply the swivel lock on the front wheels when folding the pushchair. Failing to do so can result in obstruction of the tyres, leading to deformation, especially in a hot environment.

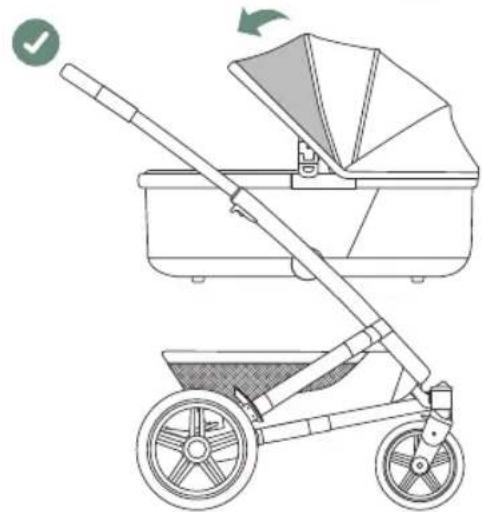

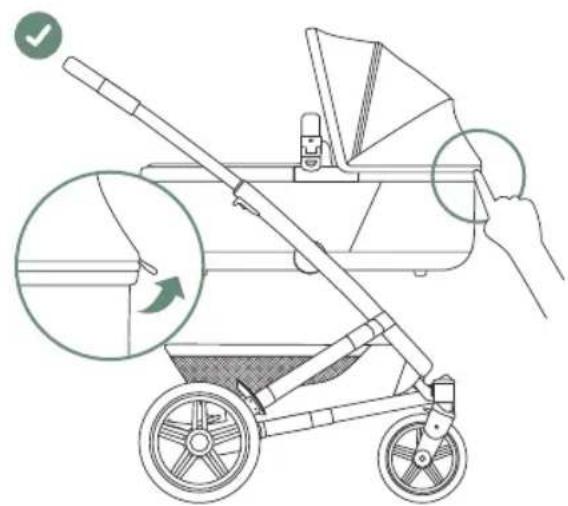

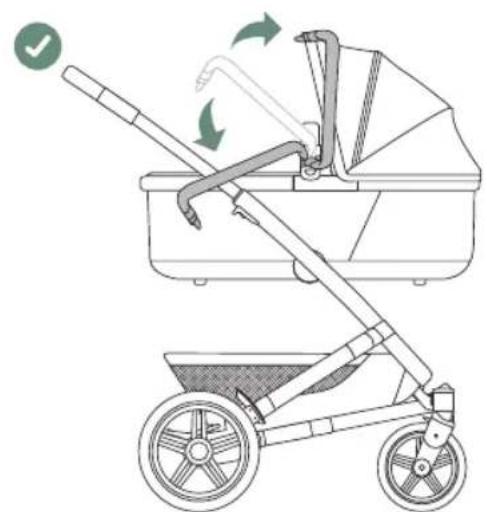

how to use the swivel lock

Diagram illustrating a hand operating a stroller with a magnified inset showing mechanical components and directional arrows.

22
JOOLZ

compact storage

how to fold with the cot 22

how to fold with the seat

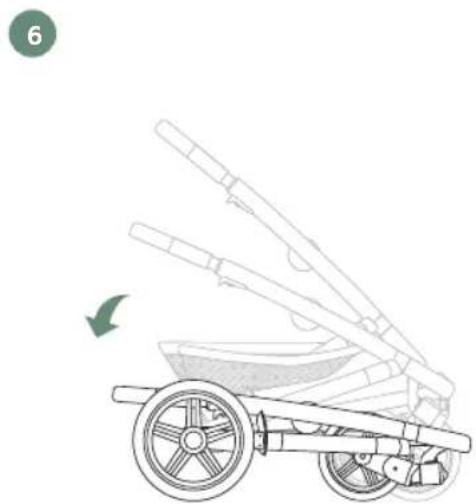

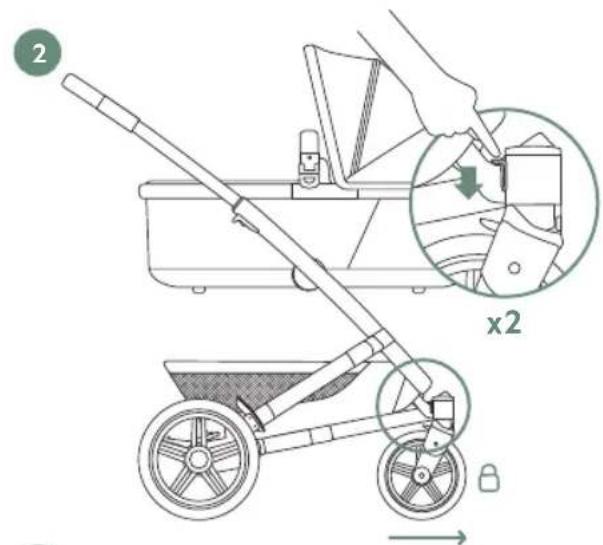

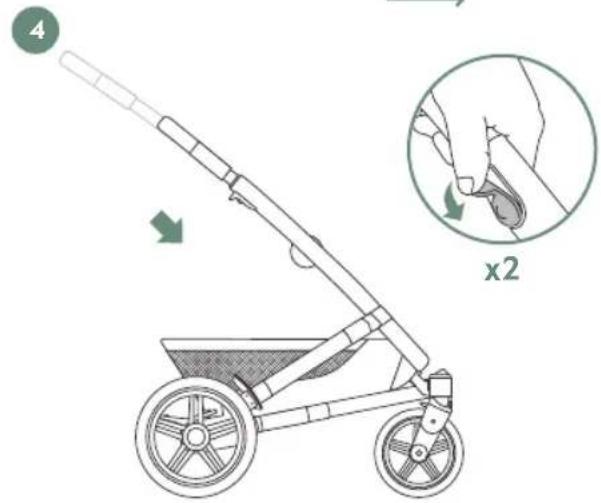

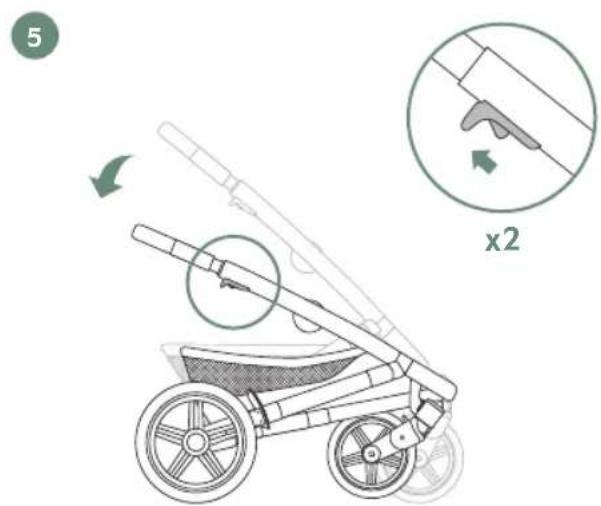

how to fold with the cot

1 click! 3

2 x2

4 x2

5 x2

Line drawing of a two-wheeled stroller with wheels and handle, showing no text or symbols

JOOLZ

7

click!

Diagram of a mechanical vehicle with wheels and a highlighted circular component (no text or symbols)

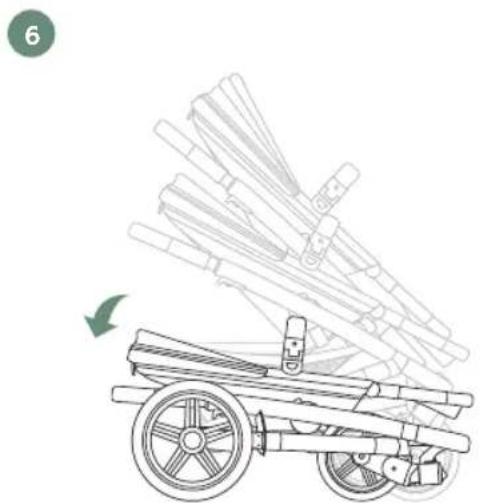

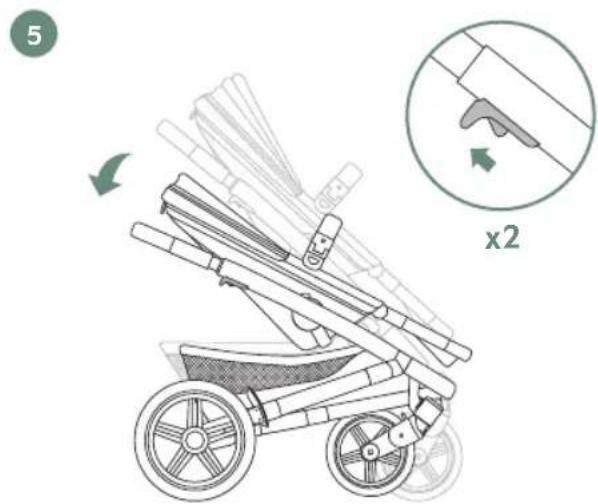

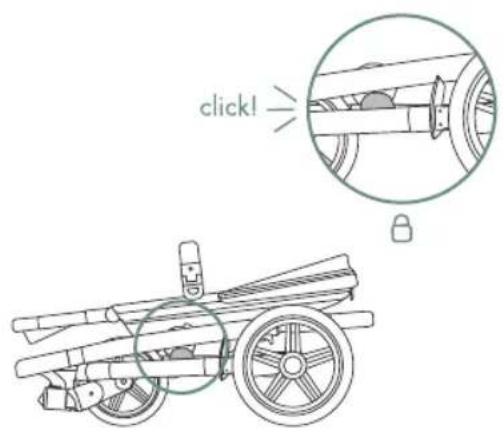

how to fold with the seat

Line drawing of a stroller with a handbag and directional arrow indicating motion (no text or symbols)

5 x2

Line drawing of a wheeled cart with multiple wheels and a wooden handle, showing motion direction (no text or symbols)

JOOLZ

7

click!

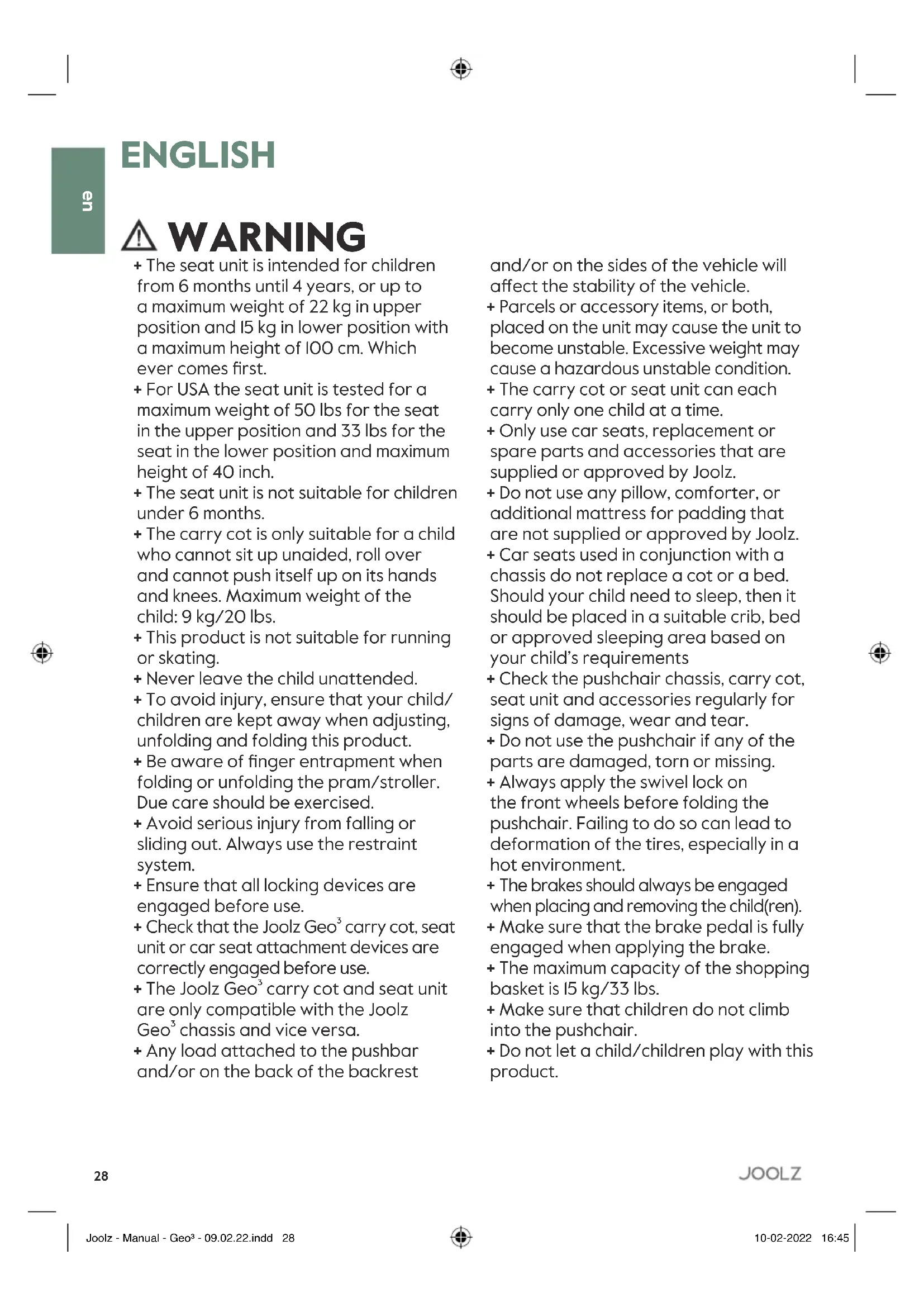

ENGLISH

WARNING

• The seat unit is intended for children from 6 months until 4 years, or up to a maximum weight of 22 kg in upper position and 15 kg in lower position with a maximum height of 100 cm. Which ever comes first.
• For USA the seat unit is tested for a maximum weight of 50 lbs for the seat in the upper position and 33 lbs for the seat in the lower position and maximum height of 40 inch.
• The seat unit is not suitable for children under 6 months.
• The carry cot is only suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg/20 lbs.
• This product is not suitable for running or skating.
• Never leave the child unattended.
• To avoid injury, ensure that your child/children are kept away when adjusting, unfolding and folding this product.
• Be aware of finger entrapment when folding or unfolding the pram/stroller. Due care should be exercised.
• Avoid serious injury from falling or sliding out. Always use the restraint system.
• Ensure that all locking devices are engaged before use.
• Check that the Joolz Geo ^3 carry cot, seat unit or car seat attachment devices are correctly engaged before use.
• The Joolz Geo ^3 carry cot and seat unit are only compatible with the Joolz Geo ^3 chassis and vice versa.
• Any load attached to the pushbar and/or on the back of the backrest

and/or on the sides of the vehicle will affect the stability of the vehicle.

• Parcels or accessory items, or both, placed on the unit may cause the unit to become unstable. Excessive weight may cause a hazardous unstable condition.
• The carry cot or seat unit can each carry only one child at a time.
• Only use car seats, replacement or spare parts and accessories that are supplied or approved by Joolz.
• Do not use any pillow, comforter, or additional mattress for padding that are not supplied or approved by Joolz.
• Car seats used in conjunction with a chassis do not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable crib, bed or approved sleeping area based on your child's requirements
• Check the pushchair chassis, carry cot, seat unit and accessories regularly for signs of damage, wear and tear.
• Do not use the pushchair if any of the parts are damaged, torn or missing.
• Always apply the swivel lock on the front wheels before folding the pushchair. Failing to do so can lead to deformation of the tires, especially in a hot environment.
• The brakes should always be engaged when placing and removing the child(ren).
• Make sure that the brake pedal is fully engaged when applying the brake.
• The maximum capacity of the shopping basket is 15 kg/33 lbs.
• Make sure that children do not climb into the pushchair.
• Do not let a child/children play with this product.

WARNING

FOR THE CARRY COT

• The Joolz Geo ^3 carry cot is only suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg/20 lbs.
• Never leave the child unattended.
• This product is only suitable for a child who cannot sit up unaided.
• Only use on a firm, horizontal level and dry surface.
• Do not let other children play unattended near the carry cot.
• Do not use if any part of the carry cot is damaged, broken, torn or missing.
• Only use replacement or spare parts and accessories that are supplied or approved by Joolz.
• Use only the mattress provided by Joolz. Don't put an additional mattress on the mattress provided by Joolz.
• Keep the Joolz Geo ^3 away from open fires and other sources of heat
• The handles and the bottom of the carry cot should be inspected regularly for signs of damage and wear.
• Always ensure that the bumper bar is correctly engaged to the carry cot unit before use.
• The head of the child in the carry cot should never be lower than the body of the child.
• Overheating can endanger the life of your child! Take into account the ambient temperature and the child's clothing and ensure that the child is not too cold or too warm.

SUFFOCATION HAZARD:

Infant carrier can roll over on soft surfaces and suffocate child. NEVER place carrier on beds, sofas, or other soft surfaces.

FALL HAZARD:

Child's movement can slide carrier.

NEVER place carrier near edges of counter tops, tables, or other elevated surfaces. NEVER use this carrier as a means to transport an infant in a motor vehicle.

FOR USING THE PRODUCT AS A CRIB

This product is intended for infants, from birth until 6 months, 9 kg, or until they are able to sit unaided or pull or push themselves up on their hands and knees. EN II30:2019 & EN I6890:2021

WARNING

• Do not use this product without reading the instructions for use first.
• Stop using the product as soon as the child can sit or kneel or pull itself up.
• Placing additional items in the product may cause suffocation.

+ Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.

+ Do not use more than one mattress in the product.

+ Only use the mattress sold with this crib, do not add a second mattress on this one, suffocation hazards.

ADDITIONAL INFORMATION

• The product should be placed on a horizontal floor.
• Children shall not be allowed to play unsupervised in the vicinity of the crib.
• The crib should be locked in the fixed position when the child is left unattended.
• Risk of strangulation: All assembly fittings should always be tightened properly and care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc.
• Maximum mattress thickness: 30 mm.
• DO NOT use crib if any parts are missing, damaged, or broken. Contact Joolz for replacement parts and instructional literature if needed. Do not substitute parts.
• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot (crib and suspended bed).
• Uneven surfaces can cause instability of the product.

MAINTENANCE/WASHING INSTRUCTIONS

The fabrics are detachable and machine washable. Never use bleach or other chemical detergents. Periodically (approximately once a month) treat the wheels and metal parts with Teflon or silicon spray to ensure the pushchair continues to run smoothly.

The aluminium parts of your Geo ^3 pushchair are anodized to protect it from external influences such as corrosion. Anodized aluminium parts are vulnerable to acidic cleaners or grease, which can cause stains and discoloration of the aluminium parts. We therefore advise you to clean the aluminium parts of your pushchair with warm water and a soft cloth.

WARRANTY

Joolz offers lifetime warranty on the Joolz Geo ^3 . The warranty covers all material and manufacturing faults, but not the exchange or return of the product. To be eligible for the lifetime warranty, all you have to do is register your Joolz pushchair on register.joolz.com within six months of purchase and keep your original proof of purchase including a purchase date. If you do not register your Joolz pushchair within six months after purchase, you will receive a two-year warranty.

The warranty is only valid if you supply the following items to your retailer along with the defective product:

I) Your warranty certificate,
2) Any form of personal identification,
3) A copy of the receipt of purchase (including a purchase date),
4) A detailed description of the defect.

You will receive the warranty certificate after you have registered your Joolz pushchair on our website register.joolz.com.

If your retailer cannot assist you with your complaint, contact Joolz. Please note, any repairs do not extend the warranty period.

THE WARRANTY DOES NOT COVER:

1) Defects caused by ordinary wear and tear, such as worn wheels and fabrics by everyday use, scratches on the aluminium and/or metal and natural discolouration of materials over time or by not following the maintenance instructions.
2) Damage to wheels such as holes and tears.
3) Damage caused by accidents, improper use, negligence, fire, contact with liquids or another external cause.
4) Damage resulting from non-compliance with the instruction manual, instruction movies or other Joolz guidelines.
5) Damage caused by another product, including accessories.
6) Damage by service or repair by an unofficial representative of Joolz.
7)Theft.
8) Air transportation or freight damage.

Safety was an important consideration throughout the development of the Joolz Geo ^3 pushchair and cot. Our products therefore meet the following safety standards:

Europe: ENI888-2:2018 & EN I466:2014/AC:2015

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

Please visit joolz.com, facebook.com/myjoolz or contact your retailer for any questions and/or comments.

AUSTRALIA

WARNING

• The stroller is intended for children from 6 months, up to maximum weight of 22 kg.
• To avoid injury or death: always apply the brakes whenever the pram/stroller is stationary.
• Do not leave children unattended
• Secure the child in the harness at all times
• Do not carry extra children or bags on this pram/stroller.
• Make sure children are clear of any moving parts if you adjust the pram/stroller.
• Seat usage is not recommended for a child under 6 months.
• Use the tether strap to stop the pram/stroller from rolling away.
• Do not use the seat with any other models of pram/stroller.
• Never leave a harness buckled when not fitted to a child in the pram/stroller because the harness can form loops which may pose a strangulation hazard.
• Be aware of finger entrapment when folding or unfolding the pram/stroller. Due care should be exercised.
• Regularly inspect the pram/stroller, chassis and accessories regularly for signs of damage and tear.

• Only use car seats, replacement or spare parts and accessories that are supplied or approved by Joolz. Using non-approved accessories is unsafe.

• Care should be taken if the pram/stroller is used on stairs or escalators.

• The pram/stroller should not be used near an open fire or exposed flame.
• The maximum weight of the shopping basket is 5 kg.
• The maximum weight of the backrest pocket is 2 kg.
• The vehicle is designed for use on flat or gently sloping surfaces and may be unstable on higher sloping and uneven surfaces.
• Make sure storage latch is engaged when lifting or carrying the stroller.
• To use the tether strap stick your hand through the loop and wrap the strap around your wrist.

WARNING

FOR THE BASSINET

• The Joolz Geo ^3 bassinet is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg.
• This product is only suitable for a child who cannot sit up unaided.
• Only use on a firm, horizontal level and dry surface.
• Do not let other children play unattended near the bassinet.
• Do not use if any part of the bassinet is broken, torn or missing.
• Keep the Joolz Geo ^3 away from open fires and other sources of heat.
• The handles and the bottom of the bassinet should be inspected regularly for signs of damage and wear.
• The head of the child in the bassinet should never be lower than the body of the child.
• Don't put an additional mattress on the mattress provided by Joolz.
• Only spare parts supplied or recommended by Joolz should be used.

MAINTENANCE/WASHING INSTRUCTIONS

The fabrics are detachable and machine washable. Never use bleach or other chemical detergents. Periodically (approximately once a month) treat the wheels and metal parts with Teflon or silicon spray to ensure the pushchair continues to run smoothly.

The aluminium parts of your Geo ^3 pushchair are anodized to protect it from external influences such as corrosion. Anodized aluminium parts are vulnerable to acidic cleaners or grease, which can cause stains and discoloration of the aluminium parts. We therefore advise you to clean the aluminium parts of your pushchair with warm water and a soft cloth.

WARRANTY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Joolz offers lifetime warranty on the Joolz Geo ^3 . The warranty covers all material and manufacturing faults, but not the exchange or return of the product. To be eligible for the lifetime warranty, all you have to do is register your Joolz pushchair on register.joolz.com within six months of purchase and keep your original proof of purchase including a purchase date. If you do not register your Joolz pushchair within six months after purchase, you will receive a two-year warranty.

The warranty is only valid if you supply the following items to Anstel Brands along with the defective product:

I) Your warranty certificate,
2) Any form of personal identification,
3) A copy of the receipt of purchase (including a purchase date),
4) A detailed description of the defect.

You will receive the warranty certificate after you have registered your Joolz pushchair on our website register.joolz.com.

Please contact Anstel Brands for any warranty claims. Please note, any repairs do not extend the warranty period.

THE WARRANTY DOES NOT COVER:

1) Defects caused by ordinary wear and tear, such as worn wheels and fabrics by everyday use, scratches on the aluminium and/or metal and natural discolouration of materials over time or by not following the maintenance instructions.

2) Damage to wheels such as holes and tears.
3) Damage caused by accidents, improper use, negligence, fire, contact with liquids or another external cause.
4) Damage resulting from non-compliance with the instruction manual, instruction movies or other Joolz guidelines.
5) Damage caused by another product, including accessories.
6) Damage by service or repair by an unofficial representative of Joolz.
7)Theft.
8) Air transportation or freight damage.

SAFETY

Safety was an important consideration throughout the development of the Joolz Geo ^3 pushchair and cot. Our products therefore meet the following safety standards:

Europe: ENI888-2:2018 & EN I466:2014/AC:2015

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

DEUTSCH

⚠️ WARNING

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

LA GARANTIE NE COUVRE PAS:

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

MANUTENÇÃO/INSTRUÇÕES DE LAVAGEM

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

GARANTIEN DÄKKER IKKE:

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

DODATKOWE INFORMACJE

GWARANCJA NIE OBEJMUJE:

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-2I, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

PAR PRODUKTA LIETOŠANU KĀ GULTINU.

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

JEI GAMINYS NAUDOJAMAS KAIP LOVELÈ

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

ASTM F833-21, ASTM F2050-19

Kanada: SOR/2016-167

Australija: AS/NZS 2088:2013

Ako imate pitanja i/ili primjedbi, posjetite joolz.com, facebook.com/myjoolz ili se obratite prodajnom predstavniku.

ČEŠTINA

⚠️ VAROVÁNÍ

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

Posetite joolz.com, facebook.com/myjoolz ili se obratite maloprodaji za sva pitanja i/ili komentare.

MAGYAR

⚠️ FIGYELMEZTETÉS

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

United States: ASTM F833-21, ASTM F2050-19

Canada: SOR/2016-167

Australia: AS/NZS 2088:2013

enjoy the ride #myjoolz

joolz.com
