Download the instructions for your Stroller in PDF format for free! Find your manual Day2 - Joolz and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Day2 by Joolz.
USER MANUAL Day2 Joolz
Joolz - manual - Day2.indd 3 25-11-16 12:09Brand of: Milk Design BV Distelweg 89 1031 HD Amsterdam The Netherlands info@joolz.com +31 206 304 887 joolz.com facebook.com/myJoolz Joolz - manual - Day2.indd 4 25-11-16 12:09At Joolz, we believe that good parenting is all about being happy. That’s why we offer you the building blocks to spark your life with positivity . So, whatever defines your happiness,
go after it and live it. Our ergonomic pushchairs, car seats and (organic) accessories are designed to make you enjoy the ride.

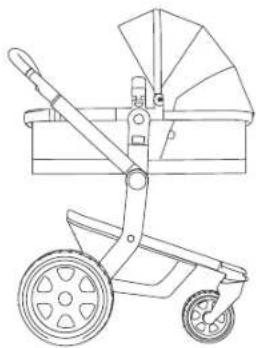

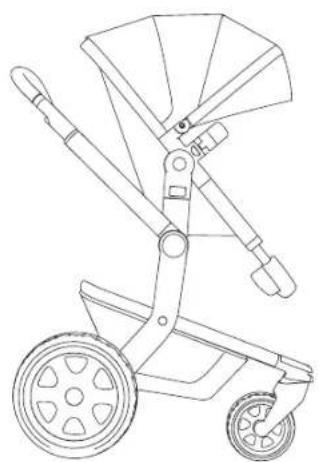

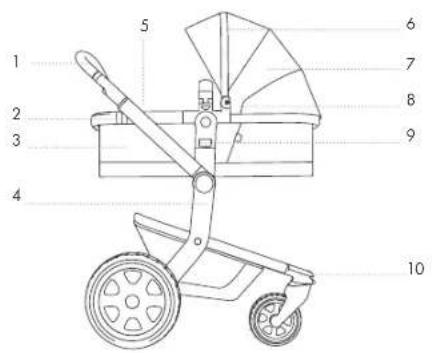

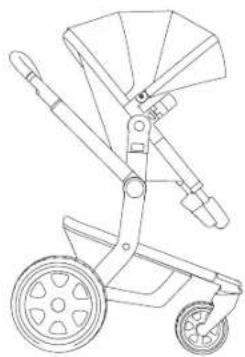

what’s in a box configurations, sizes and weights introducing Joolz Day

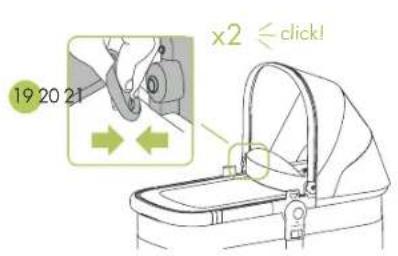

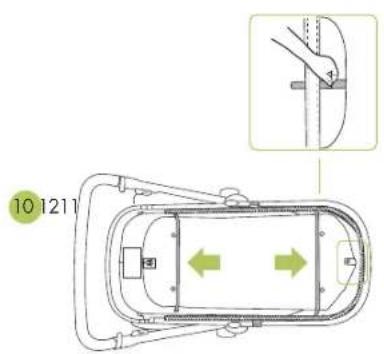

assembling the chassis assembling the XL basket assembling the cot assembling the seat how to use and fold car seat adapters warnings warranty washing instructions warnings for AU only
67-100 cm Unfolded Folded without seat Folded without wheels Folded with seat Cot outside Cot mattress size Front wheel Rear wheel Sizes 90 x 59 x 99 – 109 cm 65 x 59 x 30 cm 70 x 55 x 23 cm 95 x 59 x 43 cm 81,5 x 43 x 25 cm 77 x 34 x 3 cm 7 inch 12 inch Joolz Day
with seat Chassis Chassis without wheels Seat Cot Weight capacity XL basket Joolz Day
10. clip for locking front wheels
Joolz - manual - Day2.indd 11 25-11-16 12:09Assembling the chassis WARNING: to avoid injury ensure that your child/children are safe from moving parts when unfolding, folding and adjusting this product.
Joolz - manual - Day2.indd 15 25-11-16 12:09NOTE There is a wider slot position to start the rigging. instruction manual Joolz Day

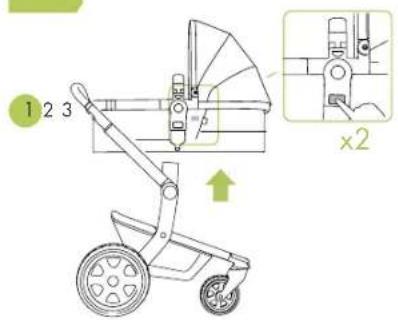

How to use and fold How to use the cot How to use the seat Only for Australia How to use the harness How to fold the cot and the XL basket How to fold the seat and the XL basket How to lock - for Australia

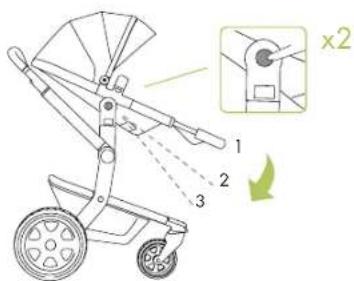

NOTE The strap can be fixed to the back of the seat in three different seat positions. Only for Australia

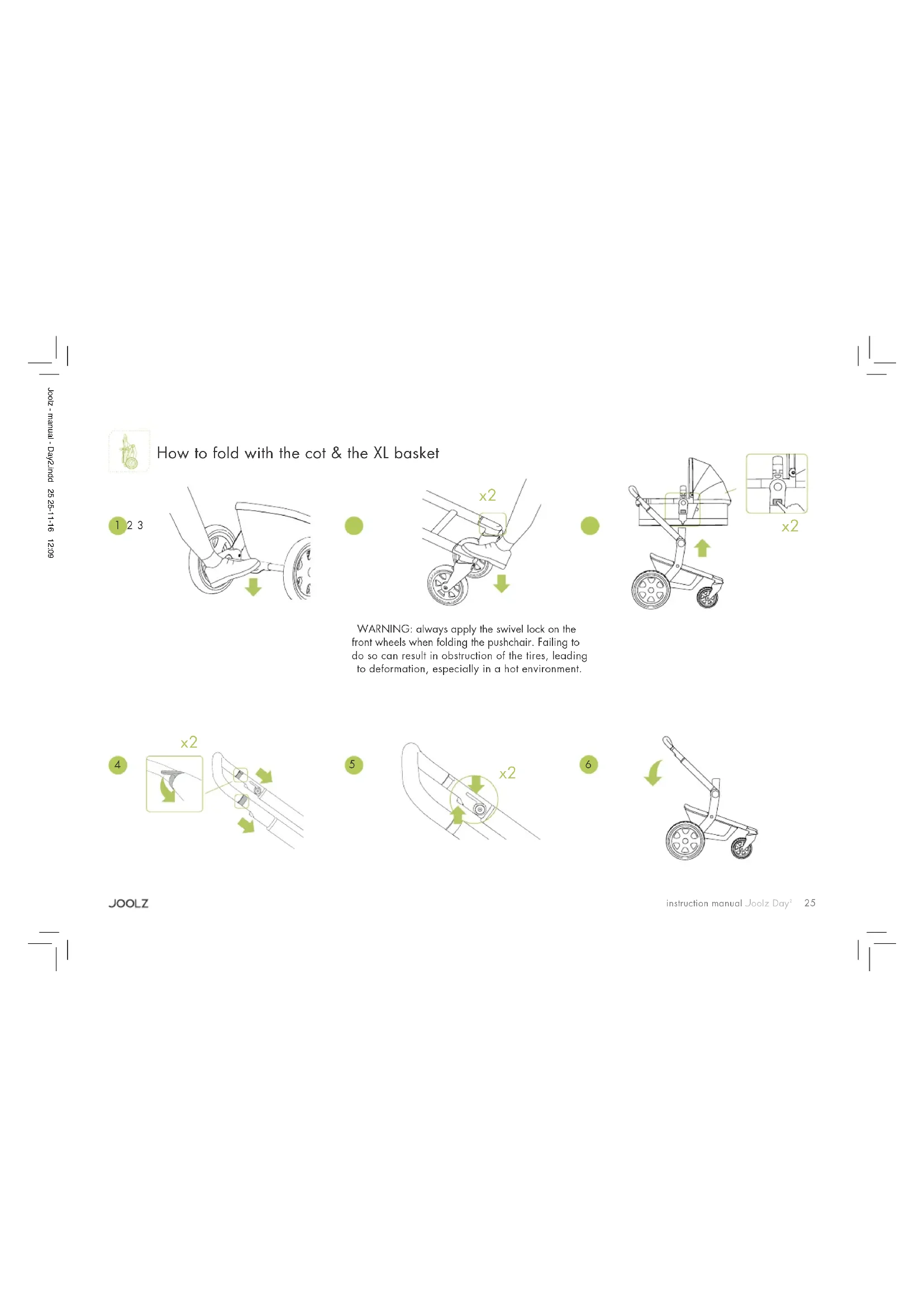

How to fold with the cot & the XL basket
WARNING: always apply the swivel lock on the
front wheels when folding the pushchair. Failing to do so can result in obstruction of the tires, leading to deformation, especially in a hot environment.
Joolz - manual - Day2.indd 25 25-11-16 12:09WARNING: to avoid injury ensure that your child/children are safe from moving parts when unfolding, folding and adjusting this product. instruction manual Joolz Day
How to fold with the seat & the XL basket
WARNING: always apply the swivel lock on the
front wheels when folding the pushchair. Failing to do so can result in obstruction of the tires, leading to deformation, especially in a hot environment. Joolz - manual - Day2.indd 27 25-11-16 12:09WARNING: to avoid injury ensure that your child/children are safe from moving parts when unfolding, folding and adjusting this product.

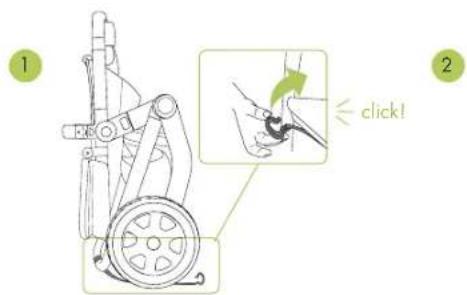

How to lock - for Australia AUS
WARNING: Ensure that the storage latch is engaged
when lifting or carrying the pushchair. To avoid injury ensure that your child/children are safe from moving parts when unfolding, folding and adjusting this product.
IMPORTANT: Please read these instructions carefully before usage and keep them for future reference. WARNING WARNING Never leave your child unattended. WARNING Ensure that all the locking devices are engaged before use. WARNING To avoid injury ensure that your child is kept away when adjusting, unfolding and folding this product. WARNING Do not let your child play with this product. WARNING This seat unit is not suitable for children under 6 months. WARNING Always use the restraint system. WARNING Check that the cot, seat or car seat unit attachment devices are correctly engaged before use. WARNING This product is not suitable for running or skating. WARNING The Joolz Day
cot and seat units are only compatible with the Joolz Day
chassis and vice versa. WARNING Do not use an additional mattress. WARNING Any load attached to the sides and/or handlebar of the Joolz Day
pushchair may affect its stability. WARNING The Joolz Day
cot or seat units can each carry only one passenger. WARNING Only use body seats, car seats, replacement parts and accessories that are approved by Joolz. WARNING For car seats in conjunction with the Joolz Day
chassis, this vehicle does not replace a cot or a bed. Should your child needs to sleep, it should be placed in the Joolz Day
pushchair chassis, cot or bed. WARNING Do not use the pushchair if any of the parts are damaged, torn or missing. WARNING Always apply the swivel lock on the front wheels when folding the pushchair. Failing to do so can result in obstruction of the tires, leading to deformation, especially in a hot environment. WARNING The brakes should always be engaged when placing and removing the children. WARNING Accessories not provided by Joolz should not be used. WARNING Only spare parts supplied or recommended by Joolz should be used. WARNING This seat is intended for children from 6 months, up to maximum weight of 15 kg. ENGLISH Joolz - manual - Day2.indd 38 25-11-16 12:0939 instruction manual Joolz Day
cot is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg. WARNING This product is only suitable for a child who cannot sit up unaided. WARNING Only use on a firm, horizontal level and dry surface. WARNING Do not let other children play unattended near the carrycot. WARNING Do not use if any part of the carrycot is broken, torn or missing. WARNING Keep the Joolz Day
away from open fires and other sources of heat, such as electric bar heaters, gas fires, etc. WARNING The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear. WARNING Always ensure that the bumper bar is correctly engaged to the cot/seat units before use. WARNING The head of the child in the carrycot should never be lower than the body of the child. WARNING Don’t put an additional mattress on the mattress provided by Joolz.
Warranty The 24-month warranty period commences on the day of purchase. The warranty covers manufacturing faults, but not the exchange or return of the product. The warranty is only valid if you supply the following items to your retailer along with the defective product:
1) a completed and correctly filled in warranty card,
2) a copy of the receipt of purchase,
3) a detailed description of the defect.
If your retailer cannot assist you with your complaint, contact Joolz. Any repairs do not extend the warranty period. The warranty card can be found on joolz.com. Please complete this card and submit it digitally on the website. Fill in the frame number, which is located on
a transparent sticker on the thick tube between the boomerang part of the Joolz Day
The warranty is invalid if: - the product is returned without the original receipt of purchase, - the defects and/or damage are caused by improper use and/or by modifications made by the customer, - the discolouration/stains were caused by washing, rain or sun, - the wear and tear is a result of normal usage, - the defect is the result of using a non-Joolz Day
certified footboard. Safety was an important consideration throughout the development of the Joolz Day
pushchair and cot. Joolz therefor meets the highest safety standards: Europe: EN 1888:2012 / EN1466:2014 Please visit joolz.com, facebook.com/myjoolz or contact your retailer for any questions and/or comments.
The warranty is invalid if: - the product is returned without the original receipt of purchase, - the defects and/or damage are caused by improper use and/or by modifications made by the customer, - the discolouration/stains were caused by washing, rain or sun, - the wear and tear is a result of normal usage, - the defect is the result of using a non-Joolz Day
certified footboard. Safety was an important consideration throughout the development of the Joolz Day
pushchair and cot. Joolz therefor meets the highest safety standards: Europe: EN 1888:2012 / EN1466:2014 Please visit joolz.com, facebook.com/myjoolz or contact your retailer for any questions and/or comments. Maintenance / Washing instructions Clean the fabric with lukewarm water and soap. Rinse with fresh water and leave to dry. Never use bleach or other chemical detergents. Periodically (approximately once a month) treat the wheels and metal parts with Teflon or silicon spray to ensure the pushchair continues to run smoothly. The aluminum parts of your Joolz Day
pushchair are anodized to protect it from external influences such as corrosion. Anodized aluminum parts are vulnerable to acidic cleaners or grease, which can cause stains and discoloration of the aluminum parts. We therefor advise you to clean the aluminum parts of your pushchair with warm water and a soft cloth. Joolz - manual - Day2.indd 41 25-11-16 12:0942 instruction manual Joolz Day
IMPORTANT: Please read these instructions carefully before usage and keep them for future reference. WARNING : Do not leave children unattended. Secure harness at all times. WARNING : Seat usage is not recommended for a child under 6 months. WARNING : Do not use this seat with any other models of pram/stroller. WARNING : Care should be taken if the pram/stroller is used on stairs or escalators.
WARNING: The pram/stroller should not be used near an
open fire or exposed flame.
The brakes must always be applied when the pram/stroller is not moving.
The vehicle is designed for use on flat or gently sloping surfaces and may be unstable on higer sloping and uneven surfaces.
Be aware of finger entrapment when folding or unfolding the pram/stroller. Due care should be exercised.
WARNING: Always use the storage latch in engaged postion.
WARNING: To avoid injury or death: always apply the brakes
whenever the pram/stroller is stationary.
WARNING: Do not carry extra children or bags on this pram/
WARNING: Make sure children are clear of any moving parts
if you adjust the pram/stroller.
WARNING: Use this strap to stop the pram/stroller from
WARNING: Do not use this bassinet once the child can sit up
WARNING: Never leave a harness buckled when not fitted
to a child in the pram/stroller because the harness can form loops which may pose a strangulation hazard.
