USER MANUAL CL183D MAKITA

ENGLISH (Original instructions)

WARNING: This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Explanation of general view SPECIFICATIONS

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight of the appliance and battery cartridge(s) are shown in the table. Applicable battery cartridge and charger

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

• Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire. Symbols END315-1 The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. ....... Read instruction manual. ............ Only for EU countries Do not dispose of electric equipment or battery pack together with household waste material! In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electric equipment and batteries and battery pack(s) that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Intended use ENE017-1 The tool is intended for collecting dry dust.

17. Cyclone attachment

20. Button (two locations)

SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following:

APPLIANCE. WARNING - To reduce the risk of fire, electric shock or injury:

1. Do not expose to rain. Store indoors.

2. Do not allow to be used as a toy. Close attention is

necessary when used by or near children.

3. Use only as described in this manual. Use only

manufacturer’s recommended attachments.

4. Do not use with damaged battery. If appliance is

not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

5. Do not handle appliance with wet hands.

6. Do not put any object into openings. Do not use

with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

7. Keep hair, loose clothing, fingers, and all parts of

body away from openings and moving parts.

8. Turn off all controls before removing the battery.

9. Use extra care when cleaning on stairs.

10. Do not use to pick up flammable or combustible

liquids, such as gasoline, or use in areas where they may be present.

11. Use only the charger supplied by the

manufacturer to recharge.

12. Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or hot ashes.

13. Do not use without filters in place.

14. Do not charge the battery outdoors.

Battery tool use and care

15. Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

16. Use power tools only with specifically designated

battery packs. Use of any other battery packs may create a risk of injury and fire.

17. When (the) battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

18. Under abusive conditions, liquid may be ejected

from the battery; avoid contact. If contact accidentally occurs, flush with water. SAVE THESE INSTRUCTIONS. This appliance is intended for household use.

1. Read this instruction manual and the charger

instruction manual carefully before use.

2. Do not pick up the following materials:

- Hot materials such as lit cigarettes or spark/ metal dust generated by grinding/cutting metal - Flammable materials such as gasoline, thinner, benzine, kerosene or paint - Explosive materials like nitroglycerin - Ignitable materials such as Aluminum, zinc, magnesium, titanium, phosphorus or celluloid - Wet dirt, water, oil or the like - Hard pieces with sharp edges, such as wood chips, metals, stones, glasses, nails, pins or razors - Powder to clot such as cement or toner - Conductive dust such as metal or carbon - Fine particle like concrete dust Such action may cause fire, injury and/or property damage.

3. Stop operation immediately if you notice anything

4. If you drop or strike the cleaner, check it carefully

for cracks or damage before operation.

5. Do not bring close to stoves or other heat

SAVE THESE INSTRUCTIONS. Important safety instructions for battery cartridgeI ENC009-7

1. Before using battery cartridge, read all

instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively shorter,

stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out

with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery cartridge

in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if it is

severely damaged or is completely worn out. The battery cartridge can explode in a fire.9

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject to

the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove it

from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products specified

by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time, the

battery must be removed from the tool. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

3. Charge the battery cartridge with room

temperature at 10°C - 40°C (50°F - 104°F). Let a hot battery cartridge cool down before charging it. FUNCTIONAL DESCRIPTION CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

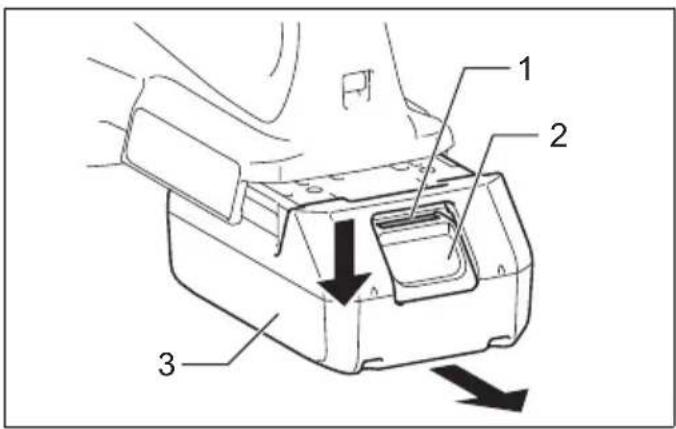

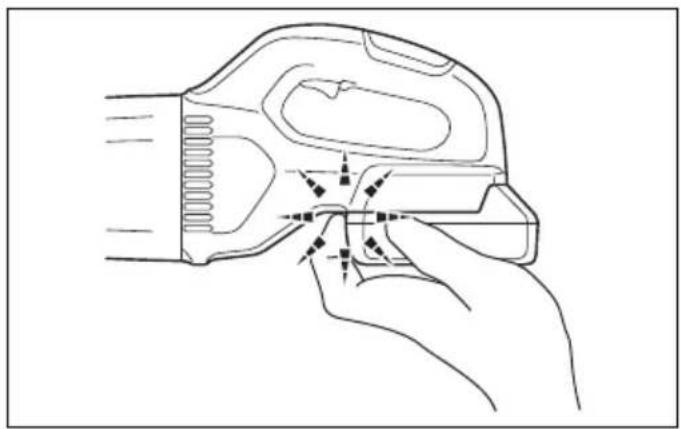

• Take care not to trap finger(s) between cleaner and battery as shown in diagram when loading battery. Trapping finger(s) may cause injury. (Fig. 1) Installing or removing battery cartridge (Fig. 2) CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.

• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury. To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge align the tongue on the battery cartridge with the groove in the housing and slip it into the place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Battery protection system The tool is equipped with a battery protection system. This system automatically cuts off power to the motor to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the switch trigger on the tool and stop the application that caused the tool to become overloaded. Then pull the switch trigger again to restart. If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the switch trigger again.

• Low battery voltage: The remaining battery capacity is too low and the tool will not operate. If you pull the switch trigger, the motor runs again but stops soon. In this situation, remove and recharge the battery. Switch action CAUTION:

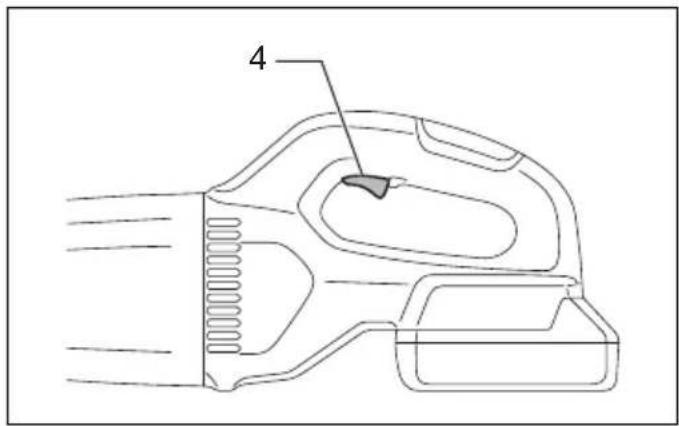

• Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. To start the tool, simply pull the switch trigger. Release the switch trigger to stop. (Fig. 3) ASSEMBLY CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Disposing of dust CAUTION:

• Empty the cleaner before it becomes too full, or the suction force weakens.10

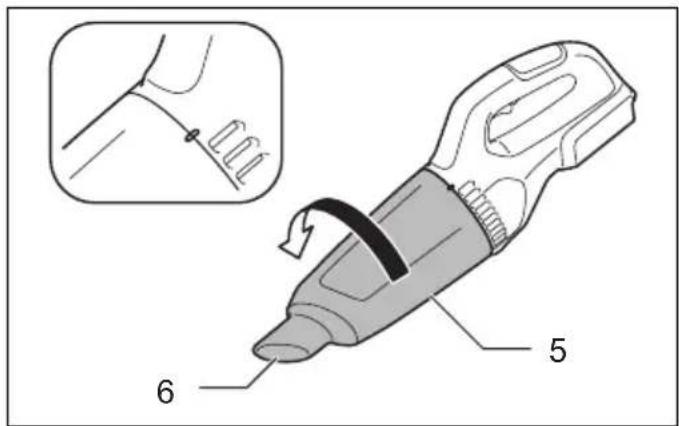

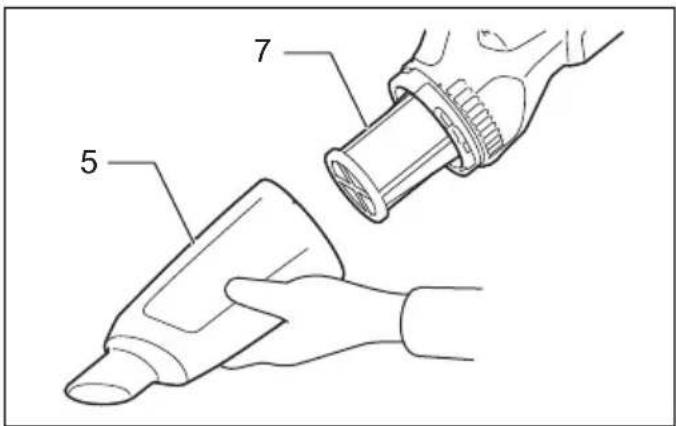

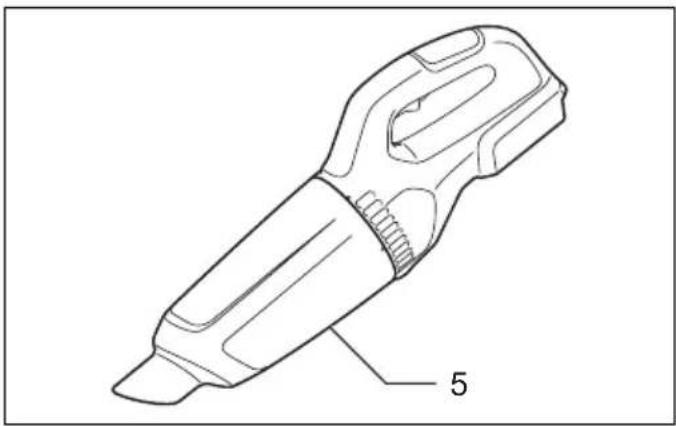

• Be sure to empty out the dust inside the cleaner itself. Failure to do so may cause the filter to be clogged or the motor to be damaged. In order to drop dust sticking on the filter in the capsule, tap the circumference of the capsule 4 or 5 times with your hand. (Fig. 4) Now point suction inlet downwards, turn capsule in direction of arrow in diagram, and disconnect capsule slowly and straight. (Fig. 5) NOTE:

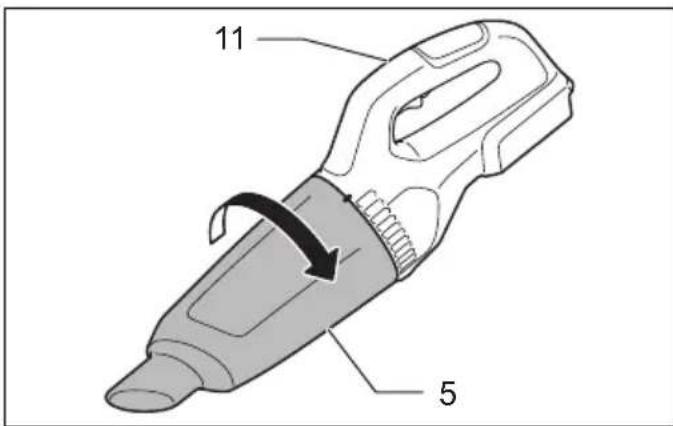

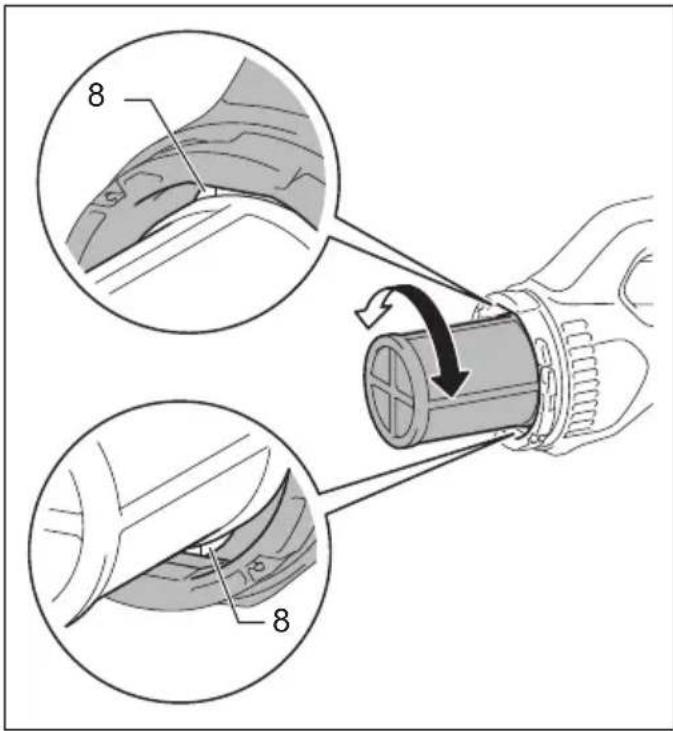

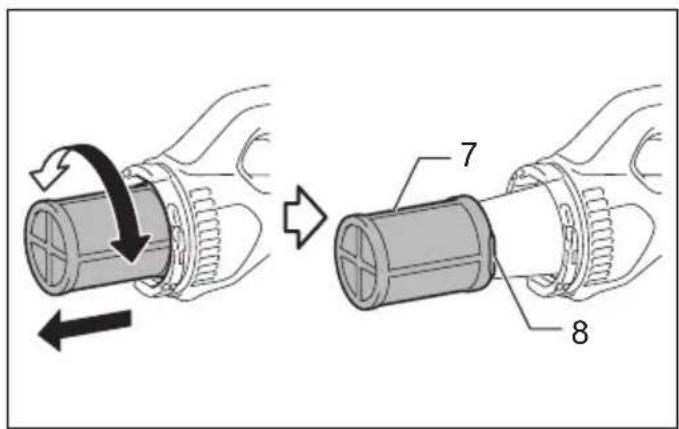

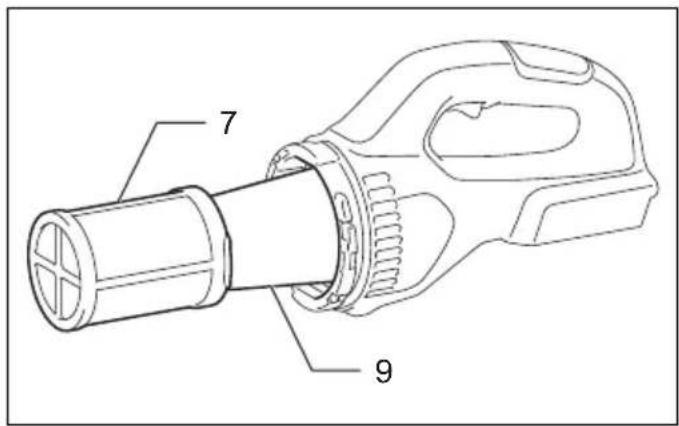

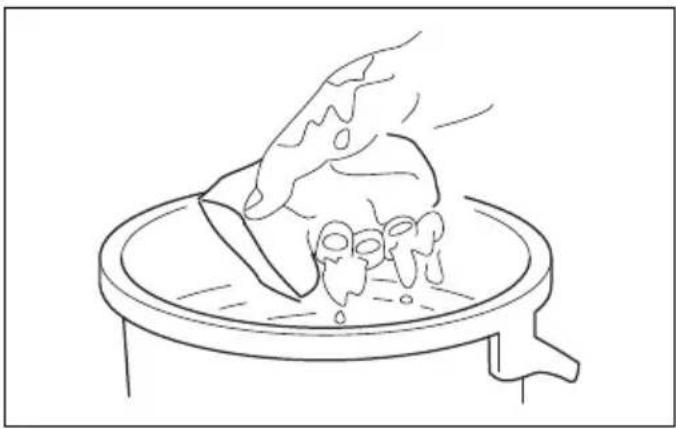

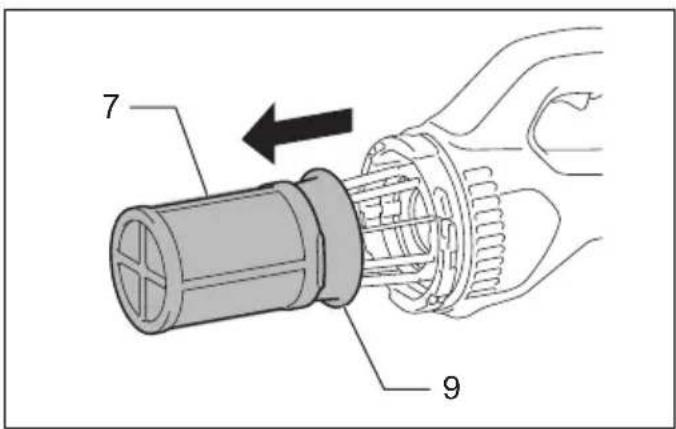

• Dust may spill out when opening capsule. Be sure to keep capsule as vertical as possible, and place a garbage bag beneath capsule. Remove accumulated dust from inside of capsule and off of prefilter. (Fig. 6) Twist prefilter in direction of arrow to unfasten securing lip from cleaner unit and then pull off prefilter. (Fig. 7) Clean out fine dust from prefilter. Next, remove filter, and lightly tap to dislodge dust. (Fig. 8) Reassembly First, put filter without being peeled back. If filter is put on incorrectly, dust will get into motor housing, and cause motor failure. Second, put prefilter over filter. (Fig. 9) Turn the set of filters, and adjust the position of the two securing lips on prefilter, and connect with the gutters of the cleaner housing. (Fig. 10) Connect capsule, in accordance with alignment marks on handle and capsule, firmly twist capsule in direction of arrow until it is secured. (Fig. 11 & 12) NOTE:

• Always remove dust ahead of time, as suction power will be reduced if there is too much dust in cleaner.

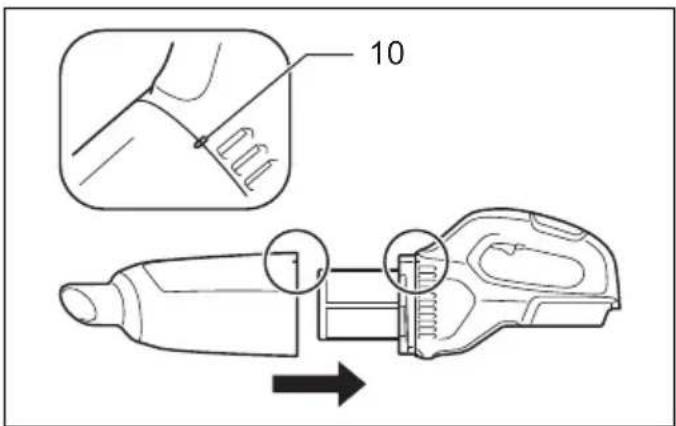

• Always be sure to check that both filter and prefilter are loaded correctly prior to using cleaner. If they are not loaded correctly, dust will get into the motor housing, and cause motor failure. OPERATION CAUTION:

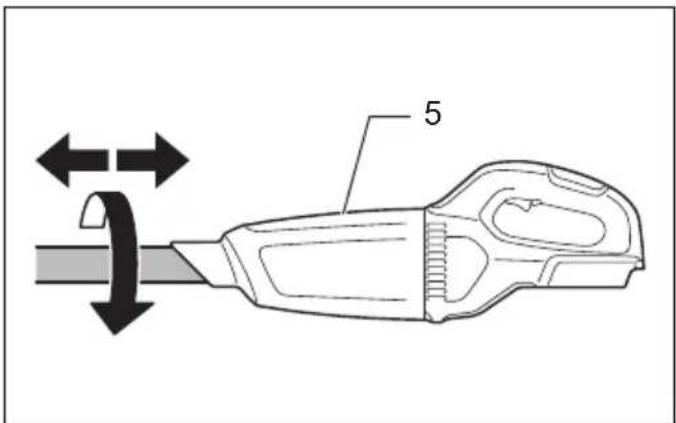

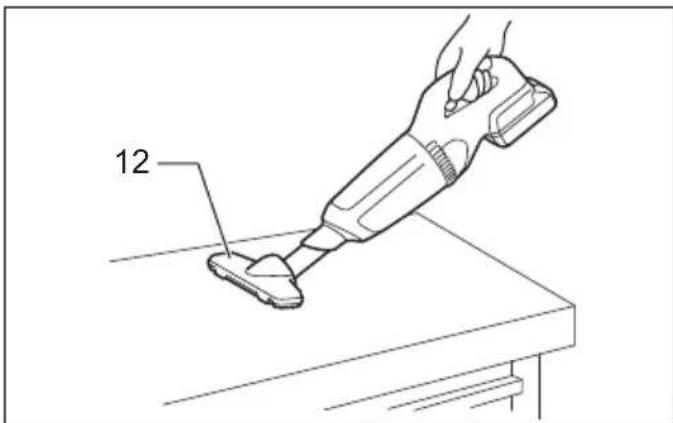

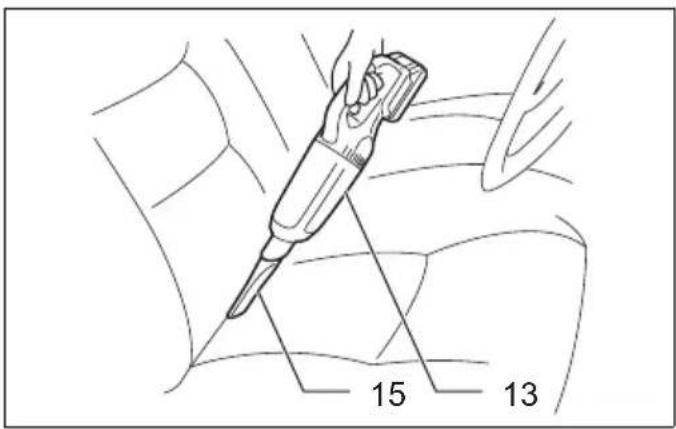

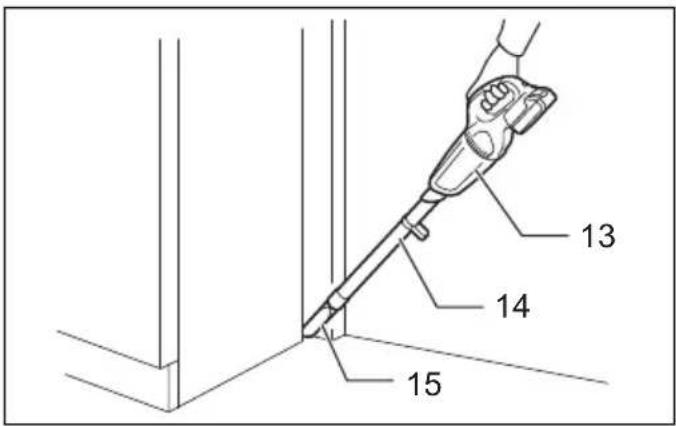

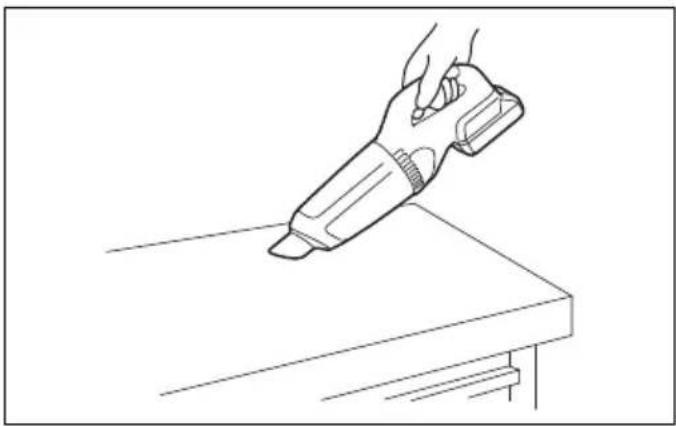

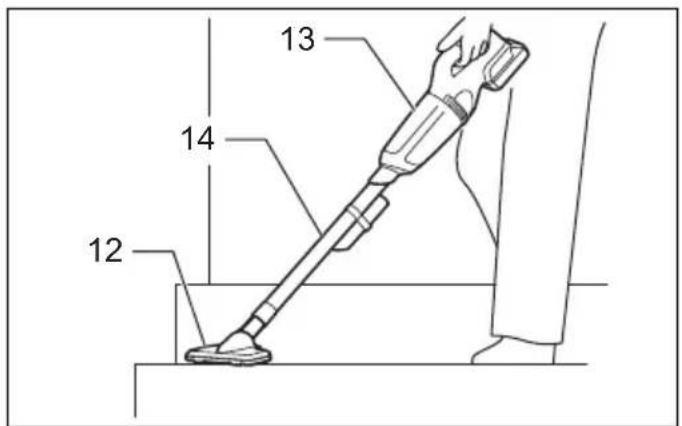

• Insert (or extract) nozzle while twisting it clockwise. If twisted counterclockwise, capsule may become loose. (Fig. 13) Cleaning (Suction) Nozzle (Fig. 14) Attach the nozzle to clean off tables, desks, furniture, etc. Nozzle slips on easily. Nozzle + Extension wand (Straight pipe) (Fig. 15) The extension wand fits in between the nozzle and the cleaner itself. This arrangement is convenient for cleaning a floor while standing erect. Corner nozzle (Fig. 16) Fit on the corner nozzle for cleaning corners and crevices of a car or furniture. Corner nozzle +Extension wand (Straight pipe) (Fig. 17) In tight quarters where the cleaner itself cannot squeeze in, or in high places hard to reach, use this arrangement. Cleaning without nozzle (Fig. 18) You can pick up powder and dust without nozzle. MAINTENANCE CAUTION:

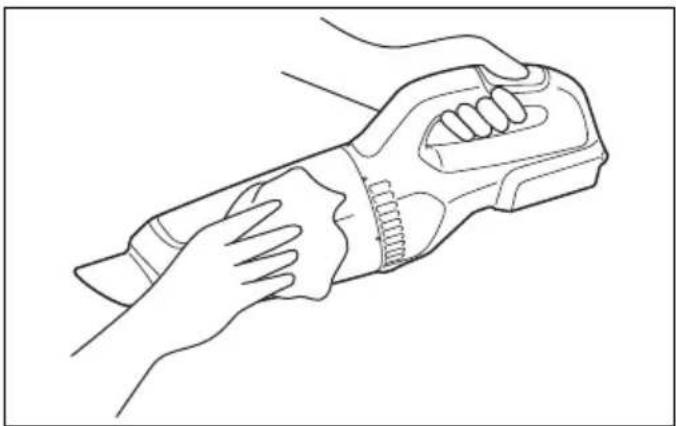

• Always be sure that the tool is switched off before attempting to perform inspection or maintenance. Cleaning (Fig. 19) From time to time wipe off the outside (cleaner body) of the cleaner using a cloth dampened in soapy water. Clean out also the suction opening, dust bag/dust pack mounting area and the dust stopper. CAUTION:

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Wash the filter in soapy water when it is clogged with dust and the cleaner power becomes small. Dry it out thoroughly before use. An insufficiently dried filter may cause poor suction and shorten the service life of the motor. (Fig. 20) Do not blow dust sticking on the cleaner by air duster. It brings dust into the housing and causes failure. Things to Check Before Asking for Repairs

• Do not attempt to repair cleaner by yourself. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. Symptom Area to be investigated Fixing method Weak suction power

• Is capsule full of dust? • Empty dust from capsule.

• Is filter clogged? • Dust down or wash filter.

• Is battery exhausted? • Recharge battery. Not working • Is battery exhausted? • Recharge battery.11 If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Makita genuine battery and charger NOTE:

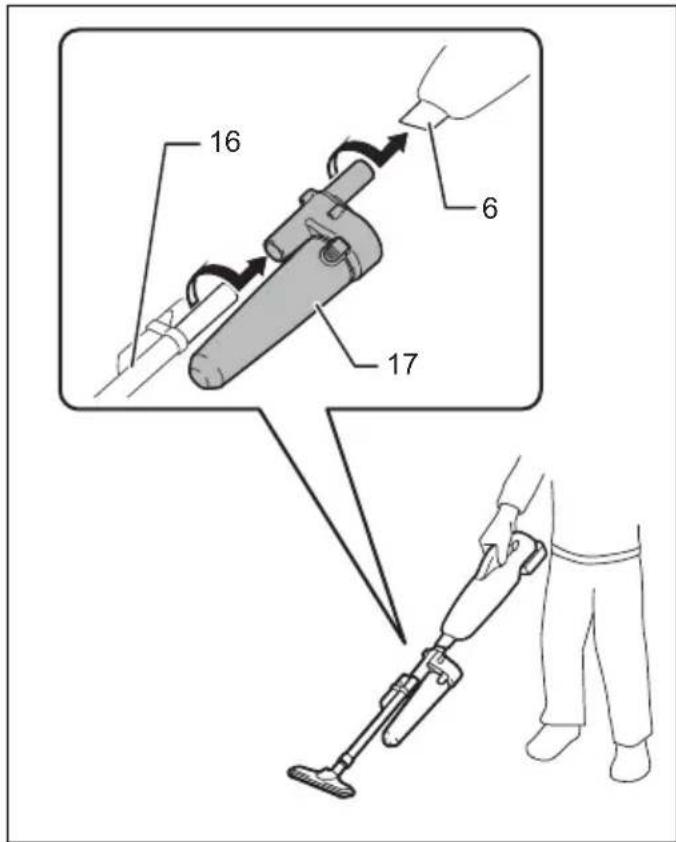

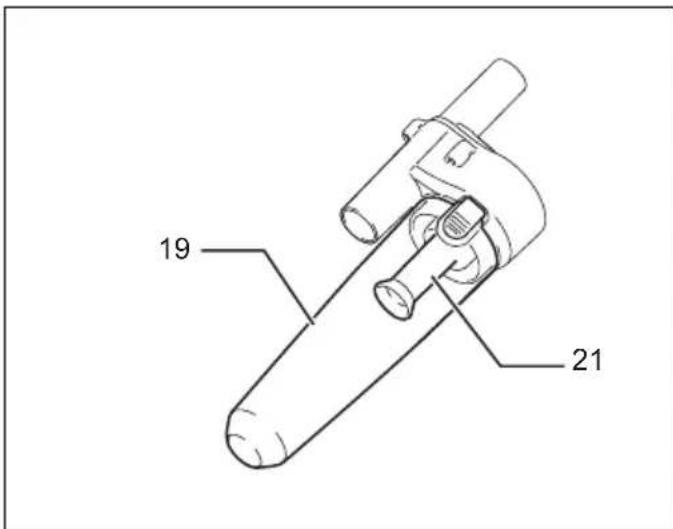

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. Cyclone attachment (Fig. 21) About the cyclone attachment Using the cleaner with the cyclone attachment installed reduces the amount of dust that enters the capsule, which helps to prevent the suction force from weakening. In addition, cleaning after use is also simple. CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. If the battery cartridge is left inserted, the cleaner may start unexpectedly and result in injury.

• Clean the mesh filter of the cyclone attachment and the filters of the cleaner unit when they become clogged. Continued use in the clogged condition may result in heating or smoke. NOTICE:

• When the cyclone attachment is attached, do not use the cleaner in the horizontal or upward facing condition. Doing so may cause the mesh filter to become clogged.

• Always use the cleaner with the filters installed, even when using the cyclone attachment. Using the cleaner without the filters installed may result in a motor malfunction. NOTE:

• Check that the cyclone attachment, cleaner, and straight pipe are locked properly before use.

• Empty the dust case of the cyclone attachment and the capsule of the cleaner when dust has accumulated. Continued use will result in weakened suction force. Disposing of dust When dust has accumulated up to the full line of the dust case, follow the procedure below and dispose of the dust.

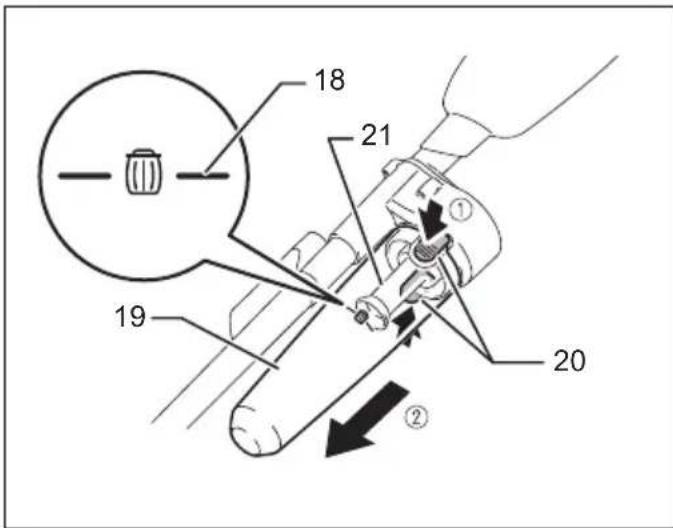

1. Hold the dust case firmly, press and hold the two

buttons, and remove the dust case. (Fig. 22)

2. Dispose of the dust inside the dust case and remove

any dust and powder adhered to the surface of the mesh filter.

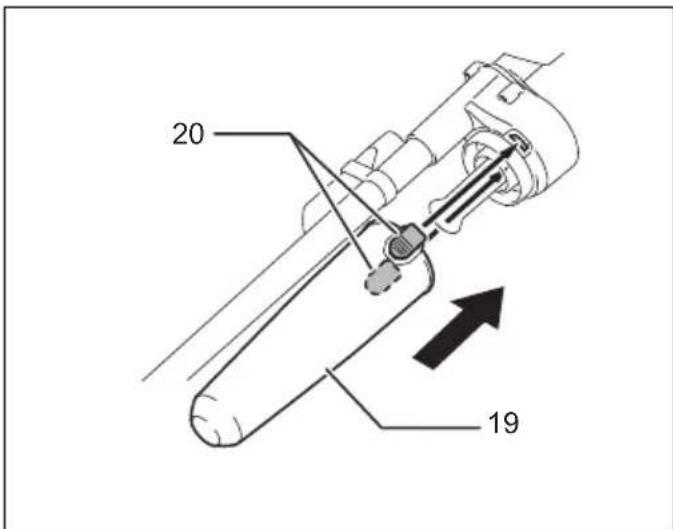

3. Insert the dust case all the way until the two buttons

lock with a click. (Fig. 23) NOTE:

• Check that the cyclone attachment, cleaner, and straight pipe are all firmly connected before restarting operation.

• If the suction force does not recover even after disposing of the dust and cleaning the mesh filter, check whether dust has accumulated in the capsule of the cleaner or clogging has occurred. Cleaning When the dust case becomes dirty or the mesh filter is clogged, remove and wash them with water. (Refer to “Disposing of dust” for the removal procedure.) Dry the parts thoroughly before reinstallation and use. (Fig. 24) When the mesh filter gets dirty badly, clean it in the following procedures.

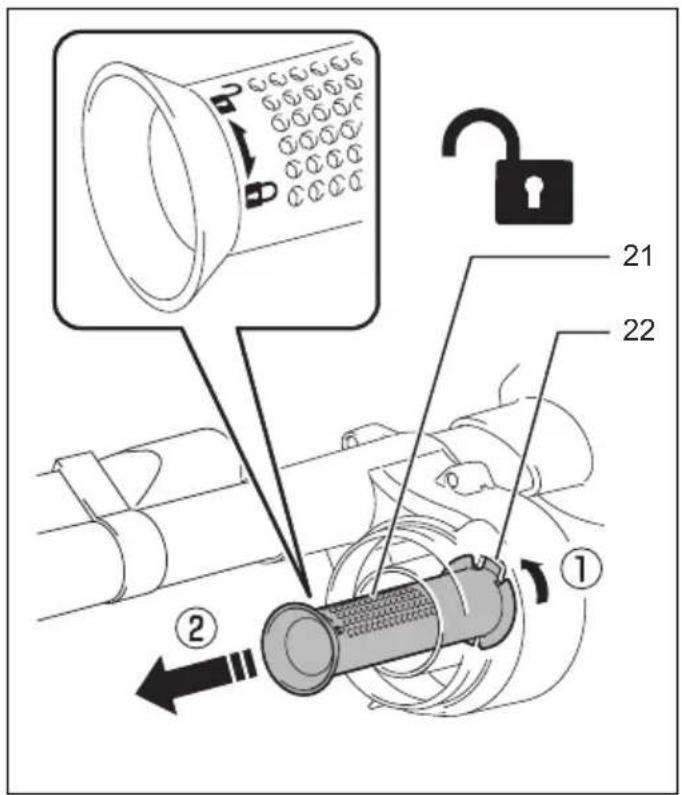

1. Turn the mesh filter counterclockwise and remove it

while the hooks are unlocked. (Fig. 25)

2. Remove the dust on the mesh filter and then wash it

with water. After that, dry it thoroughly.

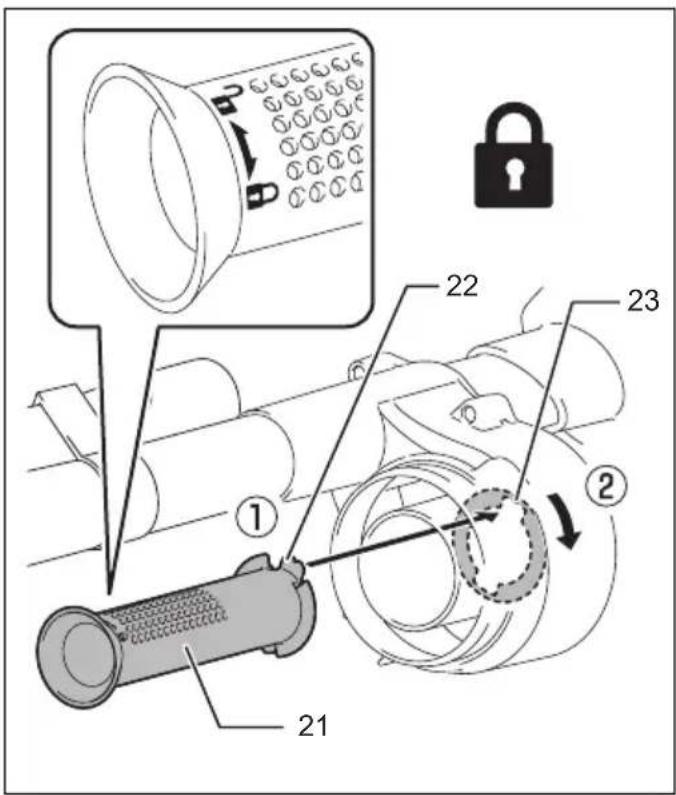

3. Insert the mesh filter into the base while the hooks are

aligned with the port. Turn the mesh filter clockwise until the hooks are locked with a click. Make sure that the mesh filter is installed securely. (Fig. 26)12 FRANÇAIS (Instructions d’origine)
