Product Type	Cordless Vacuum Cleaner
Brand	Makita
Model	CL117FD
Tank Capacity	650 ml
Runtime (with BL1020V battery)	Normal mode: approx. 55 min High speed mode: approx. 18 min Maximum speed mode: approx. 10 min
Net weight	1.0 kg
Total length	Body: 457 mm With extension tube and nozzle: 992 - 1 232 mm
Rated voltage	10.8 V - 12 V DC max.
Battery type	Built-in Li-ion, model BL1020V
Charger	DC1002, charging time: 2 h (at 10-40 °C)
Filters	High-performance filter, sponge filter; option: pre-filter, HEPA filter
Speed modes	3 modes (normal, high speed, maximum speed)
Light	Built-in LED, lights up during operation
Included accessories	Flat nozzle, sliding extension tube, floor nozzle; wall mount optional
Use	Dry dust collection only
Safety	Automatic shut-off in case of overheating or overload; short-circuit protection
Maintenance	Regular cleaning of filters and tank; washable (drying required)
Recycling	Removable Li-ion battery for separate disposal

Frequently Asked Questions - CL117FD MAKITA

How to charge the CL117FD vacuum cleaner?

Connect the charging plug to the vacuum's charging connector, then plug the charger into a wall outlet. The charging indicator lights up and turns off when charging is complete. Use only the Makita DC1002 charger and BL1020V battery.

How to change the suction speed?

Press the On/Speed change button to cycle through the three modes: high speed, maximum speed, normal speed. The cycle repeats with each press.

How to clean the high-performance filter?

Remove the filter from the vacuum, tap lightly to remove dust, or wash it with soapy water. Dry it completely before reinstalling. Never use gasoline or solvents.

What to do if suction power decreases?

Check if the tank is full or the filter is clogged. Empty the tank and clean the filter. If the problem persists, charge the battery.

How to empty the dust tank?

Point the suction inlet downward, turn the capsule in the direction of the arrow and gently pull it to remove. Dispose of the dust, then clean the filter if necessary. Reattach the capsule by aligning the marks and turning until it locks.

Can the vacuum be used with the cyclone attachment?

Yes, the cyclone attachment is an optional accessory that reduces the amount of dust in the tank. It attaches to the suction inlet. Empty the cyclone dust compartment when it reaches the Full line.

How to replace the built-in battery?

Remove the rear cover, slide the battery halfway, disconnect the wires by pressing on the connector, then remove the battery completely. To install a replacement battery, follow the reverse procedure. Only use genuine Makita batteries.

What are the important safety precautions?

Do not expose to rain, do not vacuum flammable liquids, do not use with a damaged battery, keep children away, and turn off the device before any maintenance. Only use recommended accessories.

How to store the vacuum?

After use, lock the nozzle head and hang the vacuum on a wall hook. You can also store it flat. Avoid leaning it against the wall without support to prevent falls.

What to do if the vacuum does not start?

Check that the battery is charged. If the charging indicator flashes or lights up, the battery may be discharged or overheating. Charge it or let it cool down. If the problem persists, contact a Makita authorized service center.

USER MANUAL CL117FD MAKITA

Line drawing of two different vacuum cleaner designs (no text or symbols)

2 1 Fig.1

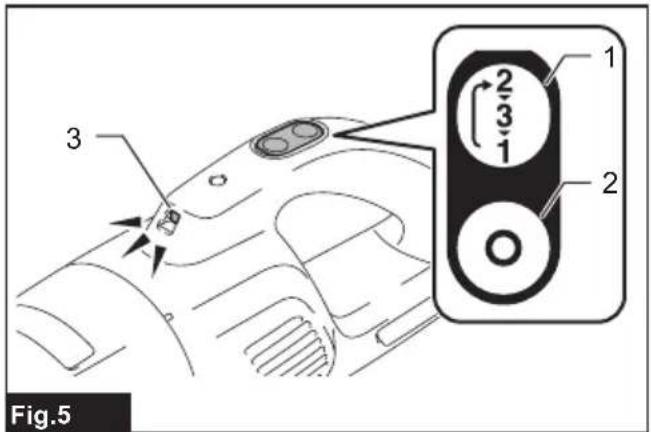

3 1 2/3 1 2 Fig.5

Technical line drawing of a handheld vacuum cleaner (no text or symbols)

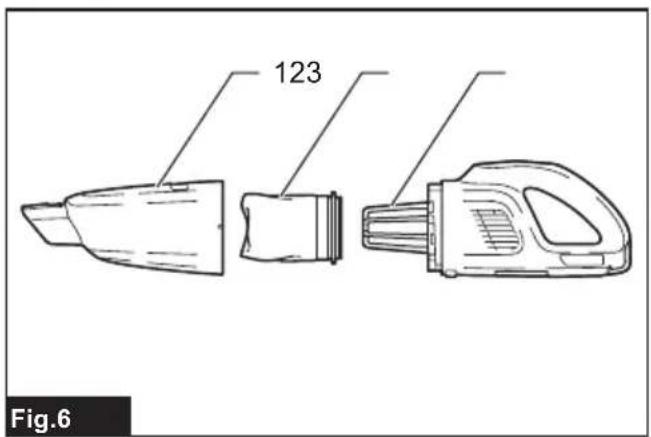

123 Fig.6

Fig.3 1 2 2/3/1 2

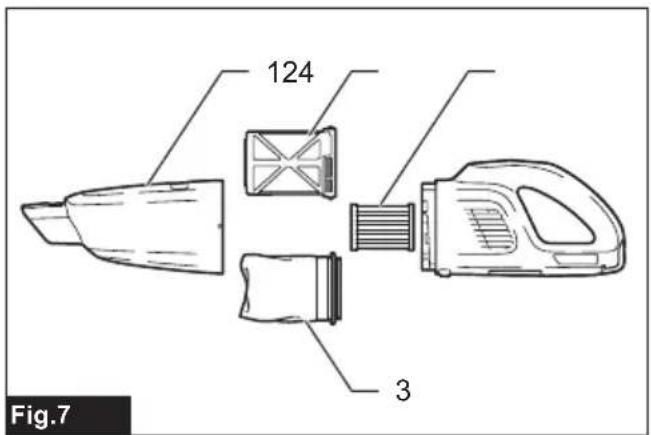

124 3 Fig.7

Technical line drawing of a handheld device with labeled component '1', no readable text or symbols beyond label and figure marker

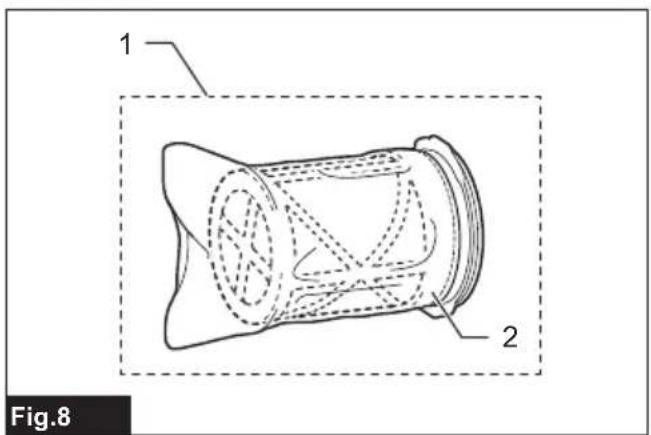

1 2 Fig.8

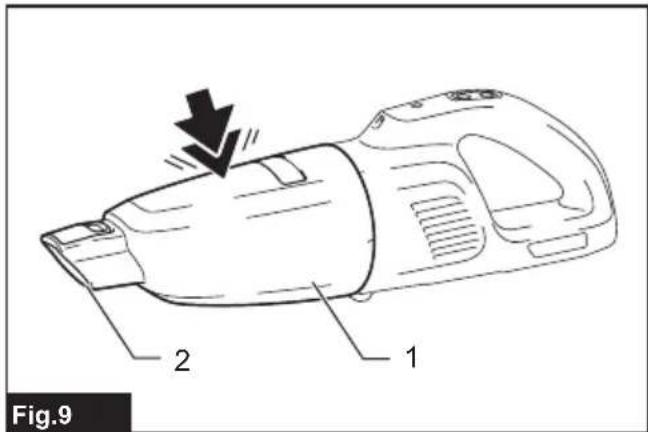

Fig.9 1 2

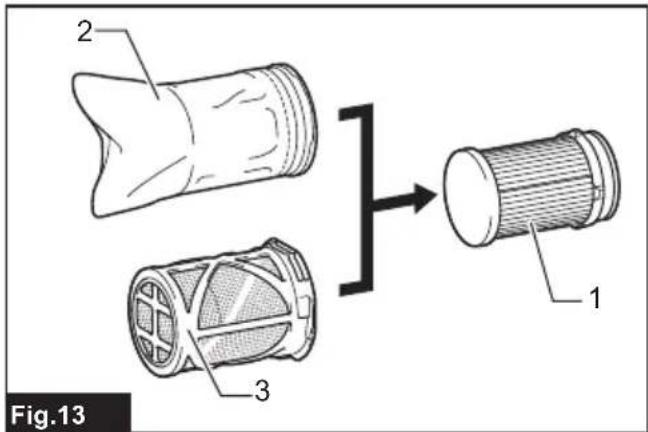

Fig.13 1 2 3

1 2 Fig.10

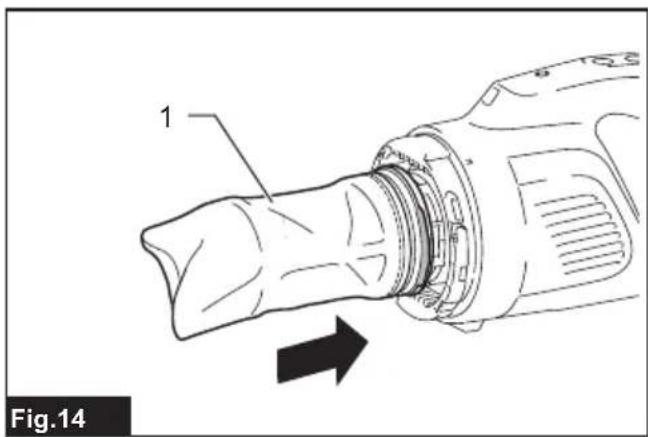

1 Fig.14

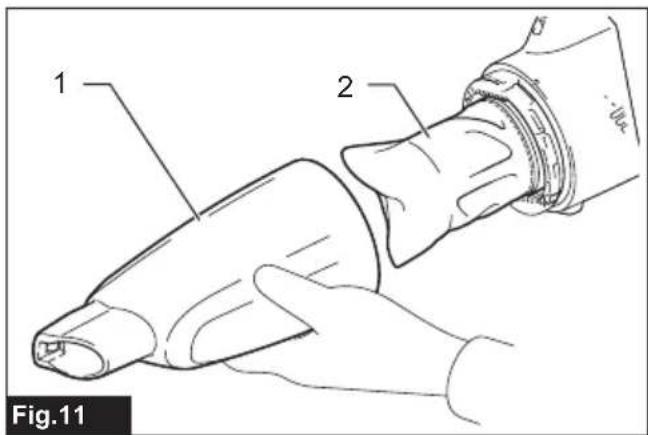

1 2 Fig.11

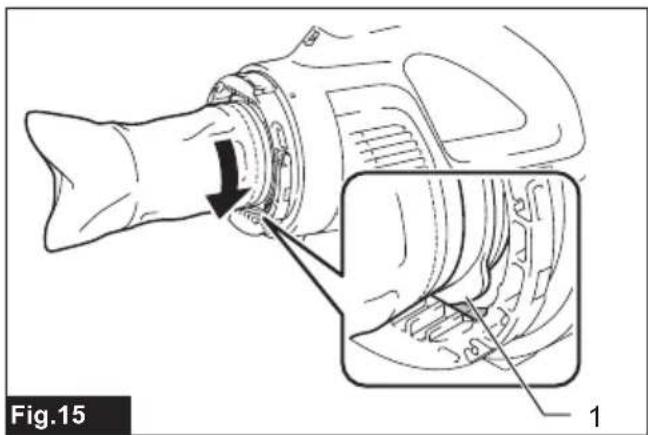

Fig.15 1

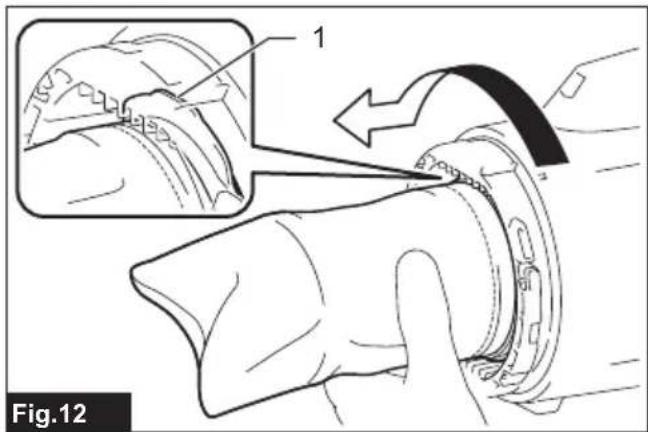

Fig.12

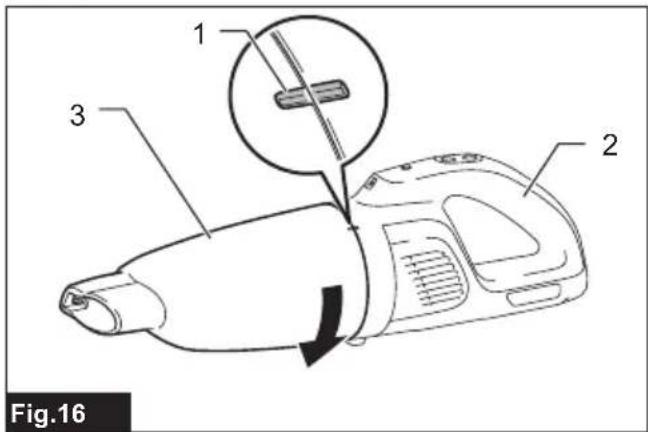

1 2 3 Fig.16

Technical diagram showing a pipe joint with labeled components and a prohibition symbol, likely illustrating safety or mechanical assembly.

Fig.17

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating transformation.

Fig.20

Diagram illustrating the step-by-step assembly of a mechanical component, showing before and after states with directional arrows.

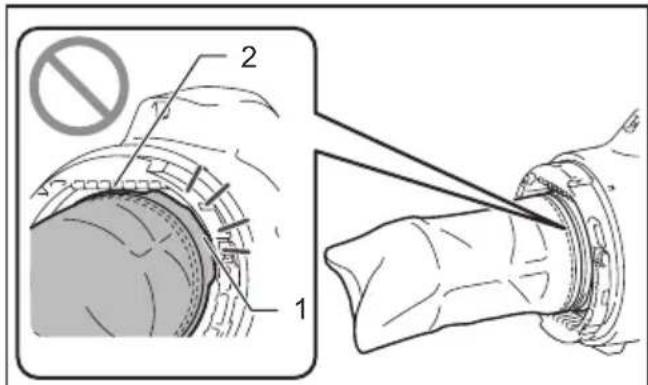

Fig.18

Fig.21 1 2 3 4

Technical diagram illustrating the assembly process of a mechanical device, showing steps from component 1 to final assembly.

Fig.19

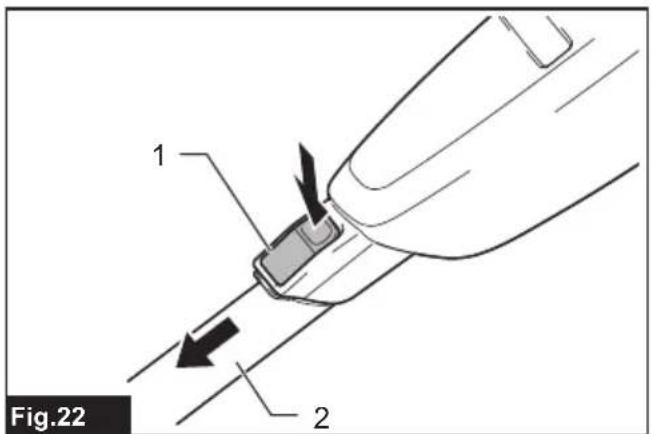

Fig.22 1 2

Diagram showing a device being inserted into a housing, with arrows indicating direction of insertion (no text or symbols present)

Fig.23

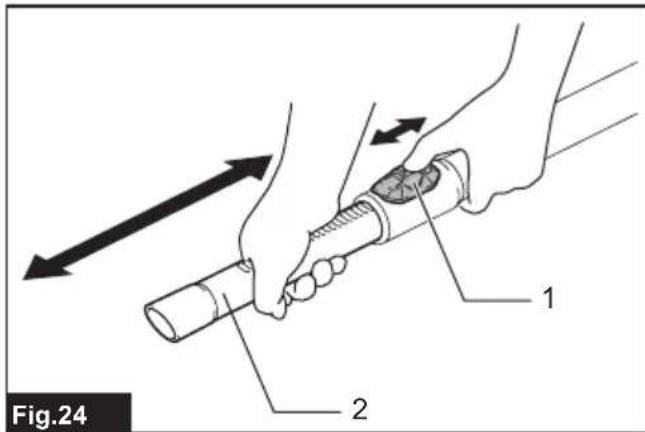

Fig.24 1 2

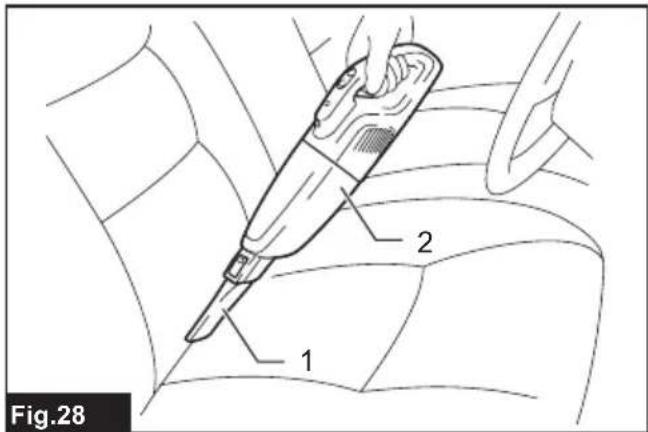

Fig.28 1 2

Illustration of a hand holding a tool with arrows indicating motion or force direction (no text or symbols)

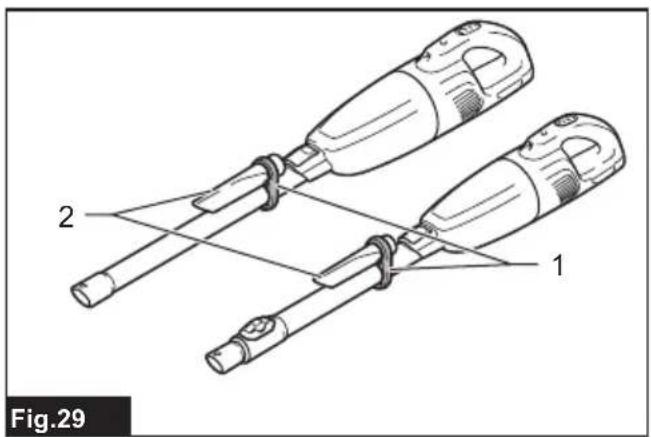

Fig.29 1 2

Line drawing of a hand using a vacuum cleaner to clean or store floor (no text or symbols)

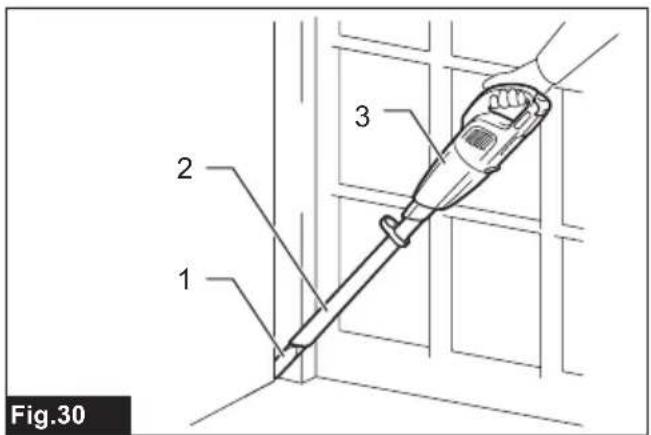

Fig.30 1 2 3

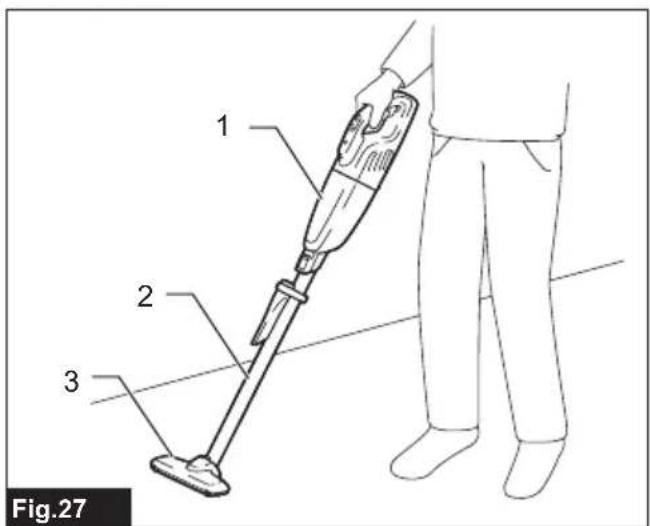

1 2 3 Fig.27

Line drawing of a hand using a handheld tool to clean or spray particles on a surface (no text or symbols)

Line drawing of a person using a handheld vacuum cleaner to clean or spray particles, labeled with number 1 and figure identifier Fig.32 (no text on the diagram itself)

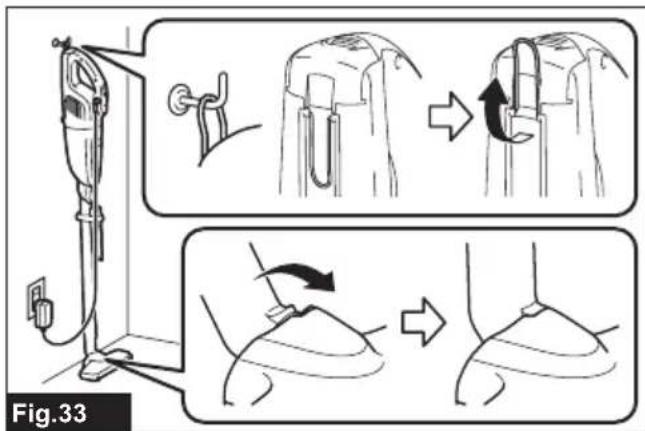

Fig.33

Line drawing of two vacuum cleaner stoves with motion lines indicating movement (no text or symbols)

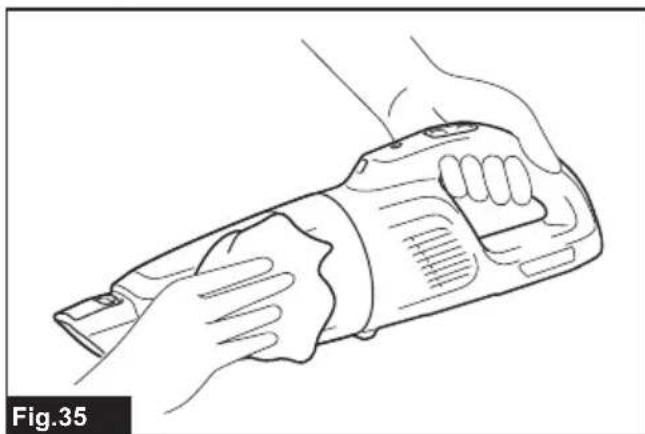

Line drawing of a hand holding a handheld device, labeled Fig.35 (no text or symbols on the device itself)

Line drawing of a container pouring liquid into a circular basin (no text or symbols)

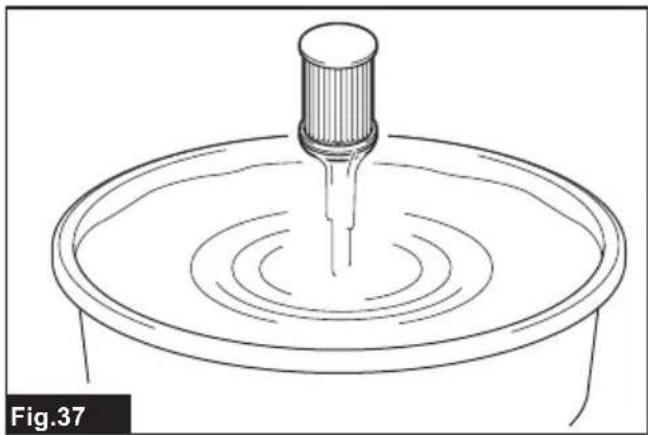

Line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

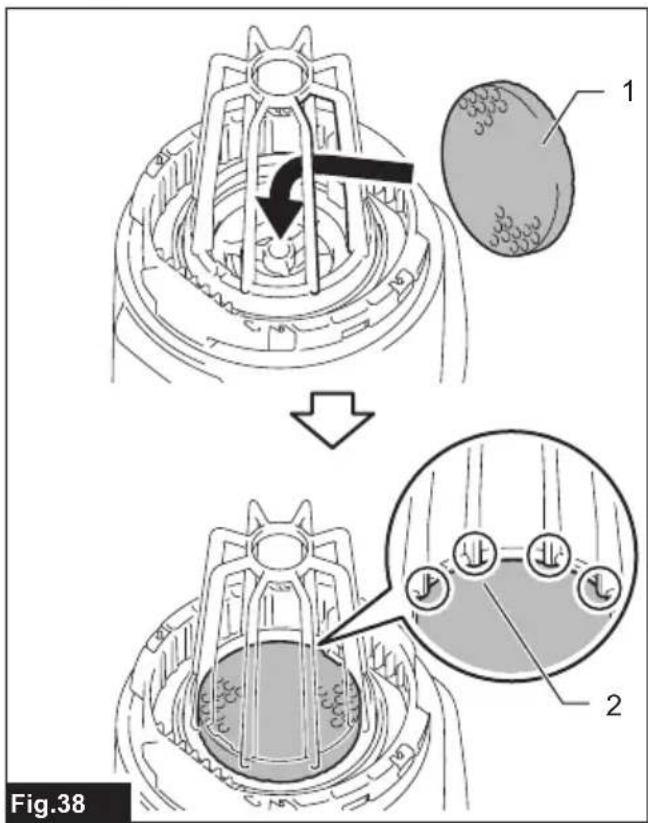

Fig.38

Illustration of a hand using a tool to cut a mechanical component, labeled 'Fig.39' (no text or symbols on the diagram itself)

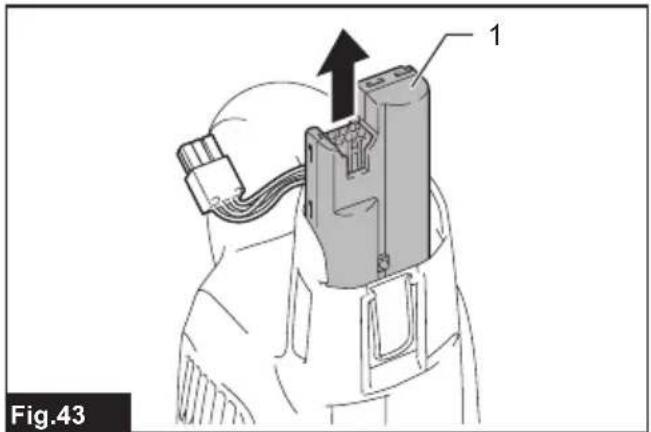

Fig.43 1

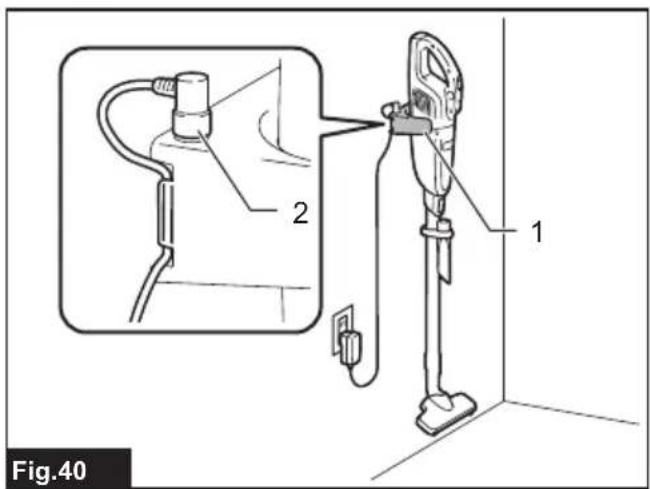

Fig.40 1 2

Illustration of a hand holding a device with internal components and an arrow pointing to a component (no text or symbols)

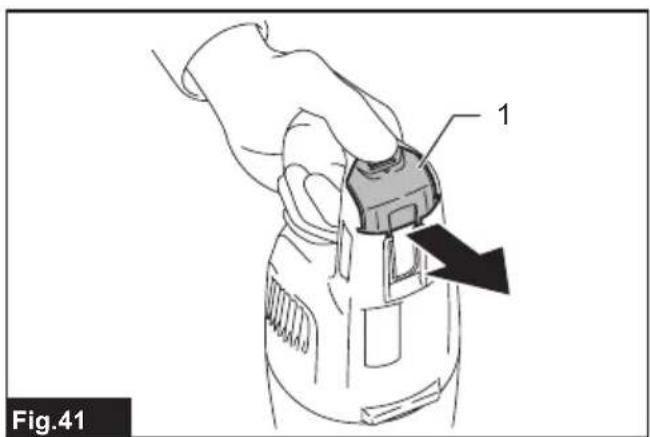

1 Fig.41

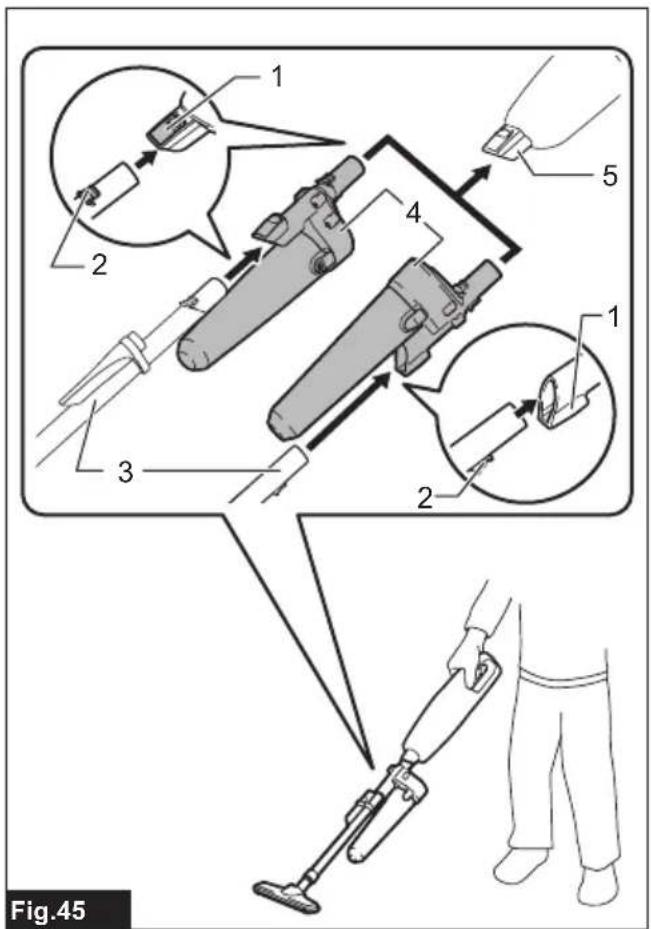

Fig.45

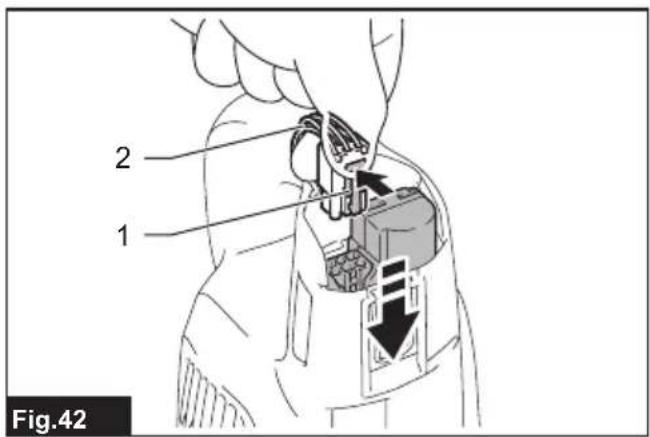

2 1 Fig.42

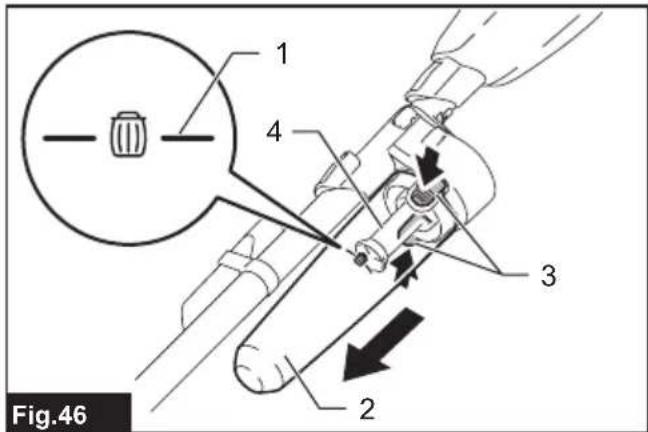

1 4 3 2 Fig.46

Fig.47 1 2

1 2 Fig.48

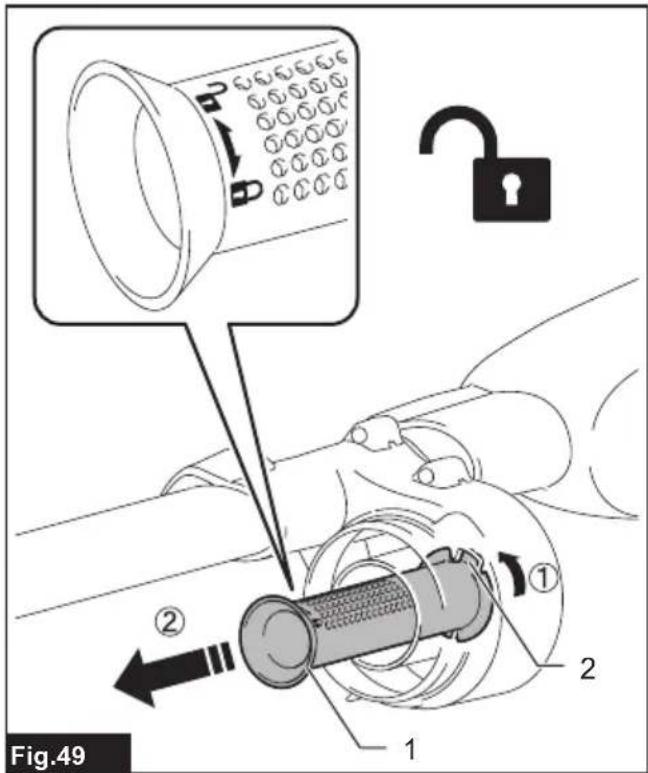

Fig.49

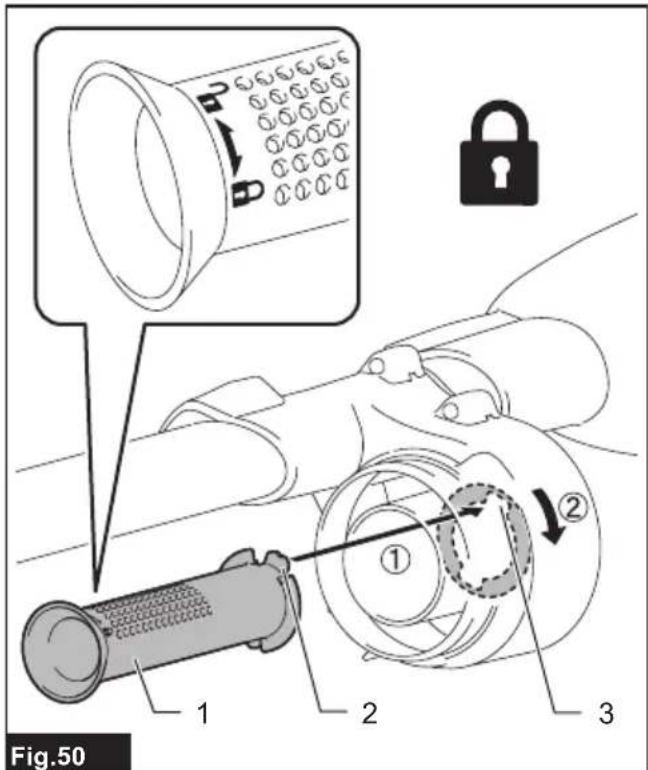

Fig.50 1 2 3 ① ②

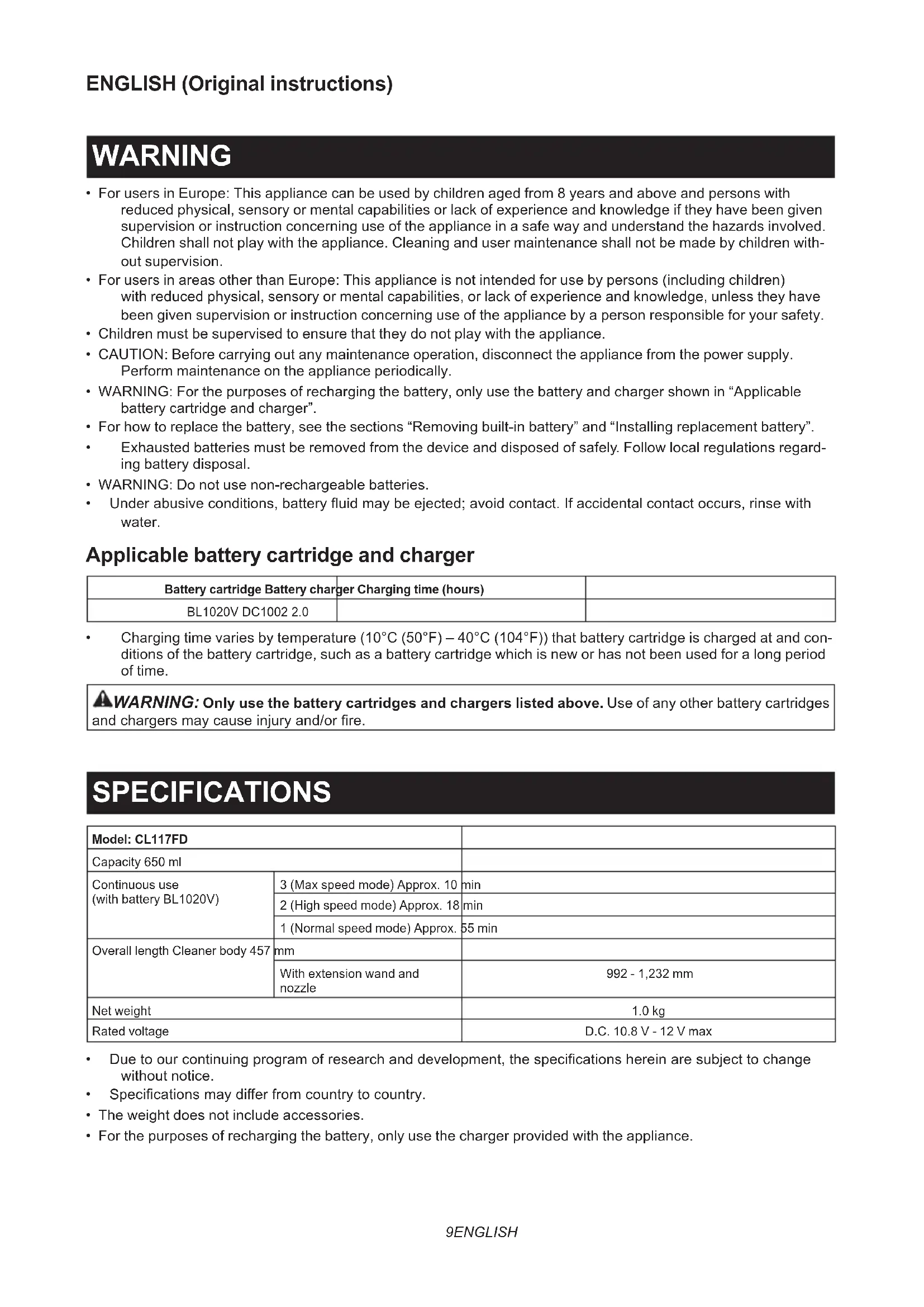

WARNING

• For users in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• For users in areas other than Europe: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for your safety.
• Children must be supervised to ensure that they do not play with the appliance.
• CAUTION: Before carrying out any maintenance operation, disconnect the appliance from the power supply. Perform maintenance on the appliance periodically.
• WARNING: For the purposes of recharging the battery, only use the battery and charger shown in “Applicable battery cartridge and charger”.
• For how to replace the battery, see the sections "Removing built-in battery" and "Installing replacement battery".
• Exhausted batteries must be removed from the device and disposed of safely. Follow local regulations regarding battery disposal.
• WARNING: Do not use non-rechargeable batteries.
• Under abusive conditions, battery fluid may be ejected; avoid contact. If accidental contact occurs, rinse with water.

Applicable battery cartridge and charger

Battery cartridge Battery charger Charging time (hours)
BL1020V DC1002 2.0

- Charging time varies by temperature (10°C (50°F) – 40°C (104°F)) that battery cartridge is charged at and conditions of the battery cartridge, such as a battery cartridge which is new or has not been used for a long period of time.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire.

SPECIFICATIONS

Model: CL117FD
Capacity 650 ml
Continuous use (with battery BL1020V)	3 (Max speed mode) Approx. 10 min
	2 (High speed mode) Approx. 18 min
	1 (Normal speed mode) Approx. 55 min
Overall length Cleaner body 457	mm
	With extension wand and nozzle	992 - 1,232 mm
Net weight		1.0 kg
Rated voltage		D.C. 10.8 V - 12 V max

- Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

- The weight does not include accessories.

- For the purposes of recharging the battery, only use the charger provided with the appliance.

Symbols

The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use.

	Read the instruction manual.
D-C	Detachable supply unit
Ni-MH Li-ion	Only for EU countriesDue to the presence of hazardous components in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health.Do not dispose of electrical and electronic appliances or batteries with household waste!In accordance with the European Directive on waste electrical and electronic equipment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection.This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment.

Intended use

The appliance is intended for collecting dry dust.

SAFETY WARNINGS

Cordless cleaner safety warnings

WARNING: IMPORTANT! READ CAREFULLY all safety warnings and all instructions BEFORE USE. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

1. Do not expose to rain. Store indoors.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
3. Use only as described in this manual. Use only manufacturer's recommended attachments.
4. Do not use with damaged battery. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
5. Do not handle the appliance with wet hands.
6. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

7. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

8. Turn off all controls before removing the battery.

9. Use extra care when cleaning on stairs.
10. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
11. Use only the charger supplied by the manufacturer to recharge.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without dust bag and/or filters in place.
14. Do not charge the battery outdoors.
15. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
16. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
17. When (the) battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water.
19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
21. Follow all charging instructions and do not charge the battery pack or appliance outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
22. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

SAVE THESE INSTRUCTIONS.

ADDITIONAL SAFETY RULES

1. Read this instruction manual and the charger instruction manual carefully before use.
2. Do not pick up the following materials:
   — Hot materials such as lit cigarettes or spark/metal dust generated by grinding/cutting metal
   — Flammable materials such as gasoline, thinner, benzine, kerosene or paint
   — Explosive materials like nitroglycerin
   — Ignitable materials such as Aluminum, zinc, magnesium, titanium, phosphorus or celluloid

— Wet dirt, water, oil or the like
— Hard pieces with sharp edges, such as wood chips, metals, stones, glasses, nails, pins or razors
— Powder to clot such as cement or toner
— Conductive dust such as metal or carbon
— Fine particle like concrete dust
Such action may cause fire, injury and/or property damage.

1. Stop operation immediately if you notice anything abnormal.
2. If you drop or strike the cleaner, check it carefully for cracks or damage before operation.
3. Do not charge the cleaner close to dangerous flammable materials such as gasoline, gas, paint or adhesives.
4. Do not charge the cleaner on papers, cloth, carpet, vinyl, etc. This may cause a fire.
5. Do not charge the cleaner in a dusty place.
6. Be sure no one is below when using the cleaner in high locations.
7. Do not bring close to stoves or other heat sources.
8. Do not block the intake hole or vent holes.

SAVE THESE INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS

FOR BUILT-IN BATTERY

1. Before using built-in battery, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble built-in battery.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the built-in battery:

(1) Do not touch the terminals with any conductive material.

(2) Avoid storing built-in battery in a container with other metal objects such as nails, coins, etc.

(3) Do not expose built-in battery to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store and use the appliance and built-in battery in locations where the temperature may reach or exceed 50 °C (122 °F).
2. Do not incinerate the built-in battery even if it is severely damaged or is completely worn out. The built-in battery can explode in a fire.

3. Be careful not to drop or strike battery.

4. Do not use a damaged built-in battery.

5. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. When disposing the battery, remove it from the appliance and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.
6. Use the batteries only with the products specified by Makita.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the built-in battery before completely discharged. Always stop appliance operation and charge the built-in battery when you notice less appliance power.
2. Never recharge a fully charged built-in battery. Overcharging shortens the battery service life.
3. Charge the built-in battery with room temperature at 10^ C - 40^ C ( 50^ F - 104^ F). Let a hot built-in battery cool down before charging it.
4. Charge the built-in battery once in every six months if you do not use the appliance for a long period of time.

FUNCTIONAL DESCRIPTION

CAUTION: Always be sure that the appliance is switched off before adjusting or checking function on the appliance.

Charging the built-in battery

CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita product and charger.
⚠️ CAUTION: Always disconnect the charging plug from the cleaner after charging.
CAUTION: Do not leave the charger in the mains after disconnecting the appliance. Small children may put the live plug in their mouth and cause injury.

Charge the cleaner when using it for the first time or uncharged for a long time. Connect the charging plug to the charging connector, then plug in the charger to the power receptacle.

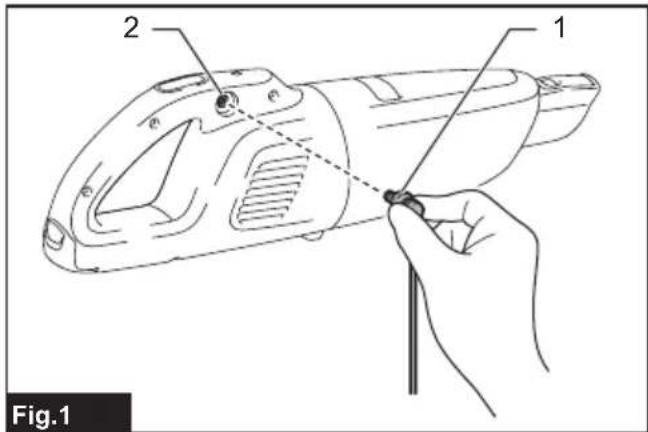

▶ Fig.1: 1. Charging plug 2. Charging connector
The battery power lamp lights up and the charging starts. The light goes out after the charging is complete. For more details, refer to the instruction manual of battery charger.

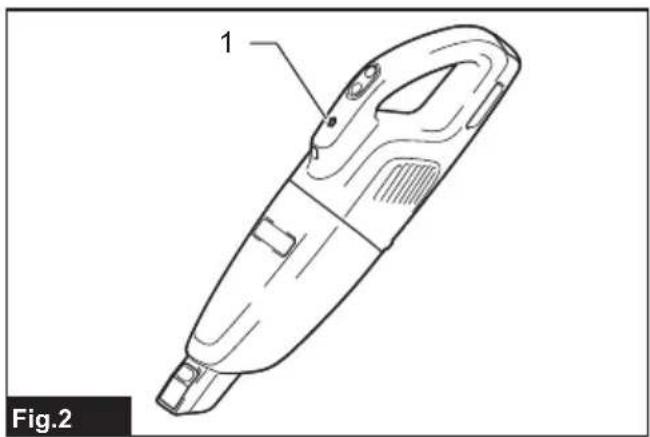

▶ Fig.2: 1. Battery power lamp

NOTICE: The battery power lamp blinks and the battery cannot be charged if the battery or cleaner is exposed to extreme temperatures.

NOTE: The cleaner cannot be controlled while being charged. To start the cleaner, unplug the charger from the power source, disconnect the charging plug from the cleaner, and then push the ON/speed change button.

NOTE: Under the following conditions, the battery is about to reach its end of life (or damaged/malfunctioned). Unplug the charger from the power supply, then replace the battery.

• The battery power lamp goes out shortly after you begin to charge the cleaner.
• The cleaner works only for a period shorter than half of the normal operating time after the battery has been fully charged.

NOTE: The battery can be recharged up to approximately 500 times. The rechargeable times vary depending on the conditions under which the battery has been charged and discharged.

Switch action

⚠️CAUTION: Always switch off the cleaner after each use to prevent damage to the cleaner and to extend the service life of the batteries.

To start the cleaner, simply push the ON/speed change button. To switch off, push the OFF button.

You can change the cleaner speed in three steps by pushing the ON/speed change button.

The first push on this button is for high speed mode, the second push for max speed mode and the third push for normal speed mode. Each push on this button repeats the high/max/normal speed cycle alternatively.

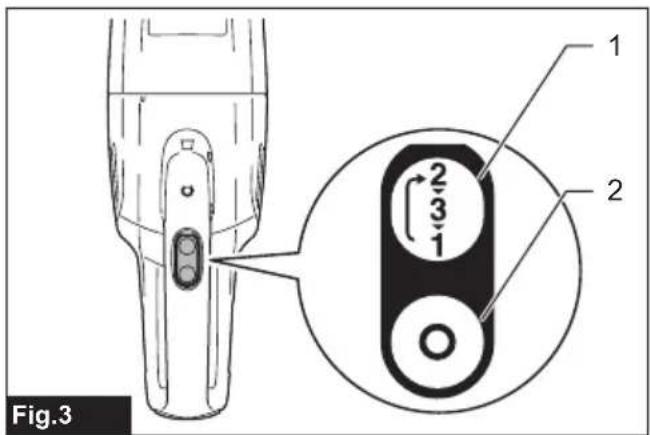

▶ Fig.3: 1. ON/speed change button 2. OFF button

Battery power lamp

When the remaining battery capacity gets low, the battery power lamp blinks.

When the remaining battery capacity gets much lower, the cleaner stops and the battery power lamp lights up about 10 seconds. At this time, charge the battery.

Also when the battery gets overloaded or overheated, the cleaner stops and the battery power lamp lights up about 10 seconds. The cleaner does not actuate during the lamp on.

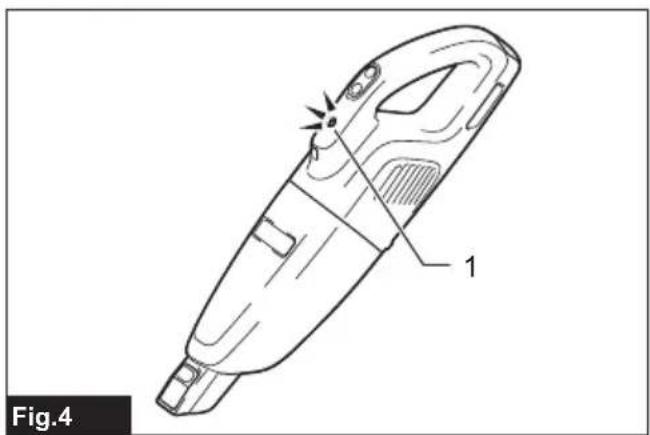

▶ Fig.4: 1. Battery power lamp

NOTE: The time at which the battery power lamp start blinking or lighting up depends on the temperature at work place and the battery conditions.

Lighting up the lamp

⚠️CAUTION: Do not look in the light or see the source of light directly.

To turn on the lamp, push the ON/speed change button. Push the OFF button to turn off the lamp. During the cleaner actuating, the lamp turns on.

▶ Fig.5: 1. ON/speed change button 2. OFF button 3. Lamp

ASSEMBLY

CAUTION: Always be sure that the appliance is switched off before carrying out any work on the appliance.
CAUTION: Be sure to attach filters to the cleaner properly. Filters with holes or those not properly attached may allow dust to enter the motor housing. This may cause motor failure or fires.

Parts description

High performance filter and stay and sponge filter

▶ Fig.6: 1. Capsule 2. High performance filter 3. Stay and sponge filter

NOTE: You can use a high performance filter either with or without an originally-designed stay.

Prefilter or high performance filter and HEPA filter

Optional accessory

▶ Fig.7: 1. Capsule 2. Prefilter 3. High performance filter 4. HEPA filter

NOTICE: Do not use a high performance filter with other filters (optional accessory). The high performance filter may become unremovable from the cleaner.

NOTE: When using an optional prefilter with a HEPA filter, avoid placing any other filters over the HEPA filter. If you set the prefilter and other filters at the same time over the HEPA filter, the suction power may be reduced.

NOTE: When using a high performance filter with a HEPA filter, be sure to attach the stay inside the high performance filter.

▶ Fig.8: 1. High performance filter 2. Stay

Disposing of dust

⚠️ CAUTION: Empty the cleaner before it becomes too full, or the suction force weakens.
CAUTION: Be sure to empty the inside of the cleaner itself of dust. Failure to do so may cause the filter to be clogged or the motor to be damaged.

In order to drop dust sticking on the filter in the capsule, tap the capsule 4 or 5 times with your hand.

▶ Fig.9: 1. Capsule 2. Suction inlet

Point suction inlet downwards, turn capsule in direction of arrow in diagram, and disconnect capsule slowly and straight.

▶ Fig.10: 1. Capsule 2. Suction inlet

NOTE: Dust may spill out when capsule is opened, so be sure to set a garbage bag beneath capsule.

Remove accumulated dust from the inside of capsule and high performance filter.

▶ Fig.11: 1. Capsule 2. High performance filter

Twist high performance filter in direction of arrow to unfasten securing lip from cleaner unit and then pull off the filter.

▶ Fig.12: 1. Securing lip

NOTE: When using the prefilter, also follow the procedure above.

Clean out the fine dust and lightly tap to dislodge dust from high performance filter.

HEPA filter

Optional accessory

Pull out the HEPA filter from the prefilter or high performance filter. Clean out fine dust from the HEPA filter.

▶ Fig.13: 1. HEPA filter 2. High performance filter 3. Prefilter

Reassembly

Connect high performance filter. At this time, make sure to twist high performance filter so that securing lip is firmly locked into the cleaner unit.

▶ Fig.14: 1. High performance filter

▶ Fig.15: 1. Securing lip

NOTE: Make sure that the high performance filter is secured in the cleaner unit.

NOTICE: Be sure to install the high performance filter correctly before operation. If the problem as described later occurs, reposition the filter correctly to rectify the problem.

Attach the capsule. Align the mark on capsule with the mark on the handle and then firmly twist capsule in the direction of arrow until it is secured.

▶ Fig.16: 1. Mark 2. Handle 3. Capsule

NOTE: Always remove dust ahead of time, as suction power will be reduced if there is too much dust in cleaner.

Problem Example

The securing lip of high performance filter is not firmly locked into groove of cleaner housing.

▶ Fig.17: 1. Securing lip 2. Groove of cleaner housing

Installing or removing stay / HEPA filter

Optional accessory

For the stay and sponge filter

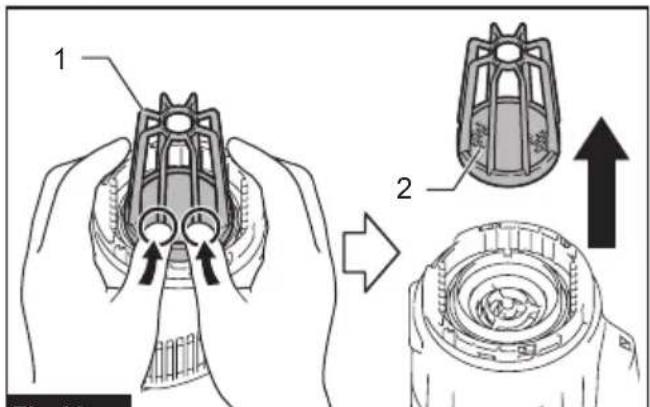

To remove the stay, push up the bottom part of pillars of the stay with your fingers and release its groove from the protrusion on the cleaner. After that, remove the

sponge filter.

▶ Fig.18: 1. Stay 2. Sponge filter

To install, align the grooves on the stay with the protrusion on the cleaner and push until it clicks.

Insert the sponge filter between the pillars and set it in the original position.

For the HEPA filter

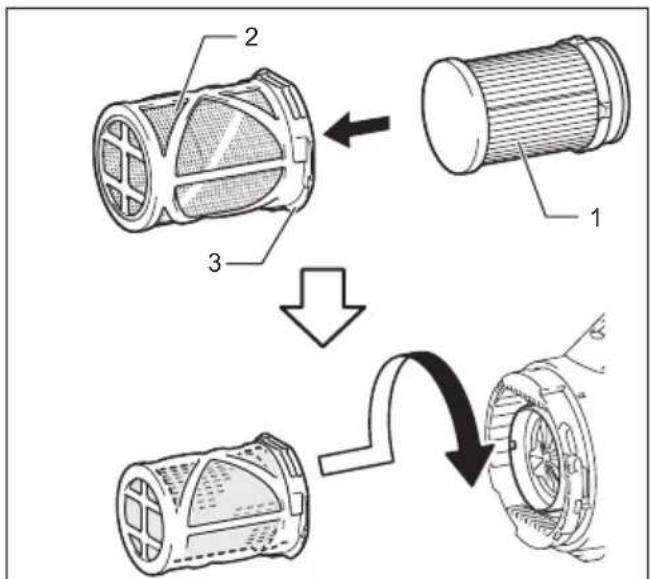

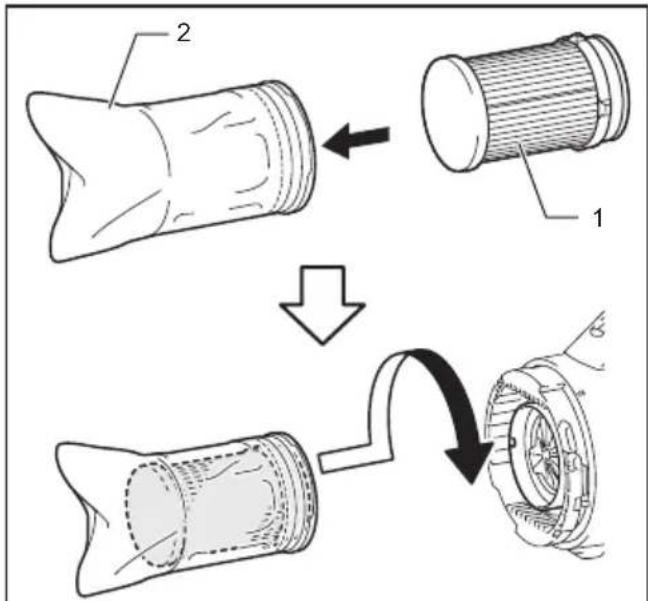

When installing the HEPA filter, insert the HEPA filter into the prefilter or the high performance filter. Then, twist and secure it. To remove it, follow the installation procedure in reverse.

▶ Fig.19: 1. HEPA filter 2. Prefilter 3. Securing lip

NOTE: Make sure that securing lips are firmly locked in the cleaner unit.

▶ Fig.20: 1. HEPA filter 2. High performance filter

NOTE: Make sure that the high performance filter is secured in the cleaner unit.

OPERATION

CAUTION: Do not move your face close to the air vent when operating the cleaner. If foreign objects are blown into eyes, it may result in personal injury.

Installing and removing cleaner attachments

⚠️ CAUTION: After installing an attachment, check if it is securely installed. If the attachment is installed imperfectly, it may come off and cause personal injury.

CAUTION: Be careful not to hit your hand on the wall etc. when removing attachments.

When using attachment with lock function

To install an attachment, insert it to the suction inlet of the cleaner until it clicks. Make sure that the attachment is locked.

▶ Fig.21: 1. Suction inlet 2. Attachment with lock function 3. Hook 4. Release button

NOTICE: When installing the attachment with lock function, be sure to align the release button on the cleaner with the hook on the attachment. If they are not aligned, the attachment will not be locked and may come off from the cleaner.

To remove the attachment, pull it off the cleaner while pushing and holding the release button.

▶ Fig.22: 1. Release button 2. Attachment with lock function

When using attachment without lock function

⚠️CAUTION: To install an attachment without lock function, insert it into the suction inlet of the cleaner by twisting it as shown in the figure. To detach the attachment, release it from the cleaner by twisting it as shown in the figure. Avoid twisting the attachment in the direction opposite to the arrow in the figure as it may loosen the capsule from the cleaner.

▶ Fig.23

Adjusting lengths of slide-type extension wand

Optional accessory

Slide and hold the slide button either forwards or backwards to release the lock. Pull the slide pipe out into your desired lengths. Then release the slide button to lock the slide pipe in position.

▶ Fig.24: 1. Slide button 2. Slide pipe

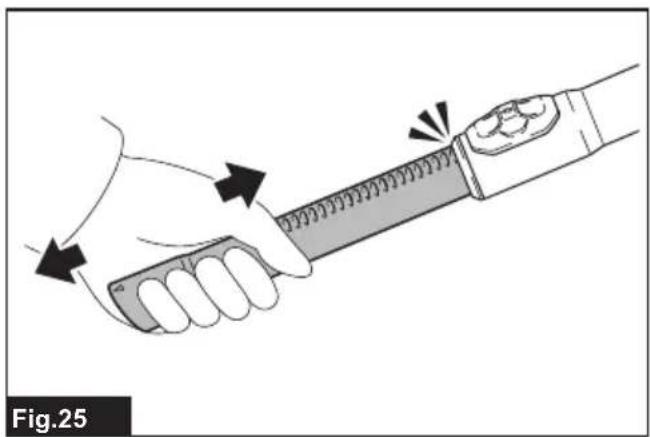

NOTE: For secure installation, make sure to pull the slide pipe in and out slightly to engage the lock after releasing the slide button.

▶ Fig.25

Cleaning (Suction)

Nozzle

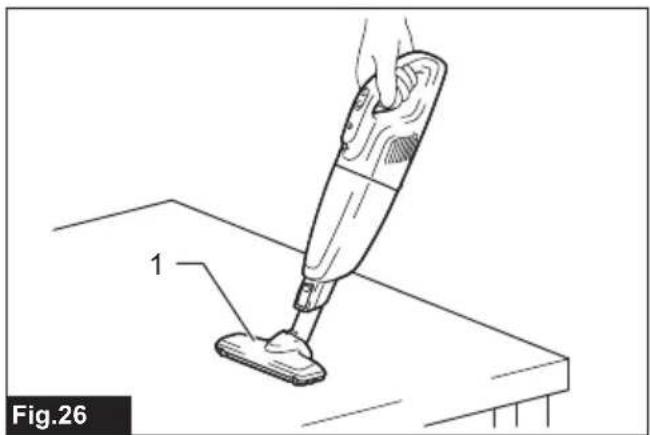

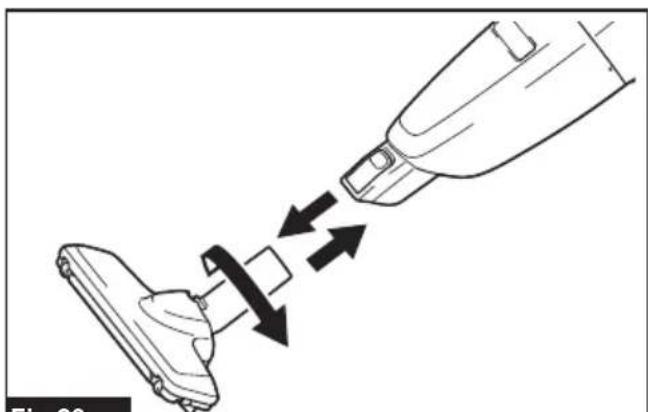

Attach the nozzle to clean off tables, desks, furniture, etc. The nozzle slips on easily.

▶ Fig.26: 1. Nozzle

Nozzle + Extension wand

The extension wand fits in between the nozzle and the cleaner itself. This arrangement is convenient for cleaning a floor in a standing position.

▶ Fig.27: 1. Cleaner body 2. Extension wand 3. Nozzle

Corner nozzle

Fit on the corner nozzle for cleaning corners and crevices of a car or furniture.

▶ Fig.28: 1. Corner nozzle 2. Cleaner body

You can store the corner nozzle in the nozzle holder.

▶ Fig.29: 1. Nozzle holder 2. Corner nozzle

⚠️CAUTION: Be careful not to trap finger(s) between the corner nozzle and the nozzle holder. Trapping finger(s) may cause injury.

Corner nozzle + Extension wand

In tight quarters where the cleaner itself cannot squeeze in, or in high places hard to reach, use this arrangement.

▶ Fig.30: 1. Corner nozzle 2. Extension wand 3. Cleaner body

Cleaning without nozzle

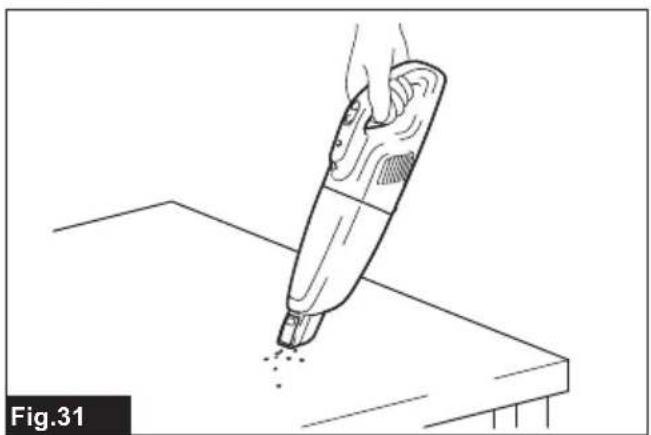

You can pick up powder and dust without nozzle.

▶ Fig.31

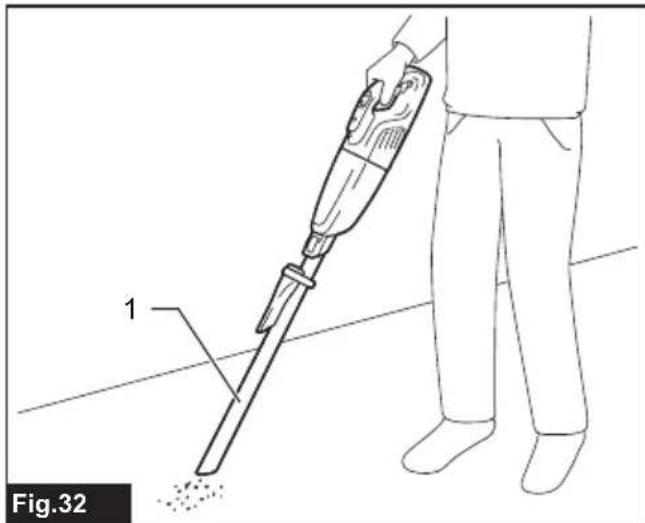

For picking up dust on a floor in a standing position, it is convenient to attach the extension wand to the cleaner.

▶ Fig.32: 1. Extension wand

MAINTENANCE

CAUTION: Always be sure that the appliance is switched off before attempting to perform inspection or maintenance.

CAUTION: Be sure to attach filters to the cleaner properly. Filters with holes or those not properly attached may allow dust to enter the motor housing. This may cause motor failure or fires.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

After use

When storing or charging the cleaner, lock the nozzle head, and hang it from a hook available in the market.

▶ Fig.33

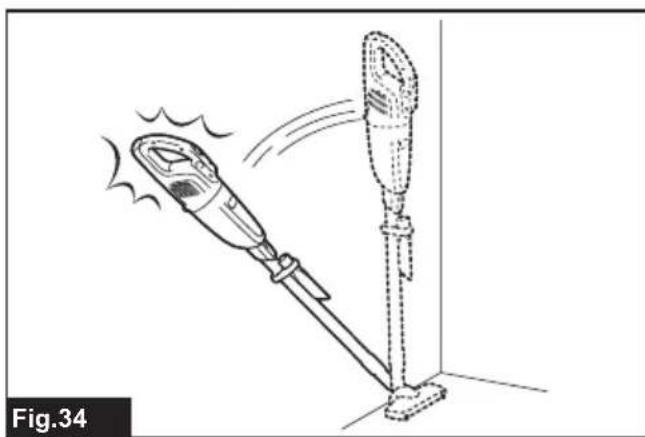

CAUTION: Putting the cleaner against the wall without any other support may cause the cleaner to fall down, resulting in personal injury or damage to the cleaner.

▶ Fig.34

Cleaning

NOTICE: Do not blow dust sticking on the cleaner and filters by air duster. It brings dust into the housing and causes failure.

NOTICE: After washing filters, dry them thoroughly before use. Insufficiently dried filters may cause poor suction and shorten the service life of the motor.

NOTICE: After cleaning filters and sponge filter, be sure to re-install them before use. If you use the cleaner without filters and sponge filter, dust comes into the motor housing and cause malfunction.

Cleaner body

From time to time wipe off the outside (cleaner body) of the cleaner using a cloth dampened in soapy water.

Clean out also the suction opening and filter mounting area.

▶ Fig.35

High performance filter

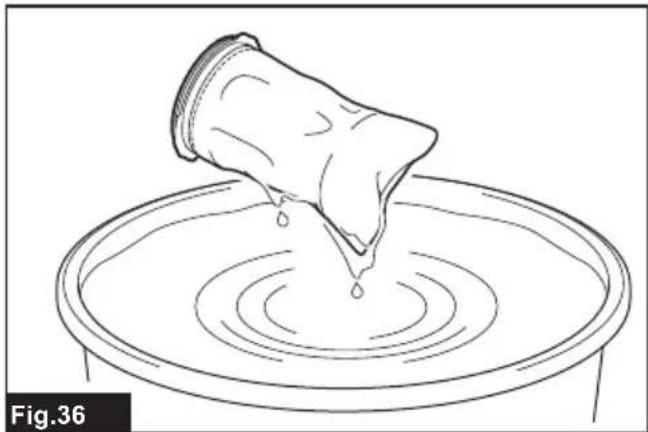

Wash the filter in soapy water when it is clogged with dust and the cleaner power becomes weak. Dry it out thoroughly before use.

▶ Fig.36

HEPA filter

Optional accessory

NOTICE: Do not rub or scratch the HEPA filter with hard objects such as a brush and a paddle.

Clogged HEPA filter cause poor suction performance. Clean out the filter from time to time.

Occasionally wash the HEPA filter in water, rinse and dry thoroughly in the shade before use. Never wash the filter in a washing machine.

▶ Fig.37

Sponge filter

When the sponge filter becomes dirty, clean it as follows.

1. Remove the filter.
2. Pull out the sponge filter from between the pillars.
3. Clean the sponge filter by tapping or washing. If you wash it, dry it out thoroughly before use.
4. Insert the sponge filter between the pillars and set it in the original position. Make sure that each bottom edge of the pillar holds down the sponge filter, and

there is no gap between the sponge filter and suction opening.

▶ Fig.38: 1. Sponge filter 2. Bottom edge of pillar

The nozzle cleaning

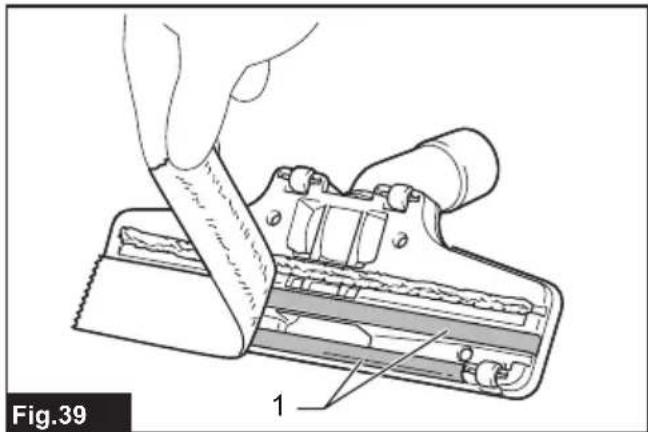

When the nozzle brush gets dusty, clean up the dust with adhesive tape.

▶ Fig.39: 1. Brush

Wall mount for cordless cleaner

Optional accessory

NOTE: The screw to mount the holder is not included. Prepare a screw which fits with the material to screw into.

Attach the wall mount for cordless cleaner to a hard wooden wall, beam or column, where the wall mount for cordless cleaner can be firmly secured. Always be sure that the wall mount for cordless cleaner is securely attached before hanging the cleaner.

▶ Fig.40: 1. Wall mount for cordless cleaner 2. Plug

CAUTION: Do not hang the cleaner to the wall mount violently or hang other appliances than the cleaner.

NOTE: When you do not charge the cleaner, the plug can be stored on the wall mount for cordless cleaner as illustrated.

Troubleshooting

Before asking for repairs, check the following points.

Symptom Area to be investigated Fixing method
Weak suction power Is the capsule full of dust	st? Empty the capsule of dust.
	Is the filter clogged? Clean or wash the filter.
	Is the battery cartridge discharged? Charge the battery cartridge.
Not working Is the battery cartridge discharged? Charge the battery cartridge.
Noise and vibration Is the filter clogged? Clean or wash the filter.
		Is the nozzle, pipe or suction inlet of the appliance is clogged? Remove the clogged objects in the nozzle, pipe or suction inlet of the appliance.
		Is the nozzle/pipe inlet blocked? Do not block the nozzle/pipe inlet.

NOTICE: Do not attempt to repair cleaner by yourself.

Disposing cleaner

A Li-ion battery is built in this cleaner. Always remove it before disposing of the cleaner.

Removing built-in battery

⚠️CAUTION: Do not touch the terminals with any conductive material.
⚠️CAUTION: Avoid storing battery unit in a container with other metal objects such as nails, coins, etc.
⚠️CAUTION: Do not expose battery unit to water or rain.
⚠️ CAUTION: Do not disassemble or alter battery unit.
⚠️CAUTION: The cleaner must be disconnected from the supply mains when removing the battery.
⚠️CAUTION: Hold the appliance and battery unit firmly when removing and installing the battery unit. Failure to do so may cause them to slip off your hands, resulting in damage to the appliance and battery unit and personal injury.
⚠️CAUTION: Take care not to trap finger(s) between the cleaner, rear cover and battery when removing and installing the battery unit. Trapping finger(s) may cause injury.

1. To remove the rear cover, push it in the direction of the arrow.
   ▶ Fig.41: 1. Rear cover
2. Slide the built-in battery halfway. Disconnect the lead wires from the battery by slightly moving back the battery while pressing the connector in the direction of arrow as shown in the figure.
   ▶ Fig.42: 1. Connector 2. Lead wires
3. Then slide the battery unit out completely.
   ▶ Fig.43: 1. Battery unit
4. Put the removed battery unit in a carton box so that it is not circuit-shorted.

Installing replacement battery

To install the replacement battery, follow the removal procedure in reverse.

⚠️CAUTION: Route the lead so that it is completely stored inside the cleaner before putting the rear cover back in the original position. Failure to do this may damage the lead.

▶ Fig.44

After installing the battery (see "SPECIFICATIONS"), charge the battery before use.

OPTIONAL ACCESSORIES

CAUTION: These accessories or attachments are recommended for use with your Makita appliance specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Extension wand
• Nozzle
• Nozzle for carpet
• Shelf brush
• Corner nozzle
• Round brush
• Flexible hose
• Filter
• Prefilter
  • High performance filter
• HEPA filter
• Seat nozzle
• Crevice nozzle
  • Wall mount for cordless cleaner
• Cyclone attachment
• Makita genuine battery and charger

NOTE: Some items in the list may be included in the appliance package as standard accessories. They may differ from country to country.

Cyclone attachment

Optional accessory

▶ Fig.45: 1. Release button 2. Hook 3. Extension wand 4. Cyclone attachment 5. Suction inlet

About the cyclone attachment

Using the cleaner with the cyclone attachment installed reduces the amount of dust that enters the capsule, which helps to prevent the suction force from weakening. In addition, cleaning after use is also simple.

CAUTION: Always be sure that the appliance is switched off before carrying out any work on the appliance.
⚠️ CAUTION: Clean the mesh filter of the cyclone attachment and the filters of the cleaner unit when they become clogged. Continued use in the clogged condition may result in heating or smoke.

NOTICE: When the cyclone attachment is attached, do not use the cleaner in a horizontal or upward facing position. Doing so may cause the mesh filter to become clogged.

NOTICE: Always use the cleaner with the filters installed, even when using the cyclone attachment. Using the cleaner without the filters installed may result in a motor malfunction.

NOTE: Check that the cyclone attachment, cleaner, and extension wand are locked properly before use.

NOTE: Empty the dust case of the cyclone attachment and the capsule of the cleaner when dust has accumulated. Continued use will result in weakened suction force.

NOTE: You can also use the cyclone attachment without lock function.

NOTE: To install or remove the cyclone attachment, refer to the section "Installing and removing cleaner attachments".

Disposing of dust

When dust has accumulated up to the full line of the dust case, follow the procedure below and dispose of the dust.

1. Hold the dust case firmly, press and hold the two buttons, and remove the dust case.

▶ Fig.46: 1. Full line 2. Dust case 3. Button (two locations) 4. Mesh filter

1. Dispose of the dust inside the dust case and remove any dust and powder adhered to the surface of the mesh filter.

2. Insert the dust case all the way until the two buttons lock with a click.

▶ Fig.47: 1. Dust case 2. Button (two locations)

⚠CAUTION: Be careful not to trap finger(s) between the dust case and cyclone body when reassembling.

NOTE: If the suction force does not recover even after disposing of the dust and cleaning the mesh filter, check whether dust has accumulated in the capsule of the cleaner or clogging has occurred.

NOTE: The dust may fly up when disposing from the cyclone attachment. Be careful not to let dust get into your eyes.

Cleaning

When the dust case becomes dirty or the mesh filter is clogged, remove and wash them with water. (Refer to "Disposing of dust" for the removal procedure.)

NOTICE: After washing the dust case and filters, dry them thoroughly before use. Insufficiently dried components may cause electric shock and/or injury.

▶ Fig.48: 1. Dust case 2. Mesh filter

When the mesh filter gets dirty badly, clean it in the following procedures.

1. Turn the mesh filter as shown in the figure and

remove it while the hooks are unlocked.

▶ Fig.49: 1. Mesh filter 2. Hook

1. Remove the dust on the mesh filter and then wash it with water. After that, dry it thoroughly.

2. Insert the mesh filter into the base while the hooks are aligned with the port. Turn the mesh filter as shown in the figure until the hooks are locked with a click. Make sure that the mesh filter is installed securely.

▶ Fig.50: 1. Mesh filter 2. Hook 3. Port

AVERTISSEMENT

▶ Fig.24: 1. Bouton coulissant 2. Tube coulissant

Nettoyage (aspiration)

Suceur

▶ Fig.32: 1. Tube prolongateur

ENTRETIEN

VEILIGHEIDSWAAR- SCHUWINGEN

▶ Fig.8: 1. Hoogwaardig filter 2. Frame

Het stof weggooien

▶ Fig.9: 1. Beker 2. Zuigmond

▶ Fig.11: 1. Beker 2. Hoogwaardig filter

▶ Fig.14: 1. Hoogwaardig filter
▶ Fig.15: 1. Bevestigingslip

▶ Fig.18: 1. Frame 2. Sponsfilter

▶ Fig.20: 1. HEPA-filter 2. Hoogwaardig filter

OPTIONELE ACCESSOIRES

▶ Fig.48: 1. Stofopvangdoos 2. Gaasfilter

▶ Fig.50: 1. Gaasfilter 2. Haak 3. Opening

ADVERTENCIA

▶ Fig.39: 1. Escobilla

▶ Fig.41: 1. Tampa traseira
