USER MANUAL PWSA 20Li F4 PARKSIDE

Translation of the original instructions

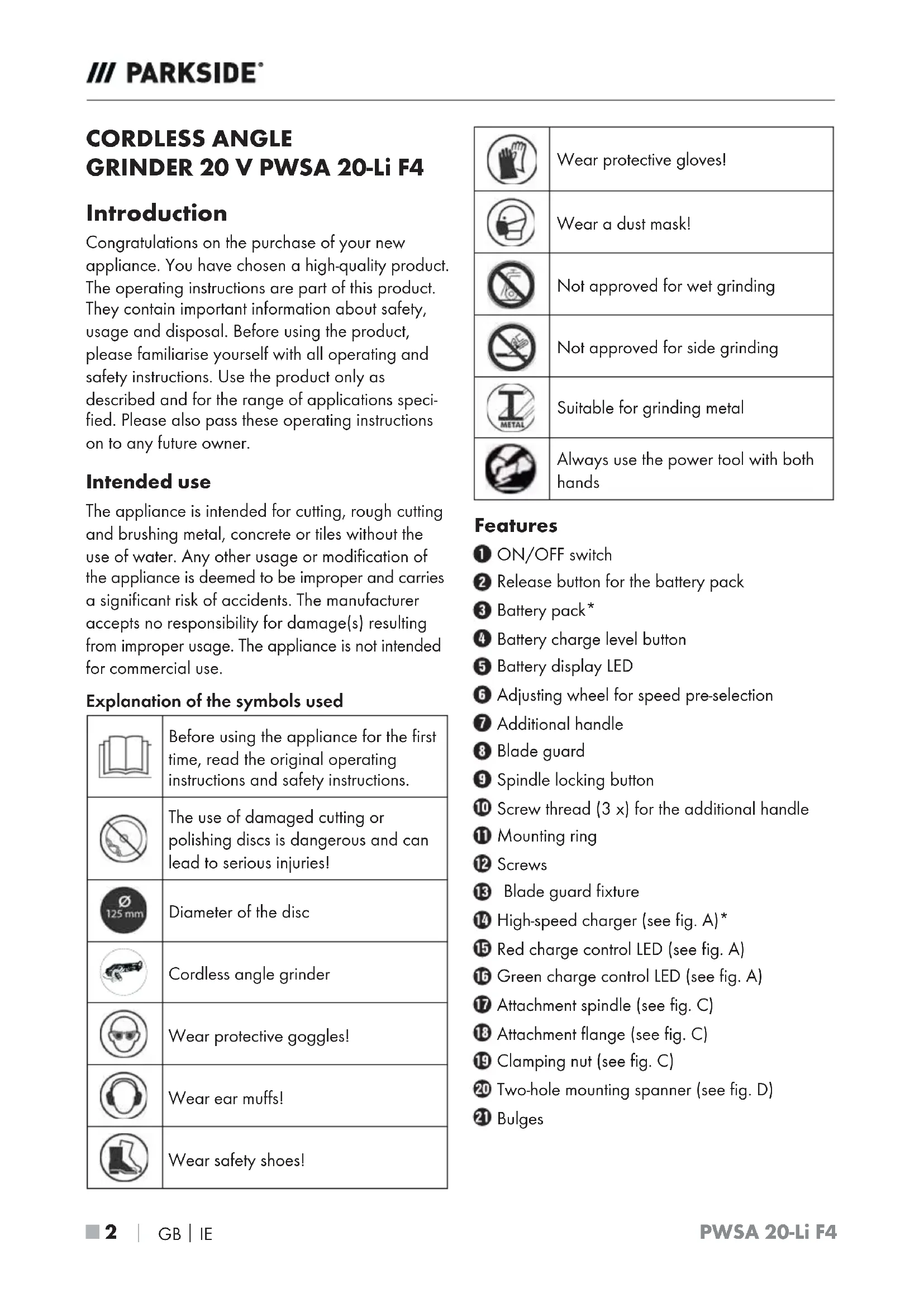

CORDLESS ANGLE GRINDER 20 V PWSA 20-Li F4 Introduction Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications speci- fied. Please also pass these operating instructions on to any future owner. Intended use The appliance is intended for cutting, rough cutting and brushing metal, concrete or tiles without the use of water. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. The appliance is not intended for commercial use. Explanation of the symbols used Before using the appliance for the first time, read the original operating instructions and safety instructions. The use of damaged cutting or polishing discs is dangerous and can lead to serious injuries! Diameter of the disc Cordless angle grinder Wear protective goggles! Wear ear muffs! Wear safety shoes! Wear protective gloves! Wear a dust mask! Not approved for wet grinding Not approved for side grinding Suitable for grinding metal Always use the power tool with both hands Features ON/OFF switch Release button for the battery pack Battery pack* Battery charge level button Battery display LED Adjusting wheel for speed pre-selection Additional handle Blade guard Spindle locking button Screw thread (3 x) for the additional handle Mounting ring Screws Blade guard fixture High-speed charger (see fig. A)* Red charge control LED (see fig. A) Green charge control LED (see fig. A) Attachment spindle (see fig. C) Attachment flange (see fig. C) Clamping nut (see fig. C) Two-hole mounting spanner (see fig. D) BulgesPWSA 20-Li F4

 3 ■ Package contents 1 cordless angle grinder 20 V 1 additional handle 1 blade guard (pre-assembled) 1 two-hole mounting spanner 1 cutting disc (pre-assembled) 1 set of operating instructions Technical details Cordless angle grinder 20 V PWSA 20-Li F4 Rated voltage 20 V (DC) Rated idle speed n

2500–11000 rpm Disc width Ø 125 mm Thread size M14 Battery PAP 20 B3* Type LITHIUM ION Rated voltage 20 V (DC) Capacity 4 Ah Cells 10 High-speed charger PLG 20 C3* INPUT Rated voltage 230–240 V ∼, 50 Hz (AC) Rated power consumption 120 W Fuse (internal) 3.15 A T3.15A OUTPUT Rated voltage 21.5 V (DC) Rated current 4.5 A Charging time approx. 60 min. Protection class II / (double insulation)

• BATTERY AND CHARGER ARE NOT INCLUDED Noise and vibration data Noise measurement value determined in accord- ance with EN 62841. The A-rated noise level of the power tool is typically: Noise emission value Sound pressure level L

= 83.6 dB (A) Uncertainty K = 3 dB Sound power level L

= 94.6 dB (A) Uncertainty K = 3 dB Wear ear muffs! Total vibration value Surface grinding main handle a h, AG < 2.5 m/s

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instruc- tions during actual use of the power tool. ► It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).PWSA 20-Li F4 ■ 4 

General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illus- trations and specifications provided with this power tool. Failure to follow all instruc- tions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.PWSA 20-Li F4

 5 ■ h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detach- able, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.

5. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi- nals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C (265°F) may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc- tions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.PWSA 20-Li F4 ■ 6 

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Safety instructions for all applications General safety instructions for grinding and abrasive cutting a) This power tool is designed to be used as a grinder and abrasive cutting tool. Read all the safety instructions, instructions, diagrams and data that you receive with the tool. Failure to follow all of the instructions below may result in electric shock, fire, and/or serious injury. b) This power tool is not suitable for sandpaper sanding, working with a steel brush, polishing or cutting holes. Using the power tool for purposes for which it is not designed can lead to hazards and injuries. c) Do not use any accessories that have not been specifically provided or recommended by the manufacturer for this power tool. Just because you can attach the accessories to your power tool does not guarantee they are safe to use. d) The maximum permissible speed of the acces- sory tool being used must be at least as high as the maximum speed specified for the power tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air. e) The external diameter and thickness of the accessory tool being used must comply with the dimensions of your power tool. Incorrectly dimensioned accessory tools cannot be suffi- ciently shielded or controlled. f) Accessory tools with a thread insert must match the thread of the grinding spindle exactly. For accessory tools that are mounted using a flange, the diameter of the hole on the attachment tool must correspond to the width of the fitting on the flange. Accessory tools that cannot be fitted precisely onto the power tool will rotate unevenly, vibrate severely and can lead to a loss of control. g) Never use damaged accessory tools. Before each use, check accessory tools such as grinding discs for chips or cracks, grinding plates for cracks, scuffs or excessive wear and tear. If the power tool or the accessory tool in use is dropped, check to see if it is damaged or use an undamaged accessory tool. When you have checked and inserted the accessory tool, ensure that you and any other people in the vicinity remain outside of the range of the rotating accessory tool and allow the tool to rotate at maximum speed for one minute. Damaged accessory tools usually break during this test period. h) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or safety goggles. If appropriate, use a dust mask, ear protectors, protective gloves or special apron to protect you from grindings and material particles. The eyes should be protected from flying debris that may be caused during certain applications. Dust or filter masks must be used to filter any dust produced by the application. Long-term exposure to loud noise can cause hearing loss.

i) Ensure that any bystanders are at a safe

distance from your work area. Anyone who enters the workspace must wear personal protective equipment. Fragments of the workpiece or broken acces- sory tools can fly off and cause injury – even outside of the immediate working area.PWSA 20-Li F4

 7 ■ j) Hold the power tool only by its insulated gripping surfaces when you are performing work during which the power tool may hit hidden power lines or its own power cord. Contact with a live cable may also cause metal parts of the tool to become live and could result in an electric shock. k) Never put the power tool down until the accessory tool has come to a complete stand- still. The rotating accessory tool could come into contact with the surface and cause you to lose control of the power tool. l) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could lead to an injury (for example, a cut or puncture wound). m) Clean the ventilation slits of your power tool regularly. The motor fan draws dust into the housing, and a heavy accumulation of metal dust can cause electrical hazards. n) Do not use the power tool in the vicinity of flammable materials. Sparks can ignite these materials. o) Do not use any accessory tools that require a liquid coolant. The use of water or other liquid coolants may lead to an electric shock. Kickback and corresponding safety instructions A Kickback is a sudden reaction caused when a rotating accessory tool, e.g. grinding disc, grinding plate, etc., catches or jams. Catching or jamming leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power tool turns rapidly against the direction of rotation of the accessory tool caught in the blockage. If, for example, a grinding disc catches or jams in a workpiece, the edge of the grinding disc projecting into the workpiece can get caught and break off the grinding disc or cause a kickback. The grinding disc can then fly in the direction of the operator or away from him, depending on the direction of rotation of the disc at the blockage. This can also cause the grinding discs to break. Kickback is caused by incorrect use of the power tool and/or incorrect working conditions. This can be avoided by taking proper precautions as described below. a) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of the kickback. Always use the additional handle, if available, so that you have the maximum possible control over the kickback force or reaction forces at full speed. By taking adequate precautions, the operator can stay in control of the a kickback and reaction forces. b) Keep your hands clear of a rotating accessory tool at all times. The accessory tool could move over your hand in the event of kickback. c) Avoid having any part of your body in the area in which the power tool is likely to move in the event of a kickback. The kickback will force the electrical tool in the opposite direction to the direction of rotation of the grinding disc at the blockage. d) Take special care when working near corners, sharp edges, etc. Do not allow the accessory tool to bang against the workpiece or to jam. The rotating accessory tool is more likely to jam in corners or sharp edges or if it rebounds off them. This can cause a loss of control or a kick- back. e) Do not use chainsaw blades for cutting wood, or segmented diamond cutting discs with a segment pitch greater than 10 mm or any toothed saw blade. These kinds of accessories often cause a kickback or loss of control. Special safety instructions for grinding and abrasive cutting

Use only the grinding accessories approved for your power tool and the appropriate blade guard for these grinding tools. Grinding tools that are not designed for the power tool cannot be sufficiently shielded and are unsafe.PWSA 20-Li F4 ■ 8 

Offset grinding discs must be mounted in such a way that their grinding surface does not project above the plane of the blade guard edge. An improperly fitted grinding disc which protrudes beyond the edge of the blade guard cannot be properly guarded. c) The blade guard must be securely attached to the power tool and adjusted for maximum safety so that the minimum possible amount of the abrasive medium is open to the oper- ator. The blade guard is designed to protect the operator from fragments, accidental contact with the grinding tool and sparks that could ignite clothing. d) Grinding tools should only be used for the recommended applications. For instance, never grind with the side surface of a cutting disc. Cutting discs are designed to remove material with the edge of the disc. Any lateral application of force on these grinding tools can cause them to break. e) Always use undamaged clamping flanges of the correct size and shape for the grinding wheel you have selected. Suitable flanges support the grinding disc and reduce the risk of a disc breakage. Flanges for cutting discs can be different to flanges for other grinding discs. f) Do not use worn grinding discs from larger power tools. Grinding discs for larger power tools are not designed for the higher rotational speeds of smaller power tools and can break. g) When using discs for a dual purpose, always use the appropriate blade guard for the appli- cation being performed. Failure to use the correct guard can result in failure to provide the desired shielding and can lead to serious injury. Additional special safety instructions for abrasive cutting a) Avoid exerting excessive contact pressure, and do not allow the cutting disc to jam. Do not make any excessively deep cuts. Over- loading the cutting disc increases the stress and likelihood of tilting or jamming and thus the possibility of a kickback or a breakage of the grinding tool. b) Avoid the area in front of and behind the rotating cutting disc. When you move the cutting disc away from yourself in the workpiece, it is possible, in the event of a kickback, that the electrical tool will be thrown out directly towards you together with the rotating disc. c) If the cutting disc jams or you stop working, switch the tool off and hold it steady until the disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to a kickback. Identify and remove the cause of the jam. d) Do not switch the power tool back on as long as it is in the workpiece. Allow the cutting disc to reach its full speed before carefully resuming the cut. Otherwise, the disc can jam, jump out of the workpiece or cause a kickback. e) Provide support for panels or large work- pieces to reduce the risk of the cutting disc jamming and causing a kickback. Large work- pieces can bend under their own weight. The workpiece must be supported on both sides of the disc: both in the vicinity of the cutting disc and also at the edge.

Be particularly careful when making pocket cuts into existing walls or other obscured areas. The inserted cutting disc may cut into gas or water pipes, electrical wiring or other objects that can cause a kickback.

Do not make any curved cuts. Overloading the cutting disc increases the stress and likelihood of tilting or jamming and thus the possibility of a kickback or a breakage of the grinding tool, which can lead to severe injuries.PWSA 20-Li F4

 9 ■ Safety guidelines for battery chargers ■ This appliance may be used by children aged 8 years and above and by persons with limited phys- ical, sensory or mental capabili- ties or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appli- ance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user mainte- nance tasks may not be carried out by children unless they are supervised. ■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person. The charger is suitable for indoor use only. WARNING! ■ To avoid potential risks, damaged mains cables should be replaced by the manufac- turer, their customer service department or a similarly qualified person. ATTENTION! ♦ This charger can only charge the following batteries:

PAPS204A1/PAPS208A1. ♦ A current list of battery compatibility can be found at www.lidl.de/Akku. Permissible accessories Max. diameter Ø (mm) Max. thickness (mm) Thread size (mm) Max speed (rpm) Max. circumferential speed (m/s) Tool Cutting disc 125 3 M14 ≥11000 ≥72 Two-hole mounting spanner Roughing disc 125 6 M14 ≥11000 ≥72 Two-hole mounting spanner Storage and handling of the recommended accessory tools ■ Grinding tools must be treated with care and transported carefully. ■ Grinding tools should be stored in such a way that they are not exposed to mechanical damage or environmental influences (e.g. damp).PWSA 20-Li F4 ■ 10 

Grinding tools should only be used for the recommended applications. Otherwise, they can break, be damaged or cause injuries. Rough grinding Never use cutting discs for rough grinding! ■ Move the angle grinder with moderate pressure back and forth over the workpiece. ■ For soft material, move the roughing disc at a flat angle over the workpiece; for hard material at a slightly steeper angle. Abrasive cutting Never use roughing discs for cutting! ■ Use only tested fibre-reinforced cutting or grinding discs that are approved for a peripheral speed of not less than 80 m/s. CAUTION! ► The grinder continues running after being turned off. Do not try to brake it by applying lateral counterpressure. ■ Secure the workpiece. Use clamps/a vice to hold the workpiece firmly in place. This is much safer than simply holding it in your hand. ■ Always switch off the appliance before putting it down and wait for the appliance to come to a complete standstill. ■ Use the appliance only for dry cutting or sanding. ■ The additional handle must be mounted on the appliance for all work. ■ Materials containing asbestos may not be processed. Asbestos is a known carcinogen. Tip! This symbol indicates proper behaviour.

DANGER! ALWAYS GUIDE THE

APPLIANCE THROUGH THE WORK-

PIECE IN REVERSE ROTATION. ► In the opposite direction there is a risk of a kickback. The appliance can be pushed out of the cut. ■ Always switch the appliance on before applying it to the workpiece. After completing the task, lift the appliance from the workpiece and then switch it off. ■ Always hold the appliance firmly with two hands while working. Ensure that your stance is secure and stable. ■ For an optimum grinding effect, move the appli- ance evenly at an angle of 15° to 30° (between the grinding disc and workpiece) backwards and forwards. ■ When working on angled surfaces, do not exert great force on the workpiece. If the rotational speed drops significantly, you must reduce the pressure exerted to allow safe and effective working. If the appliance suddenly brakes completely or jams, it must be switched off immediately. ■ Cutting: Work at a moderate feed rate and do not tilt the cutting disc. ■ Roughing and cutting discs become very hot – let them cool down completely before touching them. ■ Never use the appliance for purposes other than the ones for which it was designed. ■ Always make sure that the appliance is turned off before inserting the battery into it. ■ In the event of danger, turn off the appliance and remove the battery. Ensure that the appli- ance is easily and quickly accessible in the event of an emergency. ■ Always remove the battery during work breaks, when adjusting the appliance and when it is not in use. The appliance must be kept clean, dry and free of oil and grease at all times.PWSA 20-Li F4

 11 ■ ■ Remain alert at all times! Always pay atten- tion to what you are doing and act with common sense. Do not use the appliance if you are distracted or feeling unwell. WARNING! Always wear safety goggles. WARNING! Always wear a dust mask! Before use Charging the battery pack (seefig.A) CAUTION! ► Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger. NOTE

Never charge the battery pack if the ambient temperature is below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0°C and 50°C. ♦ Connect the battery pack to the high-speed charger (see fig. A). ♦ Insert the power plug into the socket. The control LED lights up red. ♦ The green LED indicates that the charging process is complete and the battery pack is ready. ATTENTION! ♦ If the red control LED flashes, this means that the battery pack has overheated and cannot be charged. ♦ If the red and green control LEDs both flash, this means that the battery pack is defective. ♦ Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket. Attaching/disconnecting the battery pack to/from the appliance Attaching the battery pack ♦ Allow the battery pack to click into the handle. Removing the battery pack ♦ Press the release button and remove the battery pack

Checking the battery charge level ♦ Press the battery charge level button to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED as follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge – charge the battery Adjusting the blade guard WARNING! RISK OF INJURY! ► Always switch the appliance off and remove the battery before carrying out any work on the appliance. RISK OF INJURY! ► Always use the angle grinder with the blade guard . The blade guard should be installed securely. Set it so that the highest possible degree of safety is achieved, i.e. the smallest possible part of the grinding disc is exposed to the operator. The blade guard is designed to protect the operator from fragments and accidental contact with the grinding tool. ► Make sure that the blade guard is fitted at at least the same angle as the additional handle (see fig. B). Otherwise, you could injure yourself on the roughing disc or cutting disc.PWSA 20-Li F4 ■ 12 

♦ Turn the blade guard to the required position (working position). Make sure that the blade guard is positioned in such a way that the blade guard fixture lies over one of the 5 bulges on the blade guard (see Fig. E (fold-out page). ♦ Ensure that the blade guard fixture is firmly seated in the respective bulge

Fitting the additional handle CAUTION! ► For safety reasons, this appliance may only be used with the additional handle . Failure to do so can lead to serious injury. The additional handle can be screwed onto the left, the right or the top, depending on the job at hand. Fitting/changing the roughing/ cutting disc Always wear protective gloves when changing cutting/rough grinding discs. Pay attention to the dimensions of the roughing/ cutting disc. The diameter of the hole must fit the attachment flange without any play. Do not use a reducer or adapter. NOTE

Use only discs which are free of dirt. ■ Use only grinding discs whose permissible speed rating is at least as high as that on the type plate on the power tool. ■ RISK OF INJURY! Press the spindle locking button only when the attachment spindle is at a complete standstill. ♦ Press the spindle locking button to lock the motor. ♦ Undo the clamping nut using the two-hole mounting spanner (see fig D). ♦ Place the rough grinding or cutting disc with the label side towards the appliance on the attach- ment flange . ♦ Then replace the clamping nut on the attach- ment spindle with the raised side facing up. With thin grinding discs (see fig. 1) ♦ The collar of the clamping nut faces upwards so that a thin grinding disc can be fitted safely.

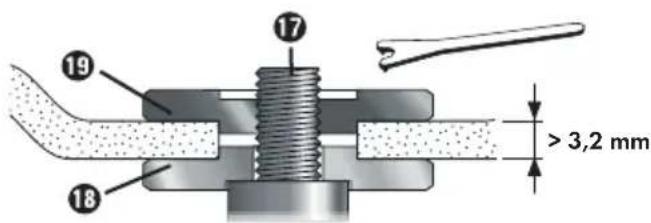

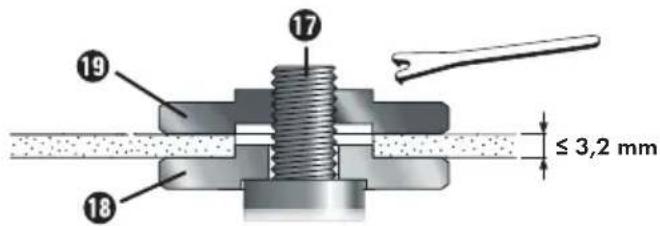

≤ 3,2 mm Fig. 1 ♦ Press the spindle locking button to lock the motor. ♦ Tighten the clamping nut using the two-hole mounting spanner . With thick grinding discs (see fig. 2) > 3,2 mm Fig. 2 The collar of the clamping nut faces downwards so that the grinding disk can be fitted securely onto the attachment spindle . ♦ Lock the attachment spindle . ♦ Tighten the clamping nut in a clockwise direc- tion using the two-hole mounting spanner . NOTE

If the disc does not turn smoothly or vibrates after the change, the disc must be replaced immediately. ♦ For safety's sake, run the appliance at maximum speed for 60 seconds after every disc change. Be aware of unusual noises and sparks. ♦ Check whether all the fastening elements are correctly fitted. ♦ Make sure that the arrow showing the direction of rotation (if any) on the cutting or rough grinding discs (including diamond cutting discs) and the direction of rotation of the appliance (arrow showing the direction of rotation on the head) match.PWSA 20-Li F4

 13 ■ Operation Switching on and off Check the attached tool before use to ensure that all fastening elements are correctly fitted. NOTE

Always switch on the angle grinder before making contact with the material, then apply it to the workpiece. ► If the appliance blocks due to an overload and switches off, it will restart automatically as soon as the cause of the blockage is removed (auto-start function). Switching on ♦ First, press the ON/OFF switch to the right so that you can then press it forwards. Switching off ♦ Let go of the ON/OFF switch . Switching to continuous operation ♦ First, press the ON/OFF switch to the right so that you can then press it forwards. Then press the ON/OFF switch forwards and down until it engages. Switching off continuous operation ♦ Press the ON/OFF switch to the rear and downwards and release it. Adjusting the rotational speed You can use the adjusting wheel for speed pre- selection to preselect the rotational speed: (1 = slower speed, 6 = faster speed). We recommend you carry out practice tests to determine the correct speed. The speed can also be changed during operation. Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. The battery angle grinder is maintenance-free. ■ Do not use any sharp objects for cleaning the appliance. Never permit liquids to penetrate inside the appliance. Otherwise the appliance could be damaged. ■ Clean the appliance regularly, preferably imme- diately after completion of the work. ■ Clean the housing with a dry cloth – do not use petrol, solvents or cleaners which can attack the plastic. ■ A vacuum cleaner is required for thorough cleaning of the appliance. ■ Ventilation openings must never be obstructed. ■ Remove any sanding dust stuck to the appliance with a brush. NOTE

Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline. WARNING! ► Do not use any accessories not recommended by PARKSIDE. This can lead to electric shock and fire. Disposal Applies only to France The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.PWSA 20-Li F4 ■ 14 

Do not dispose of power tools in your normal domestic waste! The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, com- mercial disposal companies). Batteries/recharge- able batteries may contain toxic heavy metals. For this reason, do not dispose of batteries/ rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged. The packaging materials have been selected for their environmental friend- liness and ease of disposal and are therefore recyclable. Dispose of pack- aging materials that are no longer needed in accordance with applicable local regulations. Dispose of the packaging in an envi- ronmentally friendly manner. Note the labelling on the packaging and sepa- rate the packaging material compo- nents for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims fordefects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.PWSA 20-Li F4

 15 ■ Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)436786_2304 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 436786_2304. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1800 101010 E-Mail: kompernass@lidl.ie IAN 436786_2304 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards EN 62841-1:2015

EN IEC 62841-2-3:2021/A11:2021

EN IEC 63000:2018 Type designation of the machine: Cordless angle grinder 20 V PWSA 20-Li F4 Year of manufacture: 06–2023 Serial number: IAN 436786_2304 Bochum, 20/06/2023 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development.PWSA 20-Li F4

 17 ■ Ordering a replacement battery and charger You can easily order a replacement battery or charger on the Internet at www.kompernass.com. ♦ Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available replacement parts. NOTE

If you have problems with your online order, you can contact our service centre by phone or email. ► Always quote the article number (IAN)436786_2304 in your order. ► Please note that online ordering of replacement parts is not possible for all countries.PWSA 20-Li F4 ■ 18 
