USER MANUAL DCE590 DEWALT

Berder risiko for brand.

GENERELLE SIKKERHEDSADVARSLER

FOR ELVAKKTJER

ADVARSEL: Laes alle sikkerhedsadvarsler,

Batterier Opladere/opladningstider (minutter)***
Kat # VDC Ah Vægt (kg)	DCB1102
DCB181 18 1.5 0.35 45
DCB183 18 2.0 0.40 60
DCB184 18 5.0 0.62 150
DCB549 18/54	15.0/5.0 2.12 450

*Datakode 201811475B eller senere

**Datakode 201536 aller senere

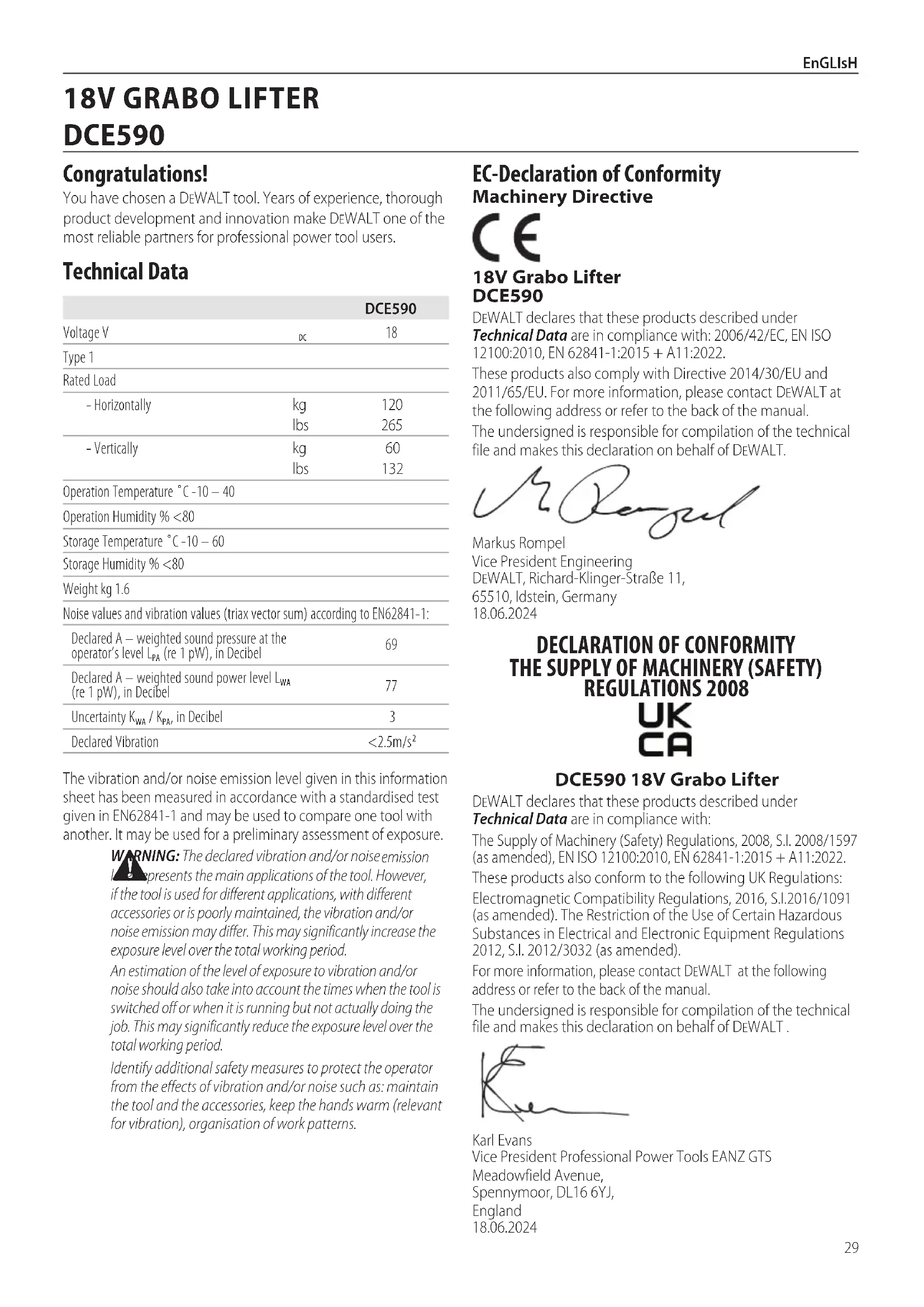

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		DCE590
Voltage V	DC	18
Type 1
Rated Load
- Horizontally	kg	120
	Ibs	265
- Vertically	kg	60
	Ibs	132
Operation Temperature °C-10-40
Operation Humidity % <80
Storage Temperature °C-10-60
Storage Humidity % <80
Weight kg 1.6
Noise values and vibration values (triax vector sum) according to EN62841-1:
Declared A - weighted sound pressure at the operator's level LPA (re 1 pW), in Decibel		69
Declared A - weighted sound power level LWA (re 1 pW), in Decibel		77
Uncertainty KwA / KPA, in Decibel		3
Declared Vibration		<2.5m/s2

The vibration and/or noise emission level given in this information sheet has been measured in accordance with a standardised test given in EN62841-1 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration and/or noise emission represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or is poorly maintained, the vibration and/or noise emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration and/or noise should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool and the accessories, keep the hands warm (relevant for vibration), organisation of work patterns.

EC-Declaration of Conformity Machinery Directive

DEWALT declares that these products described under Technical Data are in compliance with: 2006/42/EC, EN ISO 12100:2010, EN 62841-1:2015 + A11:2022.

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact DEWALT at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

Markus Rompel

Vice President Engineering
DEWALT, Richard-Klinger-Straße 11, 65510, Idstein, Germany
18.06.2024

DECLARATION OF CONFORMITY THE SUPPLY OF MACHINERY (SAFETY) REGULATIONS 2008

DEWALT declares that these products described under Technical Data are in compliance with:

The Supply of Machinery (Safety) Regulations, 2008, S.I. 2008/1597 (as amended), EN ISO 12100:2010, EN 62841-1:2015 + A11:2022. These products also conform to the following UK Regulations: Electromagnetic Compatibility Regulations, 2016, S.I.2016/1091 (as amended). The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, S.I. 2012/3032 (as amended).

For more information, please contact DEWALT at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

Karl Evans
Vice President Professional Power Tools EANZ GTS
Meadowfield Avenue,
Spennymoor, DL16 6YJ,
England
18.06.2024

Batteries Chargers/Charge Times (Minutes)***
Cat # VDC Ah Weight (kg)	DCB1102
DCB181 18 1.5 0.35 45
DCB183 18 2.0 0.40 60
DCB184 18 5.0 0.62 150
DCB549 18/54 15.0/5.0	2.12 450

*Date code 201811475B or later

**Date code 201536 or later

***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries.

WARNING: To reduce the risk of injury, read the instruction manual.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation. If not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

D. notes risk of electric shock.

Notes risk of fire.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, instructions and specifications provided with this

power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached

to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type

of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.

SAFETYWARNINGSFORLIFTERS

WARNING: Read all safety warnings and instructions, have them for future reference. Failure to adhere to these warnings can result in serious injury and damage to equipment.

WARNING: DO NOT use the DCE590 with a crane or any other equipment.

a) The DCE590 is not designed or intended for climbing or securing people in any way. Using this product for climbing or any other unintended purpose may result in injury or death.
b) If the DCE590 sealing force begins to noticeably decrease while in use, check the rubber foam seal for wear and tear or damage. Do not attempt to lift anything with the DCE590 until you have replaced the seal.
c) When not in use keep the seal protected with the seal protector. Store the tool in its protective bag/case or store on smooth surface to avoid denting or tearing the seal.
d) Be wary of high winds when lifting large panels.
e) User should wear hearing protection, safety glasses and steel toe safety shoes.

f) Do not lift overhead, and keep area beneath tool and load clear of people, pets and anything that could be damaged at all times.
g) Keep fingers away from vacuum pad while attaching to load, it may pinch while the seal is compressing.
h) Must not use tool as a tether anchor for persons or objects.
i) The load capacity for porous materials will be much lower than for nonporous materials and also if being lifted from the vertical orientation or horizontal orientation.
j) Wet conditions may result in lower load capacity.
k) Care must be taken when lifting slippery materials, especially in a vertical orientation, since they could slide off of the lifter.
1) User should use proper lifting technique and positioning to avoid injury.
m) DO NOT use the tool on flexible materials. This includes thin plastic films and sheets. The suction can bend the material against the gasket and break the vacuum seal, resulting in material dropping/breaking.
n) DO NOT use the tool on 3mm(1 / 8^ ) or thinner glass.
o) Release the vacuum or switch the tool off, only when the load can be securely released.

Residual Risks

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

Impairment of hearing.
- Risk of personal injury due to flying particles.
- Risk of burns due to accessories becoming hot during operation.
- Risk of personal injury due to prolonged use.

SAVE THESE INSTRUCTIONS

Chargers

DEWALT chargers require no adjustment and are designed to be as easy as possible to operate.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN60335; therefore, no earth wire is required.

If the supply cord is damaged, it must be replaced only by DEWALT or an authorised service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the plug.
• Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the carer terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1mm^3 , the maximum length is 30m .

When using a cable reel, always unwind the cable completely.

Important Safety Instructions for All Battery Chargers

SAVE THEsE InsTRUCTIONs: This manual contains important safety and operating instructions for compatible battery chargers (refer to Technical Data).

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

WARNING: Shock hazard. Do not allow any liquid to get charger. Electric shock may result.

WARNING: We recommend the use of a residual current with a residual current rating of 30mA or less.

CANTION: Burn hazard. To reduce the risk of injury, only DEWALT rechargeable batteries. Other types of batteries may burst, causing personal injury and damage.

CAITIOn: Children should be supervised to ensure that they do not play with the appliance.

NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
• Do not expose charger to rain or snow.
• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.
• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

• Do not operate charger with damaged cord or plug—have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised service centre.

• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• In case of damaged power supply cord, the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent any hazard.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
  NEVER attempt to connect two chargers together.
• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

Charging a Battery (Fig. B)

NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.

1. Plug the charger into an appropriate outlet before inserting battery pack.
2. Insert the battery pack 16 into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly indicating that the charging process has started.
3. The Stage 1 charging blink indicator represents the charge process that charges the majority of the battery's capacity. Stage 2 charging blink indicator represents the remainder, or top off charge process, for the battery to reach full capacity.
4. The completion of charge for Stage 1 or Stage 2 will be indicated by the stage's light remaining ON continuously. The battery pack is fully charged when both Stage 1 and Stage 2 charging lights remain ON continuously, and it may be removed and used at this time or left in the charger.

NOTE: To remove the battery pack, some chargers require the battery pack release button 16 to be pressed.

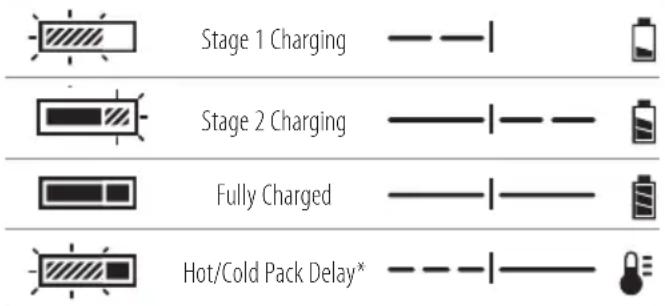

Refer to the indicators below for the charge status of the battery pack.

Indicators

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing to light.

NOTE: This could also mean a problem with a charger.

If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.

Electronic Protection System

XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fully charged.

Wall Mounting

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4mm long with a screw head diameter of 7 - 9mm , screwed into wood to an optimal depth leaving approximately 5.5mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Battery Packs

Important Safety Instructions for All Battery Packs

When ordering replacement battery packs, be sure to include catalogue number and voltage.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.

• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture, causing serious personal injury.

• Charge the battery packs only in DEWALT chargers.
  DO NOT splash or immerse in water or other liquids.

• Do not store or charge the battery pack in locations where the temperature may fall below 4^ (39.2 F) (such as outside sheds or metal buildings in winter), or reach or exceed 40^ (104 F) (such as outside sheds or metal buildings in summer).
• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable i

WARNING: Never attempt to open the battery pack for 10 sason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre for recycling.

WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

Transportation

WARNING: Fire hazard. Transporting batteries can only cause fire if the battery terminals inadvertently come into contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well-insulated from materials that could contact them and cause a short circuit. NOTE: Lithium-ion batteries should not be put in checked baggage.

DeWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards, which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations; International Maritime Dangerous Goods (IMDG) Regulations; and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests and Criteria.

In most instances, shipping a DEWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Wh rating marked on the pack. Furthermore, due to regulation complexities, DEWALT does not recommend air shipping lithium-ion battery packs alone regardless of Wh rating. Shipments of tools with batteries (combokits) can be air shipped as excepted if the Wh rating of the battery pack is no greater than 100 Wh.

Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentation requirements.

The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer's responsibility to ensure that its activities comply with the applicable regulations.

Storage Recommendations

1. The best storage place is one that is cool and dry away from direct sunlight and excessive heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.
2. For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimal results.

nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs:

Read instruction manual before use.

Refer to Technical Data for charging time.

Do not probe with conductive objects.

Do not charge damaged battery packs.

Do not expose to water.

Have defective cords replaced immediately.

Charge only between 4^ and 40^

Only for indoor use.

Discard the battery pack with due care for the environment.

Charge battery packs only with designated DEWALT chargers. Charging battery packs other than the designated DEWALT batteries with a DEWALT charger may make them burst or lead to other dangerous situations.

Do not incinerate the battery pack.

Battery Type

These battery packs may be used: DCB181, DCB183, DCB184 and DCB549. Refer to Technical Data for more information.

Package Contents

The package contains:

1 Grabo Lifter
1 Sun Shade
1 Seal Protector
1 Li-ion battery pack (C1, D1, E1, G1, H1, L1, M1, P1, Q1, S1, T1, U1, X1, Y1, Z1 models)
2 Li-Ion battery packs (C2, D2, E2, G2, H2, L2, M2, P2, Q2, S2, T2, U2, X2, Y2, Z2 models)
3 Li-lon battery packs (C3, D3, E3, G3, H3, L3, M3, P3, Q3, S3, T3, U3, X3, Y3, Z3 models)
1Instructionmanual

NOTE: Battery packs, chargers and kitboxes are not included with N models. Battery packs and chargers are not included with NT models. B models include Bluetooth® battery packs.

NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DEWALT is under license. Other trademarks and trade names are those of their respective owners.

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

Wear ear protection.

Wear eye protection.

Wear foot protection.

Date Code Position (Fig. H)

The production date code 29 consists of a 4-digit year followed by a 2-digit week and is extended by a 2-digit factory code.

Description (Fig. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

1 Main handle
2 On/off power switch
3 Motor housing
4 Lifter body
5 Strap latches
6 LED screen
7 Mode button
8Vacuum button
9 Release button
10 Trigger lock button
11 Vacuum pad
12 Foam rubber seal
13 Seal protector
14 Air filters
15 Battery pack
16 Battery release button
17 Sun shade

Intended Use

The DCE590 is a lifting tool that is designed for professional lifting, moving, and placing objects like stone pavers, tiles, drywall, furniture and large appliances. For indoor use only.

HORIZONTAL: Material laying flat on ground. A single DCE590 offers up to 120kg (265 lbs) of horizontal lifting force under ideal conditions.

VERTICAL: Material on its edge. A single DCE590 offers up to 60kg (132 lbs) of vertical lifting force under ideal conditions.

For increased lifting capacity use two DCE590 vacuum lifters.

DO NOT use under wet conditions or in the presence of flammable liquids or gases.

The DCE590 is a professional power tool.

WARNING: DO NOT use the DCE590 with a crane or any other equipment.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

Decoding tool name, DCE590:

D = D EWALT. C = Cordless. E = Tool category. 590 = Lifting tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Use only DEWALT batteries and chargers.

Installing and Removing the Sun Shade (Fig. C)

The sun shade 17 can be installed to cover the LED screen 6.

To Install

1. Align the two mounting studs 23 on the sun shade 17 with the two mounting holes 24 just above the LED screen 6 on the motor housing 3.
2. Firmly press the two mounting studs 23 into the mounting holes 24 until the sun shade 17 sits flush against the motor housing 3.

To Remove

1. Firmly pull the sun shade 17 up and away from the motor housing 3.

LED Screen (Fig. D-G)

The DCE590 is equipped with a multicolor LED screen 6. The LED screen 6 displays units of pressure, state of battery charge, and state of pressure lights.

Mode button 7 (Fig. A, E)

1. Press the mode button 7 to switch until the unit measurement is set to PSI or bar.

Vacuum indicators 18 display green (Fig. D-G)

When the vacuum button 8 is activated, the four vacuum indicators 18 will illuminate green.

1. Slide the on/off power switch 2 to the ON position. The DCE590 is now on, and the LED screen 6 display shows 0 bar/PSI and no lights.
2. After placing on clean surface of load to be lifted, press the vacuum button 8 once. The vacuum pump will activate and pressure will begin to build to -0.83 bar (-12 PSI). Four green lights illuminate in sequence on the LED screen 6 as the pressure builds to maximum level.
3. The LED screen 6 displays the pressure in units of bar or PSI depending on the mode button. The vacuum pump stops running when the pressure reaches -0.83 bar (-12 PSI).
4. If vacuum falls below -0.81 bar (-11.7 PSI), the vacuum pump will automatically activate to restore vacuum pressure to -0.83 bar (-12 PSI).
5. If the material is too porous to achieve -0.83 bar (-12 PSI) vacuum pressure, the vacuum pump will run continuously.

WARNING: Use extreme caution when lifting in this because lifting capability is reduced.

1. The release button 9 and the on/off power switch 2 are electronically disabled while the vacuum pump is enabled.

Vacuum indicators 18 display red (Fig. D-G)

When the vacuum button 8 is deactivated, the vacuum indicators 18 will illuminate red and blink.

1. To release the load, deactivate vacuum pump by pressing the vacuum button 8. The vacuum indicators 18 will illuminate red and blink rapidly.
2. Slide trigger lock button 10 forward and press and hold the release button 9 to vent the vacuum pressure and release the load.
3. The four vacuum indicators 18 will stop illuminating in sequence as the pressure drops.

LED screen flashing and low battery chime (Fig. G)

1. The low battery chime will sound and the LED screen 6 will flash to indicate a low battery condition.

WARNING: When the low battery chime sounds and the Green 6 flashes, the user must immediately set down the load being carried and secure it in place or risk the lifter releasing the load prematurely and may result in serious personal injury and damage to the material being lifted. Once down, press the vacuum button 8 to deactivate vacuum pump, slide the trigger lock button 10 forward and then press and hold the release button 9 to vent the remaining vacuum pressure and release the load. Replace or charge the battery. The DCE590 will not allow a lift to begin if the battery state of charge is below 20% .

WARNING: In the event of a power failure, the DCE590 will be non-porous materials for five minutes. The DCE590 will not hold porous materials during a power failure.

1. An alert chime will sound if the vacuum pressure falls below -0.81 bar (-11.7 PSI) even if battery is fully charged.

NOTE: This may happen below -0.81 bar (-11.7 PSI) on porous materials.

1. If the vacuum is not sufficient, the user must immediately set down the load being carried and secure it in place. If pressure is falling, the user should replace the foam rubber seal 12 or reposition the tool to a nonporous section of the material.

State of charge indicator (Fig. H, I)

The DCE590 is equipped with a state of charge indicator. This will display the current level of charge in the battery during use. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

The state of charge indicator LEDs 25 will illuminate, indicating the percent of charge in the battery.
- When all three state of charge indicator LEDs 25 illuminate, the battery is fully charged.
- When one state of charge indicator LED 25 illuminates, charge is low and then it will flash red when the battery is discharged. Remove the battery and charge it.

State of Charge Indicator Status

	LEVEL OF CHARGE	CHARGE INDICATOR LED COLOR
100% - 75% Yellow
50% - 75% Yellow
10% - 50% Red
10% or less. Low battery shutdown	Red and LED screen flashing.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

Proper Hand Position (Fig. 1)

WARNING: To reduce the risk of serious personal injury, AYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

When being used to hand lift material the proper hand position requires one hand on the main handle 1 with your thumb pointing toward the LED screen 6.

Inserting and Removing the Battery Pack from the Tool (Fig. B, K)

NOTE: Make sure your battery pack 15 is fully charged.

To Install the Battery Pack into the Tool Handle

1. Align the battery pack with the rails inside the tool's handle (Fig. B).
2. Slide it into the handle until the battery pack is firmly seated in the tool and ensure that you hear the lock snap into place.

To Remove the Battery Pack from the Tool

1. Press the battery release button 16 and firmly pull the battery pack out of the tool handle.
2. Insert battery pack into the charger.

Fuel Gauge Battery Packs (Fig. B)

Some DEWALT battery packs include a fuel gauge, which consists of three green LED lights that indicate the level of charge remaining in the battery pack.

To actuate the fuel gauge, press and hold the fuel gauge button 28 . A combination of the three green LED lights will illuminate, designating the level of charge left. When the level

of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.

NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

Recommended Materials

WARNING: Always test lift item a few centimeters to see you know the capabilities of the DCE590 on the material that you are lifting.
WARNING: Always attach the DCE590 as close as possible to center of gravity of the load. Ensure the load is balanced during this test lift.
WARNING: Regardless of material being lifted, keep the pump in the activated position until it is time to safely release the load.
WARNING:DO NOT remove the battery while the 100 is attached to material.

Typical Porous Materials

• Stone - Drywall
• Timber • Concrete
• Plywood - Cement board

CAUTION: When lifting semiporous materials such as piers, stone, timber, plasterboard, some OSB board or concrete, ensure the vacuum pump remains in the on position while lifting.

WARNING: When lifting porous loads the vacuum pump cycle on and off more frequently. Use extreme caution if the vacuum pump cycles on and off frequently or runs continually as it may not be able to reliably lift the load. Lifting capability will be lower.
CAUTION: On very porous materials or materials with fine measures, the DCE590 will not work. This includes some limestone, dry cast concrete, and most OSB board.

Typical Nonporous Materials

Glass - Finished fiberglass
- Smooth tile - Plastic
- Marble - Metal

Do Not Use On These Materials

WARNING: DO NOT use the DCE590 for any intended purposes.
WARNING: DO NOT lift materials that are not supposed to be lifted.
WARNING: DO NOT use to lift solar panels. Risk of

• Slate - Plastic sheeting

Glass that is less than 1 / 8'' (3 mm) thick

Rubber or other flexible materials

WARNING: DO NOT use on materials like slate, which is a fine red rock. A seal may be created on the top surface, but the layers can separate causing the rest of the material to come away and the vacuum seal to break.

CAITON: When lifting laminated materials like counter the seal may be created on the top surface, but the layers can separate causing the rest of the material to come away and the vacuum seal to break.

CAUTION: ALWAYS remove any protective films from the area where the DCE590 will be attached.

CANTION:DO NOT use on very thin or brittle surfaces in a thin glass under 1 / 8'' (3 mm) thick. The vacuum pressure can cause the material to flex and break.

CANTION:DO NOT use on thin plastic sheets, rubber or flexible materials. The vacuum pressure can pull the material up against the vacuum release valve in the vacuum pad. This will prevent the release of the material.

C T I O N: D O N O T use the DCE590 to lift any animal.

CAUTION: DO NOT apply the DCE590 to skin or any part of body.

1. If the vacuum becomes insufficient, over time, the vacuum pump will automatically activate until the full vacuum pressure is obtained again.
2. Do not disable the vacuum button 8 until you are ready to release the load.

Lifting Materials (Fig. A, D, I-L)

WARNING: A single DCE590 offers up to 120kg (265 lbs) of supplemental lifting force and 60kg (132 lbs) in vertical lifting force under ideal conditions. Refer to the Intended Use section at the beginning of this manual.

WARNING: Using the DCE590 while the battery charge is low 20% may result in serious personal injury and damage to the materials being lifted.

WARNING: Clean intended lifting material of any dust debris before attempting to lift.

WARNING: When lifting any item ensure the vacuum 8 remains activated while lifting. DO NOT slide the on/off power switch 2 to the OFF position 21.

WARNING: DO NOT remove the battery while the 100 is attached to material.

WARNING: Inspect foam rubber seal for damage and others for obstructions before each lift. If the vacuum pressure falls faster than expected after the motor stops, the foam rubber seal must be replaced.

WARNING: Check the tool weekly for any signs of damage. Replace damaged parts before using.

WARNING: DO NOT leave the DCE590 unattended while used to material.

WARNING: DO NOT use the DCE590 near fire or an o

WARNING: DO NOT use the DCE590 continuously for more than two hours. Suction lifters are only suitable for short term lifting and carrying of loads.

WARNING: DO NOT use the DCE590 with a crane or any equipment.

1. Slide the on/off power switch 2 to the ON position 22.
2. Position the DCE590 with the foam rubber seal 12 flush against the surface of the item you want to lift. Ensure load surface is clean and dry, and place the DCE590 above the center of gravity if possible.

NOTE: If using multiple DCE590's then distribute each lifter

roughly equal distance from the center of gravity.

nOTE: Do not place the DCE590 over holes and cracks as a vacuum will not be created or will be quickly lost.

NOTE: On some textured surfaces, you may need to apply pressure to the surface with the DCE590 and the foam rubber seal 12 to help create a seal.

1. After the vacuum button 8 is pressed the vacuum indicators on the LED screen 6 will illuminate green, and if the battery charge is not below 20% , the tool is ready to use. NOTE: The DCE590 will not allow a lift to begin if the battery state of charge is low. When the low battery chime sounds and the LED screen 6 flashes, the user must immediately set down the load being carried and secure it in place or risk the lifter releasing the load prematurely.

WARNING: In the event of power failure, the DCE590 will be non-porous materials for up to five minutes. The DCE590 will not hold porous materials if power fails.

1. Press the vacuum button 8 to start the vacuum pump and create a vacuum seal to the surface of the item you want to lift. nOTE: You may need to apply some pressure to assist in creating a seal. It may take up to five seconds for the maximum vacuum seal to be created.
2. When the vacuum pump reaches maximum sealing range, the vacuum pump will stop and remain activated. The vacuum seal is engaged and you can lift the item. Ensure the load is balanced. If not release and repeat steps above at a more balanced location.

nOTE: When working on porous materials the vacuum pressure may not reach the maximum range and the vacuum pump will keep on running to maintain vacuum pressure.

WARNING: Before each transport of the lifted load, the hold must be checked at a low height in order to avoid injuries due to falling of the lifted load.
WARNING:DO NOT press the vacuum button again at me during a lift operation as it will disable the pump pressure maintenance ability.
WARNING: When transporting lifted loads, always ensure there is a clear view to your destination to avoid collisions.
WARNING: Do not swing, shake or impact lifted loads.

1. When you are done lifting the item, set it down and secure it in place then press the vacuum button 8. The four vacuum indicators 18 will flash red. The tool can now be released.
2. Slide the trigger lock button 10 forward and then press and hold the release button 9 to release the material. The four vacuum indicators 18 will stop illuminating in sequence as the pressure drops and the pressure level units will show zero.
3. Remove the tool from the material.

MAINTENANCE

Your power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/

installing attachments or accessories. An accidental start-up can cause injury.

The charger and battery pack are not serviceable.

Proper tool maintenance includes daily and quarterly inspections.

Each day, check for: Cracks, deformation, or damage to the lifter body, proper attainment of vacuum pressure -0.83 bar (-12 PSI), cuts, tears, wear, or damage to the foam rubber seal, any vacuum leaks, vacuum bleed rate, missing control marking and labels.

Quarterly, check for: All daily checks plus loose fasteners, wear deformation, cracking, corrosion damage to structure, damage to controls, and missing safety labels.

Replacing the Rubber Foam Seal (Fig. M)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

Replacement rubber foam seals, DZE591, are available from your nearest local dealer or authorised service center.

1. Remove the worn or damaged rubber foam seal 12 by pulling it out of the tool.

NOTE: Ensure that the groove where seal resides is clean and free of debris.

1. Install a new rubber foam seal 12 into position as shown in Fig. M. Ensure that rubber foam seal 12 is secured into position before using. (Do not use adhesive.)

Connecting a Lifting Strap (Fig. A, N-Q)

WARNING: Lifting accessories should meet the following: EN818 for short link chains, EN1492 for textile slings, EN1677 for components of slings, and EN13414 for steel wire rope slings.

NOTE: User is responsible for sourcing proper lifting strap 19 accessory (sold separately) for use with your tool.
Locate the four strap latches 5 around the lifter body 4.

WARNING: DO NOT use the DCE590 with a crane or any equipment.

1. Secure each of the clips 20 at the ends of the lifting strap 19 into the four strap latches 5.

NOTE: You must connect the lifting strap 19 to each of the four strap latches 5. Or just two of the strap latches 5 depending upon the lifting orientation (see Fig. N-Q).

1. Ensure the lifting straps are not twisted or kinked before lifting.
2. Straps must be equal length and with equal tension on them when lifting.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Electrical shock and mechanical hazard.
Connect the electrical appliance from the power source before cleaning.
WARNING: To ensure safe and efficient operation, always keep the electrical appliance and the ventilation slots clean.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
WARNING: DO NOT use aggressive cleaning agents for regular cleaning of the suction surfaces.

Ventilation slots can be cleaned using a dry, soft non-metallic brush and/or a suitable vacuum cleaner. Do not use water or any cleaning solutions. Wear approved eye protection and an approved dust mask.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT-recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled, reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.

Rechargeable Battery Pack

This long-life battery pack must be recharged when it fails to produce sufficient power on jobs that were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.
• Li-ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.

Matières non-poreuses types

Bloc-batterie rechargeable

*Datumcode 201811475B of later

**Datumcode 201536 of later

BEWAAR ALLE WAARSCHUWINGEN INSTRUCTIES ALS

TOEKOMSTIG REFERENTIEMATERIALAAL

VEILIGHEIDSWAARSCHUWINGEN VOOR LIFTERS

Bataryayi atese atmayin.

Batarya Tipi

AnaiTeiAt eNlBLeyn otav to epyaIio to xpooiopoiov auepoi cxnoTEc.

Mikpa naiidia kai eaoeynvea atoja.Autn no oovkeun dev npooipzetai yia xponxwpic eniBxyn ano mikpa naiidia n eaoevnyeva atoja.
To npoiov auto npoopicietaia xpon ano atota (nepiaaabovouevw naidiw) nou exouv meiwvec oomegakec, aohtnpiakec n diavontikec ikavotntec, n eaiytn eaneipiac kai/n yywnc kai deiotntw, ektoc av ta atoma auta eniBenovtai ano atopo uenuuvo yia tnv aoiaia touc. Ta naiaia dev npenei va evouv note mova toucue auto to npoiov.

Anokwdkooinon tou ovouatoc tou epyaieou, DCE590:
