USER MANUAL CML-180 RYOBI

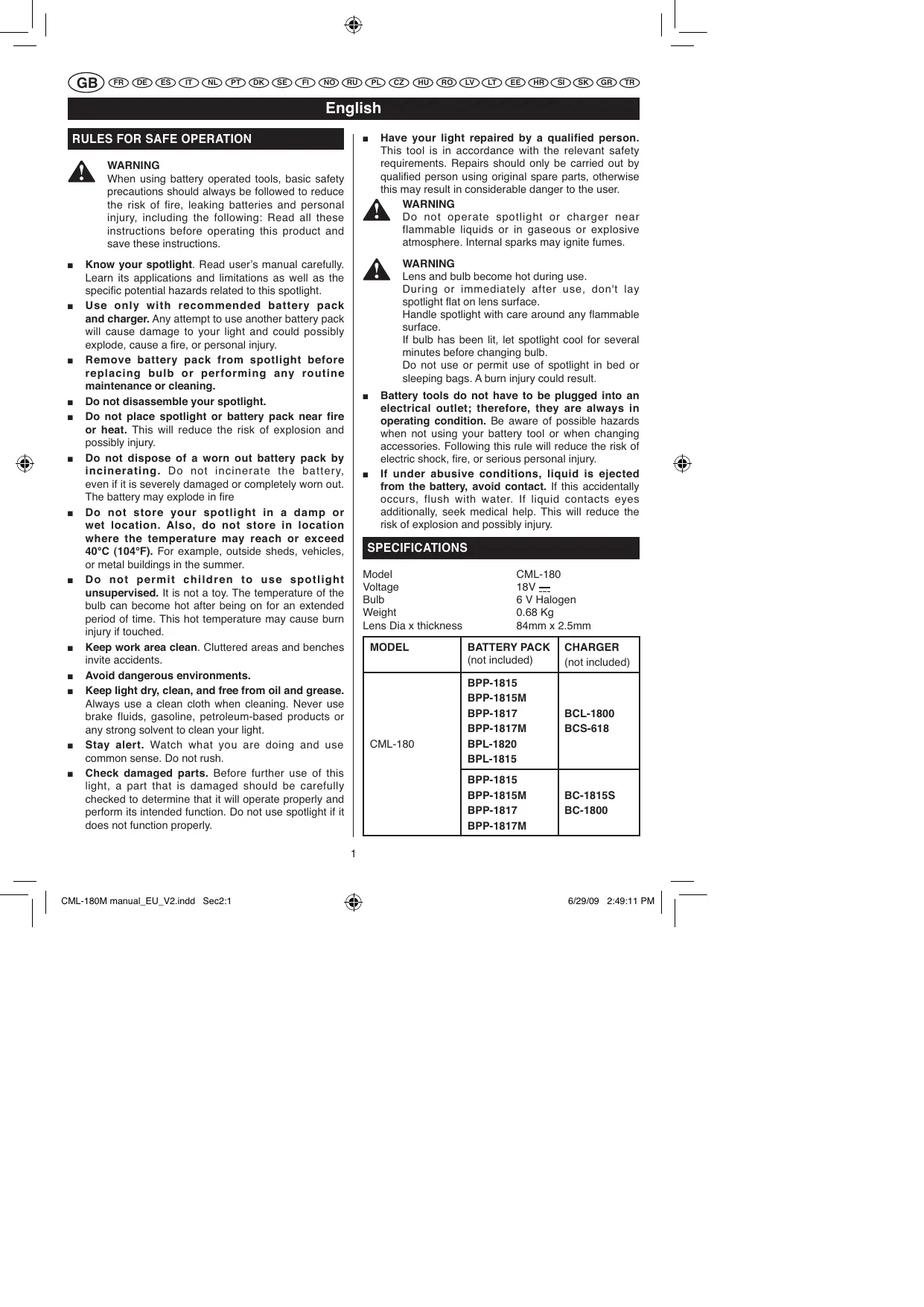

When using battery operated tools, basic safety precautions should always be followed to reduce the risk of fire, leaking batteries and personal injury, including the following: Read all these instructions before operating this product and save these instructions.
- Know your spotlight. Read user's manual carefully. Learn its applications and limitations as well as the specific potential hazards related to this spotlight.
Use only with recommended battery pack and charger. Any attempt to use another battery pack will cause damage to your light and could possibly explode, cause a fire, or personal injury. - Remove battery pack from spotlight before replacing bulb or performing any routine maintenance or cleaning.
- Do not disassemble your spotlight.
- Do not place spotlight or battery pack near fire or heat. This will reduce the risk of explosion and possibly injury.
- Do not dispose of a worn out battery pack by incinerating. Do not incinerate the battery, even if it is severely damaged or completely worn out. The battery may explode in fire
- Do not store your spotlight in a damp or wet location. Also, do not store in location where the temperature may reach or exceed 40^ (104^) . For example, outside sheds, vehicles, or metal buildings in the summer.
- Do not permit children to use spotlight unsupervised. It is not a toy. The temperature of the bulb can become hot after being on for an extended period of time. This hot temperature may cause burn injury if touched.
- Keep work area clean. Cluttered areas and benches invite accidents.
Avoid dangerous environments. - Keep light dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products or any strong solvent to clean your light.
- Stay alert. Watch what you are doing and use common sense. Do not rush.
- Check damaged parts. Before further use of this light, a part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Do not use spotlight if it does not function properly.
Have your light repaired by a qualified person. This tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified person using original spare parts, otherwise this may result in considerable danger to the user.
WARNING
Do not operate spotlight or charger near flammable liquids or in gaseous or explosive atmosphere. Internal sparks may ignite fumes.
WARNING
Lens and bulb become hot during use. During or immediately after use, don't lay spotlight flat on lens surface. Handle spotlight with care around any flammable surface. If bulb has been lit, let spotlight cool for several minutes before changing bulb. Do not use or permit use of spotlight in bed or sleeping bags. A burn injury could result.
- Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.
If under abusive conditions, liquid is ejected from the battery, avoid contact. If this accidentally occurs, flush with water. If liquid contacts eyes additionally, seek medical help. This will reduce the risk of explosion and possibly injury.
SPECIFICATIONS
| Model | CML-180 |
| Voltage | 18V --- |
| Bulb | 6 V Halogen |
| Weight | 0.68 Kg |
| Lens Dia x thickness | 84mm x 2.5mm |
| MODEL | BATTERY PACK (not included) | CHARGER (not included) |
| CML-180 | BPP-1815 | BCL-1800 |
| BPP-1815M | ||
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | BC-1815S | |
| BPP-1815M | ||
| BPP-1817 | BC-1800 | |
| BPP-1817M |
English
DESCRIPTION
- Switch trigger
- Lock-on button
- Battery Pack Latches
- Battery pack (not included)
- Bezel
- Lens seal
- Lens
- Reflector
- Groove
- Tabs
- Ridge
- Notches
- Spade connection terminal
- Connection point
- Retainer clip
- Red circuit lead
- Bulb assembly
- Fuse
OPERATION
TO INSTALL BATTERY PACK
See Figures 1 - 2.
Leave the switch trigger in the OFF position.
Place the battery pack in the spotlight.
Make sure the latches on each side of the battery pack snap in place and that battery pack is secured in the spotlight before beginning operation.
TO REMOVE BATTERY PACK
See Figures 1 - 2.
Leave the switch trigger in the OFF position.
- Locate latches on side of battery pack and depress both sides to release battery pack.
Remove battery pack from the spotlight.
WARNING:
Battery tools are always in operating condition. Therefore, switch should always be in the OFF position when not in use or carrying at your side.
SWITCH TRIGGER
See Figure 1.
To turn the spotlight ON, depress and hold the switch trigger. To turn it OFF, release the switch trigger.
LOCK-ON BUTTON
See Figure 1.
The spotlight is equipped with a lock-on feature, which is convenient for continuous use for extended periods of time.
To lock-on:
Depress the switch trigger.
Push in and hold the lock-on button, located on the side of the handle.
Release the switch trigger.
Release the lock-on button.
To release the lock, depress and release the switch trigger.
REPLACING BULBS
See Figures 3 - 5.
Over time, the bulb will burn out. When this occurs, replacing the bulb will be necessary. Be careful not to touch the bulb glass. This will reduce the life of the bulb.
To replace a bulb:
- Remove battery from the spotlight and let it cool for at least 5 minutes.
Turn the bezel counterclockwise to remove. - Remove the reflector assembly from the spotlight housing. Do not pull on the leads connected to the assembly.
- Remove the white connection point from its nest in the housing.
- Remove the white connection terminal from its connection point.
NOTE: Do not pull white lead without holding the connection point, as this may damage lead.
- Remove the retainer pin from the reflector and remove bulb assembly.
NOTE: When purchasing replacement bulb, request to RYOBI after-sales service for recommended part number 019020001007. Always use bulb with same characteristics and size.
REPLACEMENT FUSE
See Figure 6.
If the spotlight blows its fuse, you will need to replace it. Look for replacement fuses where you purchased this product.
- Remove the battery pack from the spotlight to access fuse housing.
English
OPERATION
- Remove the current fuse and discard. Use a pair of fuse pullers if necessary.
NOTE: When purchasing replacement fuse, request to RYOBI after-sales service for recommended part number 019020001013. Always use fuse with same characteristics and size.
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
WARNING:
To avoid serious personnel injury, always remove the battery pack from the product when cleaning or performing any maintenance.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing as waste. The machine, accessories and packaging should be sorted for en-vironmental-friendly recycling.
SYMBOL
Safety Alert
V
Volts
min-1
Revolutions or reciprocations per minute
一
Direct current
CE Conformity
Please read the instructions carefully before starting the machine.
Recycle unwanted
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
Français
CONSIGNES DE SECURITÉ
AVERTISSEMENT
| MODELE | BATTERIE (non fournie) | CHARGEUR (non fournie) |
| CML-180 | BPP-1815 | BCL-1800 |
| BPP-1815M | ||
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | BC-1815S | |
| BPP-1815M | ||
| BPP-1817 | BC-1800 | |
| BPP-1817M |
DESCRIPTION
| MODELO | BATERÍA (no suministrada) | CARGADOR (no suministrado) |
| CML-180 | BPP-1815 | BCL-1800 |
| BPP-1815M | ||
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | BC-1815S | |
| BPP-1815M | ||
| BPP-1817 | BC-1800 | |
| BPP-1817M |
DESCRIPCION
| MODELLO | BATTERIA (non fornita) | CARICABATTERIA (non fornito) |
| CML-180 | BPP-1815 | BCL-1800 |
| BPP-1815M | ||
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | BC-1815S | |
| BPP-1815M | ||
| BPP-1817 | BC-1800 | |
| BPP-1817M |
DESCRIZIONE
| MODEL | BATTERI (ikke medleveret) | OPLADER (ikke medleveret) |
| CML-180 | BPP-1815 | |
| BPP-1815M | BCL-1800 | |
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | ||
| BPP-1815M | BC-1815S | |
| BPP-1817 | BC-1800 | |
| BPP-1817M |
BESKRIVELSE
| MODELL | BATTERI (ekstrautstyr) | LADER (ekstrautstyr) |
| CML-180 | BPP-1815 | |
| BPP-1815M | BCL-1800 | |
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | ||
| BPP-1815M | BC-1815S | |
| BPP-1817 | BC-1800 | |
| BPP-1817M |
BESKRIVELSE
LASEKNAPP I STILLING "PA" (Fig. 1)
COOTBETCTBNE Tpe6OBaHnM CE
Ipeud nCnoB3ObaHnem np60pa BHNMaTeJbHO O3HaKOMbTecb C daHHo HNCTpyKuNei.
Ytuln3aun HeXeJatelbHa
Otpa6oTaHHa 3JleKtpoTeXnHueckaa npOduKyun DaONJHa yHnUToKaTbC BMeCTe C bI ToBbIMN OTXdAMM. YtUnn3uPyuYte, cEnn NMeETcA CneuaJIbHoE texHnueckoe OobopyDobAHne. No Bonpocam YtUnn3aunn PpOKOHcynbTpuyTeCb MeCTbIM MopraHOM Blaactn nI npEApnpTnem pO3HnHOn TOpROBIn.
Polski
WYMAGANIA BHP
OSTRZEŽENIE
m = 311
| TÍPUS | AKKUMULÁTOR (nincs mollékelve) | TÖLTő (nincs mollékelve) |
| CML-180 | BPP-1815 | |
| BPP-1815M | BCL-1800 | |
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | ||
| BPP-1815M | BC-1815S | |
| BPP-1817 | BC-1800 | |
| BPP-1817M |
A KESZULEK RÉSZEI
NAVODILA ZA VARNO UPORABO
OPOZORILO
| MODEL | AKUMULATOR (ni priložen) | POLNILNIK (ni priložen) |
| CML-180 | BPP-1815 | BCL-1800 |
| BPP-1815M | ||
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | BC-1815S | |
| BPP-1815M | ||
| BPP-1817 | BC-1800 | |
| BPP-1817M |
ZNAÇILNOSTI
| MODEL | SÜPRAVA BATÉRII (nedodáva sa) | NABÍJACKA (nedodáva sa) |
| CML-180 | BPP-1815 | BCL-1800 |
| BPP-1815M | ||
| BPP-1817 | ||
| BPP-1817M | BCS-618 | |
| BPL-1820 | ||
| BPL-1815 | ||
| BPP-1815 | BC-1815S | |
| BPP-1815M | ||
| BPP-1817 | BC-1800 | |
| BPP-1817M |
POPIS
- Vypinač
- Poistné tlačidlo
- Zapadky akumulatóra
- Akumulátor (nie je sučastou balenia)
- Objímka
- Tesnenie šošovky
- Sošovka
- Reflektor
9.Dražka - Pliesky
- Hreben
- Drażky
- Biela pripojovacia svorka
- Bod pripojenia
- Udržiavací količek
- Vodič Červeného obvodu
- Súprava Žiarovky
- Poistka
PREVÁDZKA
VLOZENIE AKUMULÁTORA
Pozrite obrzky 1-2.
Spinač nechajte v polohe OFF.
Vlozte akumulator do svtilometu.
Dbajte na to,aby pred zahajinem prace zapadky po kazdej strane akumulatora zapadli na miesto a aby bol
akumulator zaisteny vo svetlomete.
VYBRATIE AKUMULÁTORA
All Ryobi products are guaranteed against manufacturing defects and defective parts for a period of twenty four (24) months from the date stated on the original invoice drawn up by the retailer and given to the end user.
Deterioration caused by normal wear and tear, unauthorised or improper use or maintenance, or overload are excluded from this guarantee as are accessories such as battery packs, light bulbs, blades, fittings, bags, etc. In the event of malfunction during the warranty period, please take the NON-DISMANTLED product, along with the proof of purchase, to your retailer or nearest Authorised Ryobi Service Centre.
This warranty in no way affects your legal rights concerning defective products.
GARANTIE - CONDITIONS
DECLARATION OF CONFORMITY
