PBA 18V36 P4A - Batteries GARDENA - Free user manual and instructions

Brand	Gardena
Model	PBA 18V36 P4A
Product type	Rechargeable lithium-ion battery
System	POWER FOR ALL System PBA 18V
Nominal voltage	18 V DC
Nominal capacity	2.0 Ah
Nominal energy	36 Wh
Number of cells	5 (Li-Ion)
Suitable charger	POWER FOR ALL System AL 18..CV (e.g., AL 1830 CV P4A)
Operating and storage temperature	-20 °C to +50 °C
Recommended charging temperature	0 °C to +45 °C (estimated)
Maintenance	Clean the ventilation slots and contacts with a soft, dry, clean brush
Storage	In a dry, closed, frost-free place, out of reach of children
Estimated lifespan	2 years (manufacturer warranty)
Estimated weight	Approximately 350 g (typical value for 2.0 Ah)
Estimated dimensions (L x W x H)	Approximately 120 x 80 x 65 mm (typical value)
Intended use	Power supply for POWER FOR ALL System garden tools, private use
Spare parts	GARDENA AL 1830 CV P4A quick charger (ref 14901)
Warranty	2 years (manufacturer)
Customer service	AZUR number: 0810 00 78 23 (France)

Frequently Asked Questions - PBA 18V36 P4A GARDENA

What is the capacity of the Gardena PBA 18V36 P4A battery?

The nominal capacity is 2.0 Ah, which corresponds to an energy of 36 Wh.

How to charge the battery for the first time?

The battery is delivered partially charged. Before first use, fully charge it with a compatible POWER FOR ALL System charger (e.g., GARDENA AL 1830 CV P4A). Follow the charger instructions.

Can I use this battery with tools other than Gardena?

Yes, the battery is part of the POWER FOR ALL System. It is compatible with all garden tools and appliances bearing the POWER FOR ALL logo from participating brands (Bosch, Gardena, etc.), provided they are designed for 18 V voltage.

What is the recommended storage temperature?

Store the battery in a dry, frost-free place at a temperature between -20 °C and +50 °C. Avoid prolonged exposure to sun or in a car in summer.

How to clean the battery?

Occasionally clean the ventilation slots and battery contacts with a soft, clean, dry brush. Do not use water or chemicals.

What to do if the battery is damaged?

Do not use a damaged battery. If liquid leaks, avoid contact. In case of contact, rinse with water and consult a doctor if necessary. For maintenance or replacement, contact GARDENA after-sales service or an authorized center.

How to dispose of the battery at end of life?

Do not throw the battery in household waste. Fully discharge it (contact customer service if necessary), protect the contacts from short circuits, and take it to a local collection or recycling point for lithium-ion batteries.

Which chargers are compatible with the PBA 18V36 P4A battery?

All POWER FOR ALL System battery chargers of the AL 18..CV series are compatible. The recommended quick charger is the GARDENA AL 1830 CV P4A (ref 14901).

Can the battery be used in cold weather?

Yes, but at temperatures below 0 °C, power may be reduced. The operating temperature range is -20 °C to +50 °C. Avoid charging the battery below 0 °C.

What to do if the battery does not charge or work?

Check that the charger is suitable and working, and that the contacts are clean. Ensure the temperature is within the allowed range. If the problem persists, contact GARDENA after-sales service at 0810 00 78 23 (France, local call cost).

USER MANUAL PBA 18V36 P4A GARDENA

SQ Manual perdorimi

Bateriae sistemit

ET Kasutusjuhend

Süsteemi aku

LT Eksploatavimo instrukcija

Sistemos akumuliatorius

LV Lietošanas instrukcija

Sistēmas akumulators

DE GARDENA System-Akku PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

EN GARDENA System Battery PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

Translation of the original instructions.

Intended use:

The POWER FOR ALL System Battery is intended as a power supply for the relevant POWER FOR ALL System cordless products and is intended for use in private house and hobby gardens.

The product is not intended for long term use.

1. SAFETY

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Keep all the safety information and general instructions for future reference.

These safety warnings apply only for lithium-ion batteries of the POWER FOR ALL system PBA 18V. Only use the battery with products of the POWER FOR ALL system manufacturers.

This is the only way in which you can protect the battery against dangerous overload.

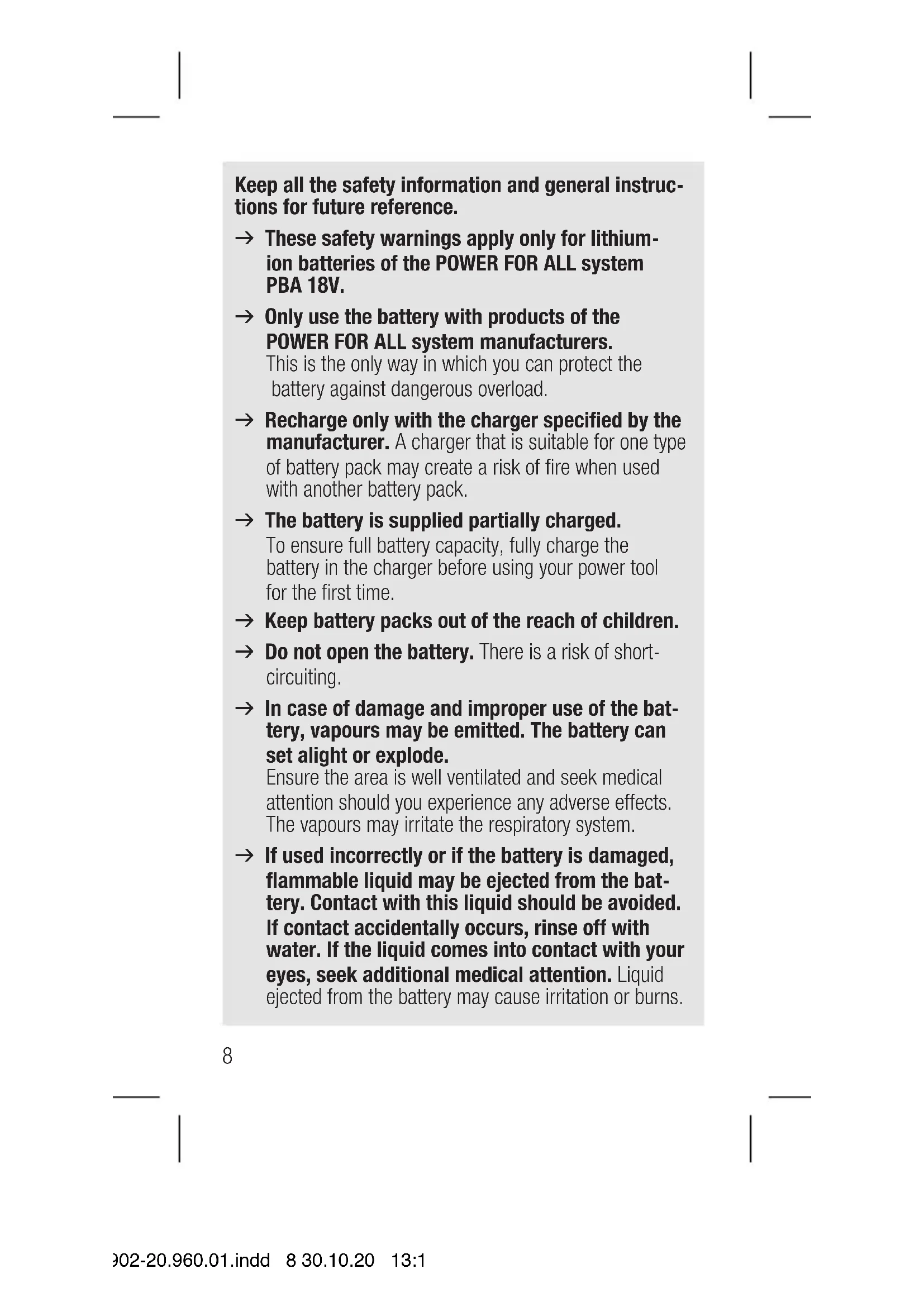

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. The battery is supplied partially charged.

To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time.

Keep battery packs out of the reach of children. Do not open the battery. There is a risk of short-circuiting. In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode.

Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.

If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.

If the battery is damaged liquid can be ejected and cover nearby surfaces. Check affected parts. Clean these parts or change them if necessary.

Do not short-circuit the battery pack. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.

Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, dirt, water, and moisture.

There is a risk of explosion and short-circuiting.

Only operate and store the battery at an ambient temperature between -20°C and +50°C.

Do not leave the battery in your car in the summer, for example. At temperatures below 0°C, some devices may experience a loss of power.

Only charge the battery at an ambient temperature between 0°C and +45°C.

Charging outside of this temperature range can increase the risk of damage to the battery and pose a fire hazard.

DANGER! Cardiac arrest! This product makes an electromagnetic field while it operates. This field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.

DANGER! Risk of suffocation!

Small parts can be easily swallowed. There is also a risk that the polybag can suffocate toddlers. Keep toddlers away when you assemble the product.

To charge the battery [Fig. 01 / 02]:

See operating manual of the POWER FOR ALL System Product or the POWER FOR ALL System Charger.

3. MAINTENANCE

To clean the battery:

Occasionally clean the ventilation slots and the terminals on the battery using a soft brush that is clean and dry.

4. STORAGE

To put into storage:

The product must be stored away from children.

1. Charge the battery.
2. Clean the battery (see 3. MAINTENANCE).
3. Store the battery in a dry, enclosed and frost-free place.

10

Disposal of the battery:

Li-ion

The GARDENA battery contains lithium-ion cells that should not be disposed of with normal household waste at the end of its life.

IMPORTANT!

Dispose of the batteries through or via your municipal recycling collection centre.

1. Discharge the lithium-ion cells completely (contact the GARDENA Service).
2. Protect the contacts on the lithium-ion cells against short circuits.
3. Dispose of the lithium-ion cells properly.

5. TECHNICAL DATA

System Battery	PBA 18V 2,0Ah W-B (Art. 14902)	PBA 18V 2,5Ah W-B (Art. 14903)	PBA 18V 4,0Ah W-C (Art. 14905)
Battery voltage	18 V (DC) 18 V (DC) 18 V (DC)
Battery capacity	2.0 Ah 2.5 Ah 4.0 Ah
Number of cells (Li-Ion)	5 5 10

Appropriate POWER FOR ALL system Battery Chargers: AL 18..CV.

6. ACCESSORIES

GARDENA Battery Charger for fast charging Art. 14901 Quick Charger the POWER FOR ALL System AL 1830 CV P4A Batteries PBA 18V..W-

7. SERVICE/WARRANTY

In the event of a warranty claim, no charge is levied to you for the services provided.

GARDENA Manufacturing GmbH grants a warranty for all original GARDENA new products for two years from the date of original purchase from the retailer, provided that the devices have been for private use only. This manufacturer's warranty does not apply to products acquired second hand. This warranty includes all significant defects of the product that can be proved to be material or manufacturing faults.

The manufacturer's warranty is governed by the law of the Federal Republic of Germany.

In case of a warranty claim, please return the faulty product, together with a copy of the receipt and a description of the fault, with postage paid to the service address.

FR GARDENA Batterie du système PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

DANGER! Danger of suffocation!

DANGER! Danger of suffocation!

WARNING! Danger of suffocation!

Small parts may be easily swallowed. Due to the packaging film, there is a danger of suffocation for small children. During installation, keep away from small children.

2. OPERATING INSTRUCTIONS

Charging the battery [Fig. O1/O2]:

→ Read the operating instructions for the POWER FOR ALL System device and the POWER FOR ALL System charger before use.

3. MAINTENANCE

Cleaning the battery:

→ Clean the battery from time to time with a soft, dry brush and the ventilation slots and the battery terminals.

4. STORAGE

Taking out of operation:

The device must be stored out of the reach of children.

1. Charge the battery.
2. Clean the battery (see 3. MAINTENANCE).
3. Store the battery in a dry, closed and frost-proof room.

Disposal of the battery:

Li-ion

The GARDENA battery is a lithium-ion battery which, at the end of its service life, must be disposed of separately from normal household waste.

IMPORTANT!

→ Dispose of batteries through your local recycling collection point.

1. Fully level the lithium-ion batteries (contact GARDENA service center).
2. Protect the contacts of lithium-ion batteries from short-circuiting.
3. Dispose of lithium-ion batteries in an environmentally friendly manner.

5. TECHNICAL DATA

Состemsний аKKулготор	PBA 18V 2,0Ah W-B (apr. 14902)	PBA 18V 2,5Ah W-B (apr. 14903)	PBA 18V 4,0Ah W-C (apr. 14905)
Наряжени аKKулготорa	18 V (DC)	18 V (DC)	18 V (DC)
Емкость аKKулготорa	2,0 Ah	2,5 Ah	4,0 Ah
Колочь Ячек (Li-lon)	5 5 10

90

Manufacturer's instructions for the Russian language version

Manufacturer:

GARDENA Germany AB,

PO Box 7454,

S-103 92 Stockholm, Sweden

Country of manufacture indicated

On the product.

Official importer in Russia:

LLC "Husqvarna",

141400, Moscow region,

G. XUMK,

Leningradskaya,

Building 39, structure 6,

Decision No. OB02_04

Serial number: 06/2020

PBA 18V/36 P4A / PBA 18V/45 P4A /

PBA 18V/72 P4A

The warranty obligations do not include any payment for services provided.

GARDENA Manufacturing GmbH provides a 2-year warranty for all original new GARDENA products

from the moment they are first sold to the end user, provided that the products are used exclusively for private purposes. For products purchased on the second-hand market, the manufacturer's warranty does not apply. The warranty covers all material or manufacturing defects that become apparent during the warranty period.

TR GARDENA System battery PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

BG GARDENA System battery PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

Translation of the original instructions.

Intended use: The battery for the POWER FOR ALL system serves to power the corresponding battery-powered devices from the POWER FOR ALL system and is intended for use in private households and gardens.

The product is not suitable for continuous commercial use.

1. SAFETY INSTRUCTIONS

Read all safety warnings and instructions.

Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep these instructions in a safe place.

→ The safety instructions apply only to the POWER FOR ALL PBA 18V lithium-ion battery packs. → Use the battery pack only in products from the POWER FOR ALL system manufacturer. Only this way can the battery pack be protected against dangerous overload. → Charge the battery packs only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. → The battery pack is delivered partially charged. To ensure full battery pack capacity, fully charge the battery pack in the charger before first use. → Store the battery packs away from direct sunlight and heat. → Do not throw the battery pack into fire. There is a risk of explosion.

→ If the battery pack is used improperly, vapors may be emitted. The battery pack may ignite or explode. Ensure the area is well ventilated and seek medical attention if you feel unwell. The vapors may irritate the respiratory tract. → If used incorrectly or if the battery pack is damaged, flammable liquid may leak from the battery pack. Avoid contact with the liquid. In case of accidental contact, rinse with water. If the liquid comes into contact with your eyes, seek additional medical help. Liquid ejected from the battery pack may cause irritation or burns. → If the battery pack is damaged, liquid may leak and wet nearby objects. Check the affected parts. Replace them or have them replaced if necessary. → Do not short-circuit the battery pack. Keep unused battery packs away from paper clips, coins, keys, nails, screws or other small metal objects that could bridge the contacts. Short-circuiting the battery contacts may cause burns or fire. → The battery pack can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short circuit may occur and the battery pack may burn, smoke, explode or overheat. → Never repair damaged battery packs.

Any servicing of the battery pack should be carried out only by the manufacturer or an authorized service center.

Protect the battery pack from heat, e.g., from prolonged exposure to sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

Use the battery charger only at an ambient temperature between -20°C and +50°C.

Do not leave the battery charger during charging. At temperatures below 0°C, special charging may be required for the battery.

Charge the battery charger only at an ambient temperature between 0°C and +45°C. Charging outside this temperature range may damage the battery charger or increase the risk of fire.

DANGER! Electromagnetic field! This product generates an electromagnetic field during operation. This field may, under certain circumstances, affect the function of active or passive medical implants. To reduce the risk of serious or fatal injury, persons with medical implants should consult their physician and the implant manufacturer before using this product.

DANGER! Danger of suffocation!
