PBA 18V45 P4A - Batteries GARDENA - Free user manual and instructions

Brand	GARDENA
Model	PBA 18V45 P4A
Product type	Rechargeable Li-ion battery
Battery technology	Lithium-ion (Li-ion)
Nominal voltage	18 V (DC)
Capacity	4.5 Ah
Compatible system	POWER FOR ALL System
Operating temperature	-20 °C to +50 °C
Storage temperature	-20 °C to +50 °C (recommended dry and frost-free)
Recommended charger	POWER FOR ALL System chargers (AL 18..CV)
Weight	Approx. 0.6 kg
Dimensions (L x W x H)	Approx. 130 x 80 x 60 mm
Number of cells	10 (Li-ion)
Deep discharge protection	Yes (integrated)
Charge indicator	No (use charger to check)
Maintenance	Clean with a soft, clean, dry brush
Safety	Do not open, short-circuit, expose to heat or water
Warranty	2 years (private use)
Recycling	Li-ion battery, do not dispose of in household waste

Frequently Asked Questions - PBA 18V45 P4A GARDENA

How to charge the GARDENA PBA 18V45 P4A battery?

Use a compatible POWER FOR ALL System charger (e.g., AL 18..CV). Connect the battery to the charger and wait until fully charged. Refer to the charger's manual for details.

What is the capacity of the PBA 18V45 P4A battery?

The nominal capacity is 4.5 Ah at 18 V.

Can this battery be used with tools from other brands?

Yes, this battery is part of the POWER FOR ALL System, an alliance of several manufacturers. It is compatible with all tools and devices bearing the POWER FOR ALL System logo.

How to store the battery in winter?

Store it in a dry, closed, frost-free place. The ideal storage temperature is between -20 °C and +50 °C. Fully charge the battery before storage.

What to do if the battery no longer works?

First check the charge status. If it does not charge, it may be defective. Do not attempt to repair it yourself; contact GARDENA customer service or take it to a recycling collection point.

Do I need to fully discharge the battery before recharging?

No, Li-ion batteries have no memory effect. You can recharge them at any time without waiting for a full discharge.

Is the battery protected against overheating?

Yes, the battery has electronic protection against overcharge, excessive discharge, short circuits, and overheating. It automatically shuts down if the temperature is abnormal.

How to clean the battery?

Occasionally clean the ventilation slots and contacts with a soft, clean, dry brush. Never use water or chemicals.

Can I leave the battery on the charger permanently?

It is best to remove the battery from the charger once charging is complete. Most chargers stop automatically, but a permanent connection is not recommended to prolong battery life.

How to dispose of the battery at the end of its life?

Do not dispose of the battery in household waste. Fully discharge it (consult GARDENA customer service if necessary) and take it to a battery collection point for recycling.

USER MANUAL PBA 18V45 P4A GARDENA

SQ Manual perdorimi

Bateriae sistemit

ET Kasutusjuhend

Süsteemi aku

LT Eksploatavimo instrukcija

Sistemos akumuliatorius

LV Lietošanas instrukcija

Sistēmas akumulators

DE GARDENA System-Akku PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

EN GARDENA System Battery PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

Translation of the original instructions.

Intended use:

The POWER FOR ALL System Battery is intended as a power supply for the relevant POWER FOR ALL System cordless products and is intended for use in private house and hobby gardens.

The product is not intended for long term use.

1. SAFETY

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Keep all the safety information and general instructions for future reference.

These safety warnings apply only for lithium-ion batteries of the POWER FOR ALL system PBA 18V. Only use the battery with products of the POWER FOR ALL system manufacturers.

This is the only way in which you can protect the battery against dangerous overload.

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. The battery is supplied partially charged.

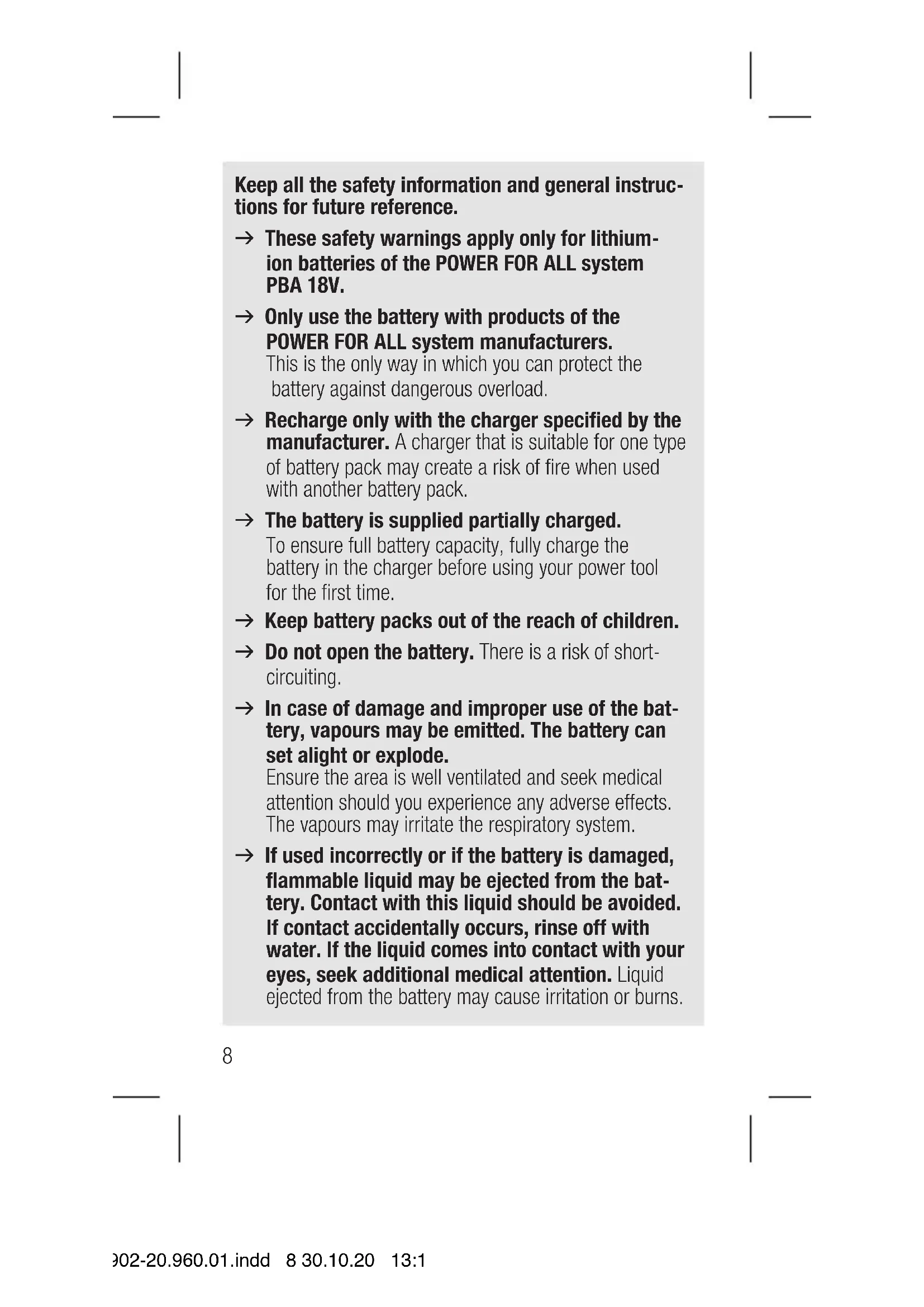

To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time.

Keep battery packs out of the reach of children. Do not open the battery. There is a risk of short-circuiting. In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode.

Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.

If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.

If the battery is damaged liquid can be ejected and cover nearby surfaces. Check affected parts. Clean these parts or change them if necessary.

Do not short-circuit the battery pack. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.

Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, dirt, water, and moisture.

There is a risk of explosion and short-circuiting.

Only operate and store the battery at an ambient temperature between -20°C and +50°C.

Do not leave the battery in your car in the summer, for example. At temperatures below 0°C, some devices may experience a loss of power.

Only charge the battery at an ambient temperature between 0°C and +45°C.

Charging outside of this temperature range can increase the risk of damage to the battery and pose a fire hazard.

DANGER! Cardiac arrest! This product makes an electromagnetic field while it operates. This field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.

DANGER! Risk of suffocation!

Small parts can be easily swallowed. There is also a risk that the polybag can suffocate toddlers. Keep toddlers away when you assemble the product.

To charge the battery [Fig. 01 / 02]:

See operating manual of the POWER FOR ALL System Product or the POWER FOR ALL System Charger.

3. MAINTENANCE

To clean the battery:

Occasionally clean the ventilation slots and the terminals on the battery using a soft brush that is clean and dry.

4. STORAGE

To put into storage:

The product must be stored away from children.

1. Charge the battery.
2. Clean the battery (see 3. MAINTENANCE).
3. Store the battery in a dry, enclosed and frost-free place.

10

Disposal of the battery:

Li-ion

The GARDENA battery contains lithium-ion cells that should not be disposed of with normal household waste at the end of its life.

IMPORTANT!

Dispose of the batteries through or via your municipal recycling collection centre.

1. Discharge the lithium-ion cells completely (contact the GARDENA Service).
2. Protect the contacts on the lithium-ion cells against short circuits.
3. Dispose of the lithium-ion cells properly.

5. TECHNICAL DATA

System Battery	PBA 18V 2,0Ah W-B (Art. 14902)	PBA 18V 2,5Ah W-B (Art. 14903)	PBA 18V 4,0Ah W-C (Art. 14905)
Battery voltage	18 V (DC) 18 V (DC) 18 V (DC)
Battery capacity	2.0 Ah 2.5 Ah 4.0 Ah
Number of cells (Li-Ion)	5 5 10

Appropriate POWER FOR ALL system battery chargers: AL 18..CV.

6. ACCESSORIES

GARDENA Battery Charger for fast charging Art. 14901 Quick Charger for the POWER FOR ALL System AL 1830 CV P4A Batteries PBA 18V..W-

7. SERVICE/WARRANTY

In the event of a warranty claim, no charge is levied to you for the services provided.

GARDENA Manufacturing GmbH grants a warranty for all original GARDENA new products for two years from the date of original purchase from the retailer, provided that the devices have been used for private use only. This manufacturer's warranty does not apply to products acquired second hand. This warranty includes all significant defects of the product that can be proved to be material or manufacturing faults.

The manufacturer's warranty is governed by the law of the Federal Republic of Germany.

In case of a warranty claim, please return the faulty product, together with a copy of the receipt and a description of the fault, with postage paid to the service address.

FR GARDENA Battery for the PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A system

DANGER! Risk of suffocation!

Selection from operation:

The product must be stored out of the reach of children.

1. Charge the battery.
2. Clean the battery (see 3. TECHNICAL MAINTENANCE).
3. Store the battery in a dry, closed and ventilated room.

Battery charger:

Li-ion

The GARDENA battery is a lithium-ion battery that, at the end of its service life, must be disposed of separately from ordinary household waste.

IMPORTANT!

→ Dispose of batteries through your local recycling point.

5. TECHNICAL DATA

Состemsний аKKулготор	PBA 18V 2,0Ah W-B (apr. 14902)	PBA 18V 2,5Ah W-B (apr. 14903)	PBA 18V 4,0Ah W-C (apr. 14905)
Наряжени аKKулготорa	18 V (DC)	18 V (DC)	18 V (DC)
ЕмкOSTь аKKулготорa	2,0 Ah	2,5 Ah	4,0 Ah
Колочь Ячек (Li-lon)	5 5 10

90

Manufacturer's instructions for the Russian version

Manufacturer:

GARDENA Germany AB,

PO Box 7454,

S-103 92 Stockholm, Sweden

Country of manufacture indicated

On the product.

Official importer in Russia:

«XyckBapHa»,

141400, Moscow region,

Khimki,

Leningradskaya Street,

Building 39, Building 6,

Decision No. OB02_04

Serial number: 06/2020

PBA 18V/36 P4A / PBA 18V/45 P4A /

PBA 18V/72 P4A

The warranty obligations do not include payment for services provided.

GARDENA Manufacturing GmbH provides a warranty for all GARDENA original new products for a period of 2 years

from the moment the product is first purchased by the consumer, provided the product is used for private use. For products purchased in the second year, the manufacturer's warranty does not apply. The warranty applies to all material or manufacturing defects that are proven to be due to material or manufacturing defects.

The warranty provider reserves the right to legal remedies. In the warranty claim, please provide the defective product together with a copy of the purchase receipt and a description of the defect, and send it to the nearest GARDENA service center.

RO GARDENA Accumulatorul systemului PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

TR GARDENA System akü PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

GARDENA Cordless Battery PBA 18V/36 P4A / PBA 18V/45 P4A / PBA 18V/72 P4A

Translation of the original instructions.

Intended use: The battery for the POWER FOR ALL system serves to power the corresponding battery-operated devices from the POWER FOR ALL system and is intended for use in private domestic and hobby gardens.

The product is not suitable for commercial use.

1. SAFETY INFORMATION

Read all safety information and instructions.

Failure to follow the safety information and instructions may result in electric shock, fire and/or serious injury.

Keep all safety information and instructions for future reference.

→ The safety information applies only to lithium-ion batteries from the POWER FOR ALL system PBA 18V. → Use the battery only in products from the manufacturer of the POWER FOR ALL system. Only in this way can you protect the battery from dangerous overload. → Charge the batteries only in chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a risk of fire when used with another battery. → The battery is supplied partially charged. To ensure full battery capacity, charge the battery fully in the charger before first use. → Keep batteries away from heat sources. → Do not dispose of the battery. There is a risk of acid leakage.

→ If damaged or used incorrectly, the battery may produce vapors. The battery may catch fire or explode. Ensure good ventilation and seek medical help if you feel unwell. The vapors may irritate the respiratory tract. → If used incorrectly or if the battery is damaged, liquid may leak from the battery. This liquid can cause burns. Avoid contact with it. In case of accidental contact, rinse with water. If the liquid gets into the eyes, seek medical help immediately. Liquid leaking from the battery may cause irritation or burns on the skin. → If the battery is damaged, liquid may leak and wet nearby objects. Check the affected parts. Clean them or replace them if necessary. → Do not short-circuit the battery. Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could bridge the contacts. Short-circuiting the battery terminals may cause burns or fire. → The battery may be damaged by sharp objects such as nails or screwdrivers, or by dropping it. This can cause an internal short circuit, and the battery may overheat, ignite, explode, or leak. → Never repair damaged batteries.

Any technical maintenance of the battery must be carried out only by the manufacturer or an authorized service center.

Keep the battery away from heat sources, e.g., from prolonged exposure to sunlight, fire, immersion in water, or moisture. There is a risk of explosion and short circuit.

→ Use and store the battery only at ambient temperatures between -20°C and +50°C.

Do not leave the battery in the car during summer. At temperatures below 0°C, the device's performance may be reduced.

→ Charge the battery only at ambient temperatures between 0°C and +45°C. Charging outside this temperature range may damage the battery or increase the risk of fire.

DANGER! Electromagnetic field! This product generates an electromagnetic field during operation. This field may, under certain circumstances, affect the function of active or passive medical implants. To eliminate the risk of serious or fatal injury, persons with medical implants should consult their doctor and the implant manufacturer before using this product.

DANGER! Danger of suffocation!
