USER MANUAL RWE 1100 METABO

8.1 Switching on/off

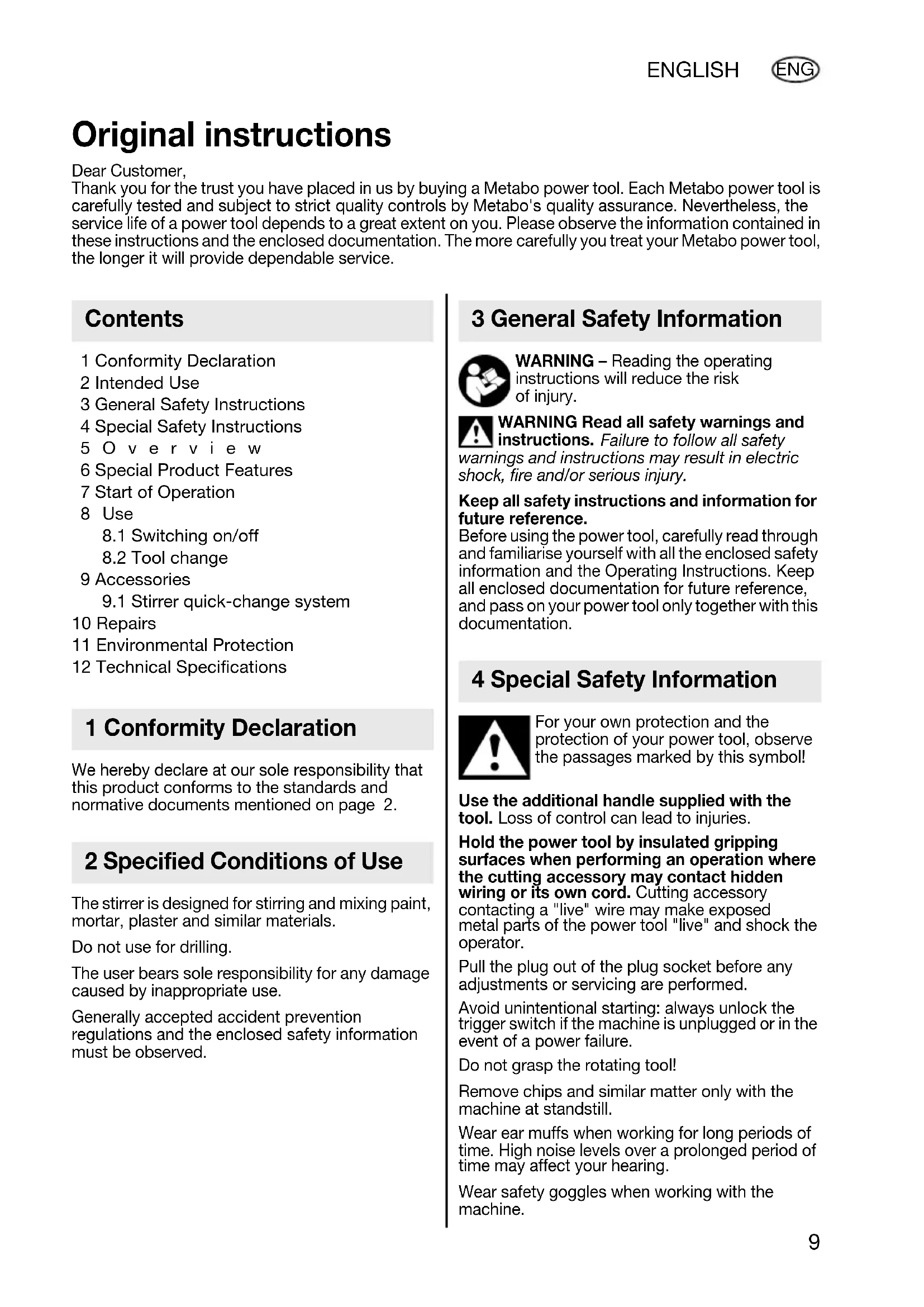

10 Repairs 11 Environmental Protection 12 Technical Specifications We hereby declare at our sole responsibility that this product conforms to the standards and normative documents mentioned on page 2. The stirrer is designed for stirring and mixing paint, mortar, plaster and similar materials. Do not use for drilling. The user bears sole responsibility for any damage caused by inappropriate use. Generally accepted accident prevention regulations and the enclosed safety information must be observed. WARNING – Reading the operating instructions will reduce the risk of injury. WARNING Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury. Keep all safety instructions and information for future reference. Before using the power tool, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions. Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation. For your own protection and the protection of your power tool, observe the passages marked by this symbol! Use the additional handle supplied with the tool. Loss of control can lead to injuries. Hold the power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator. Pull the plug out of the plug socket before any adjustments or servicing are performed. Avoid unintentional starting: always unlock the trigger switch if the machine is unplugged or in the event of a power failure. Do not grasp the rotating tool! Remove chips and similar matter only with the machine at standstill. Wear ear muffs when working for long periods of time. High noise levels over a prolonged period of time may affect your hearing. Wear safety goggles when working with the machine. Original instructions Dear Customer, Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service. Contents 1 Conformity Declaration 2 Specified Conditions of Use 3 General Safety Information 4 Special Safety Information 17026753_0513 RWE 1100.book Seite 9 Dienstag, 7. Mai 2013 10:49 1010 ENGLISH ENG Paints and lacquers may contain solvents that give off dangerous fumes and explosive mixtures when they are applied. Good ventilation or extraction must therefore be ensured. Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders. Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunc- tion with additives for wood conditioning (chro- mate, wood preservative). Material containing asbestos must only be treated by specialists. - Where the use of a dust extraction device is possible it shall be used. - The work place must be well ventilated. - The use of a dust mask of filter class P2 is recommended. Follow national requirements for the materials you want to work with. See page 3. 1 Side handle 2 Lock button 3Trigger Turn-off carbon brushes: If the brushes are worn out, the machine switches off automatically. Before plugging in check to see that the rated mains voltage and mains frequency, as stated on the rating label, match with your power supply. Australia: Always use a residual current device (RCD) protected supply with a rated residual current of 30 mA or less.

8.1 Switching On and Off

To start the machine, press the trigger (3). Thanks to the electronic soft start the machine accelerates continuously up to maximum speed. For continuous operation the trigger can be locked with the lock button (2). To stop the machine, press the trigger again.

To attach the stirrer: Screw the stirrer by hand into the spindle. Removing the tool: Hold the spindle still with the spanner and unscrew the stirrer with a second spanner. Use only genuine Metabo accessories. If you need any accessories, check with your dealer. For the dealer to select the correct accessory, he needs to know the exact model designation of your power tool. See page 4. A Stirrer quick-change system B Universal stirrer C Special stirrers (for manual plastering and construction work) D Special stirrers (for two-pot materials) E Paint stirrers (for liquid materials, e.g. paints and stains, granulates, floats) For complete range of accessories, see www.metabo.com or the main catalogue.

ENG To attach it: Put the stirrer quick-change system onto the spindle (a). Turn the locking device in the direction of the arrow (b) until the stirrer quick-change system can be pushed completely onto the spindle. Let go of the locking device. Check whether the stirrer quick-change system is tight. To remove: Turn the locking device in the direction of the arrow up to the stop (a) and remove (b). Repairs to electrical tools must be carried out by qualified electricians ONLY! If you have Metabo electrical tools that require repairs, please contact your Metabo service centre. For addresses see www.metabo.com. You can download spare parts lists from www.metabo.com. Metabo's packaging can be 100% recycled. Worn out power tools and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled. These instructions are printed on chlorine-free bleached paper. Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline 2002/96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling. Explanatory notes on the information on page 2. Changes due to technological progress reserved.

= Rated power consumption

= On load speed G = Spindle thread m=Weight D = Spindle collar diameter Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

h, D = Unsafe (vibration) The vibration emission level given in this informa- tion sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Typical A-effective perceived sound levels:

= Sound pressure level

= Acoustic power level

h, D = Vibrationsemission
