USER MANUAL WS 7400 METABO

KONFORMITÄTSERKLÄRUNGVEDECLARATION OF CONFORMITY

We herewith declare in our sole responsibility that this product complies with the following standards in accordance with the regulations of the undermentioned Directives*

Director Innovation, Research and Development

Dokumentationsbevollmachtigter/ responsible person for documentation/ Chargé de la documentation

Metabowerke GmbH

Metabo-Allee 1

D-72622Nurtingen

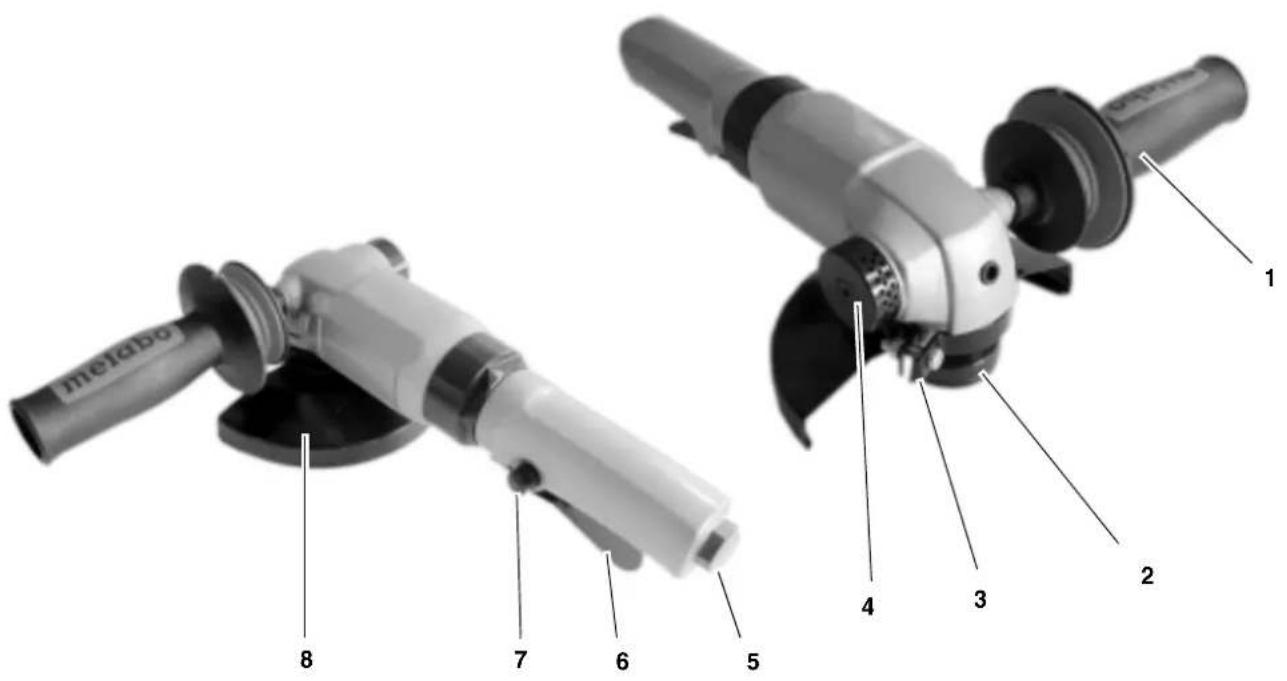

1. Components and Parts (standard delivery)

1 Anti-vibration side handle
2 Grinding disc spindle
3 Wheel guard clamping fixture
4 Exhaust, muffled
5 Plug seat (air inlet)
6 Trigger
7 Trigger lock
8 Wheel guard

Not shown:

• Plug 1/4" (Germany) for air inlet
  Plug 1/4" (France, Spain)
• Plug 1/4" (Switzerland, Belgium, Netherlands)
• Open jaw wrench SW 19
• Special spindle nut tool
• Operating instructions

Table of Contents

1. Components and Parts (standard delivery). 8
2. Please Read First! 9
3. Safety 9
   3.1 Specified Conditions of Use....9
   3.2 General Safety Instructions 9
   3.3 Symbols on the Machine 10
4. Operation 10
   4.1 Before Initial Operation.. 10
   4.2 Installation of Grinding Disc or Cutoff Wheel 10
   4.3 Air Supply 10
   4.4 Adjusting the Wheel Guard....10
   4.5 Using the Tool.... 10
5. Care and Maintenance. 11
6. Available Accessories 11
7. Repairs.. 11
8. Environmental Protection ....11
9. Technical Specifications..11

2. Please Read First!

These instructions are written in a way to let you work with the tool quickly and safely. Here is how to use the instructions:

• Read these instructions before use. Pay special attention to the safety information.
  If you notice transport damage while unpacking, notify your supplier immediately. Do not operate the tool!
  These instructions are intended for persons having a basic technical knowledge in the handling of tools like the one described herein. If you have no experience whatsoever with such tool, we strongly recommend to seek the advise of experienced persons.
• Keep all documents supplied with this tool for future reference. Retain your proof of purchase in case of a future warranty claim.
• Should you rent or sell the tool,pass on all documents supplied with the tool.

The manufacturer assumes no liability for any damage caused by neglect of these operating instructions.

Information in these instructions is marked as under:

Danger! Risk of personal injury or environmental damage.

Caution! Risk of material damage.

Note: Additional information.

• At times numbers are used in illustrations (1, 2, 3, ...). These numbers
  indicate component parts; are consecutively numbered;
  Numbered steps must carried out in sequence.
• Instructions which can be carried out in any order are marked by a bullet point () .
• Listings are indicated by a dash (-).

3. Safety

3.1 Specified Conditions of Use

This angle grinder is an air tool for use by craftsmen. It can be used for grinding, deburring, polishing, cutting and surface preparation of metals, stones or ceramics.

This tool shall only be powered by an air compressor. The max. permissible working pressure stated in the Technical Specifications must not be exceeded. This tool must not be operated with gases that are explosive, combustible or detrimental to health.

Any other use is not as specified. Use not as specified, modification of the tool or use of parts not approved by the manufacturer can cause unforeseeable damage!

3.2 General Safety Instructions

• When using this air tool follow the safety instructions given below, to exclude the risk of personal injury or material damage.
• Please also observe the special safety instructions in the respective chapters.
• Observe the statutory accident insurance institution regulations and regulations for the prevention of accidents pertaining to the operation of air compressors and air tools, where applicable.
• This air tool must only be operated by persons who have read and understood the operating instructions, and who are aware of the dangers associated with handling such tool. Persons under 18 years of age shall use this tool only in the course of their vocational training, under the supervision of an instructor.

General hazards!

• Keep your work area tidy - a messy work area invites accidents.
• Be alert. Do not operate this tool while under the influence of drugs, alcohol or medication.
• Never use the tool when under the influence of alcohol or medication.
• Consider environmental conditions: keep work area well lighted.
• Prevent adverse body positions. Ensure firm footing and keep your balance at all times.
• Keep children and bystanders away from the work area.
• Store air tools out of the reach of children.
  Always use a quick coupler to connect this air tool to a compressor.
• Do not work materials detrimental to health.
• Working with this tool may generate sparks. Do not use the tool near flammable materials, liquids or gases.
• Do not inhale the sanding dust.
• Do not touch any rotating parts.
• Disconnect from air supply before
• changing grinding discs or cutoff wheels,
  servicing, or when tool is left unattended.
• Use only grinding and cuttings discs intended by the manufacturer for this tool.
• Do not operate the tool without installed wheel guard.
• Make sure that all assembly tools are removed from the air tool before turning it on.

Entanglement hazard!

• Ensure that no parts of the body or clothing can be drawn in by rotating components during operation (no neckties, no loose-fitting clothes; contain long hair with a hair net).

Hazard generated by insufficient personal protection gear!

• Wear personal protection gear:

ear protection,
protective spectacle,
- protective gloves,
- dust respirator (when work generates dust).

Hazard generated by machine defects!

• Do not attempt to repair the tool yourself! Only trained specialists are permitted to service or repair com

pressors, pressure vessels and air tools.

Danger by vibration!

• Vibrations are transmitted to the entire body, particularly to arms and hands. Very heavy vibrations may cause nerve and vascular disorder.

Caution!

Protect the tool, air inlet and operating elements in particular, from dust and dirt.

Make sure that the max. permissible working pressure stated in the Technical Specifications is not exceeded. The working pressure must be adjusted by a pressure regulator.
- Do no overload the tool:

• use it only within the range of capacity stated in the Technical Specifications;

• avoidimpacts to the work piece;
  avoidlateral load on the cuttingoff wheel.

• Let tool run idle for a short time only.

3.3 Symbols on the Machine

Danger! Disregard of the following warnings may lead to serious personal injury or material damage.

Read instructions.

Wear protective spectacle.

Wear ear protection.

Maximum permissible working pressure: 6.3 bar.

Speed n_0 : 11000 rpm

4. Operation

4.1 Before Initial Operation

Install plug.

4.2 Installation of Grinding Disc or Cutoff Wheel

Danger!

• Use only grinding discs and cutoff wheels intended by the manufacturer for this tool.
  Always disconnect tool from air supply before servicing.

• Fit the special spindle nut tool (9) on the spindle nut (11).

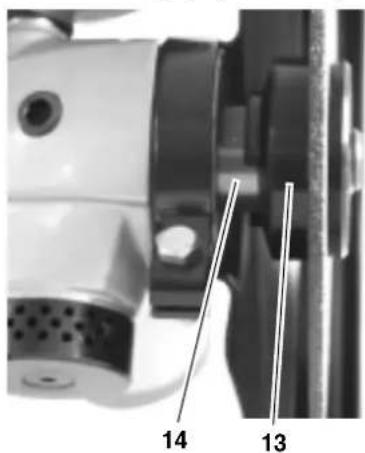

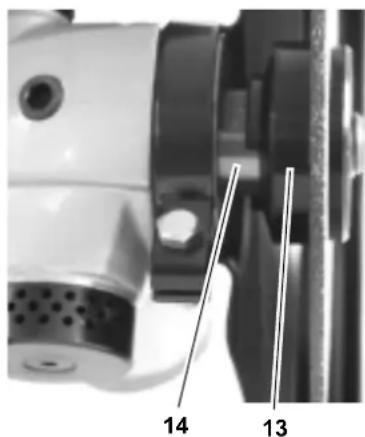

1. To lock the spindle (14), fit the open jaw wrench (12) below the inner wheel flange (13) onto the spindle.

1. Loosen spindle nut (11), holding spindle with the open jaw wrench.
2. Remove spindle nut (11) and grinding disc or cutoff wheel (10).
3. Check to see that the inner wheel flange (13) fits correctly on the spindle (14). Put a new grinding disc or cutoff wheel (10) on.
4. Put the spindle nut (11) on and tighten hand-tight only while holding the spindle with the open jaw wrench.
5. Remove special spindle nut tool and open jaw wrench.

4.3 Air Supply

Caution!

To ensure a long service life of this tool, it needs to be supplied with sufficient quantities of pneumatic oil. This can be achieved as follows:

by a service unit on the compressor.
by a line oiler, integrated in the air line or directly installed to the tool.
- by adding approx. 3-5 drops of pneumatic oil by hand every 15 minutes of use (continuous operation) to the air inlet.

1. Adjust working pressure at the compressor (see Technical Specifica

tions for max. permissible working pressure).

1. Connect the compressor's air supply (quick coupler).

4.4 Adjusting the Wheel Guard

The wheel guard protects your hands. Its position can be adapted to the individual job on hand.

1. Loosen screw (15) of the clamping fixture.

1. Rotate wheel guard into desired position.
2. Tighten screw (15) hand-tight.

4.5 Using the Tool

Hazard generated by insufficient personal protection gear!

• Wear personal protection gear:

ear prdction,
protectivespectacle,
protectivegloves,
- dust respirator (when work generates dust).

Grinding and roughing-down

1. Connect tool with quick coupler to air supply.
2. Secure work piece in a vice or with G-cramps/clamps.
3. To start:

push trigger guard and
- press trigger fully down.

1. Hold grinding disc with light and even pressure to the surface to be worked. Note the direction of the flying sparks!

Note:

The disc's optimal working angle on the work piece is 15^ for grinding and 30 - 40^ for roughing-down.

Cutting

1. Connect tool with quick coupler to air supply.

2. Secure work piece in a vice or with G-cramps/clamps.

3. To start:

push trigger guard and
- press trigger fully down.

1. Set the cutoff wheel to the work piece at the desired cutting angle.

This angle should be maintained during the entire cutoff operation.

1. Cut the work piece, exerting only light pressure on the cutoff wheel. Note the direction of the flying sparks!

5. Care and Maintenance

Danger!

Always disconnect tool from air supply before servicing.

Repair and maintenance work other than described in this section must only be carried out by qualified specialists.

• Check all screwed connections for tightness, tighten if necessary.
• If the tool is not lubricated by a service unit or line oiler, add for every 15 operating minutes (continuous oper

ation) 3-5 drops of pneumatic oil into the air inlet.
- Do not store tool unprotected outdoors or in damp environment.

6. Available Accessories

• Pneumatic oil 0.5 litre Special lubricant for air tools, service units and line oilers. Stock-no. 090 100 8540
  Add-on lubricator R1/4" female Installs directly on air tool. Oil level can always be checked through sight glass. Stock-no.090 105 4584
• Swivel-type air inlet
  DKG 1/4"
  For fitting directly to air tools.
  Improves tool manoeuvrability.
  Stock-no. 090 106 0991

7. Repairs

Danger!

Repairs to air tools must be carried out by qualified specialists only!

Air tools in need of repair can be sent to the service centre in your country. See spare parts list for address.

Please attach a description of the fault to the air tool.

8. Environmental Protection

The tool's packaging can be 100% recycled.

Worn out machines and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled.

These instructions are printed on paper produced with elemental chlorine free bleaching process.

9. Technical Specifications

Model WS 7400
Air consumption l/min 400
Max. permissible working pressure bar 6.3
Speed min	-1 11000
Orbital stroke mm 5
Sanding pad diameter mm	"	125
		5
Spindle thread M 14
Vibration (effective value of weighted acceleration)	m/s2	0.6
Uncertainty K	m/s2	<2.5
EN ISO 15744:2008 (ISO 15744:2002)
Sound power level LWA	dB (A)	90
Sound pressure level LPA	dB (A)	78
Uncertainty K	dB (A)	4
Dimensions:
length x width x height	mm	230 × 108 × 148
Weight: Tool without packaging	kg	1.8
Tool with packaging	kg	2.74

Régime n_0:11000 trs/min

4. Fonctionnement

Risk for indragning!

peepaBaiTe TaKKe BCIO npJIraemyo DOkymeHTauNIO.

PpOu3BOUInTeJIb He HecET OTBeTCTBHeHOCHTa yUepe6, BO3HnKuHn BCNeDCTBHe HecO6IIODeHHA HaCToJUeRo pyKOBoDCTBa.

CBeHeHnB DaHHOM pyKOBoDCTBe OTMeueHbClJeHyOuIMM CMBONaM:

Onachoctb!
PpeynpexdHne o
tpaBmax uyepe6e nra
okpykauoue cpebl.
BnmaHne!
PpeynpexdHne o
matepnaJbHom yeepe6e.

Yka3aHHe: DonoJIHnTeIbHa HnΦopMaun.

LunpbaHa npucyHKax(1,2,3,...)
-0603NaHOTeA;
IMeHTCKBOHyHymepaHIO.
- Yka3aHnno pa6oTe,ДЯ KOTOpbIX CneDyET co6IIOdaTb ONpeJeHHyIO NocleOBAteJIbHOCTb, CHa6XeHbI Hymepaunei.
- Yka3aHnno pa6oTe c PON3BOJbHOI NocJeDoBaTeJIbHOCTbO 0603HaueHbTOyKaMNI.
IyHKtbl CnNCKOB 06o3HaYeHbI YepToUkAMn.

3. Be3onacHocTb

3.1ПиMuMeHHeHne noHa3HaYeHnO

YrIOBaIuNFOBaJIbHaMaUHnA
IpeCTaBJIeTco6OINHEBMATNUeCKn
HNCPTyMeHTIINCNOJb3OBaHNIB
MaCTepcKnx.EeMOXHO pIMMeHrTa I
UINFOBKn,CHRTNA 3ayceHcE,B,
NOINPOBKn,OTpe3AHnI IN
IOBepxHOCTHOObpa6OTKN MetaIINa,
KAMHNI KepaMkn.

AnHHbI INHCTpy MeHT DoJXeH npINBOIDTBCB DeiCTBNE TOJbKO KOMPiPeCCOPOM CKaTOrO BO3Dyxa. 3anpeaaetc npeBbIaTb npedelbHO DonyCTMoe pa6oee daBJeHne, yka3aHHoe B TexHnuecknx XapakTepcntkax. 3anpeaaetc NcNOJIb3OBaTb IHCTpyMeHT C B3pbIBOONaCHbIM, TropOHIMN I BpeHbIMr a3amN.

JIIO6oe INHOe npIMHeHne YBnIeTcH HeHaJIeKaUm. HeHaJIeKaUee npIMHeHne, MoINΦkaCnn HNICTpyMeHTa NIN NCINb3OBaHne YaCTe, He npOBepHHbIX N He

Odo6peHHbIX npOn3BOJTeJIem, MOryT npINBeCTN K HEnpeIcka3YeMOMy yUepe6y!

3.2 O6uHe yka3aHnna No texHNke 6e3oNaCHOCTN

• PnncnoJIb3OBAHm HcTpymeHTa co6IIOdaTb npBBeDEHHbIE HIXke yka3AHn IIO 6e3OnaCHOCTn, YTObI n36ExaTb OAnaCHOCTN BO3HNKHOBEHn TpaBM NIM MaTePnaJbHorO yuep6a.
  Co6nIpaTb cneuaJIbHbIe yka3aHnI NO 6e3OnaChOCTn, npuBeHeHHbIe B COOTBeTcTByIOxN X rnaBax.
  Co6IIOdaTb BO3MOxHbIe OcO6bIe HOpMaTINBbI NO OxpAne TpyJa I npEDoTbpaUeHNIO HeCuaCThBIX ClyuAeB pnpa6oTe c KOMnpeccopAmN INHEBMATNUeCKIMN IHCTpyMeHTamN.
• PnIb3OBAtbcra INHCTpyMeHTOM pa3pe7aETcra TOIbKO IINzam, KOToPbIE npOHTaIN INoHAn DaHHoe pyKOBODCTBO IN 3HaOT O6 onacHOCTx npaBoTe c npi6Opom. IInzam MoIOKe 18 net pa3pe7aETcRA NcIOJIb3OBAtB 3TO T npi6Op ToIbKO B XOJe npoPeCCNOHaIBHOrO oByeHnRA NOI HAd3Opom INHCTpyKTopa.

Onachoctno obseero xapaktepa!

CopekatabpaOee MeToB nopraKe-6ecnpaOKHa paOoem MeTe MoKeT PnVBcTn K HeCuaCTHbIM Cnyaam.
PpOABJIbTB BHIMaTeJIbHOCTb. He nIb3yIeTcB INHCTpyMeHTOM,ecn Bbl He B COCToHN COpeDToOTHTCBJ.
He noIb3yIteCb HNCTpyMeHTOM nOcJIe npIeMa aNkoROrn IIN Ta6JIeTOK.
- YUHTbIaIte BO3deIcTBnO kpykaIOSeI cpebl. ObecneHTbXopoOee OCEeHHe.
I36eraTb Heo6bIHybIX noJIOxHn Tena.
He donyckaTb detetn noctopohnhnx nucBa6oyu 30Hy.
XpaHnTB nHEBMATNueckne INHCTpymEHTbI B MecTe, He DOCTyPHOM DJI DETei.
I OaKnHouaTb HcTpymeHT K Komnpeccopy ToIbkoYepe3 6bIcTpoDeiCtByIOuO MyD Ty.
He pa6oTaTb C BpeHbIMMaTePnaJAMN.
- Pn pa6oTe c HcTpyMeHToM MoryT BO3HnKaTb NCKpbI. He NOnb3ObaTbcr IHCTpyMeHToM B6JIn3n RopUChx MaTePnaJIOB, KUnKoCTe INI rA3OB.
HeBbixaTbnIb.

He npikacatbca K BpaaioMcayactm.
OTCOEINHHTb INCTpymEnT OT JINHN CxkatoRO BO3dyxa nepei BbINONHeHHem CneDyHOux pa6oT:

3aMeHa WIMIOBAbbHbIX NINOTpe3HbIX KpyROB,
yctpaHeHHe HncpabBHOCTeI
ecnHcpymEnT OCTabnEeTc8 6e3 Hnd3opa.

• IcnoIb3ObaTb ToIbKO UINIOBAbNbHbIe NOTpe3HbIe KpyrN, IpeyCMOTpeHHbIe N3ROTOBNTeJIeM Dnra daHHoro INCHTpymEHTa.
  He BKIOUaTb npu6Op npn CHrTOM 3auNTHOM KOxye.
• Y6eIntecb, YTO pN BKNIOUeyHn npi6opa Ha HEM He HaxoJrTcMoHTaXHbIe INHCTpyMeHTbl.

Onachoctb 3aTnBaHn!

Cneintb3aTeM,yTo6bIyactnTeNa NINnpEIMtBIOeKDbIHe6blN 3axBaYeHbN3aTMyTb BpaAouUIMNCyAcTAMn（He HAdeBaTbTaNCTyKn，HEHCnTb OeKdyCdNNHbIMpyKaBaAM; DnnHHbIEBOJOCbIOB3aTeNbHO coBnpatcTKoDNRABOJOC).

Onachoctb BCJeCTBnE

HeOCTaTOUHORO JIuHORO 3auHTHOrO chapxhen!

• PpIMHeTb JInHoe 3aunTHoe ChapJxKeHne:

3aunTHbIe HauHmKn,
3aunTHbE Oy
3aUHTHbIe NpTaTKn,
- nblne3aunTHyMacky (B cnlyae BbIeJeHn NBJIN npn pa6ote).

Onachoctb BCJeCTBne depeKTOB npnbopa!

He pemontpoBaTb HNCTpyMeHT camOCToTeIbHo! Pemont KOMPpeccopOB, HanOpHbIX pe3epByapOB INHEBMATUeCKNX HNCTpyMeHTOB DOJXeH BbIOJIHHaTbCra TOJbKO CneuHaNTaM.

Onachoctb BCJeCDTBnBnBnBaqunn!

Bn6paunMoKet npepaabaTbcBcemy TeNy n OocbeHNO pykam.Obeh cnIbHa, a TaKke npoJOnXnTeNbHa Bn6paun MoKet Bbl3bIBaTb HepBhiepacCTpoiCTBa n HapyuHnncocyDob.

BHMMaHHe!

• O6eperaTb npu6op, oc6eHno npncoeDInHeHne Cxatoro Bo3dyxa n

oprAhl ynpabLeHn,OT nbIIN I rpa3n.

He npebbIaTb npedeIbHo dOnyuctmoe paOoee daBneHne, yKa3aHHoe B TEXHuecknx xapaKTePncTnKax.

Pa6ooye daBneHne cneDyET ycTaHaBnBaTb npn nomou npedyktopa.

He neperpykaTb nHCTpyMeHT:

He npebbIaTb 3HaueHnna7a30Ha MoUHOCTN, yKa3aHHOro B TexHnueeCKNX xapaKTePncTnKax np6Opa;

I36eTaB yapOB nOHCTpyMeHTy;
I36eTaB 60KOBbIX Harpy3OK Ha Otpe3HO Knpyr.

-ДоускатхолостохoнHCTpymehTa TOnbko Ha KopoTkoeВрмя.

3.3 CnMbOJIbI,HaHeceHHbIe Ha np6Op

Onachoctb!

Heco6IIOJeHne

CneDyUoInx

PnpDynpEckDeHm MoKet
PnHBecTN K TAgKeBIM
TpaBMam Hn

MaTePnAbHOMy yUepe6y.

IpoceTb pyKOBOcTBO nO 3KcNpyatau.

HaDeBaTb 3aunTHbIe OcKn.

HaDeBaTb 3aunTHbIe HayuHnKn.

PpeJeIbHo DOnyctHMOe pa6ooye daBneHne: 6,3 6ap

YactotaBpaueHn n11000o6./MmH

4.3Kcnnyaataa

BbHTb BCTaBHOn HnneJIb.

4.2 MoHTaX

JINIOBAbHOrO HnN OTe3HOro Kpyra

Onachoctb!

IcnoJb3OBAbToJbKO ⅢnfoBaJIbHbIe IINOTpe3HbIe Kpyr, npedyCMOTpeHHbIe N3ROTOBtEnEM DnAaHHoro HNCTpyMeHTa.

• Ipeed BbINOJIHHeH em NIO6bIX pa60Ha HNCTpyMeHTe OTcoEINHrTb NOaCy cKaTOrO BO3dyxa.
  1.YCTaHOBtB CneuaHbHbI INHCTpyMeHT (9)Ha KpeNexKHyIO raIKy (11).

2.ДяФк caин Bana (14) yCTaHOBtB KIOU C OTKpbTbIM 3eBOM (12) NOB BHyTpEHHM ΦlaHcEM (13) Ha BaI.

1. OTnyctntb kpen exKHyIraKy (11), ydePKBaC dpyro CTOpOHbl KIOOcM C OTKpbITbIM 3EBOM.
2. CharykpeJeKHyraKy (11) u nnfoBaIbHbI nn Otpe3HO Kpyr (10).
3. PpOBepnTb npaBnIbHocTb nocaKn BHyTppeHrero fnaHua (13) Ha BaNy (14). YCTaHOBnTb HOBbIM IINΦoBaIbHbI INI NTpe3HOJ Kpyr (10).
4. YcTaHOBnTb KpeNExHyIO raKy (11) 3aTMyTb BpyHyIO, yDepKnBaC dpyro CTOpOHbl KJIIOyOM C OTKpbITbIM 3EBOM.
5. ChTb cneuaJIbHbI INCTpyMeHT N KJIIOU C OTKpbITbIM 3EBOM.

4.3 PnpncoeHHeHne cKaTOro BO3dyxa

BHHMaHHe!

Длдintelbho pa6obtbpnp6opa 3aJNTb DOCTaTOHoe KOINueCTBO nHEBMATnueckoro MacJa.3To MOxHo CdeJaTb cneDyUOUM 06pa3OM:

• Ypee3 cepBnchoe OTBepCTne Ha KOMnpcecope.

• Upe3 npncTabHyIO macJeHky, yctAHOBnEHHyIO B MaNCTpaIb CxAtorO BO3dyxa IIN HENOCpeCDTBeHNO Ha NHEBMATNUeCKOM np6ope.
  KaKdIe 15 MNHyT pa6Otbl (npn DnITeNbHOM NcNOLb3OBaHN) BpyHyIO BBOIDNTb 3-5 Kanelb MacnaB pncoeDHeHne dna CkAToRO Bo3dyxa.

• UCTaHOBtB pa 6oOee daBHeHne Ha KOMnpeccope (npedbHo DOyCTmoe pa6Ooee daBHeHne cm. "TexHueeCKne xapaKTePncTKn").

• PnncoeHnHTb WtUep CxKaTOro BO3dyxa (6bICTropeNCTByIOua MyTa) KOMnPeccca.

4.4 PerylnpoBka koxyxa

KoKyx cnyknt 3auntb Baunx pyk. IonoKeHne 3aunTHoro KOxyxa MoKHO peRyInPOBaTB B 3aBnCmOCTN OT ycIOBn npImeHeHn.

1. OTnyCTnTB BnHT (15)Фнкcatopa.

1. NObepHyb K0 Kxy B HxKHOe NOJIOXKeHHe.
   3.BpyHyO 3aTMyT bBVHT (15).

4.5 Pa6oTa c HcHcTpymeHTOM

Onachoctb BCneDCTBnE

HeOCTaTOUHORO NnUHOrO 3aunTHoro ChapxKeHHI

BHMaHHe Ha HAnpaBneHHe BbIXOda nckp!

i yK On

Yka3aHHe:

OnTmAbHbI pa6OHyrO

HaKIOHa Kpyra K INHCTpyMeHTy coCTaBnIeT 15^ npu WnnpoBaHH n 30- 40^ npu o6dnpke.

Otpe3aHne

1. PpOcOeDHHINb IN CtpyMeHT K IINHn CkAToR OBO3dyXaYepe3 6bICTPOeIeCTByHOuYIO MyfTy.
2. 3aФИКСИРОВАТ b INHCTPМЕТ B TnCKA X I N I C TPy6UHaMn.

3.ДЯВКПЮЧЕнЯ:

HakatbHaΦnKCaTOp CnyCKOBOro pbUyara n
BbIkaTb CnycKOBo npHar Do ynpa.

4.YctaHOBtB OTe 3Hoi Kpyr NOD Tpe6yEmbIM yIOM OTpE3a.3TOT yRON CJIeDyET COxpaHraTb BO BpemBA BCero npocecca OTpE3AHNIA.
5. OTPe3aTb HxKyHyo qacTb. Ipn 3ToM INuB cIeRka HaxKMaTb Ha OTPe3HOJ Kpyr. O6paNTb BHIMaHHe Ha HanpaBJIeHne BbIXOda nckp!

5. Texo6cnyxnbHne uyxo

Onachoctb!

Ipeed BbINOJIHeHMe IIO6bIX pa6OT Ha INcHTpyMeHTe OTcoeINHrTb NoadaCy cKaTOro Bo3dyXa.

Pa6oTbI NO Texo6cnyKbAHNIO uIN peMOHTy, He ONcaHHbIe B daHHOI rIabe, DOnJXhBi BBINOJIHrTbcra TOJbKO CneuaJIHCTAMN.

• Поверпь ретьбовье-coedненя На почноь, пи Heo6xOДmОCTn ПOTТЯнТь.
  EcIN INHCTpyMeHT He Cma3bIbAEtCepBnCHbIM 6JIOKOM ININ pInCTaBHou MaCneHKO, CNeDyET KaXDbIe 15 MInHyT pa6Otbl (pnp IInTeJIbHOM NcN0JIb3OBaHN) HaHocITb BpyHyU 3-5 KanEJIb PHeBMATnueCKOro Macna B PnICoEOHHene CxAToR OBO3dyxa.
  He xpaHHTb INCTpyMeHT 6e3 3aUHTbHa OTKpbITOM BO3dyXe IIN BO BJaXHOI cpeIe.

6.Bo3MoXHbIe

npHaJnxHocTn

Macno nIy IHeBMATnKu 0,5IHTPOB CneuaNBHOe MacNo dIy IHeBMATnueCKNX INCTpyMeHTOB, cepBnCHbIX 6IOKOB INpNCtABHbIX MACNEHOK.

ApTnkyI 090 100 8540
