LC 247i, LC 247iX, LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

EAC

EN Operator's manual 2-25

Troubleshooting.... 20
Transportation, storage and disposal.... 21
Technical data.... 22
EC Declaration of Conformity.... 25
Registered trademarks.... 25

Introduction

Product description

The product is a pedestrian-controlled rotary lawn mower. The grass is collected in a grass catcher. Remove the grass catcher to get rear discharge of the grass. Attach a mulch kit (accessory) to cut the grass into fertilizer.

Intended use

Use the product to cut grass. Do not use the product for other tasks.

LC 347iVX LC 353iVX

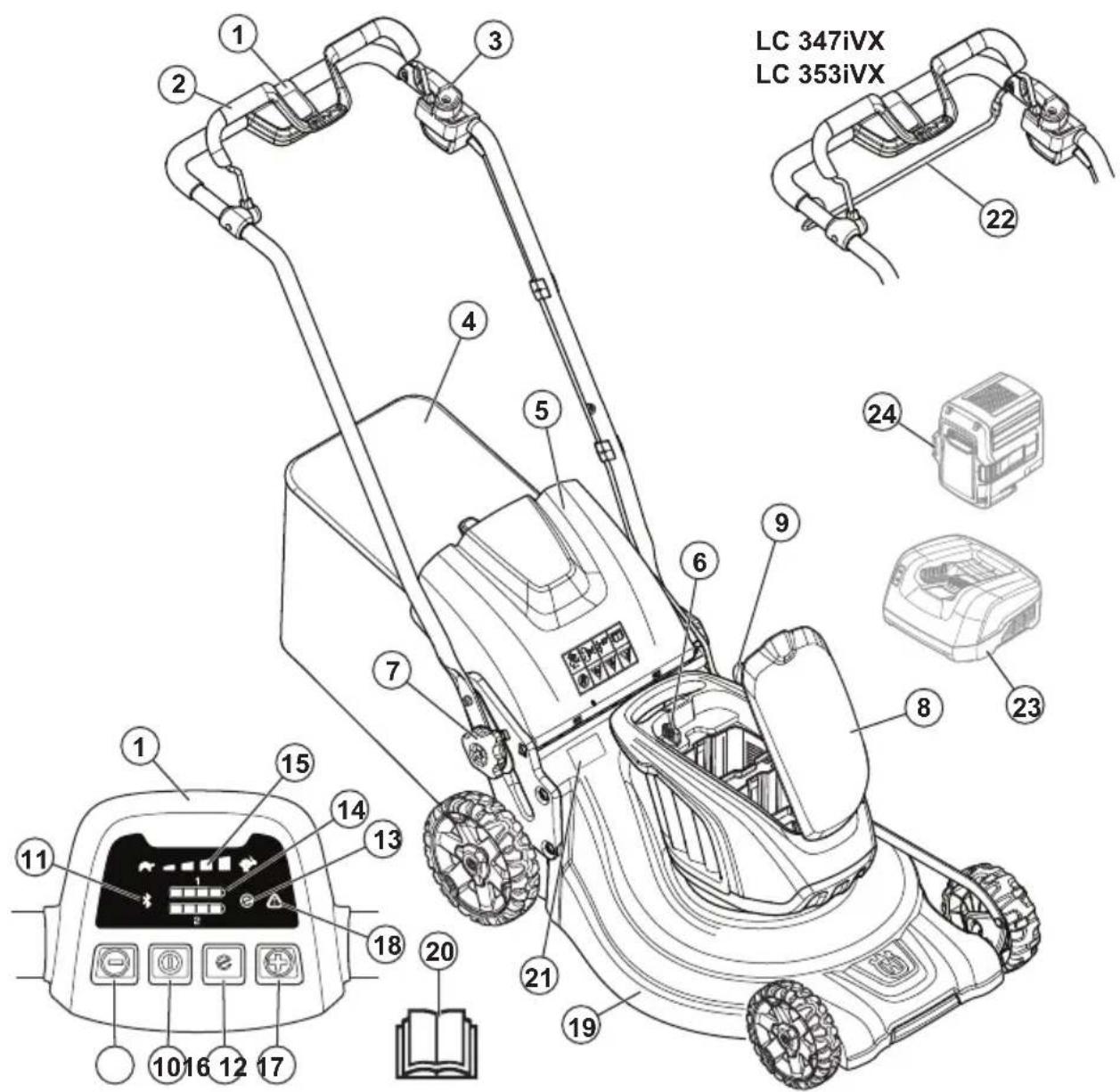

1. Control panel

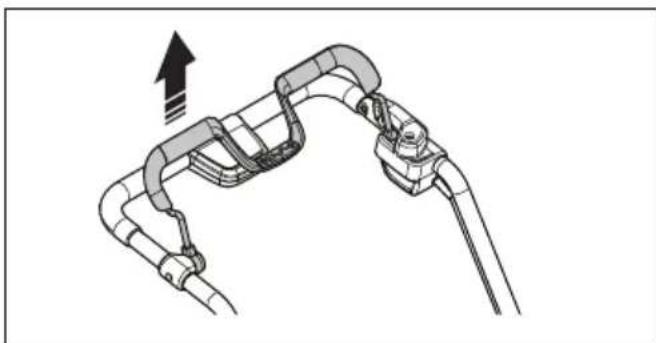

2. Motor brake handle
3. Start inhibitor
4. Grass catcher
5. Rear cover
6. Safety key
7. Handle knob
8. Battery cover
9. Cutting height control

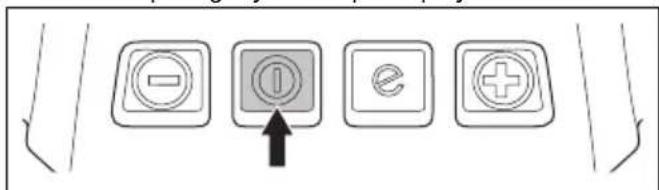

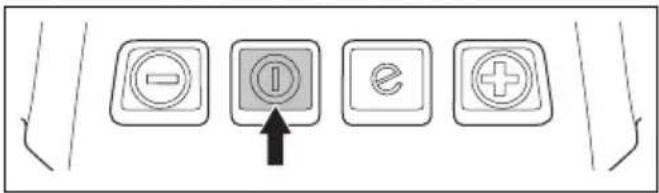

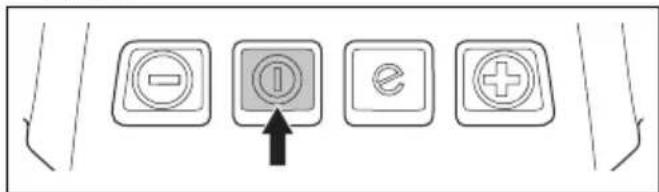

10. ON/OFF button

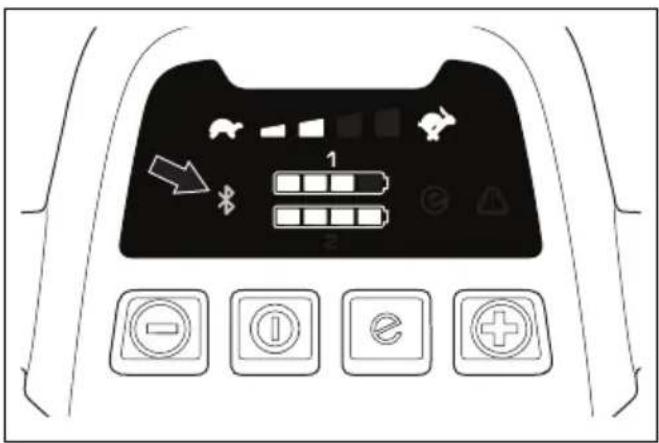

11. Indicator for Bluetooth® wireless technology
12. SavE button
13. SavE indicator

14. Battery indicator

15. Speed level indicator (LC 347iV, LC 347iVX, LC 353iV, LC 353iVX)

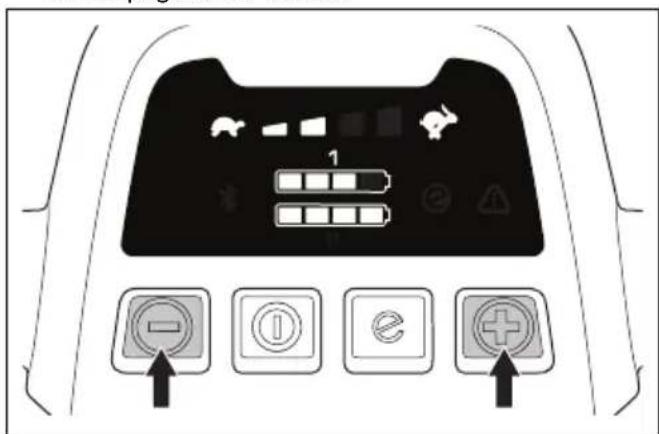

16. Decrease speed button (LC 347iV, LC 347iVX, LC 353iV, LC 353iVX)
17. Increase speed button (LC 347iV, LC 347iVX, LC 353iV, LC 353iVX)
18. Error LED
19. Cutting cover
20. Operator's manual
21. Rating plate
22. Drive bail (LC 347iV, LC 347iVX, LC 353iV, LC 353iVX)

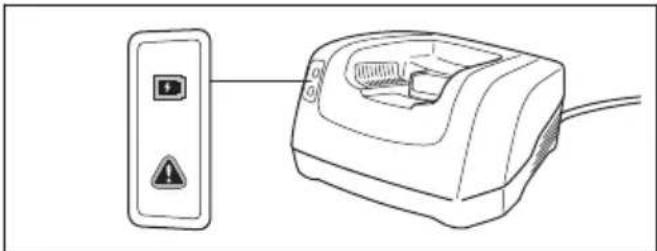

23. Battery charger (Accessory)
24. Battery (Accessory)

Symbols on the product

WARNING! Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before use.

Keep persons and animals at a safe distance from the work area.

Look out for thrown objects and ricochets.

Warning: Keep hands and feet away from the rotating blade.

Warning: Keep hands and feet away from rotating parts.

Remove the safety key before you do repair work or maintenance.

Do not expose to rain.

The product or package of the product is not domestic waste. Recycle it at a recycling station for electrical and electronic equipment.

The product agrees with applicable EC directives.

The product agrees with applicable Eurasian Customs Union directives.

The product agrees with applicable UkrSEPRO directives.

The product agrees with applicable RCM directives. Applies to AU/NZ only

Noise emission to the environment according to European Directive 2000/14/EC and New South Wales legislation "Protection of the Environment

Operations (Noise Control) Regulation 2017". Noise emission data can be found on the machine label and in the Technical data chapter.

IPX1 The product is drip protected.

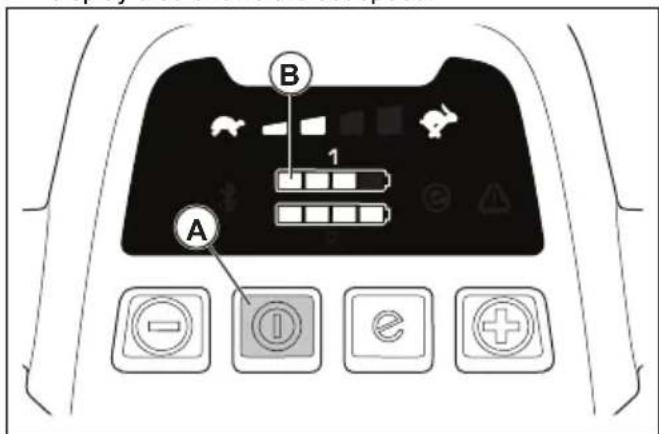

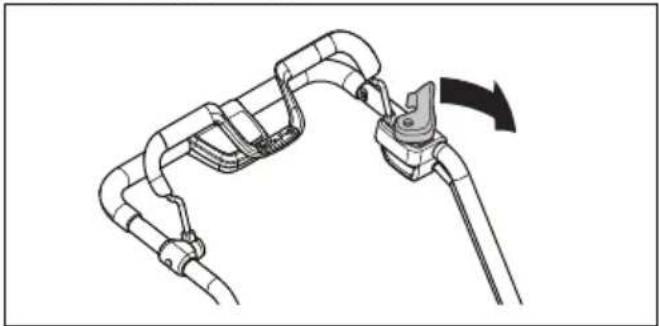

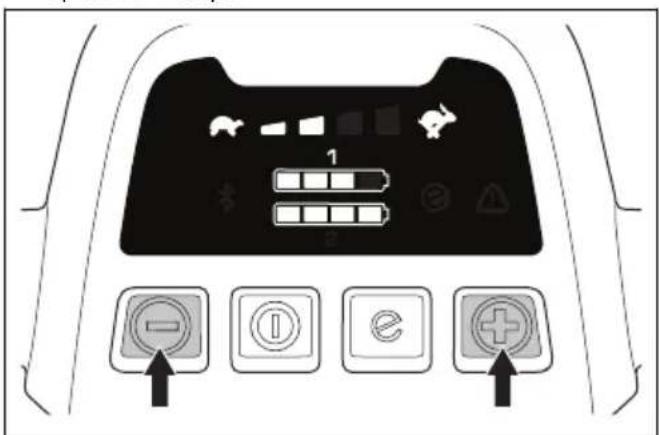

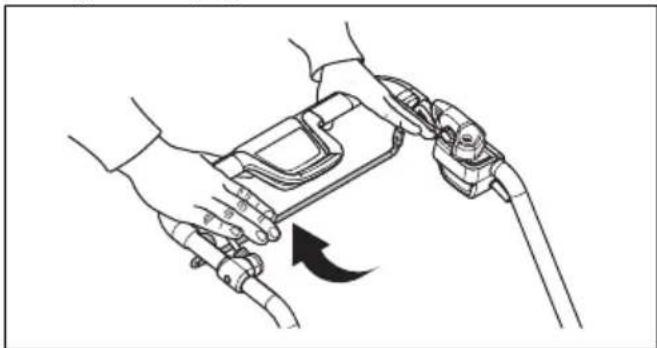

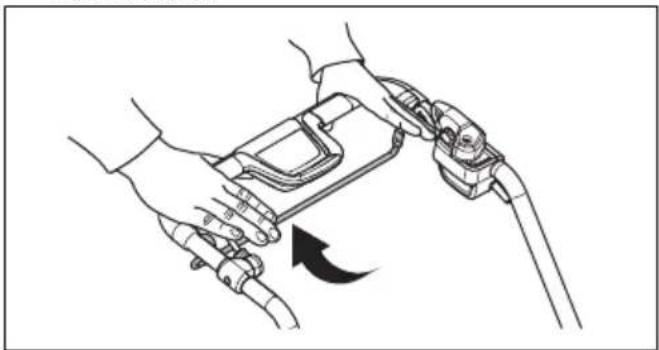

Start procedure: push the ON/OFF button, loosen the start inhibitor, push the motor brake handle down.

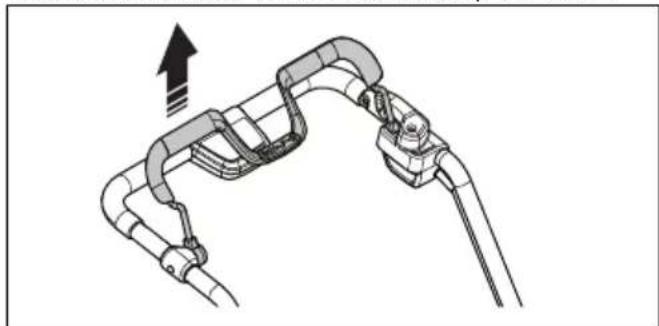

Release the motor brake handle to stop.

Slow

Fast

Scannable code

Note: Other symbols/decals on the product refer to certification requirements for some markets.

Label on the product

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Keep hands and feet away from the rotating blades.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

for the operator or bystanders if the instructions in the manual are not obeyed.

WARNING: Used if there is a risk of injury or death

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is dangerous if used incorrectly or if you are not careful. Injury or death can occur if you do not obey the safety instructions.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to your Husqvarna dealer before you continue.

• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.
• Keep the product clean. Make sure that you can clearly read signs and decals.
• Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator
• Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.
• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.
• Do not use the product if it is defective.

- Do not change this product or use it if it is possible that it has been changed by others.

Work area safety

WARNING: Read the warning instructions that follow before you use the product.

- Remove objects such as branches, twigs and stones from the work area before you use the product. - Objects that hit against the cutting equipment can eject and cause damage to persons and objects. Keep bystanders and animals at a safe distance from the product.

- Never use the product in bad weather such as fog, rain, strong winds, intense cold and risk of lightning. To use the product in bad weather or in moist or wet locations is tiring. Bad weather can cause dangerous conditions, such as slippery surfaces.

- Look out for persons, objects and situations that can prevent safe operation of the product. - Look out for obstacles, such as roots, stones, twigs, pits and ditches. Long grass can hide obstacles.

• To cut grass on slopes can be dangerous. Do not mow excessively steep slopes. Do not use the product on ground that slopes more than 15°
• Exercise extreme caution when changing direction on slopes. Operate the product across the face of slopes. Do not move up and down.
• Be careful when you go near hidden corners and objects that prevent a clear view.

Work safety

WARNING: Read the warning instructions that follow before you use the product.

• Use this product to cut grass lawns only. It is not permitted to use it for other tasks.
• Use personal protective equipment. Refer to Personal protective equipment on page 9.
  • Make sure that you know how to stop the motor quickly in an emergency.
• Do not operate the product in rain or wet conditions. The risk of electrical shock increases if water enters the product.
• Do not operate the product unless the blade and all

covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.

• Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the motor shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.
• If the blade hits an object or if vibrations occur, stop the product immediately. Stop the motor, turn the safety key to 0 and remove the battery. Examine the product for damages. Repair damages or let an authorised service agent do the repair.
• Never attach the motor brake handle permanently to the handle when the motor is started.
• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.
  • Always stay behind the product when you operate it.
• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands

and feet away from the rotating blades.

• Do not tilt the product when the motor is started.
• Be careful when you pull the product rearward.
• Never lift up the product when the motor is started. If you must lift the product, first stop the motor, turn the safety key to 0 and remove the battery.
• Do not walk rearward when you operate the product.
• Stop the motor when you move across areas without grass, for example paths made of gravel, stone and asphalt.
• Do not run with the product when the motor is started. Always walk when you operate the product.
• Stop the motor before you change the cutting height. Never make adjustments with the motor started.
• Never let the product stay out of view with the motor started. Stop the motor and make sure that the cutting equipment does not rotate.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
  • Use heavy, long pants.
• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the safety devices are defective, speak

to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.

- Examine the cutting cover to make sure that there are no damages such as cracks.

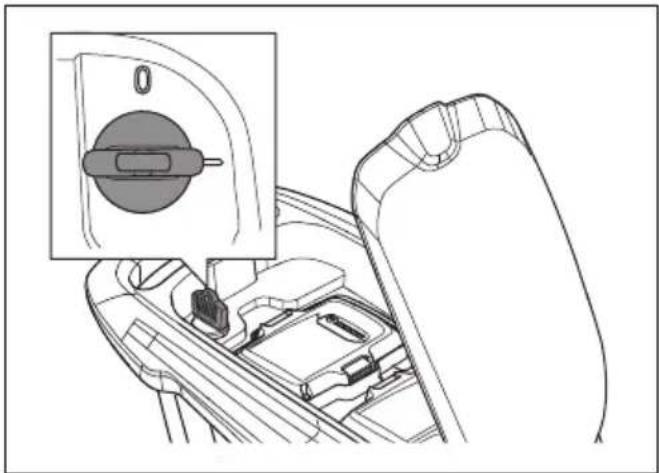

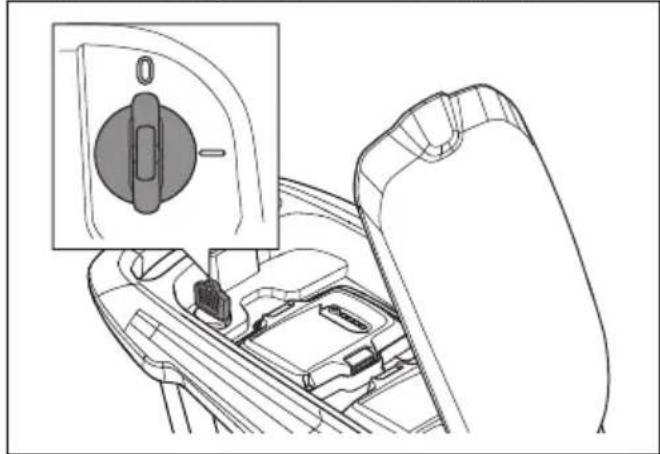

Safety key

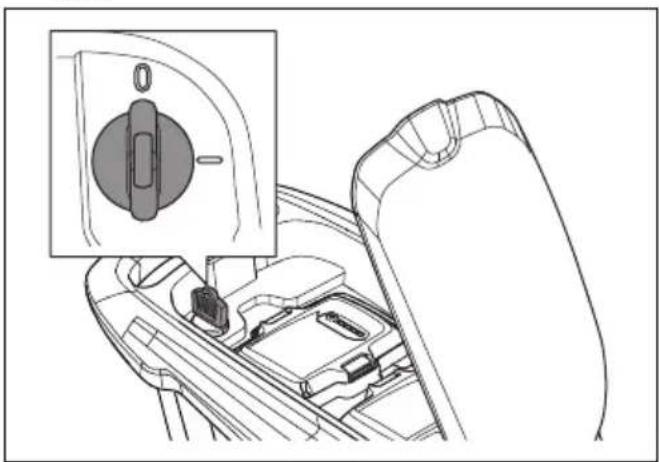

The safety key is below the battery lid. The safety key connects the battery that supplies the motor with power.

• Start and stop the motor to do a check of the safety key.
• If the safety key operates correctly, the motor can only start when the safety key is in position 1.

Technical line drawing of a car gear shift lever with inset showing the component (no text or symbols)

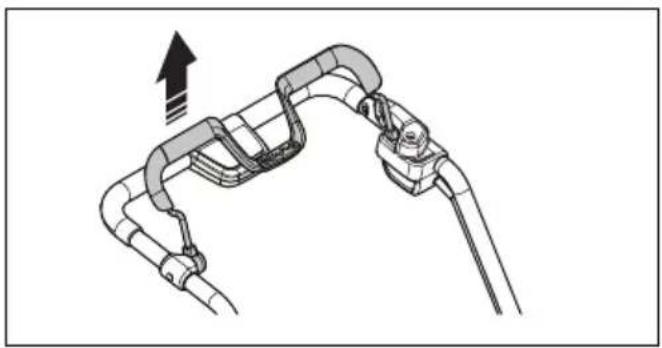

Motor brake handle

The motor brake handle stops the motor. When the motor brake handle is released, the motor stops.

To do a check of the motor brake, start the motor and then release the motor brake handle. If the motor does not stop in 3 seconds, let an approved Husqvarna service agent adjust the motor brake.

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

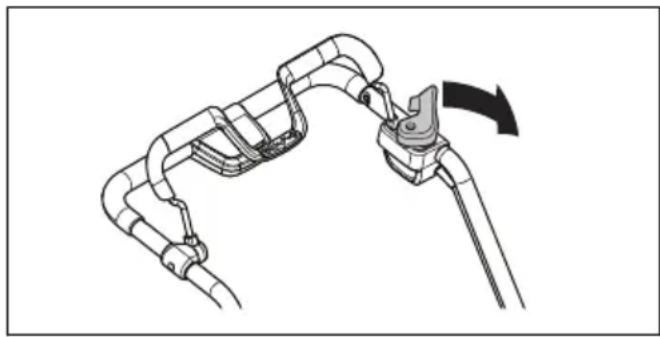

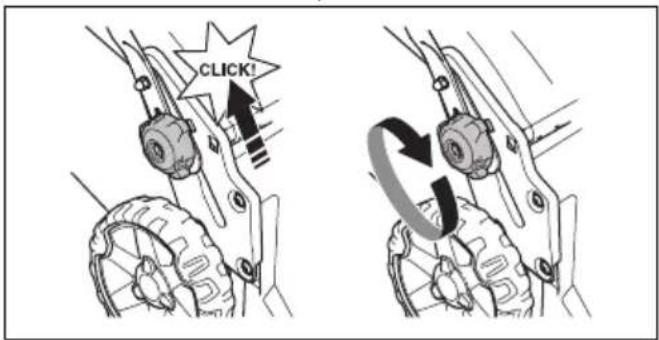

To examine the start inhibitor

Do a check of the start inhibitor to make sure that it prevents operation of the motor.

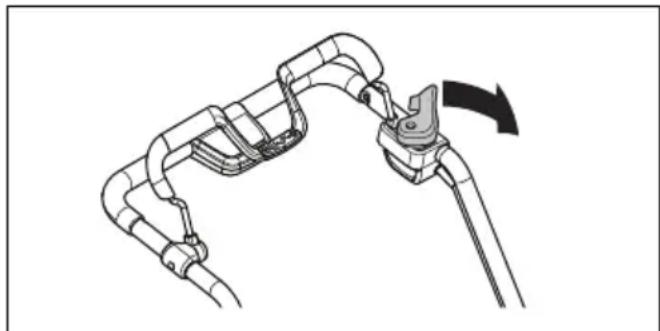

1. Push the motor brake handle in the direction of the handlebar. The start inhibitor stops the movement.

2. Push the start inhibitor out.

Diagram of a mechanical clamp or connector assembly with a curved pipe and lever mechanism (no text or symbols)

1. Release the start inhibitor and make sure that it goes back to its initial position.

Battery safety

WARNING: Read the warning instructions that follow before you use the product.

• Use Husqvarna rechargeable batteries as a power supply for related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.
• Do not use non-rechargeable batteries.
• Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.
• Do not put objects into the air slots of the battery.
• Keep the battery away from sunlight, heat or open flame. The battery can explode and cause burns and/or chemical burns.
• Keep the battery away from rain and wet conditions.

• Keep the battery away from microwaves and high pressure.

• Do not try to disassemble or break the battery.

• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and get medical aid.
• Use the battery in temperatures between -10°C and 40°C.
• Do not clean the battery or the battery charger with water.
  See To clean the battery and the battery charger on page 19.
• Do not use a defective or damaged battery.
• Keep batteries in storage away from metal objects such as nails, coins, jewellery.

Battery charger safety

WARNING: Read the warning instructions that follow before you use the product.

• Use the QC battery chargers to charge Husqvarna replacement batteries only.
• Risk of electrical shock or short circuit. Do not put objects into the air slots of the charger. Do not try to disassemble the battery

charger. Do not connect the charger terminals to metal objects. Use an approved mains socket.

- This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

- Regularly make sure that the power cord of the battery charger is not damaged and that there are no cracks in it.

- Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.

- Keep the power cord and extension cables away from water, oil and sharp edges. Make sure that the cable is not pinched in doors, fences or equivalent. It can cause the charger to become energized.

- Do not clean the battery charger with water.

• The battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the battery charger in a safe way and understand the hazards involved. Children shall not play with the battery charger. Cleaning and user maintenance shall not be made by children without supervision.
• Do not charge non-rechargeable batteries in the battery charger.
• Do not use the battery charger near flammable materials or materials that can cause corrosion. Do not cover the battery charger. Pull out the plug to the battery charger if there is smoke or fire.
• Do not use a defective or damaged battery charger.
• Only charge the battery indoors in a room with good airflow and away from sunlight. Do not charge the battery in wet conditions.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• To prevent accidental start during maintenance, turn the safety key to 0 and remove the battery. Wait at minimum 5 seconds before you start the maintenance.
• Do the maintenance work correctly to increase the lifetime of the product and decrease the risk of accidents. Let an approved service agent do the professional repairs. Speak to your nearest service agent for more information.
• Only do the maintenance work written in this operator's manual. More extensive work must be done by an approved service agent.
• Put on heavy duty gloves when you use the cutting equipment. The blade is very sharp and cuts can easily occur.

• Keep the cutting edges sharp and clean for the best and safest performance.

• Let your service agent regularly examine the product and make necessary adjustments and repairs.

• Replace damaged, worn or broken parts.
• Obey the instructions for how to change accessories. Only use accessories from the manufacturer.

- When not in operation, keep the product, battery and battery charger apart in a dry, indoor and locked area. Make sure that children and persons that are not approved cannot get access to the product, battery or battery charger.

Assembly

Introduction

WARNING: Before you assemble the product, read the safety chapter.

WARNING: To prevent accidental start during assembly, turn the safety key to 0, remove the battery and wait at minimum 5 seconds.

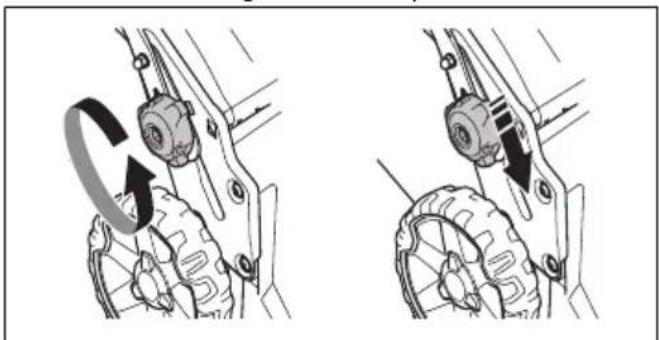

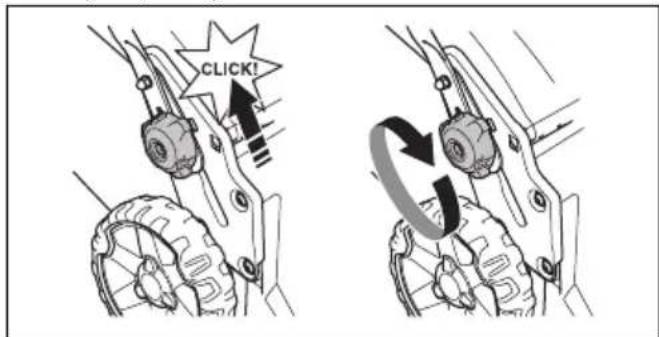

To adjust the handle

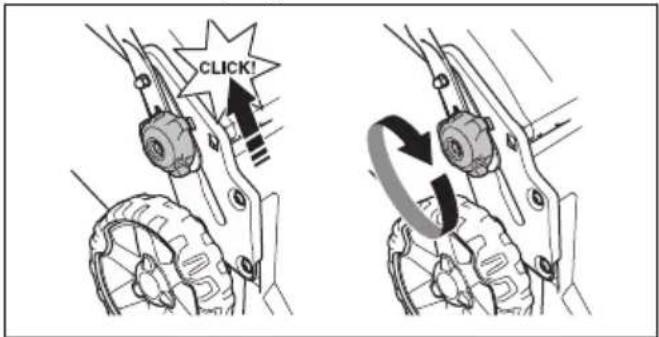

1. Loosen the lower knobs.
2. Move the knobs to the lower end of the grooves on the left and the right side of the product.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Set the handle height in one of the 2 available positions.

2. Move the knobs up in the direction of the handle until they stop and you hear a click.

CLICK!

1. Tighten the knobs fully.

To assemble the grass catcher

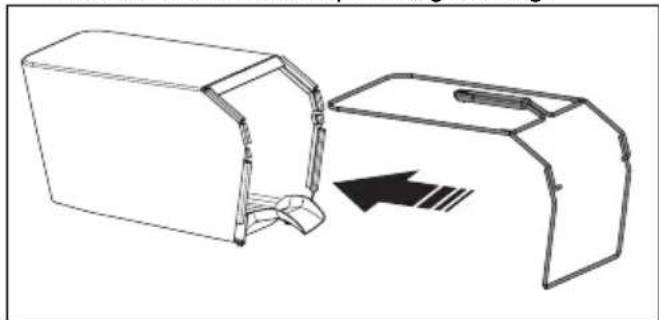

1. Attach the grass catcher frame to the grass bag with the rigid part of the bag on the bottom. Keep the handle of the frame on top of the grass bag.

Technical line drawing of a mechanical device with an open lid and internal structure, showing a directional arrow (no text or symbols)

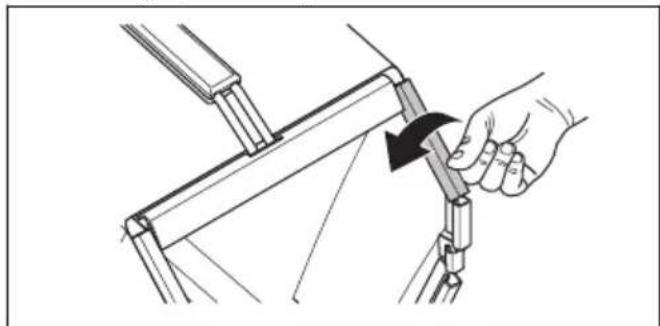

1. Attach the bottom section of the grass catcher frame in the groove on the bottom of the grass catcher.

2. Attach the grass bag to the grass catcher frame with the clips.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

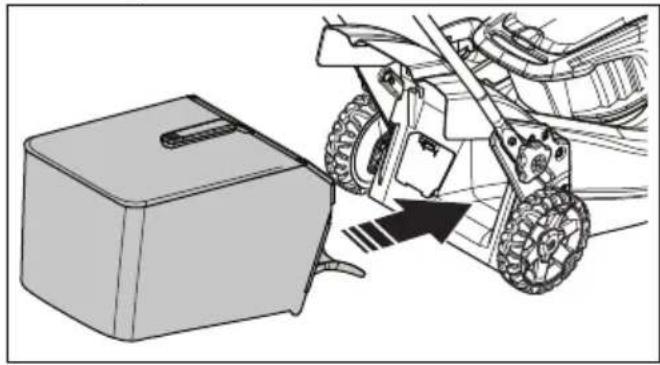

1. Lift the rear cover.

2. Attach the grass catcher to the top edge of the chassis.

3. Put the lower part of the grass catcher into the grass discharge channel.

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

To assemble the mulch plug (accessory)

1. Lift up the rear cover and remove the grass catcher.

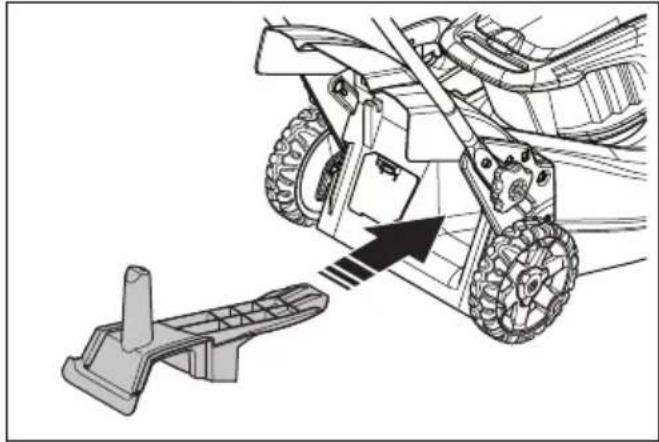

2. Put the mulch plug into the discharge channel.

Technical illustration of a snowman's wheel assembly with a moving guide and a separate mechanical component (no text or symbols)

1. Replace the blade with the mulch blade that is supplied in the mulch kit. Refer to To remove and replace the blade on page 19.

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product:

• Extended product information.
• Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.
2. Register in the Husqvarna Connect app.
3. Do the instruction steps in the Husqvarna Connect app to connect and register the product.

Bluetooth® information (LC 247iX, LC 347iVX, LC 353iVX)

Bluetooth® wireless technology

The symbol for Bluetooth ^® wireless technology comes on when your mobile device is connected to the product.

Diagram of a car dashboard with control buttons and navigation icons, including battery, battery, battery, and function buttons.

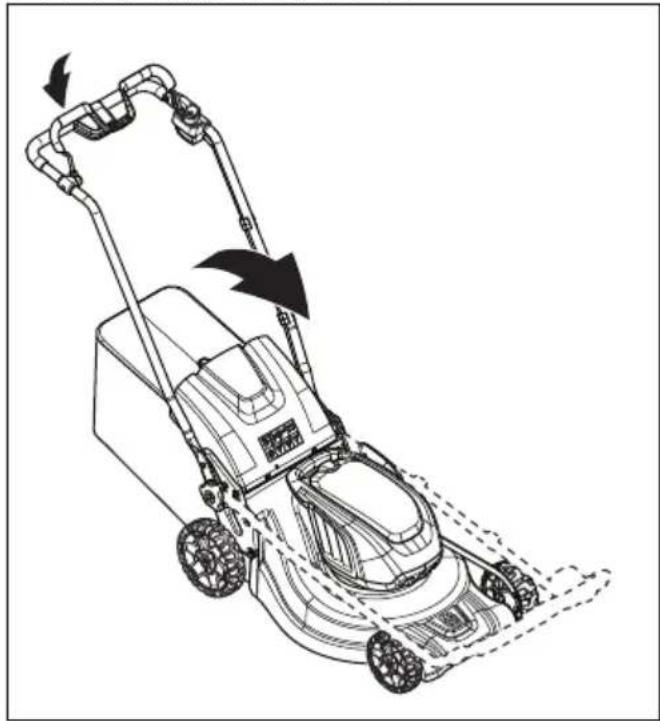

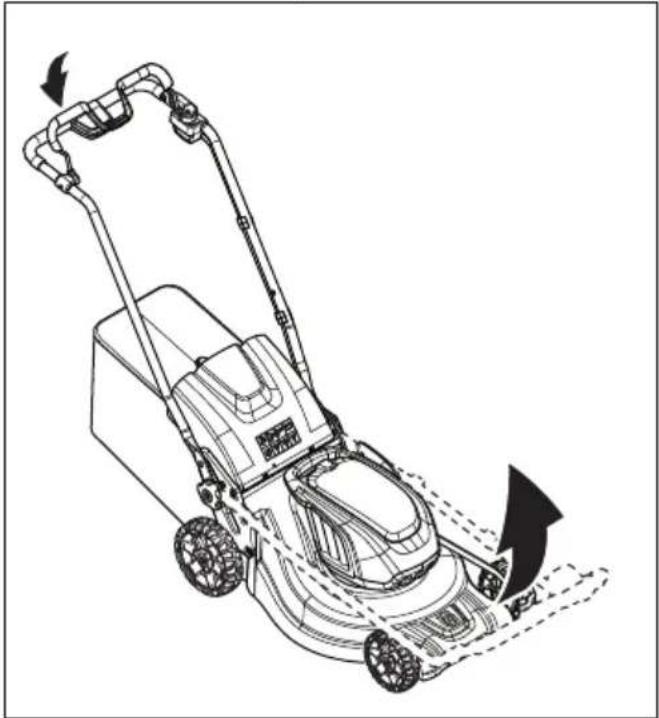

To set the product in operation position

1. Fold the handle to upright position.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

1. Move the knobs up in the direction of the handle until they stop and you hear a click.

CLICK!

1. Tighten the knobs fully.

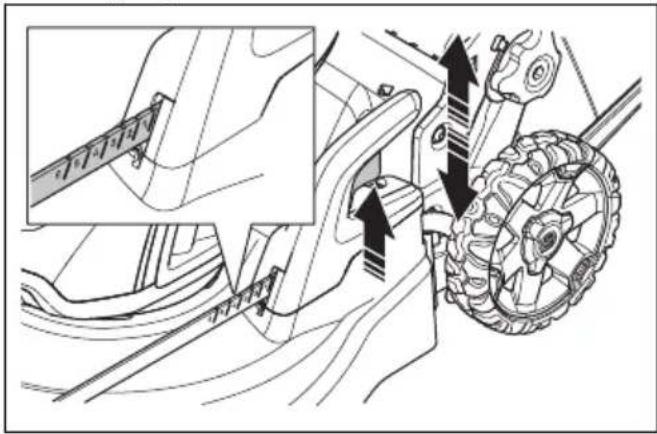

To set the cutting height

The cutting height can be adjusted in 6 levels.

1. Move the cutting height lever down to decrease the cutting height.

2. Move the cutting height lever up to increase the cutting height.

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

Battery

WARNING: Before you use the battery, you must read and understand the safety chapter. You must also read and understand the operator's manual for the battery and the battery charger.

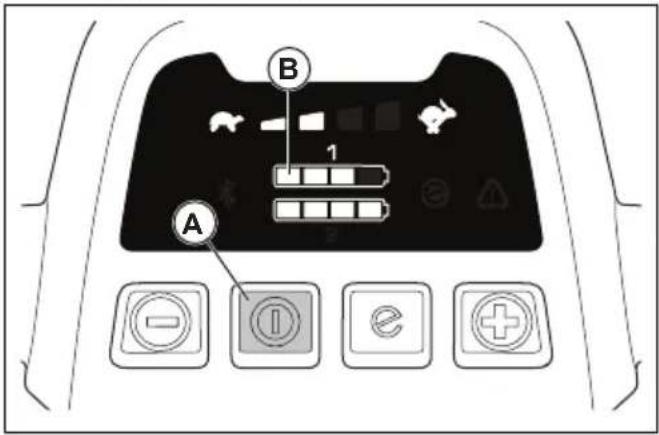

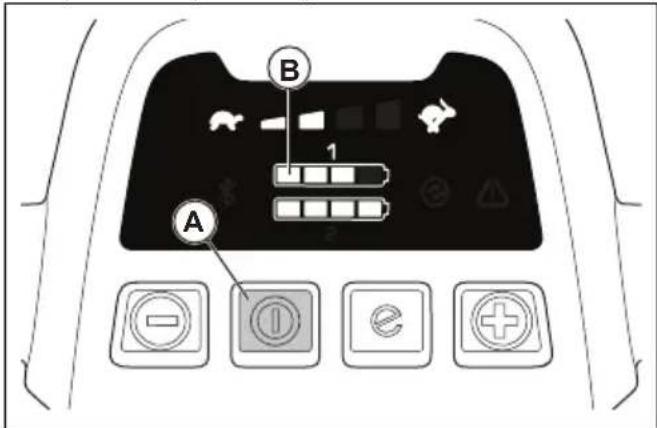

Battery status

The display shows the remaining battery capacity and if there are problems with the battery. The battery capacity is shown for 5 seconds after the product is switched off or the battery indicator button is pressed. The warning symbol on the battery is on when an error has occurred.

See Battery on page 20.

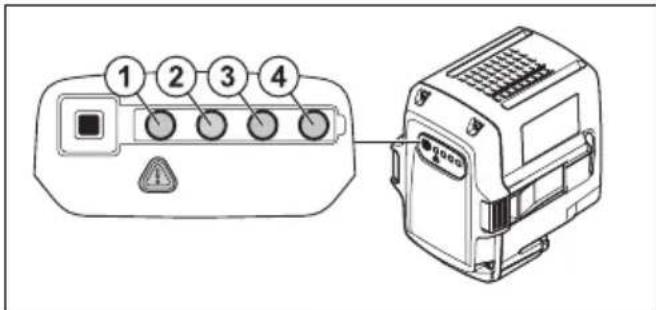

Diagram showing a device panel with four labeled buttons and an external device with warning labels

LED lights	Battery status
All LEDs are lit Fully charged	(75-100%)
LED 1, LED 2, LED 3 are lit	The battery is 50%-75% charged
LED 1, LED 2 are lit The battery is 25%-50% charged
LED 1 is lit The battery is 0%-25% charged.
LED lights Battery status
LED 1 flashes The battery is empty. Charge the battery.

To charge the battery

Charge the battery before the first use. The battery is only 30% charged when supplied to the customer.

Note: The battery charger must be connected to the voltage and frequency specified on the rating plate.

The battery does not charge if the battery temperature is above 50^ C. The battery charger decreases the temperature of the battery before it starts to charge.

1. Connect one end of the power cord for the battery charger into the socket of the battery charger.
2. Connect the other end of the power cord for the battery charger in an grounded mains socket. The LED on the battery charger flashes green one time.

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a power adapter (no text or labels)

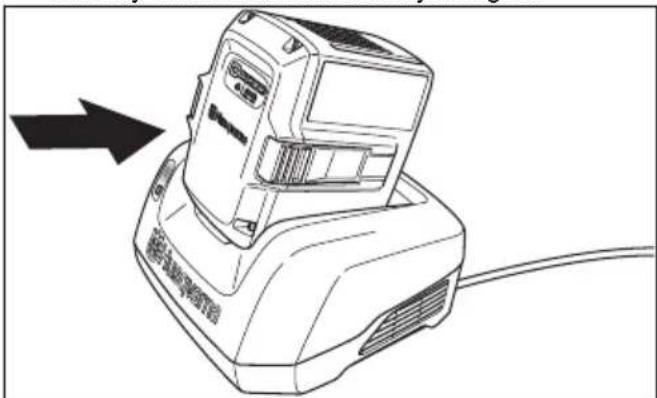

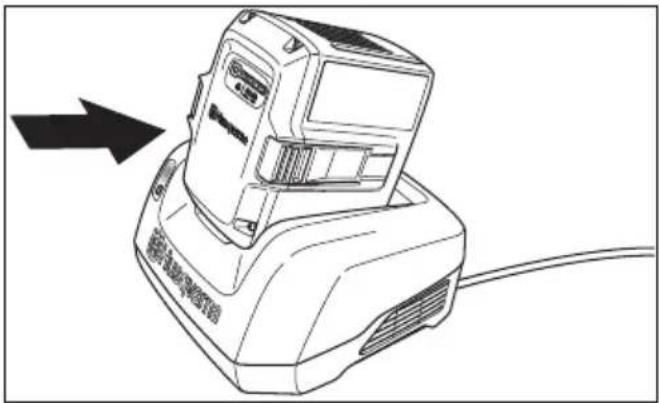

1. Put the battery in the battery charger. The green light on the charger comes on when the battery is correctly connected to the battery charger.

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. When all LEDs on the battery have come on the battery is fully charged. Charge the battery for maximum 24 hours.

2. To disconnect the battery charger from the mains socket, pull the plug, not the power cord.

3. Remove the battery from the battery charger.

Battery charging status

A Husqvarna Li-ion battery can be charged or used at all charging levels. The battery is not damaged. A fully charged battery will not decrease its charge when the battery is left in the charger.

LED display	Charging status
LED 1 flashes 0%-25%
LED 1 is lit, LED 2 flashes	25%-50%
LED 1, LED 2 are lit, LED 3 flashes	50%-75%
LED 1, LED 2, LED 3 are lit, LED 4 flashes	75%-100%
LED 1, LED 2, LED 3, LED 4 are lit	Fully charged

To start the product

1. Open the battery lid.

2. Put a charged battery in 1 of the battery holders. For longer operation time, put a second charged battery in the other battery holder.

3. Turn the safety key to 1.

Technical line drawing of a car interior showing a gear shift lever and internal components (no text or symbols)

1. Stay behind the product.
2. Push the ON/OFF button (A) on the control panel. The display comes on. The battery indicator (B) shows the battery charge of the 2 batteries. The number of the battery that operates is shown adjacent to the battery indicator. For models LC 347iV, LC 347iVX, LC 353iV, LC 353iVX, the display also shows the set speed.

B 1 A

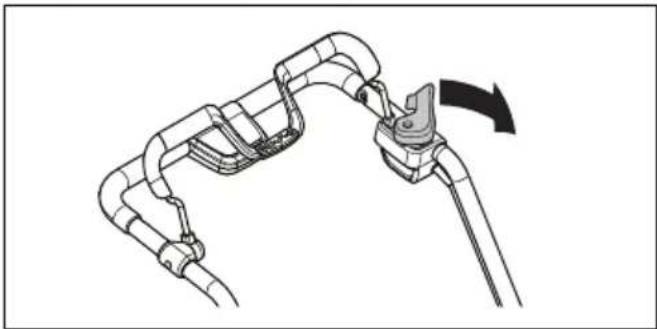

1. Loosen the start inhibitor.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

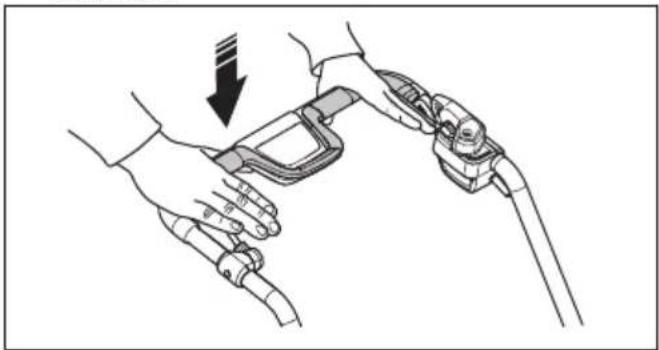

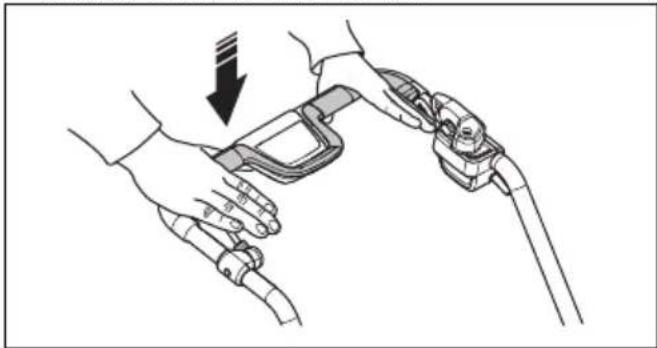

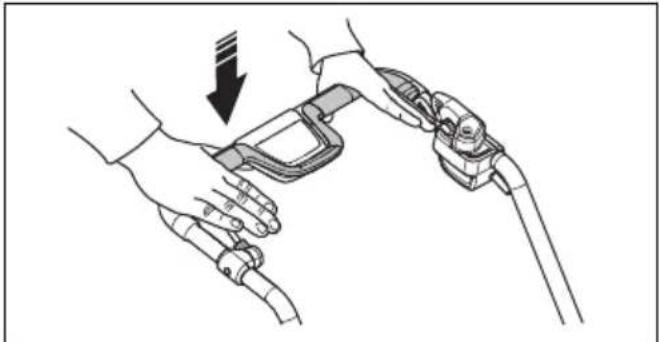

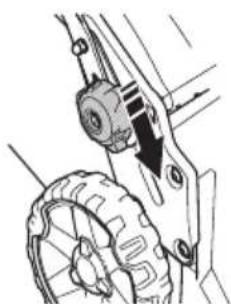

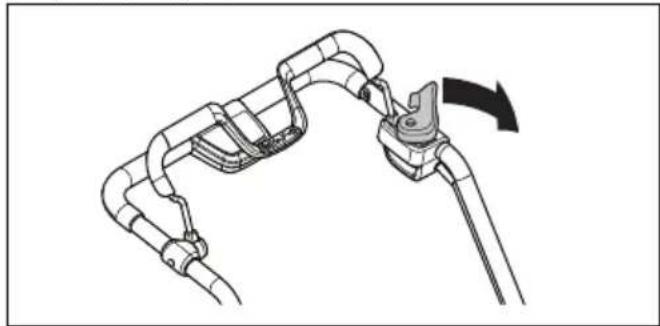

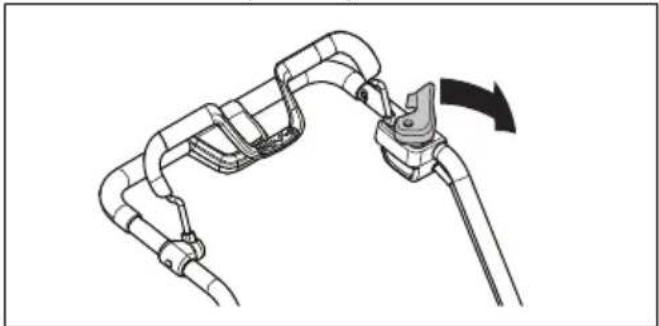

1. Push the motor brake handle in the direction of the handlebar.

Illustration of hands holding a cable or clamp device with a downward arrow indicating motion (no text or symbols)

To use the drive on the wheels LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

- Pull the drive bail in the direction of the handlebar to start the drive.

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

- Push + and - on the control panel to set the drive speed in 4 steps.

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

- Release the drive bail to disengage the drive, for example when you go near an obstacle.

To use the function

The product has a battery saving function () that gives longer operation time.

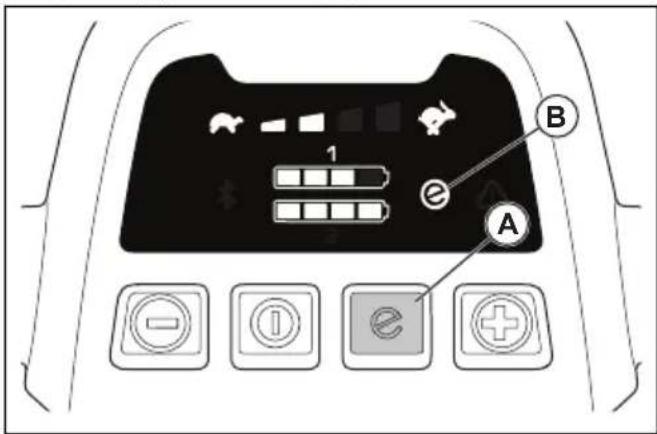

1. Push the button (A) to start the function. The symbol (B) on the display comes on.
2. Push the button again to stop the function. The symbol (B) on the display goes out.

B 1 e A

The function stops automatically if the ground conditions make it necessary to have a higher output. The function starts automatically again when the ground conditions let it.

High load function

When the product cuts long or wet grass, the motor automatically increases rpm. The motor goes back to standard mode when high load is not necessary.

To stop the product

The product stops automatically if you do not operate it for 10 minutes. Always turn the safety key to 0 before you let the product out of view.

1. Release the motor brake handle to stop the motor.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

1. Push the ON/OFF button on the control panel. All LED lights and symbols on the display go out.

Diagram showing four electrical switch symbols: minus, ⓘ, minus, and plus with an arrow pointing to the ⓘ.

1. Open the battery lid and turn the safety key to 0.

Line drawing of a car interior showing the left side of the dashboard and a close-up inset of the right side of the dashboard (no text or symbols)

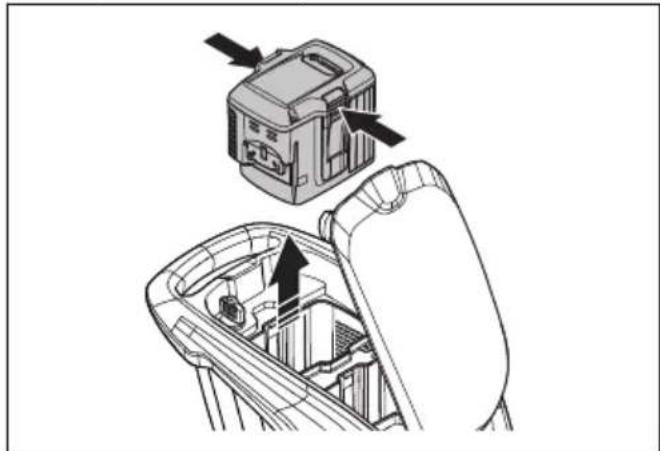

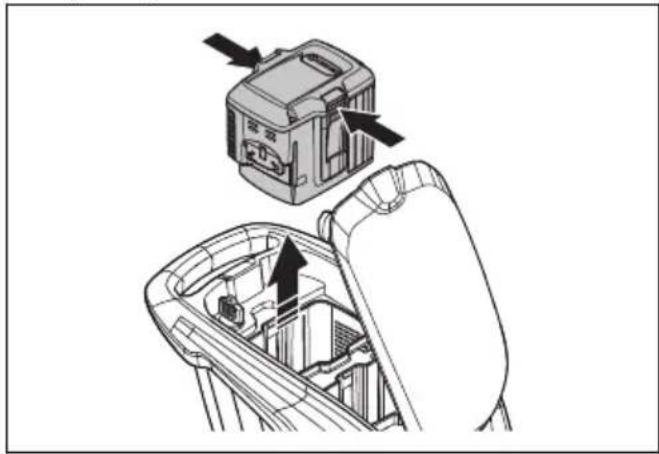

1. To remove the battery, push the 2 release buttons and pull out the battery.

Technical diagram showing a device with an upper component and a lower interior view, no visible text or symbols.

1. Charge the battery if it is weak. For more information, refer to To charge the battery on page 16.

To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.
- Do not cut more than 13 of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.
- Cut in different directions each time to prevent stripes in the lawn.

To cut grass without a grass catcher or mulch plug attached

• Lift up the rear cover and remove the grass catcher.
• If a mulch plug and a mulch blade are attached, remove them.
• Close the rear cover before you operate the product.

When you operate the product, the cut grass discharges below the rear cover.

Maintenance

Introduction

WARNING: Before you do

maintenance, you must read and understand the safety chapter.

For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a

service agent, speak to them for information about the nearest service agent.

Maintenance schedule

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with * see instructions in Safety instructions for operation on page 9.

	Each use	Monthly	Each season
Do a general inspection X
Clean the product X
Do a check of the start inhibitor * X
Make sure that the safety devices on the product are not defective * X
Examine the cutting equipment X
Examine the cutting cover * X
Do a check of the motor brake handle * X
Make sure that the ON/OFF button operates correctly and is not defective X
Examine the battery for damage X
Do a check of the battery charge X
Make sure that the release buttons on the battery operates correctly and that the battery locks into the product	X
Examine the battery charger for damage and make sure that it operates correctly.		X
Examine the connections between the battery and the product. Also examine the connection between the battery and the battery charger.			X

To do a general inspection

• Make sure that the nuts and screws on the product are tightened.
- Make sure that the cables on the product are not in a position where they can get damaged.

To clean the product

• Clean plastic parts with a clean and dry cloth.
• Do not use water to clean the product. Water can enter the battery or the motor and cause short circuit or damage to the product.
• Do not use a high pressure washer to clean the product.
• Do not flush water directly on the motor.
• Use a brush to remove leaves, grass and dirt.

To clean the battery and the battery charger

CAUTION: Do not clean the battery or the battery charger with water.

• Make sure that the battery and the battery charger are clean and dry before you put the battery into the battery charger.
- Clean the battery terminals with compressed air or use a soft and dry cloth.
- Clean the surfaces of the battery and the battery charger with a soft and dry cloth.

To examine the cutting equipment

WARNING: To prevent accidental start, turn the safety key to 0, remove the battery and wait a minimum 5 seconds.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

To remove and replace the blade

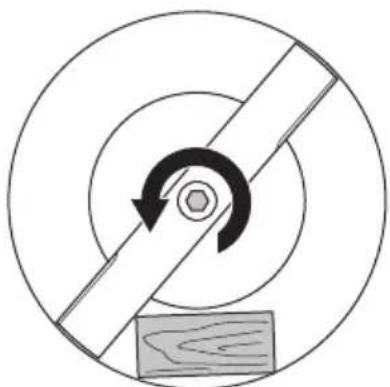

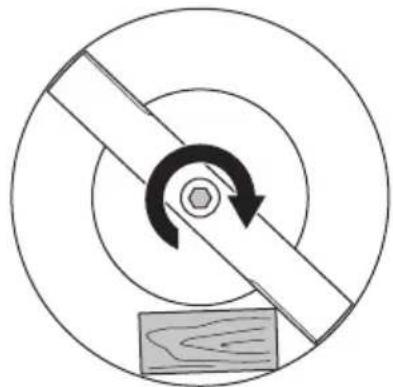

1. Lock the blade with a block of wood.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

1. Remove the blade bolt.
2. Remove the blade.
3. Examine the blade support and blade bolt to see if there are damages.

4. Examine the motor shaft to make sure that it is not bent.

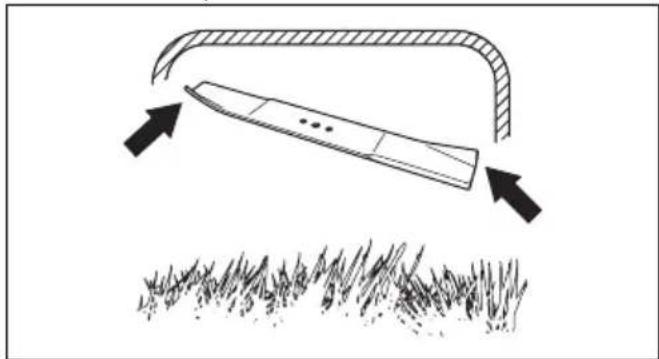

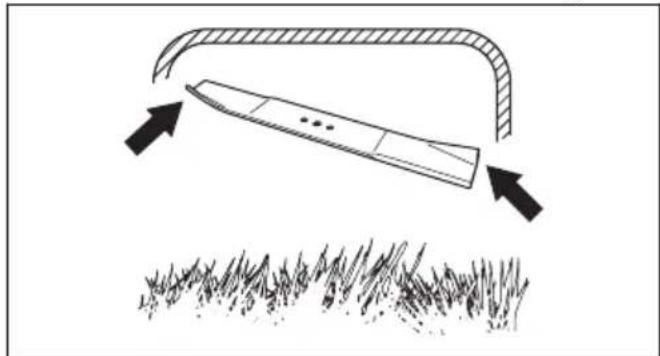

5. When you attach the new blade, point the angled ends of the blade in the direction of the cutting cover.

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

1. Make sure that the blade is aligned with the center of the motor shaft.

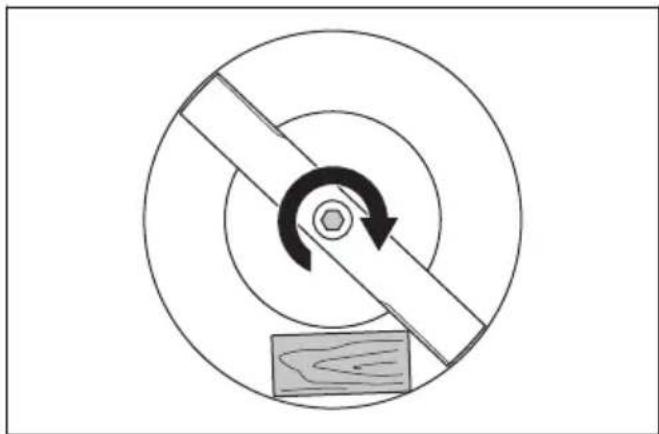

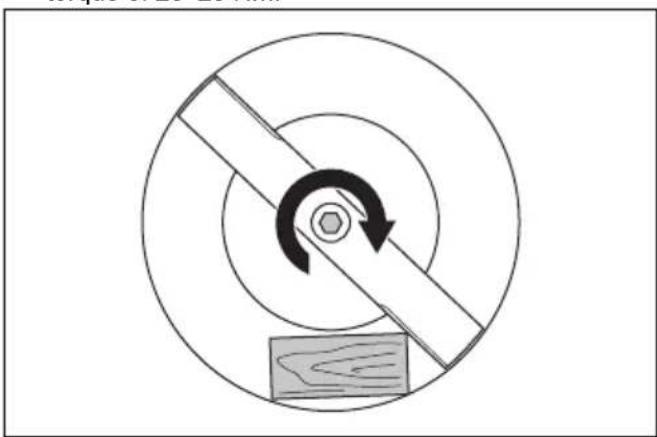

2. Lock the blade with a block of wood. Attach the spring washer and tighten the bolt and washer with a torque of 23–28 Nm.

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

1. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use heavy duty gloves. The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

Troubleshooting

Battery

LED on the battery Possible faults Possible procedure
The green LED is flashing	The battery voltage is low Charge the battery. See page 16.	To charge the battery on
The error LED flashes The battery is weak Charge the battery. See Battery on page 20.
			The temperature in the work environment is too high or too low	Use the battery in temperatures between -10°C and 40°C.
			Overvoltage Check that the mains voltage is the same as on the rating plate on the product.
					Remove the battery from the battery charger. Wait 5 seconds and try again to charge the battery. If the problem continues, speak to an authorised service agent.
The error LED is on Cell difference too much (1V) Speak to an approved service agent.

Battery charger

LED on the battery charger	Possible faults Possible procedure
The error LED flashes	The temperature in the work environment is too high or too low	Use the battery charger in temperatures between 5°C and 40°C.
The error LED is on Speak to an approved service agent

Control panel

Keypad Error code (	Number of flashes)	Possible faults Possible action
Error LED flashes 3	The motor is overload	ed Increase the cutting height.	Refer toTo set the cutting height on page 15.
	5 The motor speed	drops too much, and the motor stops
	10 The motor control	is too hot Stop the motor and wait until it has become cool
	2 The blade is blocked	To prevent accidental start turn the safety key to 0, remove the battery and wait a minimum 5 seconds. Make sure that the blade can rotate freely. If the problem continues, speak to an authorised service agent
	9 Battery error or no	signal from battery	Put the battery in the product correctly and examine the battery connector. If the error LED on the battery flashes. Refer toBattery on page 15.
The product stops 8	The battery is weak	Charge the battery. Refer to	To charge the battery on page 16.
	0 Battery connector	failure Examine the battery connector
Other errors If other	errors occur, turn the safety key to 0, remove the battery and speak to an approved service agent.

Transportation, storage and disposal

Introduction

WARNING: To prevent unintentional start during transport turn the safety key to "0", remove the battery and wait at least 5 seconds.

To set the product in transport position

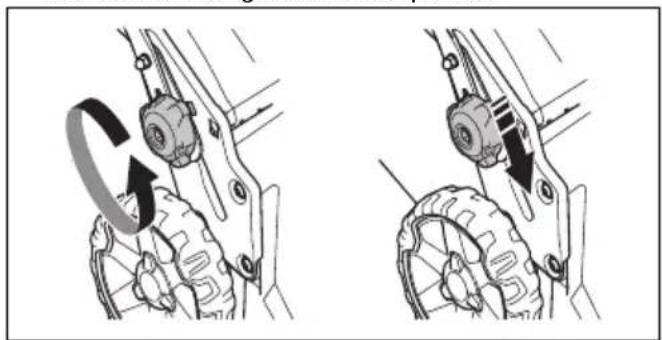

1. Loosen the lower knobs.

2. Move the knobs to the lower end of the grooves on the left and the right side of the product.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Fold the handle forward.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. Remove the grass catcher.

Transportation

• The Dangerous Goods Legislation requirements apply to the contained Li-ion batteries.
• For commercial transports special requirements on package and labels must be obeyed.
  • Make sure that you obey the regulations for dangerous material when you prepare the product for transport. Local regulations can apply.
  • Always remove the battery for transport.
• Put tape on the battery connectors and make sure that the battery cannot move around during transport.
• Attach the product during transport.

Storage

• Always remove the battery for storage.
• To prevent accidents, make sure that the battery is not connected to the product during storage.

• Keep the battery charger in a closed and dry space.
• Keep the battery and the battery charger in a dry space where there is no moisture or frost.
• Disconnect the battery from the battery charger during storage.
• Do not keep the battery where static electricity can occur. Do not keep the battery in a metal box.
• Keep the battery where the temperature is between 5^ and 25^ and out of sunlight.
• Keep the battery charger where the temperature is between 5°C and 45°C and out of sunlight.
  • Make sure that the battery is charged to 30% - 50% before you put it in storage for long periods.
• Keep the product, battery and battery charger in a locked area out of reach for children and not approved persons.
• Clean the product and do a complete servicing before you put the product in storage for a long time.

Disposal

Symbols on the product or the packaging of the product indicate that this product cannot be handled as domestic waste. It must be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable waste.

Technical data

Technical data

	LC 247iX/LC 247i LC	347iVX/LC 347iV LC 35	3iVX/LC 353iV
Cutting motor
Motor type BLDC (brushless)	36V	BLDC (brushless)36V	BLDC (brushless)36V
Motor speed – SavE, rpm 2600 2600 2600
Motor speed – Nominal, rpm 3000 3000 3000
Motor speed – High load, rpm 3500 3500 3500
Motor output – max. kW 0.96 0.96 1.05
Motor output – Nominal, kW 0.75 0.75 0.9
Drive motor
Motor output – Nominal, kW N/A 0.25 0.25
Self walk speed, km/h N/A 3.0–4.5 3.0–4.5
Speed adjustment levels N/A 4 4
Weight
Weight without battery, kg 24 26 28
Battery
Type of battery Husqvarna Battery	Series	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE ac- tivated, with one Husqvarna 5.2 Ah battery (Bli200).	43 43 32
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (Bli200).	30 30 20
Noise emissions 1
Sound power level, measured dB (A) 94 94 97
Sound power level, guaranteed LWA dB (A)	95 95 98
Sound levels 2
Sound pressure level at the operator's ear, dB (A)	82 82 86
Vibration levels 3
Handle, m/s2	0.42 0.42 2.64
Cutting equipment
Cutting height, mm	20-75 mm	20-75 mm	20-75 mm
Cutting width, cm	47 47 53
Blade Standard	Collect 5905934-10	Collect 5905934-10	Collect 5940757-10
Blade accessory	Mulch 5907010-10	Mulch 5907010-10	Mulch 5950072-10
	LC 247iX/LC 247i LC 347iVX/LC 347iV LC 353iVX/LC 353iV
Grass catcher capacity, liters 55 55 60

Radio frequency data for Bluetooth®	LC 247iX LC 347iVX LC	353iVX
Frequency band, GHz 2.4-2.4835 2.4-	2.4835 2.4-2.4835
Output power, max. dBm 4 4 4

Approved batteries Type Battery capacity,	Ah	Voltage, V Weight, lb/kg
BLi20 Lithium-ion 4.0 36 2.6/1.2
BLi200	Lithium-ion 5.2 36 2.8/1.3
BLi300	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries, BLi	Input voltage, V	Frequency, Hz	Power, W
QC80	100–240 50–60	80
QC80F	12	0	80
QC250	100–240 50–60	250
QC330	100–240 50–60	330
QC500	100–240 50–60	500

EC Declaration of Conformity

EC Declaration of Conformity

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declares that the lawn mower Husqvarna LC 247i, LC 247iX, LC 347iV, LC 347iVX, LC 353iV, LC 353iVX from the year 2018 and onwards, complies with the requirements of the COUNCIL'S DIRECTIVE:

• of June 8, 2011 on the “restriction of use of certain hazardous substances” 2011/65/EU
  • of May 17, 2006 "relating to machinery" 2006/42/EC
• of February 26, 2014 "relating to electromagnetic compatibility" 2014/30/EU
• of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC

Information relating to noise emissions, see Technical data.

The following standards have been applied:

EN/IEC 60335-1, EN/IEC 60335-2-77, EN/IEC 62233, EN 55014-1, EN ETSI 301 489-7 v1.3.1, EN 61000-6,

ETSI EN 61000-6-1, EN 300 328 BT low energy Tx/Rx, EN 50581

If not otherwise stated, the above listed standards are the latest published versions.

Notified body: 0404, RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala has performed conformity assessment according to Annex VI of directive 2000/14/EC.

Huskvarna, 2020-04-22

$$ \Delta \cdot 2 m $$

Claes Losdal, Development Manager/Garden Products (Authorized representative for Husqvarna AB and responsible for technical documentation)

Registered trademarks

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, inc. and any use of such marks by Husqvarna is under license.

Съдържание

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical illustration of a mechanical assembly with a box and wheels, showing a directional arrow (no text or symbols)

Technical line drawing of a vehicle's wheel assembly with a mechanical component below (no text or symbols)

Diagram of a car dashboard with control buttons and icons, including battery, battery, and function labels

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Diagram showing a device panel with four labeled buttons and a warning symbol pointing to the right panel.

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols on the device itself)

Line drawing of a car interior showing the dashboard and seat area with a highlighted device (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Line drawing of hands holding a tool with a clip, showing a downward motion (no text or symbols)

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car front panel with labeled buttons and icons, including navigation controls and function keys

Diagram of a mechanical or electrical component with curved and straight lines, showing a directional arrow (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical diagram showing a device with arrows pointing to internal components, no visible text or symbols

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

Rukojet' brzdy motoru

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device with wheels and a box, no text or symbols present

Technical line drawing of a vehicle's front wheel assembly with a guide mechanism (no text or symbols)

Diagram of a car dashboard with control buttons and navigation icons, including directional arrows and function keys

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Diagram of a mechanical clamp or connector assembly with a directional arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a device with a cable, showing a downward arrow indicating motion (no text or symbols)

Použití pohonu kol (LC 347iV, LC 347iVX, LC 353iV, LC 353iVX)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation arrows and function keys

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, I, minus, and plus, connected by an arrow pointing to the I button.

Technical line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

Technical diagram showing a device with arrows pointing to a component inside a mechanical assembly (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a blade cutting through a curved channel with arrows indicating direction (no text or symbols)

Diagram of a mechanical gear or cam mechanism with concentric circles and a rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two waste sorting bins with crossed and uncoiled recycling symbols, indicating no disposal or recycling.

Technické údaje

Technické údaje

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Motorbremsehåndtag

Diagram of a mechanical or electrical component with curved and straight lines, showing a directional arrow (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical illustration of a vehicle's wheel assembly and steering wheel assembly (no text or symbols)

Diagram of a car dashboard with control buttons and navigation icons, including battery, switch, and function buttons.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Diagram showing a device panel with four labeled buttons and an external device, highlighting a warning symbol.

Line drawing of a wall-mounted device connected to a power outlet (no text or symbols)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Line drawing of a car interior showing the dashboard and seat area with a close-up inset of the gear shift (no text or symbols)

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ button.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical illustration of a mechanical device with an open lid and internal components, showing no text or symbols.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base plate (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with a recycling symbol and no text labels

Tekniske data

Tekniske data

	LC 247iX/LC 247i LC	347iVX/LC 347iV LC 35	3iVX/LC 353iV
Klippemotor
Motortype BLDC (børsteløs) 36	V	BLDC (børsteløs) 36 V	BLDC (børsteløs) 36 V
Motoromdrejningstal - SavE, o/min. 2600 2600	2600
Motoromdrejningstal - nominelt, o/min. 3000 3000	3000 3000
Motoromdrejningstal - høj belastning, o/min. 3500	3500 3500 3500
	LC 247iX/LC 247i LC 347iVX/LC 347iV LC 353iVX/LC 353iV
Motoreffekt - maks. kW 0,96 0,96 1,05
Motoreffekt - nominel, kW 0,75 0,75 0,9
Køremotor
Motoreffekt - nominel, kW N/A 0,25 0,25
Selvkørende hastighed, km/t N/A 3,0-4,5 3,0-4,5
Justering af hastighedsniveauer N/A 4 4
Vægt
Vægt uden batteri, kg 24 26 28
Batteri
Batteritype Husqvarna Batteriserie	Husqvarna Batteriserie	Husqvarna Batteriserie
Batteriets driftstid
Batteriets driftstid, min, (friløb) med SavE aktiveret, med et 5,2 Ah Husqvarna-batteri (Bli200).	43 43 32
Batteriets driftstid, min, (friløb) med standard-tilstand aktiveret, med et 5,2 Ah Husqvarna-batteri (Bli200).	30 30 20
Støjemissioner ^10
Lydeffektniveau, målt dB (A) 94 94 97
Lydeffektniveau, garanteret LWA dB (A) 95 95	98
Lydniveauer ^11
Lydtryksniveau ved brugerens øre, dB (A) 82	82 86
Vibrationsniveauer ^12
Styr, m/s ^2	0,42 0,42 2,64
Skæreudstyr
Klippehøjde, mm	20-75 mm	20-75 mm	20-75 mm
Klippebredde, cm	47 47 53
Klingestandard	Opsamling5905934-10	Opsamling5905934-10	Opsamling5940757-10
Klingetilbehør	Findeling5907010-10	Findeling5907010-10	Findeling5950072-10
Græsopsamlerens kapacitet, liter	55 55 60
Radiofrekvensdata for Bluetooth®	LC 247iX LC 347iVX LC	353iVX
Frekvensbåndet, GHz 2,4-2,4835 2,4-2,4835 2,4-2,4835
Udgangseffekt, maks. dBm 4 4 4

Godkendte batterier Type Batterikapacitet,	Ah	Spænding, V Vægt,	lb/kg
BLi20 Lithiumion 4,0 36 2,6/1,2
BLi200 Lithiumion 5,2 36 2.8/1.3
BLi300 Lithiumion 9,4 36 4,1/1,9

Godkendte opladere til de angivne batterier, BLi Indgangsspænding, V		Frekvens, Hz Effekt, watt
QC80 100-240 50-60 80
QC80F	12	0	80
QC250	100-240 50-60 250
QC330	100-240 50-60 330
QC500	100-240 50-60 500

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a door handle and internal components (no text or symbols)

Motorbremsbügel

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or connector assembly with no visible text or symbols

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal component, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device connected to a box, with an arrow indicating motion or force direction (no text or symbols present)

Technical illustration of a vehicle's wheel assembly with a guide mechanism (no text or symbols)

Diagram of a car front panel with control buttons and icons, including battery, switch, battery, and function buttons.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and a vertical panel connected to its right arm (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car gear shift lever with inset showing internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands holding a device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Diagram of a mechanical or electrical component with curved and straight pipes, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, I, e, and plus, connected by an arrow pointing to the I button.

Diagram of a car gear shift lever with a close-up inset showing the mode dial (no text or symbols present)

Diagram showing a device being inserted into a mechanical component, with arrows indicating the process (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical gear or wheel assembly with concentric circles and a central rotating arrow (no text or symbols)

Fehlerbehebung

Akku

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two waste sorting bins with a recycling symbol and crossed-out bins, indicating no disposal or recycling.

Technische Angaben

Technische Daten

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a mechanical component with an inset showing a close-up view of a circular component (no text or symbols present)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Mechanical diagram showing a lever mechanism with a curved guide and directional arrow (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical assembly with a box and wheels, showing a directional arrow (no text or symbols)

Technical line drawing of a vehicle's wheel assembly with a foot pushpin and guide mechanism (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery, battery, and control buttons.

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Diagram showing a device panel with numbered labels pointing to its internal components, including a warning symbol and a labeled air vent.

Line drawing of a device with a warning symbol and a wall-mounted panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Line drawing of hands holding a tool with a clip, showing a downward motion (no text or symbols)

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, battery tray, and function buttons.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, square, and plus, with an arrow pointing to the circled button.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical diagram showing a device with arrows pointing to internal components, no visible text or symbols

Diagram showing a circular mechanism with a central rotating arrow and a rectangular block, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical gear or wheel assembly with concentric circles and a rotating shaft, no text or symbols present.

Mechanical assembly diagrams showing gear and motor components with rotational motion arrows (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol, likely indicating waste sorting or recycling rules.

Τεχνικά στοιχεία

Τεχνικά στοιχεία

	LC 247iX/LC 247i LC	347iVX/LC 347iV LC 353iVX/LC 353iV
Μοτέρ κοπής

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Palanca del freno del motor

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a gear and mechanical component (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device connected to a box, with an arrow indicating motion or force direction (no text or symbols present)

Technical line drawing of a truck's wheel assembly with a mechanical component below (no text or symbols)

Diagram of a car dashboard with navigation buttons and icons, including battery, switch, battery flame, and function buttons.

Line drawing of a lawn mower with motion arrows indicating maneuver and angle (no text or symbols)

Mechanical assembly diagram showing gear meshing and mounting features (no text or labels)

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

Line drawing of a device with a warning symbol and a power outlet, no text or labels present

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Diagram of a car gear shift lever with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a black arrow indicating downward motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Diagram of a car gear shift lever with a close-up inset showing the mode dial (no text or symbols present)

Diagram of a device interior showing a hand holding a device and a container with arrows indicating movement (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden block and a cross-section (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Datos técnicos

Datos técnicos

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

Mootori pidurikäepide

Mootori pidurikäepideme abil saab mootori seisata. Mootori pidurikäepideme vabastamisel mootor seiskub.

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical assembly with a box and gear mechanism, showing motion direction (no text or symbols)

Multšikorgi (lisatarvik) kokkupanek

Technical line drawing of a mechanical assembly with a tool and guide mechanism (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons for navigation, battery, and function controls

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car interior showing a door handle and gear shift (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Line drawing of a hand holding a device with a cable, showing a downward arrow indicating motion (no text or symbols)

Veo kasutamine ratastel LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Diagram of a mechanical or electrical component with curved and straight pipes, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Technical line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

Technical diagram showing a device with an upper component and a hand inside a mechanical frame (no text or symbols)

1. Laadige akut, kui see on tühjenenud. Lisateavet vt Aku laadimine Ik 200.

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Diagram showing a blade cutting through a curved structure with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Tehnilised andmed

Tehnilised andmed

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car gear shift lever with inset showing internal components (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or connector with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with a box and wheels, showing motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and guide mechanism (no text or symbols)

Diagram of a car front panel with control buttons and icons for battery, battery, battery, and battery.

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

HUOMAUTUS: Älä aseta

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a power adapter (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram of a car gear shift lever with inset showing the internal component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Line drawing of hands holding a tool with a clip, showing a downward motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Diagram of a mechanical or electrical component with curved and straight lines, showing a directional arrow (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, minus, and plus, connected by an arrow pointing to the ⓘ.

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Technical diagram showing a mechanical device with arrows indicating assembly or operation (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with a central rotating shaft and a wooden base, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Taita kahva eteen.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two waste sorting bins with a recycling symbol and crossed-out bins, indicating no disposal or recycling.

Attention : projections et ricochets.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with curved pipes and a lever mechanism, showing a right-hand rule (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with a handle and internal components, showing a close-up of its internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram of a mechanical device with a box and gear assembly, showing a directional arrow (no text or symbols present)

Technical illustration of a vehicle's wheel assembly and steering mechanism, showing a keyway and motion arrow (no text or symbols)

Diagram of a car dashboard with control buttons and navigation icons, including battery, switch, battery flame, and function buttons.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Diagram showing a device panel with numbered labels pointing to a labeled electronic device, including warning symbols and a warning triangle.

Line drawing of a device with a D button and warning symbol connected to a power adapter (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a handheld device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, and function buttons.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, I, e, and plus, connected by an arrow pointing to the I button.

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Technical diagram showing a mechanical component being inserted into a gear mechanism (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Šake i stopala držite podalje od rotirajućih noževa.

Pouzdanost proizvoda

Technical line drawing of a car interior showing a gear shift and battery compartment (no text or symbols)

Ručica kočnice motora

Ručicom kočnice motora zaustavljate motor. Motor se zaustavlja po otpuštanju ručice kočnice motora.

Za provjeru ručice kočnice motora pokrenite motor i potom otpustite ručicu kočnice motora. Ako se motor ne zaustavi za 3 sekunde, podesite kočnicu motora kod servisera tvrtke Husqvarna.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Pregled blokade pokretanja

Diagram of a mechanical clamp or connector assembly with a directional arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Postavite visinu ručke u jednu od dva dostupna položaja.

2. Pomičite kotačiće gore u smjeru ručke dok se ne zaustave uz škljocaj.

CLICK!

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical assembly with a box and wheels, showing a directional arrow (no text or symbols)

Sastavljanje priključka za sječku (dodatna oprema)

Technical line drawing of a vehicle's front wheel assembly with a foot pushpin (no text or symbols)

1. Zamijenite nož s nožem za sječku iz kompleta za sječku. Pogledajte Uklanjanje i zamjena noža na stranici 279.

Rad

Uvod

UPOZORENJE: Prije rada s proizvodom morate pročitati i usvojiti poglavlje o sigurnosti.

Husqvarna Connect

Husqvarna Connect besplatna je aplikacija za mobilni uređaj. Aplikacija Husqvarna Connect pruža vam dodatne funkcije za proizvod Husqvarna.

- Opširnije informacije o proizvodu.

Diagram of a car dashboard with control buttons and icons for battery, battery, and function buttons

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and a separate panel (no text or labels)

1. Postavite bateriju u punjač baterije. Ako je baterija pravilno priključena na punjač baterije, na punjaču se uključuje zeleni indikator.

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Kada na bateriji svijetle svi LED indikatori, baterija je potpuno napunjena. Bateriju punite najdulje 24 sata.

2. Za odspajanje punjača baterije od mrežne utičnice povucite priključak, ne kabel.

3. Izvadite bateriju iz punjača baterije.

Status punjača baterije

Litij-ionsku bateriju tvrtke Husqvarna možete puniti ili upotrebljavati pri bilo kojoj razini napunjenosti. Baterija nije oštećena. Potpuno napunjena baterija neće se prazniti kada je ostavite u punjaču.

LED zaslon Stanje punjenja
Indikator LED 1 treperi 0%	-25%
Svijetli indikator LED 1, indikator LED 2 treperi	25% – 50%
Svijetle indikatori LED 1, LED 2, indikator LED 3 treperi	50% – 75%
Svijetle indikatori LED 1, LED 2, LED 3, indikator LED 4 treperi	75% – 100%
Svijetle indikatori LED 1, LED 2, LED 3 i LED 4	Potpuno napunjena

Line drawing of a car interior showing a door handle and gear shift (no text or symbols)

1. Stanite iza proizvoda.

2. Pritisnite gumb ON/OFF (UKLJUČIVANJE / ISKLJUČIVANJE) (A) na upravljačkoj ploči. Uključuje se zaslon. Indikator baterije (B) pokazuje napunjenost 2 baterije. Broj umetnutih baterija prikazan je pokraj indikatora baterije. Za modele LC 347iV, LC 347iVX, LC 353iV, LC 353iVX na zaslonu se također prikazuje i postavljeni broj okretaja.

B 1 A

1. Otpustite blokadu pokretanja.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a tool with a downward arrow indicating motion (no text or symbols)

Upotreba pogona na kotačima LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

Line drawing of hands holding a device with a hose, showing a curved arrow indicating rotation (no text or symbols)

- Pritisnite + i - na upravljačkoj ploči za postavljanje brzine pogona u 4 koraka.

Diagram of a car dashboard with labeled buttons and icons, including battery, battery, alarm, and function buttons.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

1. Pritisnite gumb ON/OFF (UKLJUČIVANJE / ISKLJUČIVANJE) na upravljačkoj ploči. Isključuju se svi LED indikatori i simboli na zaslonu.

Diagram showing four labeled buttons with icons: minus, I, minus, and plus, connected by an arrow pointing to the I button.

1. Otvorite poklopac baterije i okrenite sigurnosni ključ na 0.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

1. Za vađenje baterije pritisnite 2 gumba za otpuštanje i izvadite bateriju.

Technical diagram showing a mechanical component being inserted into a gear mechanism (no text or symbols present)

1. Zamijenite slabu bateriju. Više informacija potražite pod Zamjena baterije na stranici 275.

Za dobar ishod

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a curved structure with arrows pointing to it, no text or symbols present

Abstract black ink brush strokes on white background, no text or symbols present

1. Nož mora biti poravnat sa središtem vratila motora.
2. Blokirajte nož drvenim blokom. Postavite elastični rasječeni prsten i zategnite vijak i podlošku na zatezni moment od 23 – 28 Nm.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating cycle (no text or symbols)

Diagram showing two crossed-out recycling bins with a recycling symbol and no text labels

Tehnički podaci

Tehnički podaci

	LC 247iX/LC 247i LC 347iVX/LC 347iV LC 353iVX/LC 353iV
Rezni motor
Vrsta motora BLDC (beskontaktni)	36 V	BLDC (beskontaktni)36 V	BLDC (beskontaktni)36 V
Broj okretaja motora – SavE, o/min 2600 2600	2600
Broj okretaja motora – nazivni, o/min 3000 3000	3000
Broj okretaja motora – veliko opterećenje,o/min	3500 3500 3500
Snaga motora – maks. kW 0,96 0,96 1,05
Snaga motora – nazivna, kW 0,75 0,75 0,9
Pogonski motor
Snaga motora – nazivna, kW N/D 0,25 0,25
Brzina samostalnog hoda, km/h N/D 3,0 – 4,5	3,0 – 4,5
Razine prilagodbe brzine N/D 4 4
Težina
Težina bez baterije, kg 24 26 28
Baterija
Vrsta baterije	Serije baterije Husq-varna	Serije baterije Husq-varna	Serije baterije Husq-varna
Trajanje baterije
Trajanje baterije, min, (slobodni pogon) s uk-ljučenom funkcijom SavE, s jednom bateri-jom tvrtke Husqvarna od 5,2 Ah (Bli200).	43 43 32
Trajanje baterije, min, (slobodni pogon) s uk-ljučenom standardnim načinom rada, s jed-nom baterijom tvrtke Husqvarna od 5,2 Ah (Bli200).	30 30 20
Emisije buke ^31
Razina jačine zvuka, mjerena u dB (A)	94 94 97
Razina jačine zvuka, zajamčena LWA dB (A)	95 95 98
Razine buke ^32
Razine tlaka zvuka na uhu rukovatelja, dB (A)	82 82 86
	LC 247iX/LC 247i LC	347iVX/LC 347iV LC 35	3iVX/LC 353iV
Razine vibracije ^33
Ručka, m/s ^2	0,42 0,42 2,64
Rezna oprema
Visina rezanja, mm 20 – 75 mm 20 – 75 mm 20 – 75 mm
Širina rezanja, cm 47 47 53
Standardni nož Skupljanje,	5905934-10	Skupljanje,5905934-10	Skupljanje,5940757-10
Dodatna oprema za nož Malčiranje	5907010-10	Malčiranje5907010-10	Malčiranje5950072-10
Zapremnina sakupljača trave, litri 55 55 60

Podaci o radijskoj frekvenciji za Bluetooth®	LC 247iX LC 347iVX LC	353iVX
Frekvencijski pojas, GHz 2,4 – 2,4835	2,4 – 2,4835 2,4 – 2,4835
Izlazna snaga, maks. dBm 4 4 4

Odobrene baterije Vrsta	Kapacitet baterije, Ah	Napon, V	Težina, lb/kg
BLi20	Litij-ion	4,0	36
BLi200	Litij-ion	5,2	36
BLi300	Litij-ion	9,4	36

Odobreni punjači za navedene baterije, BLi	Ulazni napon, V	Frekvencija, Hz	Snaga, W
QC80	100 – 240	50 – 60	80
QC80F	12	0	80
QC250	100 – 240	50 – 60	250
QC330	100 – 240	50 – 60	330
QC500	100 – 240	50 – 60	500

Izjava o sukladnosti EC

EZ izjava o sukladnosti

Husqvarna AB, SE-561 82 Huskvarna, Švedska, tel: [phone], izjavljuje kako kosilice Husqvarna LC 247i, LC 247iX, LC 347iV, LC 347iVX, LC 353iV, LC 353iVX iz godine 2018 i novije udovoljavaju zahtjevima DIREKTIVE VIJEĆA:

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Motorfékfogantyú

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with a box and wheels, showing a close-up of a component being inserted (no text or symbols present)

Technical illustration of a truck's wheel assembly with a guide mechanism (no text or symbols)

Diagram of a car front panel with labeled buttons and icons for battery, charging, and function controls

Line drawing of a lawn mower with motion arrows indicating maneuver and wheel movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and a control panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car gear shift lever with inset showing internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a handheld device with a black arrow indicating force or adjustment (no text or symbols)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, and function buttons.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Technical diagram showing a device with arrows pointing to internal components, no visible text or symbols

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or reuse.

Műszaki adatok

Műszaki adatok

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram of a mechanical clamp or connector assembly with no visible text or symbols

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

Diagram showing a mechanical device with a box and a gear mechanism, no text or symbols present

Technical illustration of a vehicle's front wheel assembly with a mechanical component below (no text or symbols)

Diagram of a car dashboard with control buttons and navigation icons, including battery, battery flame, and function keys.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car interior showing a device component and a close-up inset (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of a hand holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Per applicare trazione alle ruote LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

Line drawing of hands connecting a device to a plug, with an arrow indicating the cable's direction (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Diagram of a car dashboard with labeled buttons and indicators, including symbols like 'A', 'B', and icons for navigation controls.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Technical line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

Technical diagram showing a device being inserted into a mechanical component (no text or symbols visible)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Diagram of a mechanical gear system with rotating shaft and wooden base (no text or symbols)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating cycle (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Smaltimento

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

モーターブレーキハンドル

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

始動抑制装置の点検

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical illustration of a mechanical assembly with a box and gear, showing a moving cart (no text or symbols)

マルチプラグ（別売り）の組み立て方法

Technical line drawing of a vehicle's wheel assembly and steering wheel (no text or symbols)

Diagram of a car dashboard with control buttons and navigation icons, including directional arrows and function keys.

製品を操作位置にセットする方法

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a wall-mounted electrical outlet connected to a device with warning symbol (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols on the device itself)

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a device with a black arrow indicating force or adjustment (no text or symbols present)

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Technical line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

Technical diagram of a mechanical device with an open lid and internal components, showing no text or symbols.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with directional arrows indicating force or movement (no text or symbols)

Handwritten Chinese characters in a brush script, possibly a signature or annotation

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. ハンドルを前側に折り畳みます。

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. グラスキャッチャーを取り外します。

搬送

Diagram showing two crossed recycling bins with a recycling symbol and a blank base, likely illustrating waste management or recycling rules.

主要諸元

主要諸元

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

Variklio stabdymo rankena

Variklio stabdymo rankena sustabdo variklj. Atleidus variklio stabdymo rankeną variklis sustoja.

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram of a mechanical clamp or connector assembly with a curved pipe and lever mechanism (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical assembly with a box and wheels, showing a directional arrow (no text or symbols)

Technical line drawing of a truck's wheel assembly with a foot pushpin and guide mechanism (no text or symbols)

Diagram of a car front panel with control buttons and icons for battery, battery, battery, and function buttons

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and a wall-mounted device connected to its side (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of a car interior showing a device with a circular component inserted into the intake (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car front panel with battery, battery stop, and control buttons labeled with icons

Diagram of a mechanical or electrical component with curved and straight pipes, no visible text or symbols

Diagram showing four electrical switch symbols with an arrow pointing to a labeled button (I) in a gray box.

Technical line drawing of a car interior showing a gear shift lever and internal components (no text or symbols)

Technical diagram showing a device with arrows pointing to a component inside a vehicle cabin (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base block (no text or symbols)

1. Ranka pasukite peilj ir patikrinkite, ar jis laisvai sukasi.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed bins with a recycling symbol and no text labels

Techniniai duomenys

Techniniai duomenys

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Motora bremžu rokturis

Diagram of a mechanical or electrical component with curved and straight ends, showing a directional arrow (no text or symbols present)

Diagram of a mechanical clamp or connector with a curved arm and directional arrow (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Technical line drawing of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical illustration of a mechanical device with a box and wheels, showing a directional arrow (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool and guide mechanism (no text or symbols)

Diagram of a car front panel with labeled buttons and icons for battery, navigation, and function controls

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car gear shift lever with inset showing internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a black arrow indicating a downward motion (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing five labeled buttons with icons: minus, ⓘ, e, plus, and an arrow pointing to the ⓘ.

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

1. Lai iznemtu akumulatoru, nospiediet abas atbrīvošanas pogas un iznemiet akumulatoru.

Technical diagram showing a device with directional arrows pointing to internal components (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Simple circular diagram with concentric rings and a central arrow, no text or symbols present

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed-out recycling bins with a recycling symbol and no text labels

Tehniskie dati
Tehniskie dati

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a cable or connector assembly with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with curved pipes and a lever mechanism, showing a rotation arrow (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Mulchplug monteren (accessoire)

Technical illustration of a mechanical assembly with a tool and guide mechanism (no text or symbols)

Diagram of a car front panel with labeled buttons and icons for battery, navigation, and function controls

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a battery pack (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

LED-display Laadstatus
LED 1 knippert 0%-25%
Led 1 brandt, led 2 knippert	25%-50%
Led 1 en led 2 branden, led 3 knippert	50%-75%
Led 1, led 2 en led 3 branden, led 4 knippert	75%-100%
Led 1, led 2, led 3, led 4 branden	Volledig opgeladen

Product starten

Line drawing of a car interior showing the dashboard and seat area with a close-up inset of the dashboard (no text or symbols)

Diagram of a mechanical device with curved pipes and a lever mechanism, showing a right-hand rule (no text or symbols)

Illustration of a hand holding a tool with a clip, showing a downward motion (no text or symbols)

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, battery stop, and function buttons.

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Line drawing of a car interior showing a device dial and gear shift (no text or symbols)

Technical illustration of a mechanical device with arrows indicating assembly or operation (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two waste sorting bins with a recycling symbol and crossed-out bins, indicating no disposal or recycling.

Technische gegevens

Technische gegevens

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

Motorbremsehåndtak

Motorbremshåndtaket stopper motoren. Når du slipper motorbremshåndtaket, stopper motoren.

Hvis du vil kontrollere motorbremsen, starter du motoren og slipper deretter motorbremshåndtaket. Hvis motoren ikke stopper innen tre sekunder, må du la et godkjent Husqvarna-serviceverksted justere motorbremsen.

Diagram of a mechanical or electrical component with curved and straight ends, showing a directional arrow (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device connected to a box, with an arrow indicating motion or force direction (no text or symbols present)

Technical line drawing of a mechanical assembly with a foot and guide mechanism (no text or symbols)

Diagram of a car dashboard with control buttons and icons for battery, battery, and function keys

Slik setter du produktet i driftsstilling

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a gear shift mechanism with no visible text or symbols

Line drawing of a device with a warning symbol and cable, no text or labels present

1. Sett batteriet i batteriladeren. Den grønne lampen på laderen tennes när batteriet er riktig koblet til laderen.

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. Når alle LED-indikatorene på batteriet lyser, er batteriet fulladet. Lad batteriet i maks. 24 timer.

2. For å koble laderen fra stikkontakten må du dra i selve støpselet, ikke i ledningen.

3. Fjern batteriet fra batteriladeren.

Batteriladestatus

Line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

1. Stå bak produktet.
2. Trykk på PÅ/AV-knappen (A) på kontrollpanelet. Displayet slås på. Batteriindikatoren (B) viser batterinivået til de to batteriene. Nummeret på batteriet som er i bruk, vises ved siden av batteriindikatoren. For modellene LC 347iV, LC 347iVX, LC 353iV, LC 353iVX viser displayet også den angitte hastigheten.

B 1 A

1. Løsne startsperren.

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Slik brukes hjuldriften LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

Illustration of hands holding a device with a cable, showing a right-hand rule (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation and function buttons

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

1. Trykk på PÅ/AV-knappen på kontrollpanelet. Alle LED-lamper og -symboler på displayet slukkes.

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ button.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical illustration of a mechanical device with an open lid and internal components, showing no text or symbols.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base block (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. Vipp styret forover.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. Tøm oppsamleren.

Transport

Diagram showing two crossed recycling bins with a recycling symbol, likely indicating waste sorting or recycling rules.

Tekniske data

Tekniske data

	LC 247iX/LC 247i LC	347iVX/LC 347iV LC 35	3iVX/LC 353iV
Klippemotor
Motortype BLDC (børsteløs)	36 V	BLDC (børsteløs)36 V	BLDC (børsteløs)36 V
Motorhastighet – SavE, turtall 2600 2600 2600
Motorhastighet – nominell, turtall 3000 3000 3000
Motorhastighet – høybelastning, turtall 3500 3500 3500
	LC 247iX/LC 247i LC 347iVX/LC 347iV LC 358iVX/LC 353iV
Motoreffekt – maks. kW 0,96 0,96 1,05
Motoreffekt – nominell, kW 0,75 0,75 0,9
Drivmotor
Motoreffekt – nominell, kW Ikke tilgjengelig 0,25 0,25
Selvgående hastighet, km/t Ikke tilgjengelig 3,0–4,5 3,0–4,5
Nivåer for hastighetsjustering Ikke tilgjengelig 4 4
Vekt
Vekt uten batteri, kg 24 26 28
Batteri
Batteritype Husqvarna-batterise-rien	Husqvarna-batteriserien	Husqvarna-batteriserien
Batteriets driftstid
Batteriets driftstid, min., (frikjøring) med Sa-vE aktivert, med ett Husqvarna 5,2 Ah-batteri (Bli200)	43 43 32
Batteriets driftstid, min., (frikjøring) med stan-dardmodus aktivert, med ett Husqvarna 5,2 Ah-batteri (Bli200).	30 30 20
Støyutslipp52
Lydeffektnivå, målt dB (A) 94 94 97
Lydeffektnivå, garantert LWA dB (A) 95 95 98
Lydnivåer53
Lydtrykknivå ved brukerens øre, dB (A) 82 82	86
Vibrasjonsnivåer54
Styre, m/s2	0,42 0,42 2,64
Klippeutstyr
Klippehøyde, mm	20–75 mm	20–75 mm	20–75 mm
Klippebredde, cm	47 47 53
Kniv, standard	Oppsamling5905934-10	Oppsamling5905934-10	Oppsamling5940757-10
Knivtilbehør	Mulch 5907010-10	Mulch 5907010-10	Mulch 5950072-10
Gressoppsamlerkapasitet, liter	55 55 60
Informasjon om radiofrekvens for Bluetooth®	LC 247iX LC 347iVX LC	353iVX
Frekvensbånd, GHz 2,4–2,4835 2,4–2	4835 2,4–2,4835
Utgangseffekt, maks. dBm 4 4 4

Godkjente batterier Type Batterikapasitet,	Ah	Spenning, V Vekt, lb/kg
BLi20 Litium-ion 4,0 36 2,6/1,2
BLi200 Litium-ion 5,2 36 2,8/1,3
BLi300 Litium-ion 9,4 36 4,1/1,9

Godkjente ladere for de spesifiserte batteriene, BLi Inngangsspenning, V		Frekvens, Hz Effekt, W
QC80	100–240	50–60	80
QC80F	12	0	80
QC250	100–240	50–60	250
QC330	100–240	50–60	330
QC500	100–240	50–60	500

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

Diagram of a mechanical or electrical component with curved pipes and connectors, no visible text or symbols

Diagram of a mechanical clamp or connector with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical assembly with a box and wheels, showing motion direction (no text or symbols)

Technical illustration of a mechanical assembly with a tool and guide mechanism (no text or symbols)

- Extended product information. - Information about, and help with, product parts and servicing.

Diagram of a car dashboard with control buttons and icons for battery, battery, and function keys

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a wall-mounted switch and warning symbol, connected to an electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Diagram of a car interior showing a gear shift lever and internal components (no text or labels)

Diagram of a mechanical clamp or bracket assembly with a curved pipe and lever mechanism (no text or symbols)

Illustration of hands holding a handheld device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Diagram of a mechanical or electrical component with a curved pipe and attached bracket, showing an upward arrow (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, minus, and plus, connected by an arrow pointing to the ⓘ.

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

Technical diagram showing a device being inserted into a mechanical component (no text or symbols visible)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with a recycling symbol, indicating no waste or non-recyclable disposal.

Dane techniczne

Dane techniczne

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and mode dial (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Verificar o inibidor de arranque

Verifique o inibidor de arranque para se certificar de que este impede o funcionamento do motor.

Diagram of a mechanical clamp or connector assembly with a curved pipe and lever mechanism (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with a handle and internal components, showing a close-up of its internal structure (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Diagram showing a mechanical device with a box and wheels, connected by an arrow indicating motion or force (no text or symbols present)

Technical illustration of a vehicle's front wheel assembly with a mechanical component below (no text or symbols)

Diagram of a car dashboard with control buttons and navigation icons, including battery, battery, and function buttons.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and a control panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of a hand holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Utilizar a transmissão das rodas LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Diagram of a car dashboard with labeled buttons and icons, including symbols like 'A', 'B', and function keys.

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical diagram showing a mechanical component being inserted into a gear mechanism (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no waste, indicating no disposal or recycling.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

Maneta frânei de motor

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or connector assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical illustration of a vehicle's wheel assembly and steering mechanism, showing a bracket and gear assembly (no text or symbols)

Informații despre Bluetooth® (LC 247iX, LC 347iVX, LC 353iVX)

Tecnologia wireless Bluetooth®

Diagram of a car dashboard with control buttons and icons, including battery, switch, battery flame, and function buttons.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a control panel and warning symbol (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Line drawing of a car interior showing a gear shift and mode dial (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Diagram of a mechanical or electrical component with a curved pipe and attached bracket, showing an upward arrow (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus symbol, and plus sign, with an arrow pointing to the circled button.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical diagram showing a mechanical device with arrows pointing to internal components (no text or symbols present)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or non-recyclable disposal.

Dezafectarea

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical assembly with a box and wheels, showing a directional arrow (no text or symbols)

Technical illustration of a truck's wheel assembly with a guide mechanism (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, switch, and function buttons.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and a separate panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a handheld device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a valve, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, and function buttons.

Diagram of a mechanical or electrical component with a curved pipe and connector, showing an upward arrow (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, minus, and plus, connected by an arrow pointing to the ⓘ.

Technical line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

Technical diagram showing a mechanical assembly with arrows indicating direction (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with a recycling symbol and crossed-out box, indicating no waste or non-recyclable disposal.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Kontrola poistky naštartovania

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical illustration of a vehicle's wheel assembly with a foot pushpin and guide mechanism (no text or symbols)

Diagram of a car dashboard with control buttons and navigation icons, including symbols like arrows, blocks, and function keys.

Line drawing of a lawn mower with motion arrows indicating maneuvering motion (no text or symbols)

1. Posuňte gombíky nahor smerom k rukováti, kým sa nezastavia a nebudete počut' kliknutie.

CLICK!

1. Gombíky utiahnite na doraz.

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. Ked' svietia všetky indikátory LED na batérii, batéria je plne nabitá. Batériu nabíjajte maximálne 24 hodín.
2. Pri odpájaní nabíjačky batérií od siet'ovej zásuvky t'ahajte za zástrčku, nie za šnúru.
3. Vyberte batériu z nabíjačky batérií.

Stav nabíjania batérie

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of a hand holding a medical device with a catheter, showing a downward arrow (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

1. Na ovládacom paneli stlačte tlačidlo ON/OFF (Zap./Vyp.). Všetky diódy LED a symboly na displeji zhasnú.

Diagram showing four electrical switch symbols: power source, switch, battery, and meter with plus sign, with an arrow pointing to the switch symbol.

Technical line drawing of a car gear shift lever with inset showing the internal component (no text or symbols)

Technical diagram showing a device being inserted into a mechanical component (no text or symbols visible)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with rotational motion arrows (no text or labels)

1. Skopte držadlo dopredu.

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Roke in noge držite stran od vrtljivih rezil.

Odgovornost proizvajalca

Technical line drawing of a car interior showing a door handle and internal components (no text or symbols)

Motorna zavorna ročica

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Za pregled blokade vžiga

Diagram of a mechanical device with curved pipes and a lever mechanism, showing no text or symbols

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

1. Spodnji del ogrodja zbiralnika za travo vstavite v utor na dnu zbiralnika za travo.

2. Vrečo za travo namestite na ogrodje zbiralnika za travo in ga pritrdite z sponkami.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical assembly with a box and gear mechanism, showing motion direction (no text or symbols)

Technical illustration of a truck's wheel assembly with a guide mechanism (no text or symbols)

1. Rezilo zamenjajte z rezilom za mulčenje, priloženo kompletu za mulčenje. Glejte poglavje Odstranitev in zamenjava rezila na strani 616.

Delovanje

Uvod

OPOZORILO: Pred uporabo izdelka morate prebrati in razumeti poglavje o varnosti.

Husqvarna Connect

Diagram of a car dashboard with control buttons and navigation icons, including battery, switch, and function buttons.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

POZOR: Ne nastavite višino rezanja prenizko. Rezila lahko trčijo ob tla, će površina travnika ni ravna.

Baterija

Line drawing of a device with a warning symbol and a connected electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

1. Ročico motorne zavore potisnite v smer ročaja.

Illustration of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Za pogon koles LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, I, e, and plus, connected by an arrow pointing to the I button.

1. Odprite pokrov baterije in varnostni ključ obrnite v položaj 0.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical diagram showing a device being inserted into a mechanical component (no text or symbols visible)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

1. Odstranite vijak rezila.

2. Odstranite rezilo.

3. Preverite, ali sta nosilec in vijak rezila poškodovana.

4. Preverite motorno gred in se prepričajte, da ni zvita.
5. Ko pritrdite novo rezilo, usmerite nagnjene strani rezila v smer pokrova rezila.

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

1. Prepričajte se, da je rezilo poravnano s središčem motorne gredi.

2. Rezilo blokirajte z leseno klado. Pritrdite podložko vzmeti in privijte vijak in podložko z zateznim momentom 23–28 Nm.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

1. Ročno zavrtite rezilo in se prepričajte, da se prosto obrača.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. Odstranite zbiralnik za travo.

Prevoz

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Tehnični podatki

Tehnični podatki

	LC 247iX/LC 247i LC 347iVX/LC 347iV LC 353iVX/LC 353iV
Motor rezalne enote
Tip motorja BLDC (brezkrtacni	enosmerni) 36 V	BLDC (brezkrtacni enosmerni) 36 V	BLDC (brezkrtacni enosmerni) 36 V
Št. vrt. motorja - SavE, vrt/min 2600 2600 2600
Št. vrt. motorja - nazivno, vrt/min 3000 3000 3000
Št. vrt. motorja - visoka obremenitev, vrt/min 3500 3500 3500
Najvišja izhodna moč motorja v kW 0,96 0,96 1,05
Nazivna izhodna moč motorja v kW 0,75 0,75 0,9
Pogonski motor
Nazivna izhodna moč motorja v kW Ni navedeno 0,25 0,25
Hitrost samohodnega pogona, km/h Ni navedeno 3,0-4,5 3,0-4,5
Stopnje hitrosti Ni navedeno 4 4
Teža
Teža brez baterije v kg 24	26	28
Akumulator
Vrsta baterije	Serija baterij Husqvarna	Serija baterij Husqvarna	Serija baterij Husqvarna
Avtonomija baterije
Avtonomija baterije, najkrajša, (prosto delovanje) z aktivirano funkcijo SavE, z eno baterijo Husqvarna z močjo 5,2 Ah (Bli200).	43	43	32
Avtonomija baterije, najkrajša, (prosto delovanje) z aktiviranim standardnim načinom, z eno baterijo Husqvarna moči 5,2 Ah (Bli200).	30	30	20
Emisije hrupa ^70
Raven zvočne moči, izmerjena v dB(A)	94	94	97
Raven zvočne moči, zajamčena LWA v dB(A)	95 95 98
Nivoji hrupa 71
Nivo zvočnega tlaka pri ušesu operaterja, dB(A)	82 82 86
Ravni vibracij 72
Ročaj, m/s2	0,42 0,42 2,64
Rezalna oprema
Višina reza v mm 20–75 mm 20–75 mm 20–75 mm	mm
Širina reza, cm 47 47 53
Standardno rezilo Za zbiranje	5905934-10	Za zbiranje5905934-10	Za zbiranje5940757-10
Dodatno rezilo Mulčenje 5907010-10 Mulčenje	5907010-10 Mulčenje	5950072-10
Prostornina zbiralnika za travo, litri 55 55 60

Podatki o radijski frekvenci za Bluetooth®	LC 247iX LC 347iVX LC	353iVX
Frekvenčni pas, GHz 2,4-2,4835 2,4-2,4835 2,4-2,4835
Izhodna moč, najv. dBm 4	4	4

Homologirane baterije	Vrsta	Zmogljivost bateri-je, Ah	Napetost, V	Teža, lb/kg
BLi20	Litij-ionska	4,0 36	1,2/2,6
BLi200	Litij-ionska	5,2 36	1,3/2,8
BLi300	Litij-ionska	9,4 36	1,9/4,1

Odobreni polnilniki za določene baterije, BLi Vhodna nape- tost, V		Frekvenca, Hz	Moč, W
QC80	100–240	50–60	80
QC80F	12	0	80
QC250	100–240	50–60	250
QC330	100–240	50–60	330

Odobreni polnilniki za določene baterije, BLi Vhodna nape-tost, V	Frekvenca, Hz Moč, W
QC500 100–240 50–60 500

Izjava ES o skladnosti

Izjava ES o skladnosti

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], izjavlja, da je kosilnica Husqvarna LC 247i, LC 247iX, LC 347iV, LC 347iVX, LC 353iV, LC 353iVX od modelnega leta 2018 dalje v skladu z zahtevami DIREKTIVE SVETA:

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a door handle and internal components (no text or symbols)

Ručica kočnice motora

Ručica kočnice motora zaustavlja motor. Kada je ručica kočnice motora otpuštena, motor se zaustavlja.

Da biste izvršili proveru kočnice motora, pokrenite motor a zatim otpustite ručicu kočnice motora. Ako se motor ne zaustavi u roku od 3 sekunde, neka ovlašćeni Husqvarna servisni agent izvrši podešavanje kočnice motora.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Provera inhibitora pokretanja

Izvršite proveru inhibitora pokretanja kako biste se uverili da sprečava rad motora.

1. Pritisnite ručicu kočnice motora u smeru upravljača. Inhibitor pokretanja zaustavlja kretanje.

2. Pritisnite inhibitor pokretanja ka spolja.

Mechanical diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Stavite ručku u jedan od 2 položaja za visinu.
2. Pomerite dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk.

CLICK!

1. Potpuno zategnite dugmad.

Sklapanje hvatača trave

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

1. Postavite donji deo rama hvatača trave u žleb na dnu hvatača trave.
2. Pričvrstite okvir vreće za travu spojnicama.

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device connected to a box, with an arrow indicating motion or force direction (no text or symbols present)

Postavljanje zatvarača za usitnjavanje (dodatak)

1. Podignite zadnji poklopac i uklonite hvatač trave.
2. Postavite zatvarač za usitnjavanje u kanal za izbacivanje trave.

Technical illustration of a vehicle's wheel assembly with a foot pushpin and directional arrow (no text or symbols)

1. Zamenite nož nožem za usitnjavanje iz kompleta za usitnjavanje. Pogledajte Uklanjanje i zamena sečiva na stranici 642.

Rukovanje

Uvod

Diagram of a car dashboard with control buttons and icons, including battery, switch, and function labels

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

1. Pomerite dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk.

CLICK!

1. Potpuno zategnite dugmad.

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Akumulator je potpuno napunjen kada na njemu svetle sve LED lampice. Punite akumulator najviše 24 sata.
2. Da biste iskopčali punjač akumulatora iz mrežne utičnice, povucite utikač, a ne kabl za napajanje.
3. Izvadite akumulator iz punjača akumulatora.

Status punjenja akumulatora

Husqvarna litijum-jonski akumulator se može puniti ili koristiti na svim nivoima punjenja. Akumulator nije oštećen. Potpuno napunjen akumulator neće smanjiti punjenje kada je akumulator ostavljen na punjaču.

LED displej Status punjenja
LED br. 1 trepće 0%-25%
LED br. 1 svetli, LED br. 2 trepće	25%-50%
LED br. 1, LED br. 2 svet-le, LED br. 3 trepće	50%-75%
LED br. 1, LED br. 2, LED br. 3 svetle, LED br. 4 trepće	75%-100%
LED br. 1, LED br. 2, LED br. 3, LED br. 4 svetle	Potpuno napunjeno

Technical line drawing of a car interior showing a gear shift and component placement (no text or symbols)

1. Stanite iza proizvoda.

2. Pritisnite dugme za uključivanje/isključivanje (ON/OFF) (A) na kontrolnoj tabli. Prikazuje se displej. Indikator akumulatora (B) prikazuje punjenje 2 akumulatora. Broj akumulatora koji je u radu je prikazan pored indikatora akumulatora. Za modele LC 347iV, LC 347iVX, LC 353iV, LC 353iVX, displej takođe prikazuje podešenu brzinu.

B 1 A

1. Olabavite inhibitor pokretanja.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to grip a device, with a downward arrow indicating force or change (no text or symbols present)

Korišćenje pogona na točkićima LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

- Povucite pogonsku osovinu u smeru upravljača da bi se pokrenuo pogon.

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

- Pritisnite + i - na kontrolnoj tabli da biste postavili brzinu pogona u 4 koraka.

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

- Otpustite pritiskivač pogona da biste deaktivirali pogon, na primer, kada se nalazite blizu prepreke.

Korišćenje funkcije

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

1. Pritisnite dugme za uključivanje/isključivanje (ON/OFF) na kontrolnoj tabli. Sve LED lampice i simboli nestaju sa displeja.

Diagram showing four labeled buttons with icons: minus, I, minus, and plus, connected by an arrow pointing to the minus button.

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

1. Da biste uklonili akumulator, pritisnite 2 dugmeta za otpuštanje i izvucite akumulator.

Technical diagram showing a mechanical component being inserted into a gear mechanism (no text or symbols present)

1. Napunite akumulator ako je prazan. Za više informacija pogledajte Punjenje akumulatora na stranici 638.

Za dobre rezultate

• Uvek koristite oštro sečivo. Tupo sečivo daje neujednačeni rezultat i pokošena površina trave postaje žuta. Oštro sečivo takođe koristi manje energije nego tupo sečivo.
• Nemojte kositi više od 13 dužine trave. Prvo kosite sa visokom visinom košenja. Pregledajte rezultat i spustite visinu košenja na prihvatljivi nivo. Ako je trava zaista visoka, vozite polako i kosite dvaput ako bude potrebno.
• Kosite u različitim smerovima svaki put da biste izbegli pruge na travnjaku.

Košenje trave bez hvatača trave i zatvarača za usitnjavanje

• Podignite zadnji poklopac i uklonite hvatač trave.
• Ako su postavljeni zatvarač za usitnjavanje i nož za usitnjavanje, uklonite ih.
• Zatvorite zadnji poklopac pre rada proizvodom.

Kad koristite proizvod, pokošena trava se izbacuje ispod zadnjeg poklopca.

Održavanje

Uvod

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Uklonite vijak sečiva.

2. Uklonite sečivo.

3. Pregledajte nosač sečiva i vijak sečiva kako biste videli postoje li oštećenja.

4. Pregledajte osovinu motora kako biste se uverili da nije savijena.
5. Kada postavite novo sečivo, usmerite savijene krajeve sečiva u smeru poklopca košenja.

Diagram showing a blade cutting through a curved structure with arrows indicating direction (no text or symbols)

1. Pobrinite se da je sečivo poravnato sa sredinom osovine motora.
2. Blokirajte sečivo pomoću komada drveta. Postavite opružnu podlošku i zategnite vijak i podlošku na moment pritezanja od 23 do 28 Nm.

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

1. Povucite sečivo rukom da biste proverili da li se slobodno okreće.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

3. Sklopite ručku unapred.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

4. Uklonite hvatač trave.

Transport

• Zahtevi u pogledu transporta opasnih materija primenjuju se na sadržane litijum-jonske akumulatore.
• Za komercijalni transport moraju se poštovati posebni zahtevi koji su navedeni na pakovanju i nalepnicama.
• Pobrinite se da se pridržavate propisa za transport opasnih materija prilikom pripreme proizvoda za transport. Lokalni propisi se mogu primenjivati.
  • Uvek uklonite akumulator pre transporta.
• Stavite traku na konektore akumulatora i uverite se da se akumulator ne može pomerati tokom transporta.
  • Fiksirajte proizvod tokom transporta.

Skladištenje

• Uvek uklonite akumulator pre skladištenja.

• Kako bi se sprečili nesrećni slučajevi, uverite se da akumulator nije povezan na proizvod tokom skladištenja.

• Držite punjač akumulatora u zatvorenom i suvom prostoru.

• Držite akumulator i punjač akumulatora u suvom prostoru gde nema vlage ili mraza.
• Iskopčajte akumulator sa punjača akumulatora tokom skladištenja.
• Ne čuvajte akumulator na mestima gde može doći do statičkog pražnjenja. Ne čuvajte akumulator u metalnoj kutiji.
• Čuvajte akumulator na mestu gde je temperatura između 5 °C i 25 °C i van direktne sunčeve svetlosti.
• Čuvajte punjač akumulatora na mestu gde je temperatura između 5 °C i 45 °C i van direktne sunčeve svetlosti.
• Pobrinite se da je akumulator napunjen na 30% - 50% pre skladištenja na duži vremenski period.
• Čuvajte proizvod, akumulator i punjač akumulatora na zaključanom mestu izvan domašaja dece i neovlašćenih osoba.
• Očistite proizvod i izvršite kompletno servisiranje pre nego što uskladištite proizvod na duži vremenski period.

Odlaganje

Simboli na proizvodu ili njegovom pakovanju ukazuju na to da se ovim proizvodom ne može rukovati kao otpadom iz domaćinstva. On se mora odneti u odgovarajući reciklažni pogon za obnavljanje električne i elektronske opreme.

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Tehnički podaci

Tehnički podaci

	LC 247iX/LC 247i LC	347iVX/LC 347iV LC 35	3iVX/LC 353iV
Motor košenja
Tip motora BLDC (bez četkica)	36 V	BLDC (bez četkica)36 V	BLDC (bez četkica)36 V
Brzina motora – SavE, o/min 2600 2600 2600
Brzina motora – nominalna, o/min 3000 3000	3000
Brzina motora – veliko opterećenje, o/min 3500	3500 3500
Izlazna snaga motora – maks. kW 0,96 0,96 1	05
Izlazna snaga motora – nominalna, kW 0,75 0	75 0,9
Pogonski motor
Izlazna snaga motora – nominalna, kW Nije dostupno 0,25 0,25
Brzina samostalnog hoda, km/h Nije dostupno	3,0-4,5 3,0-4,5
Nivoi podešavanja brzine Nije dostupno 4 4
Težina
Težina bez akumulatora, kg 24 26 28
Akumulator
Vrsta akumulatora	Husqvarna serijaakumulatora	Husqvarna serijaakumulatora	Husqvarna serijaakumulatora
Vreme rada akumulatora
	LC 247iX/LC 247i LC	347iVX/LC 347iV LC 358	iVX/LC 353iV
Vreme rada akumulatora, min, (slobodan rad) sa aktiviranom funkcijom SavE, sa jednim Husqvarna 5,2 Ah akumulatorom (Bli200).	43 43 32
Vreme rada akumulatora, min, (slobodan rad) sa aktiviranim standardnim režimom, sa jednim Husqvarna 5,2 Ah akumulatorom (Bli200).	30 30 20
Emisija buke ^73
Nivo zvučne snage, mereno dB (A) 94 94 97
Nivo zvučne snage, garantovano L _WA dB (A) 95 95 98
Nivoi zvuka ^74
Nivo zvučnog pritiska na uho rukovaoca, dB (A)	82 82 86
Nivoi vibracije ^75
Ručka, m/s ^2	0,42 0,42 2,64
Oprema za rezanje
Visina košenja, mm 20-75 mm 20-75 mm 20-75 mm
Širina košenja, cm 47 47 53
Sečivo Standard Collect 5905934-10 Collect 5905934-10 Collect 5940757-10
Oprema za sečivo Mulch 5907010-10 Mulch 5907010-10 Mulch 5950072-10
Kapacitet hvatača trave, litara 55 55 60

Podaci o radio frekvenciji za Bluetooth®	LC 247iX LC 347iVX LC	353iVX
Opseg frekvencije, GHz 2,4-2,4835 2,4-2,4835 2,4-2,4835
Izlazna snaga, maks. dBm	4	4	4

Odobreni akumulatori	Tip	Kapacitet akumulatora, Ah	Napon, V	Težina, lb/kg
BLi20	Litijum-jonski	4,0	36	2,6/1,2
BLi200	Litijum-jonski	5,2	36	2,8/1,3

Odobreni akumulatori Tip Kapacitet akumula-	tora, Ah	Napon, V Težina, lb/kg
BLi300 Litijum-jonski 9,4 36 4,1/1,9

Odobreni punjači za navedene akumulatore, BLi Ulazni na pon, V Frekvencija, Hz Snaga, W
QC80 100–240 50–60 80
QC80F 12 0 80
QC250 100–240 50–60 250
QC330 100–240 50–60 330
QC500 100–240 50–60 500

EZ deklaracija o usaglašenosti

EZ deklaracija o usaglašenosti

Husqvarna AB, SE-561 82 Huskvarna, Švedska, tel: [phone], izjavljuje da je kosačica Husqvarna LC 247i, LC 247iX, LC 347iV, LC 347iVX, LC 353iV, LC 353iVX od godine 2018 i nadalje, usaglašena sa zahtevima DIREKTIVE VEĆA:

• od 8. juna 2011, o „ograničenju upotrebe određenih opasnih supstanci“ 2011/65/EU
• od 17. maja 2006., „u vezi sa mašinerijom“ 2006/42/EZ
• od 26. februara 2014, „koja se odnosi na elektromagnetnu kompatibilnost“ 2014/30/EU
• od 8. maja 2000, „koja se odnosi na emisije buke u okruženju“ 2000/14/EZ

Za informacije o emisiji buke, pogledajte odeljak Tehnički podaci.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Motorbromsbygel

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical device with a box and wheels, showing a directional arrow (no text or symbols present)

Montera mulchingpluggen (tillbehör)

Technical line drawing of a vehicle's wheel assembly and steering wheel (no text or symbols)

Diagram of a car dashboard with control buttons and icons for battery, battery, and function buttons

Line drawing of a lawn mower with motion arrows indicating maneuver and angle (no text or symbols)

Mechanical assembly diagram showing gear shift and mounting mechanism (no text or symbols)

Diagram showing a device control panel with numbered labels pointing to its internal components, including a warning symbol and a labeled output box.

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a power adapter (no text or labels)

Line drawing of a portable power supply unit with a black arrow pointing to its left side (no text or symbols on the device itself)

Diagram of a car gear shift lever with inset showing the internal component (no text or symbols)

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car front panel with labeled buttons and icons, including navigation and function buttons

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Technical line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Technical diagram showing a mechanical component being inserted into a gear mechanism (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade cutting through a curved channel with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Vik handtaget framåt.


Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Tekniska data

Tekniska data

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Motor fren kolu

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a mechanical device with a box and gear assembly, showing motion direction (no text or symbols)

Technical illustration of a vehicle's wheel assembly with a mechanical component, showing no text or symbols.

Diagram of a car front panel with battery, battery check, and control buttons labeled with icons

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing gear meshing and mounting mechanism (no text or labels)

Line drawing of a device with a warning symbol and a vertical panel (no text or labels)

Line drawing of a mechanical device with a black arrow pointing to its top component (no text or symbols present)

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Tekerleklerde tahrikin kullanılması LC 347iV, LC 347iVX, LC 353iV, LC 353iVX

Line drawing of hands connecting a device to a plug, with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled icons (circle with minus, square with number 1, circle with letter, plus) pointing to a black arrow between the first icon.

Line drawing of a car gear shift lever with inset showing the mode dial (no text or symbols)

Diagram showing a device being inserted into a mechanical component, with arrows indicating the process (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a blade cutting through a curved structure with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed bins with a recycling symbol and no text labels

Teknik veriler

Teknik veriler

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with a handle and internal components, showing a close-up of its internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical illustration of a vehicle's wheel assembly with a guide mechanism (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons for battery, navigation, and function controls

Line drawing of a lawn mower with motion arrows indicating maneuver and angle (no text or symbols)

Mechanical assembly diagram showing gear meshing and mounting mechanism (no text or labels)

Diagram showing a device control panel with four labeled buttons and a separate output device, likely illustrating a device status or status.

Line drawing of a device with a warning symbol and a wall-mounted switch (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Line drawing of hands holding a medical device with a clip, no text or symbols present

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car front panel with labeled buttons and icons, including navigation and function labels

Diagram of a car dashboard with labeled buttons and icons, including labels A and B pointing to specific controls.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ID, minus symbol, and plus sign, with an arrow pointing to the ID button.

Technical line drawing of a car interior showing a gear shift and mode dial (no text or symbols)

Technical diagram showing a mechanical component being inserted into a gear mechanism (no text or symbols present)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

手和脚远离正在旋转的刀片。

产品责任

Technical line drawing of a car interior showing a door handle and internal components (no text or symbols)

电机制动手柄

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

检查启动禁止器

检查启动禁止器，确保它能防止电机运转。

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and wheels, connected by an arrow indicating motion (no text or symbols present)

装配地面覆盖插件（附件）

Technical illustration of a vehicle's parking and steering mechanism, showing a ramp and wheel assembly (no text or symbols)

Diagram of a car dashboard with control buttons and icons for battery, battery, battery, and function buttons

将产品设置在工作位置

1. 将手柄折起到竖直位置。

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing gear and wheel components with directional arrows (no text or labels)

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols on the device itself)

Technical line drawing of a car interior showing a gear shift and mode dial (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever (no text or symbols)

1. 朝手柄杆 方向推动电机制动手柄。

Line drawing of hands holding a device with a clip, showing a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, and function buttons.

Diagram of a mechanical or electrical component with curved and straight ends, showing a directional arrow (no text or symbols present)

Diagram showing four electrical switch symbols with an arrow pointing to the current symbol inside a square.

1. 打开电池盖，将安全钥匙转至 0。

Technical line drawing of a car interior showing a gear shift and internal components (no text or symbols)

Technical illustration of a mechanical device with arrows indicating assembly or operation (no text or symbols present)

Circular diagram with concentric rings and a central arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a blade cutting through a curved channel with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

1. 用手拉住刀片旋转，确保刀片转动自如。

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. 向前折叠手柄。

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

1. 拆下集草袋。

运输

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

技术参数
技术参数

Black and white barcode image with vertical lines on both sides
