Product type	Cordless hammer drill
Brand	Black & Decker
Model	MTHD5
Rated voltage	14.4 V
No-load speed (1st gear)	0 - 450 min⁻¹
No-load speed (2nd gear)	0 - 1450 min⁻¹
Maximum torque	26 Nm
Chuck capacity	10 mm
Drilling capacity steel	10 mm
Drilling capacity wood	25 mm
Drilling capacity masonry	10 mm
Weight (with battery)	1.4 kg
Sound pressure level (LpA)	86.3 dB(A)
Sound power level (LwA)	97.3 dB(A)
Vibration (hammer drilling, concrete)	11.7 m/s² (uncertainty 1.5 m/s²)
Power supply	Li-Ion battery (not included)
Hammer function	Yes, adjustable via the collar
Intended use	Domestic (screwing, drilling wood/metal/plastic/masonry)
Safety	Double insulation, auxiliary handle, insulated gripping surfaces
Warranty	2 years (parts and labor)
Included accessories	Auxiliary handle (depending on version)
Maintenance	Clean with a dry cloth, store in a dry place

Frequently Asked Questions - MTHD5 BLACK & DECKER

How to change the drill bit on the Black & Decker MTHD5?

Remove the battery. Open the chuck by turning the ring counterclockwise, insert the bit, then tighten by turning clockwise. Ensure the bit is centered.

How to activate the hammer function?

Turn the collar (figure A) until the hammer symbol (a hammer or a T) aligns with the marker. Use 2nd gear for masonry drilling.

Which battery is compatible with the MTHD5?

The MTHD5 is compatible with Li-Ion 14.4 V batteries from the Black & Decker range, including models MT143, MT350, MT108 and MT18.

How to maintain the hammer drill?

Clean the tool with a dry cloth after each use. Do not use solvents. Regularly check the condition of the chuck and carbon brushes (if accessible). Store in a dry and dust-free place.

Can I use the MTHD5 for screwing?

Yes, set the speed selector to 1st gear (rear position) for screwing. Use a suitable bit for the screw. For a tight screw, lubricate with soap or dish soap.

What to do if the chuck does not tighten properly?

Ensure the chuck is clean. If the problem persists, the mechanism may be damaged. Contact an authorized Black & Decker repair center.

How to drill into concrete with this model?

Use a suitable hammer drill bit (carbide). Set the collar to hammer position and select 2nd gear. Apply moderate constant pressure. Wear hearing protection.

Is the MTHD5 delivered with a battery?

No, the MTHD5 is generally sold as a bare tool (without battery or charger). Check the packaging or product sheet to confirm contents.

What is the warranty period?

Black & Decker offers a 2-year warranty from the date of purchase for any material or manufacturing defects. Keep the proof of purchase.

How to change the speed?

The speed selector is located on top of the tool. Push it forward for 2nd gear (fast drilling) and backward for 1st gear (screwing and slow drilling).

USER MANUAL MTHD5 BLACK & DECKER

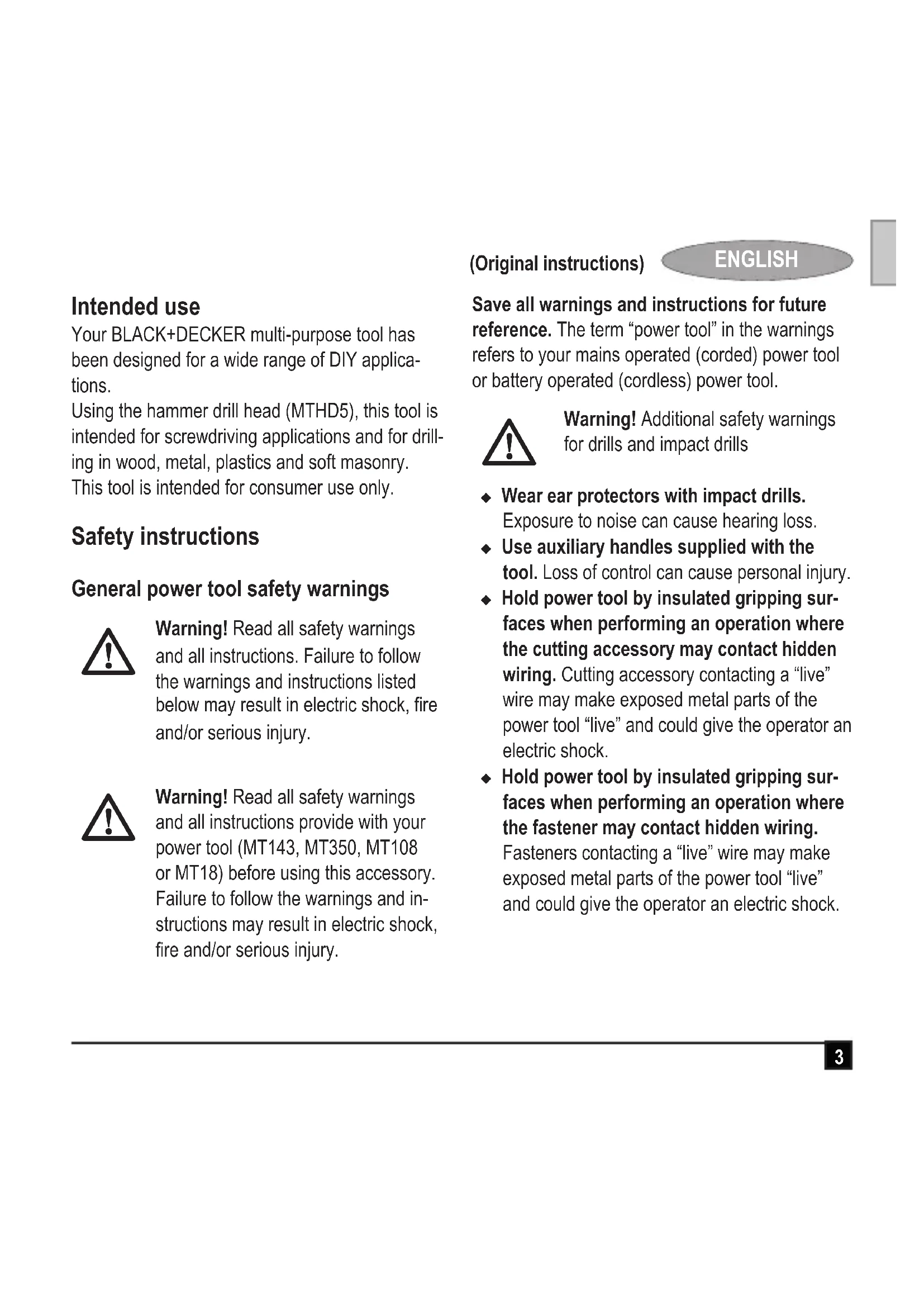

Your BLACK+DECKER multi-purpose tool has been designed for a wide range of DIY applications.

Using the hammer drill head (MTHD5), this tool is intended for screwdriving applications and for drilling in wood, metal, plastics and soft masonry.

This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Warning! Read all safety warnings and all instructions provide with your power tool (MT143, MT350, MT108 or MT18) before using this accessory. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

(Original instructions)

ENGLISH

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

Warning! Additional safety warnings for drills and impact drills

Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Hold power tool by insulated gripping surfaces when performing an operation where the fastener may contact hidden wiring.

Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ENGLISH

(Original instructions)

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.
Avoid touching the tip of a drill bit just after drilling, as it may be hot.
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Features (fig. A)

Tool shown is MT143. Other tools are available for use with this tool head.

This tool includes some or all of the following features.

1. Torque adjustment collar
2. Speed selector

Assembly

Warning! Before assembly, remove the battery from the tool.

Use

Warning! Let the tool work at its own pace. Do not overload.

Drilling in masonry (fig. D & E)

For drilling in masonry, set the torque adjustment collar (8) to the hammer drilling position by aligning the symbol with the marking.
Slide the speed selector (10) towards the front of the tool (2nd gear).

Note: For other torque adjustment collar settings and features, refer to the manual provided with your power tool.

Speed selector (fig. E)

For drilling in steel and for screwdriving applications, slide the speed selector (10) towards the rear of the tool (1st gear).
For drilling in materials other than steel, slide the speed selector (10) towards the front of the tool (2nd gear).

Hints for optimum use

Drilling

Always apply a light pressure in a straight line with the drill bit.
Just before the drill tip breaks through the other side of the workpiece, decrease pressure on the tool.
Use a block of wood to back up workpieces that may splinter.
Use spade bits when drilling large diameter holes in wood.
Use HSS drill bits when drilling in metal.
Use masonry bits when drilling in soft masonry.
Use a lubricant when drilling metals other than cast iron and brass.
Make an indentation using a centre punch at the centre of the hole to be drilled in order to improve accuracy.

(Original instructions)

ENGLISH

Screwdriving

Always use the correct type and size of screwdriver bit.
If screws are difficult to tighten, try applying a small amount of washing liquid or soap as a lubricant.
Always hold the tool and screwdriver bit in a straight line with the screw.

Accessories

The performance of your tool depends on the accessory used. BLACK+DECKER and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

Technical data

		MTHD5 (14.4 V) (H1)	MTHD5 (Max) (H1)
No-load speed min	-1	0-450	0-480
		0-1450	0-1550
Max. torque	Nm 26	26
Chuck capacity	mm 10	10
Max Drilling capacity
Steel/wood/ masonry	mm	10/25/10 10/25/10
Weight	kg 1.4	1.4

Level of sound pressure according to EN 60745:

Sound pressure (LpA) 86.3 dB(A), uncertainty (K) 3 dB(A)

Sound power (LWA) 97.3 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Screwdriving without impact (ah, s) < 2.5 m/s2, uncertainty (K) 1.5 m/s2

Drilling into metal (ah, d) < 2.5 m/s2, uncertainty (K) 1.5 m/s2

Impact drilling into concrete (ah, ID) 11.7 m/s2, uncertainty (K) 1.5 m/s2

Guarantee

BLACK+DECKER is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a BLACK+DECKER product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or BLACK+DECKER service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk

(Original instructions)

ENGLISH

EC declaration of conformity MACHINERY DIRECTIVE

MTHD5

BLACK+DECKER declares that these products described under "technical data" are in compliance with:

2006/42/EC, EN60745-1, EN60745-2-1, EN60745-2-2

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Stanley Europe at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of BLACK+DECKER.

R.Laverick

Engineering Manager

BLACK+DECKER Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD

United Kingdom

05/08/2014
