Product Type	Cordless Hammer Drill
Brand	Black & Decker
Model	EGBL180
Voltage	18 V DC
No-load Speed	0-650 /min
Maximum Torque (Drill)	15 Nm (PTI) / 28 Nm (max)
Chuck Capacity	10 mm (keyless)
Drilling Capacity (Steel)	10 mm
Drilling Capacity (Wood)	25 mm
Battery Type	Lithium-Ion (BL1518)
Battery Capacity	1.5 Ah
Battery Weight	0.38 kg
Charger Input	230 V AC
Charger Output	2 A DC
Charge Time	Approx. 40 min
Weight (with battery)	Approx. 1.2 kg (estimated)
Variable Speed	Yes (trigger controlled)
Forward/Reverse	Yes (slider)
Torque Adjustment	Yes (collar with multiple settings)
Drilling Mode	Drill, screwdriver, hammer (via collar)
Maintenance	Clean vents with soft brush; wipe motor housing with damp cloth; periodically tap chuck to remove dust
Safety Features	Lock-off slider; double insulated charger; automatic shut-off on overload
Included Accessories	Charger, battery, bit holder (possibly)
Operating Temperature (Charging)	4 °C to 40 °C

Frequently Asked Questions - EGBL180 BLACK & DECKER

How do I charge the battery for the first time?

Charge the battery for at least 1 hour using the supplied charger. The first charge will only reach 80% capacity; full capacity is achieved after several charge and discharge cycles. Ensure ambient temperature is between 4°C and 40°C.

What is the torque setting for driving screws?

The torque adjustment collar has multiple settings. Start with the lowest setting and increase until the clutch engages before the screw is fully driven. Use higher torque for larger screws and harder materials.

Can I drill into masonry with this drill?

Yes, set the mode selector collar to the hammer drilling position (indicated by a hammer symbol). Use masonry drill bits and apply light pressure. For soft masonry, standard masonry bits work; for harder materials, consider a rotary hammer.

How do I change the drill bit?

The tool has a keyless chuck. Hold the rear half of the chuck and rotate the front half counterclockwise to open. Insert the bit, then tighten by rotating the front half clockwise. Do not over-tighten.

Why is the battery not charging?

Check that the battery is fully inserted into the charger. The charger LED should flash green during charging. If it is solid green, the battery may be fully charged or too hot (above 40°C). Let it cool for an hour and try again. If still not charging, the battery may be defective.

What should I do if the tool stops working?

The tool has an automatic shut-off if overload current is exceeded. Disconnect the battery, let it cool, and reduce the load. If it still does not work, take it to an authorized service center. Do not attempt to repair yourself.

How do I clean and maintain the drill?

Regularly clean ventilation slots with a soft brush or dry cloth. Wipe the motor housing with a damp cloth (no solvents). Open the chuck and tap it to remove dust. Keep the charger dry and clean.

Can I use any Black & Decker battery with this model?

Only use batteries specifically designated for this tool, such as the BL1518 (18V Li-Ion). Using other batteries may cause injury or fire. The battery pack must be compatible with the Black & Decker charger.

What is the correct way to store the drill?

Store in a dry place away from children. Remove the battery for long-term storage. Avoid storing where temperature exceeds 40°C. Keep the tool in its original case or a protective bag.

How do I dispose of the battery?

Run the battery down completely, then remove it from the tool. Li-Ion batteries are recyclable. Take them to an authorized repair agent or local recycling station. Do not dispose of with household waste.

USER MANUAL EGBL180 BLACK & DECKER

EGBL144

Australia

New ZealandEGE

Illustration of two hands assembling a device component, showing a close-up of the part (no text or symbols present)

Illustration of hands assembling a device with an arrow indicating motion (no text or symbols present)

EGBL144/ EGBL180 CORDLESS DRILL

Technical data

		EGBL144	EGBL180
Voltage V	DC	14.4	18
No-load speed /min		0-650	0-650
Max. torque	Nm	12*/23	15*/28
Chuck capacity	mm	10	10
Max. drilling capacity
Steel	mm	10	10
Wood mm		25	25
Charger
Input Voltage	V_AC	230	230
Output Current(DC) A		2	2
Approx. charge time min		40	40
Battery		BL1514	BL1518
Capacity Ah		1.5	1.5
Type		Lithium-Ion	Lithium-Ion
Weight	kg	0.30	0.38

* Using PTI rating standard

Intended use

Your Black & Decker drill has been designed for drilling in wood, metal and plastics. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

1. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

1. Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional power tool safety warnings

Warning! Additional safety warnings for drills and impact drills

• Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock
• Hold power tool by insulated gripping surfaces when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock
• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
  Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.
• Avoid touching the tip of a drill bit just after drilling, as it may be hot.
• This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Additional safety instructions for batteries and chargers

Batteries

• Never attempt to open for any reason.
• Do not expose the battery to water.

• Do not store in locations where the temperature may exceed 40 °C.

• Charge only at ambient temperatures between 4 °C and 40 °C.

• Charge only using the charger provided with the tool.
• When disposing of batteries, follow the instructions given in the section "Protecting the environment".

Do not attempt to charge damaged batteries.

Chargers

Use your Black & Decker charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
- Never attempt to charge non-rechargeable batteries.
- Have defective cords replaced immediately.
- Do not expose the charger to water.
- Do not open the charger.
- Do not probe the charger.

The charger is intended for indoor use only.

Read the instruction manual before use.

The tool automatically shuts off if the rated current is exceeded for a longer period of time. As a consequence the tool will be inoperable. The unit must be disconnected from the mains supply and taken to an authorised service centre for repair.

Charge only at ambient temperatures between 4 °C and 40 °C.

Charging process completed (The LED lights green continuously.)

Charging (The LED lights up flashing green.)

Labels on tool

The following pictograms are shown on the tool:

WARNING! To reduce the risk of injury, user must read the instruction manual.

Electrical safety

Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating

plate. Never attempt to replace the charger unit with a regular mains plug.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Features

This tool includes some or all of the following features.

1. Variable speed switch
2. Forward/reverse slider
3. Mode selector / torque adjustment collar
4. Chuck
5. Battery
6. Battery release button
7. Charger

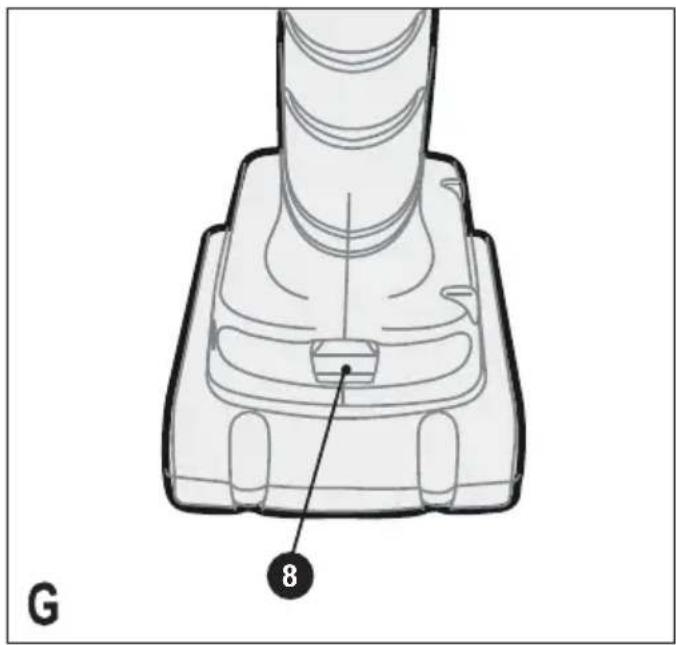

8. Bit holder

Assembly

Warning! Before assembly, remove the battery from the tool.

Fitting and removing the battery (fig. B & C)

• To fit the battery (5), line it up with the receptacle on the tool. Slide the battery into the receptacle and push until the battery snaps into place.
• To remove the battery, push the release button (6) while at the same time pulling the battery out of the receptacle.

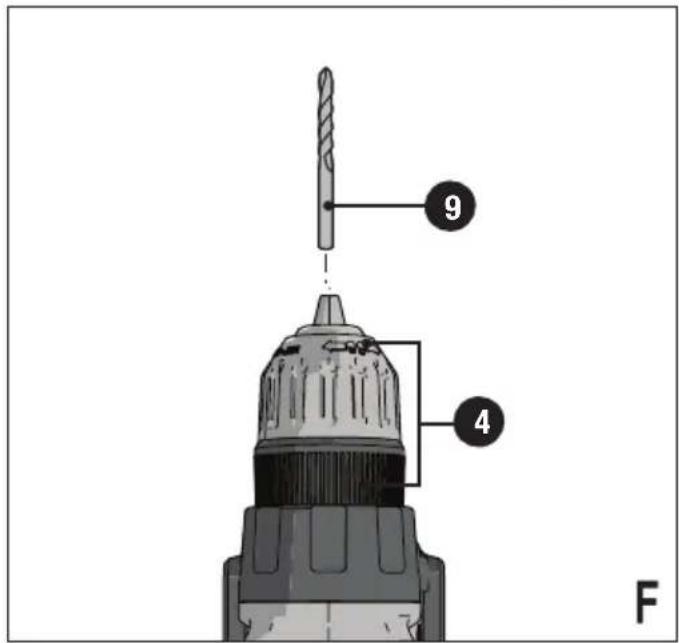

Fitting and removing a drill bit or screwdriver bit (fig. F)

This tool is fitted with a keyless chuck to allow for an easy exchange of bits.

• Grasp the rear half of the chuck (4) with one hand and use your other hand to rotate the front half in the counterclockwise direction, as viewed from the chuck end.
• Insert the bit shaft (9) into the chuck.
• Firmly tighten the chuck by holding the rear half of the chuck and rotating the front portion in the clockwise direction as viewed from the chuck end.

Removing and refitting the chuck (fig. F)

• Open the chuck as far as possible.
• Remove the chuck retaining screw by turning it clockwise using a screwdriver.
• Tighten an Allen key into the chuck and strike it with a hammer as shown.
• Remove the Allen key.
• Remove the chuck by turning it counterclockwise.
• To refit the chuck, screw it onto the spindle and secure it with the chuck retaining screw.

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any rotating/moving parts.
• Injuries caused when changing any parts, blades or accessories.
• Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
• Impairment of hearing.
• Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Use

Warning! Let the tool work at its own pace. Do not overload.

Charging the battery

The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. When charging the battery for the first time, or after prolonged storage, it will only accept an 80% charge. After several charge and discharge cycles, the battery will attain full capacity. The battery may become warm while charging; this is normal and does not indicate a problem.

Warning! Do not charge the battery at ambient temperatures below 4 °C or above 40 °C. Recommended charging temperature: approx. 24 °C.

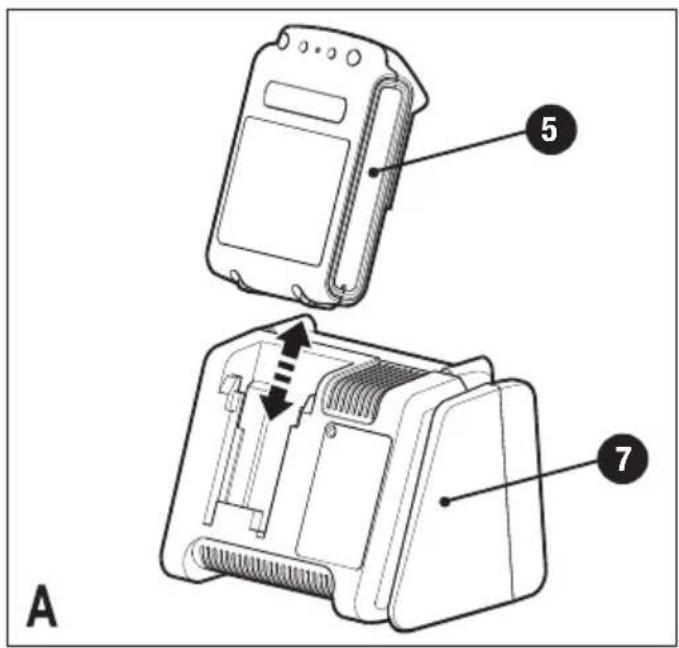

Charger with charger receptacle (fig. A)

• To charge the battery (5), remove it from the tool and insert it into the charger (7). The battery will only fit into the charger in one way. Do not force. Be sure that the battery is fully seated in the charger.
• Plug in the charger.
• Check if the charging indicator is flashing green. If the charging indicator lights up is green continuously, the

battery is either fully charged or too hot and cannot be charged. If this happens, remove the battery from the charger,

let the battery cool down for approx. 1 hour and re-insert it.

After approx. 1 hour of charging, the charging indicator will change colour from flashing green to green continuously. The battery is now fully charged.

- Remove the battery from the charger.

Selecting the direction of rotation (fig.D)

For drilling and for tightening screws, use forward (clockwise) rotation. For loosening screws or removing a jammed drill bit, use reverse (counterclockwise) rotation.

• To select forward rotation, push the forward/reverse slider (2) to the left.
• To select reverse rotation, push the forward/reverse slider to the right.
• To lock the tool, set the forward/reverse slider into the centre position.

Selecting the torque (fig. E)

This tool is fitted with a collar to select the operating mode and to set the torque for tightening screws. Large screws and hard workpiece materials require a higher torque setting than small screws and soft workpiece materials. The collar has a wide range of settings to suit your application.

• For drilling in wood, metal and plastics, set the collar (3) to the drilling position by aligning the symbol on the collar.
• For screwdriving, set the collar to the desired setting. If you do not yet know the appropriate setting, proceed as follows:

- Set the collar (3) to the lowest torque setting.

- Tighten the first screw.

- If the clutch ratchets before the desired result is achieved, increase the collar setting and continue tightening the screw. Repeat until you reach the correct setting. Use this setting for the remaining screws.

Switching on and off

Variable speed switch

◆ To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the switch.
◆ To switch the tool off, release the variable speed switch.

Hints for optimum use

Drilling

◆ Always apply a light pressure in a straight line with the drill bit.
- Just before the drill tip breaks through the other side of the workpiece, decrease pressure on the tool.
- Use a block of wood to back up workpieces that may splinter.
◆ Use spade bits when drilling large diameter holes in wood.
◆ Use HSS drill bits when drilling in metal.
◆ Use masonry bits when drilling in soft masonry.
- Use a lubricant when drilling metals other than cast iron and brass.
◆ Make an indentation using a centre punch at the centre of the hole to be drilled in order to improve accuracy.

Screwdriving

◆ Always use the correct type and size of screwdriver bit.
- If screws are difficult to tighten, try applying a small amount of washing liquid or soap as a lubricant.
◆ Always hold the tool and screwdriver bit in a straight line with the screw.

Maintenance

Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Your charger does not require any maintenance apart from regular cleaning.

Warning! Before performing any maintenance on the tool, remove the battery from the tool. Unplug the charger before cleaning it.

• Regularly clean the ventilation slots in your tool and charger using a soft brush or dry cloth.
• Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
• Regularly open the chuck and tap it to remove any dust from the interior.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Batteries

Black & Decker batteries can be recharged many times. At the end of their useful life, discard batteries with due care for our environment:

• Run the battery down completely, then remove it from the tool.
  ◆ NiCd, NiMH and Li-Ion batteries are recyclable. Take them to any authorised repair agent or a local recycling station.

Notes

• Black & Decker's policy is one of continuous improvement to our products and, as such, we reserve the right to change product specifications without prior notice.
  ◆ Standard equipment and accessories may vary by country.
  ◆ Product specifications may differ by country.
  ◆ Complete product range may not be available in all countries. Contact your local Black & Decker dealers for range availability.

Australia

Stanley Black & Decker Tel. [phone]

82 Taryn Drive, Epping Vic, 3076,

Australia

New Zealand

Stanley Black & Decker Tel. [phone]

5 Te Apunga Place Mt Wellington,

Auckland, New Zealand
