USER MANUAL S_CS501DC Vonroc

White icon of a saw cutting through a circular cutter (no text or symbols)

EN Original Instructions 05

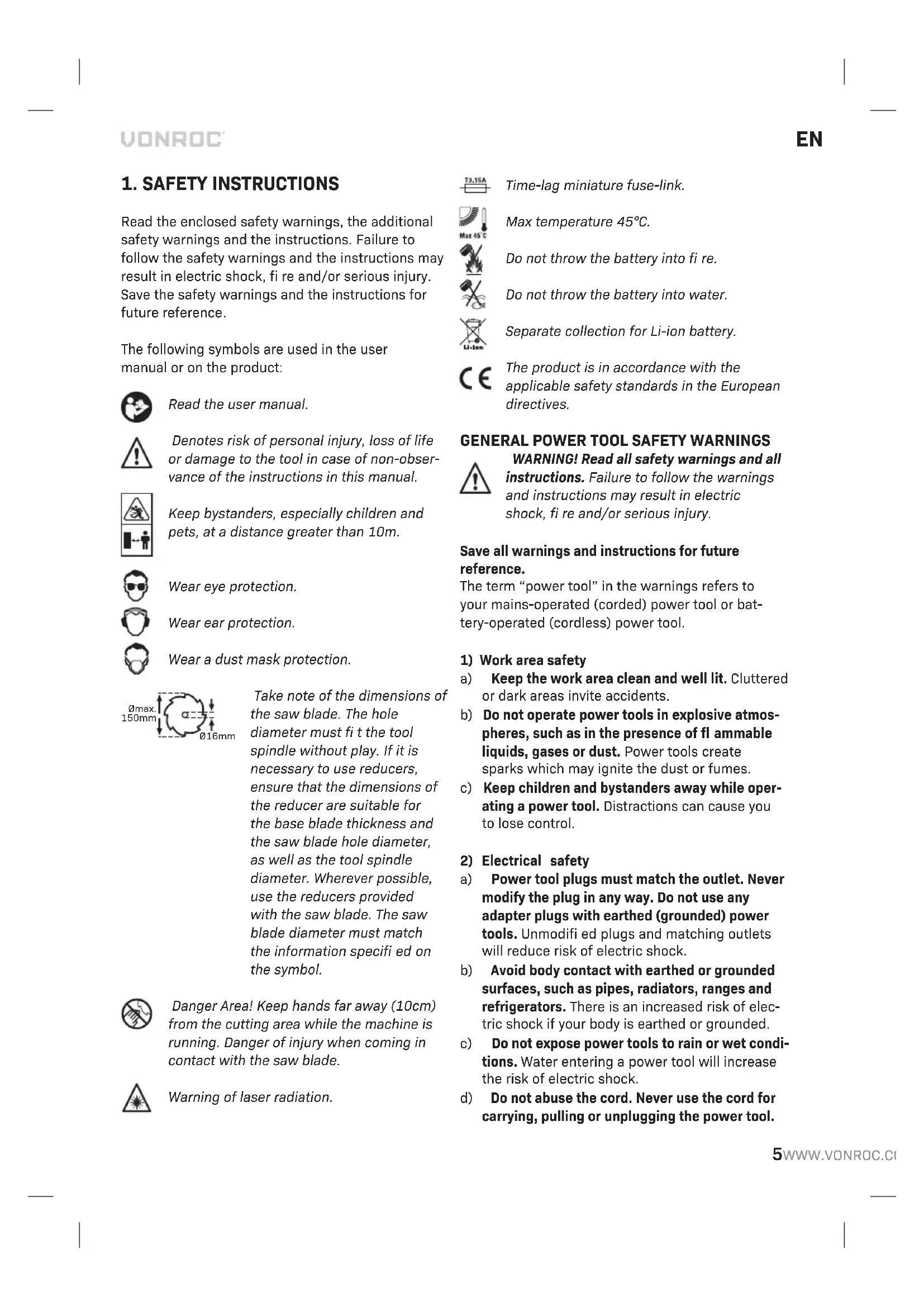

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Keep bystanders, especially children and pets, at a distance greater than 10m.

Wear eye protection.

Wear ear protection.

Wear a dust mask protection.

Take note of the dimensions of the saw blade. The hole diameter must fit the tool spindle without play. If it is necessary to use reducers, ensure that the dimensions of the reducer are suitable for the base blade thickness and the saw blade hole diameter, as well as the tool spindle diameter. Wherever possible, use the reducers provided with the saw blade. The saw blade diameter must match the information specified on the symbol.

Danger Area! Keep hands far away (10cm) from the cutting area while the machine is running. Danger of injury when coming in contact with the saw blade.

Warning of laser radiation.

Time-lag miniature fuse-link.

Max temperature 45°C.

Do not throw the battery into fi re.

Do not throw the battery into water.

Separate collection for Li-ion battery.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,

keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS FOR CIRCULAR SAWS Sawing methods

- Warning: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.

- Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.

- Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

- Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.

• Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and could give the operator an electric shock.
• When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
• Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
• Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

Kickback causes and related warnings

• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
• When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
• If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
• Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
• Maintain a fi rm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.

• When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.

• When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.

• Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
• Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
• Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
• Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

Lower guard function

• Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
• Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
• The lower guard may be retracted manually only for special cuts such as “plunge cuts and angle cuts”. Raise the lower guard by retracting the handle and as soon as the blade enters the material, release the lower guard. For all other sawing operations, the lower guard should operate automatically.
• Always observe that the lower guard is covering the blade before placing saw down on bench or fl oor An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

ADDITIONAL SAFETY WARNINGS

• Warning of laser radiation. Laser class 2, P max.: <1 mW, λ: 650 nm, EN 60825-1:2014. Do not look directly into the laser beam or the opening from which it emerges. Never point the laser beam at people, animals or reflective surfaces. Even brief eye contact can lead to eye damage. Examining the laser output aperture by use of optical instruments (e.g. magnifying glass, magnifi ers and the like) entails the risk of eye damage. When working with a laser of class 2, observe the national regulations on wearing eye protection.
• Do not reach into the chip ejector with your hands. They could be injured by rotating parts.
• Do not work overhead with the saw. In this manner you do not have sufficient control over the power tool.
• Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fi re and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
• Do not operate the power tool stationary. It is not designed for operation with a saw table.
• Do not use high speed steel (HSS) saw blades. Such saw blades can easily break.
• Do not saw ferrous metals. Red hot chips can ignite the dust extraction.
• When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
• Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
• Circular saws are intended to cut wood or wood-like products, they cannot be used with abrasive cut-off wheels for cutting ferrous material such as bars, rods, studs, etc. Abrasive dust causes moving parts such as the lower guard to jam. Sparks from abrasive cutting will burn the lower guard, the kerf insert and other plastic parts.
• Use only saw blades that are marked with a speed equal or higher than the speed marked on the machine.

- Only use saw blades that match the specifications given in this operating manual and that have been tested and marked in accordance with EN 847-1.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short-circuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fi re, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.
e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use

Charge only CD801AA and CD803AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

2. MACHINE INFORMATION

Intended use

This cordless circular saw is intended for length-wise, crosswise and bevel cutting in wood while keeping the baseplate resting firmly on the workpiece. Sawing plastics or metals is not permitted. The power tool with the fitted sawblade is designed with sufficient capacity for sawing hardwood and softwood as well as chipboard and fire breboard.

The sawblade is not designed for cutting fi rewood. Do not use the saw to cut materials other than those specifi ed described in manual.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

Model No.	Batteries included	Chargers included
CS501DC	-	-
S_CS501DC	CD801AA CD802AA
S2_CS501DC	2 x CD801AA CD802AA
S3_CS501DC	CD803AA CD802AA

Machine information
Voltage 20V	——
No load speed	4000 /min
Saw blade size	150 × 16 × 1.6 mm
Sawing capacity 0°	48mm
Sawing capacity 45°	36mm
Weight	2.1 kg
Sound pressure level L_PA	75.3 dB(A), K=3dB(A)
Sound power level L_WA	86.3 dB(A), K=3dB(A)
Vibration	3.015 m/s ^2 K=1.5 m/s ^2

Model No.	CD801AA
Battery Type	Lithium-Ion
Voltage	20V—
Capacity	2.0 Ah
Recommended charger	CD802AA
Weight	0.3 kg

Model No.	CD802AA
Charger input	220-240V, 50Hz 0.4A
Charger output	21V=2.5A
Charging time 2Ah battery	60 minutes
Charging time 4Ah battery	120 minutes
Recommended batteries	CD801AA, CD803AA
Weight	0.36 kg
Model No. CD803AA
Battery Type Lithium-Ion
Voltage 20V	---
Capacity 4.0 Ah
Recommended charger CD802AA
Weight 0.65 kg

Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool.

CD801AA 20V, 2Ah Lithium-Ion

CD803AA 20V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries.

CD802AA Quick charger

The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may signifi cantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may signifi cantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-4.

1. Lock-off button
2. On/Off switch
3. Laser switch
4. Auxiliary handle

5. Laser

6. Scale for bevel angle

7. Wing bolt for bevel angle
8. Cutting mark, 45°
9. Cutting mark, 0^
10. Wing bolt for parallel guide
11. Handle
    12A. Vacuum connection
    12B. Vacuum adapter
12. Lever for retracting lower guard
13. Upper guard
14. Clamping bolt
15. Clamping fl ange
16. Baseplate
17. Lower guard
18. Battery unlock button
19. Battery
20. Spindle lock
21. Wing bolt for depth adjustment
22. Scale for depth adjustment
23. Parallel guide
24. Laser adjustment screw
25. Battery LED indicators button
26. Battery LED indicators
27. Charger
28. Charger LED indicators

3. ASSEMBLY

Before any work on the power tool, remove the battery.

The battery must be charged before first use.

Inserting the battery into the machine (Fig. B, E)

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

1. Insert the battery (20) into the base of the machine as shown in Fig. E.
2. Push the battery further forward until it clicks into place.

Removing the battery from the machine (Fig. B, E)

1. Push the battery unlock button (19).
2. Pull the battery out of the machine like shown in Fig. E.

Checking the battery charging status (Fig. F)

- To check the battery charge status, push the button (26) on battery shortly.

• The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.
• When the lights are not burning it means the battery is empty and must be charged immediately.

Charging the battery with the charger (Fig. F)

1. Take the battery (20) from the machine.
2. Turn the battery (20) to upside down position and slide it onto the charger (28) as shown in Fig. F.
3. Push the battery until it is fully pushed into the slot.
4. Plug the charger plug into an electrical outlet and wait for a while. The LED indicators on the charger (28) will lighten up and show the charger status.

The charger has 2 LED indicators (29) which indicate the status of the charging process:

Red LED Status Green LED status Charger status
Off Off No power
Off On		Standby mode:- No battery is inserted or,- Battery inserted but charging has fi nished
On Off		Battery charging in progress

• Fully charging the 2Ah battery may take up to 60 minutes.
• Fully charging the 4Ah battery may take up to 120 minutes.

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

External dust extraction

The vacuum connection (12A) allows a vacuum cleaner to be attached to the machine. Also included is a vacuum adapter (12B), which allows use of smaller diameter vacuum pipes.

Replacing the saw blade (Fig. A, B)

When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade.

Only use saw blades that correspond with the characteristic data given in the operating instructions.

Do not under any circumstances use grinding discs as the cutting tool.

For replacing the saw blade, it is best to set the depth to 0mm and set the bevel angle to 0°. Afterwards, the machine can be placed on its side, resting on the motor housing and baseplate.

Removing the saw blade

1. Press and hold the spindle lock (21) button.
2. Loosen the clamping bolt (15) using the hex key provided, turning in anti-clockwise direction.
3. Remove the clamping bolt (15) and clamping fl ange (16).
4. Retract the lower guard (18) by using the lever (13) and remove the saw blade.

Mounting the saw blade

1. Clean the saw blade and all clamping parts to be assembled.
2. Retract the lower guard (18) by using the lever (13) and mount the saw blade. Ensure the arrow on the saw blade corresponds with the arrow on the upper guard (14).
3. Mount the clamping fl ange (16). Ensure the fl at sides of the clamping fl ange correspond with the fl at sides of the blade shaft. Also make sure the convex side of the clamping fl ange is mounted to the outside.
4. Press and hold the spindle lock (21) button.
5. Mount the clamping bolt (15) using the hex key provided, turning in clockwise direction.

Attaching the parallel guide (Fig. D)

1. Loosen the wing bolt for parallel guide (10).
2. Mount the parallel guide (24) onto the baseplate (17).
3. Set the desired cutting width using the scale on the parallel guide (24) and the cutting mark on the baseplate (17). The 45^ cutting mark (8) indicates the position of the saw blade for 45^ angled cuts. The 0^ cutting mark (9) indicates the position of the saw blade for right-angled cuts.
4. Tighten the wing bolt (10).

4. OPERATION

Switching the machine on/off (Fig. A)

• To start the machine, press and hold the lock-off button (1) and press the on/off switch (2).
• To stop the machine, release the on/off switch (2).

Switching the laser on/off (Fig. A)

- Press the laser switch (3) to switch the laser on or off. The laser switch (3) also turns on the LED worklight.

Fine-tuning the laser

Note: To test the laser function, the battery must be inserted into the power tool.

While adjusting the laser, never activate the on/off switch. Accidental starting of the power tool can lead to injuries.

If the laser (5) ceases to indicate the correct cutting line, you can readjust the laser. To do so, adjust the laser adjustment screw (25) and set the laser until it indicates a correct cutting line.

Adjusting the bevel angle (Fig. A, B)

The 0^ cutting mark (9) indicates the position of the saw blade for straight cuts. The 45^ cutting mark (8) indicates the position of the saw blade for 45^ cuts.

1. Loosen the wing bolt (7)
2. Adjust the baseplate (17) to the desired position (0°-45°). The sawing angle (bevel) can be read on the scale (6).
3. Tighten the wing bolt (7).

Adjusting the cutting depth (Fig. C)

1. Loosen wing bolt (22).
2. Move the baseplate (17) to the desired position. The sawing depth) can be read on the scale (23).
3. Tighten the wing bolt (22).

Optimum use

• Hold the work using clamps or a vice to have both hands free to operate the saw.
• Switch on the saw and place the bottom plate on the work.

• Slowly move the saw towards the previously drawn cutting line and slowly press the tool forward.

• Firmly press the bottom plate on the work, otherwise the circular saw may start to vibrate, causing the blade to break more easily.

• Let the saw do the job. Do not put undue pressure on the circular saw.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

- Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

EXTRA VEILIGHEIDSWAARSCHUWINGEN

VEILIGHEIDSVOORSCHRIFTEN VOOR DE ACCU

DECLARATION OF CONFORMITY

CS501DC / S\_CS501DC / S2\_CS501DC / S3\_CS501DC - CIRCULAR SAW

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
