AC 3020 HC Dual - Refrigerator ECG - Free user manual and instructions

Product type	Car refrigerator (cooling and heating)
Brand	ECG
Model	AC 3020 HC Dual
Volume	30 litres
Mains power supply	220-240 V, 50/60 Hz
12 V power supply	12 V DC (cigarette lighter socket)
Rated power (cooling, mains)	55 W
Rated power (heating, mains)	50 W
Rated power (cooling, 12 V)	45 W
Rated power (heating, 12 V)	40 W
Noise level	52 dB
Climate class	SN/N
Main functions	Cooling (Normal and ECO modes) and heating (Normal mode only)
LED indicators	Green (cooling), red (heating)
Included cables	Mains cable, 12 V DC cable
Replaceable 12 V fuse	Yes (5 A)
Care and cleaning	Clean with a slightly damp sponge and diluted washing-up liquid; do not immerse
Safety	Do not plug both cables simultaneously; disconnect before cleaning; do not use if cable is damaged
Repairability	12 V fuse replaceable by user; other repairs by an authorized center
Recommended use	Keeping pre-cooled or pre-heated food and drinks cold or hot

Frequently Asked Questions - AC 3020 HC Dual ECG

How to switch between cooling mode and heating mode?

Before switching, set the switch to OFF for at least 5 minutes, then select the desired position.

Can I plug both power cables at the same time?

No, never plug both cables simultaneously. Use only one type of power supply at a time.

How to clean the car refrigerator?

Unplug the device, then clean the inside and outside with a slightly damp sponge soaked in soapy water (diluted washing-up liquid). Rinse with a clean sponge and wipe dry. Do not immerse in water.

What to do if the device does not cool while the indicator light is on?

The internal fan or cooling system is probably damaged. Contact an authorized service center for repair.

What to do if the device does not heat while the indicator light is on?

The internal fan or heating element is probably damaged. Only an authorized service center can repair this fault.

Can I use this device to store medications?

Yes, but make sure the cooling capacity is suitable for the medications. Check the temperature requirements of your medications.

How long does it take to pre-cool the device before use?

We recommend letting the device run for at least 4 hours before placing food inside to reach the optimal temperature.

Can I use the car refrigerator with the car engine off?

Yes, but this may fully discharge the battery. It is advisable to run the engine or monitor the battery status.

What temperature does the device reach in heating mode?

In heating mode (NORMAL), the internal temperature reaches approximately 55 to 65 °C.

How to replace the fuse of the 12 V cable?

Unplug the cable. Open the fuse compartment in the 12 V plug and replace the defective fuse with a new 5 A fuse. Close the compartment.

USER MANUAL AC 3020 HC Dual ECG

1. The body of the car cool box
2. Lid
3. Handle
4. Air vents
5. Location of the control panel (in the back, in the lid)

Items not pictured:

Power cable for wall outlet
Power cable for 12V car outlet

B) Control panel

1. Switch to heating (HOT) or cooling (COLD) mode
2. Heating light
3. Cooling indicator
4. Switch to NORMAL/ECO mode
5. Jack for connection to the car
6. Jack for connection to the wall outlet.

Deutsch

A) Autokühlbox

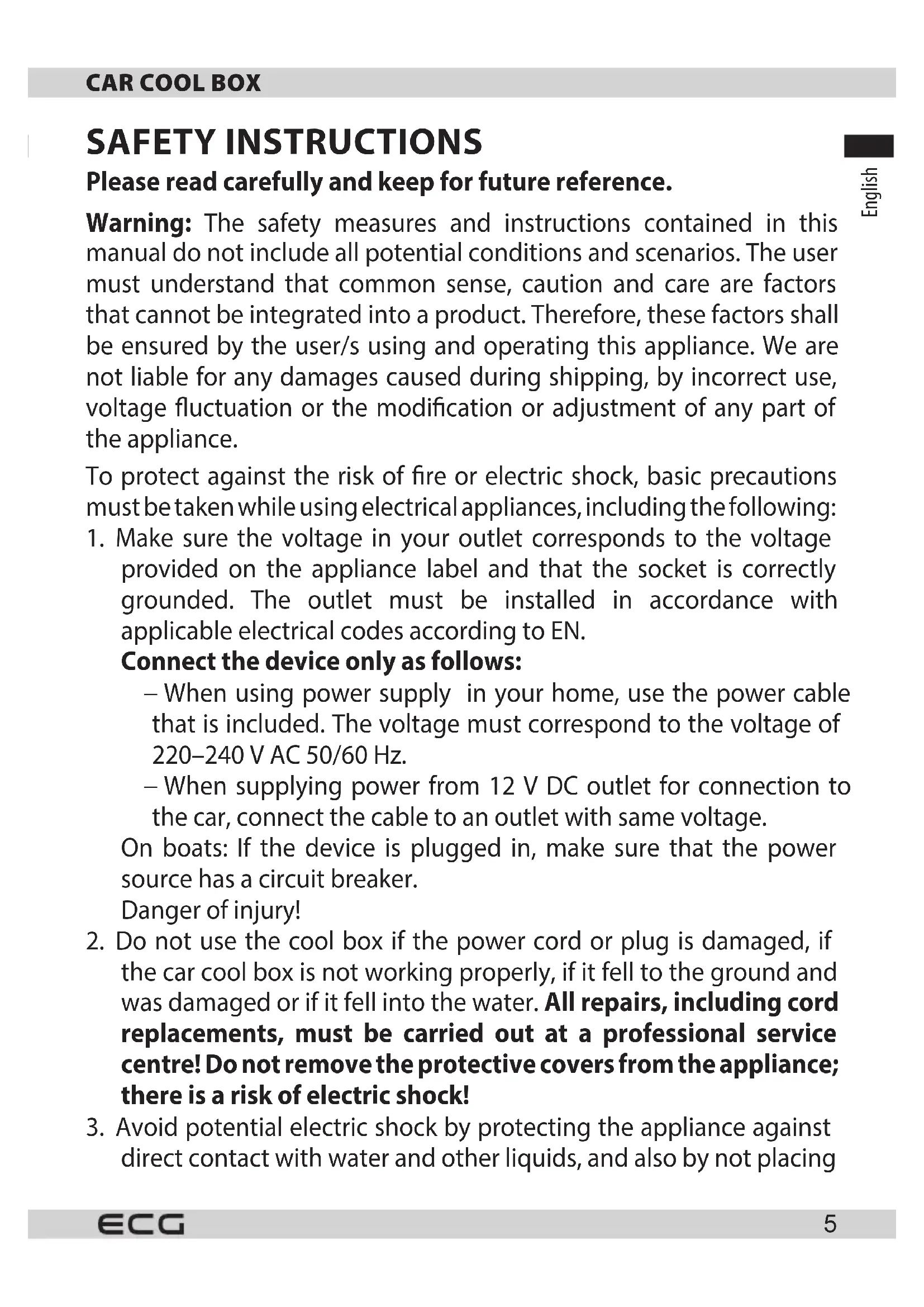

Please read carefully and keep for future reference.

Warning: The safety measures and instructions contained in this manual do not include all potential conditions and scenarios. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.

Connect the device only as follows:

• When using power supply in your home, use the power cable that is included. The voltage must correspond to the voltage of 220 - 240V AC 50 / 60Hz .
• When supplying power from 12 V DC outlet for connection to the car, connect the cable to an outlet with same voltage.

On boats: If the device is plugged in, make sure that the power source has a circuit breaker.

Danger of injury!

1. Do not use the cool box if the power cord or plug is damaged, if the car cool box is not working properly, if it fell to the ground and was damaged or if it fell into the water. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
2. Avoid potential electric shock by protecting the appliance against direct contact with water and other liquids, and also by not placing

any containers with liquids on the appliance. Do not immerse into water.

1. Before using the device, make sure the power cord and plug are dry. Do not touch the cord or device with wet hands. Risk of electric shock!
2. The device is suitable for indoor use and temporary outdoor use, but it must be always kept dry and plugged to an indoor power source.
3. Keep the 12 V DC outlet (cigarette lighter) where you would insert the plug clean and free of cigarette ash. Do not use metal or other conductive material when cleaning the outlet.
4. It is important to check the state of the battery in cars that allow powering a device from 12 V DC outlet without the motor running, to prevent complete loss of battery power.
5. Do not allow children to play with the car cool box. It is not a toy! Pay extra attention if you use the car cool box near children.
6. Do not use the car cool box close to open fire or other sources of heat (heating, direct sunlight, etc.). Risk of overheating!
7. If you feel the device is not functioning properly, unplug it immediately from the power source and visit a service centre with the appliance.
8. Never connect the car cool box with both cables in the same time! Always select only one source of power!
9. We recommend that you do not leave the plugged-in car cool box unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not pull the cord from the outlet by yanking the cable. Unplug the cable from the outlet by grasping the plug.
10. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.
11. Do not turn the device on or off by plugging or unplugging the power cord.
12. Keep the car cool box sufficient distance from the walls and other objects to ensure proper air circulation. Never block the air vents

of the car cool box and do not insert any objects into them. Do not step on the car cool box and do not place anything on top.

1. Do not use the car cool box to transport corrosive substances or solvents. Store food in original packaging only or in suitable containers. Do not fill the interior of the car cool box with ice and do not pour liquids in it.
2. Only use accessories approved by the manufacturer. Do not use any electronic devices inside the car cool box unless recommended by the manufacturer.
3. Use the car cool box as recommended by the instructions in this manual. This car cool box is designed for home use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
4. This appliance can be used by children aged eight and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children must not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under 8 years old must keep away from the appliance and its power supply.

DESCRIPTION

The car cool box is suitable for keeping the temperature of the already cooled foods and beverages (it is not to be used as a refrigerator).

The car cool box is also equipped with a heating function for your convenience (keeps food warm). Select the setting with the switch for switching the cooling/heating functions.

It is suitable for mobile use, e.g. for camping, fishing and it could be used as a storage for dishes as well (cups etc.). The device must not be exposed to rain!

The device is designed for connection to 12V DC outlet in the car (cigarette lighter), in a boat or in a caravan, as well as for connection to the main power grid of 220-240 V.

Warning: If you wish to keep medication cold, make sure that the cooling power of the equipment is suitable for the medication.

Since during the cooling the humid air inside the car cool box condenses, you can find drops of water on the inside of the bag in case of long-term cooling. It is a normal phenomenon, wipe the condensation with dry cloth if necessary.

USING THE APPLIANCE

For hygienic reasons, wipe the inside space of the car cool box with a sponge slightly moistened with a mild solution of dish detergent before first use. Then wipe the space with a sponge moistened with clean water and dry it.

When the handle is pushed back, the lid is closed and cannot be opened. Do not try to force the lid. The lid may be opened when the handle points toward the front.

Warning: Always lift the car cool box by the handle. Risk of tipping over!

Note about cooling:

You can use 2 modes for cooling

1. Normal mode:

In this mode (switch is in the "NORMAL" position) the cooling operates in the energy class "D". The temperature inside the cool box drops about 15 - 20^ below the outside temperature, if the outside temperature is about 25^ .

1. ECO mode:

In this mode (switch is in the ECO position) the cooling operates in the energy class A++ and the temperature inside the cool box drops about 6 - 10^ below the outside temperature, if the outside temperature is about 25^

Note about heating:

The heating operates only in the „NORMAL“ mode and the internal temperature reaches about 55 - 65^ .

1. Place the car cool box on a flat surface, which ensures enough free space for proper functioning of the air vents.
2. Make sure that the food and drinks placed in the car cool box are suitable for cooling at that temperature and let them cool sufficiently before placing them in the device. We recommend that you pre-cool the car cool box for at least 4 hours to keep the food cooled to the required temperature for as long as possible.
3. Connect 12V DC power canle to the cigarette lighter socket or 12V DC outlet in your car, or connect the AC cable to the appropriate connector on the car cool box and into the AC voltage outlet.
4. Close the lid of the car cool box and secure it by turning the handle backwards.
5. Turn the switch on the control panel to the position COLD (cooling) or HOT (heating). According to the selected mode, green light (cooling) or red light (heating) turns on.

In the heating mode, the fan automatically turns on or off and thus regulates the temperature.

Warning: Before switching the car cool box from the cooling mode to heating mode and vice versa, the car cool box must be switched OFF for at least 5 minutes!

1. The car cool box starts cooling/heating.
2. By turning the switch into the position OFF you will switch off the cooling/heating. If you will not use the device any more, unplug the cable from the cigarette lighter in your car or from the wall outlet.

Warning: If you plug the cable in the cigarette lighter in the car, the ignition must be on to supply the power to the car cool box.

We definitely do not recommend starting the vehicle with the car cooler connected. Always unplug the car cooler from the car socket when starting the car.

The car cooler has a consumption of up to 7 A during operation, so it is necessary to have the car battery in good condition and the circuit of the car socket protected by a fuse prescribed by the vehicle manufacturer.

If there are multiple outlets in the electrical circuit, we recommend that you only have one appliance connected at a time to avoid overloading the fuse and damaging the wiring.

Power saving tips

Choose a well ventilated place that is protected against direct sunlight.

Do not open the lid more often than necessary.

Clean the insulation on the inside of the lid regularly.

CLEANING AND MAINTENANCE

Always unplug the power cable from the cigarette lighter or an outlet before any cleaning or maintenance! Wipe the inside/outside of the car cool box with a sponge slightly moistened in a weak solution of dish detergent. Then wipe the inside/outside with a sponge soaked in water and dry. Do not use abrasive sponges or cleaning powders. Do not wash the car cool box under running water and do not immerse it in water!

TROUBLESHOOTING

Problem Possible cause Solution
The car cool box is not functioning.	There is no power in the 12V DC outlet (cigarette lighter) of the car.	In most types of cars the ignition must be switched on to have power in the cigarette lighter.
	There is no voltage in the wall outlet where you connected your car cool box.	Try to plug the car cool box into another outlet.
The car cool box is not cooling (it is plugged in and the control light is on).	The inside fan or the car cool box is damaged.	This defect must be repaired by an authorized service center.
The car cool box does not heat (it is connected and the LED indicator is on).	The inside fan or the heatsink is broken.	This defect must be repaired only by an authorized service center.
The connection to the 12V DC outlet (cigarette lighter): The car cool box receives power, but is not functioning. Unplug it from the outlet and take following steps.	The cigarette lighter is covered by cigarette ash, which is the cause of insufficient power.	If the 12V DC plug of the car cool box overheats when plugged in the cigarette lighter outlet, either the cigarette lighter must be cleaned, or the 12V DC plug was incorrectly installed.
	The fuse of the 12V DC plug burned out.	Change fuse (5 A) in the 12 V DC plug.
	The car fuse burned out.	Change the fuse in the car outlet (usually 15 A). (Please, follow the instructions in your car manual.)

TECHNICAL DATA

Capacity: 30 l

Noise level: 52 dB

Climatic class: SN/N

Mains power supply

Nominal voltage: 220 - 240V 50 / 60Hz

Nominal input power: Cooling 55 W

Nominal input power: Heating. 50 W

Car power supply

Nominal voltage 12 V DC

Nominal input power: Cooling 45 W

Nominal input power: Heating. 40 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
