USER MANUAL AC 3010 C ECG

1. The body of the car cool box
2. Lid
3. Small window for inserting and removing small items
4. Side non-cooled pockets
5. Shoulder strap
6. Motor with ventilation openings
7. 12 V power cable for the car socket
8. Internal insulated space with pockets for small items

B) Power cable

1. Power cable for connection in the car
2. Lid latch

HR/BIH

A) Auto hladnjak

1. Tijelo auto hladnjaka
2. Poklopac
3. Prozorcić za umetanje i vadenje sitnih predmeta
4. Bočni džepovi, nehladeni
5. Remen za noosenje na ramenu
6. Motor s ventilacijskim otvorima
7. Mrežni kabel 12 V za napajanje u automobilu
8. Unutarnji izolirani prostors dzechovima za sitnijepredmete

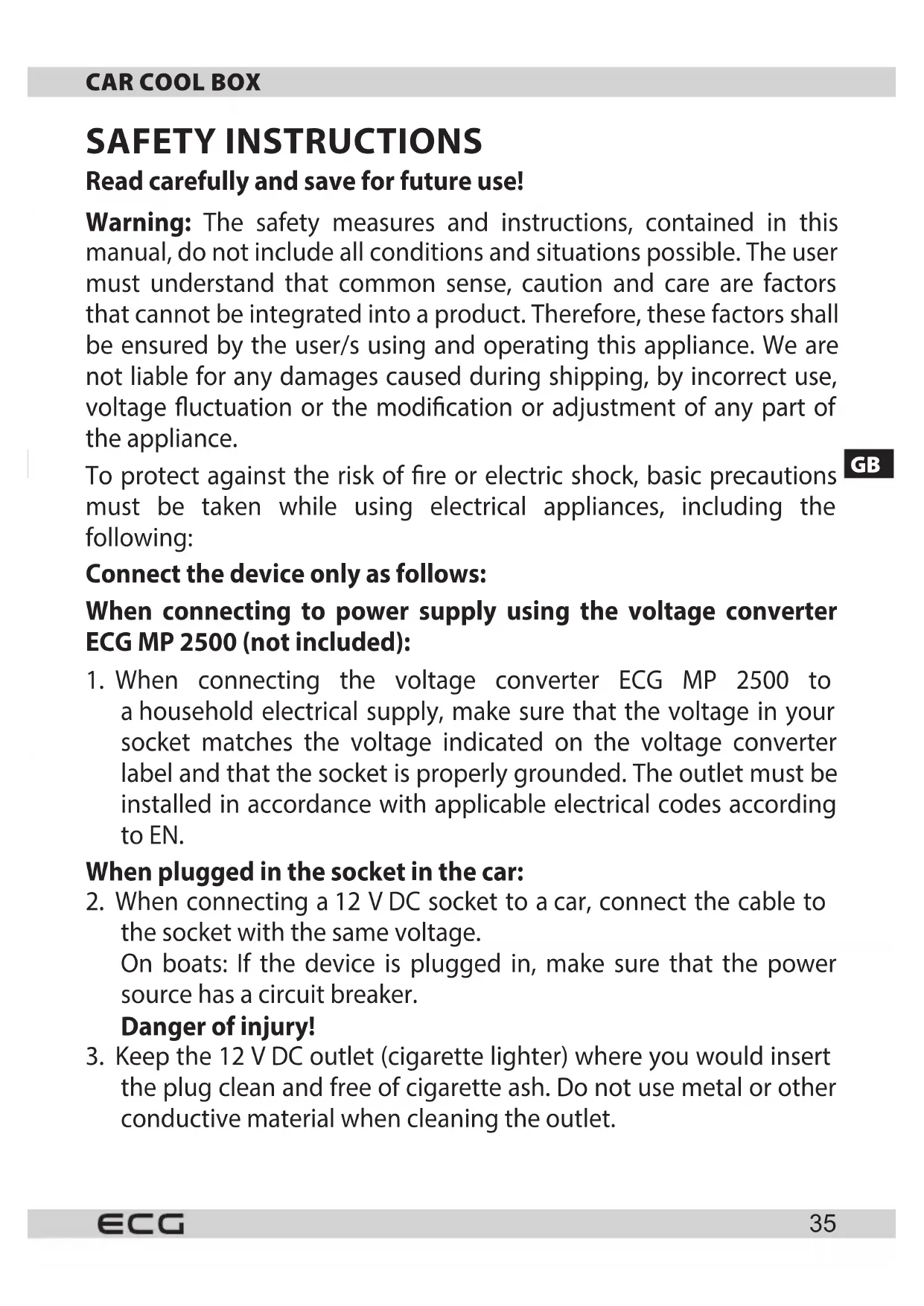

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

Connect the device only as follows:

When connecting to power supply using the voltage converter ECG MP 2500 (not included):

1. When connecting the voltage converter ECG MP 2500 to a household electrical supply, make sure that the voltage in your socket matches the voltage indicated on the voltage converter label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.

When plugged in the socket in the car:

1. When connecting a 12 V DC socket to a car, connect the cable to the socket with the same voltage.

On boats: If the device is plugged in, make sure that the power source has a circuit breaker.

Danger of injury!

1. Keep the 12 V DC outlet (cigarette lighter) where you would insert the plug clean and free of cigarette ash. Do not use metal or other conductive material when cleaning the outlet.

2. It is important to check the state of the battery in cars that allow powering a device from 12 V DC outlets without the motor running, to prevent complete loss of battery power.

General safety instructions

1. Do not use the cool box if the power cord or plug is damaged, if the car cool box is not working properly, if it fell to the ground and was damaged or if it fell into the water. Entrust all repairs, including the replacement of the power cable or MP 2500 voltage converter supply, to an expert service center! Do not remove the protective covers from the appliance; there is a risk of electric shock!
2. Avoid potential electric shock by protecting the appliance against direct contact with water and other liquids, and also by not placing any containers with liquids on the appliance. Do not immerse into water.
3. Before using the device, make sure the power cord and plug are dry. Do not touch the cord or device with wet hands. Risk of electric shock!
4. The device is suitable for indoor use and temporary outdoor use, but it must be always kept dry and plugged to an indoor power source.
5. Do not allow children to play with the car cool box. This device is not a toy! Pay extra attention if you use the car cool box near children.
6. Do not use the car cool box close to open fire or other sources of heat (heating, direct sunlight, etc.). Risk of overheating!
7. If you feel the device is not functioning properly, unplug it immediately from the power source and visit a service centre with the appliance.
8. Disconnect the cord from the electrical outlet prior to any maintenance. Do not pull the cord from the outlet by yanking the cable. Unplug the cable from the outlet by grasping the plug.

9. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.

10. Keep the car cool box sufficient distance from the walls and other objects to ensure proper air circulation. Never block the air vents of the car cool box and do not insert any objects into them. Do not step on the car cool box and do not place anything on top. During cooling, it is necessary to keep the pocket covering the motor empty and open.

11. Do not use the car cool box to transport corrosive substances or solvents. Store food in original packaging only or in suitable containers. Do not fill the interior of the car cool box with ice and do not pour liquids in it.
12. Only use accessories approved by the manufacturer. Do not use any electronic devices inside the car cool box unless recommended by the manufacturer.
13. Use the car cool box as recommended by the instructions in this manual. This car cool box is designed for home use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
14. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

DANGER for children

Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

Do not immerse in water!

DESCRIPTION

The car cool box is suitable for keeping the temperature of the already cooled foods and beverages (it is not to be used as a refrigerator).

It is suitable for mobile use, e.g. when camping or fishing. The device must not be exposed to rain!

The appliance is designed to connect to a 12 V DC car socket (cigarette lighter), in a boat or a caravan, as well as 220-240V mains power (if an MP 2500 converter is used, which can be purchased).

Warning: If you wish to keep medication cold, make sure that the cooling power of the equipment is suitable for the medication.

The pockets located on the outside sides of the car cool box serve as a storage space. Objects stored there are not being cooled.

WARNING: THE LARGE ZIPPER POUCH THAT COVERS THE MOTOR MUST BE LEFT EMPTY AND OPEN DURING COOLING.

For easier access, the lid of the cooling bag is equipped with a small window for removing and inserting small items and with an inside pocket for small items (e.g. medication).

Since during the cooling the humid air inside the car cool box condenses, you can find drops of water on the inside of the bag in case of long-term cooling. It is a normal phenomenon, wipe the condensation with dry cloth if necessary.

USING THE APPLIANCE

For hygienic reasons, wipe the inside space of the car cool box with a sponge slightly moistened with a mild solution of dish detergent before first use. Then wipe the space with a sponge moistened with clean water and dry it.

Warning: Do not use abrasive sponges or cleaning powder. Do not wash the car cool box under running water and do not immerse it in water.

Note about cooling:

The temperature inside the cool box drops about 11 - 15^ below the outside temperature, if the outside temperature is about 25^ .

1. Place the car cool box on a flat surface, which ensures enough free space for proper functioning of the air vents.
2. Make sure that the food and drinks placed in the car cool box are suitable for cooling at that temperature and let them cool sufficiently before placing them in the device. We recommend that you pre-cool the car cool box for at least 4 hours to keep the food cooled to the required temperature for as long as possible.
3. Connect the 12V DC power cable to the cigarette lighter socket or other 12V DC socket in the car. Use the MP 2500 AC converter (not included) to connect to a 220 - 240V mains socket.
4. Close the lid of the car cool box.
5. The car cool box starts cooling.
6. You can turn off the cool box by pulling the power cable out of the socket.

Warning: If you plug the cable in the cigarette lighter in the car, the ignition must be on to supply the power to the car cool box.

We definitely do not recommend starting the vehicle with the car cooler connected. Always unplug the car cooler from the car socket when starting the car.

The car cooler has a consumption of up to 7 A during operation, so it is necessary to have the car battery in good condition and the circuit of the car socket protected by a fuse prescribed by the vehicle manufacturer.

If there are multiple outlets in the electrical circuit, we recommend that you only have one appliance connected at a time to avoid overloading the fuse and damaging the wiring.

Power saving tips

Choose a well ventilated place that is protected against direct sunlight.

Do not open the lid more often than necessary.

Clean the car cool box regularly.

Open the car cool box only for as long as necessary. Use a window in the lid to insert or remove small items.

CLEANING AND MAINTENANCE

Always unplug the power cable from the cigarette lighter or an outlet before any cleaning or maintenance!

Wipe the inside/outside of the car cool box with a sponge slightly moistened in a weak solution of dish detergent. Then wipe the inside/outside with a sponge soaked in water and dry.

Do not use abrasive sponges or cleaning powders. Do not wash the car cool box under running water and do not immerse it in water!

For easy storage of the cool box it is possible to fold it.

TROUBLESHOOTING

Problem Possible cause Solution
The car cool box is not functioning.	There is no power in the 12V DC outlet (cigarette lighter) of the car.	In most types of cars the ignition must be switched on to have power in the cigarette lighter.
	There is no power in the outlet where you plugged the car cool box (in case that you used the adapter ECG MP 2500).	Try to plug the car cool box into another outlet.
The cool box does not cool.	The inside fan or the car cool box is damaged.	This defect must be repaired by an authorized service center.
The connection to the 12V DC outlet (cigarette lighter): The car cool box receives power, but is not functioning. Unplug it from the outlet and take following steps.	The cigarette lighter is covered by cigarette ash, which is the cause of insufficient power.	If the 12V DC plug of the car cool box overheats when plugged in the cigarette lighter outlet, either the cigarette lighter must be cleaned, or the 12V DC plug was incorrectly installed.
	The fuse of the 12V DC plug burned out.	Change fuse (5 A) in the 12 V DC plug.
	The car fuse burned out.	Change the fuse in the car outlet (usually 15 A). (Please, follow the instructions in your car manual.)

For fuse replacement in the 12V DC connector see fig. B in the description

1. Unscrew the top part of the connector. Attention: Be careful not to lose the metal pin.
2. Replace the 12V fuse with another with the same parameters.
3. Screw back the top part of the connector.

TECHNICAL DATA

Car power supply

Capacity: 30 l

Nominal voltage: 12 V DC

Nominal input power: 48 W

Cooling 11 - 15^ under the ambient temperature (if the ambient temperature is 25^ )

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

08/05
