USER MANUAL PhotoModel INTENSO

ALLGEMEINE PRODUKT MERKMALE

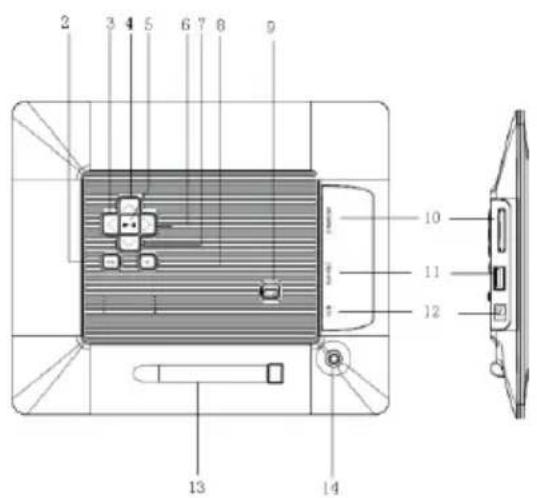

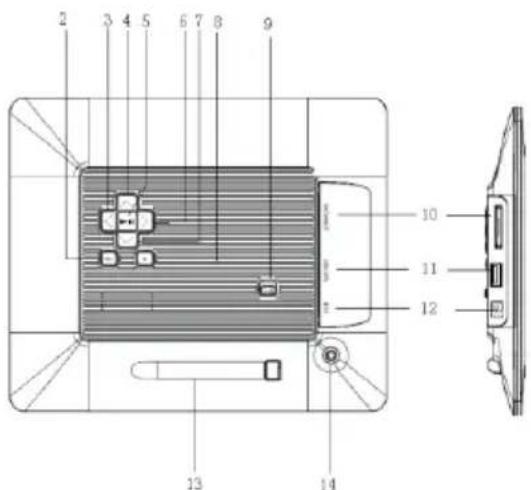

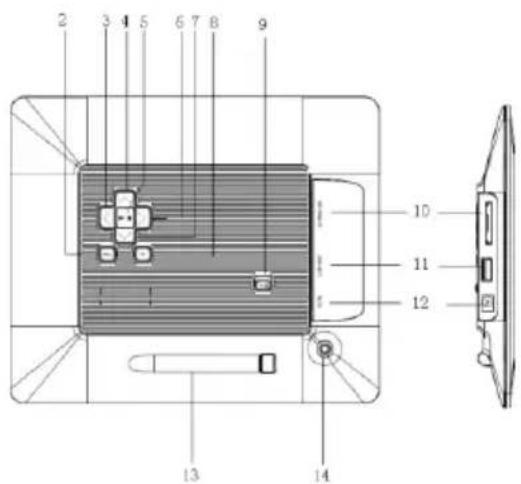

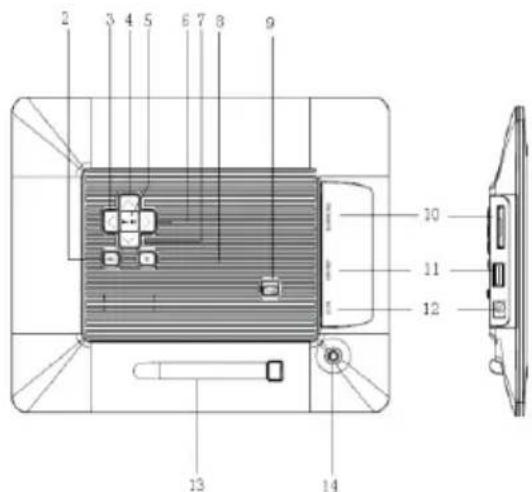

Decorative appearance, excellent quality Shows pictures (JPEG) without requiring a computer Automatic slide show with transition effects and individual display duration Calendar function Timer function Compatible with SD / SDHC / MMC / MS cards USB slot to connect USB flash drives 2-way control: 7 buttons on the rear side of the DF, infrared remote controlGB - 3 OVERVIEW

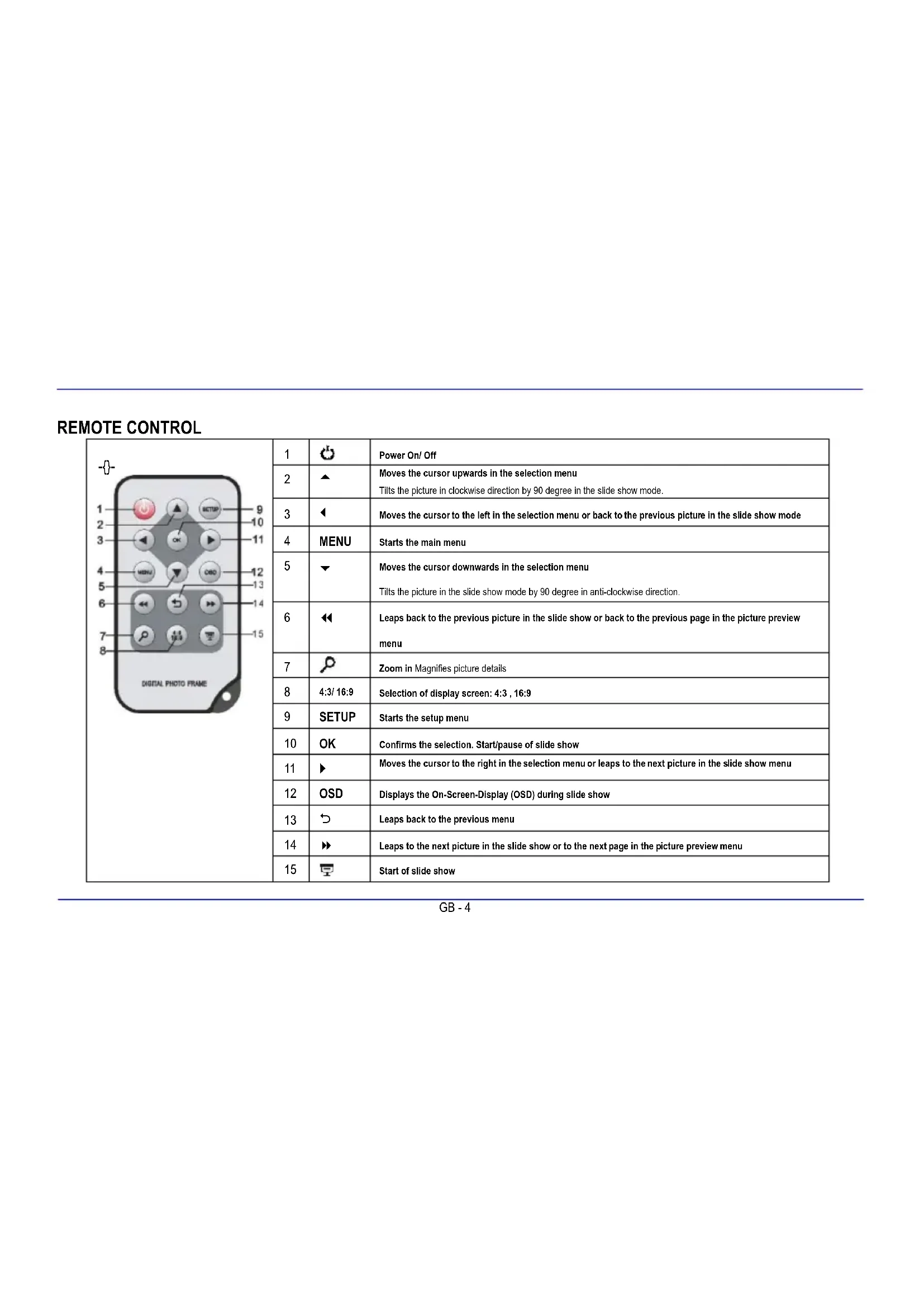

Moves the cursor upwards in the selection menu Tilts the picture in clockwise direction by 90 degree in the slide show mode.

Moves the cursor to the left in the selection menu or back to the previous picture in the slide show mode

Moves the cursor downwards in the selection menu Tilts the picture in the slide show mode by 90 degree in anti-clockwise direction.

Leaps back to the previous picture in the slide show or back to the previous page in the picture preview menu

Zoom in Magnifies picture details

Confirms the selection. Start/pause of slide show

Moves the cursor to the right in the selection menu or leaps to the next picture in the slide show menu

OSD Displays the On-Screen-Display (OSD) during slide show

Leaps back to the previous menu

Leaps to the next picture in the slide show or to the next page in the picture preview menu

Turn your remote control upside down with the buttons facing down. There is a spring on the left side of the battery compartment. Hold it to the right and simultaneously pull out the battery compartment. Insert a CR2025 Lithium battery to the battery compartment with the Plus symbol facing upwards. Reinsert the battery compartment into the housing of the remote control.

Please note: Please dispose batteries according to legal regulations.GB - 6 FIRST STEPS Connect the frame base to the DIGITAL PHOOTE FRAME ( DF ). Connect the mains adapter provided with the DF. Plug the other end of the provided mains adapter into the power outlet.

Move the slider of the DF into “ON” position. Using the device for the first time please select the Language in the appearing window by use of the keys on the rear side or the remote control. Confirm your selection with the [] button on the rear side or the OK –button on the remote control.GB - 7

Insert SD / SDHC / MMC / MS cards into the 3-in-1 card slot with the contacts facing the display. USB storage mediums can be connected with the DIGITAL PHOTE FRAME by inserting these mediums into the USB port (USB host).

Please note: Please do not insert memory cards by use of force. The 3-in-1 card reader can only read one card at a time. Thus, please connect only one SD / SDHC / MMC or MS card with the photo frame at a time. To disconnect inserted cards from the DIGITAL PHOTO FRAME remove them carefully from the card slot. (Please note: SD/SDHC and MMC cards have a small notch in cross direction. By use of your finger nail you can remove the card from the slot)GB - 8

WATCHING A SLIDE SHOW

After power-on you will be guided directly to the main menu. If a memory card or a USB memory stick is connected to the DF, the slide show will start directly after power on.

Press the MENU button on the rear side of the DF or on the remote control and then the [],[] buttons on the rear side of the DF or the ▲, ▼ buttons on the remote control to start the storage medium connected, the setup menu or the calendar.

Please note: If a storage medium is connected to the DF the slide show will start automatically after power on. If more than one storage medium is connected with the photo frame, after power on the DF will at first read the pictures from the SD / SDHC / MMC or MS card.GB - 9 MAIN MENU In the main menu you can select the storage mediums connected, the setup menu and the calendar.

1. 1. Press the MENU -button on the rear side of the DF or on the remote control to access the main menu.

USB Displayed if a USB medium is connected.

Displayed if a SD, MS or MMC card is connected. Clock Display of calendar or time Setup Menu to make individual settings.

2. Press the [], [] buttons on the DF or the ▲,▼ buttons on the remote control to

select a storage medium or a menu item.

3. Confirm your selection by pressing the [] button on the DF or the OK –button on

the remote control.GB - 10 WATCHING PHOTOS Starting a Slide Show In each menu you can use the [ ] button on the remote control to start the slide show, starting with the first photo. To stop the slide show and to display individual photos please press the [] button on the DF or the OK-button on the remote control. By repeatedly pressing the [] button on the DF or the OK-button on the remote control you can proceed with the slide show. Press the [] button on the remote control or the [ ] button on the DF to leave the slide show and to access the picture preview menu. Press the MENU-button on the remote control or on the DF to leave the slide show and to access the main menu. Please note: If an additional storage medium is inserted when watching a slide show, the slide show will automatically leap to the first picture of the new storage medium and the slide show will start with this picture. If a SD/SDHC/MMC/MS-card and a USB drive are connected to the DF at the same time, only the pictures selected on the relevant medium will be continuously played during the slide show. The individual storage mediums are not automatically played one after the other in the slide show.GB - 11 Picture Preview Menu Picture Preview Menu The pictures on the storage medium selected are depicted as thumbnails. It is possible to display up to 15 pictures at a time.

1. In the main menu please select a storage medium (USB, SD/MMC/MS) and press

the OK-button on the DF or on the remote control.

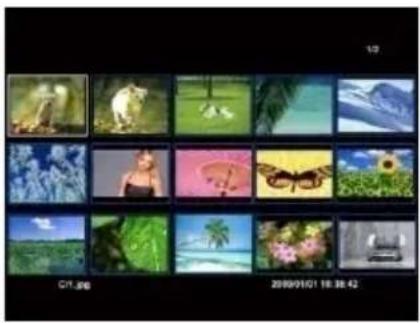

2. To navigate within the thumbnails please use the [],[],[],[] buttons on the DF

or the , , , buttons on the remote control. To directly access the next preview page please use the or button on the remote control.

Please note: During a slide show or the picture single view mode you can also access the picture preview menu by pressing the [

] button on the remote control or the [ ] button on the DF.GB - 12 Displaying Individual Pictures You can select individual pictures without starting a slide show. 1. In the picture preview menu please select a picture and press the [] button on the DF or the OK-button on the remote control. The picture is now displayed in full screen mode. Now please press the [] button on the DF or the OK-button on the remote control within the selected display time. Now you will see the symbol in the screen’s lower left corner. For the selected notification time (see page 17). To display previous or following pictures please press the [], [] buttons on the DF or the , buttons on the remote control. To rotate pictures please press the [], [] buttons on the DF or the , buttons on the remote control. To display a picture with a magnification, please repeatedly press the button on the remote control. If the picture is displayed as a magnified version, you can vary the depicted display window by using the [], [], [], [] buttons on the DF or the , , , buttons on the remote control.

2. To return to the picture preview menu please press the [] button.

3. Press the [] button on the DF or the OK-button on the remote control to start the slide show, starting with the selected photo.GB - 13 Changing the Display Mode While watching a picture or during the slide show you can change the display mode by repeatedly pressing the [4:3/16:9] button on the remote control. 4:3: With this selection a picture which is saved in the 16:9 or a larger format is stretched and displayed as full screen picture. 16:9: With this selection a picture which is saved in the 16:9 or a larger format is displayed in its original format with a black bar at the upper and lower margin. Please note: A photo which is saved in the 4:3 format can only be depicted in the format 4:3. This function is not possible with photos whose resolution is lower than 800X600 pixels.GB - 14 Using the OSD Menu You can use the OSD menu carry out the following functions. 1. Press the [OSD] button on the remote control when watching a picture or a slide show. The OSD menu will appear on the display and the slide show will be stopped.

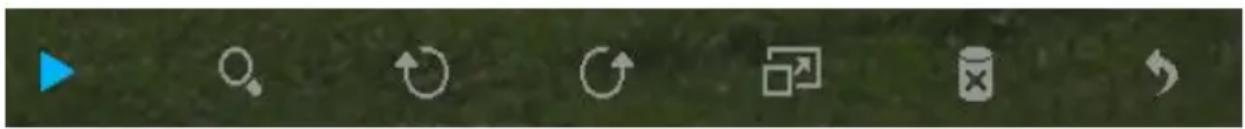

2. Press the [], [] buttons on the DF or the , buttons on the remote control to navigate between the functions.

To stop or continue the slide show please select the symbol and press [] on the DF or OK on the remote control. The (Play) symbol in the OSD-menu will be replaced by the (Pause) symbol. To enlarge the picture please select the symbol and press the [] button on the DF or OK on the remote control. If the picture is displayed as magnified version, you can vary the depicted display window using the [], [], [], [] buttons on the DF or the , , , buttons on the remote control.GB - 15 To rotate the picture by 90 degrees in clockwise direction please select the symbol and press the [] button on the DF or OK on the remote control. To rotate the picture by 90 degrees in anti-clockwise direction please select the symbol and press the [] button on the DF or OK on the remote control. By use of the symbol you can change between the 4:3 or 16:9. By pressing [] on the DF or OK on the remote control you can confirm the format change. See also at: “Changing the Display Mode (page 13)” By selecting the symbol and pressing [] on the DF or OK on the remote control the displayed picture will be deleted and removed from the data medium. ( PLEASE NOTE: Prior to deleting there will be no security query !! ) By selecting the symbol and pressing [] on the DF or OK on the remote control the DF will continue with the slide show.GB - 16 SETUP MENU You can individually adjust the configuration of the DIGITAL PHOTFRAME ( DF ).

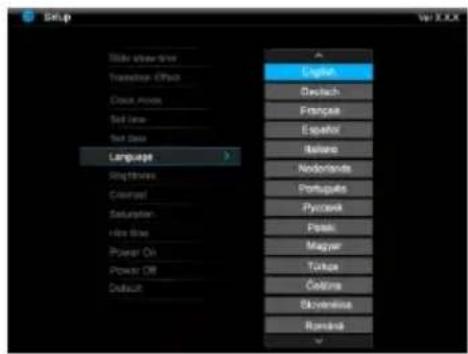

1. In the main menu please select the menu item SETUP and confirm your selection

with the [] button on the DF or the OK-button on the remote control. You can also access this menu by pressing the [SETUP] button on the remote control.

2. To select a menu item please press the [], [] buttons on the DF or the ,

buttons on the remote control.

3. To change the relevant setting please press the [], [] buttons or the [] button

on the DF, alternatively the, buttons on the remote control and confirm your selection by pressing the [] button on the DF or the OK-button on the remote control.

4. To leave the menu please press the [ ] button on the DF or the [] button on the

remote control.GB - 17 Settings Description Display duration Select how long a picture is displayed during a slide show. Settings: 3 sec., 5 sec., 15 sec., 1 min., 15 min. Picture transitions Select from random and continuous transition modes Clock settings Select the display mode of your calendar / clock. Options: Monthly calendar, digital clock, analogue clock Time settings Adjusting the time. Date settings Adjusting the calendar Language Select your preferred language. Brightness Adjusts the brightness of the TFT display. Options: -3, -2, -1, 0, 1, 2, 3. Contrast Adjusts the contrast of the TFT display. Options: -3, -2, -1, 0, 1, 2, 3. Colour saturation Adjusts the colour saturation of the TFT display. Options: -3, -2, -1, 0, 1, 2, 3. Display time Specify how long the notification window of the key’s functions is displayed in the slide show mode and the status (pause) or (play) in the lower picture. Options: 0 sec., 5 sec., 10 sec., 20 sec. Autom. Power-on Enables automatic power-on. On / Off. Autom. Power-off Enables automatic power-off. On / Off. Default setting Device is reset to factory settings.GB - 18 Adjusting Date and Time How to adjust date and time on the Intenso DF:

1. In the main menu select the menu item SETUP.

2. Press the [], [] buttons on the DF or the , buttons on the remote control to select the menu item Time.

3. Press the [], [] buttons on the DF or the , buttons on the remote control to select the next or previous element (hour, minute). Press the [], [] buttons on the DF or the , buttons on the remote control to adjust the desired values.

4. To confirm your entries please press the button [] on the rear side of the DF or the OK-button on the remote control.

How to adjust the date on the Intenso DF:

1. Press the [], [] buttons on the DF or the , buttons on the remote control to select the menu item Date.

2. Press the [], [] buttons on the DF or the , buttons on the remote control to select the next or previous element (month, day, year). Press the [], [] buttons on the DF or the , buttons on the remote control to adjust the desired values. 3. To confirm your entries please press the button [] on the rear side of the DF or the OK-button on the remote control.GB - 19 Activating Automatic Power On/Off You can have Intenso’s DIGITAL PHOTO FRAME switch on/off automatically at a preset time. Please note: This function requires setting the correct time in advance.

1. In the main menu select the menu item SETUP.

2. Press the [], [] buttons on the DF or the , buttons on the remote control to select the menu item autom. power-on or autom. power-off. 3. Press the [], [] buttons on the DF or the , buttons on the remote control to select the next or previous element (hour, minute). Press the [], [] buttons on the DF or the , buttons on the remote control to adjust the desired values and the time. Off: Disables automatic power-on/off. On: The DIGITAL PHOTO FRAME switches on and/or off at the preset time.

4. To confirm your entries please press the button [] on the DF or the OK-button on the remote control.GB - 20

CALENDAR DISPLAY The calendar mode displays the current date, the current time and a slide show with thumbnails in the background.

Please note: Date and time can only be set in the Setup menu. By pressing the [] button on the rear side of the DF or the OK-button on the remote control the display can show the Monthly Calendar, the Digital Clock or the Analogue Clock. By pressing the [], [] buttons on the rear side of the DF or , the buttons on the remote control the calendar can show the next months or leap back to the previous one.GB - 21 FAQs Why is the actual capacity of a memory card less than specified on the packaging? The storage capacity of a flash storage medium is specified according to capacity specifications for hard drives and is subject to the SI regulations (International System of Units). This system does not use the binary system, which converts 1024 MB into o ne 1 GB. The SI standard uses the powers of 1000, where 1000 Megabyte make 1 Gigabyte. Due to this different way of calculation, capacity specification might be different. Why does the DF not display some pictures of my memory card? Some not so widespread storage mediums are not compatible with the DF. Please use a compatible card. Please bear in mind that this photo frame can only play photos with the file format “JPEG”. A memory card is inserted but the DF cannot read this card. What can I do? At first please check if this card is actually compatible with Intenso's DIGITAL PHOTOFRAME. Then, please check if the card is properly inserted into the card slot. Please bear in mind that only the file format „JPEG“ is supported. Please note: Some digital cameras do not save pictures by use of the standard format JPEG. In such a case please refer to the operating manual of your camera.GB - 22 Why are some pictures loaded faster than others? Pictures with a high resolution need longer times to be displayed. To increase the loading speed ple ase use pictures with a lower resolution. Please note: The photo frame supports a resolution of up to 8000*8000 pixels. Why does the software not start although power supply is ensured and the power switch is in “On” position? This might be a system error. Please reset the software by cutting off power supply for a few seconds. Why is the main menu not displayed? Please check if the DF is properly connected to the power outlet and the power switch is in “On” position. Can I rotate pictures on the display? Yes, please use your arrow keys [], [] on the DF or the , buttons on the remote control. Please note: With a new start the rotated picture will be displayed in normal mode again. Can I adjust the colours of pictures? No. All colours are set when the picture is being taken. However, you can adjust the brightness and the contrast of the display. However, you can adjust the brightness and the contrast of the display.GB - 23 What is the ideal resolution to display pictures on the DF? The ideal resolution for this DF is 800*600 pixels. Why do the functions: Automatic power-on / off not work although I have enabled them? Please make sure your time settings are correct. If the set time is in the past, the function will be enabled on the next cal endar day for the first time. Please do not move the slider on the rear side of the DF into POWER OFF position. Only change the status of the DF into standby.GB - 24 PRODUCT SPECIFICATIONS Display Digital TFT LCD Display size: 7” inch (17,78cm diagonal viewable image) Display modus: 4:3 Resolution: 800*600 pixels Mains adapter Input: 100~240V AC, 50/60Hz Output: 5V 1A DC USB port USB Host 2.0 Supports USB storage mediums Memory cards supported SD/SDHC™ (Secure Digital Card), MMC™ (MultiMedia Card), MS™ (Memory Stick) Picture size supported JPEG, max. resolution:8000*8000 pixels Operating temperature 0°C ~ +45°C Dimensions 206*171.5*22 mm Weight 373,2 gram Accessory Remote control (incl. battery), foot, mains adapter, quick guides in more languagesGB - 25

(Secure Digital), Secure Digital High Capacity Card (SDHC
