USER MANUAL Bolero Flux DT 908002 CECOTEC

1. Parts and components 52

5. Cleaning and maintenance 55

8. Disposal of old electrical and

electronic appliances 60

9. Technical support and warranty 60

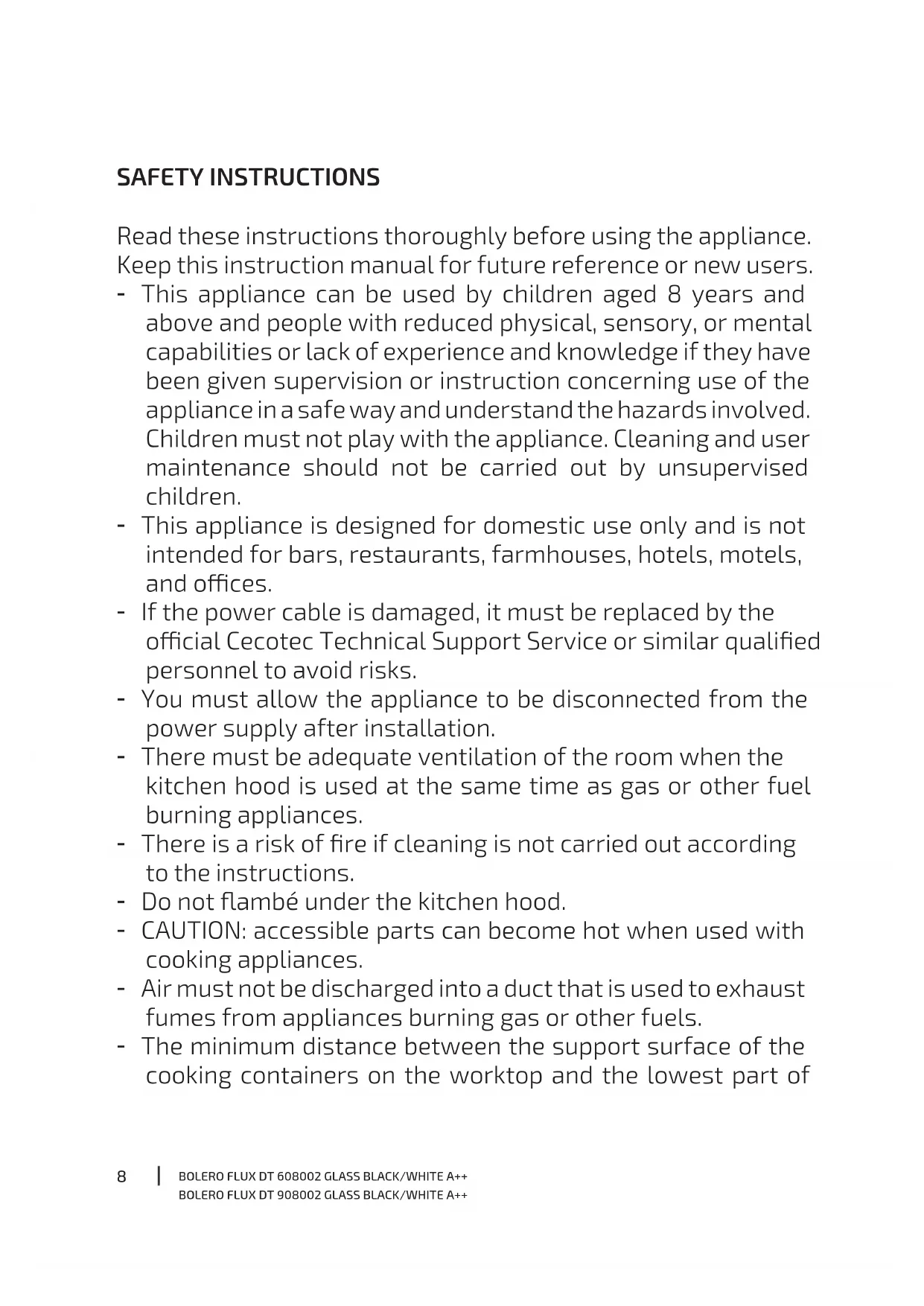

I. Non-combustible parts of kitchen hoods.

II. Parts operating at safety extra-low voltage (provided

that these parts do not give access to live parts if they are deformed). - The air discharge regulations must be complied with. - The kitchen hood is intended for installation only over a hob with four cooking zones. - Things you should never do:

I. Do not attempt to use the kitchen hood without the mesh

lter or if the lter is excessively dirty or greasy!

II. Do not install the kitchen hood above a cooker with a high

III. Do not leave pans unattended during use because overheated

fats or oils may catch re. - Accumulation of grease in the kitchen hood can cause a re hazard. Clean the appliance according to the instructions in this manual. - Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves. - Never leave open ames under the kitchen hood. - If the kitchen hood is damaged, do not attempt to use it. - When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar). - Important! Always disconnect the power supply during installation and maintenance. - The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.10 BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++ - All installation work must be carried out by a competent person or a qualied electrician. - Dispose of the packaging material carefully. Children are vulnerable to it. - Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning. - Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the eciency of the kitchen hood. - Warning: failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards. - Warning: before accessing the electrical terminals, all power supply circuits must be disconnected. - There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances. - Caution: the appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised. - Local air discharge regulations must be complied with. - For safety reasons, only use the supplied xing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual. - You should not use a steam cleaner. - Never try to put out the re with water. Instead, turn o the appliance and smother the ame with, e.g., a reproof lid or blanket. - Never use extension leads, multiple socket connections or external timer connection elements.11 BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++ - If the power cord is damaged, it must be replaced by the ocial Cecotec Technical Support Service or by similarly qualied technicians to prevent hazards. - The appliance must not be operated if the power supply cable is damaged or cut. - If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the ocial Cecotec Technical Support Service. - Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

3. Increase time/speed icon

5. Decrease time/speed icon

NOTE: The graphics in this manual are schematic representations and may not exactly match the device.

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly. - Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the ocial Cecotec Technical Support Service immediately. Box content - Kitchen hood - Assembly kit (depending on model) - Instruction manual

ENGLISH - Before installing the kitchen hood, make sure that the area is clean to prevent it from sucking in dust or dirt. - Please note that the kitchen hood must not share the same ventilation duct with other appliances that use gas or other fuses. - To facilitate air outlet, the ventilation duct should have a curvature of ≥120° and should be connected to the outside wall. - After installation, ensure that the kitchen hood is level to prevent grease build-up on the end (Fig. 3). - The kitchen hood should be placed at a distance of 65-75 cm above the cooking surface for best eect (Fig. 4). - Figure 5 shows the necessary elements to install the kitchen hood, bracket, and hooks. - Fig. 5 key:

Steps to install the kitchen hood

1. Install the wall hook in a suitable location once the installation height is set and keep it

aligned. Use screws to x it to the wall. Fig. 6. Fig. 6 key: 1.- Internal chimney bracket 2.- Wall hook

2. Fix the outer bracket on the chimney using two ST4*8 mm screws, and make sure that the

inner part of the chimney can be adjusted to the installation height, as well as that of the exhaust duct. Then, install the exhaust duct in the chimney of the kitchen hood and place the hood in the bracket. Fig. 7 Fig. 7 key: 1.- Exhaust duct 2.- Internal chimney 3.- Outer chimney bracket 4.- External chimney NOTE: The screws used for the chimney hook are ST4*40 mm self-tapping countersunk head screws. The screws used for the chimney brackets are ST4*40 mm star head screws.

3. Place the kitchen hood on the hook on the wall. Fig. 8

4. Use ST4*40 mm star head screws to x the outer chimney bracket to the wall. Fix the outer

bracket with the hooks and the inner part of the chimney with two screws (ST4*8 mm). Secure the housing with safety screws (ST4*40 mm star head screws). Fig. 9BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++

5. Plug the power cable into the outlet.

Black cable (or brown, depending on models) > Phase Blue cable > neutral Yellow-Green cable > ground You must connect the phase and neutral cables to a 220-240 V~/ 50 Hz power cable. The kitchen hood must be connected to an earthed installation. Note: there are two safety ventilation ducts in the back housing.

When the kitchen hood is switched on, the power icon indicator light is red. Power icon - Press the power icon, the kitchen hood will beep, and all icons will light up, indicating that the kitchen hood is in standby mode. - Press the icon again, the kitchen hood will beep and then switch o. Booster function icon - In standby mode, press the Booster icon, the kitchen hood will beep. - The number 4 will appear on the display, indicating that the maximum ventilation (booster function) mode has been activated. After 5 minutes, the appliance will automatically go back to speed 3. Increase/decrease icons - When the appliance is in standby mode, press the increase icon , a beep will sound. The number 1 will appear on the display, indicating that the hood is operating at low speed. Press the icon again, the number 2 will appear on the display, indicating that the hood is operating at medium speed. If you press the icon a third time, the number 3 will appear on the display, indicating that the hood is operating at the highest speed. - To reduce the extraction power to the medium level, press the decrease icon , the number 2 will reappear on the display. - Press the icon again, the number 1 will appear on the display, indicating that the hood is operating at the lowest speed. Delay function icon - When the kitchen hood is in operation, press the Delay icon, the hood will beep and the indicator light will ash, indicating that the kitchen hood has entered the delayed switch- o mode. The delay time is 5 minutes.BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++

ENGLISH - After 5 minutes, the kitchen hood will switch o. Light on/o icon Press the light bulb icon to switch on the kitchen hood light. Press it again to switch it o. Gesture control - To ensure optimum operation of this function, the hand should be placed close to the kitchen hood, at a distance of no more than 80 mm. - Slide your hand from left to right to operate the kitchen hood at low speed. The hood will beep and the light icon will light up. Slide your hand again to increase the extraction power and so on up to the booster speed of the Booster mode. - On the other hand, by sliding your hand from right to left, the kitchen hood will go down from Booster speed to speed 3, and so on until it switches o. The light will stay on, so swipe left again to switch it o. NOTE: kitchen hoods are equipped with an overheating protection system that acts to prevent possible incidents when the motor temperature exceeds the operating limit value.

5. CLEANING AND MAINTENANCE

Always switch o the power supply before cleaning or performing any maintenance work on the kitchen hood. Cleaning the lters Do not use corrosive detergents to clean grease from the mesh lters. Regular cleaning of the lters will prolong the life of the appliance and keep it in good working order. Follow the instructions below: - Cleaning method 1: immerse the mesh lters in hot water (40-50 °C), add neutral detergent and let them soak for 2 to 3 minutes. Protect yourself with gloves and clean the lters with a soft brush or scouring pad. Do not apply too much force, as lters are very delicate and can be easily damaged. - Cleaning method 2: if you wish, you can also wash the lters in the dishwasher at a temperature of approx. 60 °C. - To remove the lter, press on the tabs as shown in Figure 10 and pull it out. Carbon lter This type of lter has activated carbon and puries air and absorbs cooking odours. TheBOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++

ENGLISH activated carbon becomes saturated after a period of time, which will reduce the adsorption capacity of the lter. The carbon lter cannot be washed nor cleaned in any way. When its service life comes to an end you must replace it with a new one. - It is recommended to check the condition of carbon lters regularly, at least two or three times a year. Its replacement will depend on how the kitchen hood is used, as well as the daily operating time. - In case of very frequent frying, shorten the time interval for checking and/or replacing the carbon lters. Installing the carbon lters

1. Remove the protective metal lters.

2. The carbon lters are located on both sides of the motor. Insert and turn the lters, until

they are rmly in place.

3. To replace the carbon lters, proceed in reverse order.

4. Carbon lters must not be exposed to heat.

Figure 11: A: Closed B: Opened C: Opened D: Closed Carbon lter size > Φ176 x 35 mm Replacing the light bulb/lamp Please note - The light bulb must be replaced by the ocial Cecotec Technical Support Service or similarly qualied technicians. - Always disconnect the power supply before performing any operation on the appliance. When handling the bulb, make sure that it has cooled down completely before any direct contact with your hands. - When handling the bulbs, hold them with a cloth or gloves to prevent sweat from coming into contact with the bulb, as this may reduce the bulb life. Note: - Before changing the light bulb, make sure that the appliance is switched o and unplugged. - Protect yourself from danger when changing the light bulb, e.g. by wearing gloves.BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++

Fault Cause Solution The indicator light is on, but the motor does not work The kitchen hood is obstructed. Remove what is obstructing the hood The condenser is damaged. Please contact the ocial Cecotec Technical Support Service to replace the condenser. Motor is jammed or bearing damaged. Please contact the ocial Cecotec Technical Support Service to replace the motor. Motor is burnt or gives o a bad smell. Please contact the ocial Cecotec Technical Support Service to replace the motor. Neither the light bulb nor the motor work In addition to the above, check the following: The light bulb has blown. Please contact the ocial Cecotec Technical Support Service to replace the light bulb. Power cable is loose. Please contact the ocial Cecotec Technical Support Service to connect the cables according to the wiring diagram. Grease falls out of the aluminium lters The lters are very dirty. Clean or replace the aluminium lters immediately. The kitchen hood vibrates The fan is damaged, causing the kitchen hood to vibrate when extracting air. Please contact the ocial Cecotec Technical Support Service to replace the fan. The engine is not securely fastened. Fix the engine correctly. The kitchen hood is not securely fastened. Fix the kitchen hood correctly.BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++

ENGLISH The kitchen hood is not suciently extracting The distance between the kitchen hood and the cooking surface is too large. Readjust the distance. There is too much ventilation in the room due to open doors or windows. Relocate and reinstall the kitchen hood. The kitchen hood is tilted Fastening screws are not tightened properly. Reposition the kitchen hood horizontally and tighten the screws. Plastic plugs are not tightened properly. Reposition the kitchen hood horizontally and tighten the plugs. If none of these situations match your problem, do not attempt to disassemble, or repair the appliance by yourself. Repairs carried out by unqualied persons may result in injury or serious malfunctions. Contact the ocial Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts. Unauthorised self-maintenance or maintenance will aect the safe use of the product and the application of the warranty policy. NOTE: Any electrical repairs to this appliance must conform to local and/or state laws. Please contact the ocial Cecotec Technical Support Service in case of doubt and before carrying out any of the above operations. Always disconnect the device from the power supply when opening it.

Energy Eciency Index (EEI) EEI hood

Measured airow at maximum eciency point

Air pressure measured at maximum eciency point

Electrical input power measured at maximum eciency point

Nominal power of the lighting system

5 W Measured illumination of the illumination system on the cooking surface

ENGLISH Noise level (Highest setting) L

64 dB Noise level (Lowest setting) L

71 dB This appliance features a light source with an energy eciency grade A. The appliance power consumption when o is 0.43 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/controller of the appliance was set to the O position. Technical specications may change without prior notication to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations. It is recommended that repairs be carried out by qualied personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the ocial Cecotec Technical Support Service at +34 963 210 728.BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.BOLERO FLUX DT 608002 GLASS BLACK/WHITE A++ BOLERO FLUX DT 908002 GLASS BLACK/WHITE A++
