USER MANUAL Bolero Flux PT 504400 Inox A+++ CECOTEC

Modern stainless steel kitchen appliances against a dark blue background (no visible text or symbols)

bolero

Safety instructions 9

1. Parts and components 68
2. Before use 68
3. Installation 68
4. Operation 71
5. Cleaning and maintenance 72
6. Troubleshooting 74
7. Recycling of electrical and
   electronic equipment 74
8. Copyright 75
9. Simplified EU Declaration of Conformity 75

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or similar qualified personnel to avoid risks.

- Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

- There is a risk of fire if cleaning is not carried out according to the instructions.

- Do not flambé under the kitchen hood.

- CAUTION: Accessible parts can become hot when used with cooking appliances.

- Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.

- The minimum distance between the worktop and the

lowest part of the kitchen hood, when it is located above a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:

I. Non-combustible parts of kitchen hoods.
II. Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are deformed).

• The air discharge regulations must be complied with.
• The kitchen hood is intended for installation only over a hob with four cooking zones.
• Things you should never do:

I. Do not attempt to use the kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!
II. Do not install the kitchen hood above a cooker with a high level grill.
III. Do not leave pans unattended during use because overheated fats or oils may catch fire.

• Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.
• Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.
• Never leave open flames under the kitchen hood.
• If the kitchen hood is damaged, do not attempt to use it.
• When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
• Important! Always disconnect the power supply during installation and maintenance.
• The kitchen hood must be installed in accordance with

the installation instructions and in compliance with all measurements.

- All installation work must be carried out by a qualified person or electrician.

- Dispose of the packaging material carefully. Children are vulnerable to it.

- Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.

- Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood.

- Warning: Failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards.

- Warning: Before accessing the electrical terminals, all power supply circuits must be disconnected.

- There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

- Caution: The appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.

- Local air discharge regulations must be complied with.

- For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.

- Do not use a steam cleaner.

- NEVER attempt to extinguish a fire with water. Instead, switch off the appliance and then smother the flames using for example, a lid or a fire blanket.

• Never use extension leads, multiple socket connections or external timer connection elements.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.
• The appliance must not be operated if the power supply cord is damaged or cut.
• If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec Technical Support Service.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Pyramidal extractor hood
• Assembly kit
• Carbon filter (not installed) x2
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Figure 2 shows the kitchen hood dimensions. Use these to ensure correct installation according to your specific model.

Ventilation requirements

- The ventilation system outlet must lead outdoors, except for recirculation installations (without ventilation).

- Do not place the ventilation system outlet in an attic or other enclosed area.

- Use only metal ducts. Rigid metal ducting is recommended. Plastic or aluminium foil ducts are not recommended.

- The ventilation system must have a regulator. If the roof or wall cap already has a damper, do not use the damper supplied with the extractor hood.

- To maximise the ventilation system performance:

• Minimise the duct length and number of transitions and elbows.
• Maintain consistent duct size.
• Seal all connections with duct tape to prevent leaks.
• Seal the exterior wall or roof opening around the cap with mastic.

- The extractor hood must be installed at a height of 650-750 mm above the hob.

Ventilation methods (according to the figure)

NOTE: The following instructions must be strictly followed to ensure optimal air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the kitchen hood.

Fig. 3

A. Roof ventilation

1. Hood
2. Round duct
3. Roof cover

Fig. 4

B. Wall ventilation

1. Hood
2. Round duct
3. Wall cover

Fig. 5

C. Recirculation (without ventilation)

1. Hood

2. Deflector

3. All installation work must only be carried out by a qualified electrician or competent person.

4. Do not connect the hood's exhaust duct to an existing ventilation system used for another appliance, such as a chimney.
5. The air extraction duct bend angle must not be less than 120^ . Align the duct horizontally. Alternatively, the duct should rise from the starting point and lead to an external wall.
6. After installation, ensure the extractor hood is level to prevent grease accumulation on one side.

ENGLISH

- Ensure the selected outlet duct for installation complies with relevant standards and is fire-resistant.

Kitchen hood installation

Note: Remove the protective film from the chimney before installation.

Assembling accessories included:

- Expansion plugs (∅ 8 mm): 9 pcs.

- Screw ST4.0 x 30 mm: 9 pcs.

- Screw ST4.0 x 8 mm: 6 pcs.

1. Install the one-way valve on the hood's air outlet. Fig. 6.

Fig. 6 key

1. Air outlet

2. One-way valve

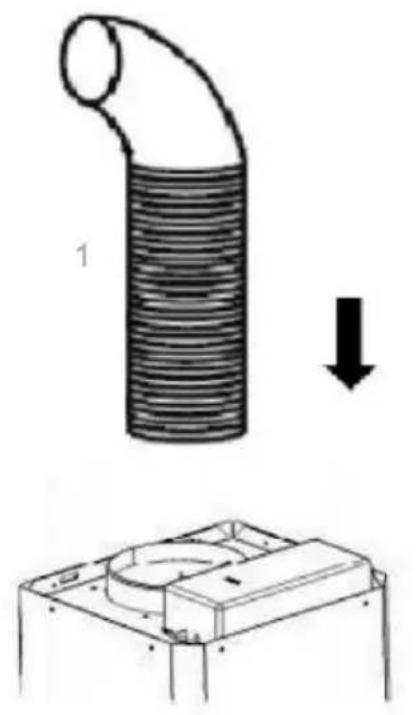

3. Install the exhaust duct on the hood air outlet. Fig. 7

Fig. 7

1. Exhaust tube

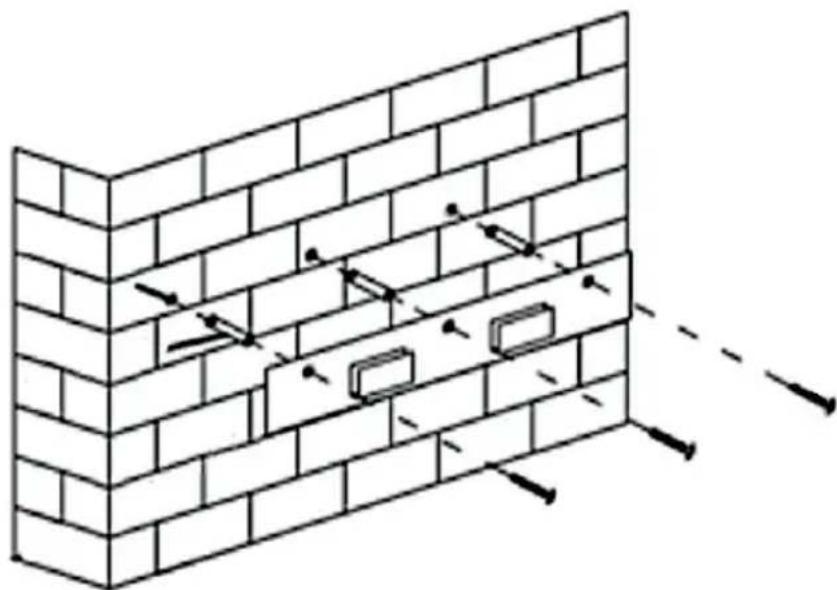

2. Drill 3 x 8 mm holes to accommodate the bracket. Screw and secure the bracket to the wall using the wall plugs and screws. Fig. 8

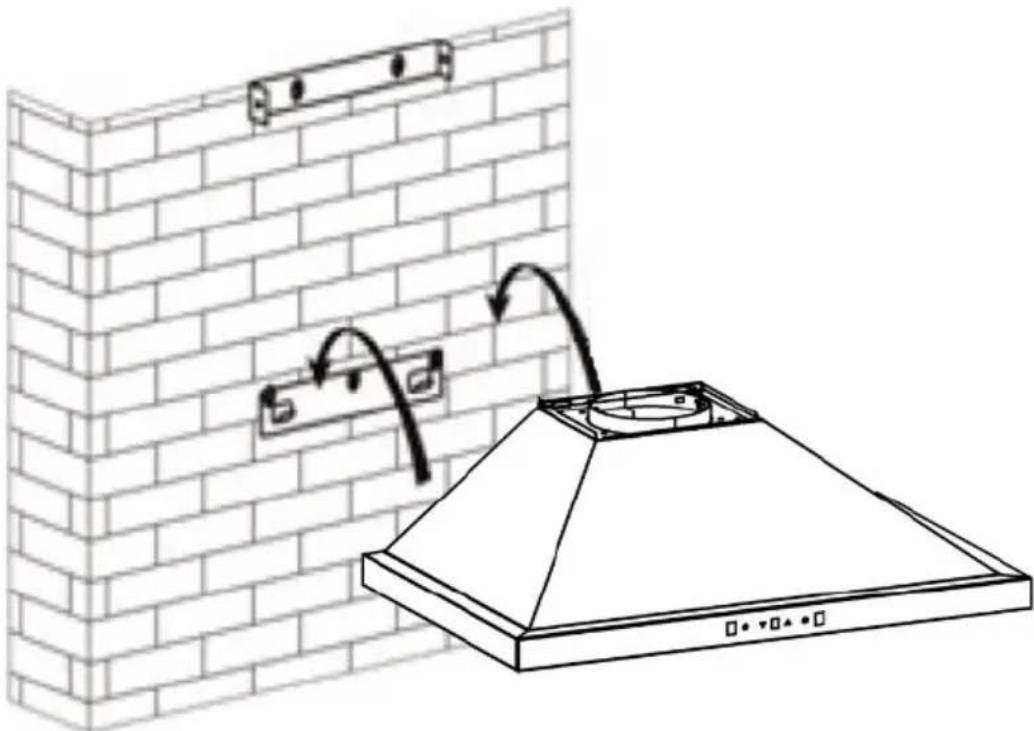

3. Hang the hood on the bracket's hook. Fig. 9

4. Place the inner chimney inside the upper chimney. Then, pull the upper chimney upwards. Adjust to reach the required height. Fig. 10

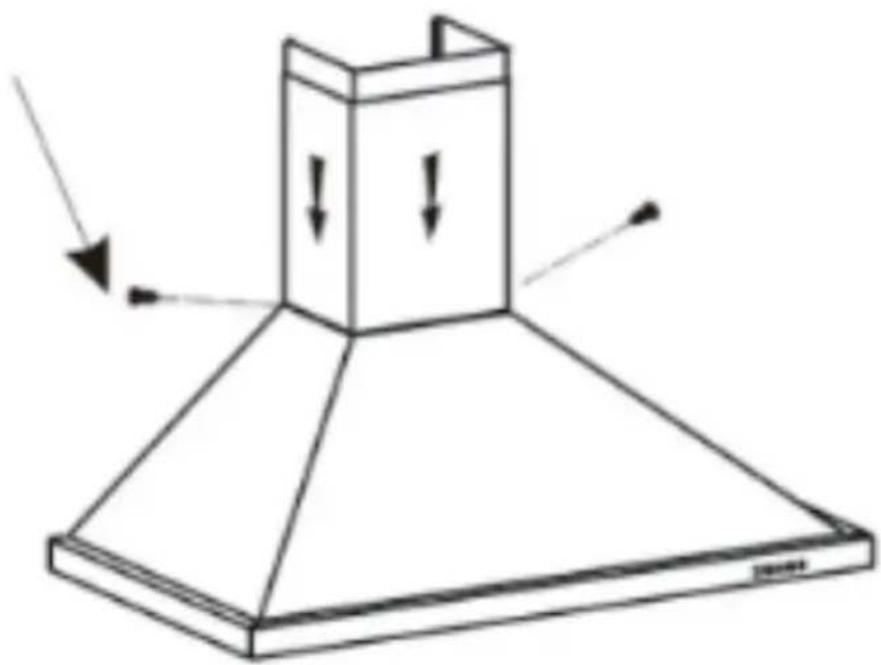

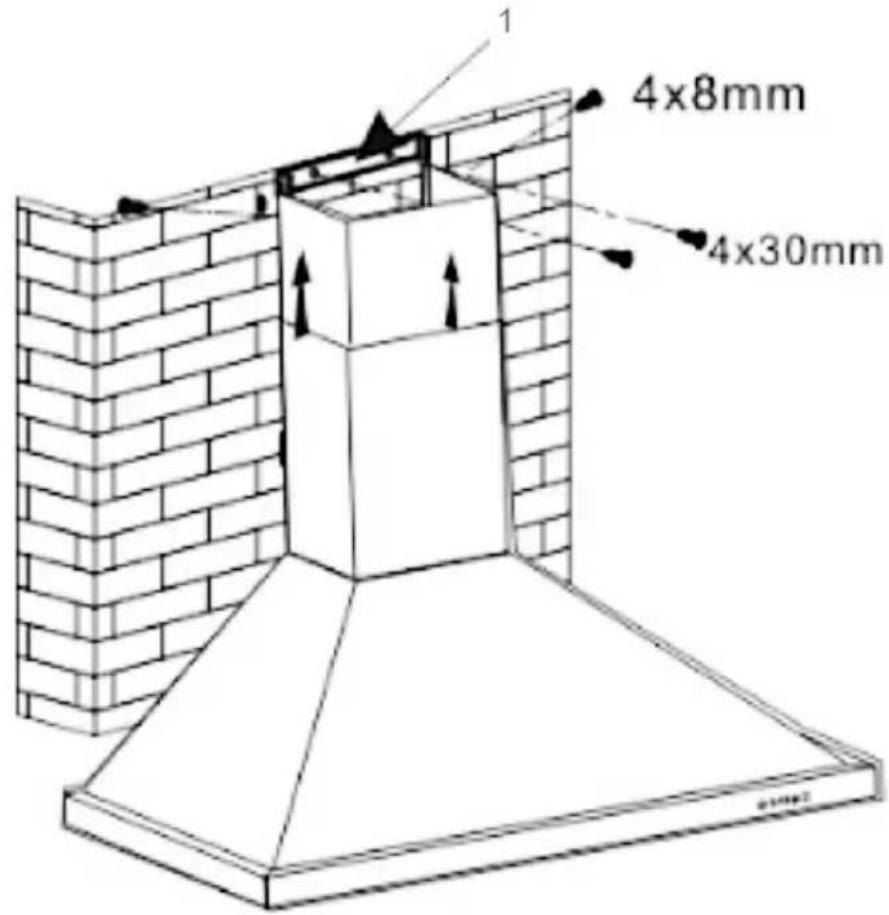

5. Secure the lower chimney with 2 screws 4x8 mm. Fig. 11

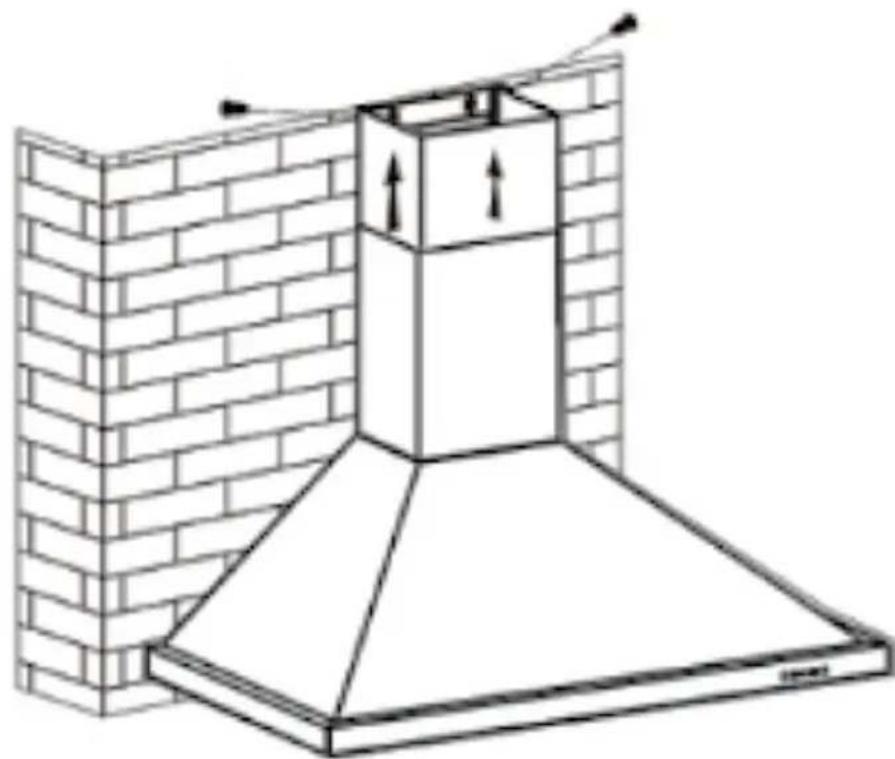

6. Slide the chimney to adjust its height. Once the desired height is achieved, use 2 screws 4x8 mm to join the fixing hole with plate I, as shown in Figure 12.

Fig. 12 key:

1. Plate I

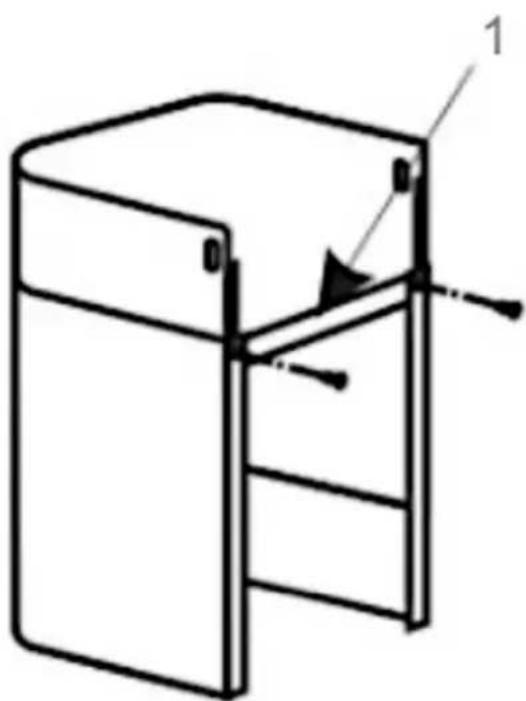

2. Drill 2 x 8 mm holes to accommodate plate II. Screw and secure plate II to the wall using the 2 included screws. Attach the chimney to the unit and secure it with 2 screws. Fig. 13

Fig. 13 key:

1. Plate II

4. OPERATION

Control panel

Fig. 14

1. Sensor
2. Power On/Off touch icon
3. Extraction power increase touch icon
4. Display
5. Extraction power decrease touch icon
6. Light on/off icon
7. Sensor

In standby mode, the power touch icon glows at 50% brightness while other touch icons remain invisible. After power-up, the buzzer will sound twice, and all button indicators (except the power on/off touch icon) and the display will illuminate for 1 second, then turn off and enter standby mode.

Power on/off touch icon

In standby mode, briefly press the touch icon to activate all functions and start operating at low extraction power.

In operating mode, all touch icons glow at 100% brightness.

Press again to switch off the hood. When switched on, the hood will start at low speed and recall the last speed setting used.

Light on/off icon

Press the light touch icon to switch on the extractor hood light.

Press again to switch it off.

Speed touch icons + -

When the appliance is in operating mode, press the touch icon to operate at low/medium/high speed, without cycling.

Press and hold the touch icon + to activate the Booster function, on the digital display "B" will flash, after 5 minutes, it will return to high speed.

Delay function

- When the hood is in operation, press and hold the speed + - icons, the digital display will show the speed and flash, indicating that the hood has entered delayed shutdown mode. The delay time is 5 minutes.

- During the counting time, press and hold the speed + - icons to cancel the delay function. After 5 minutes, all indicator lights turn off, the digital display keeps flashing, the hood beeps, press any button to stop the sound and return to standby mode.

ENGLISH

Note: If no operation is performed, it will automatically return to standby mode after 5 seconds.

Sensors

The sensor windows are on the left and right of the control panel.

In standby mode, move your hand from left to right to activate low speed. At low speed, move your hand from left to right to activate medium speed. At medium speed, move your hand from left to right to activate high speed. At high speed, move your hand from left to right to activate Boost speed.

In operating mode, move your hand from right to left to activate the Delay function. During the 5-minute countdown, move your hand from right to left again and the extractor hood will switch off.

Note: Only hoods installed with hand control function can be activated by gesture control.

5. CLEANING AND MAINTENANCE

Turn off the hood and unplug the power cord from the outlet before cleaning and maintenance. The hood's external surfaces are susceptible to scratches and stains. Use mild cleaning agents and remove any residue of alkaline or acidic substances (such as lemon juice or vinegar) immediately after cleaning.

Stainless steel surfaces

Stainless steel must be cleaned regularly to ensure a long service life.

Use a stainless steel cleaner for this purpose.

Always clean in the direction of the stainless steel grain to prevent scratching the texture.

Control panel surface

The control panel can be cleaned with a damp cloth and mild washing-up liquid.

Make sure the cloth is clean and well wrung out before cleaning.

Use a soft, dry cloth to remove any excess moisture after cleaning.

Monthly grease filter cleaning

Clean the filter every month to prevent fire hazards.

The filter accumulates grease, smoke and dust, which affects the efficiency of the kitchen hood.

If the filter is not cleaned, grease residues will accumulate.

Clean the filter with water and a little detergent, and let it air dry afterwards.

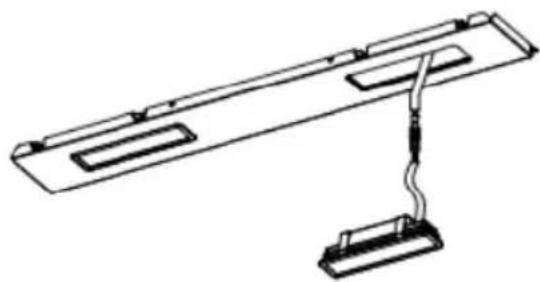

Light replacement

Fig. 15

NOTE:

• The light must only be replaced by a qualified electrician.
• Before starting, disconnect all electrical connections.
- Allow the light to cool before replacing it.
• Always use gloves or a cloth to avoid direct contact with hands.
- Direct contact may shorten the lamp/bulb lifespan.

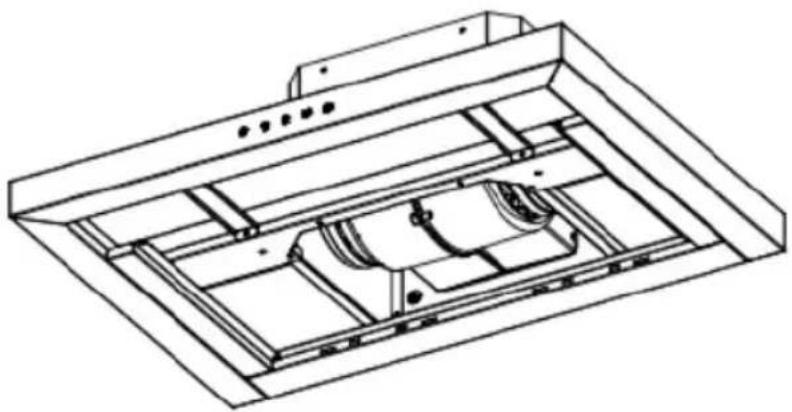

1. Remove the grease filters.
2. Place one hand inside the hood to gently push the LED light, use the other hand to grasp the light and pull it out, and then remove the light cord.
3. After replacing the LED, connect the LED cable and place the LED in the hole.

Note: Reassemble everything after replacing the new lamp and ensure all screws are fixed in the same position. Always replace the light with the same type and amperage.

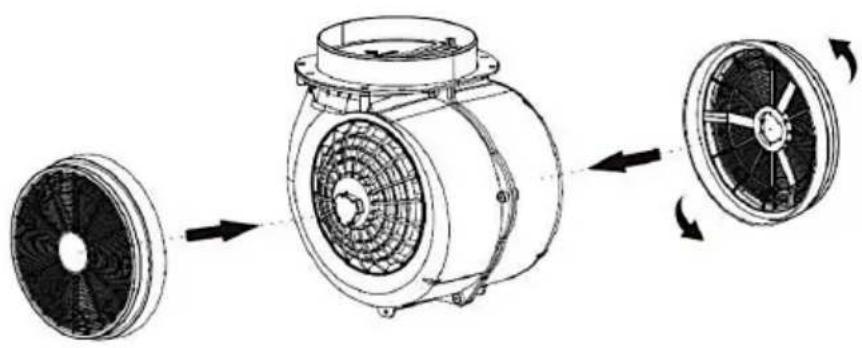

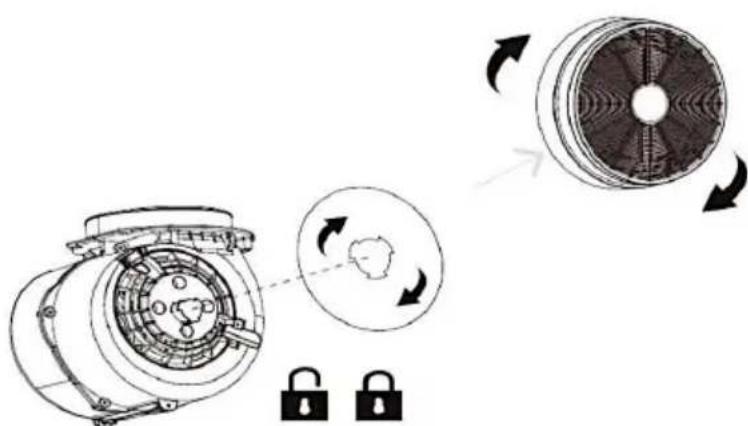

Activated carbon filter installation

Fig. 16

When using the recirculation mode, the use of carbon filters is recommended. Carbon filters can eliminate unpleasant food odours from the environment.

1. Remove the grease filters before installing the carbon filters.
2. Place the carbon filter on the fan housing shaft by aligning the carbon filter holes with the housing shaft.
3. Rotate the carbon filter clockwise.
4. Rotate until it stops turning. (Turn the carbon filter counterclockwise to remove it).
5. Install the grease filters.

NOTE:

• Ensure the filter is securely fastened, otherwise it may become detached and create a hazard.
• When carbon filters are installed, suction power will be reduced.

IMPORTANT: Install carbon filters only if using the hood in air recirculation mode (WITHOUT EXTERNAL EXHAUST DUCT).

ENGLISH

6. TROUBLESHOOTING

Problem Possible cause Possible solution
The light turns on, but the motor does not run.	Ventilation is blocked.The capacitor is faulty.The motor is faulty.	Remove the obstruction.Replace the capacitor. Contact Cecotec's Official Technical Support Service.Contact Cecotec's Official Technical Support Service.
The light does not turn on and the motor does not run.	The light is faulty.The plug is loose.	Replace the LED light.Insert the plug firmly into the power socket.
The kitchen hood vibrates.	The fan wheel is damaged.The motor is not firmly secured.The hood is not firmly fixed to the wall.	Replace the fan wheel. Contact Cecotec's Official Technical Support Service.Secure the motor.Secure the hood.
Smoke or steam is not adequately extracted.	The distance between the hood and the hob is excessive.There is excessive airflow across the cooking surface.	Reduce the height of the hood.Reduce airflow by closing windows or doors.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of applicable European Union regulations. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on

the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

B. Ventilation murale

6. PROBLEEMOPLOSSING

Diagram illustrating a mechanical or scientific process with labeled components and directional arrows, showing two stages of assembly or processing.

Fig./Img./Abb./Afb./Rys. 6

Diagram showing a pipe with a circular component being reduced by a downward arrow, alongside a technical sketch of a mechanical part (no text or symbols)

Fig./Img./Abb./Afb./Rys. 7

Diagram of brick wall construction with arrows indicating direction and components (no text or symbols)

Fig./Img./Abb./Afb./Rys. 8

Line drawing of a brick chimney with mounted electrical outlets and a curved airflow path (no text or symbols)

Fig./Img./Abb./Afb./Rys. 9

Line drawing of a brick chimney mounted on a wall, showing structural details and airflow direction (no text or symbols)

Fig./Img./Abb./Afb./Rys. 10

Line drawing of a chimney with directional arrows indicating airflow or movement (no text or symbols)

Fig./Img./Abb./Afb./Rys. 11

Technical line drawing of a cabinet or enclosure with ladder and support structure (no text or symbols)

Fig./Img./Abb./Afb./Rys. 12

1 4x8mm 4x30mm

Fig./Img./Abb./Afb./Rys.13

1 2 - 5 4 + 3 6 7

Fig./Img./Abb./Afb./Rys. 14

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Line drawing of a mechanical lever or support structure with no text or symbols

Fig./Img./Abb./Afb./Rys. 15

Technical line drawing of a mechanical fan assembly showing internal components and rotation arrows (no text or labels)

Diagram of a mechanical device showing internal components and rotation arrows, with no readable text or symbols.

Fig./Img./Abb./Afb./Rys. 16

www.cecotec.es
