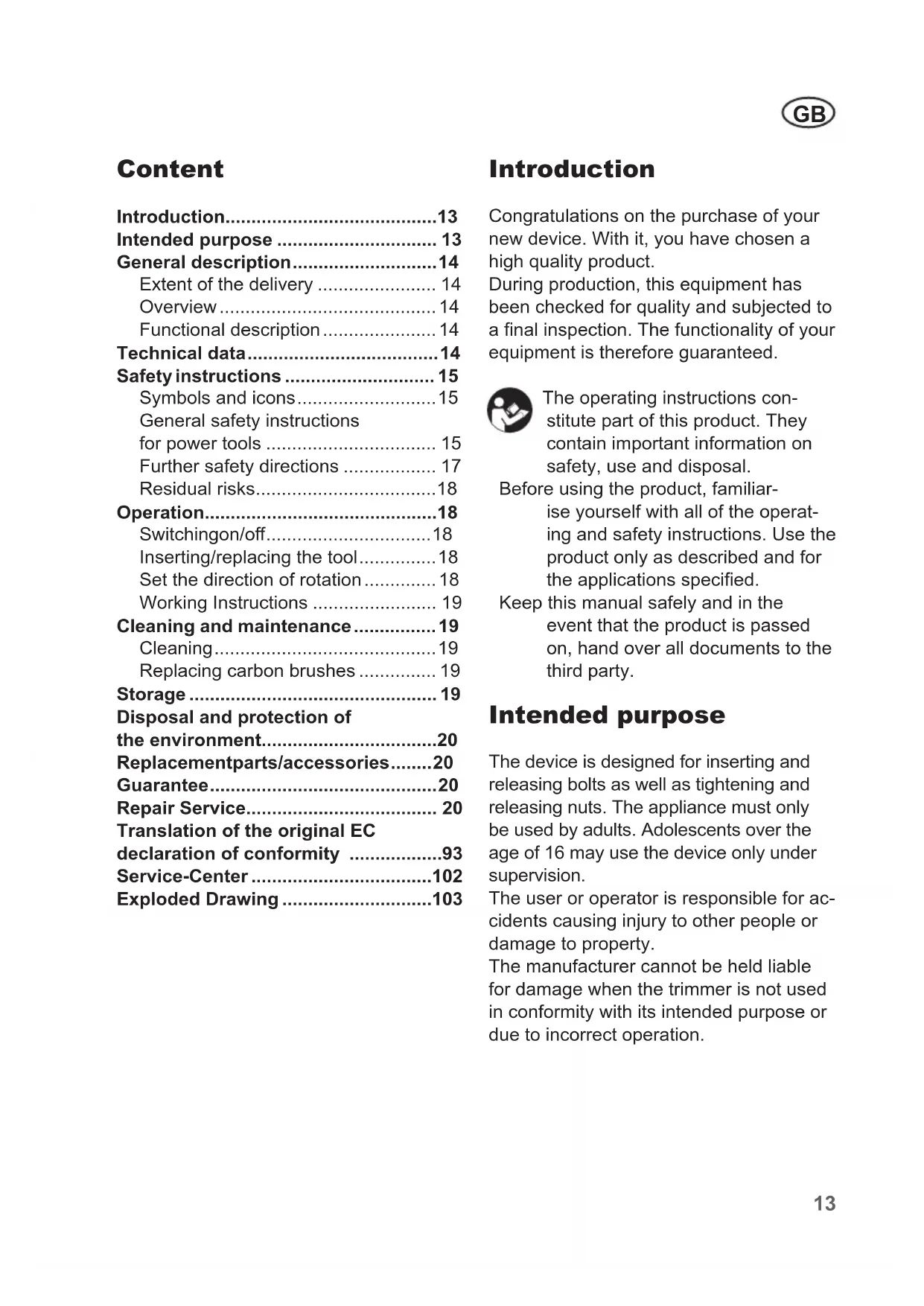

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The device is designed for inserting and releasing bolts as well as tightening and releasing nuts. The appliance must only be used by adults. Adolescents over the age of 16 may use the device only under supervision.

The user or operator is responsible for accidents causing injury to other people or damage to property.

The manufacturer cannot be held liable for damage when the trimmer is not used in conformity with its intended purpose or due to incorrect operation.

General description

The illustrations for operating the device can be found on page 2.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Electric impact wrench
• 4 sockets

(17 mm, 19 mm, 21 mm, 22 mm)

• 2 spare carbon brushes
• Storage case
• Instruction manual

Overview

1 Tool holder

2 Metal housing
3 On/off switch 4 Vents
5 Rotational direction switch
6 Service panel 7 Handle
8 Mains cable
9 Storage case
10 Spare carbon brushes

11 Socket, 22 mm
12 Socket, 21 mm
13 Socket, 19 mm
14 Socket, 17 mm

Functional description

The electric impact wrench has clockwise/counter-clockwise rotation and a 1/2" square drive.

The rotary impact function of the device converts the force of the motor into uniform rotary impacts. The striking mechanism switches on when tightening and loosening materials.

Technical data

Electric impact wrench ..... DP-EIW-4533

Rated input voltage U.....230 V\~, 50 Hz

Power input P 450 W

Idling speed n_0 3000 min ^-1

Max. torque 330 Nm

Tool holder....1/2"

Weight (without accessories) .....2.2 kg

Safety class.... □ II

Protection category IPX0

Sound pressure level

(L_pA) ..... 101.6 dB(A); K_pA = 3 dB Sound power level ( L_WA )

measured .... 112.6 dB(A); K_WA = 3 dB Vibration ( a_h )..... 19.433 m/s²; K=1.5 m/s²

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used, in particular which kind of work piece is processed.

Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Safety instructions

Ensure that the safety instructions are observed when operating the appliance.

Symbols and icons

Symbols in the manual:

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Connect the machine to the power supply.

Pull out the mains plug.

Symbols on the appliance:

WARNING – To reduce the risk of injury, read the operating instructions.

Carefully read these Operating Instructions.

Do not expose to rain or moisture.

Caution! Hot surface. Risk of burns.

Safety class II

Electrical appliances must not be disposed of with the domestic waste.

General safety instructions for power tools

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term “Power Tools” used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Dis-tractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inat-

tention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not give in to a false feeling of safety and do not disregard the safety rules for power tools, even if you are familiar with the power tool after many times of use. Acting carelessly can lead to serious injuries within fractions of seconds.

4) USE AND TREATMENT OF POWER TOOLS

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations differ-

ent from those intended could result in a hazardous situation.

h) Hold the device by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

h) Keep handles dry, clean and free from oil and grease. Slippery handles and handle surfaces do not permit safe operation and control over the power tool in unexpected situations.

5) SERVICE

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Further safety directions

a) Hold the power tool by the insulated handle grips when performing work in which the screw may come into contact with hidden wiring or its own power cord. If the screw were to come into contact with a live electrical cable, metal parts of the appliance could also become live and cause an electric shock.

b) Keep hands away from rotating parts. Wait until the power tool has stopped before placing it down. Risk of injury!

c) Avoid contact with the tool insert or the component part immediately after processing. The parts may be hot and cause burn injuries.

GB

d) Immediately switch off the power tool if the tool insert is blocked due to overloading or tilting of the component part. The loss of control can result in injuries.
e) The device must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30 mA.
f) If replacement of the connecting cable becomes necessary, this is to be carried out by the manufacturer or his agent in order to avoid safety risks.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Injuries caused by moving parts or hot surfaces.
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Operation

Switching on/off

Make sure that the power supply voltage matches the voltage rating indicated on the device's type plate.

Connect the machine to the power supply.

1. Press the on/off switch (3). The device runs at the maximum speed.

2. To turn it off, release the on/off switch (3).

Inserting/replacing the tool

1. Push the desired bit (11-14) onto the tool holder (1).

2. To remove it, pull the bit off from the tool holder (1).

Set the direction of rotation

You can toggle between right and left rotation by pushing the direction of rotation switch (5).

The direction changed may only be performed in standstill mode!

1. Clockwise direction: Push the directional switch (5) to the right up to the stop.
2. Counter-clockwise direction: Push the directional switch (5) to the left up to the stop.

Working Instructions

• The tightening torque depends on the selected speed and impact duration.
• Use the electric impact wrench when tightening screws and nuts exclusively for pre-assembly. The desired target torque of the screw or nut is not to be achieved by the electric impact wrench but by means of a torque wrench which is set to the target torque.
• The tightening torque actually achieved must be checked in all cases with a torque wrench.
• When using the device for longer periods of time, allow the device to run for 10 seconds without any load every now and then.

Always follow the manufacturer's instructions for tightening screws or nuts. Follow the manufacturer's guidelines for the inspection of screws or nuts in accordance with time or performance.

After a wheel change is carried out, reference is regularly made to an inspection of the wheel bolts or nuts. That inspection must be carried out with a torque wrench after 50 to 100 km.

Cleaning and maintenance

Disconnect the plug before any work on the equipment. There is a risk of injury.

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

- Keep clean the ventilation slots (4), A motor housing and handle (7) of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

Replacing carbon brushes

Switch the device off and remove the mains plug. Allow the device to cool down.

1. Loosen the service panel (6) with a screwdriver.

2. Remove the service panel (6).

3. Pull the carbon brush (10) out of the holder.
4. Slide a new carbon brush (10) into the holder.
5. Re-attach the service panel (6).
6. Repeat steps 1 to 5 on the other side of the tool.

Carbon brushes must only be replaced in pairs.

Storage

• Clean the device prior to storage.
• Store the device in the storage case (9) provided in a dry place and out of reach of children.

Disposal and protection of the environment

Take the device, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Defective units returned to us will be disposed of for free.

Replacement parts/ accessories

Spare parts and accessories can be obtained at www.service-deltafox.de

If you have any other questions, contact the "Service-Center" (see "Service-Center").

Guarantee

• This unit has a guarantee period of 24 months. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.
• Justified guarantee claims should be reported to our Service Centre (telephone & fax no.s, and email address). Our Service Team will tell you more about our complaints handling procedure.
• Damage due to natural wear and tear, overload or incorrect use is excluded from the guarantee. Certain components are subject to normal wear and tear and are excluded from the guarantee. Inappropriate use will invalidate the warranty.

• Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
- Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.
This requires that the appliance is returned to our service center undismantled and with proof of purchase and guarantee.

Repair Service

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate. We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.
  • Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.
  • We can carry out a waste disposal of your device free of charge.
