• Contents Introduction p. 65
• Intended Use p. 65
• General Description p. 65
• Scope of Delivery p. 66
• Summary p. 66
• Function Description p. 66
• Technical Specications p. 66
• Safety Information p. 67
• Pictorial Diagrams on the Equipment p. 67
• Symbols used in the instructions p. 68
• General Safety Information p. 68
• Assembly p. 72
• Mounting the switchbox p. 72
• Fitting the wheels p. 72
• Mounting the grip rod p. 72
• Mounting the grass collection box p. 73
• Operation p. 73
• Mounting/Removing the grass catcher p. 73
• Switching On and O󰀨 p. 73
• Level gauge p. 74
• Adjusting the Cut Height p. 74
• Working with the Lawnmower p. 74
• Cleaning/Maintenance p. 74
• General Cleaning and Maintenance Work p. 75
• Changing the Blade p. 75
• Storage p. 75
• Waste disposal and environmental protection p. 75
• Guarantee p. 76
• Repair Service p. 76
• Replacement parts/Accessories p. 76
• Trouble Shooting p. 77
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions con- stitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiar- ise yourself with all of the operat- ing and safety instructions. Use the product only as described and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended Use The equipment is designed only for mow- ing domestic lawns and grass areas. Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user. The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect opera- tion. General Description The illustration how to handle the appliance can be found on page 2-3. Translation of the original EC declaration of conformity p. 140
• Exploded Drawing p. 146
• Service-Center GB p. 147

Scope of Delivery Carefully remove the equipment from the packaging and check whether the follow- ing parts are complete: - Lawnmower with device cable - Bow-type handle - Lower bar - Grass collection box (two-part) - Grass collection box carrying handle - Cable strain relief - Mounting material (4 quick-release levers, 2 screws, 1 cable holder) - Instruction Manual Summary 1 Bow-type handle 2 Quick-release levers for bow- type handle 3 Lower bar 4 Quick-release levers for lower bar 5 Device carrying handle 6 Device housing 7 Wheel 8 Grass collection box 9 Impact protection 10 Cable clamp 11 Device cable 12 Cable strain relief 13 Socket for extension cable 14 Switchbox 15 Release button 16 Start handle 17 Recessed head screw 14a Plastic cover 18 Hubcap 19 Wheel axle 7a Spacer washer 7b Split pin 20 Bar support 2a Mounting screws 21 Grass collection box carrying handle 8b Top of grass collection bag 8a Bottom of grass collection bag 22 Support for grass collection box 23 Blade 24 Blade bolt 25 Wheel axle Function Description The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It is tted with a high-performance motor, robust plastic housing, a safety switch, im- pact protection, as well as grass collector basket with ll level indicator. For the function of the operating parts, please refer to the descriptions below. Technical Specications Electric Lawnmower ........ DG-ELM 1332 Mains voltage .....................230 V~, 50 Hz Motor input power .........................1300 W Protection class ..................................II Protection type...................................IPX4 Idling speed ..............................3400 min

= 2,96 dB Sound power level (L

= 2,96 dB Vibration (a

Noise and vibration values were deter- mined according to the standards and stipulations mentioned in the declaration of conformity. The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission

value may di󰀨er during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched o󰀨 and times when it is switched on but running without any load). Safety Information This section covers the basic safe- ty regulations when working with the electric lawnmower. Pictorial Diagrams on the Equipment Caution! Read the operating instruc- tions carefully. Risk of injury from parts be- ing thrown up. Keep nearby people away from the mower. Caution – sharp cutting blade! Keep feet and hands away. Risk of injury! Switch o󰀨 the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged. Danger of damaged power cable. Keep the power cable away from the cutting blade! Wear eye and ear protec- tion. Do not expose the equip- ment to the damp. Do not work in the rain and do not cut wet grass. Caution! The lawnmower blade continues to run after switching o󰀨. There is a risk of injury! Protection class II

in dB. Do not dispose of electri- cal equipment in domestic waste. Cutting circleGB

Stop the equipment: Release the safety catch Danger! Keep hands and feet away. STOP

Symbols on the level gauge of the grass collection box Symbols used in the instructions Hazard symbols with in- formation on prevention of personal injury and property damage. Precaution symbol (explana- tion of precaution instead of exclamation mark) with information on prevention of harm / damage. Notice symbol with informa- tion on how to handle the device properly. Wear protective gloves. Pull out the mains plug. General Safety Information Important! Please read the operating instructions care- fully and keep the manual for future reference. This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the fol- lowing safety information must be observed and users must familiarise themselves with all operating parts. Warning! During operation, this electric tool gener- ates an electromagnetic eld which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we rec- ommend that persons with medical implants consult their doctor and the manu- facturer of their medical implant before operating the machine. Preparation:

• Read the operating instructions carefully. Familiarise yourself with the controls and how to use the machine correctly.

• Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.

• This device can be used by in- dividuals with reduced physical, sensory or mental abilities or a lack of experience and knowl- edge if they are supervised or have been instructed in the safe use of the device and un- derstand the resulting hazards. Children must never play with the device. Cleaning and userGB

maintenance must not be car- ried out by children.

• Do not use the equipment when people and particularly children or pets are nearby.

• The operator or user is respon- sible for accidents, injuries to other people or damage to the property of others.

• Check the terrain on which the equipment is to be used and re- move stones, sticks, wires and other foreign objects that could become caught and thrown up.

• Wear suitable work clothing such as stable shoes with non- slip soles and robust, long trou- sers. Do not use the equipment when barefoot or when wearing open sandals. Do not wear loose clothing or clothes that straps or belts sus- pend from.

• Before use, always perform a visual inspection to check whether the cutting blades, fastening bolts and the whole cutting unit are worn out or damaged. Damaged or worn cutting blades and fastening bolts must only be replaced as a set to prevent imbalance. Worn or damaged information signs must be replaced.

• Never use the lawnmower with damaged protective equipment or protective grating or without installed protective equipment, e.g. deector plates and/or grass collection equipment.

• Use only spare parts and ac- cessories supplied and recom- mended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.

• Prior to use, always check the cord and extension cord for signs of damage or wear. Im- mediately disconnect the cord from the mains in case it is damaged in use. Do not touch the cord until it is unplugged. Do not operate the appliance if the cord is worn or damaged. Working with the Equipment: Do not place feet or hands near or under rotating parts when working. Risk of injury! Observe the noise protec- tion and local regulations.

• Switch on the motor accord- ing to the instructions and only when your feet are at a safe distance from the cutting tools.

• Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.

• Do not work with the equipment when tired, lacking concentra- tion or under the inuence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.

• When working, ensure a rm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.GB

• Run the equipment only at a walking pace. Take particular care when turning the equip- ment around, pulling it towards you or going backwards.

• Switch on the equipment care- fully and in accordance with the directions in these instruc- tions. Ensure su󰀩cient distance between feet and the rotating blades.

• Do not tilt the equipment when starting other than if it is nec- essary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equip- ment are raised. Always check that both hands are in the work- ing position before returning the equipment to the ground.

• Lift it only on the side facing away from the user.

• Do not work without the grass bag or collision guard. Keep away from the ejection hole at all times.

• Do not start the motor while standing in front of the dis- charge duct. Caution! Danger! The blade continues to run after switch- ing o󰀨. There is a risk of injury.

• The equipment is not to be lifted or transported while the motor is running. Switch o󰀨 the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.

• Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.

• Do not leave the equipment un- attended in the workplace.

• Do not work with equipment that is damaged, incomplete, or has been modied without the authorisation of the manufac- turer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deection and/or grass collection devices.

• Do not overload the equipment. Work only within the speci- ed power range and do not change the regulator settings on the motor. Do not use low- powered machines for heavy work. Do not use your equip- ment for purposes other than those for which it is designed.

• Do not use the equipment near inammable liquids or gases. Non-observance will result in a risk of re or explosion.

• Do not lift or carry the equip- ment when the motor is run- ning.

• Turn o󰀨 the appliance, unplug it from the mains and check that all moving parts are at rest: - Whenever you leave the ma- chine, - before removing obstruc- tions or loosening blockages from the discharge chute - Before cleaning the ejection hole or removing blockages,GB

- When the equipment is out of use, - Before checking, cleaning or working on the equipment, - If the power cable is dam- aged or frayed, - If the equipment has hit a foreign object or if strange vibrations occur during work. In this case, check the equipment for damage and have it repaired if applica- ble.

• Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejec- tion hole during sickle mowing.

• If the lawnmower starts to vi- brate abnormally, an immediate check must be carried out. - search for signs of damage; - have any necessary repairs carried out on damaged parts; - make sure that all nuts, bolts and screws are properly tightened. Maintenance and Storage: When servicing the blades, remember that they can move even if the power source is o󰀨.

• Ensure that all nuts, bolts and screws are tightened rmly and the equipment is in safe work- ing condition.

• Check the mower for any dam- ages.

• Repair damaged parts as ap- propriate.

• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specied in these instructions is to be carried out only by customer service cen- tres that we have authorised.

• Keep the equipment in a dry location and out of reach of children.

• Handle the equipment with care. Keep tools sharp and clean, in order to facilitate bet- ter and safer work. Follow the maintenance instructions.

• Wear protective gloves when changing the cutting device.

• Regularly check the grass col- lection device for wear and strains. For safety reasons, re- place worn or damaged parts. When adjusting the blades, take particular care to avoid ngers being trapped between the rotating blades and xed parts of the machine.

• Check that only replacement tools authorised by the manu- facturer are used.

• Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades. Electrical Safety:

• Ensure that the mains voltage matches the specications on the rating plate.

• Connect the equipment to a socked with a RCD (Residual Current Device) with a release current of more than 30 mA.GB

• Use only approved extension cables of type H07RN-F that are not more than 75 m long and are designed for outdoor use. The wire cross section of the extension cable must be at least 2.5 mm

. Always completely unroll cable drums before use. Check the cable for damage.

• To x on the power cable, use the cable suspension intended for the purpose.

• Keep the power cable away from the cutting tool when working. The cutting blades may damage the power cable and result in contact with live parts. Always run the power ca- ble behind the operator.

• Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges.

• Switch o󰀨 the equipment and disconnect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the cus- tomer services of the same, or a qualied person, in order to avoid hazards.

• Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts. Assembly Disconnect the plug before any work on the equipment. There is a risk of injury. Mounting the switchbox

1. Remove the two recessed head

screws (17) from the switchbox (14).

2. Remove the plastic cover (14a) from

3. Insert the switchbox (14) through the

locating holes on the bow-type handle (1).

4. Fasten the switchbox (14) with the

plastic cover (14a) and the recessed head screws (17). Fitting the wheels

1. Slide the wheel (7) onto the wheel axle

2. Secure the wheel (7) with a washer

(7a) and a splint (7b).

3. Press the hubcap (18) onto the wheel.

4. Repeat steps 1-3 for the remaining

wheels. Mounting the grip rod Mounting the lower bars:

1. Insert the lower bars (3) into the bar

support (20) on the device housing (6).

2. Fasten the lower bars using the en-

closed quick-release levers (4).

3. Lock the quick-release levers (4) by

pressing them in the direction of the bar (1). They must t the handle so that a tensioning with medium force can be carried out. Otherwise, the quick release levers (4) must be turned clockwise for tension-GB

ing them or anti-clockwise to loosen them. Mounting the bow-type handle: 4 Slide the bow-type handle (1) onto the lower bars (3).

5. Put the mounting screws (2a) through

the holes on the lower bars and bow- type handle (1).

6. Screw the quick release levers (2)

onto the mounting screws (2a).

7. Lock the quick release levers (2) by

pressing them in the direction of the bow-type handle (1). They must t the bow-type handle so that tensioning can be carried out with medium force. Otherwise, the quick release levers (2) must be turned clockwise for tension- ing them or anti-clockwise to loosen them. Clipping in the cable clamp:

8. Clip the enclosed cable clamp ( 10)

onto the lower bar (3) to x the device cable in place (11). Mounting the grass collection box

1. Attach the grass collection box carry-

ing handle (21) to the top of the grass collection box (8b).

2. Fasten the grass collection box carry-

ing handle (21) with a recessed head screw (17).

3. Connect the top and underside (8b) of

the grass collection box (8a+8b). Operation Attention: Do not operate the ap- pliance until the collision guard and grass catcher are fully in- stalled. Risk of injury! Mounting/Removing the grass catcher Mounting the grass catcher

1. Lift the collision guard (9).

2. Hang the grass catcher (8) into the

designated holder for grass catcher (22) on the rear of the device.

3. Lower the collision guard (9) onto the

grass catcher (8) - it will keep it in place. Removing the grass catcher

4. Lift the collision guard (9).

5. Unhook the grass catcher (8) from the

mounting bracket. Flap down the colli- sion guard (9) to the housing. On emptying the grass catcher also refer to section “Disposal/en- vironment”. Switching On and Off

1. Insert the mains cable plug into the

socket (13) on the bow-type handle (1).

2. Turn the end of the extension cable

into a loop and hook it into the cable strain relief (12).

3. Connect the equipment to the power

4. Before switching on, ensure that the

equipment is not in contact with any objects.

lease button (15) on the switchbox (14) while hold- ing down the start handle (16). Let go of the release STOP

After switching o󰀨 the equip- ment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury. Level gauge The level gauge ( 8) is located on the side of the grass collection box. The aero- dynamic air guidance provided by the ap also optimises the lling. Flap open: grass catcher empty Flap closed: grass catcher full Adjusting the Cut Height Switch o󰀨 the equipment, discon- nect the plug and wait for the blade to stop. There is a risk of injury. 60 mm - Tall cutting height 40 mm - Medium cutting height 20 mm - Short cutting height

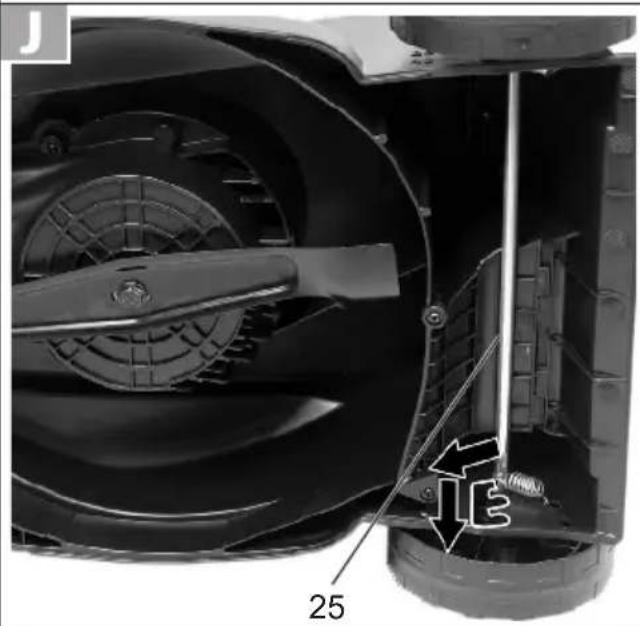

1. Place the lawnmower on its side.

2. Grasp the wheel axle (25) on both

3. Pull evenly on the axle and let it snap

into the desired position. The correct height is around 20 – 40 mm for a decorative lawn and around 40 – 60 mm for a used lawn. A higher cut height should be selected for the rst cut of the sea- son. Working with the Lawnmower Regular mowing encourages increased foliation of the grass and kills o󰀨 weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn. When mulch mowing the grass is cut in one cycle, nely chopped and distributed on the lawn. The cut grass acts as a natu- ral fertilizer.

• Start mowing near the socket and work away from the socket.

• Always keep the extension cable be- hind you and when you turn, move it to the side that has already been mowed.

• Run the equipment at a walking pace, in tracks that are as even as possi- ble. For gap-free mowing, the tracks should always overlap by a few centi- metres.

• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.

• Clean the equipment after each use, as described in the chapter on “Clean- ing, Maintenance and Storage”. Switch o󰀨 the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury. Cleaning/Maintenance Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.GB

Wear gloves when handling the blade Switch o󰀨 the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops. General Cleaning and Mainte- nance Work Do not hose down the lawnmow- er with water. This would result in the danger of an electric shock and the appliance could be damaged.

• Always keep the equipment clean. To clean, use a brush or cloth but no de- tergent or solvent.

• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.

• Oil the wheels from time to time.

• Before each use, check the lawnmow- er for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting rmly.

• Check the covers and protective de- vices for damage and check that they are sitting correctly. Replace them if necessary. Changing the Blade Switch o󰀨 the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops. If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbal- ance, it must be replaced (see chapter on “Spare Parts”).

1. Turn the equipment over.

2. Turn the blade screw (24) anticlock-

wise o󰀨 of the motor spindle using a screwdriver.

3. Install the new blade in the reverse

order. Ensure that the blade is posi- tioned correctly and the screw tight- ened rmly. Storage For the device to take up less space, unlock the quick-release levers (2+4) on the bow-type han- dle (1) and the lower bars. You can now fold up the bow-type handle (1) and the lower bar (4). Make sure that the cables do not be- come trapped.

• Keep the equipment dry and out of reach of children.

• Allow the motor to cool before storing the equipment in a conned space.

• Do not cover the equipment with nylon bags as moisture could build up. We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non- original parts or by use other than for the intended purpose. Waste disposal and envi- ronmental protection Do not dispose of used oil in the sewage system or drains. Dispose of used oil inGB

an environmentally correct manner - bring it to a waste disposal center. Be environmentally friendly. Return the tool, accessories and packaging to a recy- cling centre when you have nished with them. Machines do not belong with do- mestic waste.

• The plastic and metal parts employed can be separated out and thus recy- cled use can be implemented. Ask our Service-Center for details.

• Throw the cut grass on the compost. Do not throw it in the normal house- hold waste.

• Defective units returned to us will be disposed of for free. Guarantee

• This appliance has a 24-month guar- antee. Commercial use will invalidate the guarantee.

• Damages, which can be attributed to natural wear, overloading or inap- propriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In par- ticular, these include: blade, v-belt.

• Furthermore, the prerequisite for guar- antee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.

• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair. This requires that the appliance is returned to the merchant undismantled and with proof of purchase and guarantee. Repair Service

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our ser- vice center will be glad to provide you with a cost estimate. We can only process devices which have been packaged su󰀩ciently and which have been dispatched with cor- rect stamping.

• Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address. Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

• Defective units returned to us will be disposed of for free. Replacement parts/ Accessories Spare parts and accessories can be obtained at www.service-deltafox.de If you have any other questions, contact the ”Service-Center” (see „Service- Center“).GB

Pos. Description Product No. 2 Schnellspanner für Bügelgri󰀨 91105653 4 Schnellspanner für untere Holme 91105654 7 Wheel set 91105650 8 Grasfangkorb 91105651 14 Schaltbox 91105652 Trouble Shooting Problem Possible Cause Fault Fixing Equipment does not start Power is o󰀨 Check the socket, cable, wire and plug and have any repairs carried out by an electrician Defective start lever ( 16) or release button ( 15) Repair by customer services Worn carbon brushes Defective motor Grass too long Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar. Motor stops Blockage by foreign object Remove the foreign object Result unsatis- factory or motor labours Cut height too low Set a higher cut height Blade (

Have the blade sharpened or re- place it Blade area blocked Clean the equipment Blade (

grass Remove the grass Blade screw (

Tighten the blade screw Strange noises, rat- tling or vibrations Blade screw (

Tighten the blade screw Blade (

Translation of the original EC declaration of conformity We hereby conrm that the Electric Lawnmower Design Series DG-ELM 1332 Batch number B-47900 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2000/14/EC • 2014/30/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied: EN 60335-1:2012/A13:2017 • EN 60335-2-77:2010 • EN 62233:2008 EN 55014-1:2017 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62321-1:2013 We additionally conrm the following in accordance with the 2000/14/EC emissions guideline: Sound power level guaranteed: 96 dB(A) measured: 93.1 dB(A) Compliance evaluation process carried out in accordance with Appendix VI / 2000/14/EC Registered O󰀩ce: TÜV Süd Product Service GmbH, Ridlerstraße 65, 80339 München, NB 0036 This declaration of conformity is issued under the sole responsibility of the manufac- turer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany

• The object of the declaration described above satises the provisions of Directive 2011/65/ EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. Christian Frank Documentation Representative141
