USER MANUAL PPL 10 A1 PARKSIDE

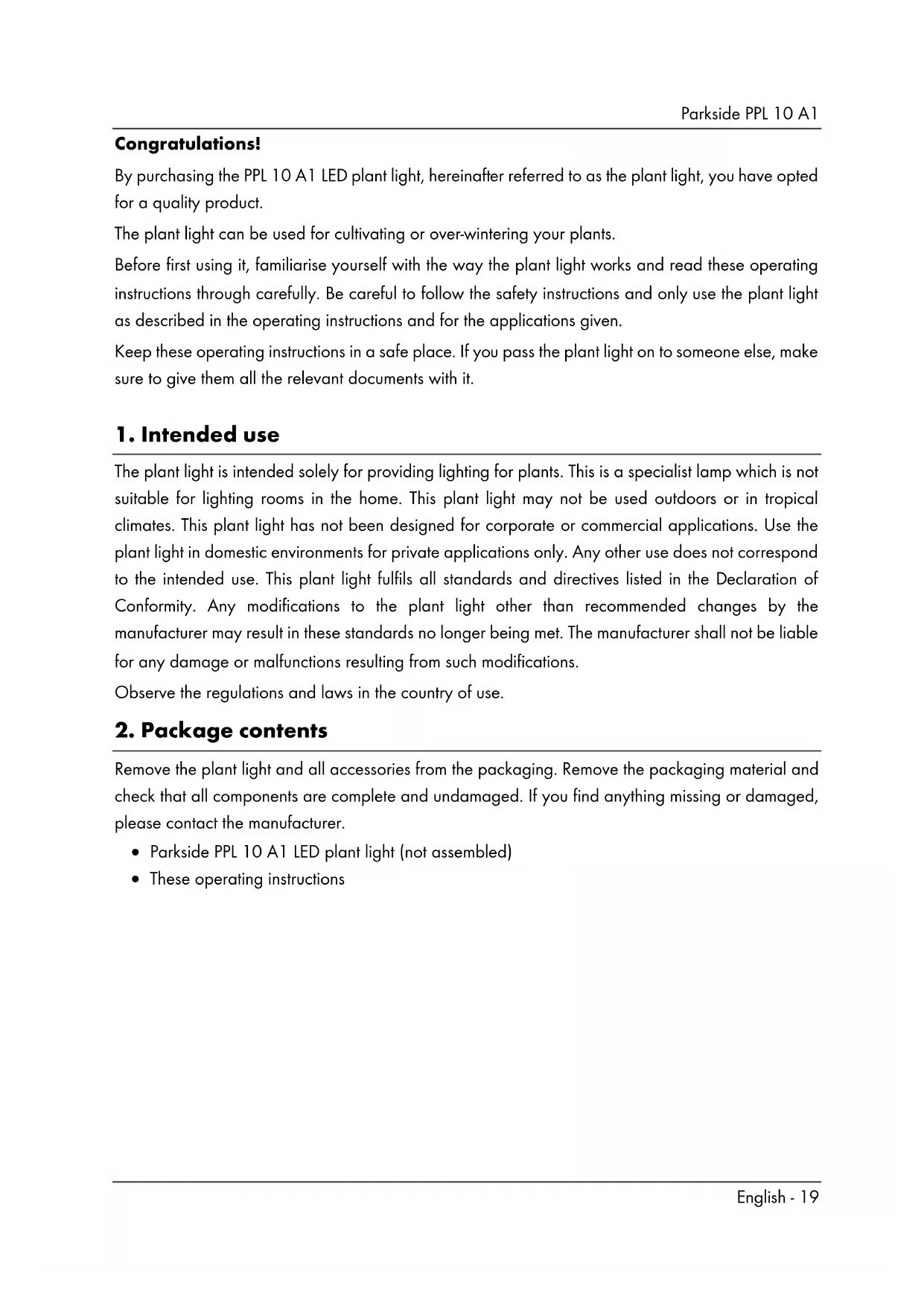

English - 19 Congratulations! By purchasing the PPL 10 A1 LED plant light, hereinafter referred to as the plant light, you have opted for a quality product. The plant light can be used for cultivating or over-wintering your plants. Before first using it, familiarise yourself with the way the plant light works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the plant light as described in the operating instructions and for the applications given. Keep these operating instructions in a safe place. If you pass the plant light on to someone else, make sure to give them all the relevant documents with it.

The plant light is intended solely for providing lighting for plants. This is a specialist lamp which is not suitable for lighting rooms in the home. This plant light may not be used outdoors or in tropical climates. This plant light has not been designed for corporate or commercial applications. Use the plant light in domestic environments for private applications only. Any other use does not correspond to the intended use. This plant light fulfils all standards and directives listed in the Declaration of Conformity. Any modifications to the plant light other than recommended changes by the manufacturer may result in these standards no longer being met. The manufacturer shall not be liable for any damage or malfunctions resulting from such modifications. Observe the regulations and laws in the country of use.

Remove the plant light and all accessories from the packaging. Remove the packaging material and check that all components are complete and undamaged. If you find anything missing or damaged, please contact the manufacturer.

• Parkside PPL 10 A1 LED plant light (not assembled)

• These operating instructionsParkside PPL 10 A1

These operating instructions have a fold-out cover. On the inside of the cover, the plant light is shown with figures indicated. The meanings of the numbers are as follows: 1 LED hood 2 Top spacers (x2) 3 Bottom spacers (x2) 4 Watering unit 5 Lids (x10) 6 Water level display 7 Holding plate 8 Funnel 9 Power cable 10 On/off switch 11 Status indicator 12 Pots (x10) 13 Screws [M8 x 16] (x4) 14 Screws [M8 x 12] (x2) 15 Nuts (x6)Parkside PPL 10 A1 English - 21

, 50/60 Hz Power max. 20 W Safety class II / Degree of protection IP20 (Protected against solid foreign bodies with diameter ≥ 12.5 mm) Beam angle 120° Luminous flux: * 1300 lm Colour temperature * approx. 4000 K Colour rendering index Ra > 90 Nominal maximum ambient temperature ta 35 °C Environmental conditions 0 °C to +40 ºC, max. 85 % relative humidity Water reservoir capacity (gross) approx. 2.4 litres Planter dimensions approx. 48 x 18.2 x 8.5 cm (L x W x H) Plant light height adjustment approx. 44.4 to 53.8 cm Weight approx. 2 kg

• The light spectrum radiated promotes plant growth. The technical data and design may be changed without prior notice.Parkside PPL 10 A1

Before you use the plant light for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the plant light or pass it on, it is essential that you also hand over these operating instructions, as it is part of the product. Explanation of the symbols used DANGER! This signal word indicates a danger with a high risk, which could lead to death or major injuries if not avoided. WARNING! This signal word indicates a danger with a moderate risk, which can lead to death or major injuries if not avoided. CAUTION! This symbol indicates important instructions to protect against damage to property. DANGER! This symbol denotes danger for human health and risk of death and/or risk of damage to property due to electric shock. WARNING! Do not look into the active light source AC voltageParkside PPL 10 A1 English - 23 This device is only suitable for use in dry inside spaces. Specialist product: Not suitable for interior lighting in the home. 16-hour timer with automatic repeat on daily cycle LED hood with 40 LEDs

DANGER! General safety instructions

• Electrical devices are not suitable for children. Persons with physical, mental or sensory disabilities should also only use electrical devices within the scope of their abilities. Never allow children or persons with disabilities to use electrical devices unsupervised. unless they are instructed accordingly and supervised by a competent person responsible for their safety. Children must always be supervised to ensure that they do not play with the product.

• Small parts can represent choking hazards. Keep the packaging out of the reach of these people. There is a risk of suffocation.

• If it is damaged or malfunctions, the plant light must not be used, in order to prevent any risks. Get customer services or a similarly qualified person to check the plant light and repair it if necessary.Parkside PPL 10 A1

• Make sure that no fire hazards (e.g. burning candles) are placed on or near the plant light. Fire hazard!

DANGER: Risk of electric shock!

• The housing of the plant light must not be damaged. If the housing is damaged, there is a risk of electric shock.

• Always plug the mains plug of the plant light into an easily accessible mains socket. Only operate the plant light at the voltage indicated on the rating plate! No action is required by the user to set the product to 50 or 60 Hz. The product automatically adjusts to 50 and to 60 Hz.

• The plant light, the power cable (9) and the mains plug must not be immersed in water or other liquids.

• Never touch the power cable (9) or the plant light with wet hands.

• The plant light must not be operated in the immediate vicinity of a basin, a bathtub, a shower or a swimming pool.If the plant light falls into water, unplug the mains plug immediately and only then remove the plant light from the water.

• To disconnect properly from the mains, the mains plug must be pulled out of the socket. Never pull on the power cable (9) to remove the mains plug from the mains socket. Always pull on the mains plug itself.Parkside PPL 10 A1 English - 25

• Unplug the mains plug from the mains socket if the plant light is not working properly, not in use, during thunderstorms and before cleaning.

• Make sure that the power cable (9) cannot be damaged by sharp edges or hot spots.

• Make sure that the power cable (9) cannot become crushed or squashed.

• Do not modify the plant light in any way.

• If the power cable (9) is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person, in order to avoid any possible risks. Never use adapter plugs or extension cables and do not tamper with the power cable (9)!

WARNING! Risk of injury

• If you notice any smoke, unusual noises or strange smells, unplug the mains plug from the mains socket immediately. If this occurs, the plant light should not be used before it has been inspected by authorised service personnel.

• LED Radiation! Avoid damage to your eyes! Never look into the LED beam. If you suspect you have damaged your eyes, seek medical attention.Parkside PPL 10 A1

• Never use any optical devices such as a lens to look directly into the LED beam. This could damage your eyes. If you suspect you have damaged your eyes, seek medical attention.

• Lay the power cable (9) so it does not present a trip hazard. CAUTION! Damage to equipment

• Only operate the product on an even and stable surface.

• Do not hang anything off the plant light and do not place any objects on it. The plant light is not designed to support weights, and using it for this purpose could damage it.

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing.Parkside PPL 10 A1 English - 27

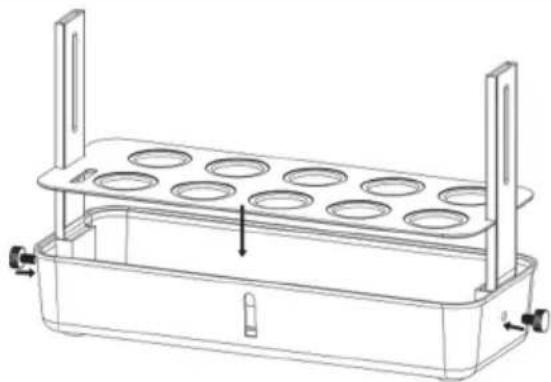

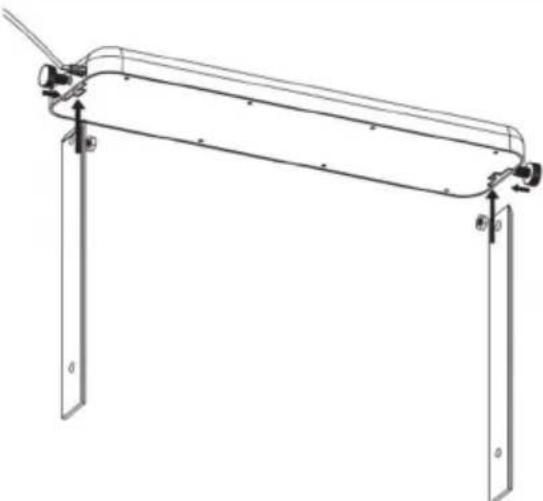

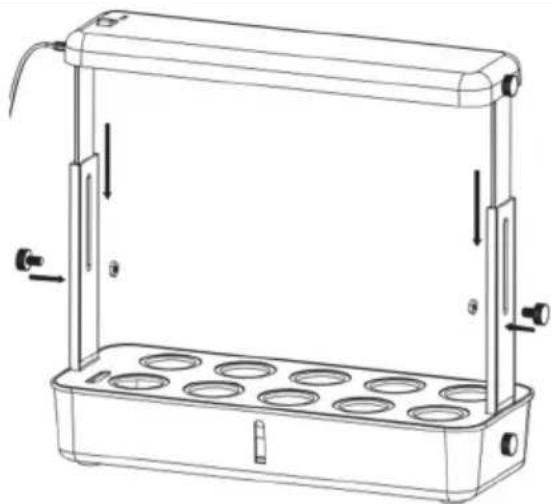

Step 1 Step 2 Place the nuts (15) into the recess on the bottom spacers (3). Insert the bottom spacers (3) into the watering unit (4). Screw the screws [M8 x 16] (13) into the watering unit (4). Place the holding plate (7) onto the watering unit (4). Step 3 Step 4 Insert the top spacers (2) and the nuts (15) into the recess on the LED hood (1). Screw the screws [M8 x 12] (14) into the LED hood (1). CAUTION! Make sure you used the short screws [M8 x 12] (14). Insert the top spacers (2) into the lower spacers (3). Secure the parts using the screws [M8 x 16] (13) and nuts (15).Parkside PPL 10 A1

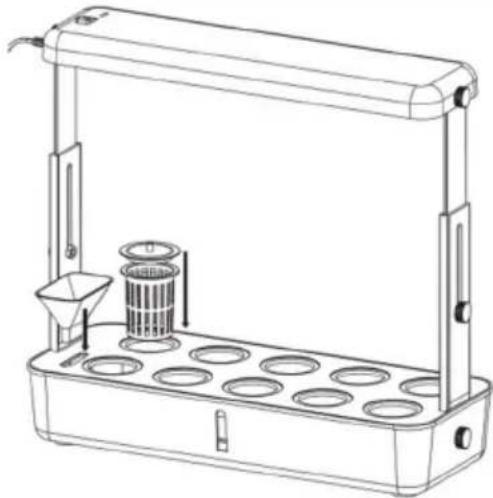

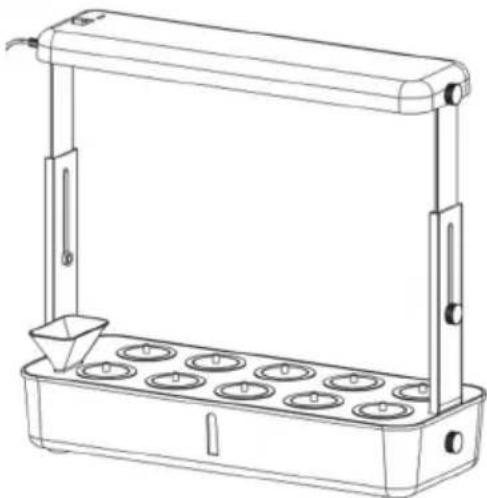

Step 5 Step 6 Then place the pots (12) and their lids (5) into the holding plate (7). Fit the funnel (8) into the holder plate (7). The plant light is now ready fully assembled. You can secure the power cable (9) using the cable clip provided. The adhesive pad on the cable clip is not suitable for delicate surfaces.

The plant light only provides the necessary light for your plants. Make sure you provide the correct amount of nutrients and water, and ensure the ambient temperature is appropriate.

Use the screws [M8 x 16] (13) to fix the LED hood (1) to the spacers (2 and 3) at the lowest level if you are growing plants from seed. If you have larger plants or your seeds have already grown, you need to adjust the height of the LED hood (1) accordingly. Make sure that your plants do not touch the LED hood (1). Leave clearance of at least 5 cm to your plants. Remove the lids (5) from the pots (12) and fill them with soil (e.g. planting soil or potting compost). Now plant the seeds. Then place the lids (5) on the pots (12) to create the optimum growing conditions. The lids (5) are a little translucent to ensure your plants get sufficient light. As soon as your plants germinate or start touching the lids (5), you need to remove the lids (5). Do not repot the plants until the roots are strong enough. Make sure there are sufficient nutrients in the potting compost you select. Nitrogen and salts can hamper growth. The soil used should also be free of pathogens. The soil should not be too firm or too heavily compressed as this prevents the seedlings from forming roots. Note: You can also use seeding pellets or tabs to grow your plants. These are particularly good for growing herbs, flowers and vegetables. Follow the manufacturer’s instructions for the seeding pellets or tabs you use.Parkside PPL 10 A1 English - 29

Use the funnel (8) to fill the watering unit (4) with clean water. Make sure that the water level is between the “MIN” and “MAX” markings on the water level display (6). Check the water level from time to time and keep it between the “MIN” and “MAX“ markings. Please note that the water level also depends on the number of pots (12) used. The more pots (12) are in use, the more water is displaced.

8.3 Switching the LED lighting on and off

Plug the power plug into an easily accessible mains socket and switch the on/off button (10) on. The status indicator (11) lights up in green. The LED hood (1) switches on and the timer is activated. The timer switches the LED hood (1) on for 16 hours and off for 8 hours on a regular cycle. Switch the on/off switch (10) off and on again to deactivate the timer. The status indicator (11) lights up in red. The LED hood (1) is now switched on permanently. Switch the on/off button (10) off to switch the LED hood (1) off permanently. Note: This is a specialist lamp which is not suitable for lighting rooms in the home, it is designed exclusively for providing light for plants.

The plant light does not work

• Check that the mains plug is correctly inserted into the mains socket.

• Check whether the mains socket is live. If necessary, check the house fusebox.

• Check if the On/Off switch (10) is switched on.

10. Maintenance/cleaning

Repairs are required if the plant light is damaged in any way, for example, if liquid or objects have entered the casing, if the plant light is exposed to rain or moisture, if it is not working properly or if it has been dropped. If you notice any smoke, unusual noises or strange smells, switch the plant light off immediately and remove the mains plug from the mains socket. If this occurs, the plant light should not be used before it has been inspected by authorised service personnel. All repairs must be carried out by qualified service personnel. Never open the casing of the plant light.Parkside PPL 10 A1

DANGER! Unplug the mains plug from the mains socket before you start to clean, there is the risk of electric shock! DANGER! Never immerse the LED hood (1) itself in water, there is a risk of electric shock! Clean the casing of the plant light at regular intervals. To clean the fan heater, use a slightly damp cloth. Never use any solvents or cleaners that may damage the plastic. Remove any soil and plant residues from the pots (12). Remove the LED hood (1) and holder plate (7) before pouring any remaining water out of the watering unit (4). The watering unit (4), the lids (5), the funnel (8) and the pots (12) can be washed in clean water. The parts are not dishwasher- safe.

11. Storage when not in use

When the plant light is to be left unused for a long period of time, unplug the mains plug from the mains socket. Keep the plant light in a clean, dry place away from direct sunlight.

12. Environmental regulations and disposal information

Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Proper disposal of old devices prevents damage to the environment or your health. For further information about proper disposal, contact your local council, recycling centre or the shop where you bought the device. Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal. Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows: 1–7: plastic / 20–22: paper and cardboard / 80-98: composite materials. The product can be recycled, is subject to an extended producer responsibility and is collected separately.Parkside PPL 10 A1 English - 31

13. Conformity notes

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation. The complete EU Declaration of Conformity is available for download from this link: https://www.targa.gmbh/downloads/conformity/356466_2004.pdf

14. Warranty and service information

Warranty of TARGA GmbH Dear Customer, This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below. Warranty conditions The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate. Warranty period and legal warranty rights The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge. Scope of warranty The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced. Submitting warranty claims To ensure speedy handling of your complaint, please note the following:Parkside PPL 10 A1

- Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline. - Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase. - If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Service Phone: 0800 404 7657 E-Mail: targa@lidl.co.uk Phone: 1890 930 034 E-Mail: targa@lidl.ie Phone: 800 62230 E-Mail: targa@lidl.com.mt Phone: 8009 4409 E-Mail: targa@lidl.com.cy IAN: 356466_2004 Manufacturer Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH Coesterweg 45 59494 Soest GERMANYParkside PPL 10 A1 Français - 33 Table des matières
