USER MANUAL MS 3326 CLATRONIC

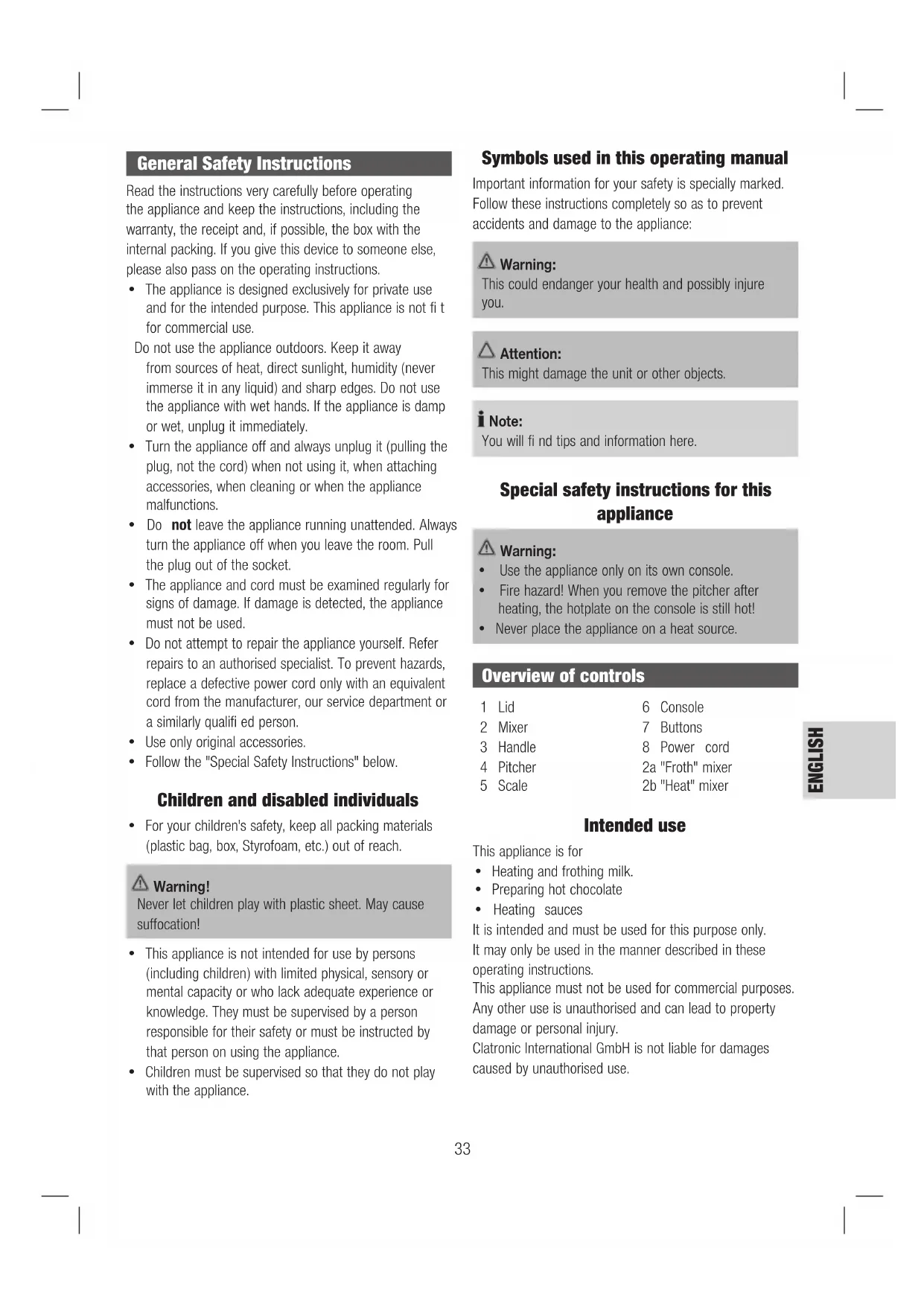

Підлягає технічним модифікаціям!33 ENGLISH General Safety Instructions Read the instructions very carefully before operating the appliance and keep the instructions, including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to someone else, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the intended purpose. This appliance is not fi t for commercial use. Do not use the appliance outdoors. Keep it away from sources of heat, direct sunlight, humidity (never immerse it in any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is damp or wet, unplug it immediately.

• Turn the appliance off and always unplug it (pulling the plug, not the cord) when not using it, when attaching accessories, when cleaning or when the appliance malfunctions.

• Do not leave the appliance running unattended. Always turn the appliance off when you leave the room. Pull the plug out of the socket.

• The appliance and cord must be examined regularly for signs of damage. If damage is detected, the appliance must not be used.

• Do not attempt to repair the appliance yourself. Refer repairs to an authorised specialist. To prevent hazards, replace a defective power cord only with an equivalent cord from the manufacturer, our service department or a similarly qualifi ed person.

• Use only original accessories.

• Follow the "Special Safety Instructions" below. Children and disabled individuals

• For your children's safety, keep all packing materials (plastic bag, box, Styrofoam, etc.) out of reach. Warning! Never let children play with plastic sheet. May cause suffocation!

• This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capacity or who lack adequate experience or knowledge. They must be supervised by a person responsible for their safety or must be instructed by that person on using the appliance.

• Children must be supervised so that they do not play with the appliance. Symbols used in this operating manual Important information for your safety is specially marked. Follow these instructions completely so as to prevent accidents and damage to the appliance:

This could endanger your health and possibly injure you. Attention: This might damage the unit or other objects. Note: You will fi nd tips and information here. Special safety instructions for this appliance

• Use the appliance only on its own console.

• Fire hazard! When you remove the pitcher after heating, the hotplate on the console is still hot!

• Never place the appliance on a heat source. Overview of controls 1 Lid 2 Mixer 3 Handle 4 Pitcher 5 Scale 6 Console 7 Buttons 8 Power cord 2a "Froth" mixer 2b "Heat" mixer Intended use This appliance is for

• Heating and frothing milk.

• Preparing hot chocolate

• Heating sauces It is intended and must be used for this purpose only. It may only be used in the manner described in these operating instructions. This appliance must not be used for commercial purposes. Any other use is unauthorised and can lead to property damage or personal injury. Clatronic International GmbH is not liable for damages caused by unauthorised use.34 ENGLISH Unpacking the appliance

• Remove the appliance from the packaging.

• Remove all packaging material such as plastic fi lm, fi lling material and cardboard packaging.

• Check the package contents. Note: Dust or production scraps can still be present on the appliance. We recommend cleaning the appliance as described in "Cleaning". Operation and instructions for use Also examine the illustrations on page 3. Location Place on a level, skid-proof surface. Electrical connection Connect the power cord to a correctly installed and grounded 230 V, 50 Hz socket. Mixing attachments On the underside of the console you will fi nd two mixing attachments. Attachment 2a is for frothing milk. With attachment 2b you can heat various liquids. Installing the mixing attachments Choose an attachment and press the wave on the bottom of the pitcher.

Prevent injuries! The wave is pointed so that the attachment fi ts. Note: The attachments come off more easily if you remove the pitcher from the console fi rst. Switch functions Stir and froth cold Stir hot, e.g., sauces, milk or chocolate drinks Heat or froth milk or hot chocolate Frothing milk

• Install attachment 2a.

• Pour in the milk. The pitcher holds 100 ml to 250 ml of liquid. Attention: Observe the "Full" mark; otherwise the milk will foam over. Note:

• For best results, use a full batch of milk with 3.5% fat content.

• Foam doesn't form as well with 1.5%, soy or lactose- free milk.

• Place the pitcher on the console.

• Press the button. Note:

• The buttons light up to show their functions.

• The process lasts 90 to 240 seconds and ends automatically.

• If you want to end the process sooner, press the button again or remove the pitcher from the console. Heating milk or cocoa Use attachment 2b. Attention:

• Add the chocolate powder after the milk; otherwise the mixing attachment will clog.

• Stay within the full mark, or the drink may overfl ow. Proceed as described in "Frothing milk". Heating sauces This milk frother can also heat sauces. Sauces are brought to a higher temperature than milk or hot chocolate. Use attachment 2b and proceed as described under "Frothing milk".

• To heat the sauce, press the button.35 ENGLISH Stirring or frothing cold With the milk frother, you can also separately stir or froth liquids. When you do this, the liquids are not heated. Use attachment 2a or 2b and proceed as described under "Frothing milk".

• Always unplug the appliance before cleaning.

• Let the appliance cool down.

• Never immerse the console in water when cleaning. This could result in an electric shock or fi re. Attention:

• Do not use a wire brush or other abrasive items.

• Never use sharp or abrasive cleaning agents. Console surface

• Clean the console's exterior surface with a damp cloth, using no cleaning agents. Pitcher and attachments Note: To remove the mixing attachments, pull them upward.

• Rinse the parts only by hand, using a soft cloth.

• Use clear water and a detergent.

• Heavy soiling can be removed with a nylon brush.

• Rinse with clear water. Troubleshooting Problem Possible cause Remedy The appliance does not work/ the motor does not turn. - Is the appliance switched on? - Is the electrical socket defective? - Is the pitcher correctly positioned? - Try a different socket. - Check the position of the pitcher. The milk does not foam. - Have you chosen the right attachment? - Is the mixer clogged? - Is there too little milk in the pitcher? - Check the attachment. - There should be 100 ml to 225 ml in the pitcher. Specifi cations Model: ............................................................................... MS 3326 Voltage rating / frequency: ................................230V ∼ 50 Hz Consumption rating: ...........................................................600W Protection class: ..............................................................................I Net weight: ...........................................................................1.10 kg Declaration of Conformity This appliance has been examined according to all appropriate current CE guidelines, e.g. electromagnetic compatibility and Low Voltage Directive and was designed according to the latest safety regulations. Subject to technical modifi cation! Meaning of the "Dustbin" symbol Protect our environment: Do not dispose of electrical appliances together with household waste. Deposit discarded electrical appliances at collection facilities intended for their disposal. This minimises the impact of improper disposal on the environment and on human health. It contributes to recycling and other forms of reutilisation of electrical and electronic equipment. Information on disposal facilities can be obtained from your local authority. Note:

• The buttons light up to show their functions.

• The process lasts 180 seconds and ends auto- matically.
