USER MANUAL MS 3693 CLATRONIC

Contents
Overview of the Components	Page 3
Instruction Manual	Page 30
Technical Data	Page 34
Disposal	Page 34

ENGLISH

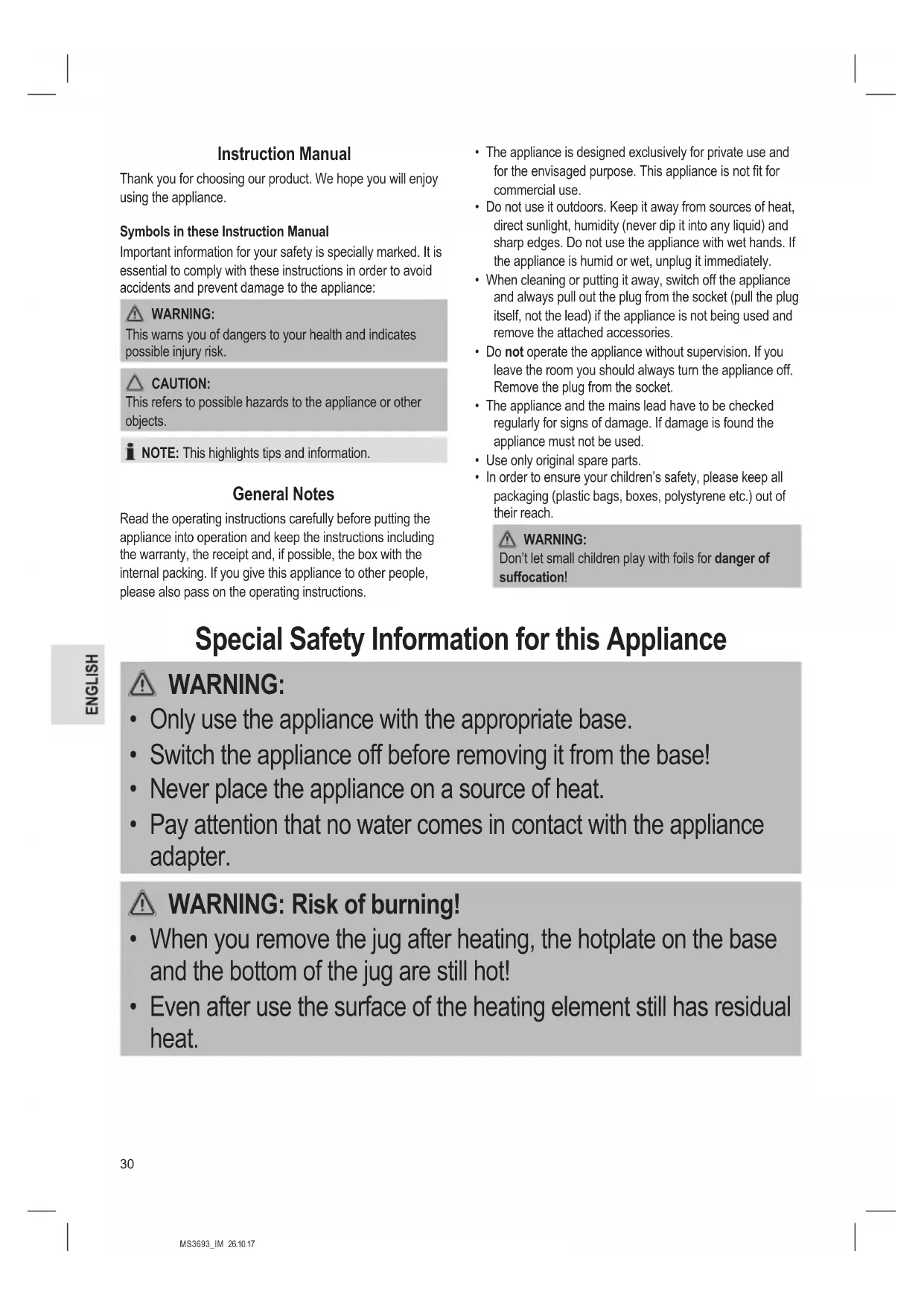

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risk.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Don't let small children play with foils for danger of suffocation!

Special Safety Information for this Appliance

WARNING:

• Only use the appliance with the appropriate base.
• Switch the appliance off before removing it from the base!
• Never place the appliance on a source of heat.
• Pay attention that no water comes in contact with the appliance adapter.

WARNING: Risk of burning!

• When you remove the jug after heating, the hotplate on the base and the bottom of the jug are still hot!

• Even after use the surface of the heating element still has residual heat.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.

• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Only use the appliance in a dry, indoor area. It is intended for domestic use and similar areas of use such as e. g.:

• In staff kitchens in shops, offices and other commercial areas;

• By guests in hotels, motels and other accommodation facilities;
  -InB&Bs.

It is not intended for applications in agricultural properties.

CAUTION:

Do not immerse the appliance into water for cleaning. Please follow the instructions as stipulated in the chapter "Cleaning".

Overview of the Components / Delivery Scope

1 Lid
2 Seal ring of lid
3 Stirring tool
4 Seal ring of tool holder
5 Handle
6 Multifunction button
7 Power cable
8 Base
9 Jug
10 Tool holder
11 Froth beater

Unpacking the Appliance

1. Remove the packaging of the appliance.
2. Remove all packaging material such as plastic film, filler material, cable ties and box packaging.
3. Check that all the parts are in the box.
4. Do not operate the appliance if package contents is incomplete or appear damaged. Return it immediately to the dealer.

NOTE:

There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Notes on Use

Location

A skid-proof, even surface is suitable as installation location.

Electrical Connection

1. Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the type label.
2. Connect the mains cable to correctly installed and earthed socket.

Multifunction button

Press 1x = Hot (glowing red)

Press 2 × = Warm (flashing red)

Press 3x = Cold (glowing blue)

Press 4x = 0

Jug

Should you remove the jug from the base during operation and replace it on the base within approx. 1 second, the previously selected function will continue.

Seals

The tool holder and the lid are equipped with a seal. Be sure that the seal rings are always properly secured in place.

Capacity

The jug holds between 120 and 300ml . Refer to the scale on the jug:

MAX 120ml (maximum quantity for frothing)

MAX- 300ml (maximum quantity for stirring)

Frothing Milk

CAUTION:

Observe the capacity marking MAX, otherwise the milk will foam over.

NOTE:

• For optimum results use milk with 3.5% fat content and fill in 200 ml.
• Milk with 1.5% fat content and soy milk or lactose-free milk does not froth as well.

Heating up Drinking Chocolate / Hot Chocolate

CAUTION:

• Please add cocoa or chocolate only after you have filled in the milk.
  Cut the chocolate into little pieces and do not fill in too much chocolate.
• Do not fill above the MAX - mark, otherwise the beverage will overflow.
  If you want to make hot chocolate, take off the froth beater.

Usage Table

For information about how to use the milk frother please refer to this table:

Usage - desired result	Mixing attachment	Multifunction button
Hot frothed milk Froth beater Press 1 x
Hot stirred milk	Stirring tool	Press 1 x
Steamed milk	Froth beater	Press 2 x
Warm stirred milk	Stirring tool	Press 2 x
Cold foamed milk	Froth beater	Press 3 x
Cold stirred milk	Stirring tool	Press 3 x
Hot Chocolate	Stirring tool	Press 1 x

Operation

1. Place the desired attachment on the tool holder. Place the tool holder with the attachment centrically in the jug.
2. Fill the liquid into the jug.
3. Put on the lid.
4. Place the jug on the base.

5. Depending on the desired application, press the button once, twice or three times

6. You have the following options to turn the device off:

Automatic shut-off
Press the button

1. Lift the lid before transferring the contents to another container.

Cleaning

WARNING:

• Always pull the power supply plug before cleaning.
• Allow the appliance to cool down.
• Never immerse the base in water for cleaning. It could result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or other abrasive items.
• Never use sharp or scouring cleaning materials.

Base

Clean the base with a clean cloth from the outside, without any additional cleaning agents.

Jug, Lid, Mixing attachments, Tool holder and Seals

Always clean these pieces immediately after use.
- Remove the tool holder with the used mixing attachment by pulling it upward out of the jug.

Only rinse the parts by hand with a soft cloth while adding a mild dishwashing detergent.
- You may remove ingrained dirt with a nylon brush.
- Then rinse with clean water and dry off the parts.

Storage

• Clean the appliance as described and allow to dry completely.
• We recommend that you keep the appliance in the original packaging if the appliance will be not used for long periods.
  Always keep the appliance out of the reach of children in a dry, well ventilated place.

Troubleshooting

Problem Possible Cause Remedy
The appliance does not work.	The appliance has no power supply. Check the socket with another appliance.
	Plug in the mains plug correctly.
	Check the main circuit breaker.
	The appliance is faulty. Contact our service centre or a specialist.
The milk does not foam. The froth beater is not attached properly.	Check correct placement of the froth beater.
The seal ring of tool holder is not in place or is not properly secured in place.	Check to ensure that the seal ring of tool holder is fitted properly.
There is not enough milk in the jug. There should be between 50 and 120 ml in the jug.
The appliance turns off before the allotted time during repeated hot stirring or frothing.	The appliance has not cooled down. Leave the appliance to cool down for 2 minutes. You may shorten this time by rinsing the jug with cold water.

Technical Data

Model: MS 3693

Power supply: 220-240V\~,50/60Hz

Power consumption: 500W

Protection class: II

Net weight: approx. 0,74 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
