USER MANUAL SKMK 1000 A1 SILVERCREST

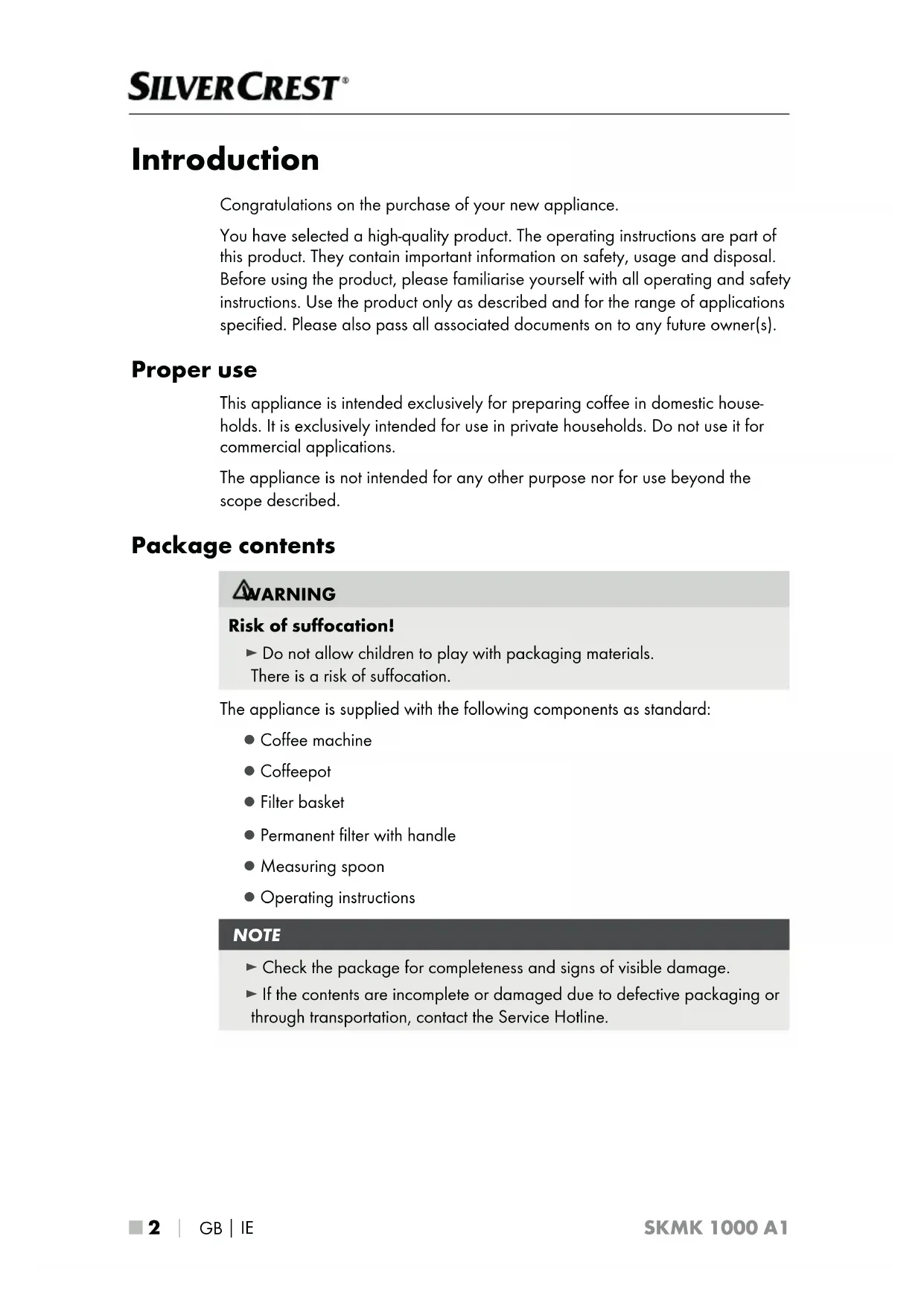

SKMK 1000 A1 Introduction Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass all associated documents on to any future owner(s). Proper use This appliance is intended exclusively for preparing coffee in domestic house- holds. It is exclusively intended for use in private households. Do not use it for commercial applications. The appliance is not intended for any other purpose nor for use beyond the scope described. Package contents WARNING Risk of suffocation! ► Do not allow children to play with packaging materials. There is a risk of suffocation. The appliance is supplied with the following components as standard: ▯ Coffee machine ▯ Coffee pot ▯ Filter basket ▯ Permanent filter with handle ▯ Measuring spoon ▯ Operating instructions NOTE ► Check the package for completeness and signs of visible damage. ► If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline.GB

 3 ■ SKMK 1000 A1 Safety information To ensure safe operation of the appliance, follow the safety guidelines set out below: WARNING – RISK OF INJURY! ■ Before use, check the appliance for visible external damage. Do not use an appliance that has been damaged or dropped. ■ This appliance may be used by children aged 8 years or above and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been instructed in the safe use of the appliance and have understood the potential risks. Cleaning and user maintenance tasks must not be carried out by children unless they are aged 8 years or more and are supervised. The appliance and its connecting cable must be kept away from children younger than 8 years old. ■ Do not allow children to play with the appliance. ■ All repairs must be carried out by authorised specialist compa- nies or by the Customer Service department. Improper repairs can pose significant risks to the user. They will also invalidate any warranty claims. ■ Never immerse the appliance in water or other liquids. Risk of electric shock! ■ Never touch the appliance with wet or moist hands. ■ To avoid potential risks, if the appliance power cable is dam- aged, it must be replaced by the manufacturer, its customer service or by a qualified technician. ■ Risk of burns! Some parts can become very hot during use! ■ There is a risk of injury if the appliance is misused. ■ Never use the appliance for purposes other than those described in these instructions. ■ Use the appliance only for the intended purpose. Risk of injury if appliance is used incorrectly.■ 4 

SKMK 1000 A1 ■ After use, the surfaces of the heating elements will still have some residual heat. ■ Hot steam is produced while using the appliance. Ensure that you do not scald yourself! Keep a safe distance away from the steam. ■ The appliance should only be connected to correctly installed and earthed mains power sockets. ■ Do not allow any liquid to run over the appliance's plug connections. ■ Remove the filter basket, the permanent filter or a paper filter only after the liquid has drained completely.

CAUTION – PROPERTY DAMAGE

■ Defective components must always be replaced with genuine replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used. ■ Protect the appliance from penetration by moisture and liquids. ■ Protect the appliance against knocks, dust, chemicals, extremes of temperature, etc. and keep it away from sources of heat (ovens, radiators). ■ Always remove the mains adapter from the mains outlet; never pull on the power cable. ■ Do not use an external timer switch or a separate remote control system to operate the appliance. ■ The appliance must not be placed in a cupboard when in use. ■ Never operate the appliance outdoors. This appliance is intended for indoor use only. ■ Keep the permanent filter away from pointed or sharp objects as these could tear the filter. ■ Never operate the appliance while empty of water since the glass coffee pot could shatter.GB

button 6 Coffee pot 7 Hotplate 8 Cable storage compartment 9 Filter basket holder 0 Water tank q Filter basket w Measuring spoon e Permanent filter with handle Setting up the appliance DANGER - ELECTRIC SHOCK! ► Do not set up the appliance near water contained in a sink or other con- tainers. Always place the appliance on a dry surface. Proximity to water is hazardous, even if the appliance is switched off. CAUTION - PROPERTY DAMAGE! ► Never place the appliance near sources of heat. ► Always place the appliance on a level, heat-resistant surface in order to prevent damage to the appliance and surface.

1) Place the appliance on a level and heat-resistant surface.

2) When using the appliance for the first time, follow the instructions in the

section "Before first use".

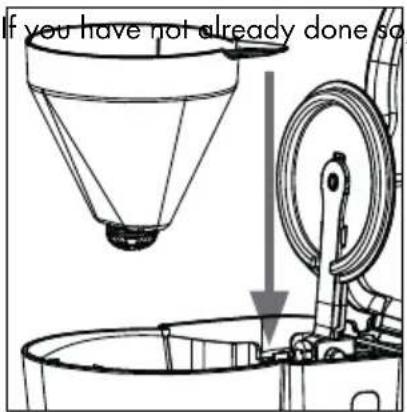

3) If you have not already done so, place the

filter basket q in the filter basket holder 9 such that the handle protrudes through the recess in the direction of the water tank 0 (see Figure A).■ 6 

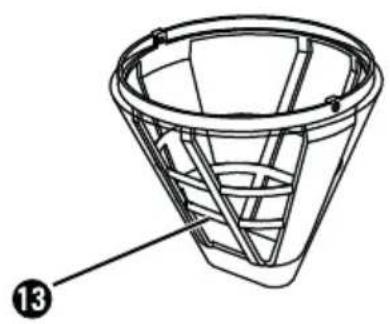

4) Hold the permanent filter e by the handle and place it in the filter basket q.

Flip down the handle. Place the coffee pot 6 on the hotplate 7.

5) Insert the plug into the mains power socket.

The appliance is now ready for use. Before first use WARNING ► Hot steam escapes from the steam outlet openings 2 of the appliance lid! There is a risk of scalding! ► Never open the appliance lid while brewing is in progress! Bursts of hot steam may be released or hot water may spray out. There is a risk of scalding! ► The hotplate 7 under the coffee pot 6 is heated strongly during the brew- ing/keeping warm process. There is a risk of burns! CAUTION – PROPERTY DAMAGE! ► Never fill the water tank 0 to more than the total amount required for 10 cups (MAX marking). ► There is a water overflow 3 on the rear side of the appliance. This is a water overflow that prevents too much water from being poured into the appliance. If the water level exceeds the MAX mark, the water will escape through the water overflow 3 onto the worktop. ► If the appliance is moved with a full water tank 0 (10 cups of water), water may run out through the water overflow 3. ► Never fill the water tank 0 with less than 2 cups of water. Use the fill level indicator 4 on the water tank 0 for reference.

1) Place the appliance on a level and heat-resistant surface.

2) Rinse the coffee pot 6 thoroughly with water and place it in the appliance.

3) Open the appliance lid by pulling it upwards by the handle 1.

4) Remove the filter basket q including the inserted permanent filter e, if

inserted, from the filter basket holder 9. To do this, hold the filter basket q by the handle.

5) Rinse the filter basket q and the permanent filter e in fresh water and

place them back into the device.

6) Fill the water tank 0 with water for 10 cups.

7) Close the appliance lid.

8) Insert the plug into a mains power socket.GB

9) Press the button 5. The button 5 lights up. Wait a moment. The

brewing process begins.

10) Wait until the brewing process is completed and press the

button 5 again to turn off the appliance.

11) Empty the coffee pot 6 and rinse it again with fresh water.

12) Wait until the appliance has cooled down, then remove the filter basket q

and the permanent filter e and rinse them again with fresh water.

13) Place the filter basket q, permanent filter e and coffee pot 6 back in the

appliance. The appliance is now ready for use. Making coffee Adding ground coffee NOTE ► If you grind your coffee yourself, we recommend a medium grinding level. The finer the grounds, the more intense and bitter the coffee tastes; coarser the grounds, the more watery and acidic the coffee tastes. ► If you are using a finely ground coffee, the permanent filter e may become clogged, causing water to flow out of the filter basket q. ► You can also use the appliance without the permanent filter e and use a paper filter instead. To do this, simply place a folded-open paper filter (size 1 x 4) in the filter basket q.

1) Open the appliance lid.

2) Place the permanent filter e in the filter basket q and flip down the handle.

3) Use the measuring spoon w to add ground coffee to the appliance.

NOTE ► Add approximately one level measuring spoon w of ground coffee per cup of filter coffee. If the filter coffee is too strong, reduce the amount of ground coffee per cup. Filling the appliance with water WARNING - HEALTH HAZARD! ► Use only drinking water for your coffee! Always fill with fresh water just before use.

1) Fill the water tank 0 with water. Select a quantity of water corresponding

to the required amount of filter coffee. Use the fill level indicator 4 on the water tank 0 for reference. Close the appliance lid.■ 8 

2) Place the coffee pot 6 in the appliance.

CAUTION - PROPERTY DAMAGE! ► Never fill the water tank 0 to more than the total amount required for 10 cups (MAX marking). ► There is a water overflow 3 on the rear side of the appliance. This is a water overflow that prevents too much water from being poured into the appliance. If the water level exceeds the MAX mark, the water will escape through the water overflow 3 onto the worktop. ► If the appliance is moved with a full water tank 0 (10 cups of water), water may run out through the water overflow 3. ► Never fill the water tank 0 with less than 2 cups of water. NOTE ► During the brewing process, the amount of water decreases: some evapo- rates and the coffee grounds also retain some water. Therefore, there will always be a little less coffee in the coffee pot 6 than the amount of water you have poured into the water tank 0. Starting the brewing process WARNING ► Hot steam escapes from the steam outlet openings 2 of the appliance lid! There is a risk of scalding! ► Never open the appliance lid while brewing is in progress! Bursts of hot steam may be released or hot water may spray out. There is a risk of scalding! ► The hotplate 7 under the coffee pot 6 is heated strongly during the brew- ing/keeping warm process. There is a risk of burns!

1) Press the button 5. The button 5 lights up. Wait a moment.

The brewing process begins. NOTES ► The appliance has a drip stop function. You can briefly remove the coffee pot 6 from the appliance during the brewing process, for example to pour a cup of coffee. The coffee will not drip out of the filter basket q. ► Be careful when removing the coffee pot 6: If you accidentally reach the drip stop with it, the spring and the expandable disc may come out and become lost. If necessary, reassemble the parts as described in the “Cleaning” section. ► You can stop the brewing process at any time by pressing the button 5.

2) The hotplate 7 under the coffee pot 6 keeps the coffee warm until you

 9 ■ SKMK 1000 A1 NOTE ► The appliance switches off automatically after 40 minutes. The coffee is no longer kept warm. The button 5 goes out. Cleaning and care Cleaning DANGER - ELECTRIC SHOCK! Never immerse the appliance in water or other liquids. Risk of electric shock! WARNING - RISK OF INJURY! ► Always remove the plug from the mains power socket before you clean the appliance. Risk of electric shock! ► Always allow the appliance to cool down before cleaning it. Risk of burns! CAUTION - PROPERTY DAMAGE! ► Never use abrasive, aggressive or chemical cleaning agents to clean the appliance. These could damage the outer surfaces of the appliance.

1) Remove the plug from the power socket and allow the appliance to cool

filter e, if present, or dispose of an inserted paper filter.

3) Rinse the filter basket q, the permanent filter e, the coffee pot 6

and the measuring spoon w in mild dishwater. Rinse all parts thoroughly afterwards with plenty of fresh water. NOTE

The filter basket q, permanent filter e, coffee pot 6 and measur- ing spoon w can be cleaned in a dishwasher. Make sure that the parts do not get jammed in the dishwasher. Keep the permanent filter e away from pointed or sharp objects, such as knives. ► The permanent filter e may be permanently stained by the ground coffee used. This is normal and is not a quality impairment. ► Replace the permanent filter e if it becomes leaky or otherwise defective. See the section “Ordering spare parts”.■ 10 

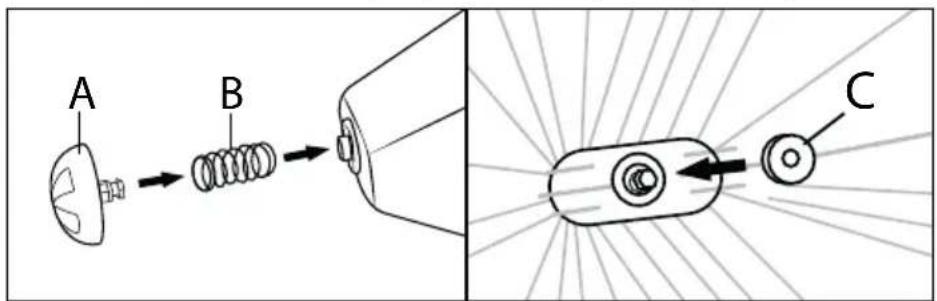

4) To clean the filter basket q, disassemble the water overflow with drip stop, by

pulling the drip stop A. Make sure that the individual parts do not fall off: the spring B can come off and the expandable disc C can become lost. Clean the parts in washing water and reassemble all the parts. To do this, press the drip stop A together with the spring B into the opening of the water overflow (see Fig. 1). Then pull the expandable disc C inside the filter basket q over the star-shaped end of the drip stop axis to finally fix the parts in place (see Fig. 2).

5) Wipe the filter basket holder 9 with a damp cloth.

6) Wipe the appliance with a damp cloth. If required, use a mild washing-up

liquid on the cloth. Ensure that there are no detergent residues on the appli- ance, and that the appliance is completely dry before using it again. Descaling Descale the appliance at regular intervals. NOTE ► Depending on the hardness of your water, the necessary descaling intervals may vary considerably. If your water is very hard, descaling is generally necessary after approximately 30 uses, while less hard water only requires you to descale your appliance after approximately 60 uses. Your local water supplier can tell you about the hardness of your water. Use only descaling agents that are specifically suitable for coffee machines and follow their usage instructions closely. Proceed as follows to descale:

1) Add the descaling agent to the water tank 0.

2) Add the amount of water as specified in the usage instructions for the descaling

agent, but do not exceed the MAX mark (10 cups) on the fill level indicator 4!

button 5 to start the brewing process. The button 5 lights up.

5) Wait until enough water for approximately 2 cups has run through the

machine, then stop the brewing process by pressing the button 5 again.

6) Allow the descaling agent to take effect for 15 minutes.

7) Repeat steps 4 to 6 twice.

8) Then start the brewing process and wait until the water has run through completely.

9) Allow the coffee machine to brew three times with the maximum amount of

clean water. After three brewing cycles, all residues of the descaling agents are removed and you can use your coffee machine again.GB

1) If you do not intend to use the appliance for long periods, ensure that no

coffee grounds remain in the appliance or the permanent filter e.

2) Clean the appliance again as described in “Cleaning and care”.

3) Push the cable into the cable storage compartment 8.

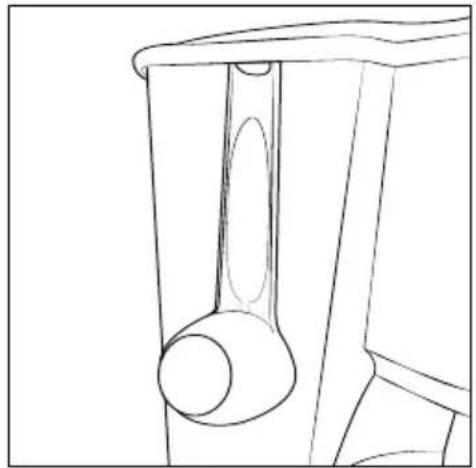

For storage, place the measuring spoon w in the coffee pot 6. Alternatively, hang the measuring spoon w from the side of the water tank 0 (see Fig. 3): A hook is integrated into the handle. Lightly press the measuring spoon w against the appliance to close the appliance lid by the handle 1. Fig. 3

5) Store the dry appliance in a clean and dust-free location.

Troubleshooting This section contains important information on fault identification and rectification. The following table will help you to identify and rectify minor malfunctions. Fault Possible cause Remedy The appliance will not switch on. The plug is not connected. Connect the mains adapter correctly to the appliance. The socket is not supplying any power. Check the house mains fuse. The appliance is damaged. Contact the Customer Service department. NOTE If you are unable to resolve the problem by applying any of the aforementioned methods, please contact the Customer Service department.■ 12 

SKMK 1000 A1 Ordering replacement parts You can order replacement parts for this product on the Internet at www.kompernass.com. Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available spare parts. NOTE ► If you have problems with your online order, you can contact our service centre by phone or e-mail. ► Always quote the article number (IAN) 462795_2310 in your order. ► Please note that online ordering of replacement parts is not possible for all countries. Disposal Applies only to France: The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately. Disposal of the appliance The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.GB

 13 ■ SKMK 1000 A1 If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it. Your local community or municipal authorities can provide informa- tion on how to dispose of the worn-out product. Disposal of the packaging The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Technical data Power supply 220–240V∼ (AC), 50–60Hz Rated power 1000 W Useful volume of water tank 0 1.38 l Useful volume of coffee pot 6 1.25 l All of the parts of this appliance that come into contact with food are food-safe.■ 14 

SKMK 1000 A1 Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after un- packing. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accordance with strict quality guide- lines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.GB

 15 ■ SKMK 1000 A1 Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)462795_2310 avail- able as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 462795_2310. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1800 101010 E-Mail: kompernass@lidl.ie IAN 462795_2310 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
