Product type	Submersible pump
Brand	PowerPlus
Model	POWXG9513
Supply voltage	230 V / 50 Hz
Power consumption	550 W
Maximum flow rate	10 500 l/h
Maximum delivery head	7 m
Maximum immersion depth	7 m
Maximum water temperature	35 °C
Water type	Clear or dirty water
Housing material	Plastic
Water inlet material	Plastic
Power cable length	10 m
Cable type	With safety plug (RNF)
Switch	Adjustable float switch
Carrying handle	Yes
Recommended uses	Basement pumping, drainage, irrigation, domestic wastewater
Dry run protection	Do not run dry (risk of damage)
Frost protection	Protect from frost
Regular maintenance	Cleaning with clear water, checking the float switch every 3 months
Warranty	36 months
Compliance	European directives 2014/35/EU, 2014/30/EU, 2011/65/EU

Frequently Asked Questions - POWXG9513 PowerPlus

What are the recommended uses for the POWXG9513 pump?

This submersible pump is designed for pumping clear or dirty water, particularly for draining flooded basements, drainage, garden watering, and domestic water supply. It is not suitable for professional use.

What is the maximum immersion depth?

The maximum immersion depth is 7 meters. Make sure not to immerse the pump beyond this limit.

How to install the pump correctly?

Install the pump in a pit of at least 40×40×50 cm to allow free movement of the float. Hang it by its handle or place it on the bottom. Never suspend it by the cable or discharge hose. Ensure the bottom of the pit is free of mud.

What to do if the pump does not start?

First check the mains voltage. Make sure the float switch is in the high position (it must be raised to activate the pump). If the problem persists, consult the troubleshooting table in the manual.

How to bleed the pump before use?

Tilt the pump forward and backward several times to expel air, then wait at least 15 seconds before starting it. This prevents dry running.

What type of water can be pumped?

The pump can discharge clear or dirty water (dirty water) with a maximum temperature of 35°C. Do not use for aggressive liquids, fuels, or chemicals.

How to maintain the pump?

After each use, clean the pump with clear water. Every three months, check the proper operation of the float switch, clean the inlet filter, and remove mud from the bottom of the pit. To clean the impeller, disassemble the suction basket and rinse with clear water.

What are the important safety precautions?

Read the manual before use. Use a residual current device ≤30 mA if the pump is used near a swimming pool. Do not let children play with the appliance. Do not run the pump dry and protect it from frost.

What to do if the pump stops after a few minutes of operation?

This may be due to water that is too dirty or a temperature that is too high. Disconnect the pump, clean it and the pit. Check that the water temperature does not exceed 35°C.

How to store the pump when not in use?

Clean the pump and its accessories thoroughly. Store it in a dry, temperate place away from direct light. Avoid extreme temperatures. Do not put it in a nylon bag to prevent moisture.

USER MANUAL POWXG9513 PowerPlus

2 BESCHRIJVING (FIG A)

27/01/2022, Lier - Belgium

POWXG9513 FR

1 UTILISATION 2
2 DESCRIPTION (FIG. A) 2
3 LIST DES PIECES CONTENUES DANS L'EMBALLAGE 2
4 PICTOGRAMMES 3
5 CONSIGNES DE SECURITE GENÉRALES 3
6 A RESPECTER AVANT LA MISE EN SERVICE! 3
7 L'INSTALLATION 3
8 LA MISE EN SERVICE 4
8.1 Purge de la pompe avant utilisation 4
8.2 Reglage du point de commutation 4
9 NETTOYAGE ET ENTRETIEN 5
9.1 Notices d'entretien! 5
9.2 Nettoyage de la roue a aubes 5
10 DONNEES TECHNIQUES 6
11 DEPARTEMENT DE L'ENTRETIEN 6
12 RESOUDRE DES PROBLEMES 6
13 STOCKAGE 6
14 GARANTIE 7
15 ENVIRONNEMENT 7
16 DECLARATION DE CONFORMITE 8

POMPE SUBMERSIBLE 550W POWXG9513

1 UTILISATION

Attention! Important!

27/01/2022, Lier - Belgium

1 APPLICATION 2
2 DESCRIPTION (FIG A) 2
3 PACKAGE CONTENT LIST 2
4 SYMBOLS 2
5 GENERAL POWER TOOL SAFETY WARNINGS 3
6 BEFORE START-UP, NOTE THE FOLLOWING! 3
7 INSTALLATION 3
8 SETTING TO WORK 4
8.1 Venting the pump before use 4
8.2 Setting the ON/OFF operating point 4
9 CLEANING AND MAINTENANCE 4
9.1 Maintenance guidelines 5
9.2 Cleaning the impeller 5
10 TECHNICAL DATA 5
11 SERVICE DEPARTMENT 5
12 TROUBLESHOOTING 6
13 STORAGE 6
14 WARRANTY 7
15 ENVIRONMENT 7
16 DECLARATION OF CONFORMITY 8

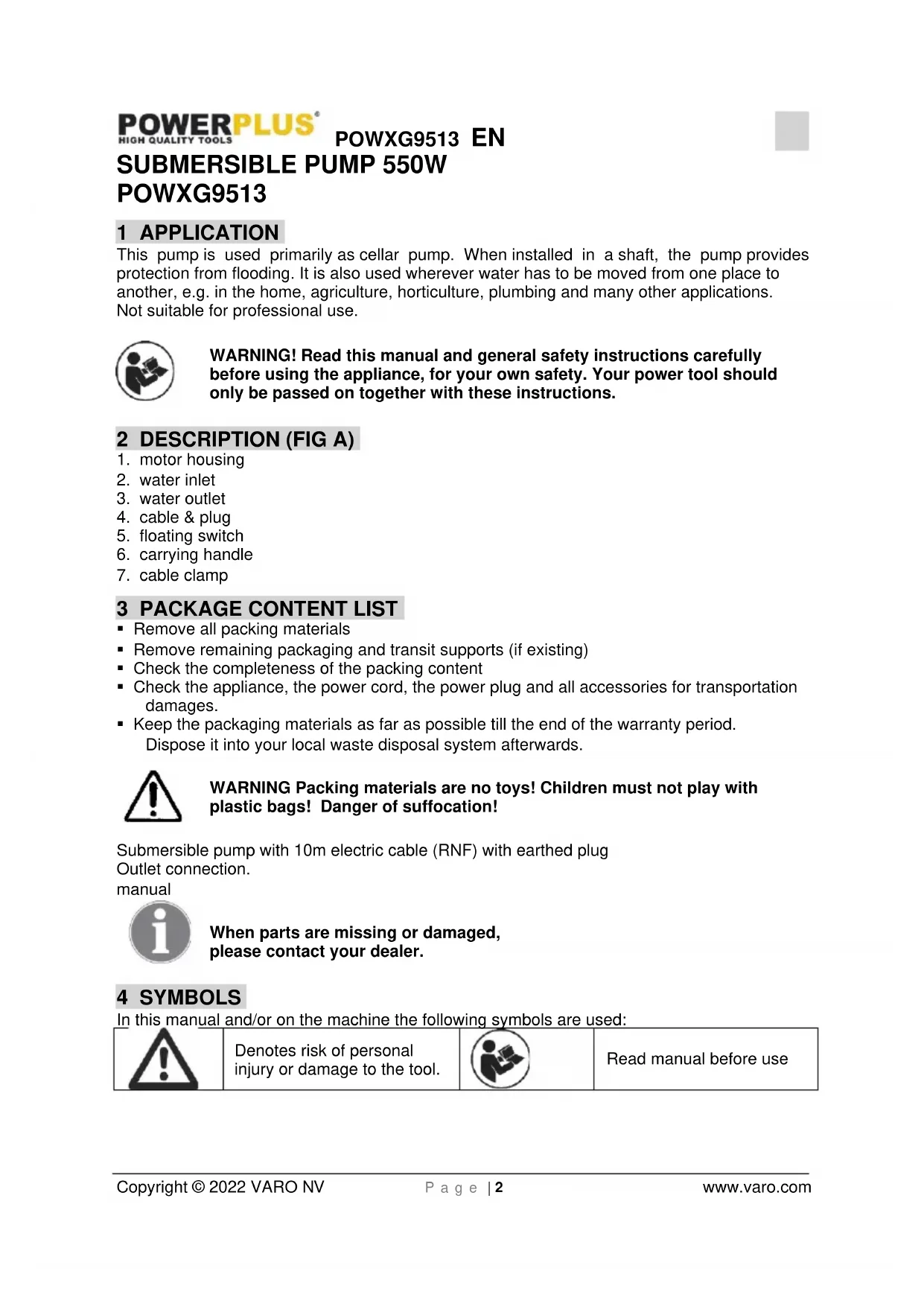

SUBMERSIBLE PUMP 550W

POWXG9513

1 APPLICATION

This pump is used primarily as cellar pump. When installed in a shaft, the pump provides protection from flooding. It is also used wherever water has to be moved from one place to another, e.g. in the home, agriculture, horticulture, plumbing and many other applications. Not suitable for professional use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG A)

1. motor housing
2. water inlet
3. water outlet
4. cable & plug
5. floating switch
6. carrying handle
7. cable clamp

3 PACKAGE CONTENT LIST

• Remove all packing materials
• Remove remaining packaging and transit supports (if existing)
• Check the completeness of the packing content
• Check the appliance, the power cord, the power plug and all accessories for transportation damages.
• Keep the packaging materials as far as possible till the end of the warranty period. Disposet it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

Submersible pump with 10m electric cable (RNF) with earthed plug Outlet connection.

manual

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

Denotes risk of personal injury or damage to the tool.

Read manual before use

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

6 BEFORE START-UP, NOTE THE FOLLOWING!

• The pump can be connected to any shock-proof plug which has been installed according to regulations. The plug must have a supply voltage of 230V 50Hz . Fuse min. 6 Amp.

Caution!

When the pump is to be used near swimming pools or garden ponds and in their area of protection, it must be equipped with a PRCD (residual current circuit breaker) with a nominal trip current of max. 30mA (according to VDE 0100, part 702 and 738). The pump must not be operated while people are in the swimming pool or in the garden pond! Please contact your electrician!

Attention!

(Important for your own security) Before starting to run your new submersible pump, please have the following items checked by an expert:

Ground connection
Zero conductor
- Fault current breaker switch must correspond the safety regulations of the power plants and they must work faultlessly.
- The electrical connections must be protected from moisture.
- If there is danger of flooding, the electrical connections must be taken to higher ground.
- Circulation of aggressive fluids, as well as the circulation of abrasive materials must be avoided at all costs.
- The submersible motor-driven pump must be protected from frost.
The pump must be protected from running dry.
- Access on the part of children should also be prevented with appropriate measures.

Consistency

Your submersible pump is designed for the circulation of water with a maximum temperature of 35^ C. This pump may not be used for other fluids, especially motor fuels, cleaning fluids, and other chemical products!

7 INSTALLATION

The submersible pump is installed as follows:

In a stationary position with fixed pipeline

or

• in a stationary position with a flexible hose pipe.

Please note!

You should never install the pump by suspending it unsupported from its delivery pipe or power cable. The submersible pump must be suspended from the specially provided handle or be placed on the bottom of the shaft. To guarantee that the pump works properly, the bottom of the shaft must be kept free of sludge and dirt of all kinds.

If the level of water sinks too far, any sludge in the shaft will dry out quickly and stop the pump from starting up. Therefore it is necessary to check the submersible motor pump regularly (by carrying out start-up tests). The floater is adjusted in a way that the pump can immediately be started

Note!

The pump shaft should have minimum dimensions of 40 × 40 × 50cm , so that the floating switch can move freely.

Mains supply

Your new submersible pump is equipped with a shock-proof plug according to regulations. The pump is designed to be connected to a 230V - 50 Hz earthed socket. Make sure that the socket is sufficiently secured (min. 6 Amp.) and is in excellent condition. Introduce the plug into the socket and the pump is ready to go.

Important Note!

If the mains cable or plug suffers any damage from external action, repairs to the cable should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

8 SETTING TO WORK

After having read these instructions carefully, you can set your pump to work, reconsidering the following:

• Check if the pump rests on the ground of the shaft.
• Check of pressure cord has been attached properly.
  Check if electrical connection is 230V - 50Hz
• Check if socket is in good condition.
• Make sure that water and humidity can never come to the mains supply.
• Avoid pump running dry.

8.1 Venting the pump before use

• Always ensure that the pump is vented properly before commissioning the pump. Possibly tilting back and forth several times until no more air bubbles appear, wait at least 15 seconds before the pump to start.

8.2 Setting the ON/OFF operating point

The ON and OFF operating point of the float switch can be set by adjusting the float switch in its latching holder.

Before you put the pump into operation, please check the following:

• The float switch must be installed so that the level of the ON operating point and the level of the OFF operating point can be reached easily and with little force. To check this, place the pump in a vessel filled with water, raise the float switch carefully by hand and then lower it again. As you do so, note whether the pump switches on and off.
• Make sure that the distance between the float switch head and the latching holder is not too small. Proper operation is not guaranteed if the gap is too small.
• When you set the float switch, make sure that it does not touch the base before the pump switches off. Caution! Risk of dry-running.

This appliance cannot be used by children or people who are physically, mentally or developmentally impaired, or people who lack experience or knowledge, except in case these people receive instruction from a person responsible for their safety, a supervisor, or by studying the preceding instructions concerning use of this appliance.

9 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

9.1 Maintenance guidelines

This submersible pump is an approved, maintenance-free high quality product, which is subject to severe final controls. We recommend regular inspection and maintenance to ensure long equipment life and uninterrupted operation.

Important! Note!

Remove the mains plug before all maintenance work.

• When the pump is often transported in the course of operation, it should be cleaned out with clear water after every use.
  In case of stationary installation, the function of the bating switch should be checked every 3 months.
• All fibrous particles which may have built-up inside the pump housing should be removed with a water jet.
• Every 3 months the shaft ground and as should be cleaned from mud.
• Remove deposits on the floater with clear water.

9.2 Cleaning the impeller

If excessive deposits collect in the pump case you must dismantle the bottom part of the pump as follows:

1. Remove the intake cage from the pump case.
2. Clean the impeller with clear water.

Important! Do not put down or rest the pump on the impeller!

1. Re-assemble in reverse order

10 TECHNICAL DATA

type	POWXG9513
Voltage / frequency	230V / 50Hz
Power input	550W
Delivery rate max..	10.500 l/h
Delivery height max	7 m
Immersion depth max.	max.7 m
Water temperature max.	35°C
For clean/dirty water:	Dirty
Housing (plastic(P) / Stainless Steel (SS))	P
Water inlet (plastic / Stainless Steel (SS))	P

11 SERVICE DEPARTMENT

• Damaged switches must be replaced by our after-sales service department.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

12 TROUBLESHOOTING

Incidents	Causes	Remedies
Pump does not start	- No mains supply- Floater does not switch	- Check mains supply- Bring floater in a higher position
No flow	- Inlet sieve is clogged- Pressure hose in bent	- Clean inlet sieve water jet- Reset hose
Pump does not switch off	- Floater cannot sink down	- Place pump properly on shaft ground
Insufficient flow	- Inlet sieve is clogged- Reduced pumping capacity by dirty and abrasive water	- Clean inlet sieve- Clean pump and replace worn-out parts
Pump switches off after short operating period	- Thermal cutout stops pumps due to dirty water- Water too hot. Thermal-cutout stops pump	- Remove mains plug. Clean pump and shaft- Make sure that a water temperature of max. 35°C is not exceed

13 STORAGE

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

14 WARRANTY

This product is warranted as provided by law for a 36-month period effective from the date of purchase by the first user.
- This warranty covers all material or production flaws. It does not include defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc.; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
- This warranty covers all material or production flaws excluding: batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc.; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

15 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

16 DECLARATION OF CONFORMITY

VARO N.V. - Vic. Van Rompuy N.V declares that,

Joseph Van Instraat 9 - BE2500 Lier - BELGIUM,

Product: SUBMERSIBLE PUMP 550W

Trade mark: POWERplus

Model:POWXG9513

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2014/35/EU

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60335-1:2012

EN60335-2-41: 2003

ENIEC55014-1:2021

ENIEC55014-2:2021

EN IEC 61000-3-2:2019

EN61000-3-3:2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO - Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Ludo Mertens

Regulatory Affairs - Compliance Manager

27/01/2022, Lier - Belgium

27/01/2022, Lier - Belgium

Regulatory Affairs - Compliance Manager

27/01/2022, Lier - Belgium

9 RENGJØRING OG VEDLIKEHOLD

27/01/2022, Lier - Belgium

1 ANVENDELSE 2
2 BEsKRIVELSE (FIG A) 2
3 MEDFOLGENDE INDHOLD 2
4 SYMBOLER 2
5 GENERELLE SIKKERHEDSFORSKRIFTER 3
6 BEMAERK INDEN IDRIFTTAGNINGEN! 3
7 INSTALLATION 3
IBRUGTAGNINGEN 4
8.1 Udluftning af pumpen for brug 4
8.2 Indstilling at TIL/FRA -kontaktpunktet 4
9 RENGORING OG VEDLIGEHOLDELSE 4
9.1 Vedligeholdelseshenvisninger! 5
9.2 Rensning af skovlhjulet 5
10 TEKNISKE DATA 5
11 SERVICEAFDELING 5
12 FEJLFINDING 6
13 OPBEVARING 6
14 GARANTI. 7
15 MILJ0 7
16 KONFORMITETSERKLÄERING 8

DYKPUMPE 550W POWXG9513

1 ANVENDELS

16 KONFORMITETSDEKLARATION

VARO N.V. - Vic. Van Rompuy N.V deklarerar harmed att:

Joseph Van Instraat 9 - BE2500 Lier - Belgien,

Produkt: DRÄNKBAR PUMP 550W

27/01/2022, Lier - Belgium

1 KAYTTO 2
2 LAITTEEN OSAT (KUVA A) 2
3 PAKKAUKSEN SISALTO 2
4 SYMBOLIT 2
5 YLEISET TURVALLISUUSOHJEET 3
6 ENNEN KAYTTÖONOTTOA TULEE OTTAA HUOMIOON! 3
7 ASENNUS 3
8 KAYTTOONOTTO 4
8.1 Pumpun ilmausennen kayttöa 4
8.2 Paalle/pois-toiminta-asennon saa
9 PUHDISTUS JA HUOLTO 4
9.1 Huolto-ohjeet! 4
9.2 Pumpun siipirattaan puhdistus 5
10 TEKNISET TIEDOT 5
HUOLTO-OSASTO 5
12 VIANETSINTÄ 5
13 SAIYTYS 6
14 TAKUU 6
15 LAITTEEN KAYTOSTA POISTAMINEN 7
16 YHDENMUKAISUUSILMOITUS 7

UPPOPUMPPU 550WPOWXG9513

1 KÄYTTÖ

27/01/2022, Lier - Belgium

1 EΦAPMOrH 2
2 έπΕΠΓΑΦΗ (EΙΚ.Α) 2
3 AISTA INPEIEXOMENQN YZKEYAIAE 2
4 SYMBOA 3
5 TENIKEΣYMBOYΛEΣ ΓIA THN AΣΦΑΛEIA 3
6 IPOSEETEPINTHENAPEHAEITOYPIAI 3
7 H EΓΚATAΣΤΑΣH 3
8 H ENAPEH AEITOYPTIA
8.1 EaeepiooC nC avTiaC npiv ano Tn xprion.. 4
8.2 Puroon rou onmuou evepyonoingc ENTOE / EKTOE 4
9 KAOAPIEMOe KAI SYNTHPHsH 5
9.1 O8nyies ouvtnpnns 5
9.2 Kaopiaooc rou nepuyiou 5
10 TEXNIKA XAPAKTHPIETIKA 5
11 TMHMA ΣEPBI6
12 ANTIMETOIIH IPOBAHMATQN 6
13 ANOOHKEYsH 6
14 ERTYHsH 7
15 IEPIBAAON 8
16 HΛΩΣH ΣΥΜΟΡΦΩΣΗ

YIIOBPYXIA ANTAIA 550WPOWXG9513

1 EΦAPMÖΓH

Autn n avtia xnpoiopoioietai kata kupio loyo oav avtla uToyeiw. Av ykataoatae i autn n avtia eva ppeatio a Tpoospei TPOOtaia aTIO TAnmuuppEc. Mtoepi va xnpoiopoiothei KAI TAVTO OTOU PPTEI VA TPOW0n0ei VEPo, dN. OTo OTNI, OTN Yewpyia, OTov KNTIO, 6 Biotexvia EYkataoantcEldawuyieivcKAI OE TIOAec AALEC TEPITTIWOEIG. Akatalno yia TTayyEmuatikn xpno.

PPOEIADONIOHsI! NapaKaAoue δiaβaOte TPOoEKTKaTO EYxεIpio XpnoC npiV aTTo th xpnn Kai quAaTe To yia va avatpeXeTE OE auto oTo MELov. Eav mTaBαOeTe auto To nAektpiKo epyaaEio, Tpaadwote Maci kai TiC odnyiecs XpnoC.

2 ΠΕΡΑΦH (EIK. A)

27/01/2022, Lier - Belgium

1 PRIMJENA 2
2 OPIS (SI. 1-2) 2
3 POPIS SADRZAJA PAKETA 2
4 SIMBOLI 2
5 OPCA UPOZORENJA O ELEKTRICNIM ALATIMA 3
6 OBRATITE PAZNJU PRIJE PUSTANJA U POGONI 3
7 INSTALACIJA 3
8 PUSTANJEURAD 4
8.1 Prozracivanje crpke prije uporabe 4
8.2 Podesavanje tocke ukljucivanja/isključivanja 4
9 CIscENJE I ODRZAVANJE 4
9.1 Upute za odrzavanje! 4
9.2 Cijscenje rotora s lopaticama 5
10 TEHNICKI PODACI 5
11 SERVIS 5
12 RJESAVANJE PROBLEMA 5
13 SKLADIStENJE 6
14 JAMSTVO 6
15 OKOLIS 7
16 IZJAVA O SUKLADNOSTI 7

POTOPNA CRPKA 550W

POWXG9513

1 PRIMJENA

27/01/2022, Lier - Belgium

1 UREDAJ 2
2 OPIS (SL. A) 2
3 LISTASADRZAJAPAKETA 2
4 SIMBOLI 2
5 OPŠTA BEZBEDNOSNA UPUTSTVA ZA ELEKTRICNE ALATE.3
6 PRE PUŠTANJA U RAD, UZMITE U OBZIR SLEDEČE! 3
7 INSTALACIJA 3
8 PODESAVANJE ZARAD 4
8.1 Ispušanje vazduha pre upotrebe 4
8.2 Podesavanje operativne tacke UKLJ/ISKLJ 4
9 CiScENJE I ODRZAVANJE 5
9.1 Smernice za održavanje 5
9.2 Cijsenje kolo pumpe za vodu 5
10 TEHNICKI PODACI 5
11 SERVISNO ODELJENJE 6
12 REsAVANJE PROBLEMA 6
13 SKLADIStENJE 6
14 GARANCIJA 7
15 ZIVOTNA SREDINA 7
16 IZJAVA O USKLADENOSTI 8

POTAPAJUCA PUMPA 550W POWXG9513

1 UREDAJ

Pumpa se prvenstveno koristi kao podrumska pumpa. Ako je montirate u oknu, onda ona pruza zastitu od poplave. Pumpa se takode koristi gde god voda treba da se prebaci sa jegnog mesta na drugo, n.pr. kuci, u poljoprivredi, vodovodnoj instalaciji i mnoge druge primene.

Nije pogodno za profesionalnu upotrebu.

27/01/2022, Lier - Belgium

1 OBLASTPOUZITI 2
2 POPIS (OBR. A) 2
3 SEZNAM OBSAHU BALENI 2
4 SYMBOLY 2
5 OBEÇNÁ BEZPEČNOSTNI UPOZORNÉNÍ PRO ELEKTRICKÉ NASTROJE 3
6 PRD SPUJSTENIM VEZMÉTE V UVAHU NÁSLEDUJÍCİ SKUTEČNOSTII 3
7 INSTALLACE 3
8 UVEDENI DO PROVOZU 4
8.1 Odvzdušněni Čerpadla préd použitim 4
8.2 Nastaveni bodu zapnuti a vypnuti 4
9 CISTENIA UDRZBA 5
9.1 Pokyny k udrzbé 5
9.2 Ciisteni obezného kola 5
10 TECHNICKE UDAJE 5
11 SERVISNI ODDELENI 6
12 RESENI PROBLEMU 6
13 USKLADNENEI 6
14 ZARUKA 7
15 ZIVOTNI PROSTREDI 7
16 PROHLASENIO SHODE 8

PONORNE CERPADLO 550W POWXG9513

1 OBLAST POUŽITÍ

27/01/2022, Lier - Belgium

1POUZIVANIE 2
2 POPIS (FIG A) 2
3 OBSAH BALENIA 2
4 SYMBOLY 2
5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE 3
6 PRED SPUSTENÍM SI ZAPAMÁTAJTE NASLEDOVné BODY!...3
7 INsTALAcia 3
8 UVEDENIE DO CINNOSTI 4
8.1 Odvzdušnenie Čerpadla pred použitím 4
8.2 Nastavenie prevadzkového bodu zapnutia/vypnutia 4
9 CISTENIE A UDRZBA 5
9.1 Pokyny k udrzbe 5
9.2 Cistenie obezného kolesa ( 5
10 TECHNICKE UDAJE 5
11 SERVISNÁ SLUŽBA 6
12 RIESENIE PROBLEMOV 6
13 SKLADOVANIE 6
14 ZARUKA. 7
15 ZIVOTNé PROSTREDIE 7
16 VYHLASENIE O ZHODE 8

PONORNE CERPADLO 550W POWXG9513

1 POUZIVANIE

12 RIESENIE PROBLEMOV

27/01/2022, Lier - Belgium

1 DOMENII DE UTILIZARE 2
2 DESCRIERE (FIG. A) 2
3 CONTINUTUL PACHETULUI 2
4 SIMBOLURI 2

5 AVERTISMENTE GENERALE DE SIGURANÀ PRIVIND
APARATELE ELECTRICE 3
6 INAINTE DE PORNIRE, RETINETI URMÁTOARELE 3
7 INSTALAREA 3
8 PREGATIREA PENTRU LUCRU 4
8.1 Aerisirea pompei inaine de utiliser 4
8.2 Reglarea punctului de PORNIRE/OPRIRE a functiOnarii 4
9 CURATAREA INTREINEREA 4
9.1 Recomandari privind intretnerea 4
9.2 Curataea rotorului 5
10 DATE TEHNICE 5
11 DEPARTAMENTUL DE SERVICE 5
12 DEPANAREA 6
13 DEPOZITAREA 6
14 GARANTIE 7
15 MEDIU 7
16 DECLARATIA DE CONFORMITATE 8

POMPA SUBMERSIBILA 550W POWXG9513

1 DOMENII DE UTILIZARE

27/01/2022, Lier - Belgium

27/01/2022, Lier - Belgium

27/01/2022, Lier - Belgium

1 OBJACTb PIPMEHEHnA 2
2 OINCAHNE (PNC.A) 2
3 COIDEPJKMOE YNAKOBKN 2
4 YCIOBhIE OBO3HAUHnA 3
5 OБцЯ ИНСТРУКЦЯ NO TEXнIKE БE3ОПАСHOCТИ ПРИ PABOTE C ЗЛЕКТПОИНСТРУМЕHTOM 3
6 ПЕД 3АПУСКOM, OБРATITE BНIMAHINE HA CJЕДУЮSUEEI 3
7 YCTAHOBKA 4
8 BBODB3KcPnyATAUIO 4
8.1 Behmulau Haoca neped uonb30aHuem 4
8.2 Hacmpouka ypoehra cpaabmeaHna (BKJI/BblIKJI) 4
9 CHNCTKA N YXOД. 5
9.1 Yka3aHua no mexHuueckomy o6cnyKueaHuo 5
9.2 Ouchmka pa6ooye0 kOleca 5
10 TEXHnueCKNE DAHHbIE 6
11 OTdEIOBcJIyXnBAHnA) 6
12 YCTPAHEHNE HENCnPABHOCTeI 6
13 XPAHEHNE 7
14 TAPAHTNA 7
15 OKPYKAIOUCA PEDA 8
16 DEKJIAPAUZRA COOTBETCTBNA 8

NORPYXHON HACOC 550W

POWXG9513

1 OBJACTb ПРIMEHEHnA

3TOT HACOC npemmyuectBENHO nCNOJb3yeTcKaK HAcOC IJIa OTKaUKN BObI N3 cKBaxHbI. Pn yctahOBKe B CKBaxHne IIN KOLoDcE HAcOC oEscneuNbaET 3aunTy OT 3aToPJIeHn. OH TAKKe IcNoJb3yeTcBA3De, IDe Tpe6yETcpeKaUNaHne BObIC OndHO MeCTa Ha dpyroE, HApnPmep, B DOMaUnhem XO3YICTBe, CeJIbCKOM XO3YICTBe, CaIOBOdCTBe, KaHaUN3aunn IN BO MHOrnx Dpynx Oblactx pImMeHn.

He npedHa3NaueH dIy KOMMepueckoro IcnoJb3ObaHn.

BHIMAHNE!Дя Baшен Дунов 6e3onachocTи TuaTeNbHO O3HaKOMbTecb c DaHHbIM pykoBODCTBOM И obuMMN yka3aHnMn NO TexHnke 6e3onachocTи NepeD Tem, KaN pncTynntb K pa6Ote C MaunHo. PnnppeDaue 3TOrO 3NeKtpnueckoro INHcTpymeHTa Dny NOnb3OBaHnA dpyrUm LIncaM 6o3aTeNbHO npNJLOXHTe DaHHbIe INHcTpkyuIN.

2 ONICAHNE (PNC. A)

1. Kopnyc dBurataeia
2. BnyckHoi naTpy6ok JnBovbl
3. BbinyckHOI naTy6oK IJIa BOBbl
4. Ka6eJIb c BvJkoI
5. NonnaKBOBb BbIKNoaTeNb
6. Pukka nna nepenockn
7. KaebnbHb3aXIM

3 CODEPJKMOE YNAKOBKN

• YdaIInTe BCE ynaKOBOHybIe MaTePnAbI.
• YdaIInTe ocTaKn ynaKOBKn n TpaHcNoptnOboBOUHbIe KpeJIeHn (ecJIN OHn eCTb).
• Поверпге NonHOTу KOMNNEKta NOCTaBKn.
• Пюверьтpe annapaT, синоов Кабь, WTeNCEь N BCE npHAnDNeXHOCr Na npeMet NOBpeKdEHH np TpaHCnOpTnpOBKe.
  XpaHnTe ynaKOBOHyIe MaTePnaJIbI NO BO3MOxHOCTN Do nCTeueHnraPaHTnHOro cPOKa. Iocne 3Toro n36aBbTEcB OT HIX, nCNoJIb3yR MeCTHyIO CnCTeMy yTNJIN3aunn 6bITOBbIX OTXODOB.

BHIMAHHE! YnakoBouHbI MaTePnaJIbI - 3To He nrgyUKN! He no3BoJrTe DeTAM HrpTaB C PnactIKOBbIMn NaKeTaM! Ectb onaChocTb ydyWeHnA!

IorpyxhoH hacoc c 3neKtpnueckm ka6eJem (RNF) dInnoh 10 m c 3a3eMneHHoB BnIKoB BbinyckHO nATpy6ok.

PykoBoIDCTBO no 3Kcnnyatau,1 wt.

Ecnn deTann OTCyTCTByOT nnn noBpeXdeHbI, o6paNTeCb K CBOemy dInlepy.

4 YCJIOBHBIE OBO3HAUEHNIA

B daHOM pykoObOCTBe n/In Ha camo MaunHe nCnoJIb3yIOTc CneDyUOune cIMBOJIbI::

BhimaHne! He knaTe n He onupaTe hacoc Ha pa6ooye koJeco!

1. BbInoHnTe c6Opky B o6paTHOM npraKe

10 TEXHnueCKne DAHHbIe

15 OKPYXKAIOUJAR CPEDA

EcnB Baw annapat Tpe6yET 3aMeHbI Nocne dNITeNBHO NOJb3OBAHn, He Bbl6paCbIBaIte erO BmecTe C DOMaunHM MycOpOM, a NCNOJIb3yIte 3KOJIOnueCKn 6e3oNaChbI cnOCo6 dnn erO yTNIIN3aUIn.

C OTXODAMN 3JIeKTPnuecknx MaunH HeIb3a NOCTyNaTb, KaK C O6bIuHbIMN DOMaunmOTXODAMN. N03a6oTbTeCb 06 yTuIN3aunn Tam, rKe IINr 3TOrO eCTb COOTBETCTByUOune yCTaHOBKn. IpOKOHcYbTnpyuTECb y MeCThbx OprAHOB Bnactn INy IpoDaBua O BO3MOxHOCTHy TUIN3aUnn.

16ДЕКЛAPALUNA COOTBETCTBNA

VARO N.V. - Vic. Van Rompuy N.V Joseph Van Instraat 9 - BE2500 Lier - BEBNIA, HACTOUIM 3aBJIeT, YTO

IpoDyKT: IOPYXKHOH HACOC 550W

Mapka: POWERplus

MoeIb: POWXG9513

COOTBETCTByET 63aTeIbHbIM Tpe6oBaHnM INHbIM COOTBETCTByIOUm NOIOXKeHnM DeIcTByIOxN EbponeeCKNX DnpeKTHB, OCHOBaHHbIX Ha EbponeeCKNX rapMOHN3npoBaHHbIX CTaHdaptax. IIO6oe HecaHKUHOHpOBAHHOE N3MeHeHne yCTpOJCTBa aHHyIpuyet daHHoe 3aRbHeHne.

Ebponeckne dnpektnbbl (BkIIOUa, ecn npimeHMO, nx nonpaBKn Do daTbI noDnncnHa):

2011/65/EU

2014/35/EU

2014/30/EU

Ebponeckne rapMOHN3npoBaHHbIe cTaHdapTbI (BKnIOUaJ, ecN npImeHMo, nx nonpaBkn do DaTbI noDnncAHN):

EN60335-1:2012

EN60335-2-41: 2003

EN IEC55014-1:2021

EN IEC55014-2:2021

ENIEC61000-3-2:2019

EN61000-3-3:2013

Держател Тхиеско ДOKум entaци: Флпн Ванkepxов (Philippe Vankerkhove), VARO -Vic.Van Rompuy N.V.

HxKeNoDnucBmncr DaenCTByeOT NMeHN IcNoJIHnteJbHoro DnpeKTopa KOMnaHIn,

Ludo Mertens

OTdHn HopMOKoHTpOra-MeHeJxep No BOnpocam corlaocBaHm

27/01/2022, Lier - Belgium

1 PPEHHA3HauEHE HA EJEKTPUeCKnYPeI 2
2 OINCAHNE 2
3 CnncbK HA CbIbPjXAHNETO HA ONAKOBKATA. 2
4 CnMBOJIi 3
5OBsI INPEdUINPEXJDEHNA B63O1ACHOCTPNI 3IOJI3BAHE HA EJEKTPOHCHTPMHTN 3
6 ПЕДИДАЯПUCHETE,OBbPHETE BHHMAHNE HA CJIeHOTO! 3
7 MOHTAX 3
8 NYCK B EKCPILOATAU 4
8.1 06e3b3dyuaahe Ha nomnama npedu ynompe6a... 4
8.2 Pezylupahe Ha moykama 3a 6KIOueHa e u 3KIOueHae 4
9 NOUHCTBAHE IN IOIDPbJKA 5
9.1 Hacoku 3a nooepbka.. 5
9.2 Nocuemeane Ha pa6omHomo KOJIeIoo 5
10 TEXHnueCKXAPAKTEPNCK 6
11 OTdENCEPBn3HO 6
12 OTCPAHRAHE HA IOBPEDATA 6
13 CbXPAHEHNE: 7
14 TAPAHU 7
15 OKOJIHACPEDA 8
16 1EKNAPAU3A CbOTBETCTBNE 8

NOTONRAEMA NOMPA 550W

POWXG9513

1 ПЕДHA3HAUHNE HA EJEKTPNUECKNЯ UPEД

Tasnomna e npedBndeHa 3a ynoTe6a npedmHko kato nomna 3a Ma3e. Korato e MOHTnpaHa B waxTa, NOMnata OcnIpyraBa 3aunTa OT HABODHBAHe. Te3n nOMn cBto Taka MORat Da Ce N3NoJ3Bat 3a npemecTBaHETo Ha BOda OT eNHO MRCTO Ha dpyro, HApPImep, B DOMAKINHCTBOTo, 3eMeDenneto, rpaDHapCTBOTO, BDOCHa6DaBaHETo n 3a MHoro dpyrnn PpINOxKeHH.

Henoxdo73 npocnoHaHa ynotpe6a.

IpeynpexJeHne! Ipei Da n3noJ3BaTe HnctpyMeHa, npoyeTeBHNMaTeJIHO TOBA pKOBODCTBO N 06uNTe HnctpyKcNn 3a 6e3ONaChocT,3apaN BawaTa CO6CTBeHa cnryphocT. Baunr eNeKTponHCTpyMeHT Tpra6Ba Da ce npdaBa Ha dpyr cAmo 3aeDHo c HactOaUnte HnctpyKcNn.

2 ONICAHNE

1. Kopnyc Ha eJneKtpOMToTopa
2. BxoJau, OTBOP 3a BOdaTa
3. ⅢxOJaIOTBOp 3a BOnTa
4. Ka6eI n KOHTaKT
5. Nonlabbueh npeBkIIOyBaTeI
6. PbkoxBaTka 3a HocHe
7. Cko6a 3a ka6ena

3 CnncbK HA CbIbPjXAHNETO HA ONAKOBKATA

• OtctpaHete BCnKoNAKOBbHyMaTePnaHn.
  OTCTpaHete octaHaNTe onaKOBbUHN bPemeHHN oCtABKN (ako nMa TaKnBa).
  PpOBepeTe daHn naKeTbT CbIbpxKa BCNUK KOMNoHEHTN.
  IpoBepTe daH ypeBt, 3axpaHbAunr Ka6en, uencelT n akcecoapte He ca 6nNIOBpeDeH np TpaHcnpTuPaHe.
• Ia3eTe onakOBbHHTe MaTePnAn NoTn Do KpaHa rapaHcNoHHn nepnoD. CneI TOBa n3XBpNte B nyHKT 3a cb6npaHe Ha OTnaDbu.

BHIMAHHE! OnakOBbHnTe MaTePnaJn He ca npraKn! He no3BoJBaTe Ha deca da npraT c HauNoHOBn Top6nKn! Pnck ot 3aDywaBaHe!

ItoTnraMa nomna c 10 m eJeKtpnueckn Ka6eN (RNF) cbc 3a3emeh zencen
HxOJaua Bpb3ka.
HapbHuNK (Hnn ,pBuHO"

B clya, ye hakoun qactn Iuncbat nJn ca nobpeHn, CBbpxeTe ce MeCTHnI dNcTpnbTyOp.

4 CMMBOJN

B hactoiann Hapbunn N/nn BbpxymaunHaTa ca n3noJ3BaHn CJIeHNTE CNMBOIN:

Yka3Ba onaCHOCT OT TpaBMa
HnIOBpeHa
NHCTpyMeHTa.

Ipei Da n3noJ3BaTe MaunHaTa, npOeTeTe pkoBOIDCTBOTO.

5OBsI INPEdUINPEXJDEHNA B63OpACHOCT PnN3IOJ3BAHE HA EJEKTPoHCTPYMEHTN

IpooyTeTe BCnKn npedynpexJeHna 3a 6e3oNaChOCT n HNCTpyKuH. Hecna3BaHeTo m MoKe Da npUHH eNeKtpnueckn yap, noXkap n/nn cepno3Ho HapaHraBe. 3ana3eTe BCnKn npedynpexJeHna n HNCTpyKuH 3a 6bdeu cnpabKn. TepMHbT ,eJekTPoHnCTpymeHT" B npedynpexJeHnaTa ce OTHacr 3a Baun 3axpaHbaH OT MPexata (c Ka6en) n nn 3a pa6oteu Ha 6aTeprn (6e3 Ka6en) eJekTPoHnCTpymeHT.

6 PPEI DA J IYCHETE, ObPHTE BHIMAHNE HA CJIEDHOTO!

• Помпа може дбдсвьрзан c Bceки 3a3emeh KOHTaKT, KОТо e nHCTaIIpaH cbrnacho pa3nope6nte. UencelbT pr6Ba dЯ noJyUaBa 3axpaHbaIo HanpexeHne OT 230 V - 50 Hz. ПрдпаителгТр6Ba dЯ sbdme mHmym6 amepa.

BHHMaHne!

Korato nomnata ue ce n3noJ3Ba B 6JI3OCT do 6aceHn Hn rpaDHckn WadpaBAHn Hn B TexHnTe 3aunTeHN 30Hn, Ta Tp8Ba Da 6bDe obOpyDbAHa Cbc 3aunTa OT pKeKcbAHe Ha 3aemBaUaTa Bpb3ka C HOMHaJeH ToK Ha cpaobTaBHe MaKcIMyM 30 mA (cbrnaCHO VDE 0100, yact 702 n 738). Nomnata He Tp8Ba Da paBoTn, Korato B 6aceHn Hn WadpaBAHa Ima xopa! Moim da ce CBbpXeTe B BAwn eNeKTpoTexHnK!

BhmuHne!

(BaKHO 3a BaWata 6e3onachocT)

Ipei Da Iychete B DeIcTBne BaWata HOBa NOTONReMa NOMNa, MOJIM Da ypeInte npOBepkata Ha CneHnTe HeuOa OT EKCnepT:

3aemnteHaTa Bpb3ka
- PpOBoDNHnKa Ha Hynata
- PpeKbCbau Ha ToKa npn NobPeDa Tp86Ba Da OTROBapr Ha pa3nOpe6nte No 6e30nacHocTtHa eJekTPOcTaHcunTe N Tp86Ba Da pa6oTn 6e3OTKa3Ho.
EneKtpnuecknte Bpb3kn Tp6Ba da ca 3aunTeH O T Blara.
Ako mma onachocT OT HaBOdHraHe, eJektpnuecknte Bpb3Kn Tp6Ba da ce n3HeceHn H a NO-BUCOKO.
B HnkaKbB cnyaH He Tp86Ba da ce donycka nomnata da pa6oTN C arpecnBHN nn a6pa3NBH TeuHOCTN.
- IotonmaTOMNa c MOTOPHO 3aDbXBaHe Tp6Ba Da 6bJe 3aunTeHa OT N3Mp3BaHe.
- Помпа Трабва да Бдe Зашита от работа пи сух ржим.
OCTbNbT Ha deca do nOMTaTa Tp8Ba da 6bDe orpaHueH NO noXoJaH aHIn.

CbotBetCTBne

Baata noToTnEma nomna e npoeKtnpaHa 3a cnpkylaun Ha BODa C MaKcMaJHa Tempepatya ot 35^ Ta3n nomna He Tp86Ba da ce n3no3Ba 3a npyTeuHocTn, Oo6eHo 3a MOTOpHn ropBa, NouchTbaun npenapatn i dpyrXmUneckn npOdykTu!

7 MOHTAK

IOTONRAEMTe MOTOPH NOMN CE INHCTaINpaT, KaKTo CJIeDBA:

B ctaioHapHo noJoxeHne c qnkcapaH Tpb6oPBOD
B CtaUHOHApHo NIOJKeHne C TbKBaB MapKyu. MoIM Da o6bPHeT e BHMaHne!

Hnkora He Tp86Ba Da HnctaInpate NOMnata, KaTo 3aKaunTe HenoDlbPkaHa Ha HeHaTaTpb6a nn 3axpaHbauu Na6eJ. NotoTnemata MOTOPHa NOMna Tp86Ba da 6bDe Okayeha Ha

CneuHaNO DoCTaBeHaTa DpbXka IIN NoCTaBeHa Ha DbHOTo Ha WaxTaTa. 3a Da ce rapaHTnpa PpaBnHata paOta Ha NOMnata, DbHOTO Ha WaxTaTa Tp8Ba Da 6bDe NOdIbPxAHO YNCTO OT UTAIKN I 3aMbpcNTeTI ON TBCKaKB BIVD.

Ako HnBOTO Ha BODaTa Ce NOHJN IpeKaIeHO MHO, yTaIKTe B WAXTaTa Ue N3cbXHaT 6bp30 nIe IoppeuAT Ha NOMnata Da ce 3aJeCTBa.

IopadnTOBa e Heo6xOIMO peoBHO Da ce npOBepra BA NOTONrMaTAMOTOPHa NOMna (Upe3 npOBexdaHe Ha NcKOBu n3nITaHn).NpJIaBbKbT Tpr6Ba Da e HarnaceH Ha TaKOBa NOJoxHHe, Ye NOMnata Da MoKe Da ce 3aJeCTBa He3a6abHo.

3a6eJexka!

Waxtata 3a nomnata Tp86ba da nma pa3mepn, He no-Majkn ot 40 x 40 x 50 cm, 3a da moke nonlabkoBnI pBeKnIOuBaTeJ da ce DBNX CBO6OdHO.

EneKtpnuecko 3axpaHbAhe

BaWata HOBa NotOnraMa NOMna e O6OpyDbHa CbC 3a3EmeH 7eNceI cBrrNaCHO pa3nopeD6nte. POMnata e npoeKtnpaHa 3a CBp3BaHe KbM 3a3EmeH KOHTaKT Ha 220/230 V -50 Hz. IpoBepTe, dAn N KOHTaKaT a oCNpyen C DocTaTBuHa 3aUHTa (MNHNMyM 6 ampe) n daNN Toi E B Do6po CbCTOJHne. IocTabeTe 7eNceIa B KOHTaKaT a NOMnata e roTOBa 3a pa6ota.

Baxha 3a6eIeKka!

Ako 3axpaHbauJn Ka6eI nn IeNcEJIbT 6bDat NOBpeJeH N O TBHNo Bb3dEInCTBne, peMOHTn Ha Ka6eJa ca 3a6paHeH.

8 NYCK B EKCPIIHOATAUJA

Cne KaTo CTe IpoOeJI N Te3N INHCTpyKcIIN BHNMaTeJIHO, MOKeTe Da nyChTe NOMnata B EKcNIOaTaUra, KATO IMATE PpeBvID CNeDHNTE Heua:

• Поверете, Далл Nomпа Лжни Н дьното на чхтata.
  PpOBepTe, daJI KOpJaTa 3a HaJIraHeTo e npABUNHO CBbP3Ha.
  PpOBepTe,daH3axpaHbHeTo e 230 V-50 Hz.
  IpoBepTe,daJI NKoHTaKTa e B Do6po CbCTOHHe.
  PpOBepTe, DaJI N BOJaTa HIN BJIarata He MORaT Da JOCTHHaT 3aXpaHbAHeTO.
• ɪЗбягbaйTe Da octabraye nomnata Da paBOTn Ha cyxo.

8.1 06e3b3dyuaahe Ha nomnama npedu ynompe6a

Bnharne yBepraTe, ye nomnatae o6e3Bb3dyWeHa npeHn HeHHn pyck B eKcnloataa. Ako e Heo6xOIMo, HAKHOHe T NOMnata Ha3aI HAnpeHrKOIO bTNI, DOKATO pncTaHaT da ce NOBBArBb3dyuHN MExypueTa, N3yakaHTe HaJ-MaIKO 15 cekHynn PpeDn Da BKNIOHTe NOMnata.

8.2 Pezylupahe Ha moykama 3a 6knKo7aHe u 3KnKo7aHe

Toykata Ha BkHIOUBaHe H N3KIOUBaHe Ha nonnaKBOBn IpeBKnIOUBaTeJ MoKe da ce peryInpa Ype3 HarnacBaHe Ha MCTOTO My Ha nbpKaTeJI.

Ipei Da nycheTe nomnata B ekcnloatauia, Tp86Ba da npOBepnte cJeHOTO:

• NonJaBKOIBI npeBKnIOUBATeJ Tp86Ba da 6bJe MOHTnpaH TaKa, ye HNBOTo Ha ToKATA 3a BKNIOUBAHe i Ha Toykata 3a N3KnIOUBAHe Da MORaT Da CE pOBeRpaT IecHO 6e3 ycINr. 3a Da rN npOBepnte, NOCTABEt NOMnata B CbD C BOda, NOBdIrHete BHIMATEJHO NonJaBKOIBI npeBKnIOUBATeJ ITO CNyCHeTe HaHOBO. DOKATO N3BbPbBaTe TOBa, BNKeTe, DaNN NmNaTa Ce BKnIOUBA N N3KnIOUBA.
• PpOBepTe, daJIpa3CToHneTO MeJdy rnaBaTa Ha nonJaNABOBnI ppeBKnIOBaTeI NDbpxaTeIe My He e npEkaJeHO MaIKo. Ako ToBa pa3CToHne e npEkaJeHO MaIKo, He MOKe Da ce rapaHTnpaBUNHata Pa6ota Ha NOMnata.
  Korato Harnacnte nonnabKBOBn npebknoBaTei, npOBepe, daHn ToH epnpa do bHOTo, npedn nomnata da n3KnOuH. BHMaHne! Toba 6n DOBeno Do pa6ota Ha NOMnata HA CVXO.

To3n ypeI He Tp86Ba da ce n3noJ3Ba ot deca nn Xopa, KOnTO ca c n3nueckn nn nCnxnueckn HeoctaTbucn nn C HeoctaTbucn B pa3BntneTo, nn Xopa, KOnTO Hramat

ONIT NIN 3HaHn, C N3KIOUeHHe Ha CnyaHte, KOraTO TaKnBa Xopa NoIyuaBat INCTpyKuIN OT YOBek, OTROBOpEN 3a TExHata 6e3OnacHocT, cynePBai3ep, IIN CJIeD N3yuaBAHe Ha npeXODHIne INCTpyKcN INTHOCHO yNoTpe6bata Ha To3n ypeI.

9 NOUHCTBAHE I IOIDPRbXKA

BHHMaHHe! Ppei Da 3aOnuHHe Te KaKBaTo N da e pa6oTa no obOpyDbaHeTo, n3BaTe UeNCeJa OT KOHTaTa.

He n3noI3BaIe nepnHn npenapaTH nn pa3TBOpHTeN, TbK aTo Te MORaT da HahecaT HeONpaBmN NOBpeN Ha MaunHaTa. XmHKaJIte MORaT da pa3pyuAT NlactMacOBtE qACTN.

9.1 Hacoku 3a noodpbykka

Tasnnotonma nomna e oOobpeH He Hxkaeue Ce ot noDpBkKa BnCOKokaeCTBeH npOyKT, KOITc eoIra Ha TeKnnTAnn, npei Da Hanyche 3aBoDa-npon3BOdnten. Hne npOpbUBAme peoOBn npOBepKn I noDpBkKa, 3a da cn ocNpyPte Dblr ekcnnoatauioHOEN XIBOT HnpeKbcHaTa pa6ota.

3aXHa 3a6eIeXka!

I3KIOUeTe 8eCena OTO KOHTaKaTa, npei Da IpeInpHeMaTe KaKBaTo N da 6nno pa6ota no npdpbXkata.

Bcnya,ye nomnata ce mectno no BpeMe Ha HeHaTa ekcnloataunia,Ta Tp6Ba Da 6bnde nouctbaHa c uHCTa BODa CneB BCEKn cnyaHa ynoTpe6a.
B cnyaHa ctaOnHapeH MOHTaK, fYHKcIOHnpaHeTo Ha nonJaBKOIBn PpeBKIOUbaTeI Tp6Ba Da ce npOBepraBA BCEKN TPN Mececa.
Bcnu BnakHeTn qactn, HATpynn Ce BB BbTpewHocTtHa KOpnyca Ha nomnata, Tpa6Ba Da 6bDat OTMBAHN C BODHa CTpy.
BceKn TpN Meceua DbHOTo Ha WaxTaTt Pra6Ba Da 6bJe NouchBaHO OT KaJ.
- 3mnte 3ambpcraBaHTo NO nonnabka C uHCTa Boda.

9.2 Nocmeane Ha pa6omHomo konelno

B cnuyaHa MHO r ytaKn, HATpynaJInc Ce B nomnata, Tp6Ba da pa3rno6nte donHaTaNact no cJeHnHaunH:

1.ДемоHTираiteсмукATEннЯФNTbрOTKOPnycaHa nomnata.
2.Поунстета pa6OTHTo KOJIeNo cЧиста BODa.

Baxho! He noctabrayte nomnata da Jexn Ha pa60THoto KOJeNo!

1. Crnoobete nomnata no o6paTHna pei.

10 TEXHnueCKX XAPAKTEPNCNTUKN

DonyoDncaHnT DeiCTBa OT IMeTo Ha N3nblHnTeHnna DnpeKTop Ha KOMnHaHnTa,

Ludo Mertens

PerynaHnBbnpCn-MeHnKbP NO CbOTBeCTBnraTa

27/01/2022, Lier - Belgium

Vario

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

Copyright by varo
