USER MANUAL POWXG9554 PowerPlus

Yellow GARDENPRO POWERPLUS high quality tool with black handle and water bubble background (no text or symbols on device)

3 YEAR

WARRANTY

NL | FR | EN | DE | ES | IT | PT | NO | DA | SV | FI |

EL | HR | SR | CS | SK | RO | PL | HU | RU | BG

i

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

2 BESCHRIJVING (FIG A)

11 PROBLEEMOPLOSSING

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 UTILISATION 2
2 DESCRIPTION (FIG. A) 2
3 LISTE DES PIECES CONTENUES DANS L'EMBALLAGE ..... 2
4 PICTOGRAMMES 3
5 INSTRUCTIONS DE SÉCURITÉ ADDITIONNELLES....3
6 MONTAGE....3
6.1 Connexion électrique .... 3
6.2 Terre 4
7 UTILISATION 4
7.1 Tuyau de pression....4
7.2 Précautions d'usage....4
8 NETTOYAGE ET ENTRETIEN 5
8.1 Nettoyage....5
9 DONNEES TECHNIQUES 5
10 BRUIT 6
11 RECHERCHE DE PANNE 6
12 GARANTIE 8
13 ENVIRONNEMENT 8
14 DECLARATION DE CONFORMITE 9

GROUPE HYDROPHORE 1000W ANNEAU EN INOX JARDIN POWXG9554

1 UTILISATION

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 APPLICATION....2
2 DESCRIPTION (FIG A) 2
3 PACKAGE CONTENT LIST....2
4 SYMBOLS 2
5 SPECIFIC SAFETY WARNINGS....3
6 ASSEMBLY 3
6.1 Electrical connection....3
6.2 Earth 3
7 OPERATION....3
7.1 Pressure hose....4
7.2 Safety requirements....4
8 CLEANING AND MAINTENANCE....5
8.1 Cleaning....5
9 TECHNICAL DATA 5
10 NOISE....5
11 TROUBLE SHOOTING 5
12 WARRANTY....7
13 ENVIRONMENT 7
14 DECLARATION OF CONFORMITY 8

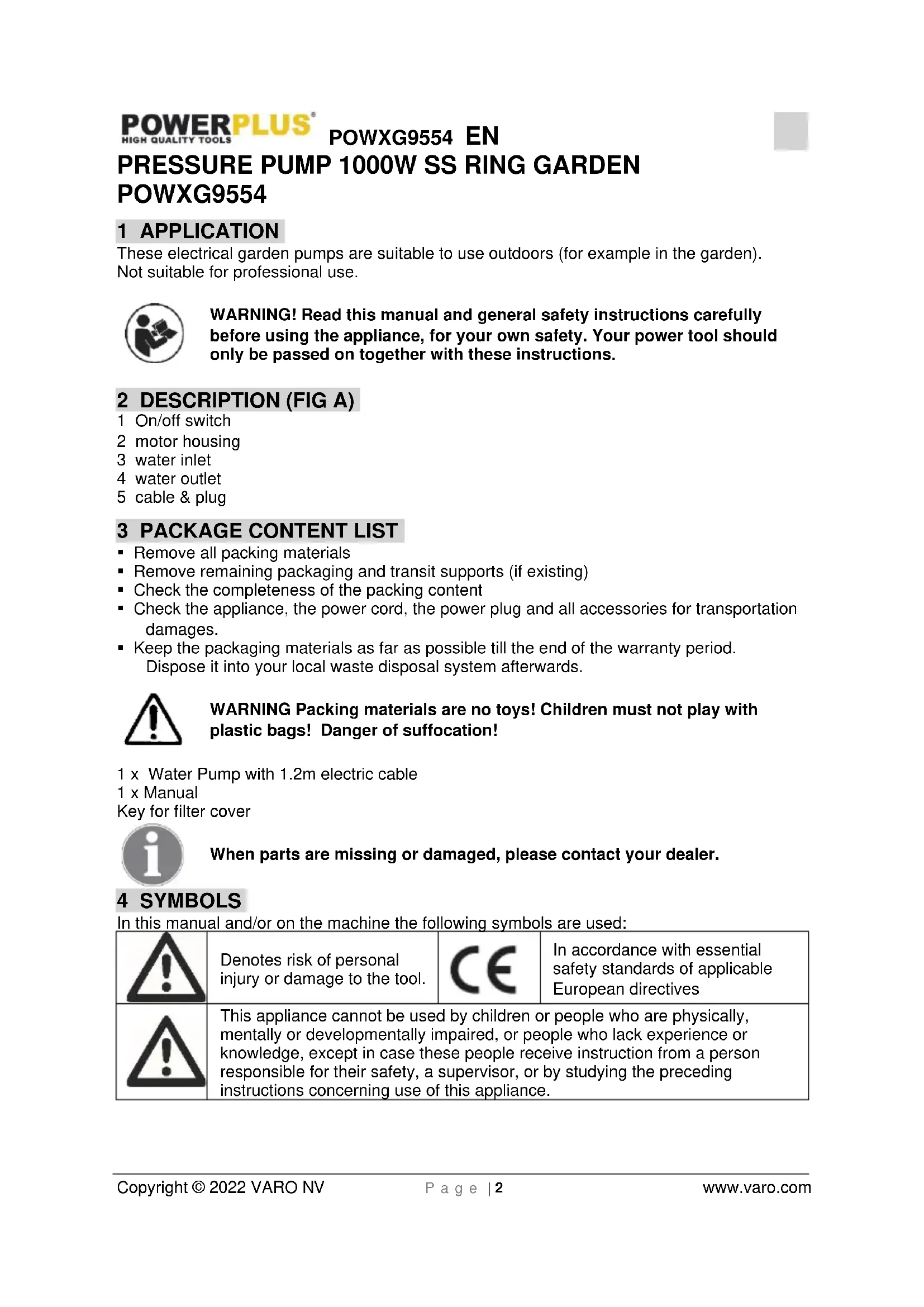

PRESSURE PUMP 1000W SS RING GARDEN POWXG9554

1 APPLICATION

These electrical garden pumps are suitable to use outdoors (for example in the garden). Not suitable for professional use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

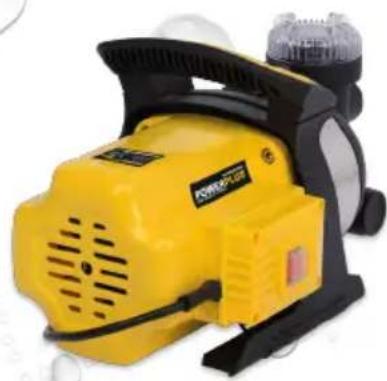

2 DESCRIPTION (FIG A)

1 On/off switch
2 motor housing
3 water inlet
4 water outlet
5 cable & plug

3 PACKAGE CONTENT LIST

■ Remove all packing materials
■ Remove remaining packaging and transit supports (if existing)
- Check the completeness of the packing content
- Check the appliance, the power cord, the power plug and all accessories for transportation damages.
- Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1 x Water Pump with 1.2m electric cable

1 x Manual

Key for filter cover

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Denotes risk of personal injury or damage to the tool.	CE	In accordance with essential safety standards of applicable European directives
	This appliance cannot be used by children or people who are physically, mentally or developmentally impaired, or people who lack experience or knowledge, except in case these people receive instruction from a person responsible for their safety, a supervisor, or by studying the preceding instructions concerning use of this appliance.

5 SPECIFIC SAFETY WARNINGS

- This water pump has no water-sprinkling protection feature and should be placed only in a dry environment. Never place the water pump or operate it in the rain or in a humid space.

- This water pump should not be used with flammable or harmful liquids.

- Idle operation of the water pump must be avoided.

- This water pump is for work in clean water. The scope of its application includes irrigation in the garden, water supply to a household, sprinkling in a garden or on farmland.

- This water pump may not be exposed for long periods to impurities, sand, stone, sticky substances, etc., mixed in with the conveyed media. Because the conveyed media may contain chemical corrosive substances, it is necessary to pay special attention to preventing influence by these on the material of the pump body. It is not permitted to use this water pump to convey drinking water.

This appliance cannot be used by children or people who are physically, mentally or developmentally impaired, or people who lack experience or knowledge, except in case these people receive instruction from a person responsible for their safety, a supervisor, or by studying the preceding instructions concerning use of this appliance.

6 ASSEMBLY

• During the installation of the water pump, the power supply to the water pump must be switched off.
• During installation of the equipment, it is necessary to keep it under dry and well-ventilated conditions, at an ambient temperature below 40°C.
• If the required pumping water is excessive due to your own action, resulting in flooding of the irrigation site, a number of protective measures may be taken (e.g. installation of a device for discharging the excess water, an alarm, standby pump, water container, etc.). However, our company is not responsible for any losses thus caused.
  ■ Before use, the water pump should be inspected for safety to ensure that there is no damage to the power cable or the plug.

6.1 Electrical connection

- The electrician responsible for installation must check to ensure that the electrical connection is in accordance with the standard, including the earth terminal.

- It is necessary to check the rated current of the electric contact with protective switch - this must be 30mA.

6.2 Earth

The water pump must be well earthed. Short-circuiting will render the relevant articles of the guarantee invalid. If it is necessary to increase the length of the original cable, a cable with the same section as the original cable must be used.

7 OPERATION

The pumps are not self-priming pumps. This means that the suction hose should first of all be fitted with:

1 Non-return valve with filter; this ensures that, after disconnecting the pump, the hose and the pump do not run dry. This part of the hose is suspended in the water to be pumped away.
2 Hose with coupling nut; this end of the hose is attached to the front of the pump.
3 Both accessories should be securely screwed on to the hose using a hose clip.

Before fastening the hose to the pump, it is best to fill it with water first. After this you can screw the three-way cock or another 25mm (1") connector to the outlet on the pump; this is on the top of the pump.

Then you should fill the pump housing with water through the build-in filter; then re-seal it. If the pump housing and the hose have both now been filled with water, you can switch on the pump using the on/off switch. The pump now immediately begins to pump water (in the case of the auto version, the pressure tank is first filled and it takes a few seconds before water comes out of the connected hose).

If the pump is subsequently switched off again, water remains in the pump housing and the hose which means that when the pump is next switched on it will pump water immediately. If no non-return valve is fitted or if the seal between the valve and the hose is not working properly (hose clip!) the whole unit may run dry again and must be re-filled to get the pump to work properly.

7.1 Pressure hose

The pressure hose is used for conveying the water from the pump to the water consumption point (e.g. tap, etc.). In order to minimize the friction loss caused by the water pressure, we recommend that you use a pressure hose with a minimum diameter of 20mm (3/4").

• When the garden pump is working, the water outlet (e.g. tap or water sprinkling outlet) must be open so as to discharge the air from the hose. If the water outlet is closed, the pump may be damaged due to overheating of the pump after working for more than 5 minutes.
• Freezing of the pump or placing it in a frosty space in the winter must be avoided.
• Sand and stones in the water taken in can rapidly wear the pump and reduce its effective capacity. It is therefore necessary to install a filter.
• This water pump is not suitable for long-term operation, e.g. in industrial or mining enterprises or for a water recycling system.

7.2 Safety requirements

• The power supply must comply with the specifications displayed on the product. Refer to the instructions of your local energy supplier if necessary for connecting conditions. If the pump or the power cable do not comply, do not connect the pump!
  ■ Never carry the pump by the cable.
• Never remove the plug and never shorten the cable. If you do, you will invalidate your guarantee. Keep the connection (plug and socket) dry.
• The pump is not suitable for use in swimming pools and lakes or other situations where persons could come into physical contact with the water, and must therefore not be used for this purpose.
• Always disconnect the pump from the power supply when cleaning it or carrying out maintenance to the pond. This pump is suitable for pumping water with a minimum temperature of 4 °C and a maximum temperature of 35 °C.
• The pump must not run dry, as this will cause irreparable damage.
• Always disconnect the pump from the mains supply before cleaning or maintenance.
• Clean the chambers from time to time, rinsing them with clean water, to ensure they are not clogged with dirt.

8 CLEANING AND MAINTENANCE

Attention !Before performing any work on the equipment, pull the power plug.

8.1 Cleaning

Under normal conditions, the water pump is free of maintenance. However, the pump should not be placed in the open air during rain, in a humid place, or dirty or frozen environment.

• Freezing, idling or blocking by impurities should be avoided.
• Always disconnect the power supply before maintenance of the pump.
• If the power cable is damaged, it must be replaced by professional personnel. Damage caused by short circuiting is not included in scope of the guarantee.
• If trouble with the pump is experienced, guaranteed repairs must be carried out by an authorized maintenance center.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

9 TECHNICAL DATA

type	POWXG9554
Mains voltage / frequency	230V~ /50Hz
Rated power	1000W
Max. pump capacity	3500 l/hour
Max. lift	44 m
Maximum suction level	7 m
Max. water temperature	35°C
Min. diameter of suction hose	1" (25mm)
Min. diameter of pressure hose	3/4" (20mm)
Cable length	1,2 m

10 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	72 dB(A)
Acoustic power level LwA	86 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

11 TROUBLE SHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
The electric motor is running but the pump does not suck water	After the pump starts, the pump body does not fill with waterInsufficient tightness of the suction hose	Fill the pump with waterCheck the recommended and used pans and components of the pump, e.g. joint of the suction nose, joint of the pressure hose, clamping ring, suction hose, etc., including screw sealing strip made from Teflon or hemp cord. The pump can work only when well sealed
	The filter screen of the non-return valve of the sucking inlet is blocked	Clean the non-return of the sucking inlet and the filter screen
	The air can't be released from the pressure hose because the water outlet is closed	When the pump starts sucking, open the water outlet (e.g. the tap. sprinkling nozzle etc.)
	The waiting time does not correspond to the regulations	Fill the whole suction hose with water, or recheck it at least 7 minutes after the pump starts
	Excessive suction head (>8m)	Reduce the suction head
	The non-return fails to suck water	Check the water level of the well or the water pool. If possible, increase the length of the suction hose.
The electromotor cannot run	No power supplied	Check the power supply
	The ventilator hood obscures rotation of the vane	Pull out the power plug, remove the ventilator hood with a screwdriver, then reinstall it again by slightly rotating the vane and check to see if it rotates freely
	Fan blocked	Pull out the power plug, move the shaft with the screwdriver through the ventilator hood. If the shaft is blocked, send it to a service center for inspection
Insufficient water flow-out	Excessive suction head (>8m)	Check the suction head
	The filter screen of the non-return is blocked	Clean the filter screen
	The suction water level lowered too much	Immerse the non-return in deep water
	Impurities have reduced the effective capacity of the pump	Wash the shell of the pump, the suction hose and the outlet pressure hose with pressurized water
The heat-sensitive switch cannot switch-off the pump	Over-load of the electric motor due to friction caused by impurities entering the motor	Wash the shell of the pump with pressured water

PROBLEM

The switch of the pump is always OFF or ON

Frequent switching ON/OFF of the pump switch (when used for household water supply system)

POSSIBLE CAUSE

No non-return valve installed on the suction hose

Rupture of the rubber envelope in the pressure tank

No compressed air in the container

SOLUTION

Check to see if a valve is installed on the suction hose

Replace the rubber envelope or the container

Use an adequate valve and conned this with a compressed air supply at 1.8 bar, and fill the container with air

12 WARRANTY

• This product is warranted as provided by law for a 36 months period effective from the date of purchase by the first user.
• This warranty covers all material or production flaws. It does not include defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc.; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
• We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
• Repairs may only be carried out by an authorized customer service center for Powerplus tools.
• You can always obtain more information at the number 00 32 3 292 92 90.
• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
• Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
• Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
• Your purchase receipt must be kept as proof of date of purchase.
• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

13 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

14 DECLARATION OF CONFORMITY

VARO N.V. -- Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: Pressure Pump 1000W Ss Ring Garden

Trade mark: POWERplus

Model: POWXG9554

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2014/35/EU

2014/30/EU

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60335-1:2012

EN60335-2-41:2003

EN55014-1:2017

EN55014-2:2015

EN IEC61000-3-2:2019

EN61000-3-3:2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Mertens Ludo

Ludo Mertens

Regulatory Affairs – Compliance Manager

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

Regulatory Affairs – Compliance Manager

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 BRUKSOMRÅDE 2
2 BESKRIVELSE (FIG. A)......2
3 PAKKENS INNHOLD 2
4 SYMBOLFORKLARING....2
5 SPESIELLE SIKKERHETSADVARSLER 3
6 MONTASJE 3
6.1 Elektrisk tilkobling ....3
6.2 Jording....3
7 BRUK....3
7.1 Trykkslange....4
7.2 Krav til sikkerhet....4
8 RENGJ∅RING OG VEDLIKEHOLD 4
8.1 Rengjøring....4
9 TEKNISKE DATA....5
10 ST∅Y 5
11 FEILS∅KING 5
12 GARANTI....7
13 MILJ∅ 7
14 SAMSVARSERKLÆRING 8

HAGEPUMPE 1000W

POWXG9554

1 BRUKSOMRÅDE

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

Europeiske harmoniserte standarder (med eventuelle endringer inntil dato for underskrift):

EN60335-1:2012

EN60335-2-41:2003

EN55014-1:2017

EN55014-2:2015

EN IEC61000-3-2:2019

EN61000-3-3 : 2013

01/07/2021, Lier - Belgium

1 ANVENDELSE 2
2 BESKRIVELSE (FIG. A) 2
3 MEDF∅LGENDE INDHOLD 2
4 SYMBOLER....2
5 SPECIFIKKE SIKKERHEDSFORSKRIFTER....3
6 MONTERING....3
6.1 Elektrisk tilslutning....3
6.2 Jord....3
7 BETJENING 3
7.1 Trykrør 4
7.2 Sikkerhedskrav 4
8 RENG∅RING OG VEDLIGEHOLDELSE....5
8.1 Rengøring....5
9 TEKNISKE DATA....5
10 ST∅J....5
11 FEJLFINDING 5
12 GARANTI....7
13 MILJ∅ 7
14 KONFORMITETSERKLÆRING....8

HAVEPUMPE 1000W

POWXG9554

1 ANVENDELSE

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 ANVÄNDNINGSOMRÅDE 2
2 BESKRIVNING (FIG. A) 2
3 FÖRPACKNINGSINNEHÅLL 2
4 SYMBOLER....2
5 SÄRSKILDA SÄKERHETSFÖRESKRIFTER 3
6 MONTERING....3
6.1 El-anslutning 3
6.2 Jord....3
7 ANVÄNDNING....3
7.1 Tryckslang....4
7.2 Säkerhetskrav 4
8 RENGÖRING OCH UNDERHÅLL 5
8.1 Rengöring....5
9 TEKNISKA DATA....5
10 BULLER 5
11 FELSÖKNING 5
12 GARANTI....7
13 MILJÖHÄNSYN....7
14 KONFORMITETSDEKLARATION....8

TRÄDGÅRDSPUMP 1000W POWXG9554

1 ANVÄNDNINGSOMRÅDE

3 FÖRPACKNINGSINNEHÅLL

14 KONFORMITETSDEKLARATION

VARO N.V. -- Vic. Van Rompuy N.V. - deklarerar härmed att,

Joseph Van Instraat 9 - BE2500 Lier - Belgien,

Produkt: TRÄDGÅRDSPUMP 1000W

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 KÄYTTÖ 2
2 LAITTEEN OSAT (KUVA A) 2
3 PAKKAUKSEN SISÄLTÖ....2
4 SYMBOLIT 2
5 ERITYISIÄ TURVAVAROITUKSIA....3
6 LAITTEEN KOKOAMINEN 3
6.1 Sähköliitäntä....3
6.2 Maadoitus....3
7 KÄYTTÖ 3
7.1 Paineputki....4
7.2 Turvallisuusvaatimukset 4
8 PUHDISTUS JA HUOLTO 4
8.1 Puhdistus....5
9 TEKNISET TIEDOT 5
10 MELU....5
11 VIANETSINTÄ....5
12 TAKUU 7
13 LAITTEEN KÄYTÖSTÄ POISTAMINEN 7
14 YHDENMUKAISUUSILMOITUS 8

PIHAPUMPPU 1000W

POWXG9554

1 KÄYTTÖ

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 UREĐAJ 2
2 OPIS (SI. A) 2
3 POPIS SADRŽAJA PAKIRANJA 2
4 SIMBOLI 2
5 POSEBNA SIGURNOSNA UPOZORENJA 3
6 SASTAVLJANJE....3
6.1 Električni priključci 3
6.2 Uzemljenje....3
7 UPOTREBA....3
7.1 Tlačno crijevo....4
7.2 Sigurnosni zahtjevi 4
8 ČIŠĆENJE I ODRŽAVANJE 4
8.1 Čišćenje....4
9 TEHNIČKI PODACI....5
10 BUKA....5
11 RJEŠAVANJE PROBLEMA....5
12 JAMSTVO....7
13 OKOLIŠ 7
14 IZJAVA O SUKLADNOSTI 8

VRTNA CRPKA 1000W

POWXG9554

1 UREĐAJ

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

Evropski harmonizovani standardi (uključujući, ukoliko je to primenljivo, njihove dopune do dana potpisivanja):

EN60335-1:2012

EN60335-2-41:2003

EN55014-1:2017

EN55014-2:2015

EN IEC61000-3-2 : 2019

EN61000-3-3 : 2013

Čuvar tehničke dokumentacije: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

Dole potpisani deluje u ime generalnog direktora kompanije,

Mertens Ludo

Ludo Mertens

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 POUŽÍVANIE 2
2 POPIS (OBR. A)....2
3 OBSAH BALENIA....2
4 VYSVETLENIE SYMBOLOV 2
5 ŠPECIFICKÉ BEZPEČNOSTNÉ VAROVANIA....3
6 MONTÁŽ....3
6.1 Elektrické pripojenie....3
6.2 Uzemnenie....3
7 PREVÁDZKA 3
7.1 Tlaková hadica....4
7.2 Bezpečnostné požiadavky 4
8 ČISTENIE A ÚDRŽBA 5
8.1 Čistenie ....5
9 TECHNICKÉ ÚDAJE....5
10 HLUK....5
11 ODSTRAŇOVANIE PORÚCH....5
12 ZÁRUKA....7
13 ŽIVOTNÉ PROSTREDIE....8
14 VYHLÁSENIE O ZHODE 8

ZÁHRADNÉ ČERPADLO 1000W POWXG9554

1 POUŽÍVANIE

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

1 DOMENII DE UTILIZARE....2
2 DESCRIERE (FIG. A)....2
3 CONTINUTUL PACHETULUI 2
4 SIMBOLURI....2
5 AVERTISMENTE DE SIGURANTĂ SPECIFICE....3
6 MONTAJUL....3
6.1 Racorduri electrice ....3
6.2 Împământarea ....3
7 FUNCTIONAREA 3
7.1 Furtunul de presiune....4
7.2 Măsuri de siguranță obligatorii....4
8 CURĂȚARE ȘI ÎNTRETINERE ....4
8.1 Curățarea....4
9 DATE TEHNICE 5
10 ZGOMOT 5
11 DEPANAREA....5
12 GARANTIE 7
13 MEDIU 7
14 DECLARATIA DE CONFORMITATE 8

POMPĂ PENTRU GRĂDINĂ 1000W POWXG9554

1 DOMENII DE UTILIZARE

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

2000/14/EC Annex V LwA measured 86dB(A) / guaranteed 88dB(A)

01/07/2021, Lier - Belgium

Yellow power pump with black handle and ventilation grille (no visible text or symbols)

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM

OFFICES: IBERICA BRICOLAGE S.L. - ESPAÑA ASIA PACIFIC HONG KONG Ltd / SHANGHAI PRC AUSTRALIA Pty Ltd / GERMANY GmbH
